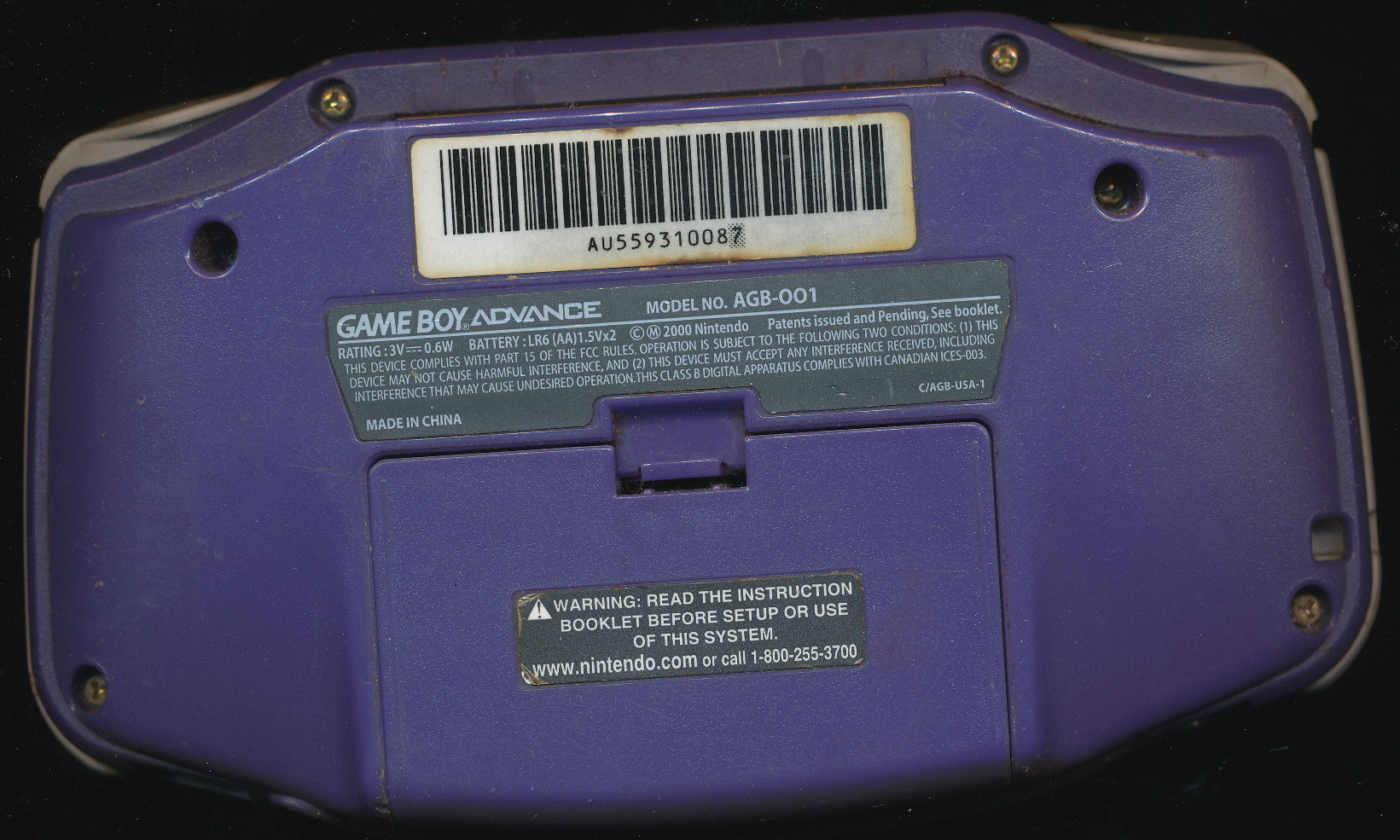

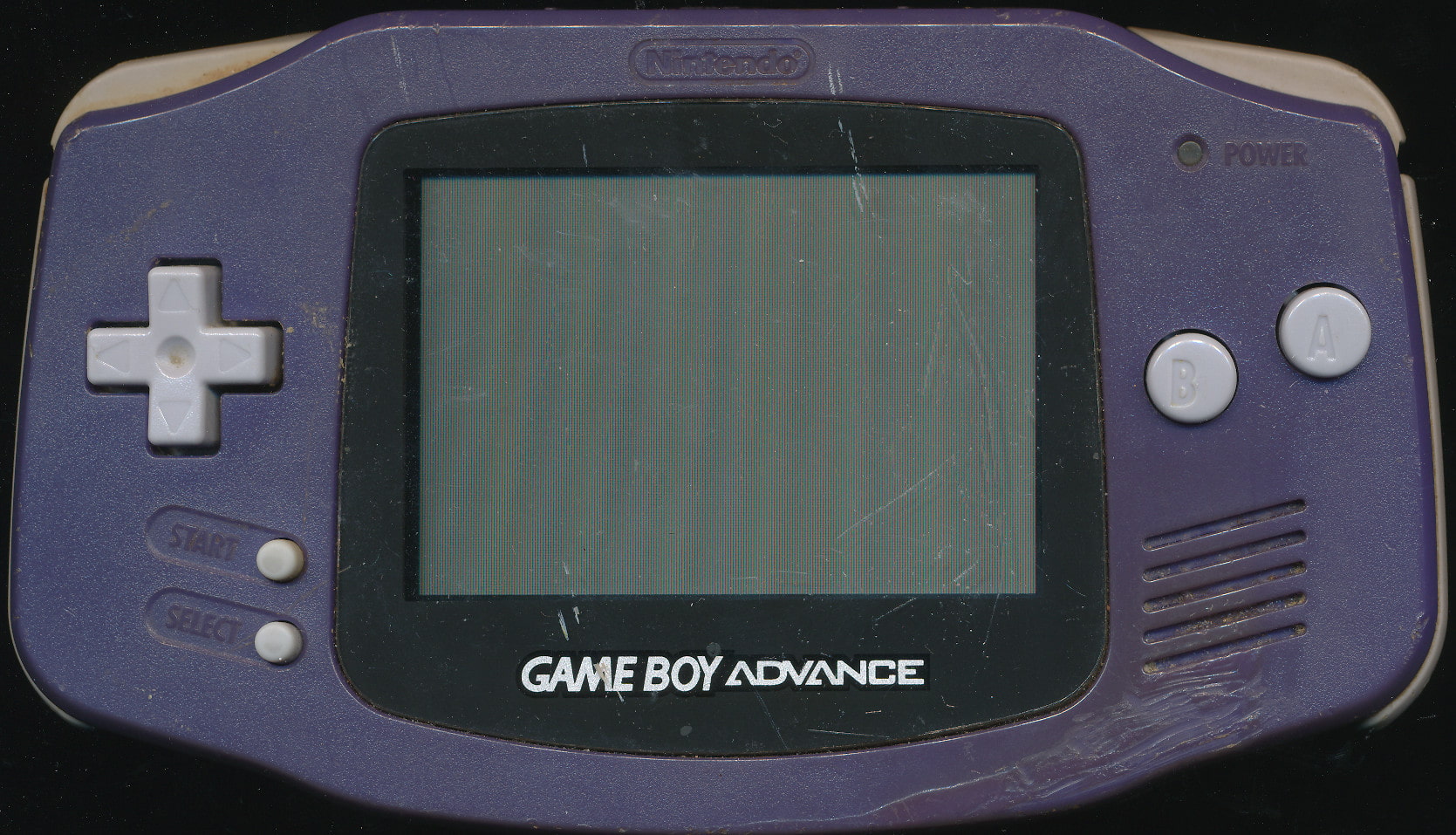

AGB: AU55931008-7 [Pokechu22]
- Color
- Indigo
- Release code
- C/AGB-USA-1
- Assembly date
- Week 49/2001

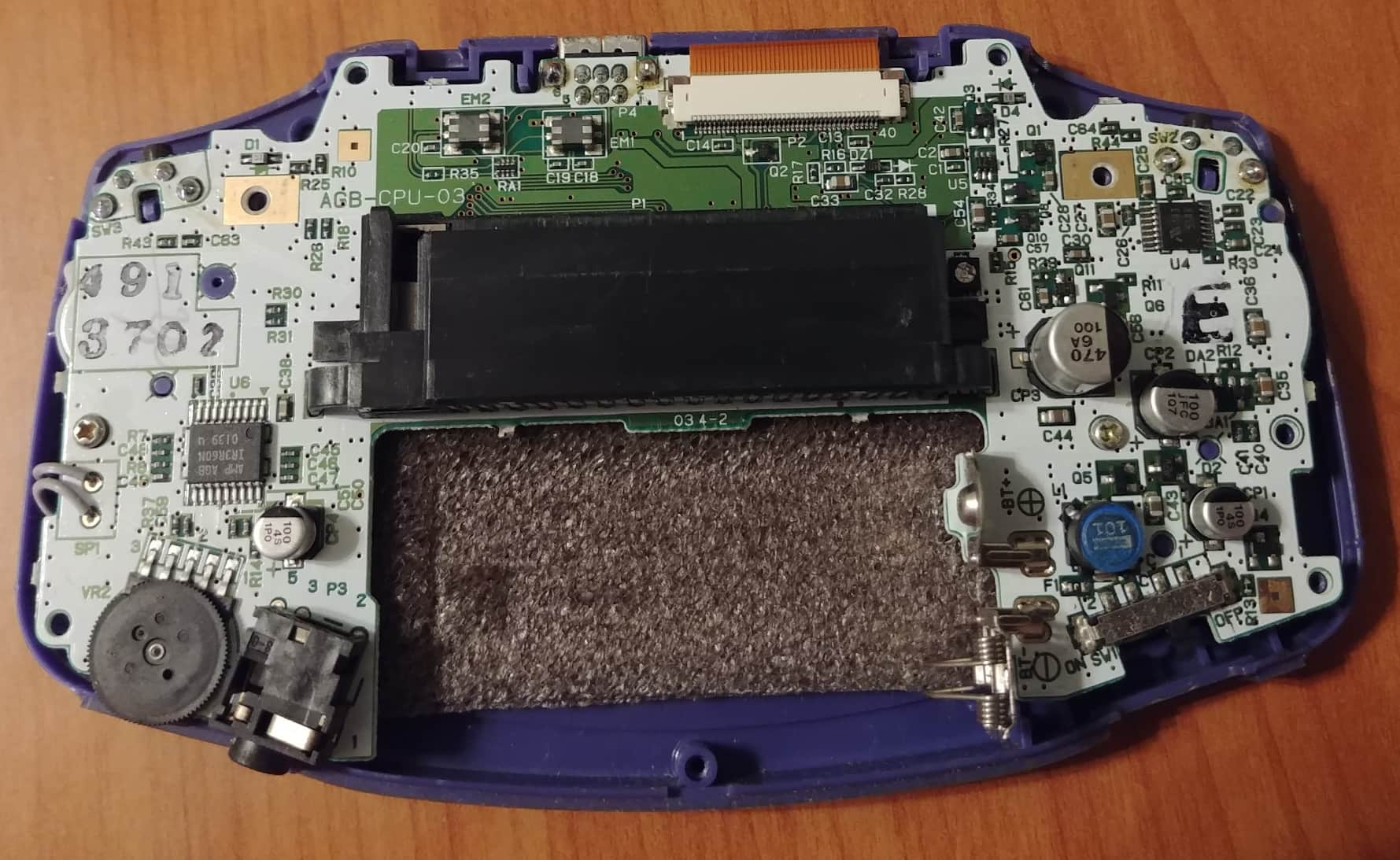

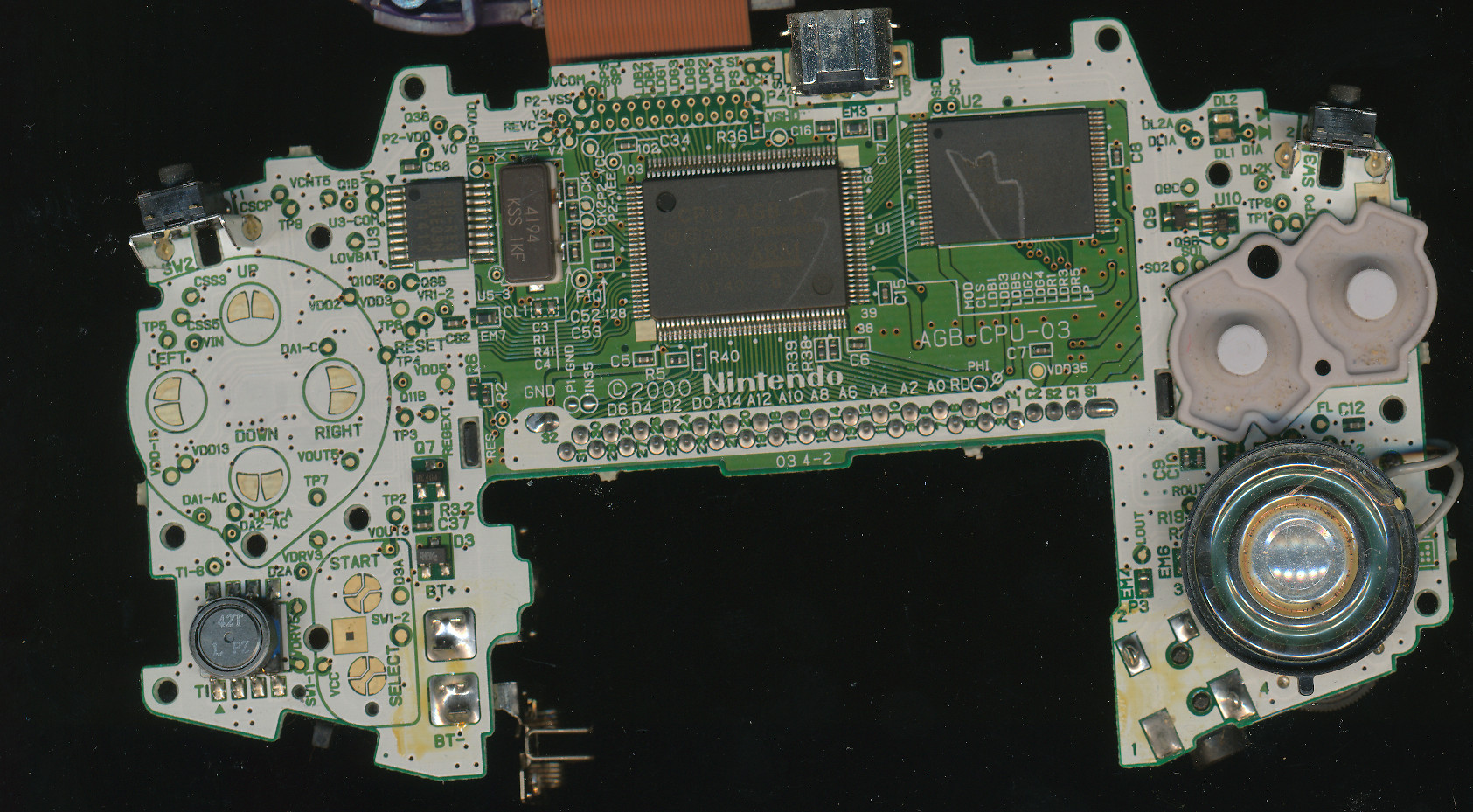

Mainboard
- Board type
- AGB-CPU-03
- Number pair on board
- 4-2
- Stamp on board
- 491 3702
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Week 40/2001 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0140 O | |
| U2 | WRAM | μPD442012LGY-B85X-MJH | NEC | Week 38/2001 | NEC JAPAN D442012LGY-B85X-MJH 0138K7037 |
| U3 | LCD bias generator | IR3E09N | Sharp | Week 41/2001 | AGB-REG IR3E09N 0141 K |
| U4 | ? | MM1514X | Mitsumi | Week 43/2001 | 143 514X |
| U6 | Audio amplifier | IR3R60N | Sharp | Week 39/2001 | AMP AGB IR3R60N 0139 u |
| X1 | Crystal | 4.194304 MHz | Kinseki | October/2001 | 4194 KSS 1KF |
