Game Boy Advance SP (AGS)

IDBoardCPU (U1)WRAM (U2)Amplifier (U3)U4Battery controller (U5)Crystal (X1)Photos
XEH12776954
C/AGS-CPU-10
Aug/2003
CPU AGB B
33/2003
Sharp
BS616LV2019TC-70
35/2003
BSI
IR3R60N
33/2003
Sharp
S6403
2003
????
MM1581A
32/2003
Mitsumi
KDSI 4.194
32/2003
????
XEH17807928
C/AGS-CPU-21
????
CPU AGB B E
9/2005
Sharp
????
IR3R60N
33/2003
Sharp
9753
????
????
MM1581A
8/2005
Mitsumi
4194 KSS
Dec/2004
????
XEH20137204
C/AGS-CPU-30
Apr/2006
CPU AGB B E
2/2006
Sharp
D442012AGY-BB85X-MJH
3/2006
NEC
PM B3
2/2006
Mitsumi
--
KDSI 4.194
49/2005
????

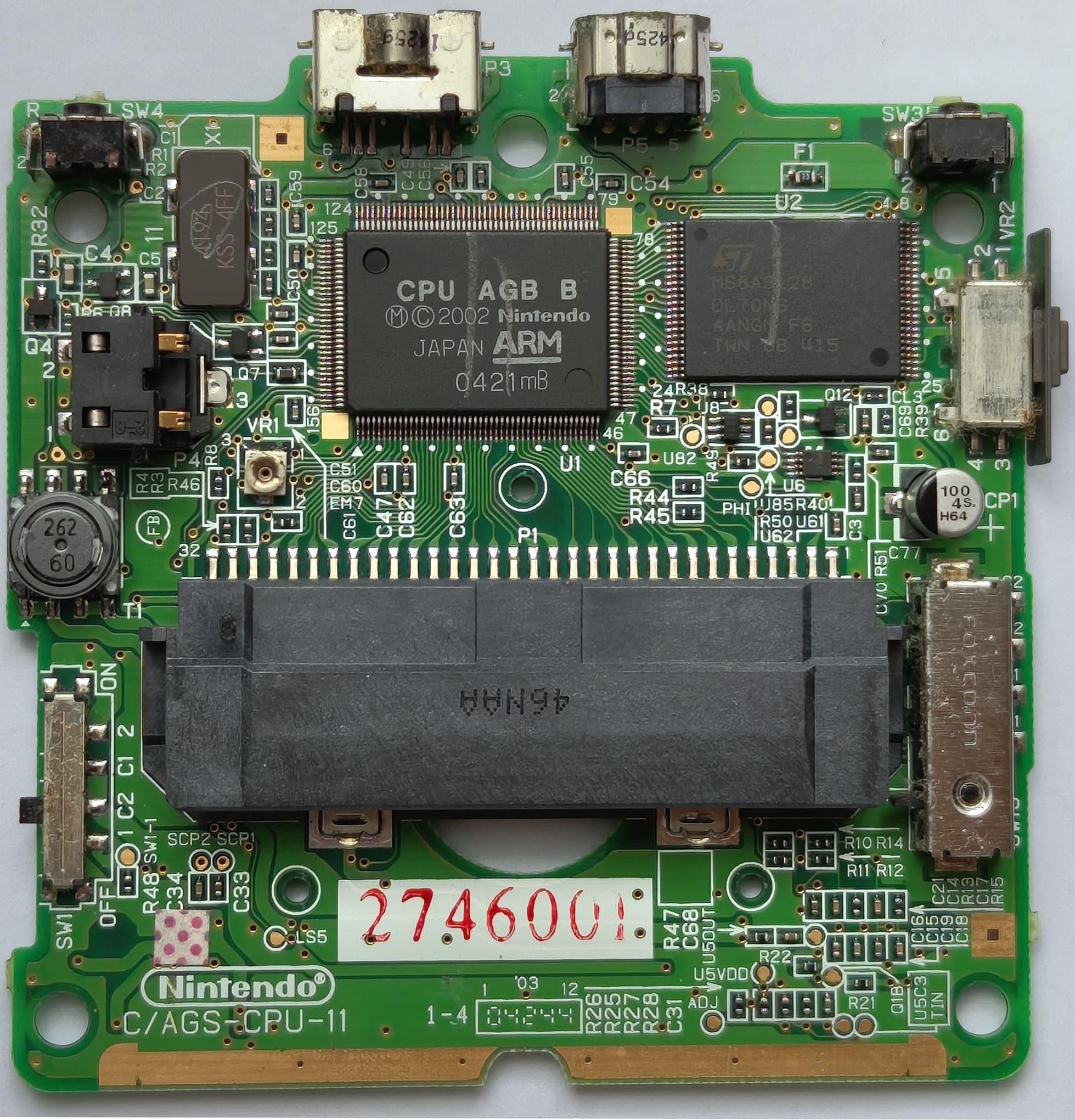

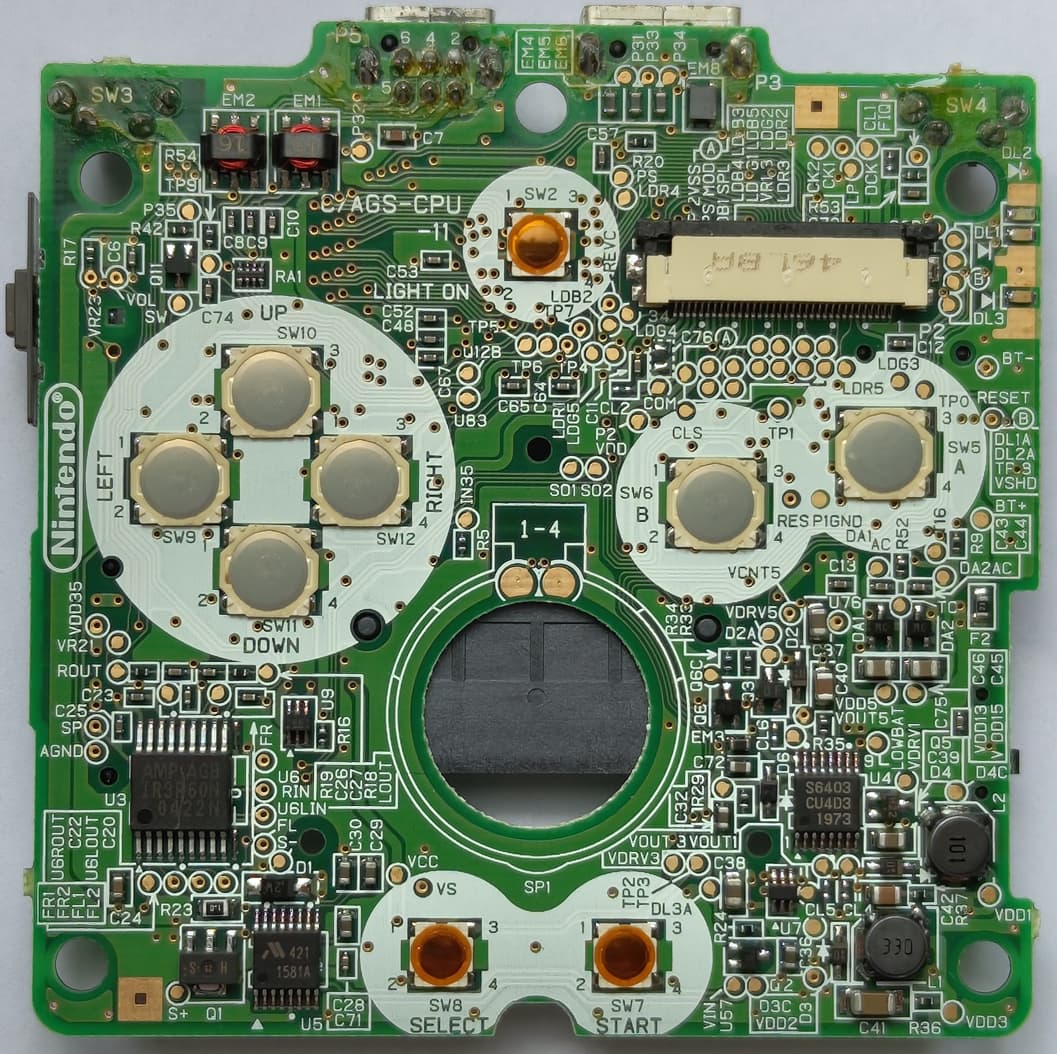

XJF10485171
C/AGS-CPU-11
2003
CPU AGB B
20/2004
Sharp
M68AS128 DL7ON6
14/2004
STMicroelectronics
IR3R60N
24/2004
Sharp
S6403
2004
????
MM1581A
22/2004
Mitsumi
4194 KSS
May/2004
Kinseki
XJH10027945
C/AGS-CPU-01
????
CPU AGB B
47/2002
Sharp
????
IR3R60N
33/2003
Sharp
S6403
2002
????
????
KDSI 4.194
46/2002
????
XJH14504809
C/AGS-CPU-01
2003
CPU AGB B
15/2004
Sharp
BS616LV2019TC-70
10/2004
BSI
IR3R60N
13/2004
Sharp
S6403
2004
????
MM1581A
15/2004
Mitsumi
4194 KSS
Apr/2004
Kinseki
XJH20053398
C/AGS-CPU-30
Apr/2006
CPU AGB B E
45/2005
Sharp
D442012AGY-BB85X-MJH
8/2006
NEC
PM B3
52/2005
Mitsumi
--
4194 KSS
Mar/2006
Kinseki
XU72764025-1
C/AGT-CPU-01
Dec/2005
CPU AGB B E
41/2005
Sharp
LP62S16128BW-70LLTF
40/2005
AMIC Technology
PM B3
44/2005
Mitsumi
--
KDSI 4.194
38/2005
????

Data dumps

UTF-8 encoded CSV
