AGB: Unit #1 [tobiasvl]
- Color
- Black
- Release code
- C/AGB-EUR
- Assembly date
- Week 2/2003

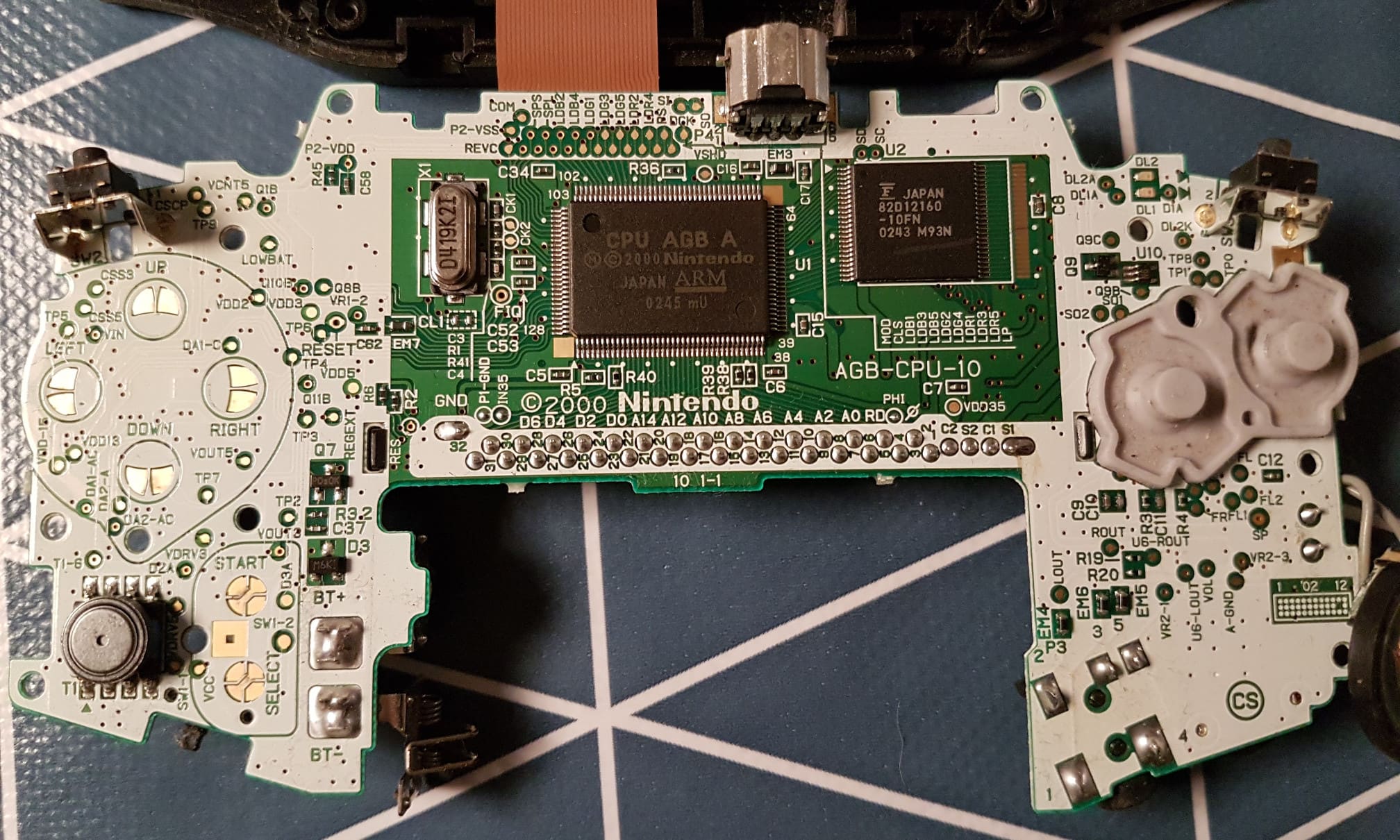

Mainboard
- Board type
- AGB-CPU-10
- Manufacture date
- November/2002
- Number pair on board
- 1-1

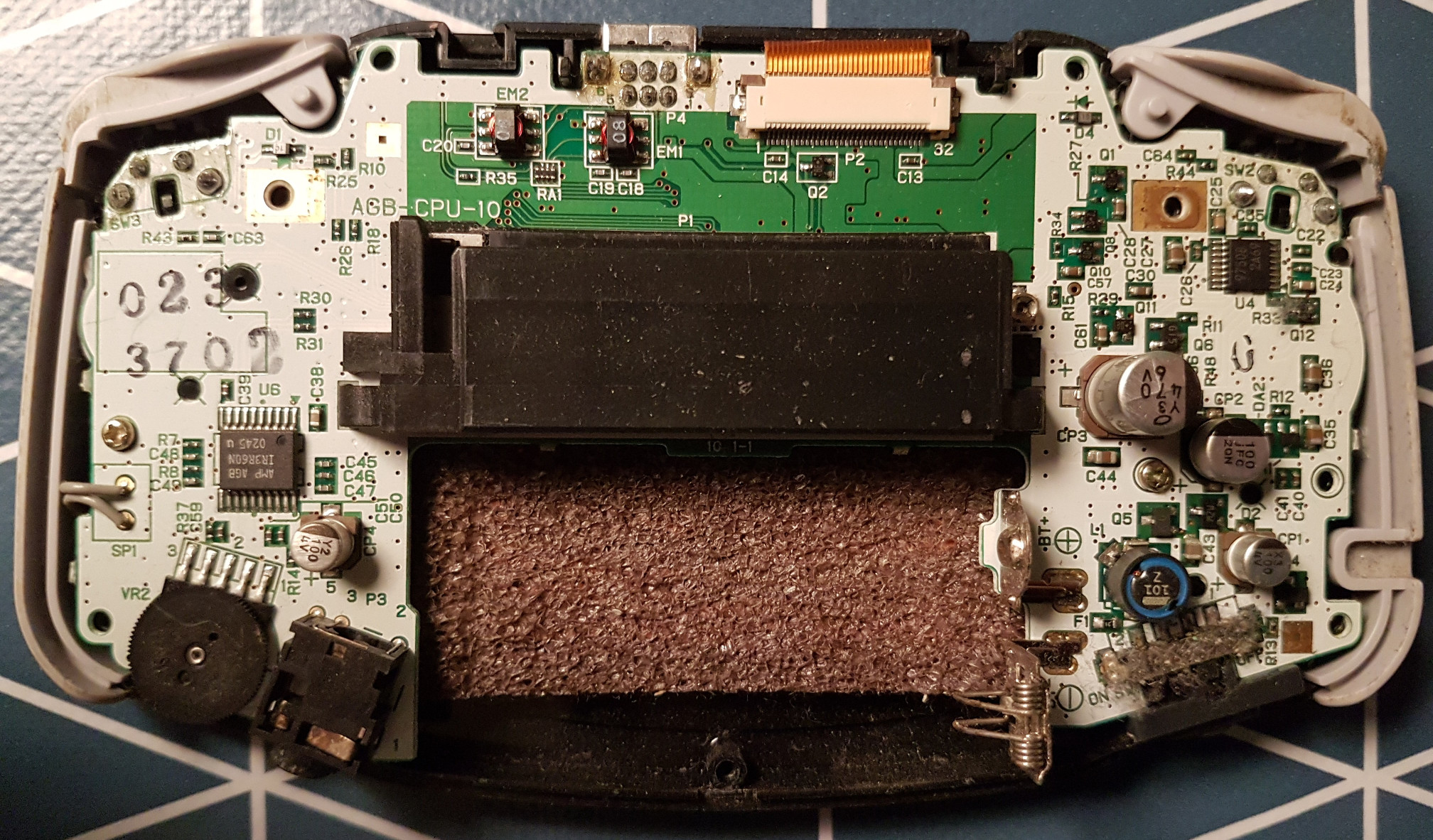

- Stamp on board
- 023 3702
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Sharp | Week 45/2002 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0245 mU |
| U2 | WRAM | MB82D12160-10FN | Fujitsu | Week 43/2002 | JAPAN 82D12160-10FN 0243 M93N |
| U3 | LCD bias generator | ||||
| U4 | ? | 9750B | ROHM | October/2002 | 9750B 2A69 |
| U6 | Audio amplifier | IR3R60N | Sharp | Week 45/2002 | AMP AGB IR3R60N 0245 u |
| X1 | Crystal | 4.194304 MHz | Daishinku | October/2002 | D419K2I |
