AGS: XJH12482490 [Perigeee]
- Color
- PearlPink
- Release code
- C/AGS-JPN

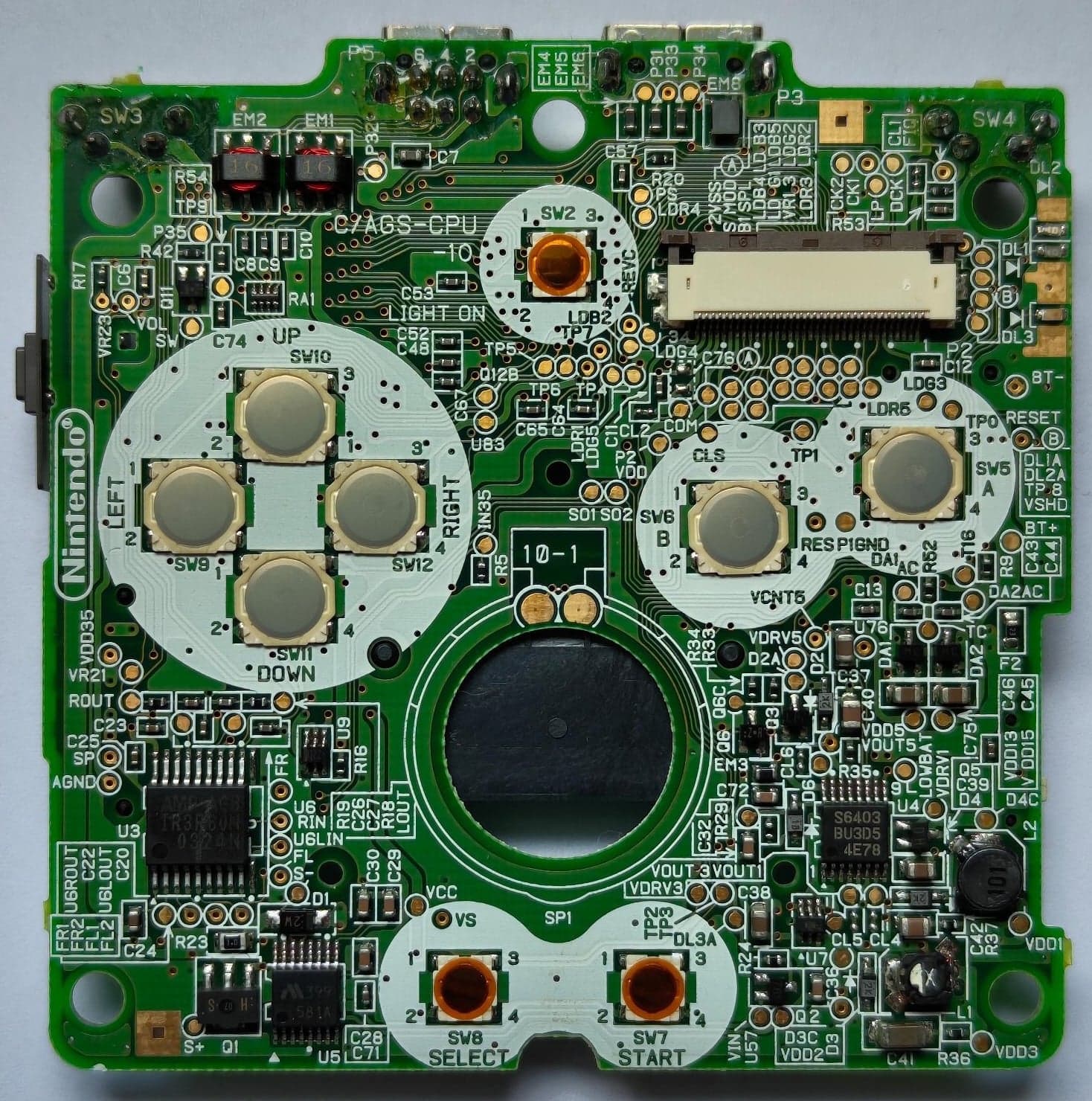

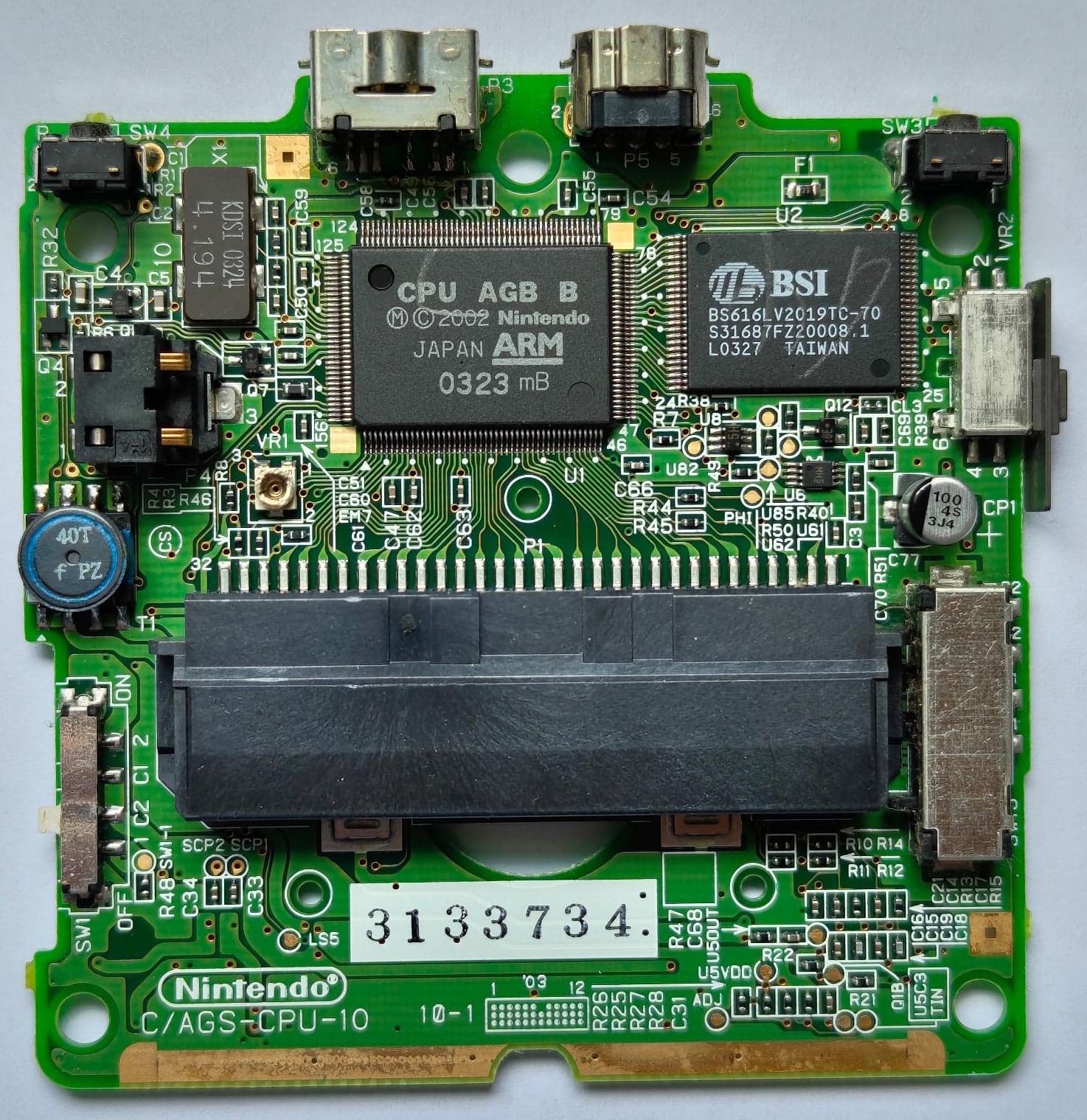

Mainboard
- Board type
- C/AGS-CPU-10
- Manufacture date
- July/2003
- Number pair on board
- 10-1
- Stamp on board
- 3133734
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB B | Sharp | Week 23/2003 | CPU AGB B Ⓜ © 2002 Nintendo JAPAN ARM 0323 mB |
| U2 | WRAM | BS616LV2019TC-70 | BSI | Week 27/2003 | BSI BS616LV2019TC-70 S31687FZ20008.1 L0327 TAIWAN |
| U3 | Amplifier | IR3R60N | Sharp | Week 24/2003 | AMP AGB IR3R60N 0324 N |
| U4 | ? | S-6403B | Seiko Instruments Inc. | 2003 | S6403 BU3D5 4E78 |
| U5 | Battery controller | MM1581A | Mitsumi | 2003 | 399 581A |
| X1 | Crystal | 4.194304 MHz | Daishinku | Week 24/2003 | KDSI 0324 4.194 |
