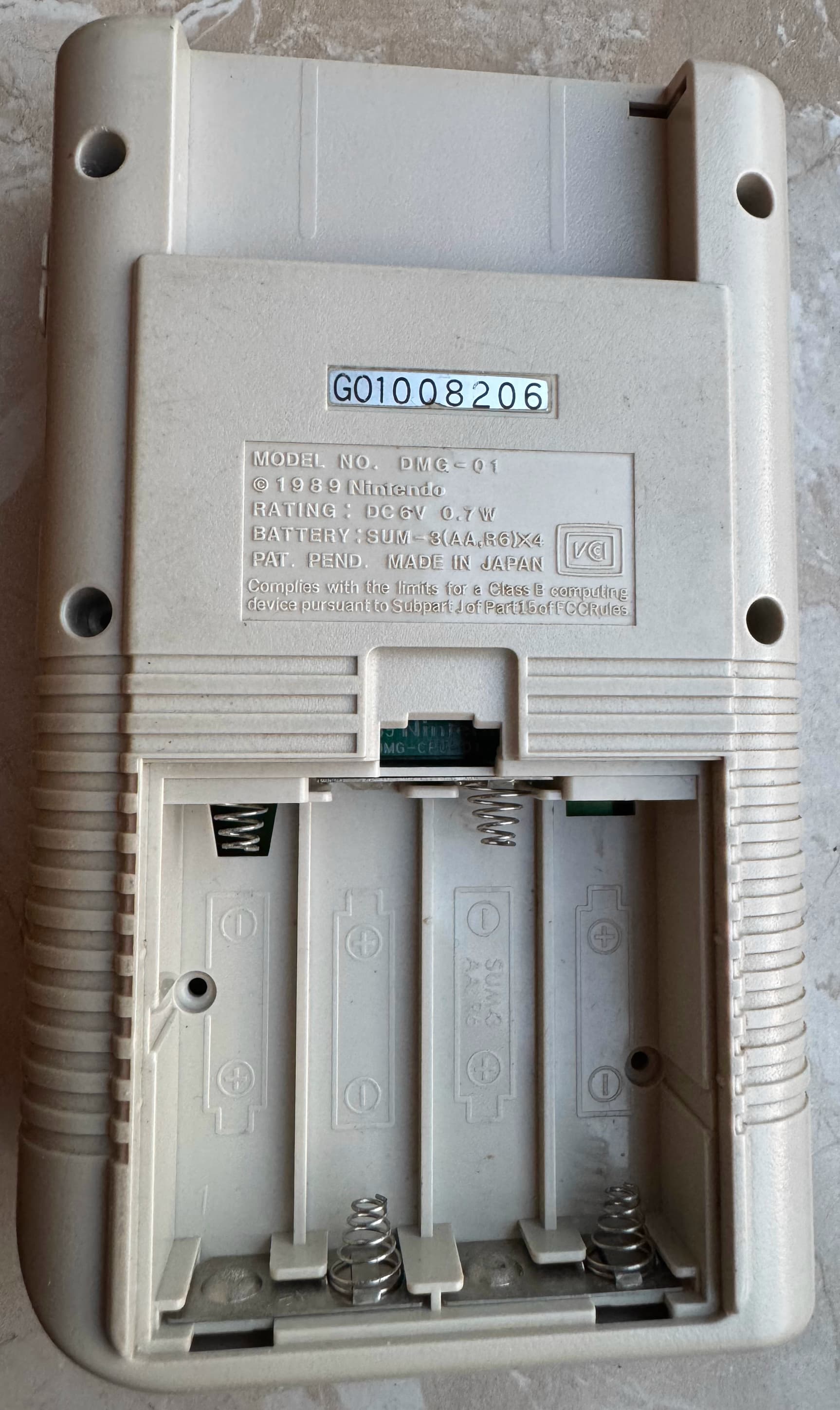

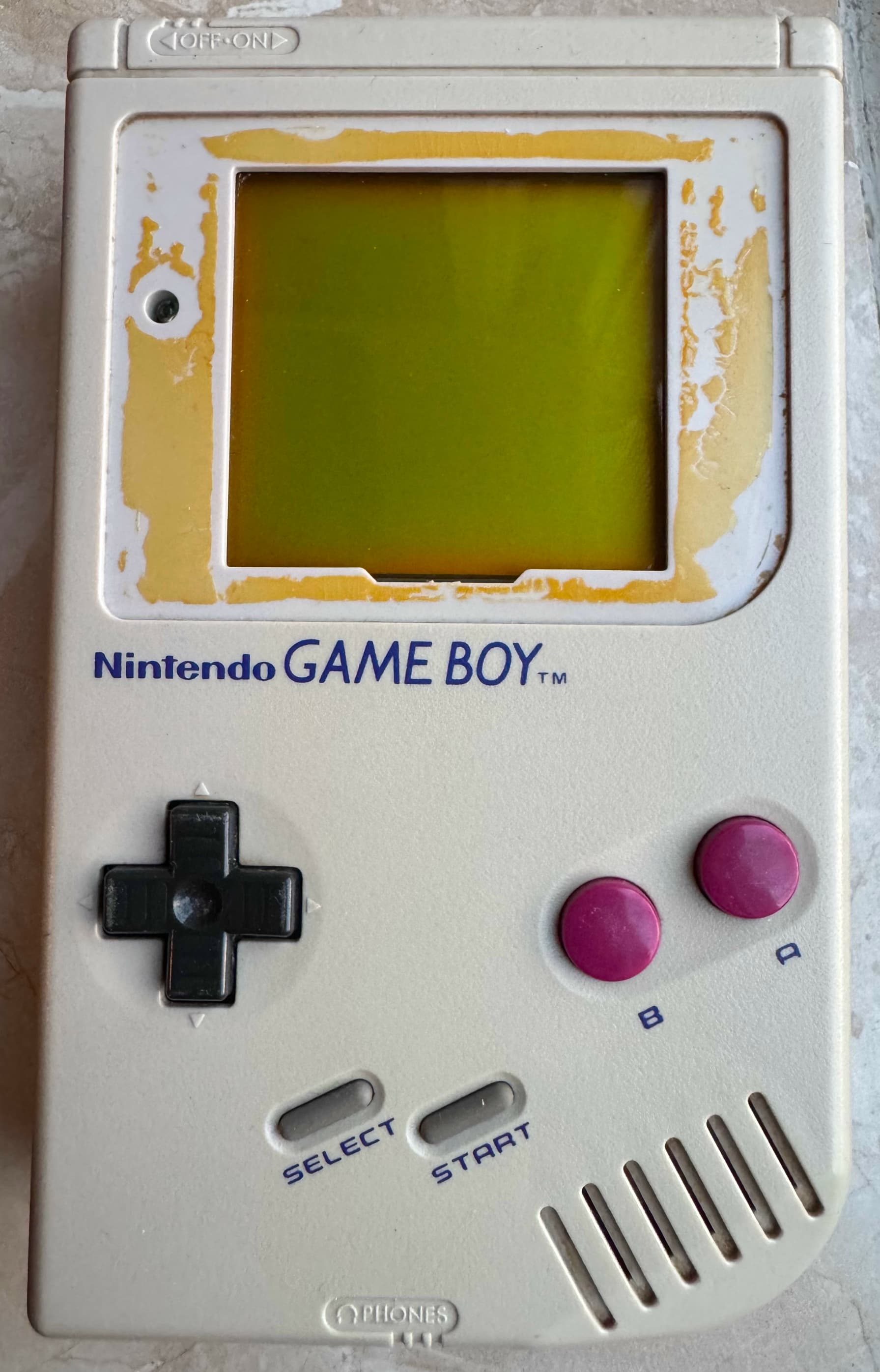

DMG: G01008206 [Operratic]
- Color
- OffWhite
- Assembly date
- March/1989

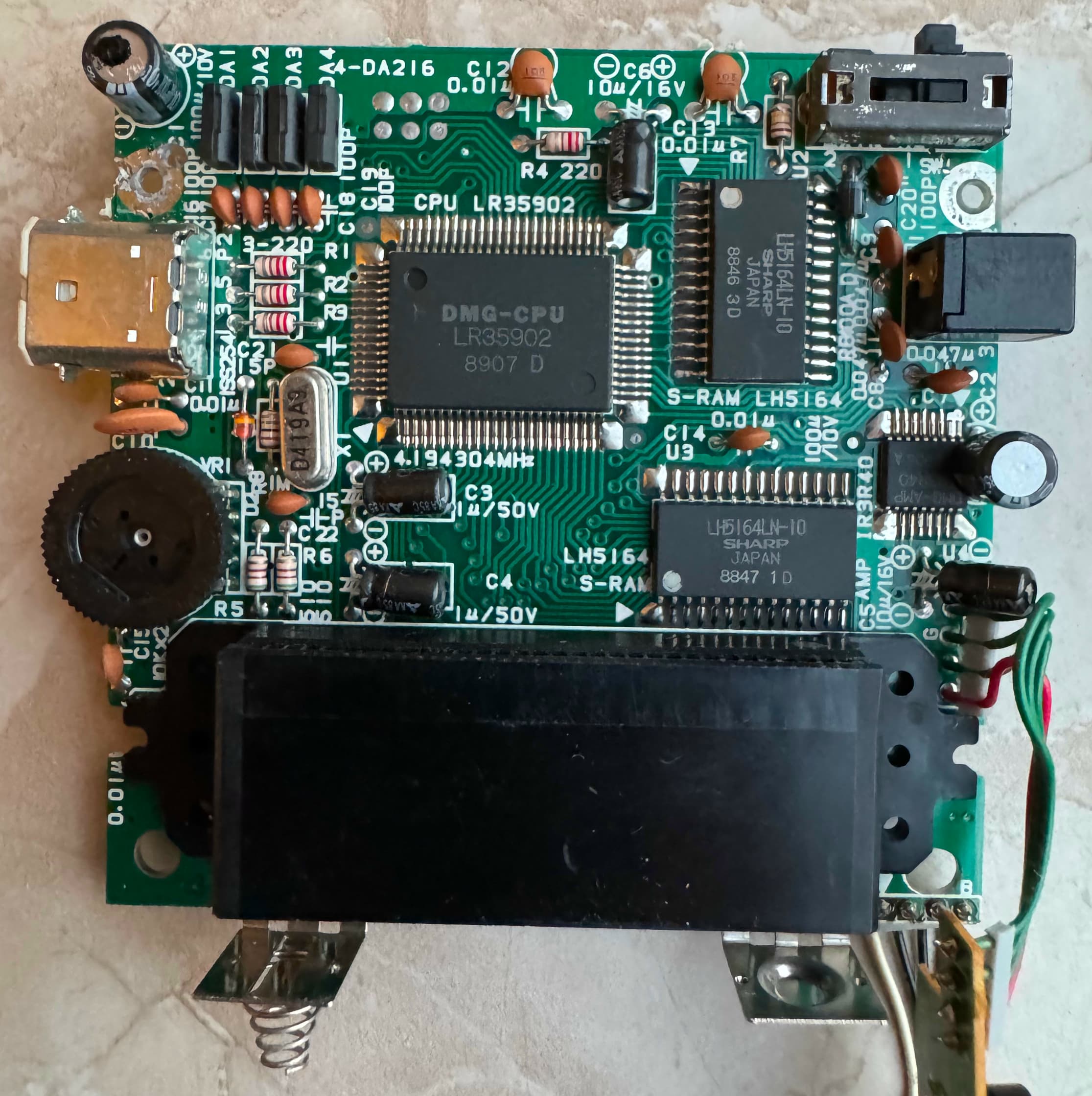

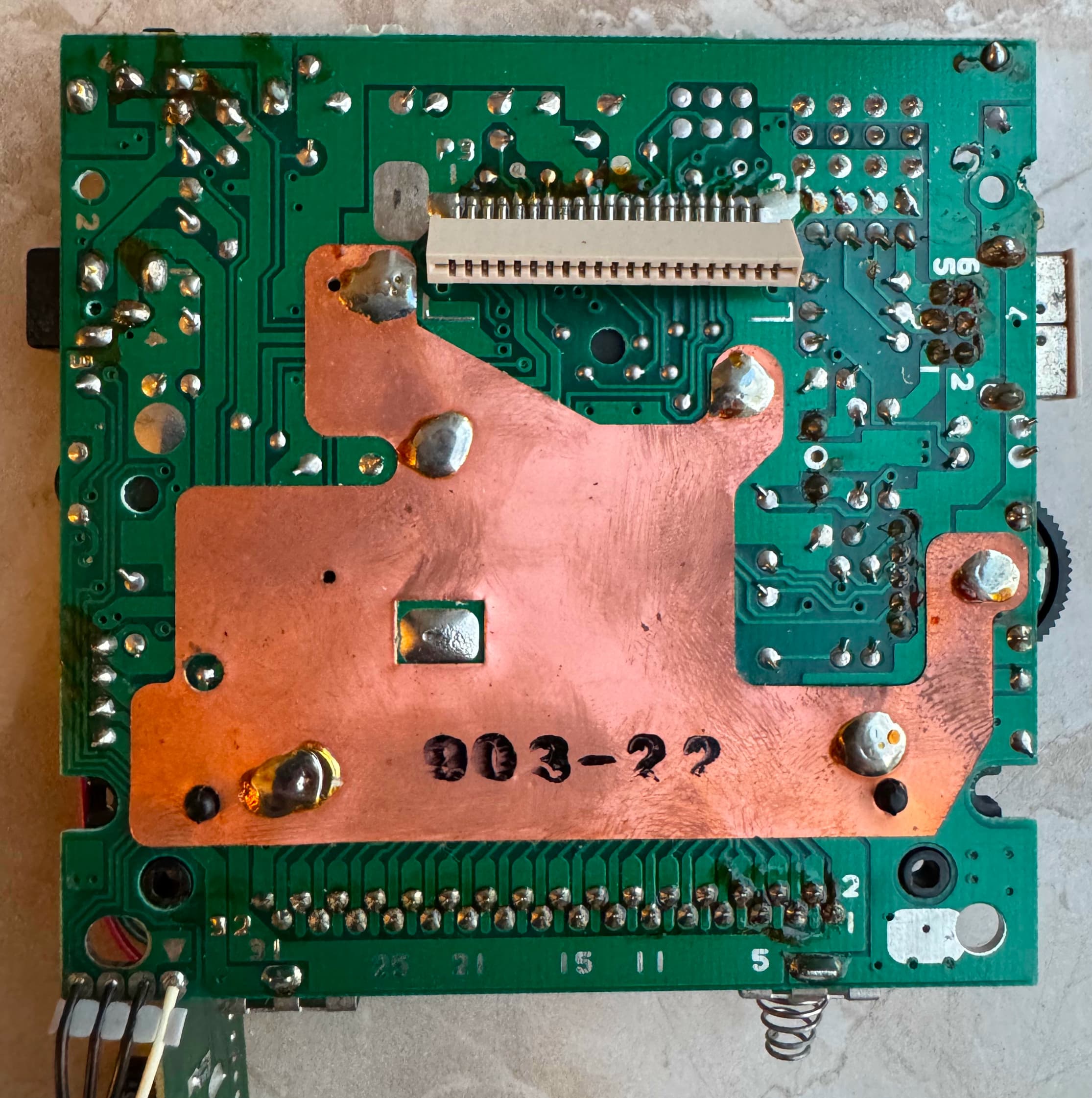

Mainboard
- Board type
- DMG-CPU-01
- Stamp on board
- 903-22

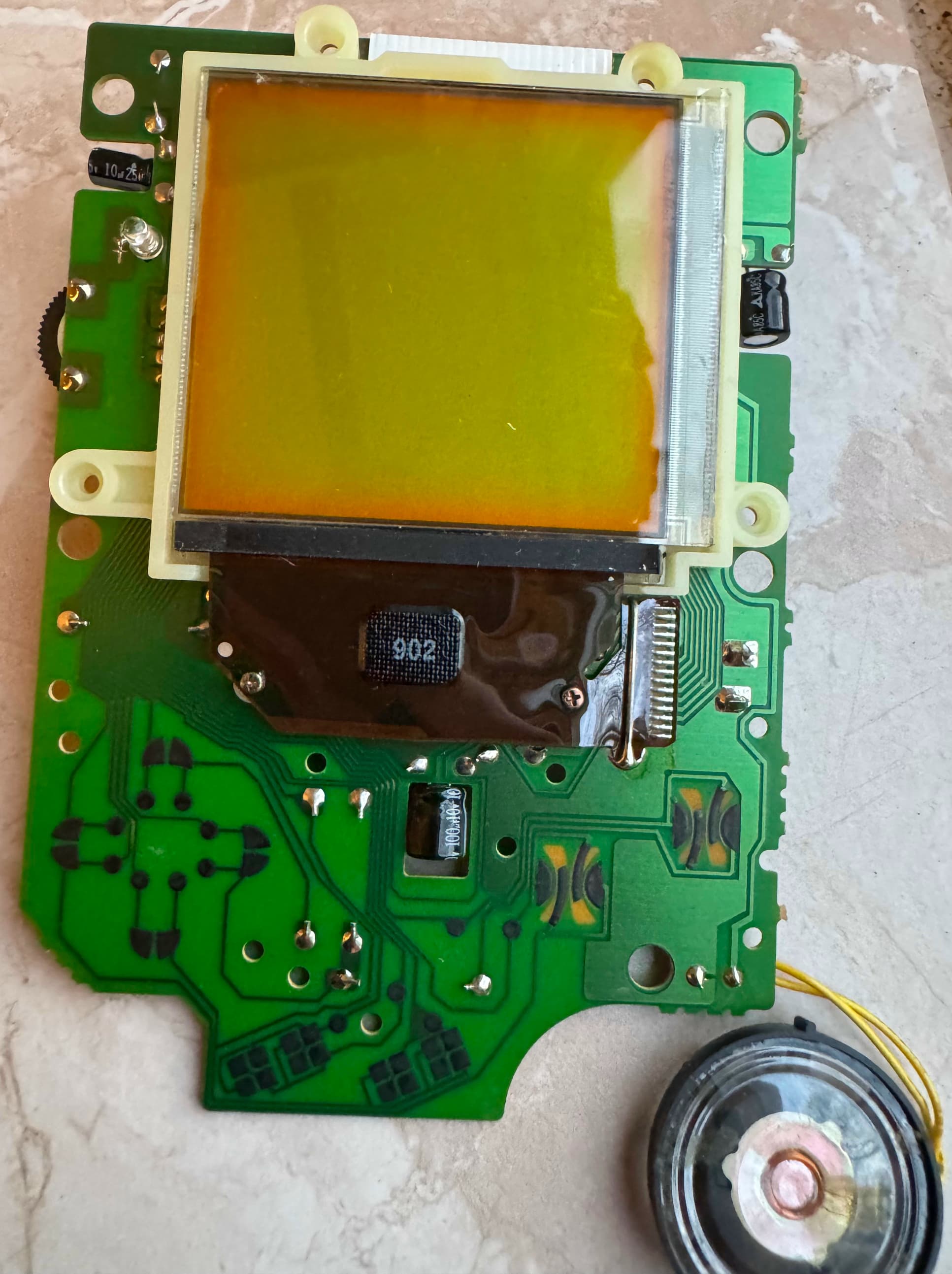

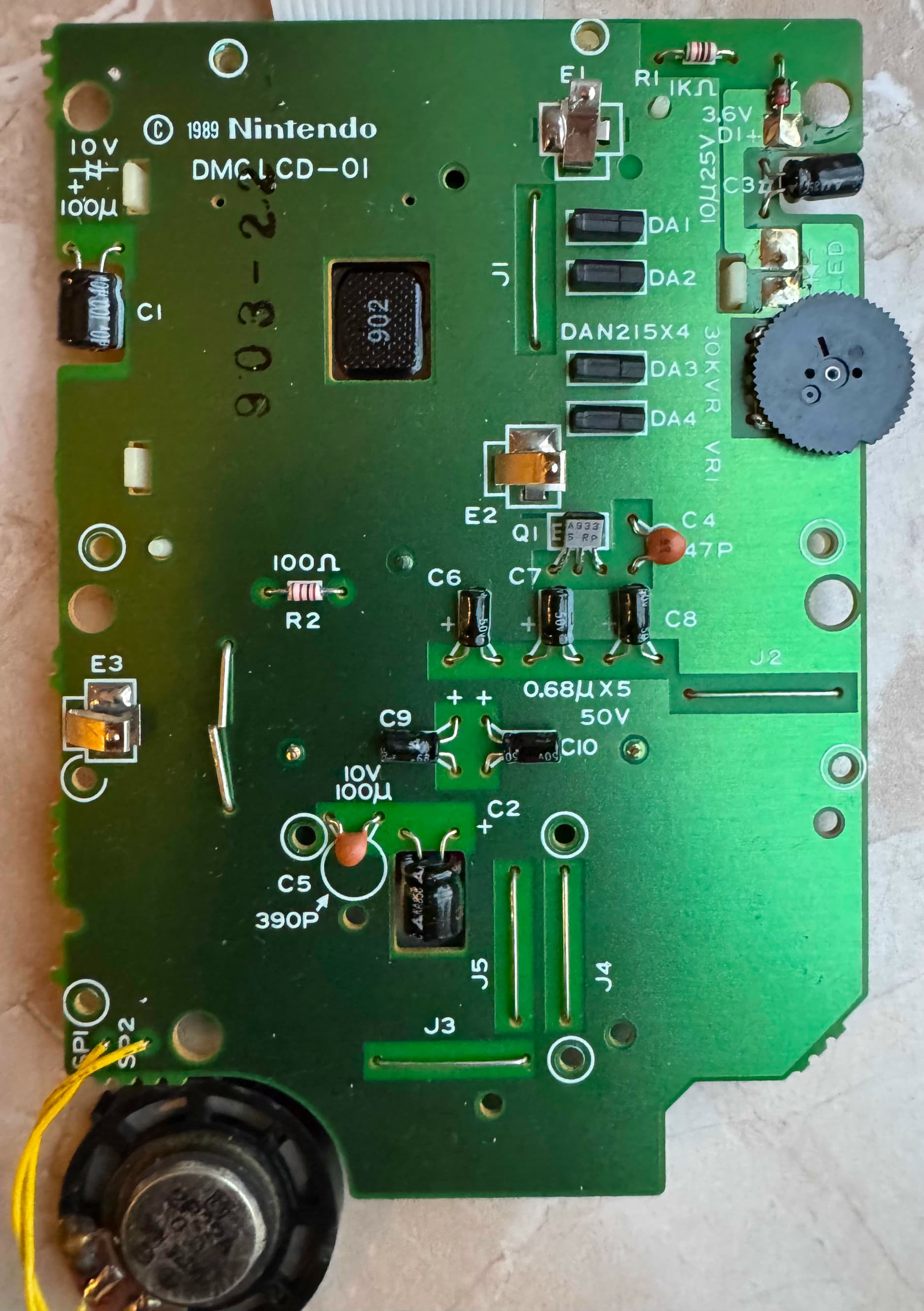

LCD board
- Board type
- DMG-LCD-01
- Stamp
- 903-22

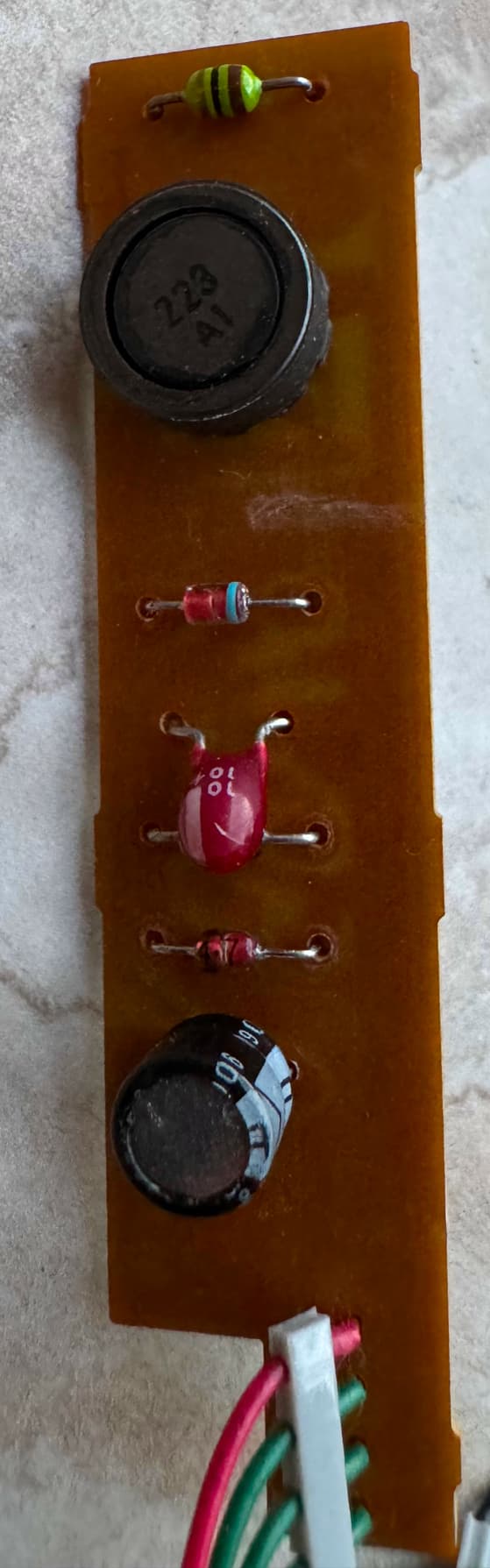

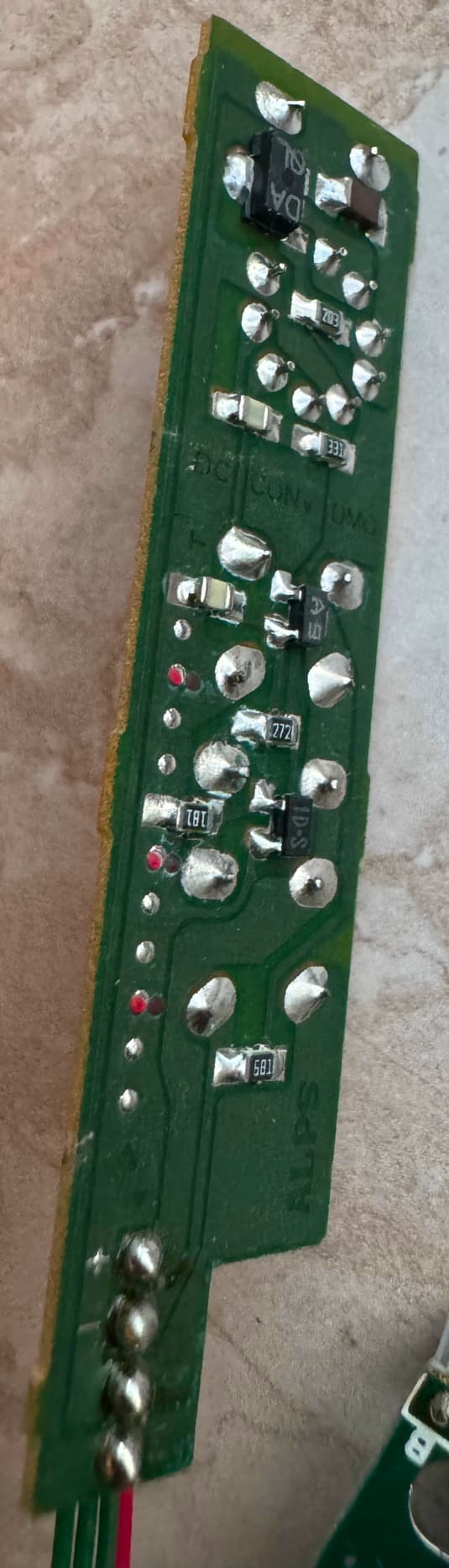

Power board
- Board type
- A1
- Manufacture date
- 1989
- Label
- DC CONV DMG

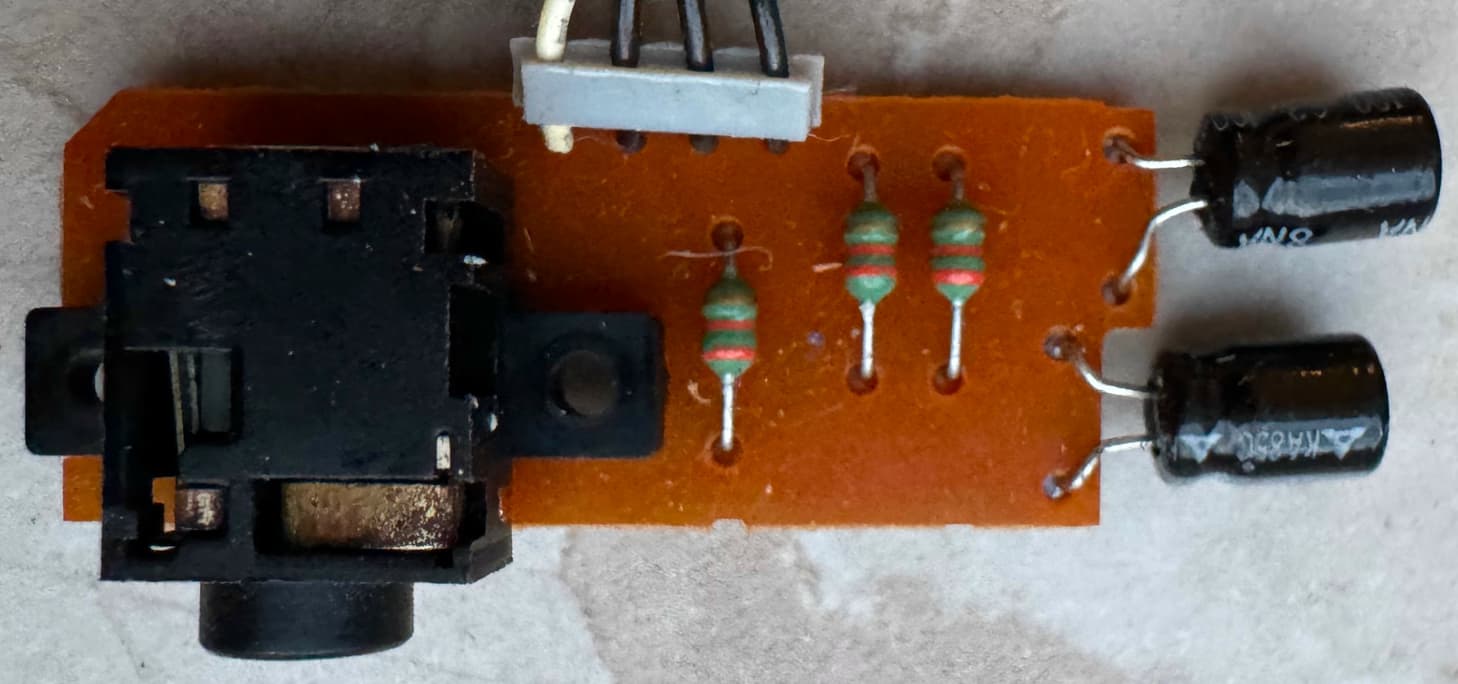

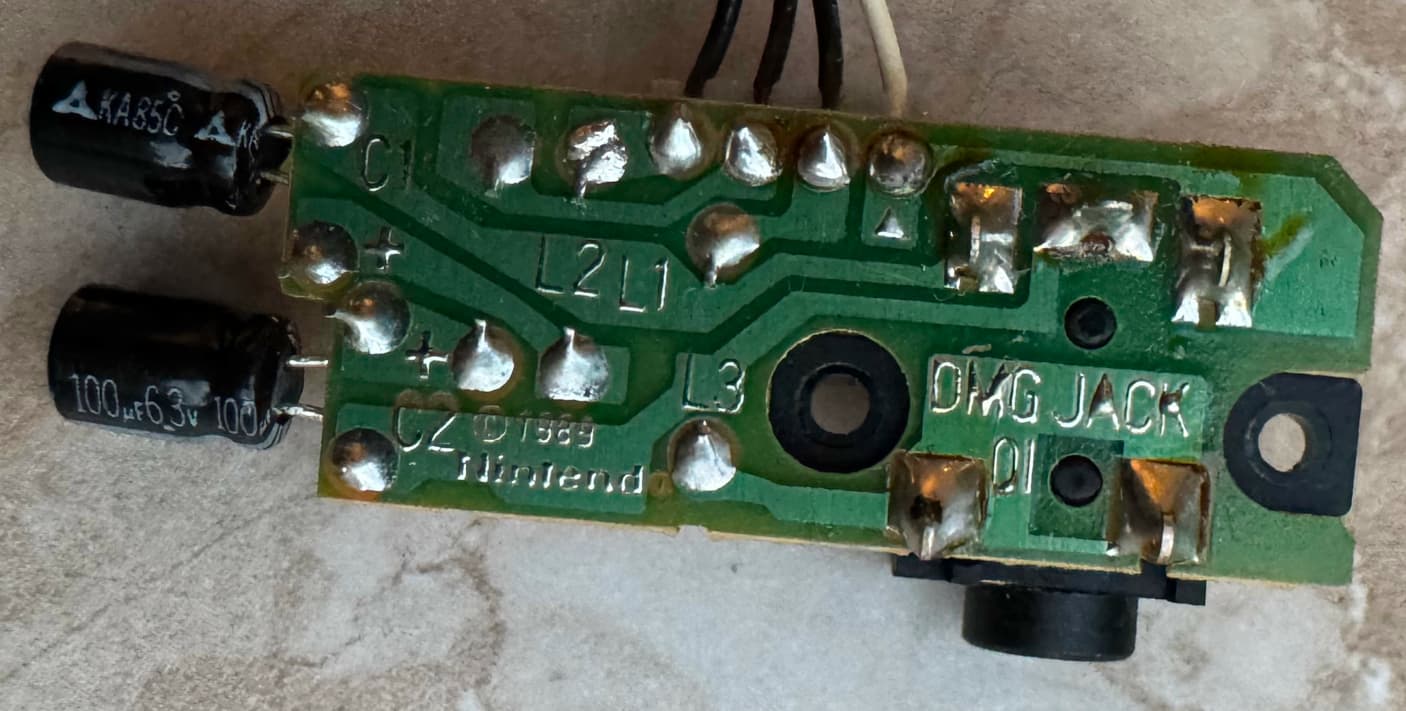

Jack board
- Board type
- DMG JACK 01
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU | Sharp | Week 7/1989 | DMG-CPU LR35902 8907 D |
| U2 | VRAM | LH5164LN-10 | Sharp | Week 47/1988 | LH5164LN-10 SHARP JAPAN 8847 1 D |
| U3 | WRAM | LH5164LN-10 | Sharp | Week 46/1988 | LH5164LN-10 SHARP JAPAN 8846 3 D |
| U4 | Audio amplifier | ||||
| X1 | Crystal | 4.194304 MHz | Daishinku | January/1989 | D419A9 |
| - | LCD column driver | Sharp | February/1989 | 902 | |
| - | LCD row driver | Sharp | February/1989 | 902 | |
| - | LCD bias generator |
