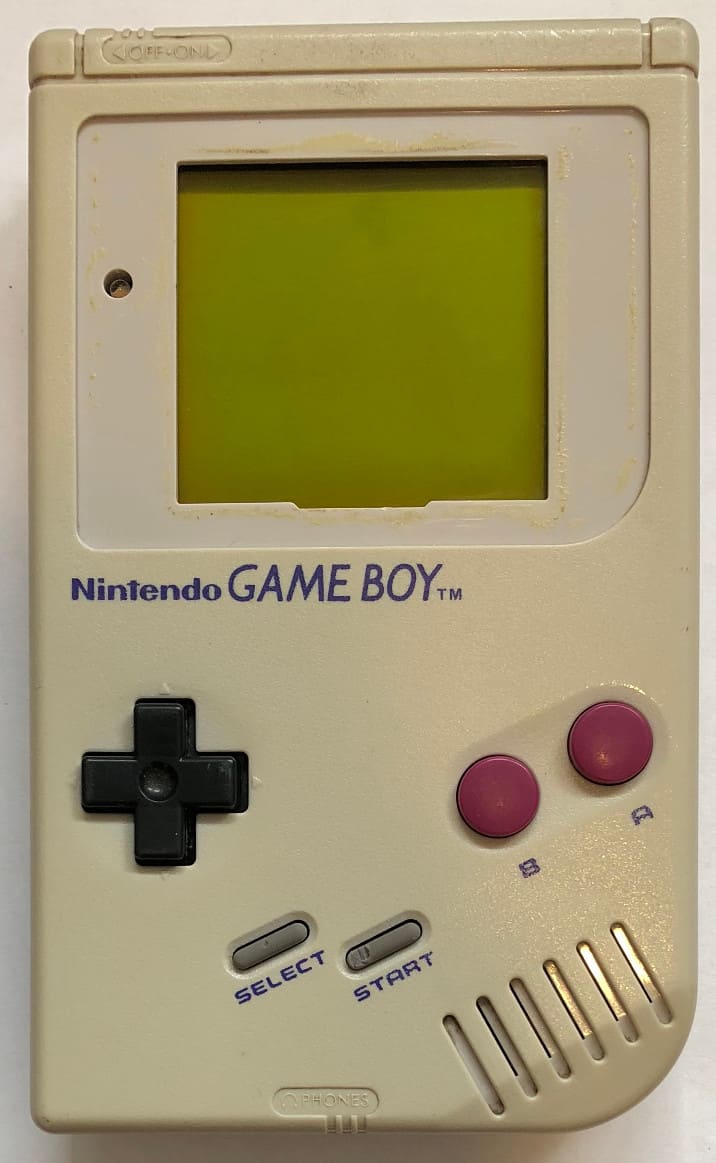

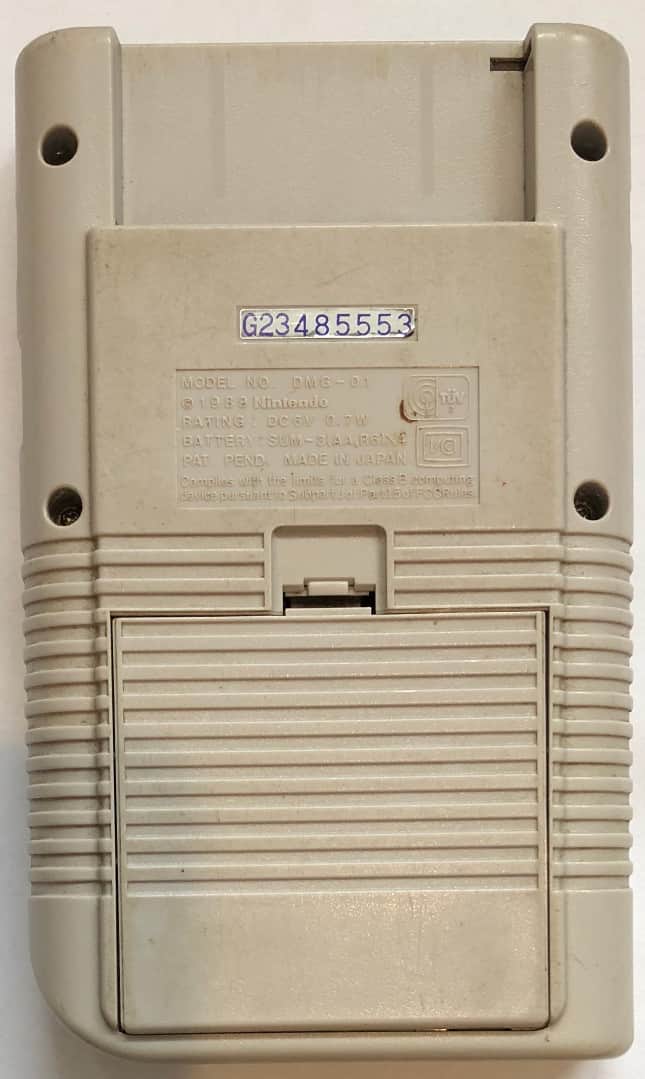

DMG: G23485553 [mattcurrie]

Color
OffWhite
Assembly date
February/1992

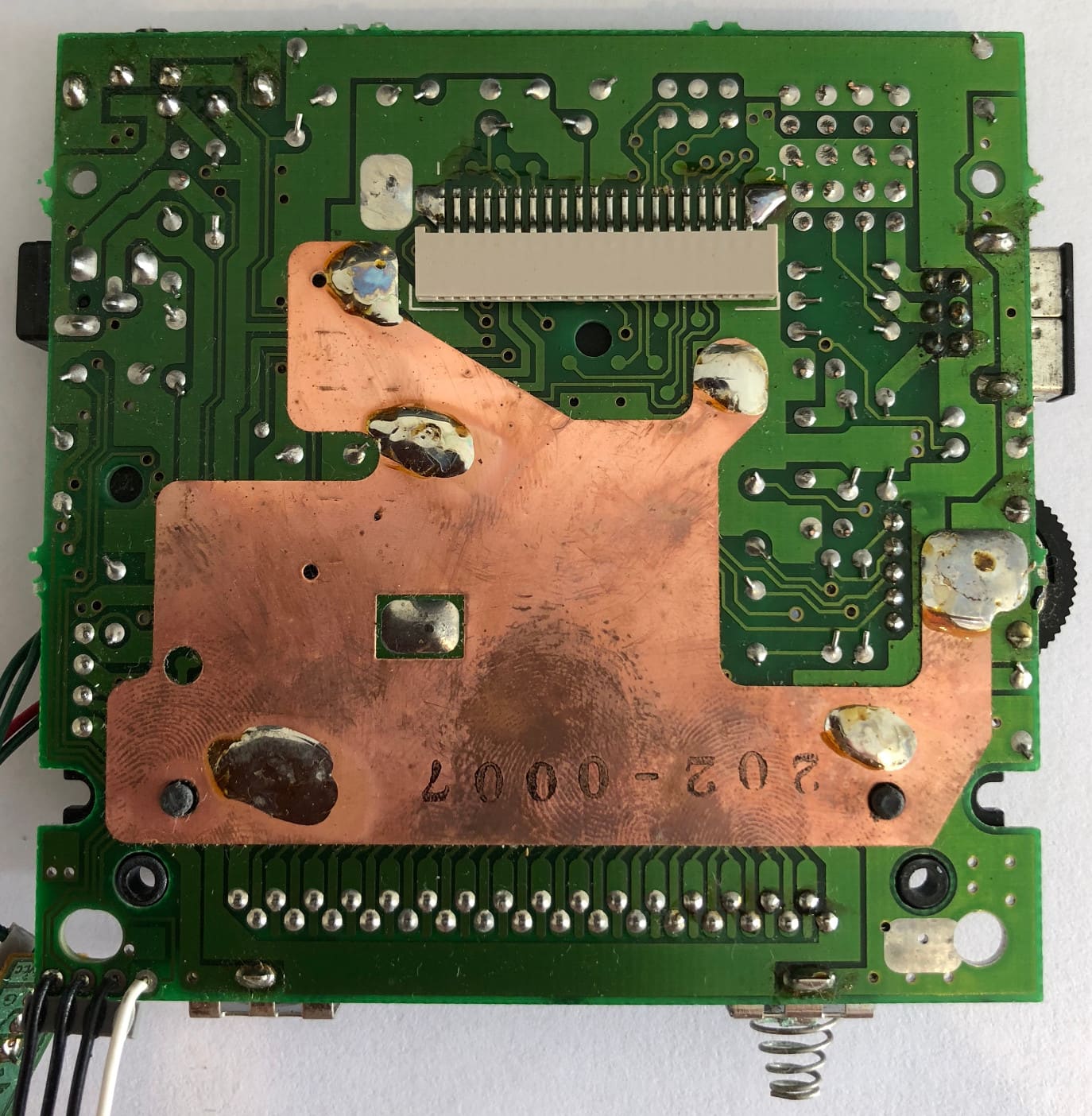

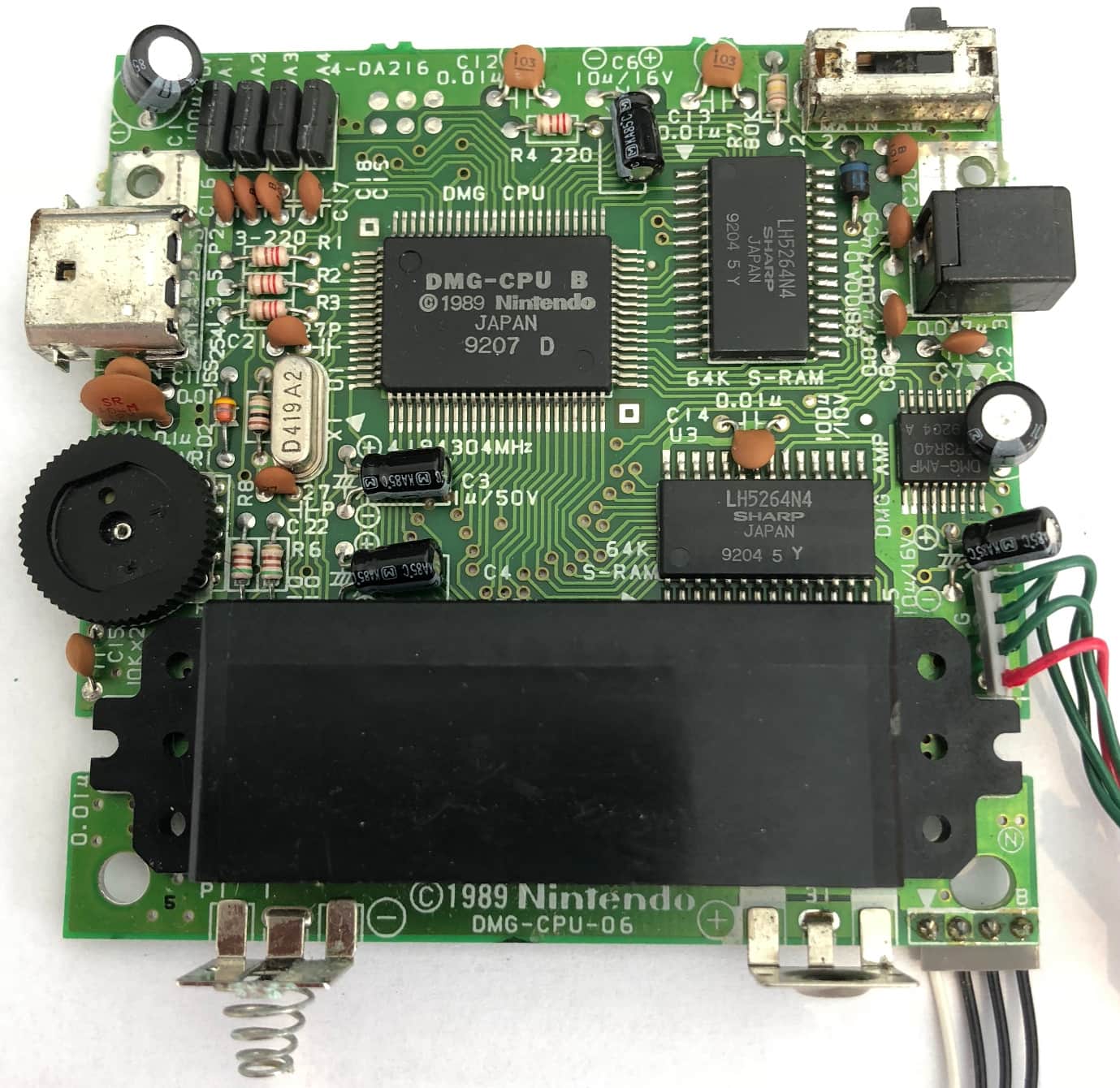

Mainboard

Board type
DMG-CPU-06
Stamp on board
202-0007
Circled letter(s) on board
N
Extra label
5

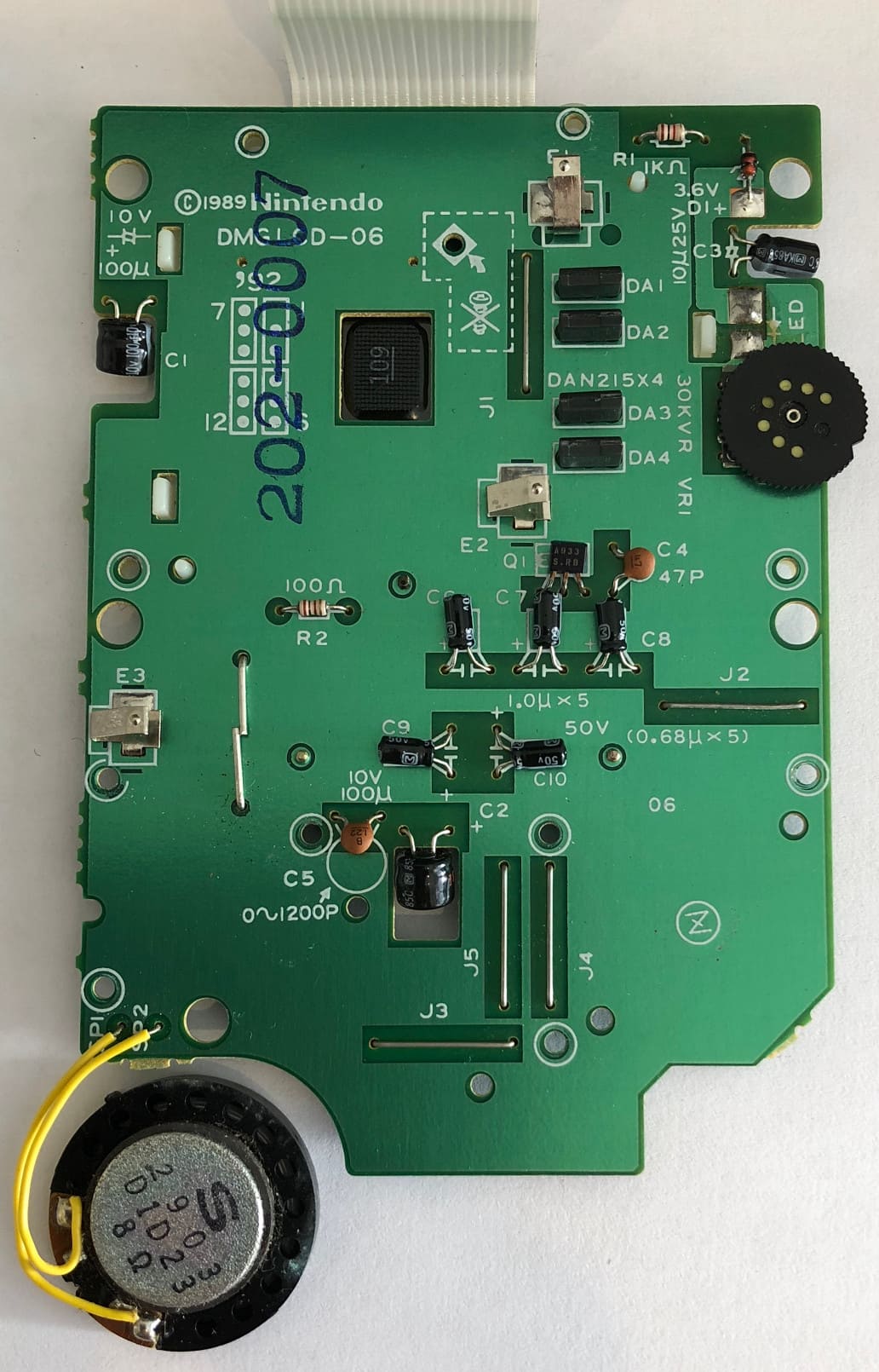

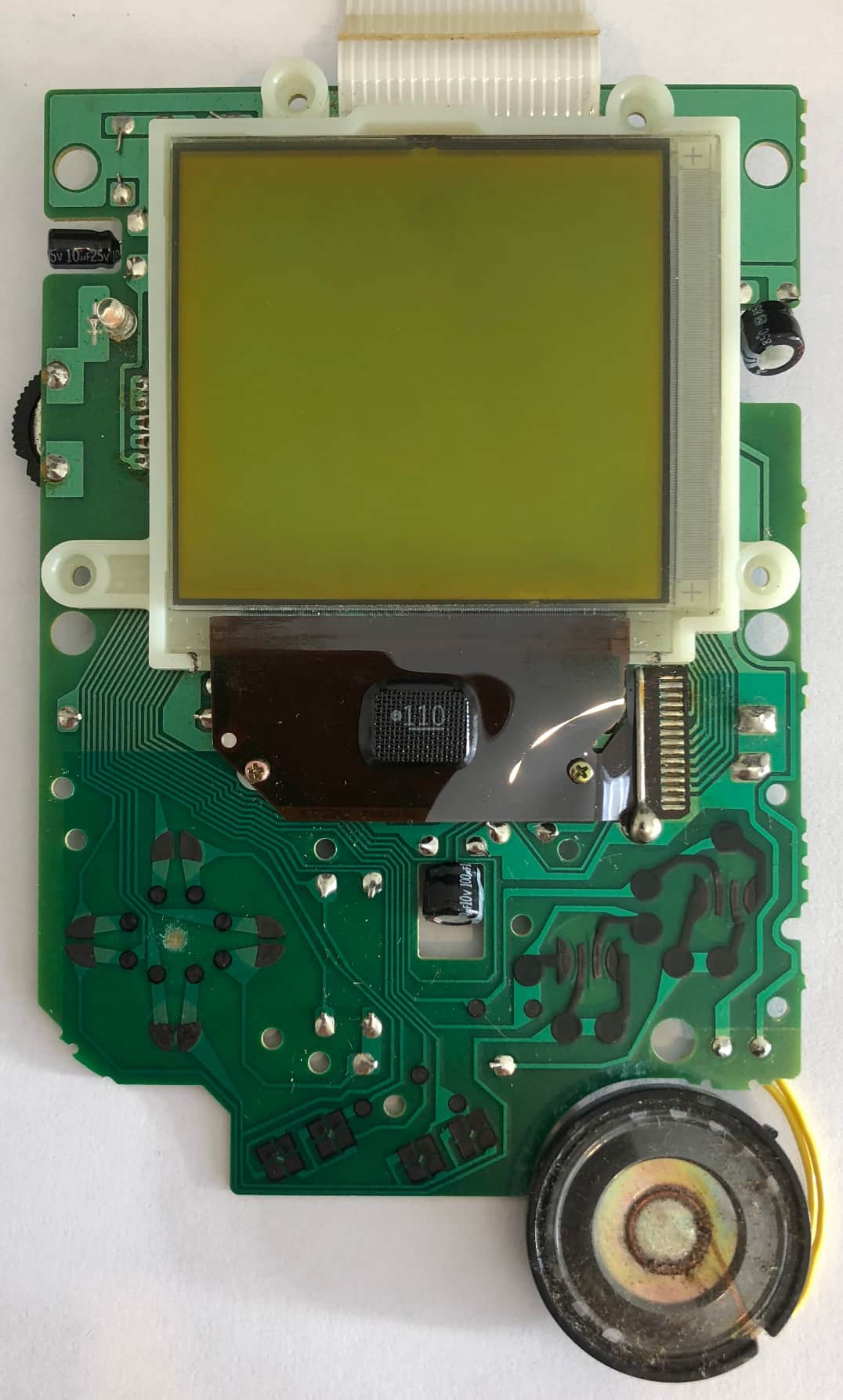

LCD board

Board type
DMG-LCD-06
Manufacture date
January/1992
Stamp
202-0007
Circled letter(s) on board
Z

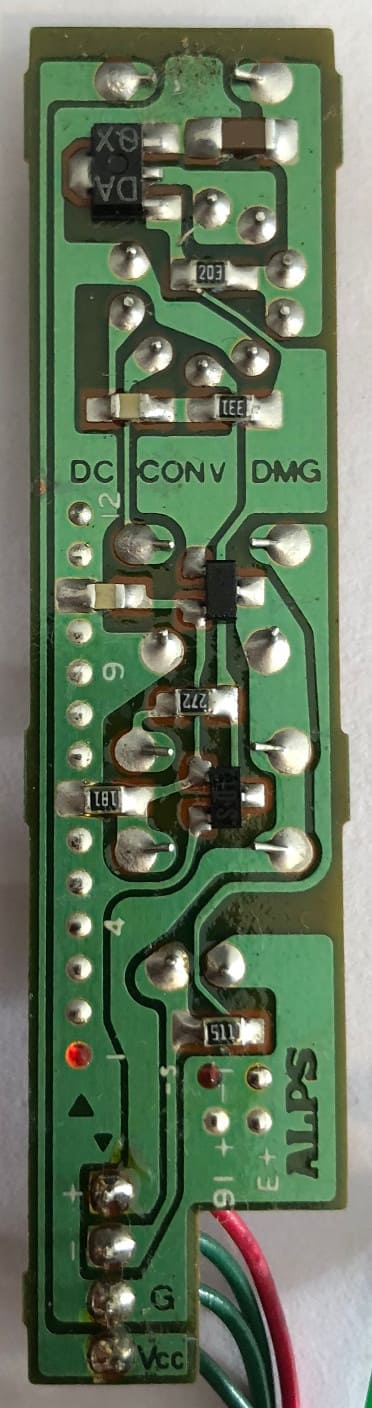

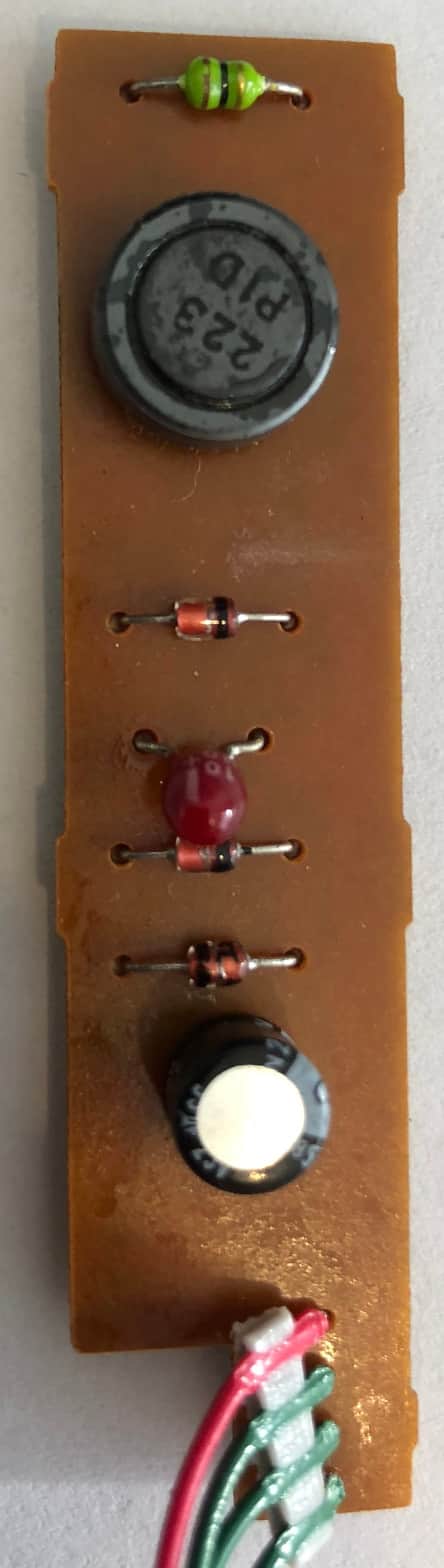

Power board

Board type
A3
Manufacture date
January/1991
Label
DC CONV DMG

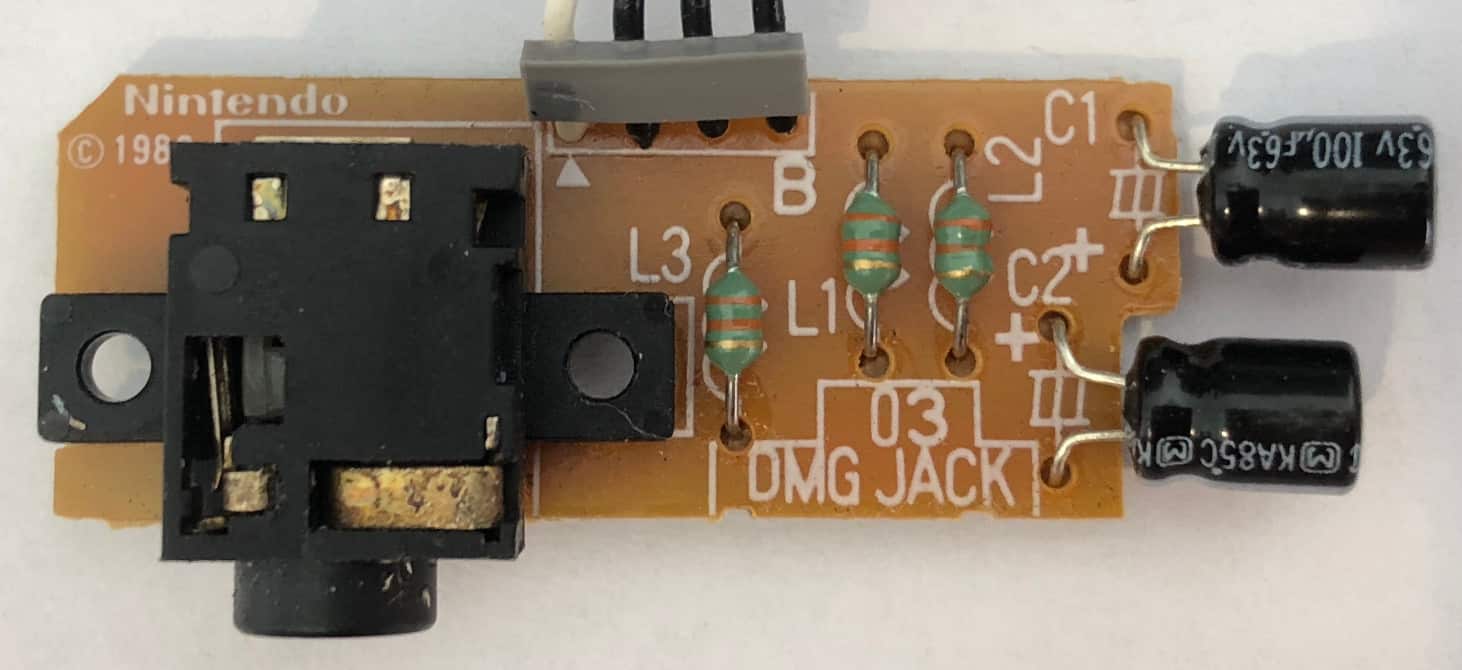

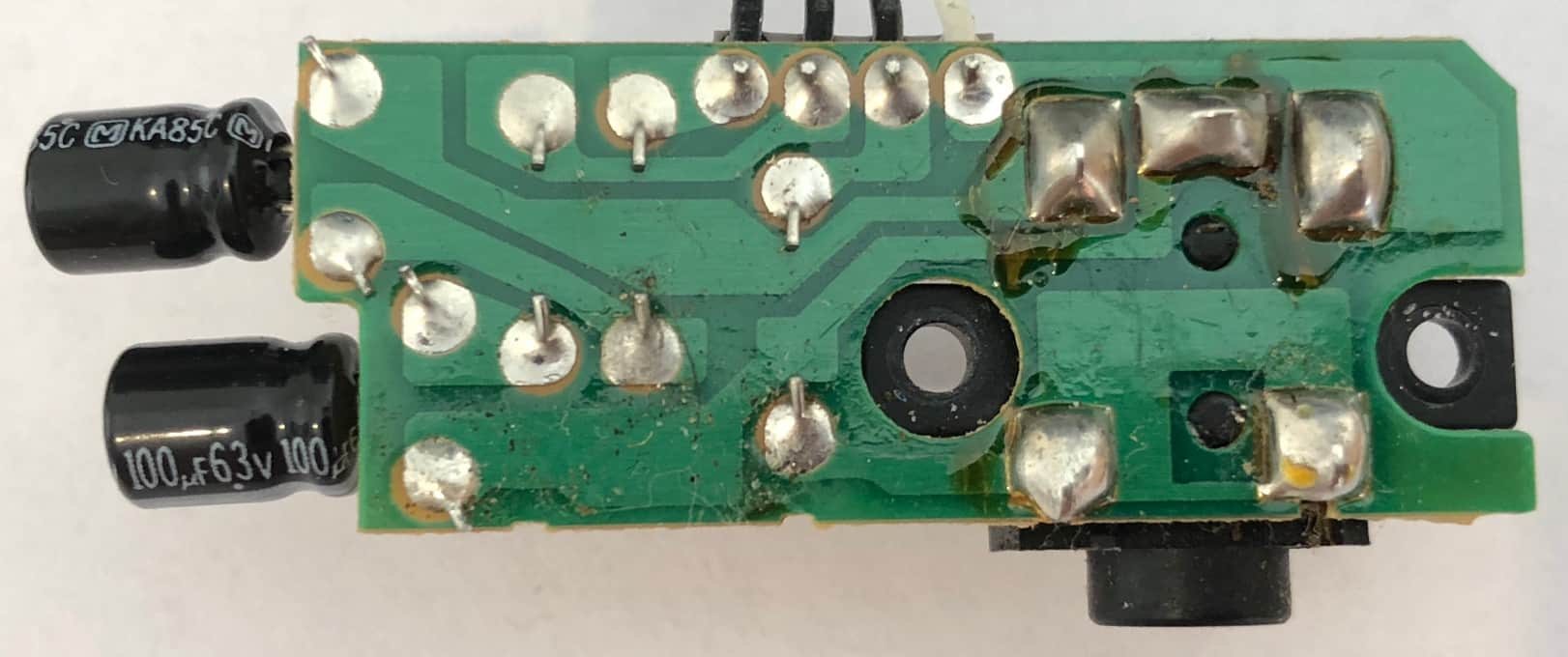

Jack board

Board type
DMG JACK 03

Parts

PartTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 7/1992DMG-CPU B © 1989 Nintendo JAPAN 9207 D
U2VRAMLH5264N4SharpWeek 4/1992LH5264N4 SHARP JAPAN 9204 5 Y
U3WRAMLH5264N4SharpWeek 4/1992LH5264N4 SHARP JAPAN 9204 5 Y
U4Audio amplifierIR3R40SharpWeek 4/1992DMG-AMP IR3R40 9204 A
X1Crystal4.194304 MHzDaishinkuJanuary/1992D419A2
-LCD column driverSharpOctober/1991110
-LCD row driverSharpSeptember/1991109
-LCD bias generator
