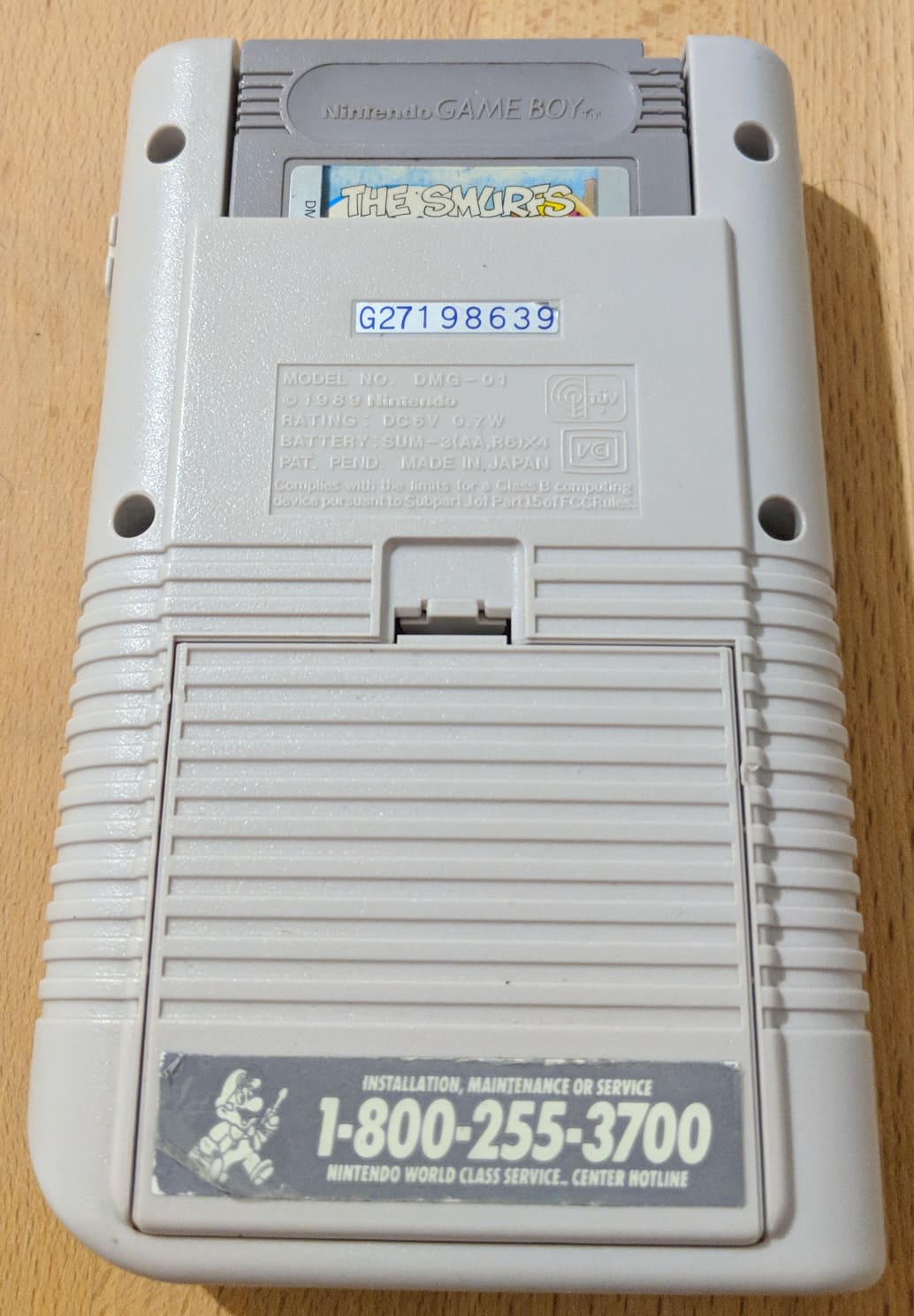

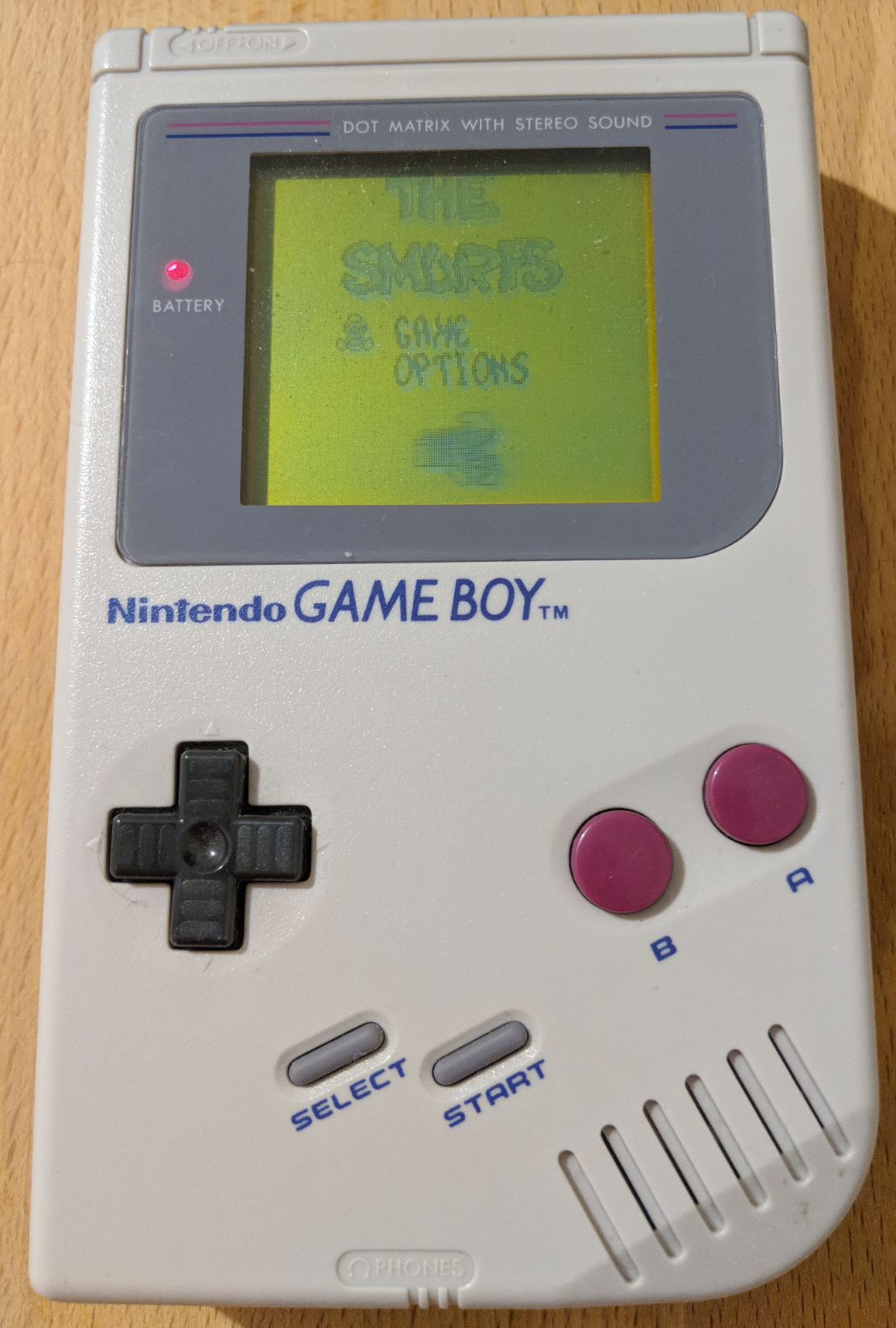

DMG: G27198639 [terinjokes]

Color
off-white
Screws
????
Assembly date
July/1992

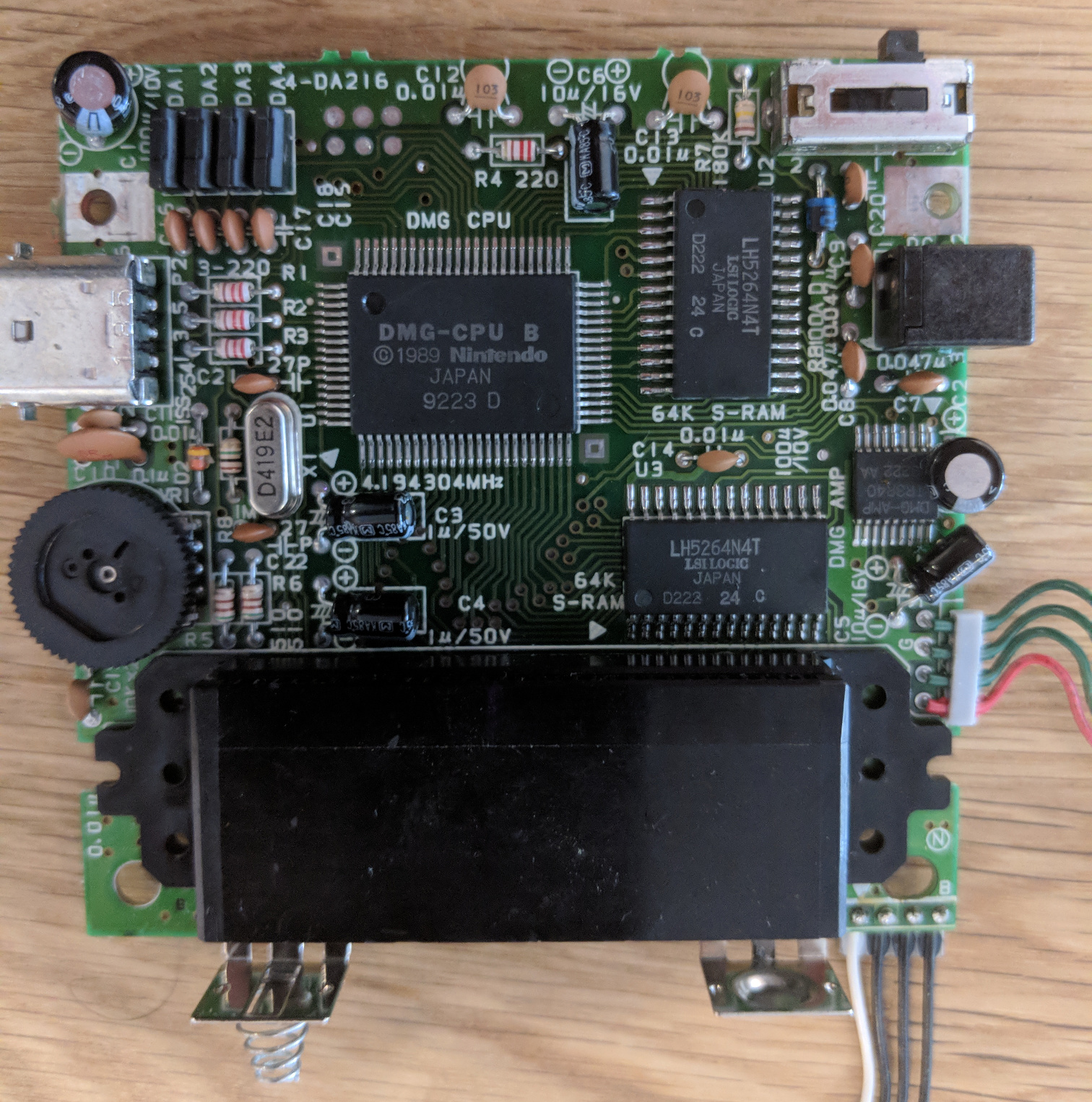

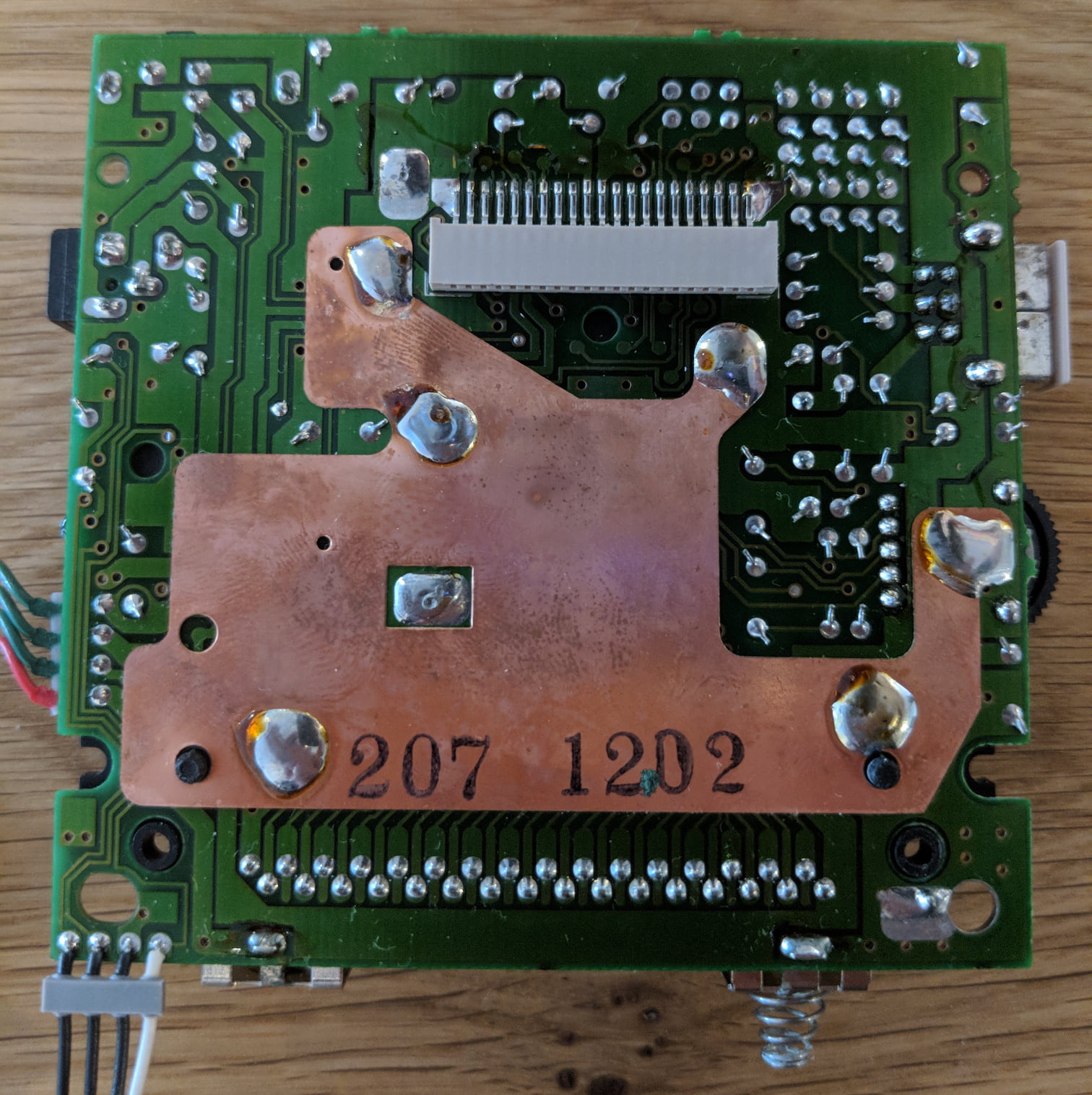

Mainboard

Board type
DMG-CPU-06
Stamp
207 1202
Circled letter(s) on board
N
Extra label
6

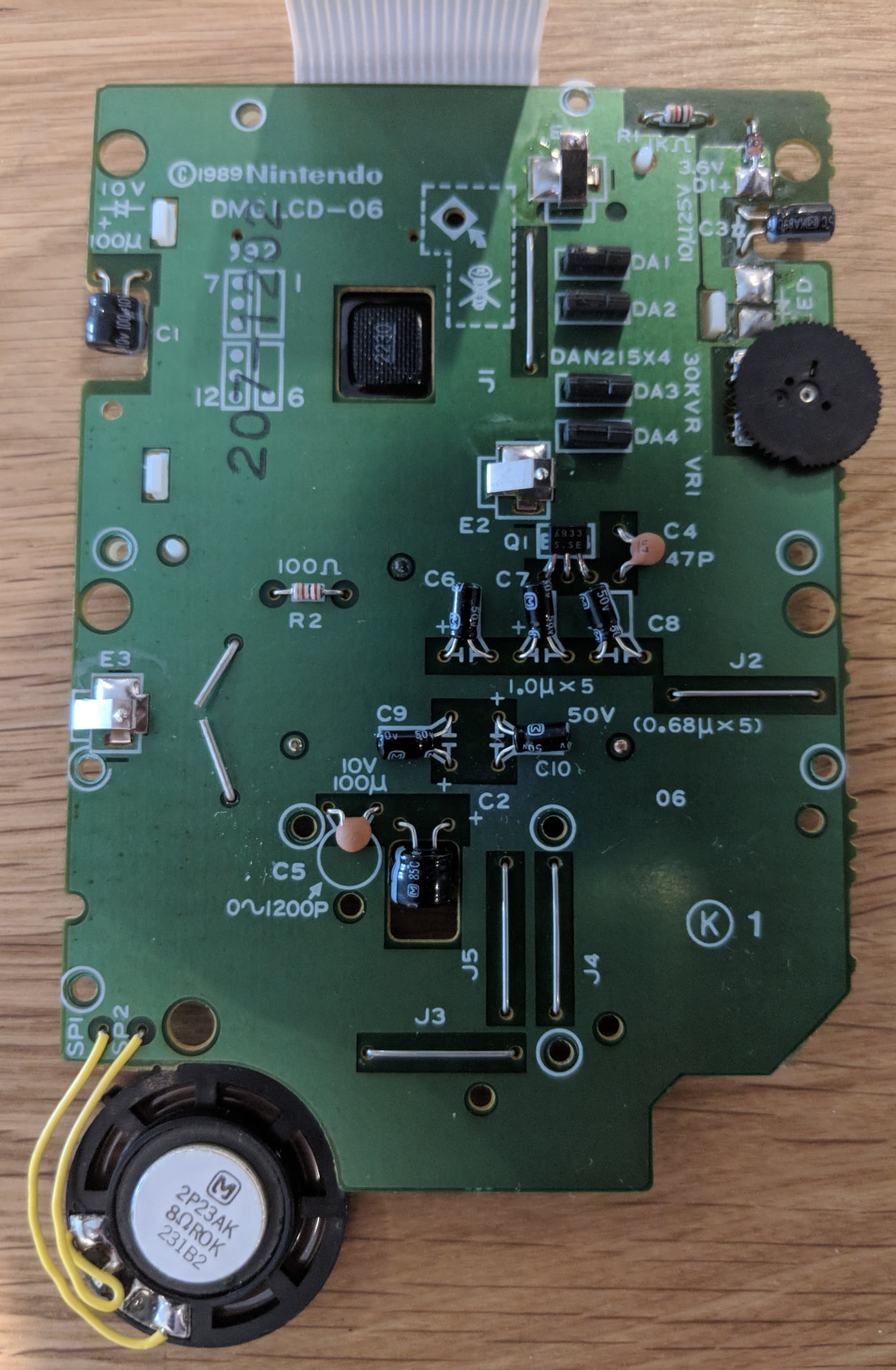

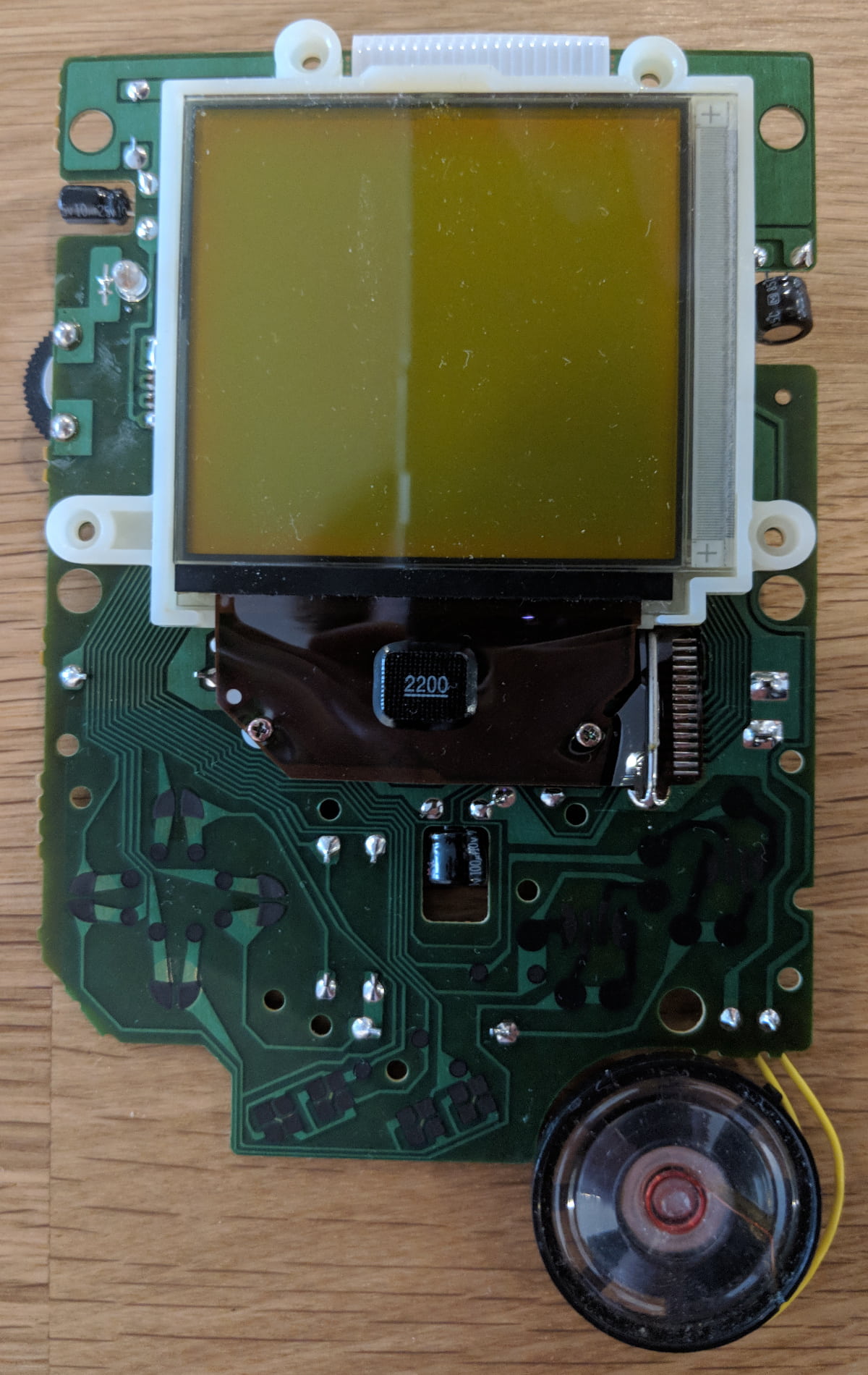

LCD Board

Board type
DMG-LCD-06
Manufacture date
May/1992
Stamp
207-1202
Circled letter(s) on board
K1
LCD panel label
????
LCD panel date
????

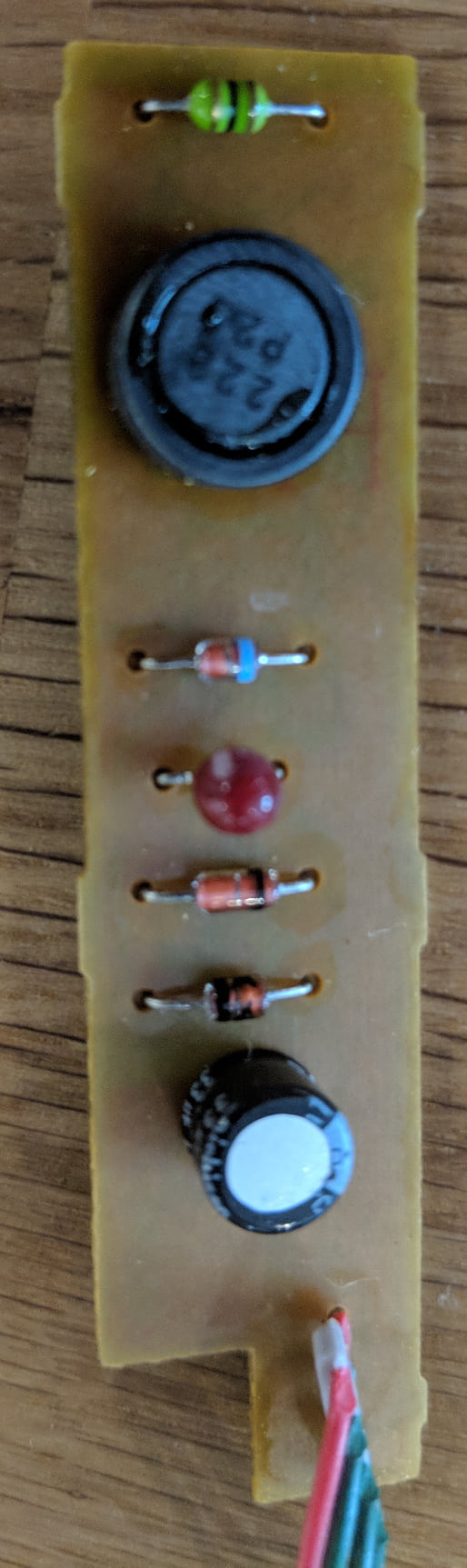

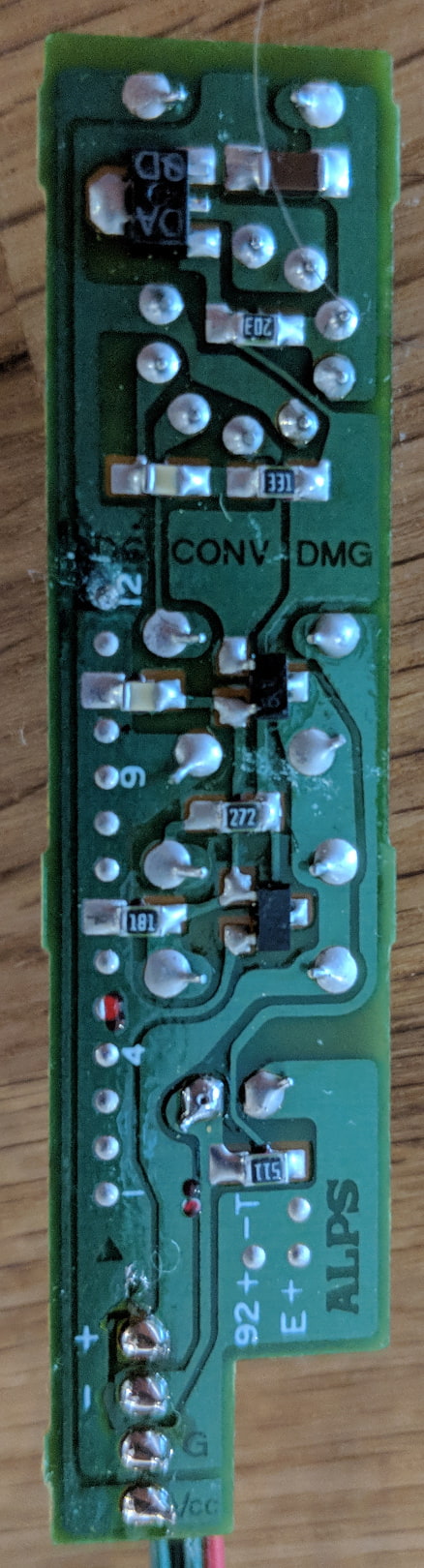

Power Board

Board type
Type A3
Manufacture date
May/1992
Label
DC CONV DMG

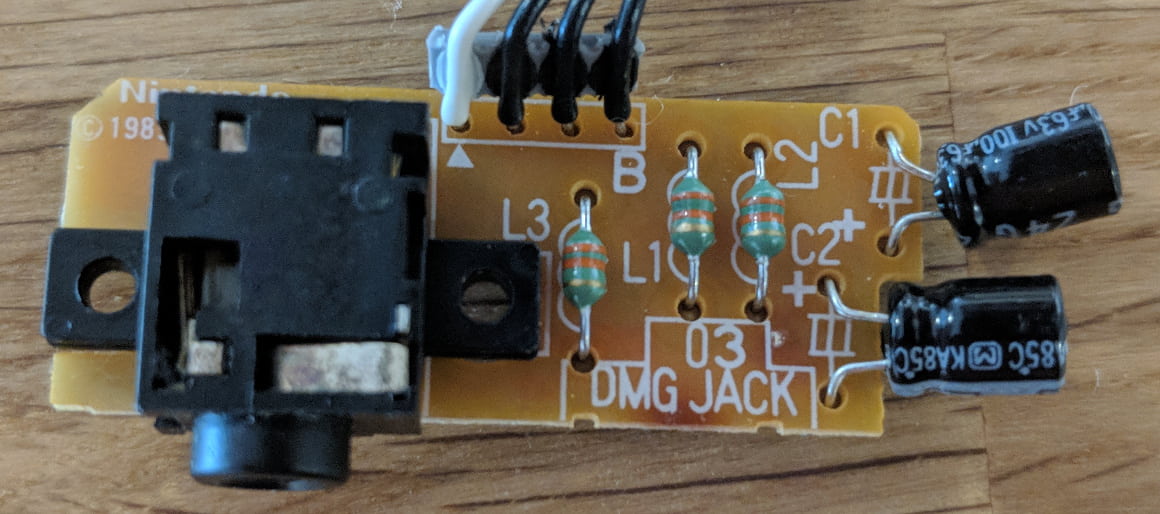

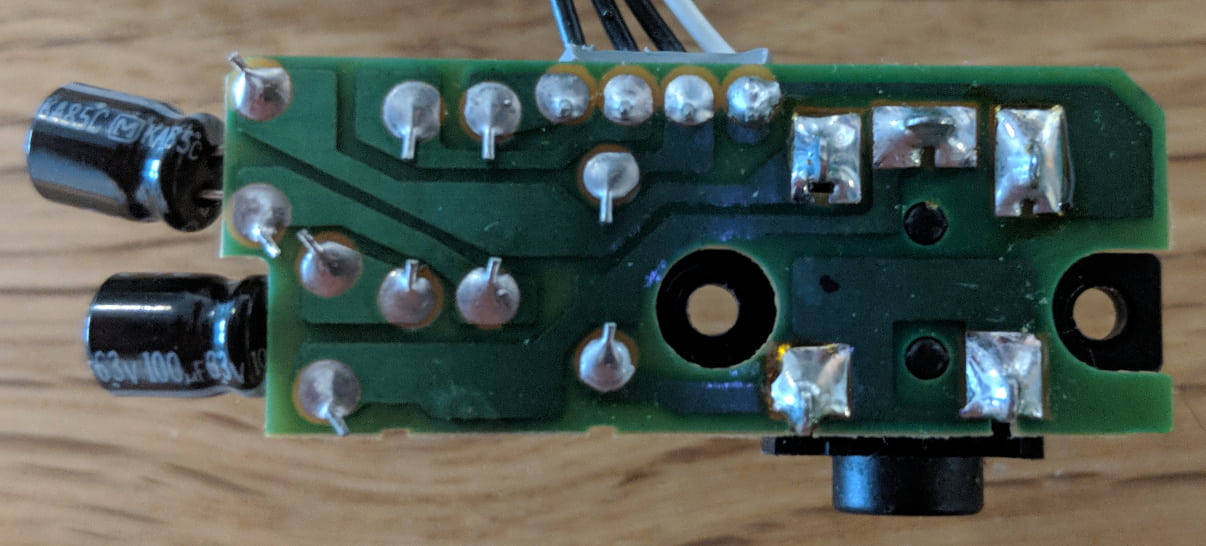

Jack Board

Board type
DMG JACK 03
Extra label
-

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 23/1992DMG-CPU B © 1989 Nintendo JAPAN 9223 S
U2Video RAMLH5264N4TLSI LogicWeek 22/1992LH5264N4T LSI LOGIC JAPAN D222 24 C
U3Work RAMLH5264N4TLSI LogicWeek 23/1992LH5264N4T LSI LOGIC JAPAN D223 24 C
U4AmplifierIR3R40SharpWeek 22/1992DMG-AMP IR3R40 9222 AA
X1CrystalD419????May/1992D419E2
-LCD Column Driver????SharpWeek 20/19922200
-LCD Row Driver????SharpWeek 23/19922230
-LCD Regulator????????????????
