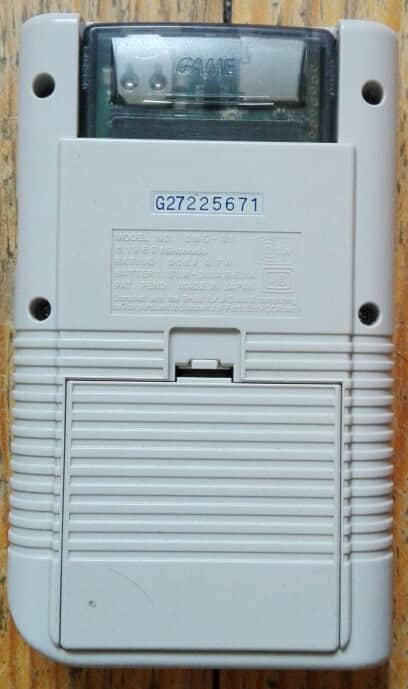

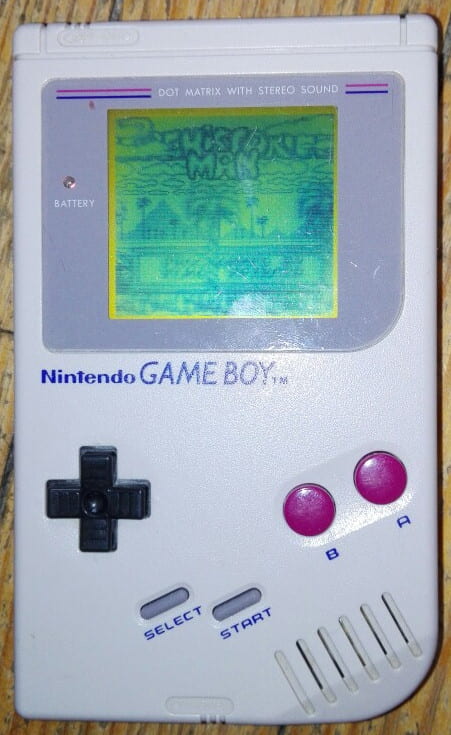

DMG: G27225671 [ISSOtm]
- Color
- OffWhite
- Assembly date
- June/1992

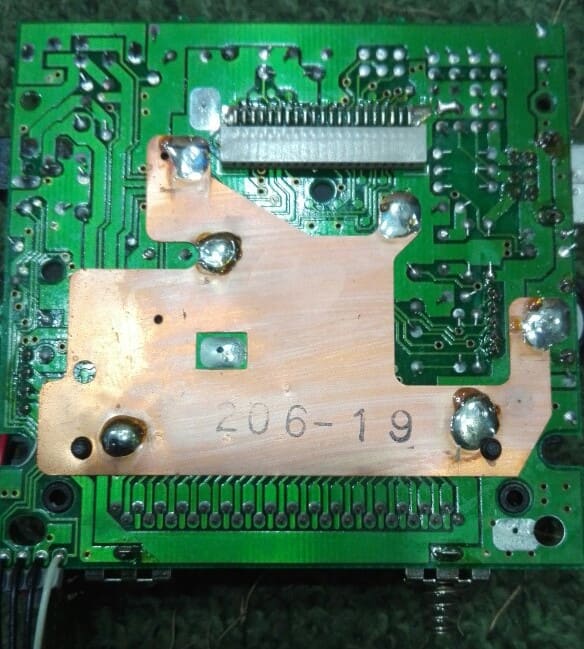

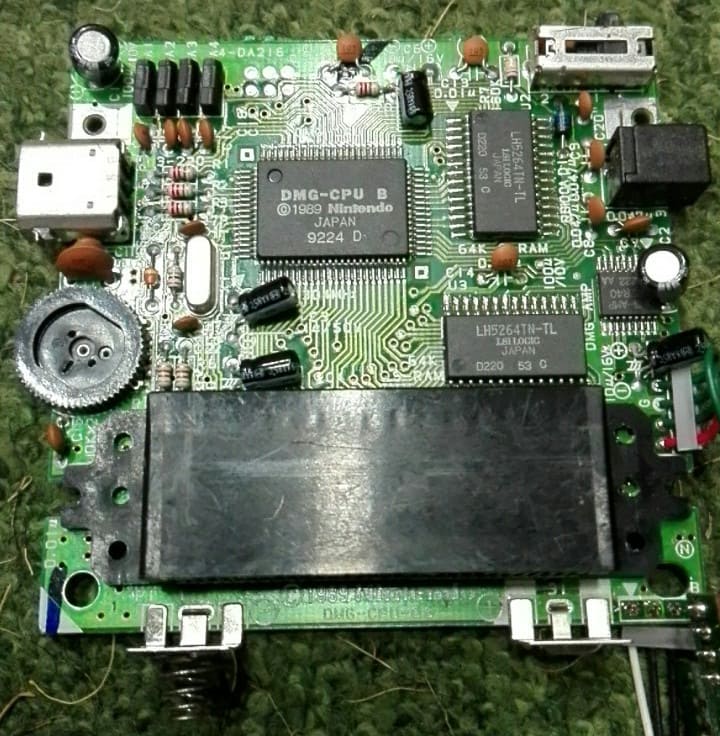

Mainboard
- Board type
- DMG-CPU-03
- Stamp on board
- 206-19
- Circled letter(s) on board
- N
- Extra label
- 1

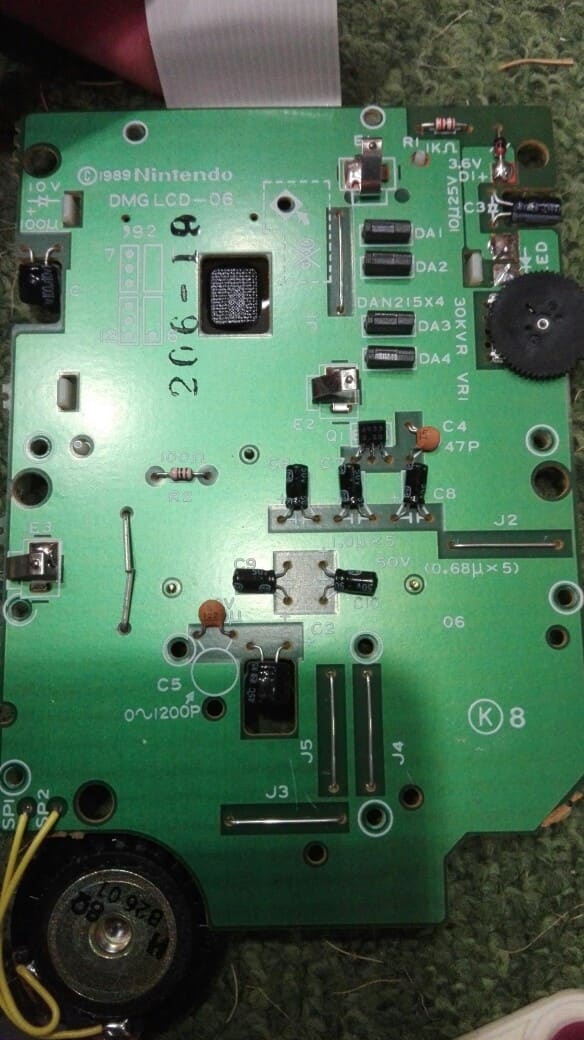

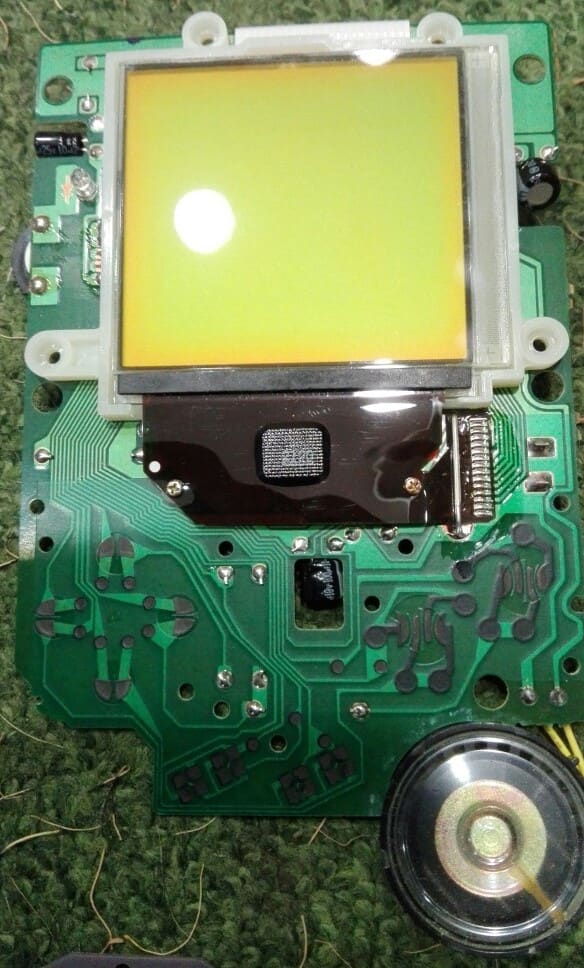

LCD board
- Board type
- DMG-LCD-06
- Manufacture date
- May/1992
- Stamp
- 206-19
- Circled letter(s) on board
- K8

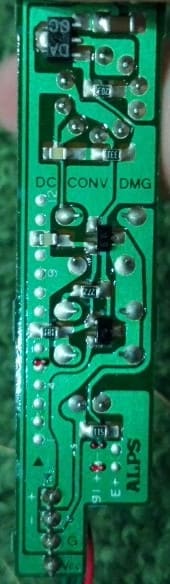

Power board
- Board type
- A3
- Manufacture date
- May/1991
- Label
- DC CONV DMG

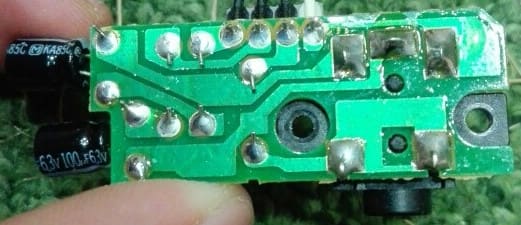

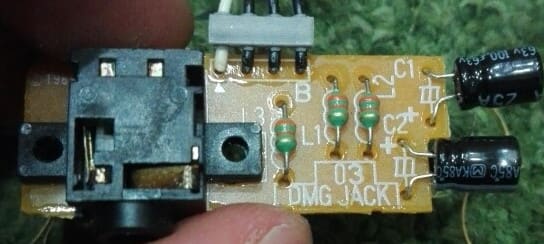

Jack board
- Board type
- DMG JACK 03
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU B | Sharp | Week 24/1992 | DMG-CPU B © 1989 Nintendo JAPAN 9224 D |
| U2 | VRAM | LH5264TN-TL | LSI Logic | Week 20/1992 | LH5264TN-TL LSI LOGIC JAPAN D220 53 C |
| U3 | WRAM | LH5264TN-TL | LSI Logic | Week 20/1992 | LH5264TN-TL LSI LOGIC JAPAN D220 53 C |
| U4 | Audio amplifier | IR3R40 | Sharp | Week 22/1992 | DMG-AMP IR3R40 9222 AA |
| X1 | Crystal | ||||
| - | LCD column driver | ||||
| - | LCD row driver | ||||
| - | LCD bias generator |
