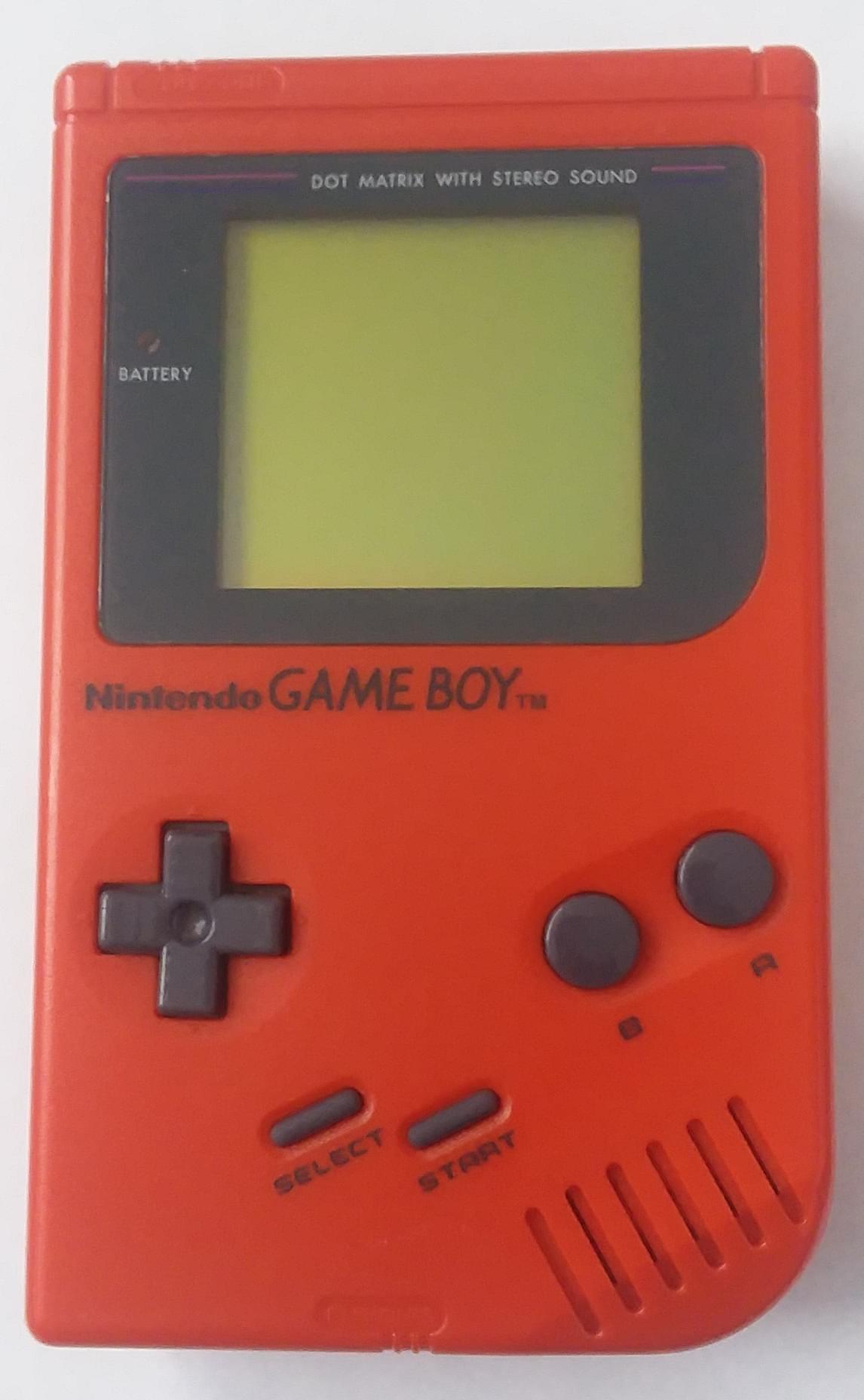

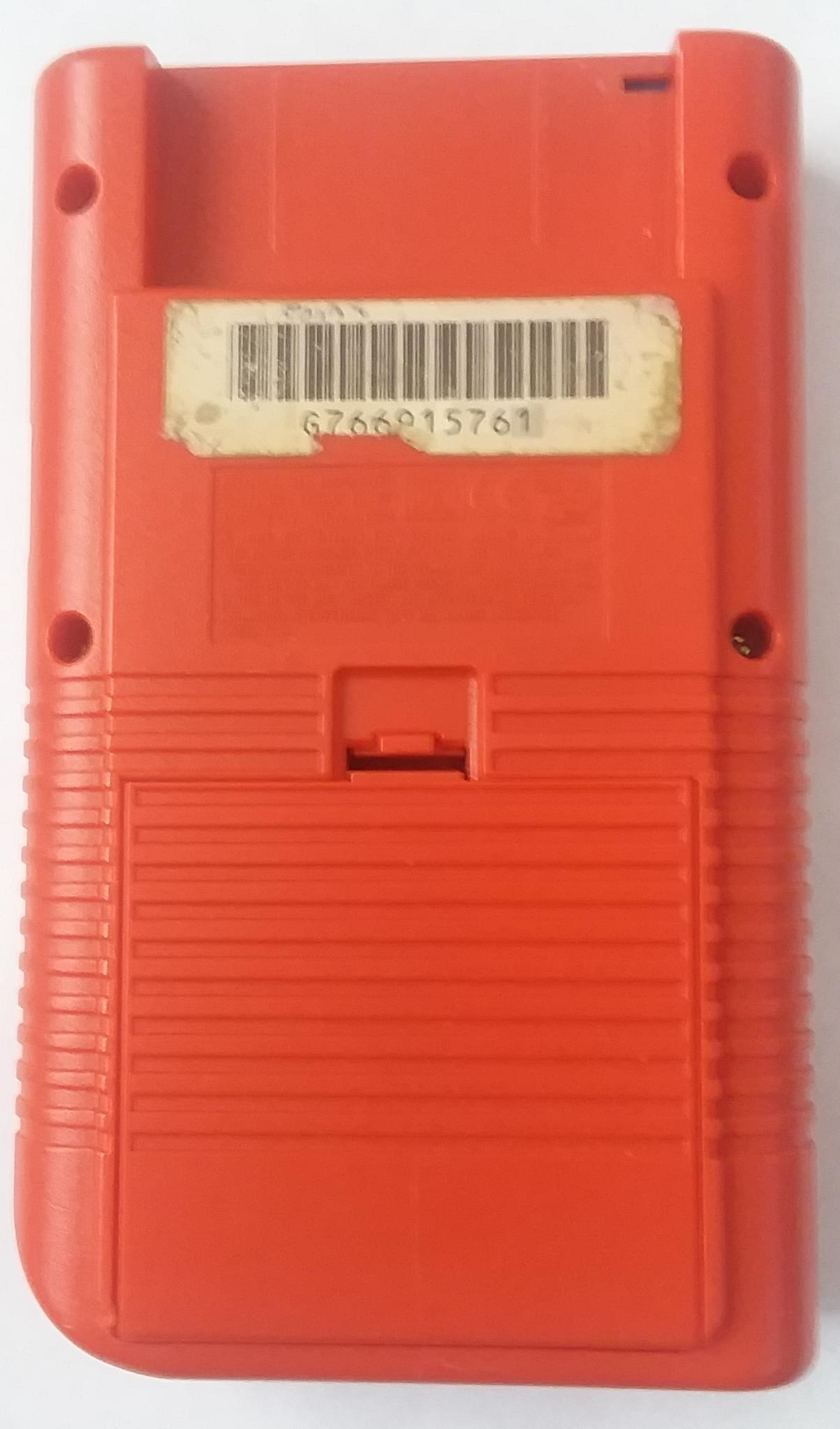

DMG: G76691576-1 [creeps]
- Color
- RadiantRed
- Assembly date
- February/1996
- LCD panel label
- EP960131
- LCD panel date
- January/1996

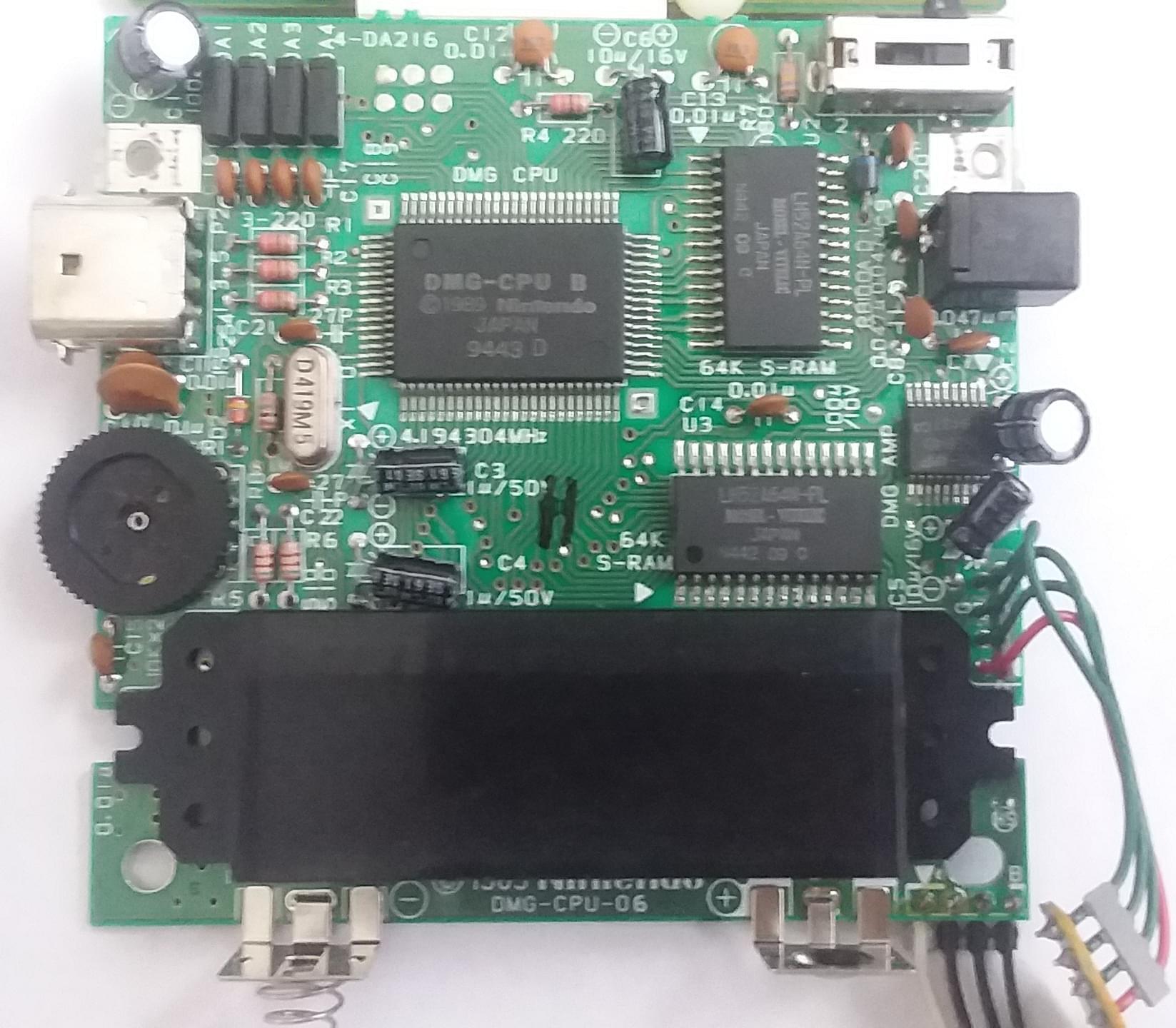

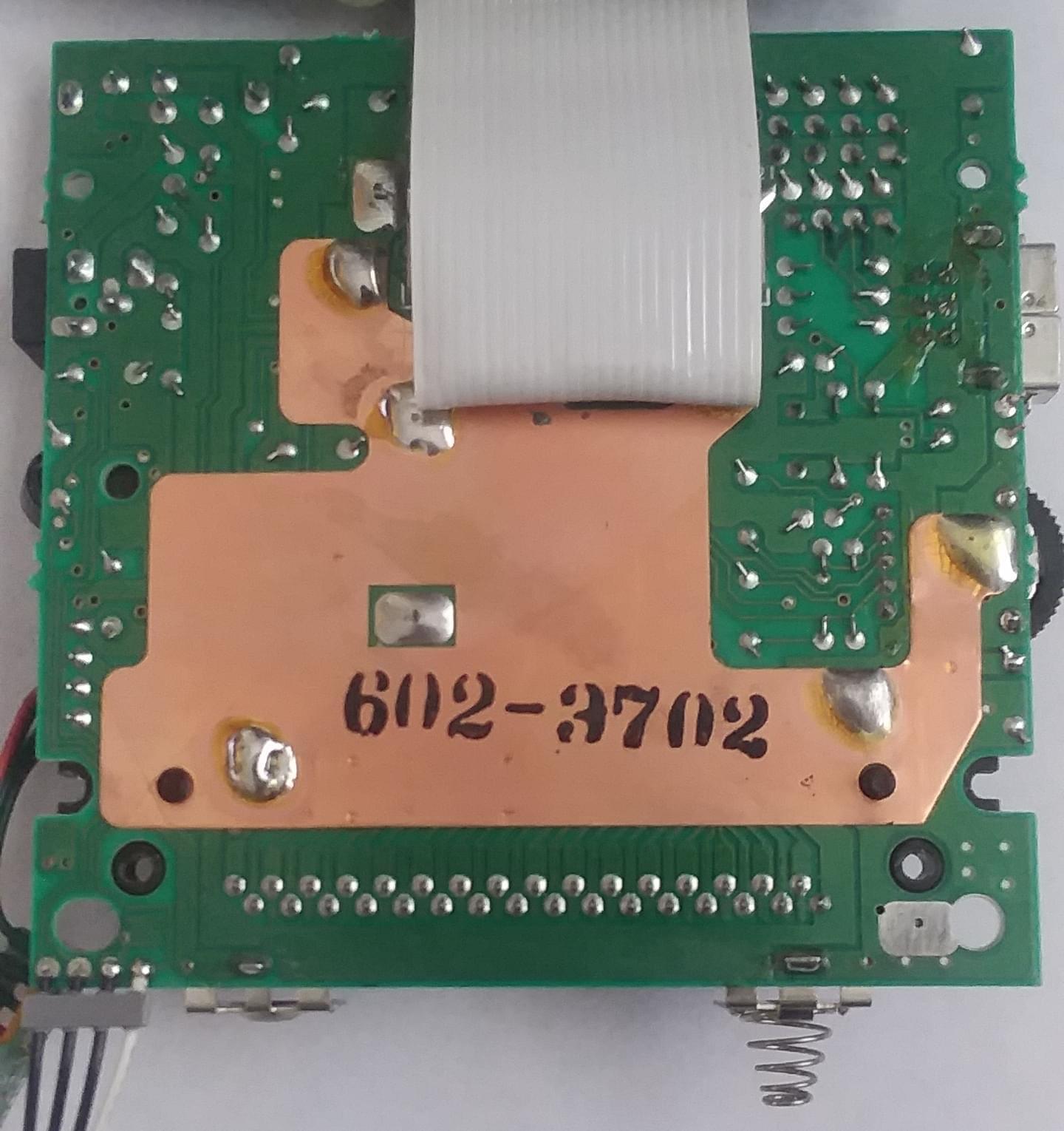

Mainboard
- Board type
- DMG-CPU-06
- Stamp on board
- 602-3702
- Circled letter(s) on board
- HS
- Extra label
- 5

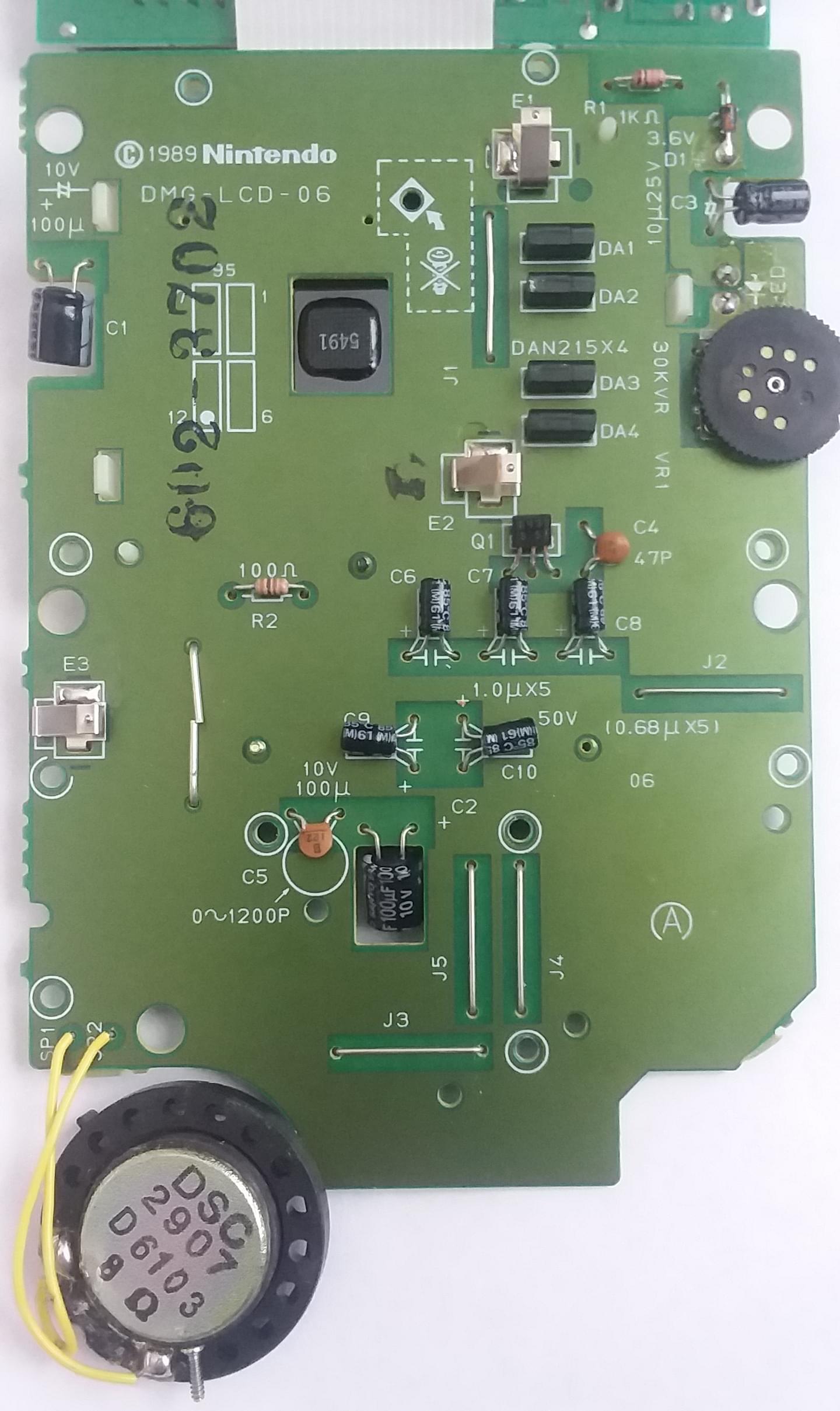

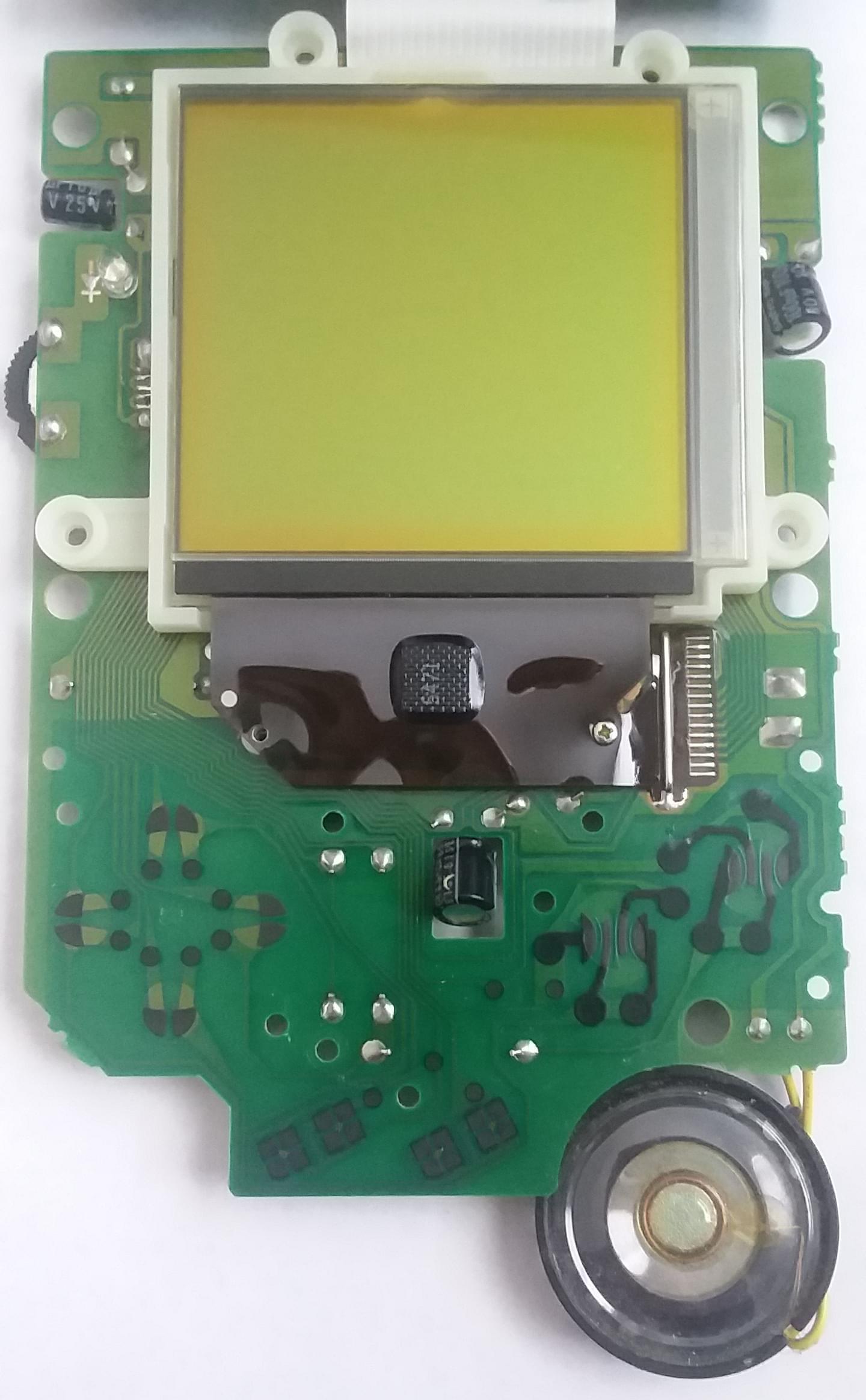

LCD board
- Board type
- DMG-LCD-06
- Manufacture date
- November/1995
- Stamp
- 602-3702
- Circled letter(s) on board
- A

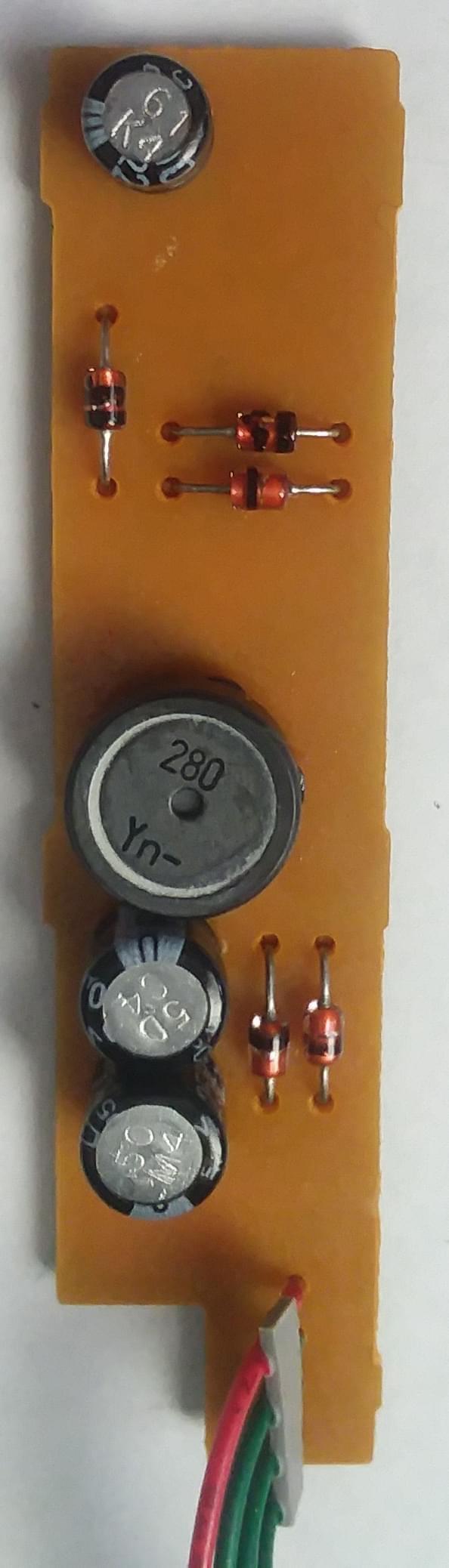

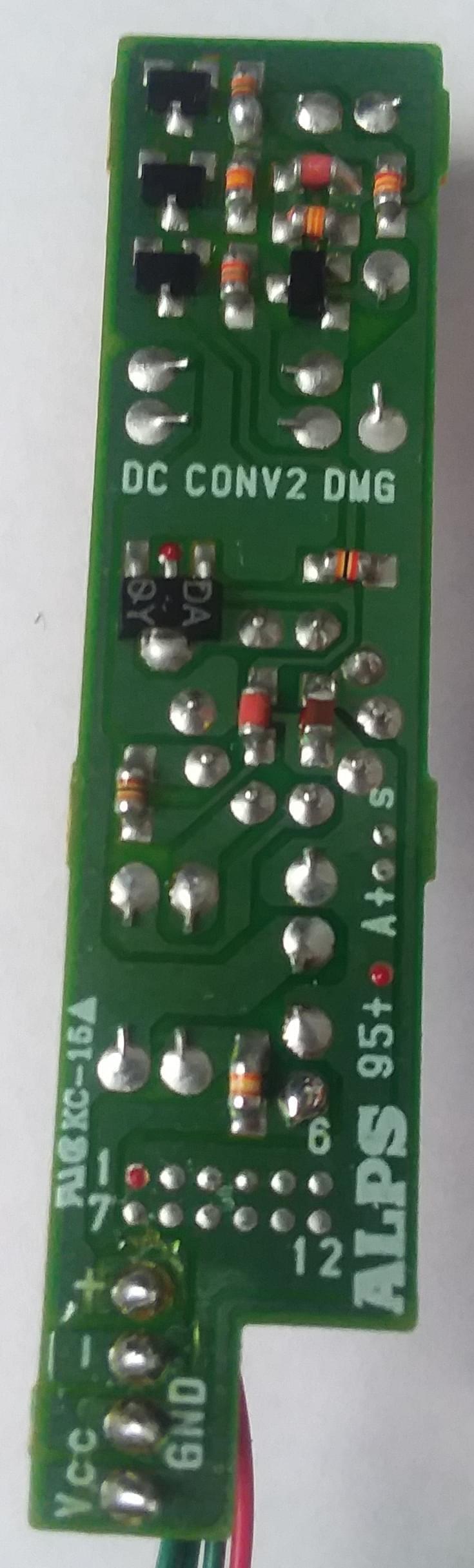

Power board
- Board type
- D
- Manufacture date
- January/1995
- Label
- DC CONV2 DMG

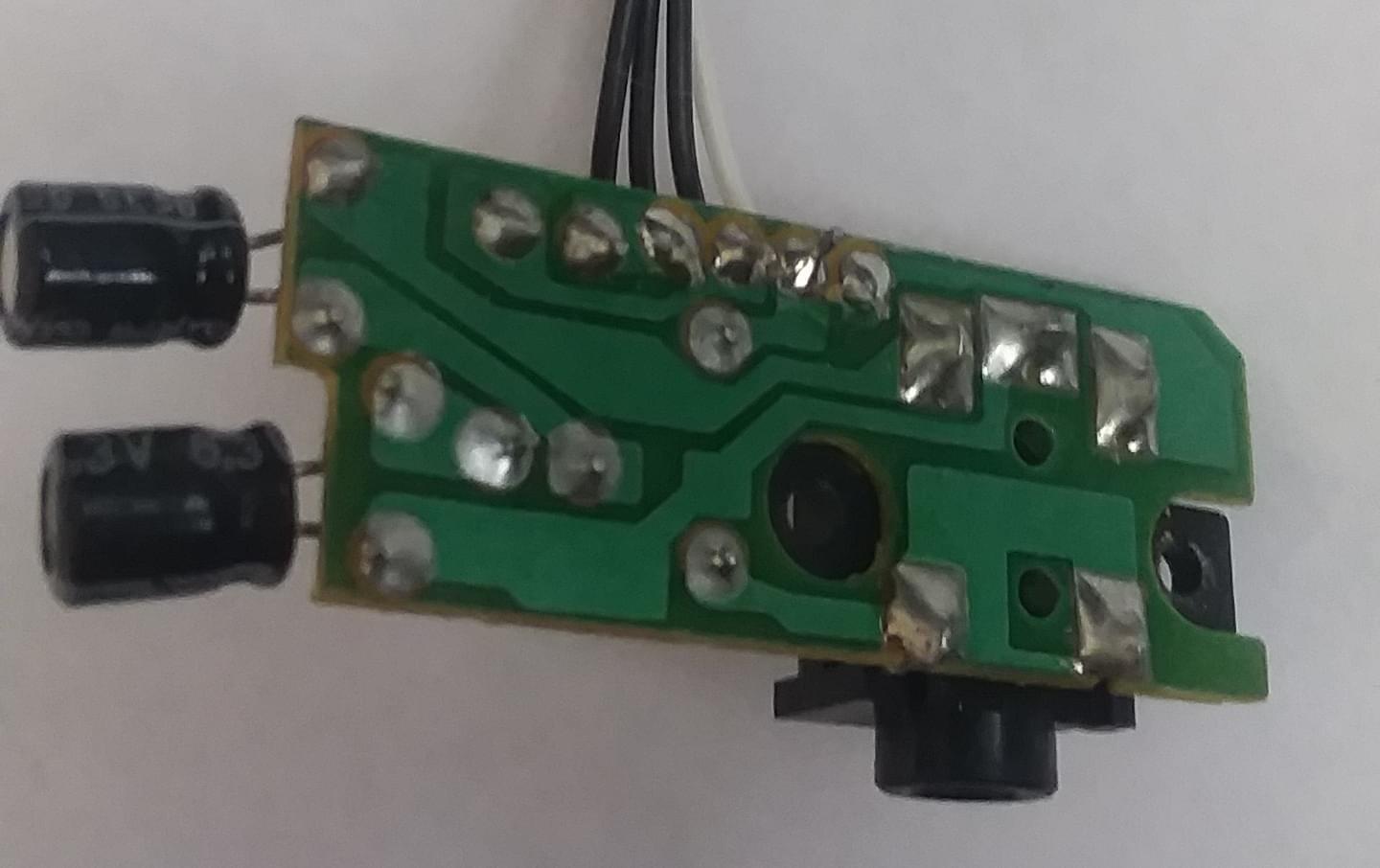

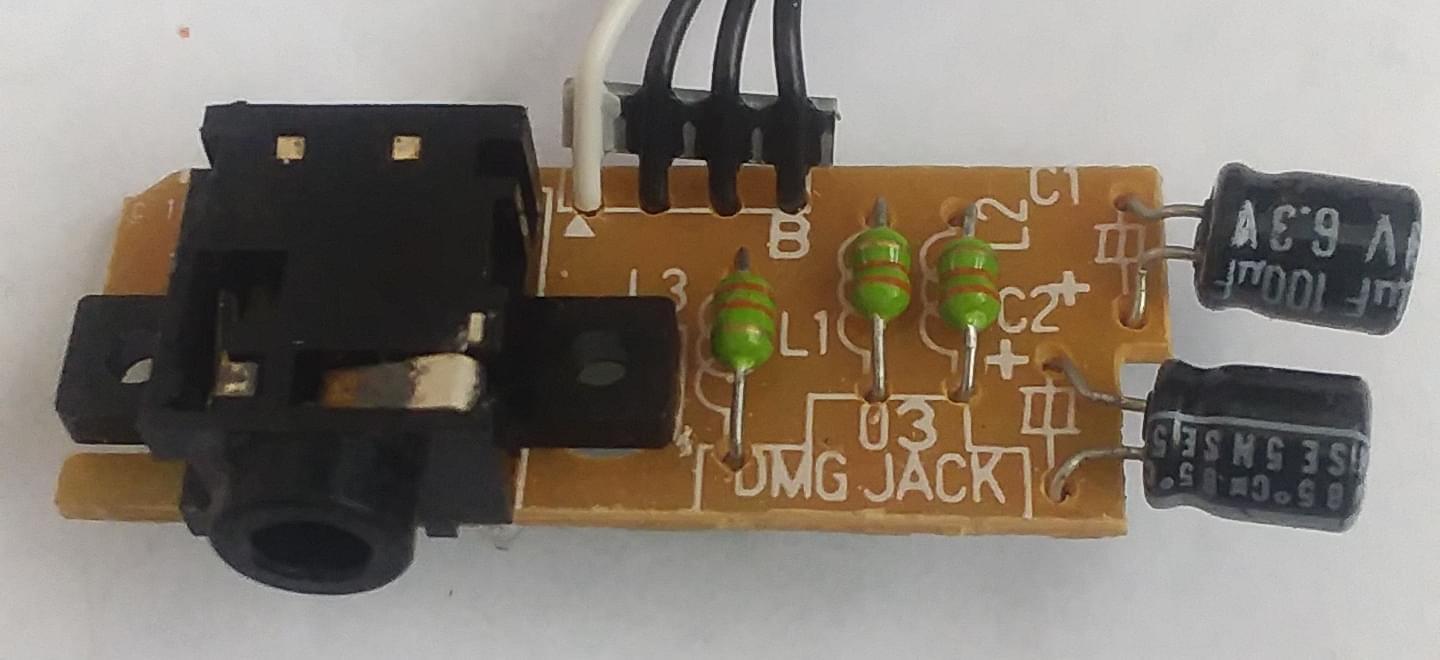

Jack board
- Board type
- DMG JACK 03
- Extra label
- 18
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU B | Sharp | Week 43/1994 | DMG-CPU B © 1989 Nintendo JAPAN 9443 D |
| U2 | VRAM | LH52A64N-PL | Mosel-Vitelic | Week 42/1994 | LH52A64N-PL MOSEL-VITELIC JAPAN N442 09 C |
| U3 | WRAM | LH52A64N-PL | Mosel-Vitelic | Week 42/1994 | LH52A64N-PL MOSEL-VITELIC JAPAN N442 09 C |
| U4 | Audio amplifier | IR3R40 | Sharp | Week 37/1994 | DMG-AMP IR3R40 9437 CA |
| X1 | Crystal | 4.194304 MHz | Daishinku | December/1995 | D419M5 |
| - | LCD column driver | LH5077 BF | Sharp | Week 47/1995 | LH5077 BF 5471 |
| - | LCD row driver | LH5076 BF | Sharp | Week 49/1995 | LH5076 BF 5491 |
| - | LCD bias generator | IR3E02 | Sharp | Week 40/1995 | DMG-REG IR3E02 9540 CB |
