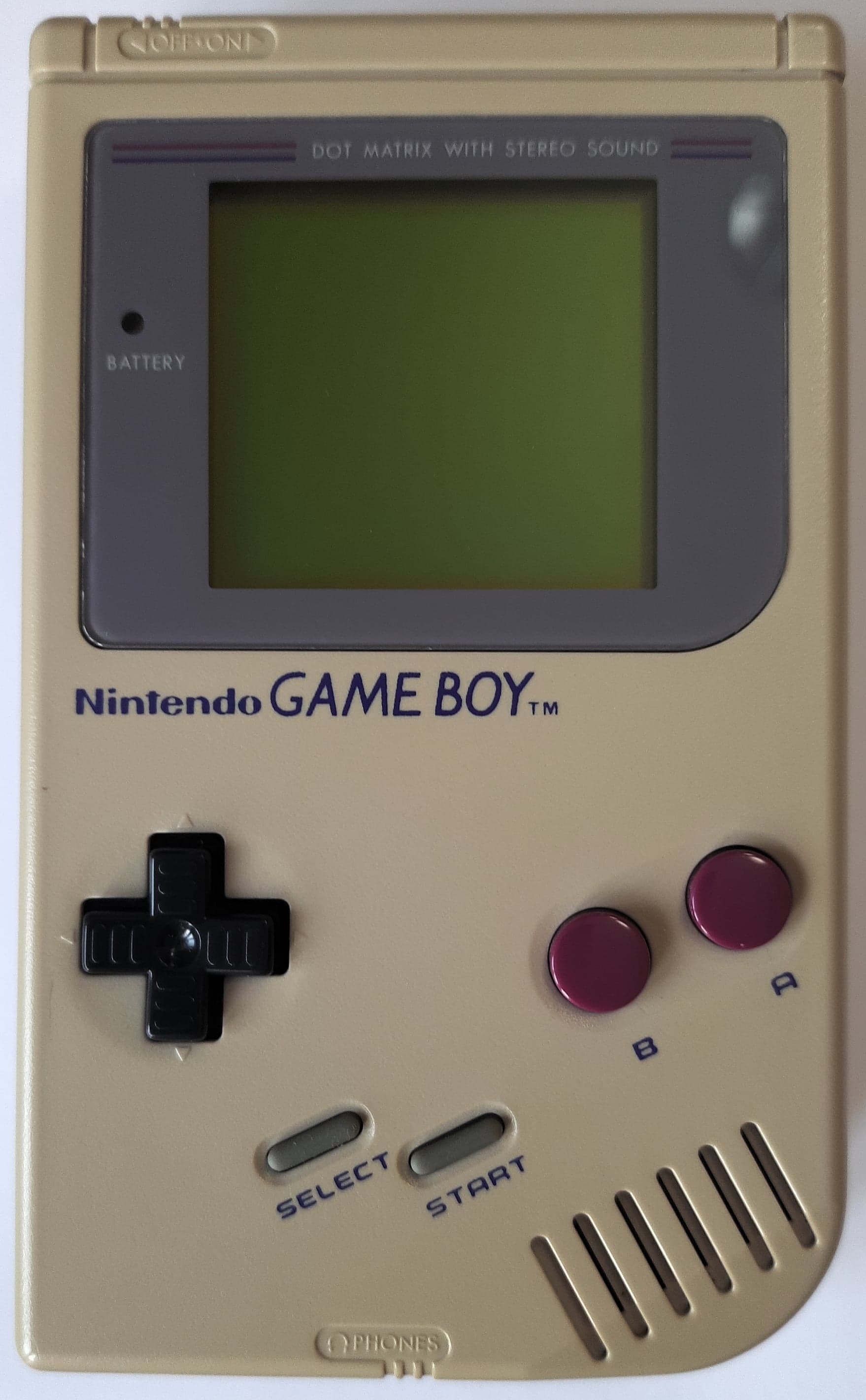

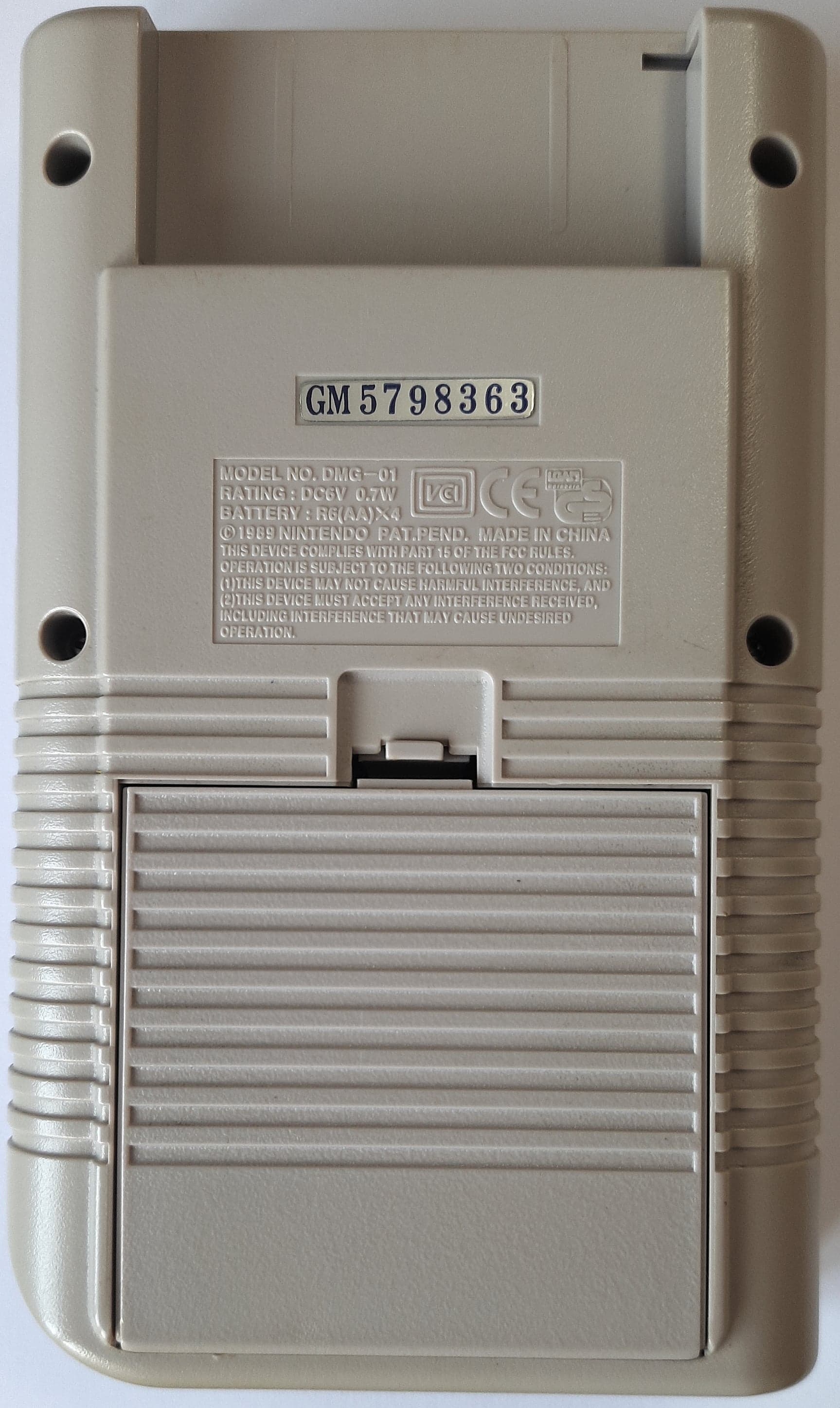

DMG: GM5798363 [Neme6]
- Color
- OffWhite
- Assembly date
- May/1998

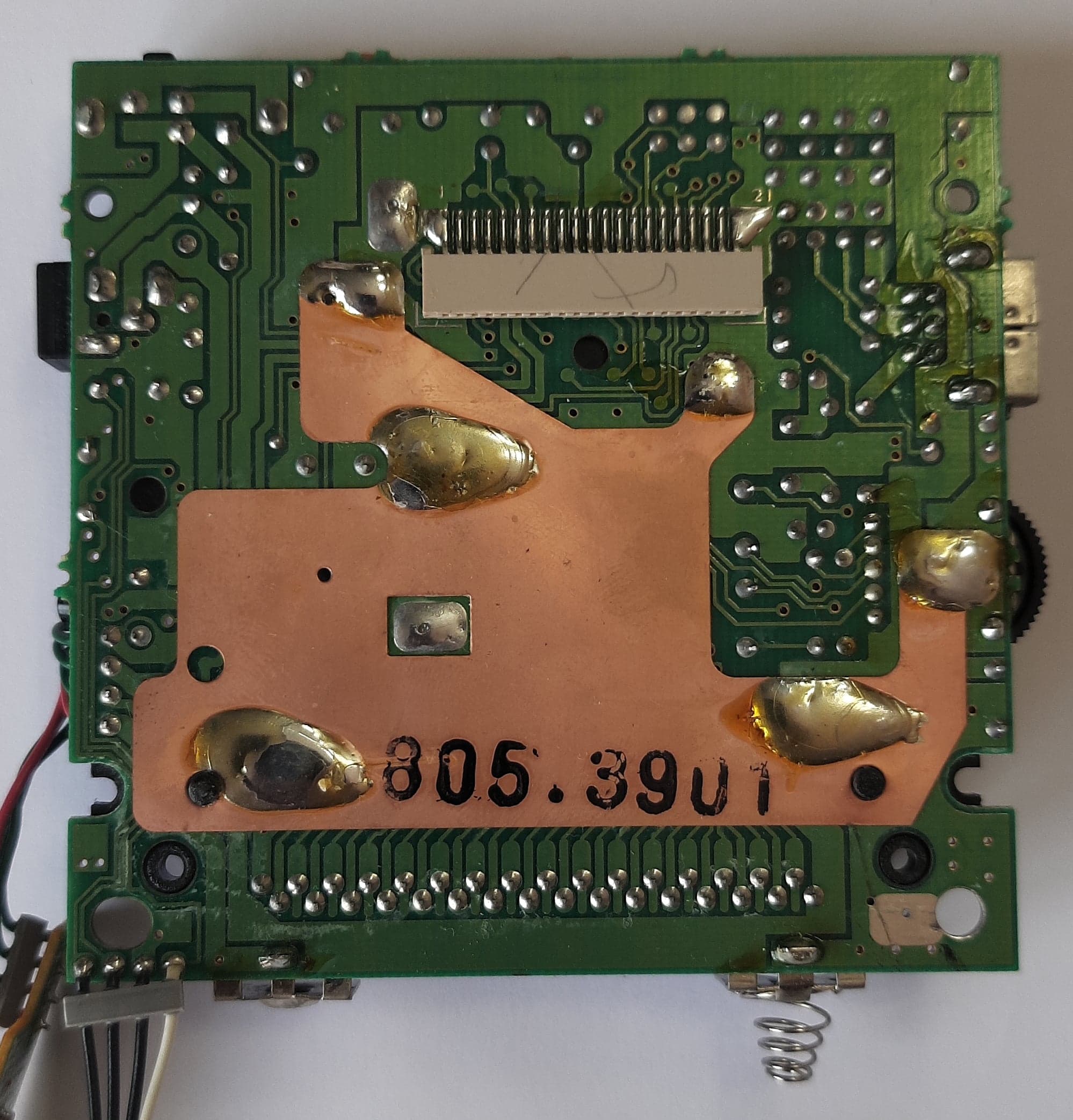

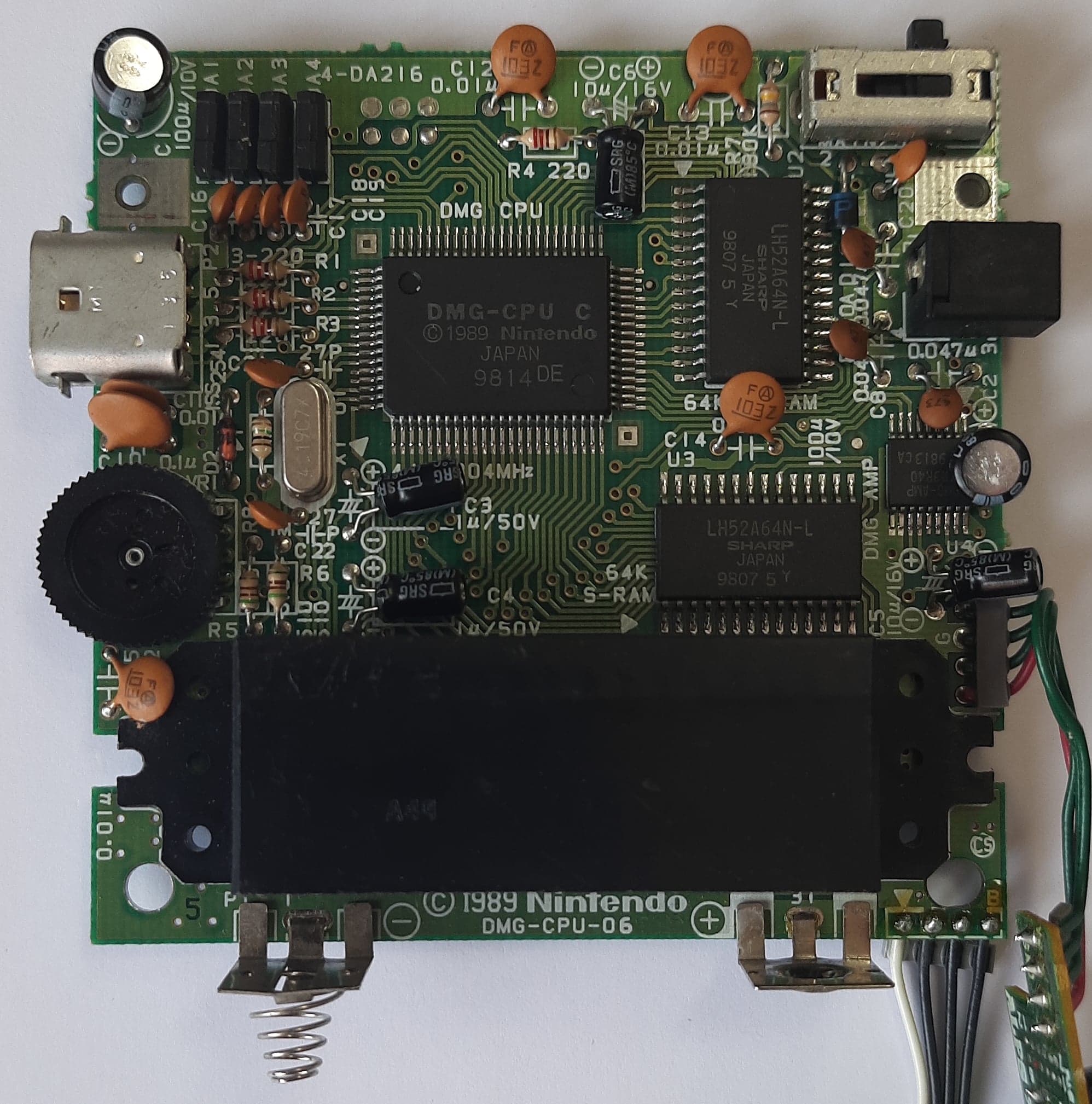

Mainboard
- Board type
- DMG-CPU-06
- Stamp on board
- 805.3901
- Circled letter(s) on board
- CS
- Extra label
- 5

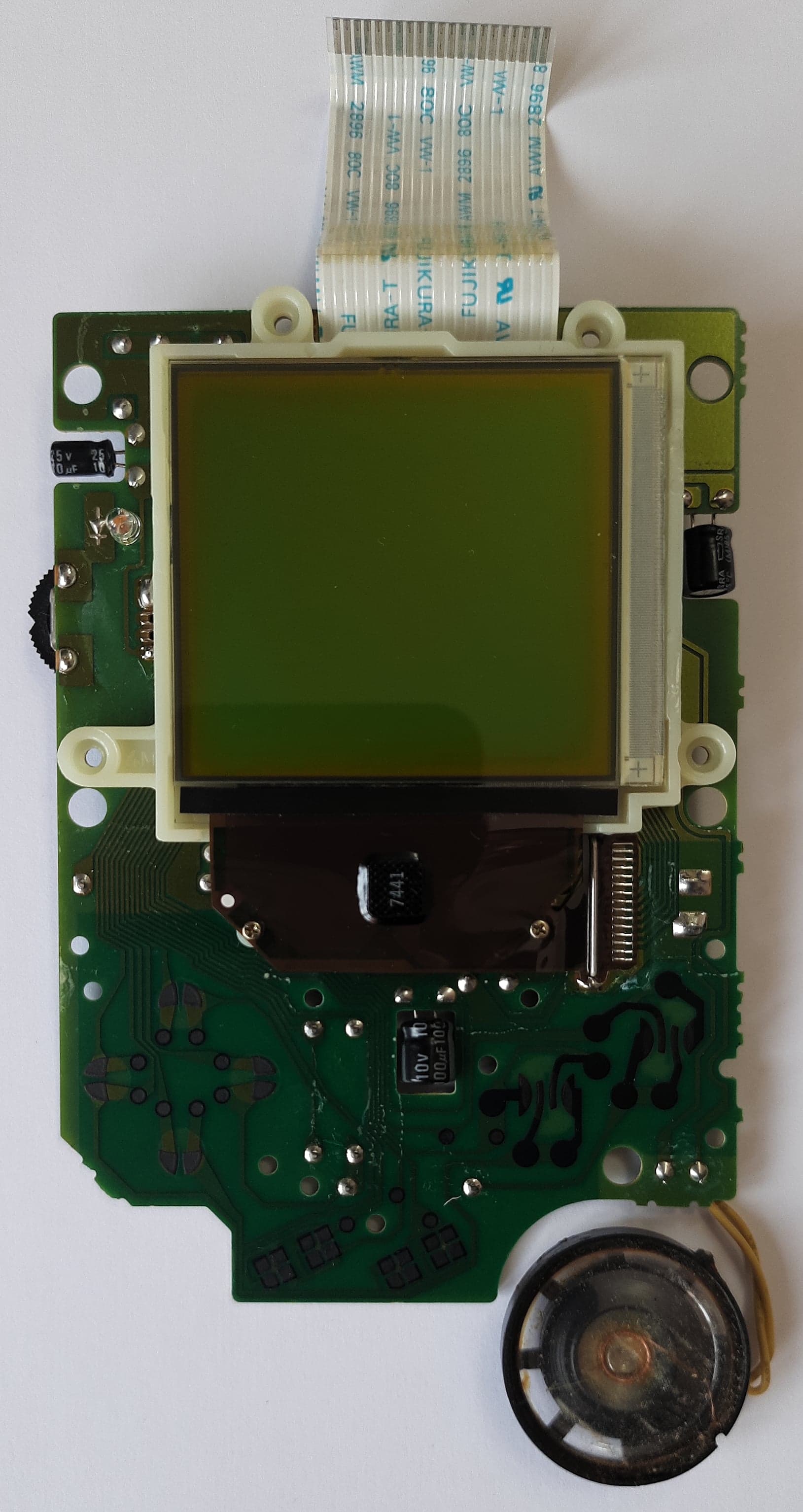

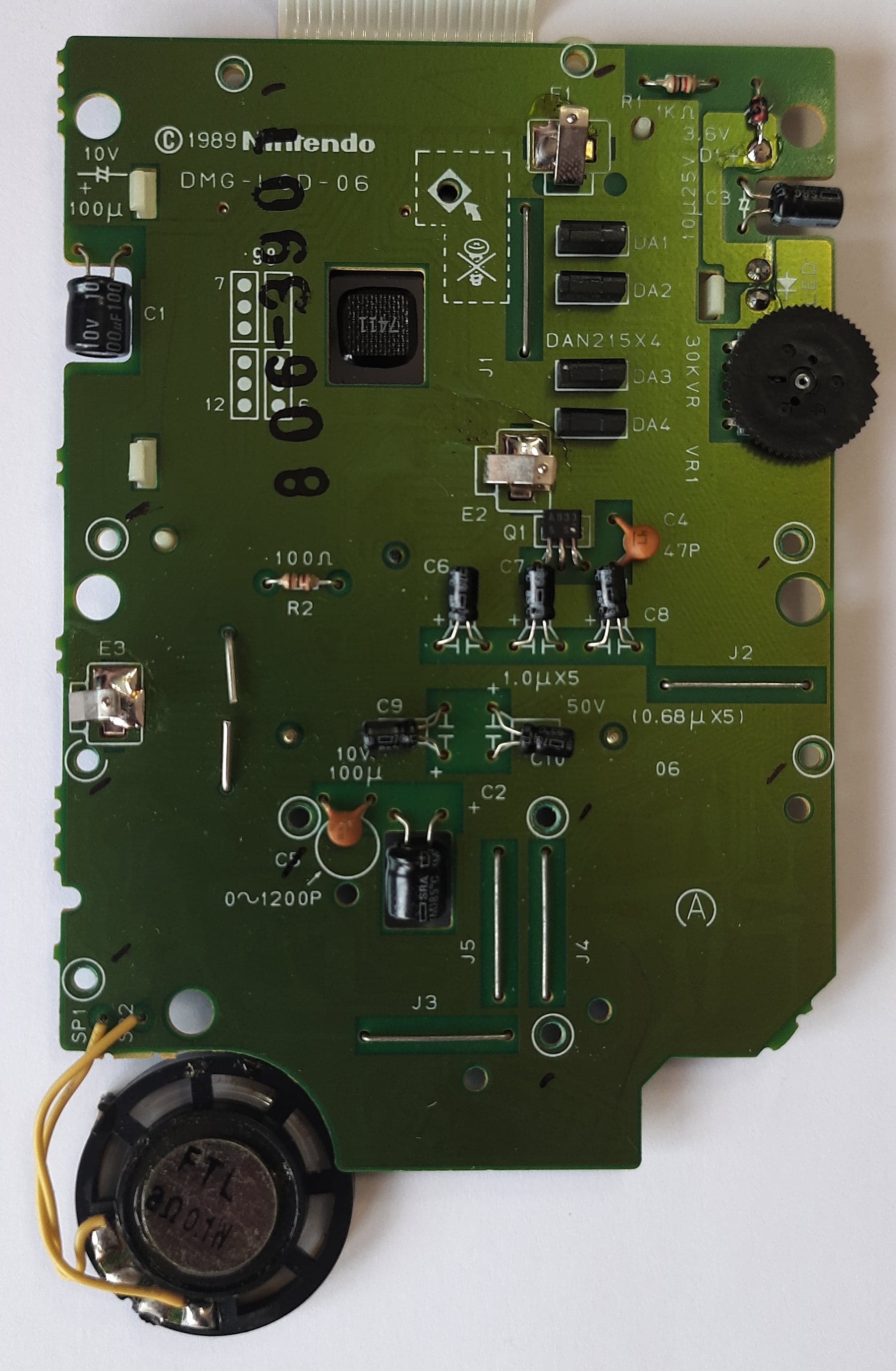

LCD board
- Board type
- DMG-LCD-06
- Manufacture date
- March/1998
- Stamp
- 806-3901
- Circled letter(s) on board
- A

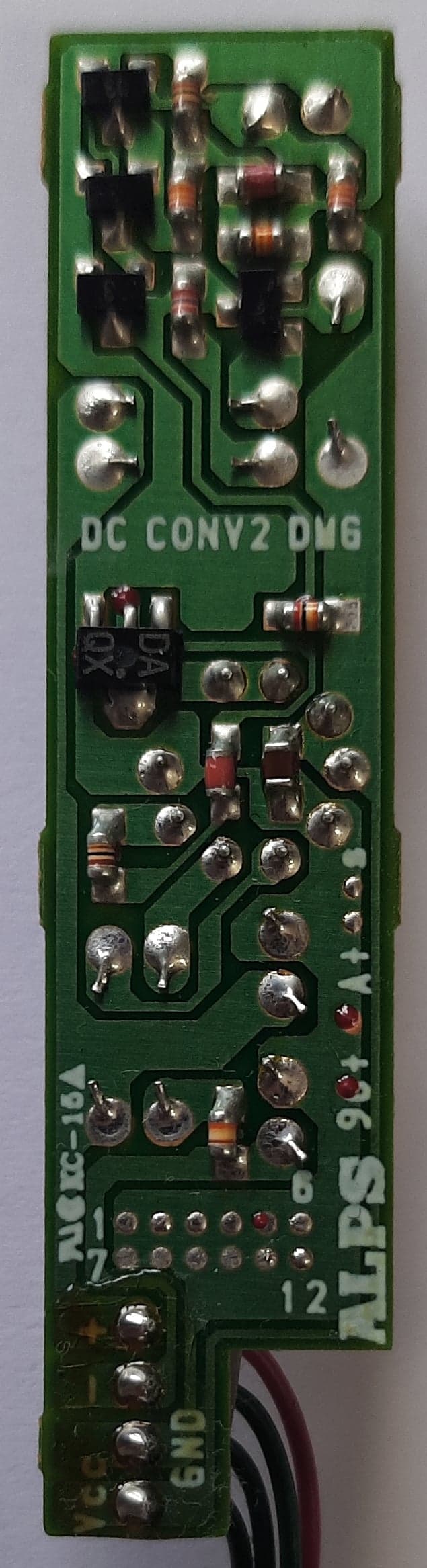

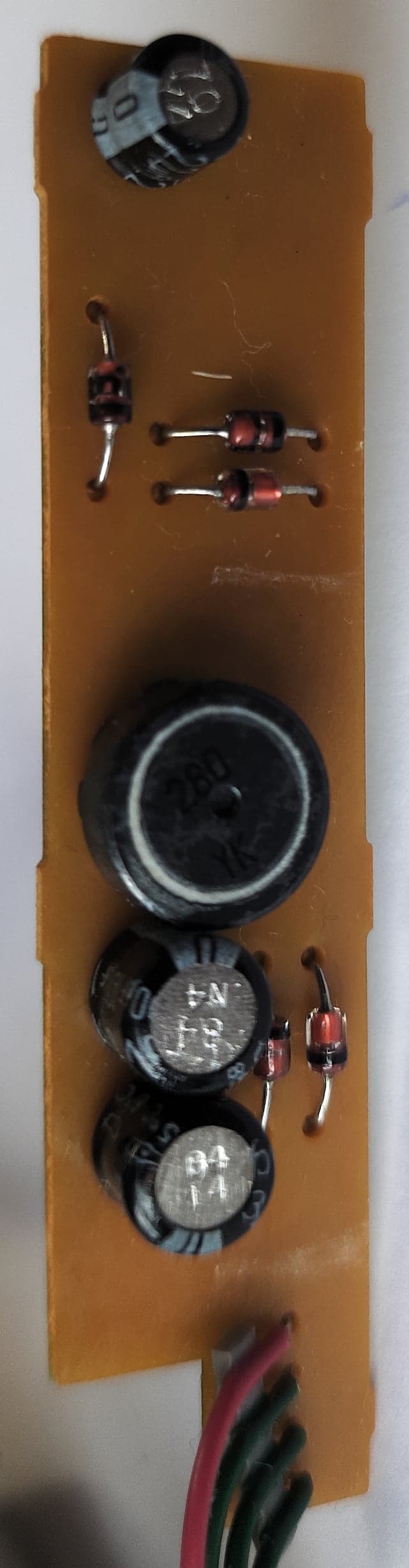

Power board
- Board type
- D
- Manufacture date
- May/1998
- Label
- DC CONV2 DMG

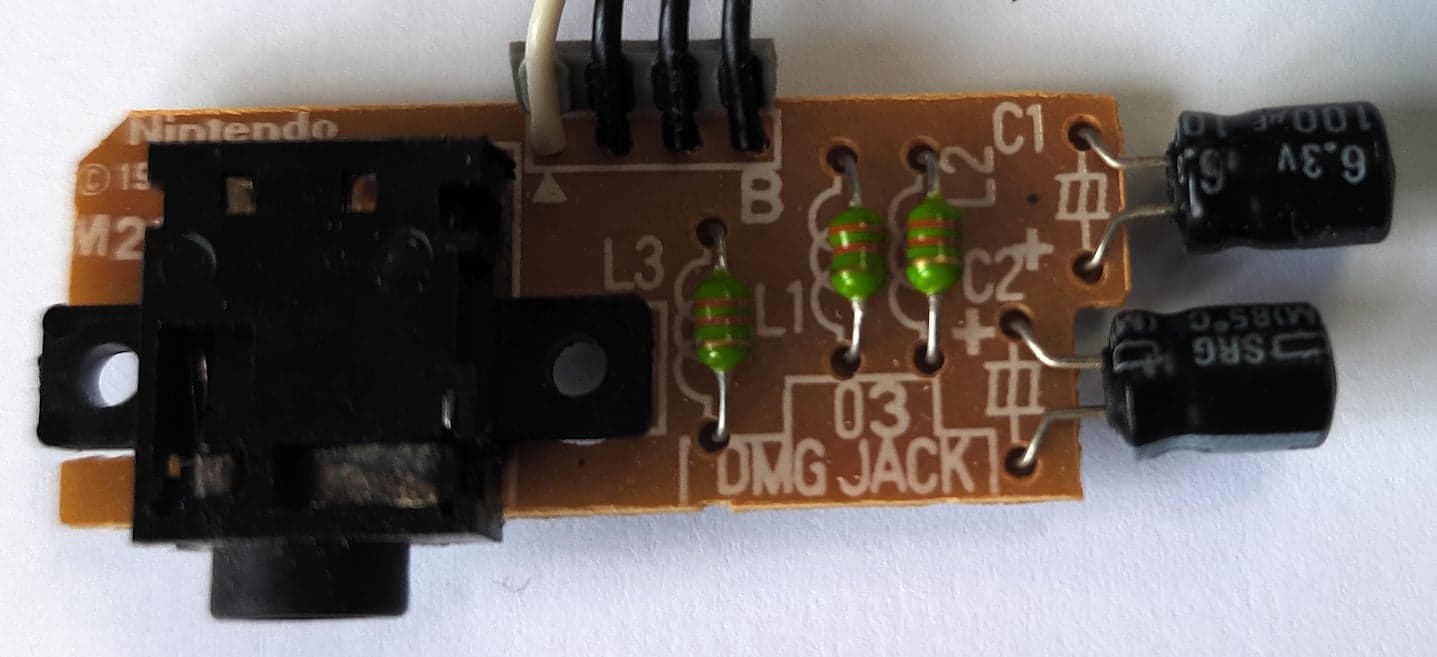

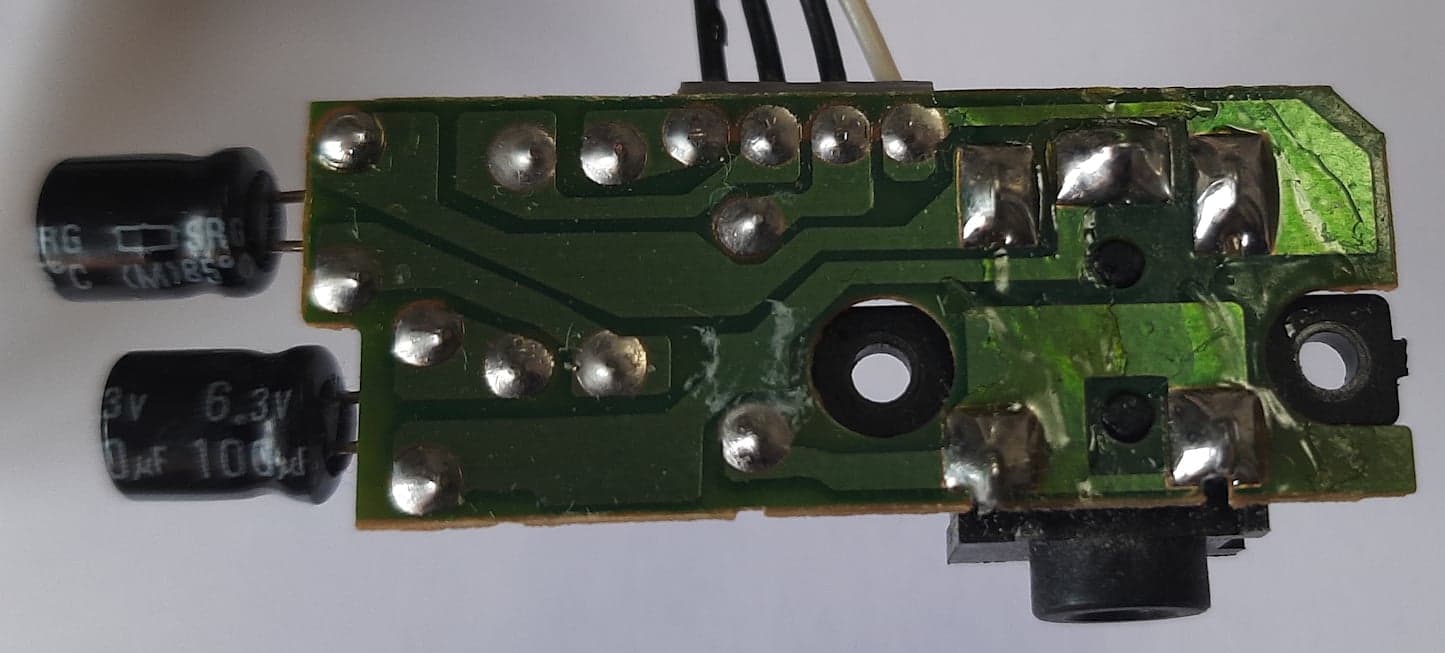

Jack board
- Board type
- DMG JACK 03
- Extra label
- M2
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU C | Sharp | Week 14/1998 | DMG-CPU C © 1989 Nintendo JAPAN 9814 DE |
| U2 | VRAM | LH52A64N-L | Sharp | Week 7/1998 | LH52A64N-L SHARP JAPAN 9807 5 Y |
| U3 | WRAM | LH52A64N-L | Sharp | Week 7/1998 | LH52A64N-L SHARP JAPAN 9807 5 Y |
| U4 | Audio amplifier | IR3R40 | Sharp | Week 13/1998 | DMG-AMP IR3R40 9813 CA |
| X1 | Crystal | 4.194304 MHz | 1997 | 4.19C7X | |
| - | LCD column driver | 7441 | Sharp | 7441 | |
| - | LCD row driver | 7411 | Sharp | 7411 | |
| - | LCD bias generator |
