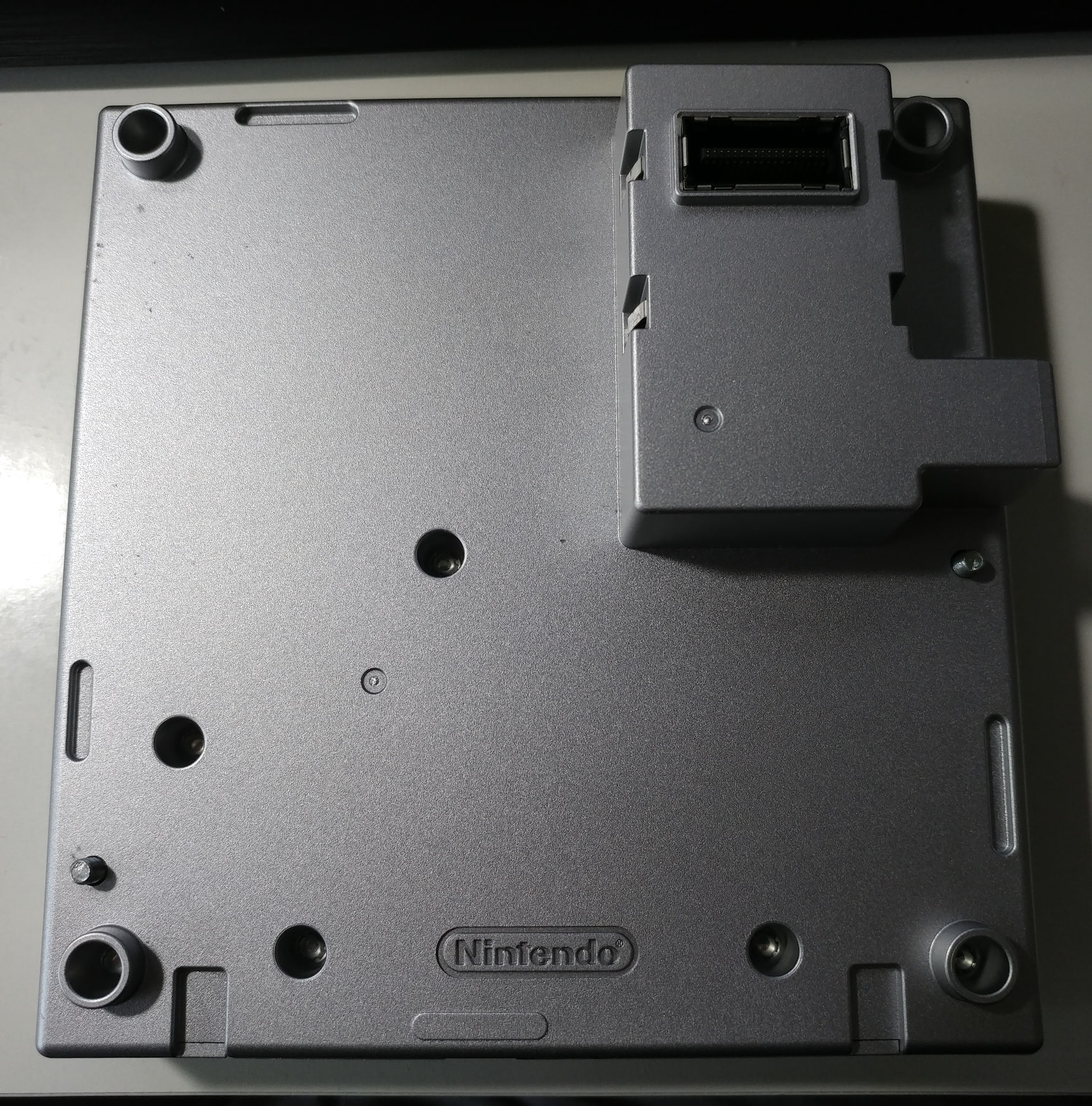

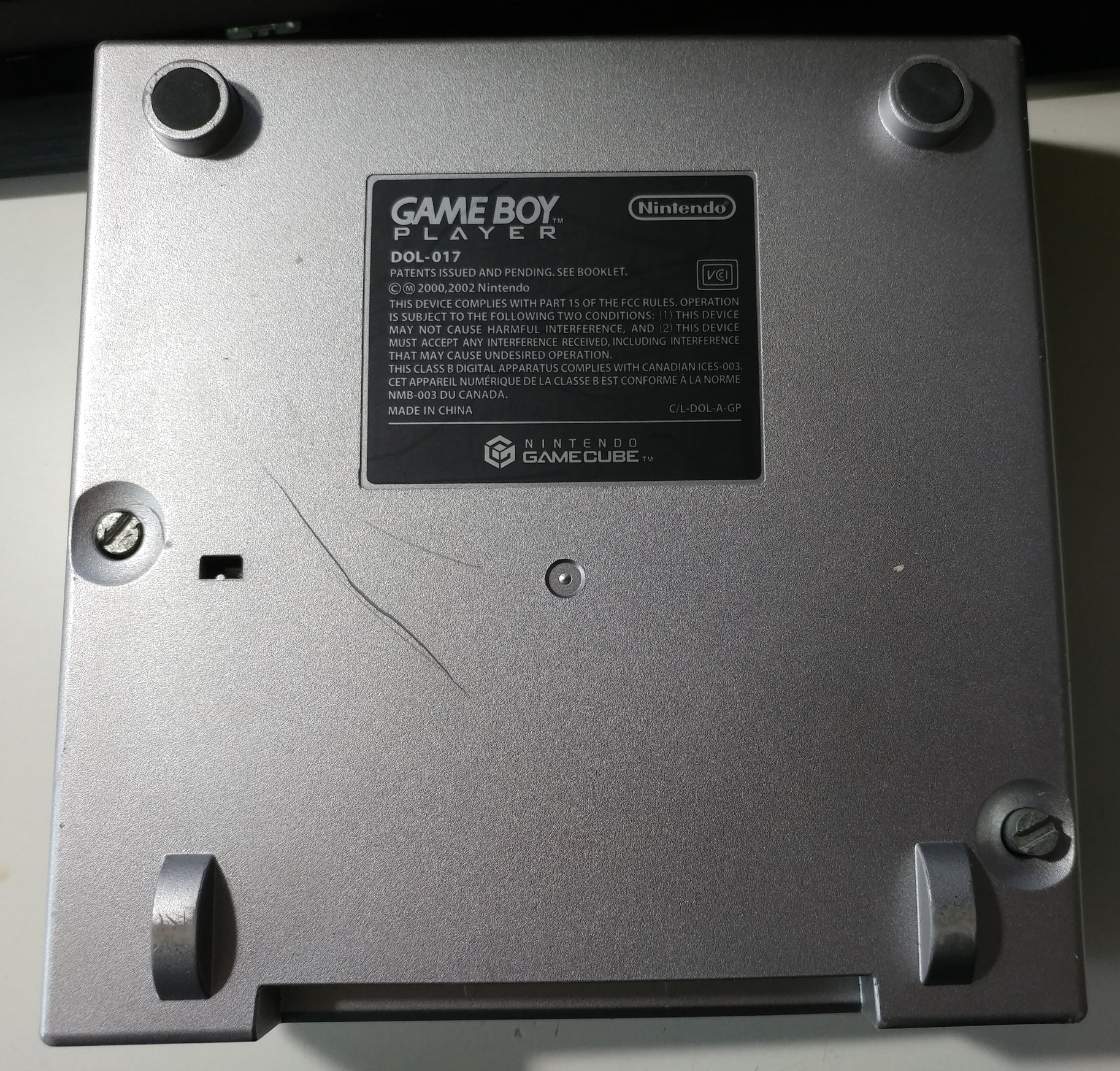

GBS: Unit #1 [Duo]
- Color
- Platinum
- Release code
- C/L-DOL-A-GP
- Assembly date
- Week 10/2003

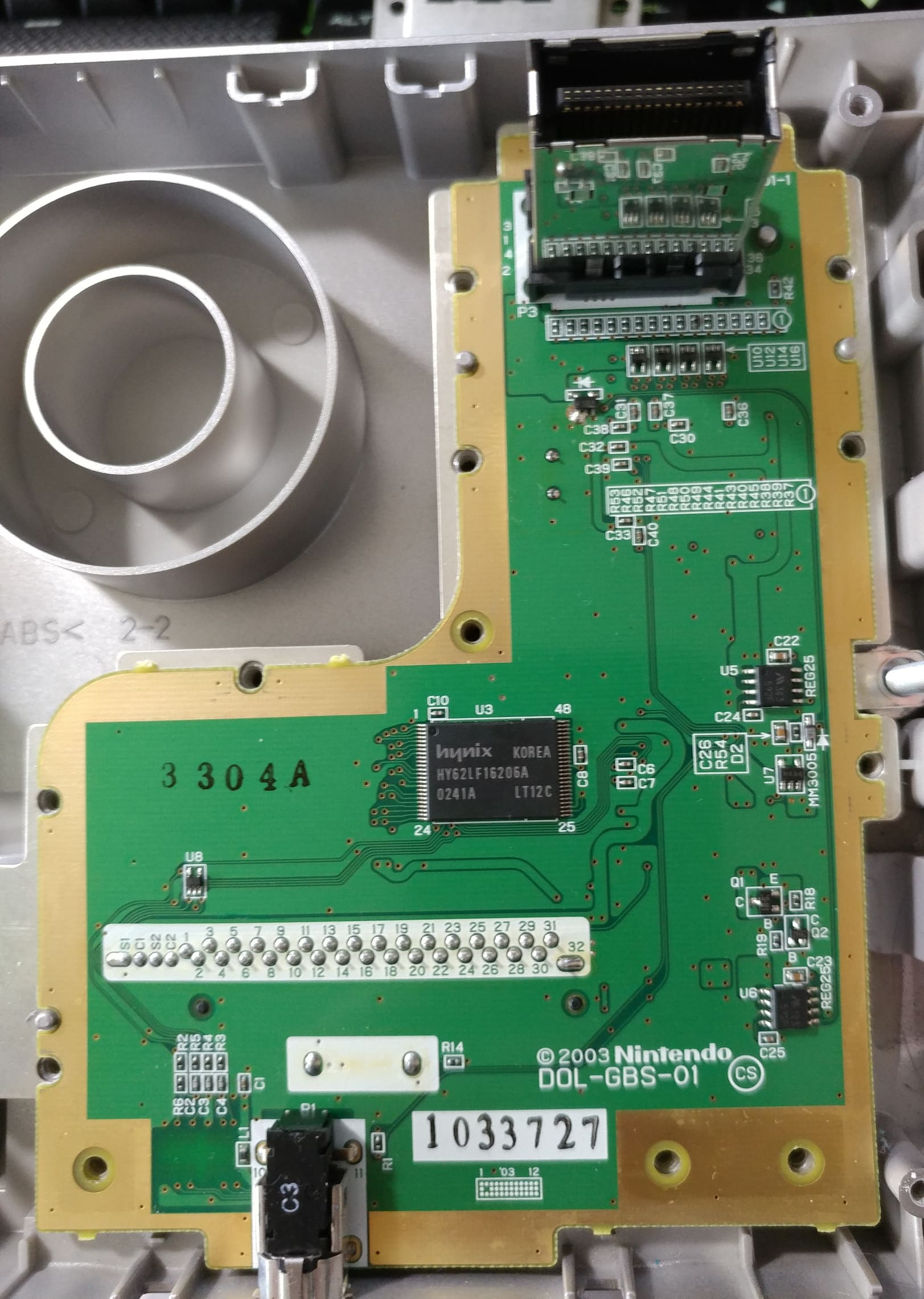

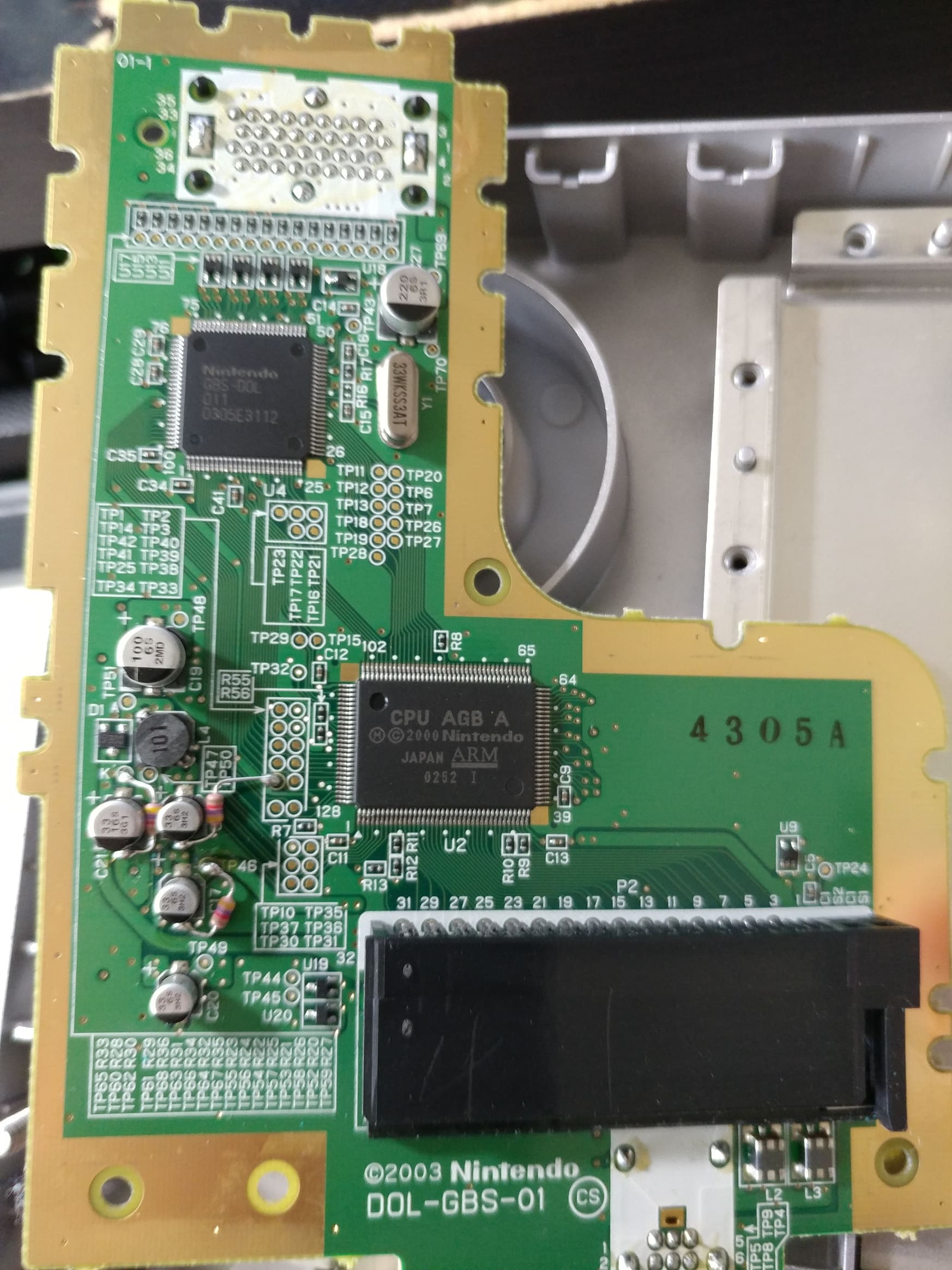

Mainboard
- Board type
- DOL-GBS-01
- Manufacture date
- February/2003
- Number pair on board
- 01-1
- Stamp on board
- 1033727
- Secondary stamp on board (front)
- 3304A
- Secondary stamp on board (back)
- 4305A
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Sharp | Week 52/2002 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0252 I |
| U2 | WRAM | HY62LF16206A-LT12C | Hynix | Week 41/2002 | Hynix KOREA HY62LF16206A 0241A LT12C |
| U4 | ? | GBS-DOL | NEC | Week 5/2003 | Nintendo GBS-DOL 011 0305E3112 |
| U5 | Regulator | MM1592F | Mitsumi | Week 3/2003 | 303 592F |
| U6 | Regulator | MM1592F | Mitsumi | Week 3/2003 | 303 592F |
| Y1 | Crystal | 33.554432 MHz | Kinseki | January/2003 | 33WKSS3AT |
