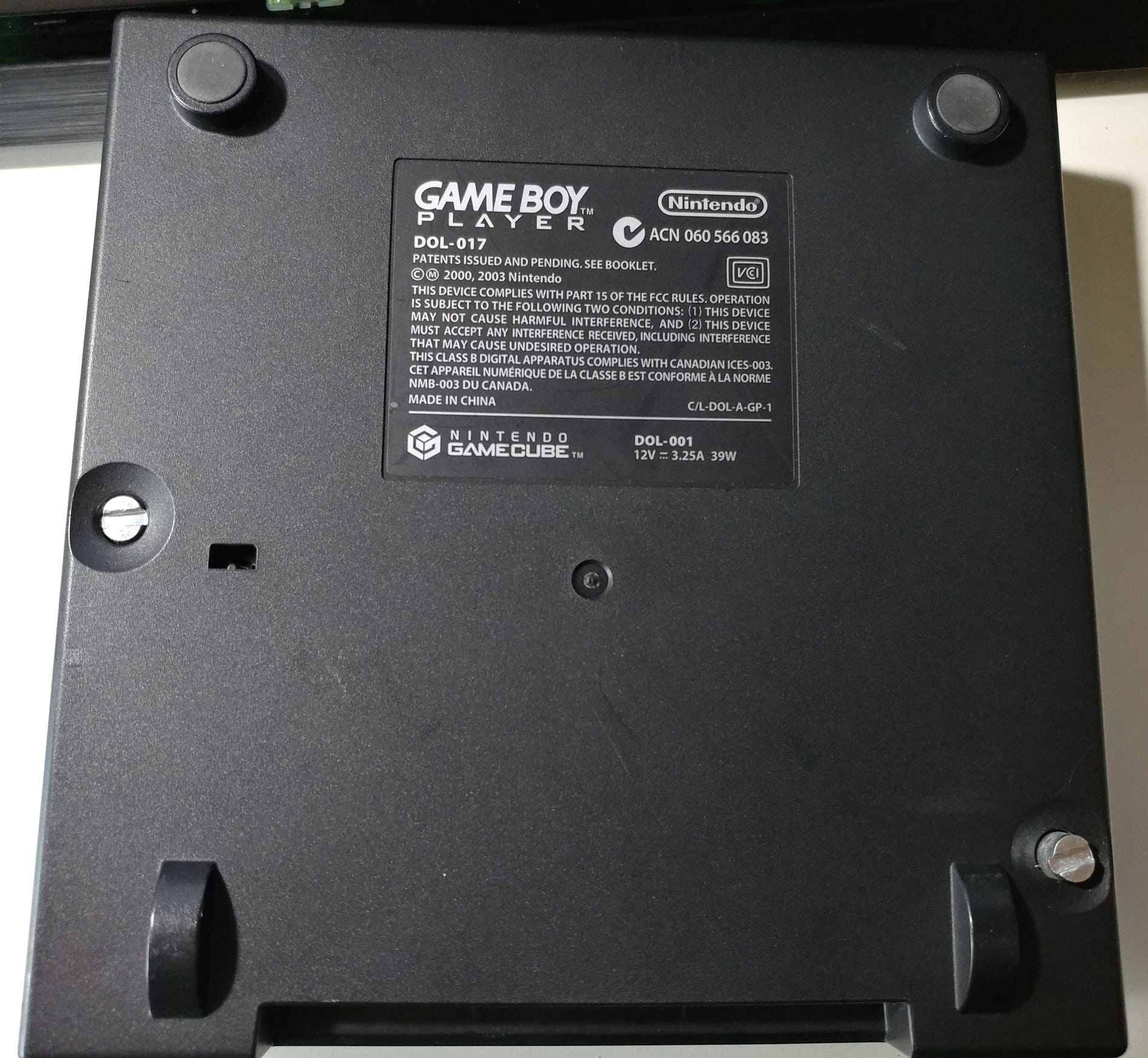

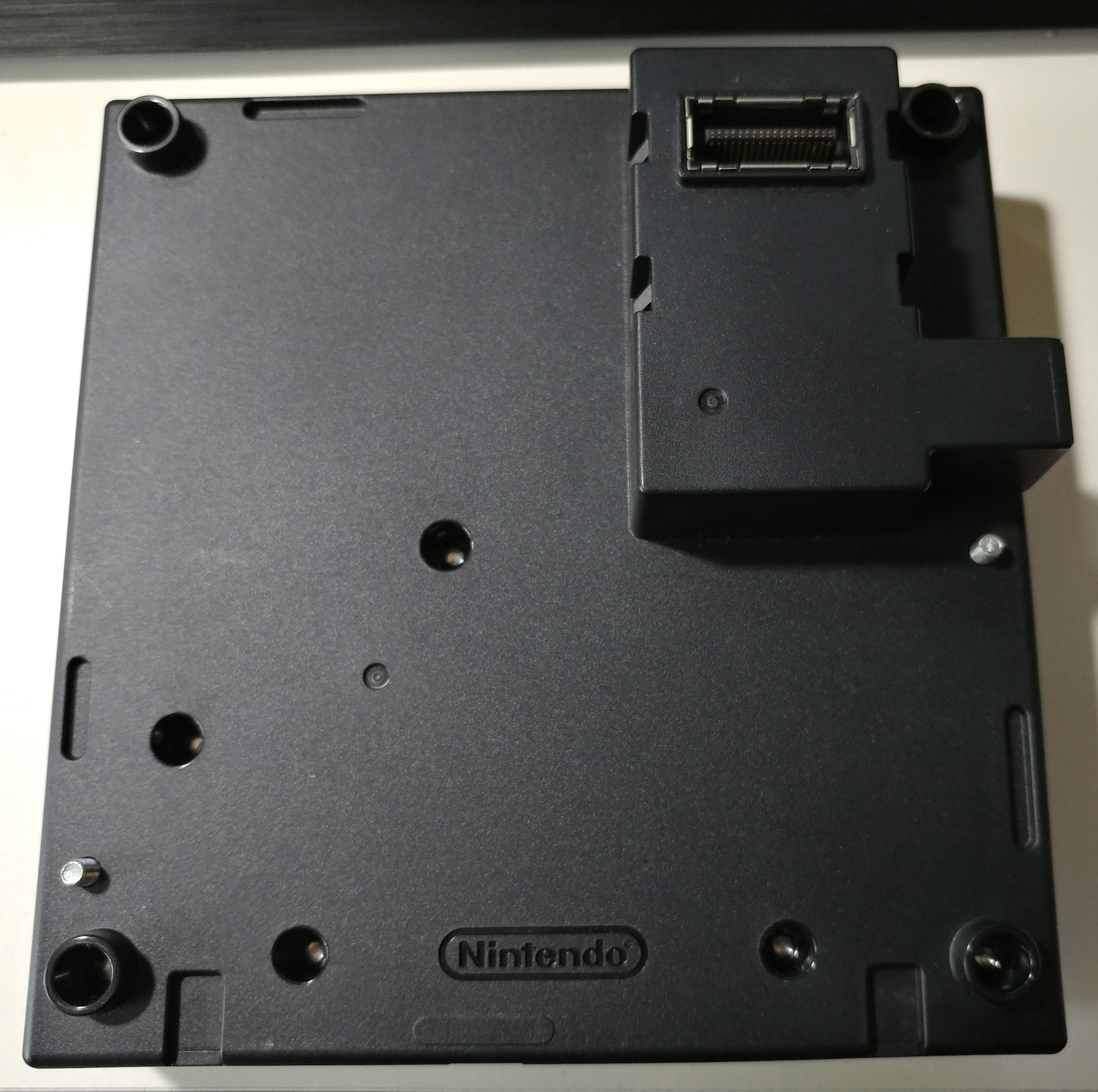

GBS: Unit #2 [Duo]
- Color
- Black
- Release code
- C/L-DOL-A-GP-1
- Assembly date
- Week 14/2004

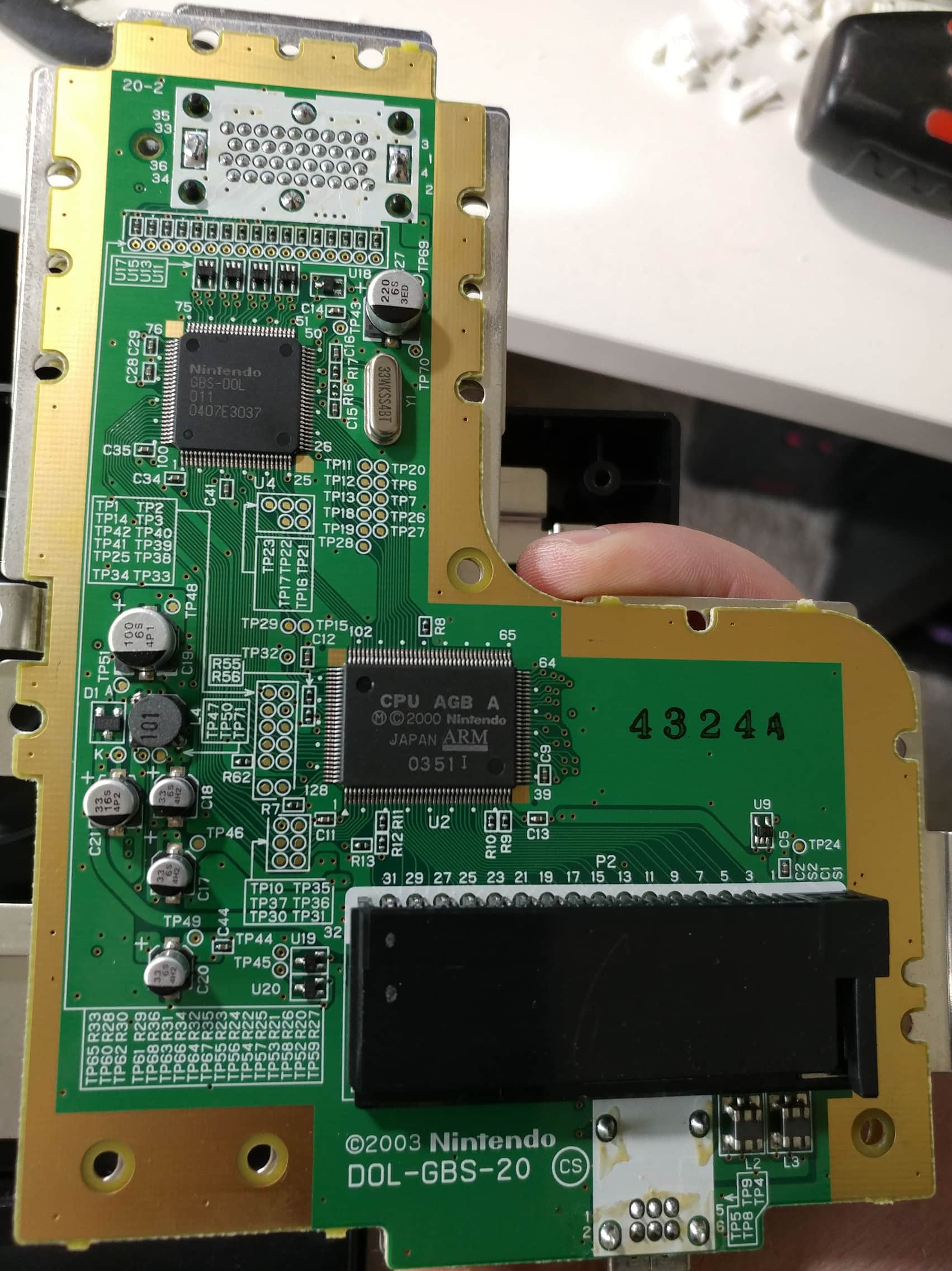

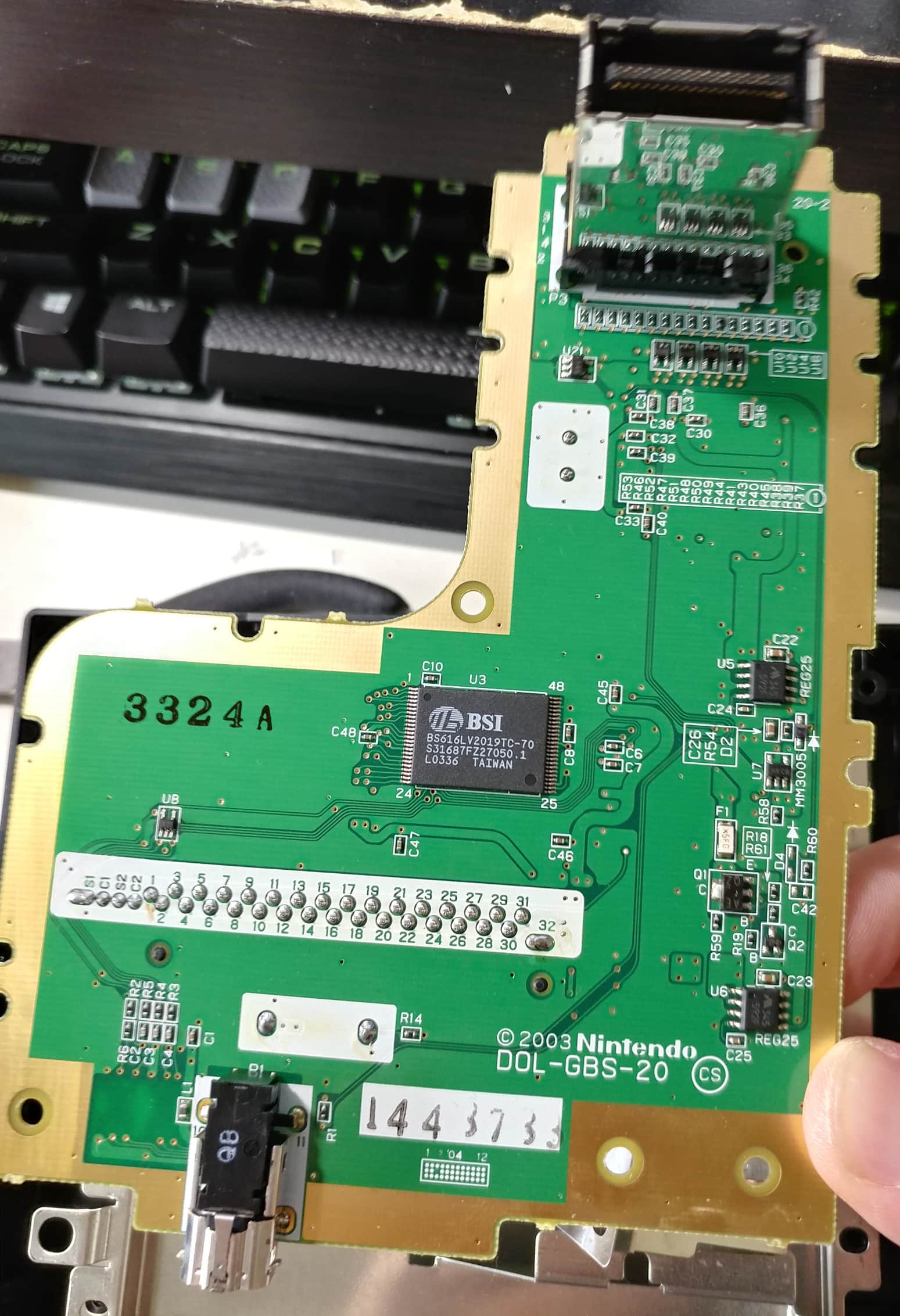

Mainboard
- Board type
- DOL-GBS-20
- Manufacture date
- March/2004
- Number pair on board
- 20-2
- Stamp on board
- 1443733
- Secondary stamp on board (front)
- 3324A
- Secondary stamp on board (back)
- 4324A
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Sharp | Week 51/2003 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0351 I |
| U2 | WRAM | BS616LV2019TC-70 | BSI | Week 36/2003 | BSI BS616LV2019TC-70 S31687FZ27050.1 L0336 TAIWAN |
| U4 | ? | GBS-DOL | NEC | Week 7/2004 | Nintendo GBS-DOL 011 0407E3037 |
| U5 | Regulator | MM1592F | Mitsumi | Week 45/2003 | 345 592F |
| U6 | Regulator | MM1592F | Mitsumi | Week 45/2003 | 345 592F |
| Y1 | Crystal | 33.554432 MHz | Kinseki | February/2004 | 33WKSS4BT |
