GBS: Unit #1 [jrra]

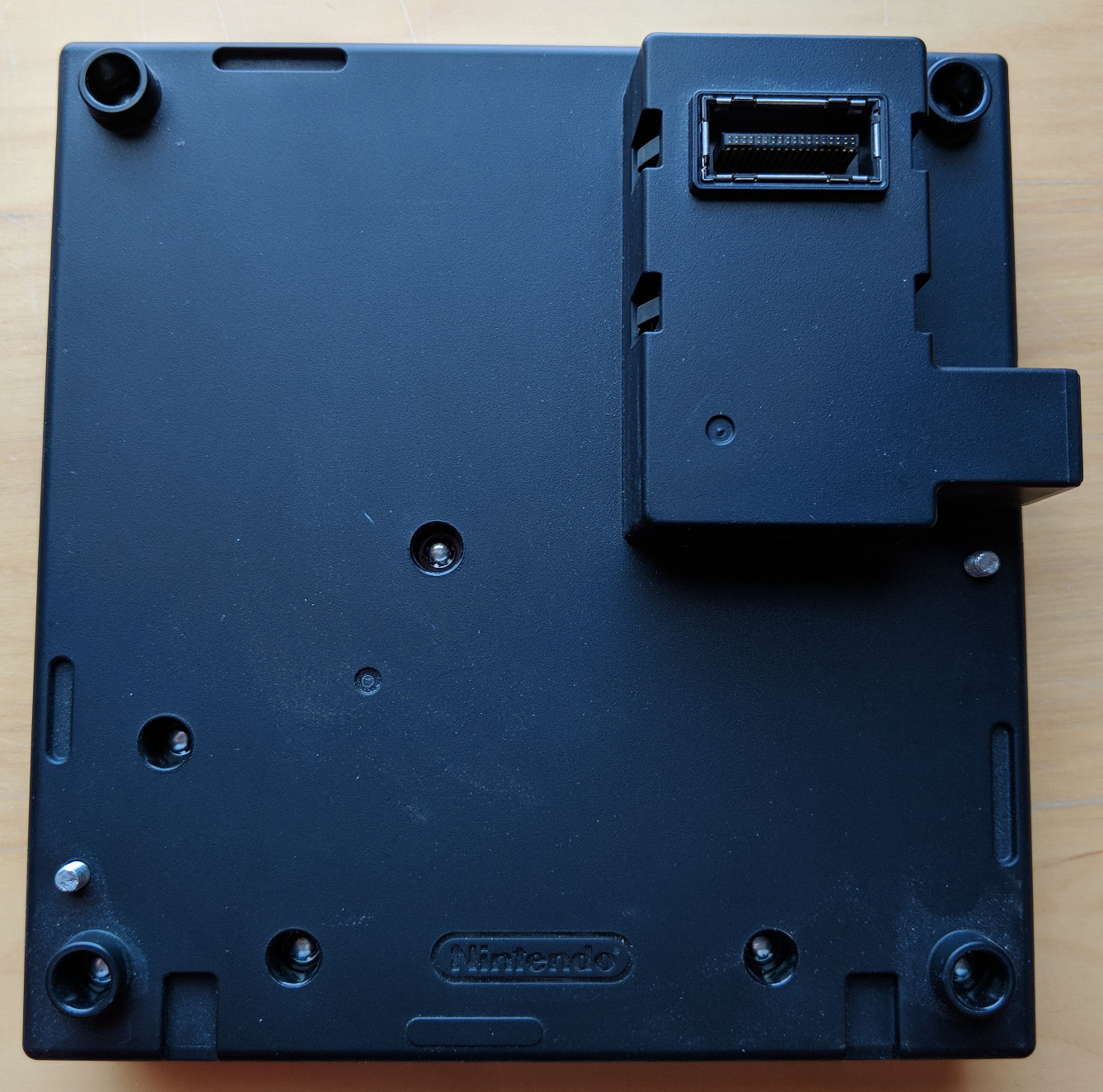

- Color
- Black

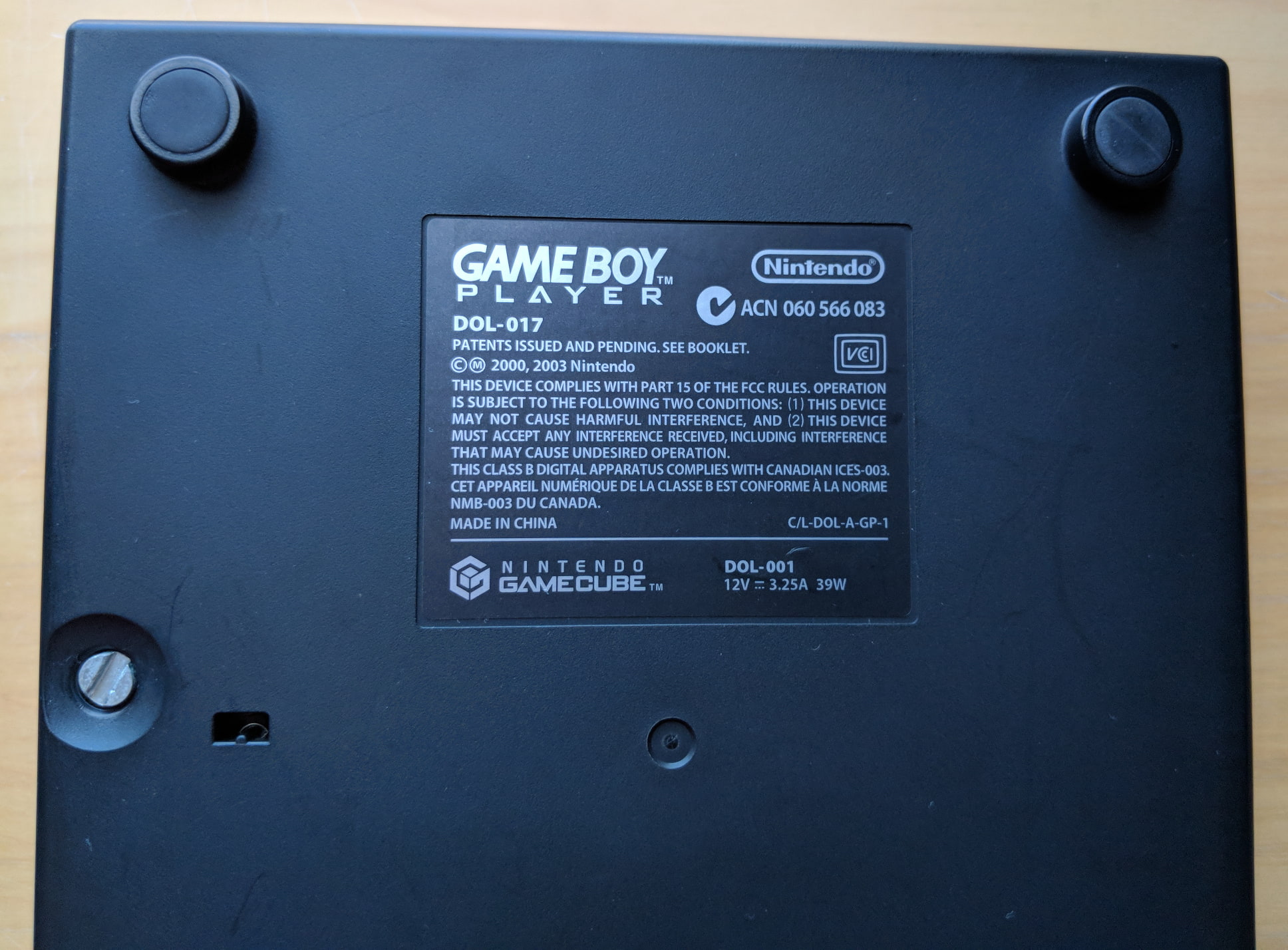

- Release code
- C/L-DOL-A-GP-1
- Assembly date
- Week 40/2003

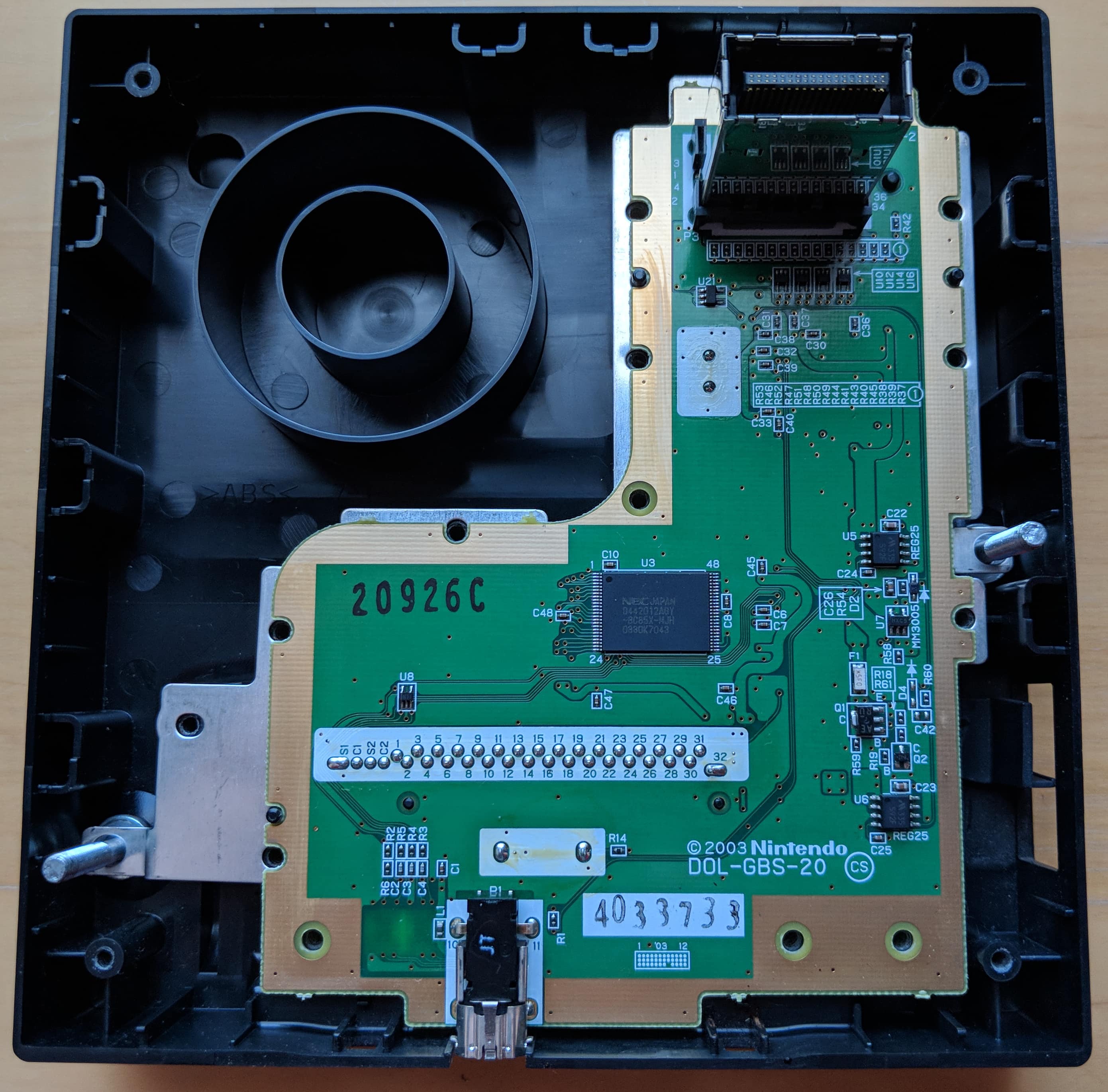

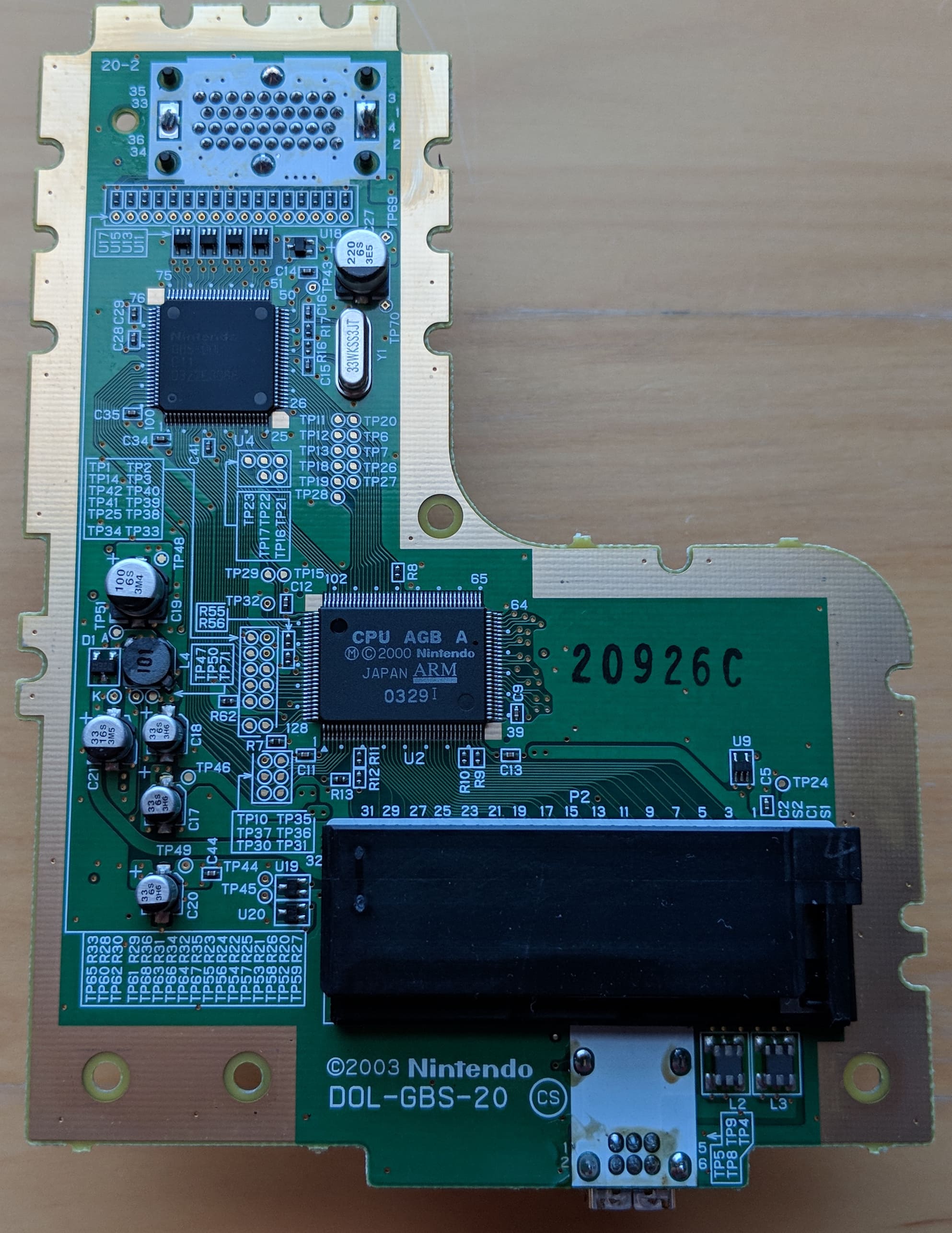

Mainboard
- Board type
- DOL-GBS-20
- Manufacture date
- August/2003
- Number pair on board
- 20-2
- Stamp on board
- 4033733
- Secondary stamp on board (front)
- 20926C
- Secondary stamp on board (back)
- 20926C
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Sharp | Week 29/2003 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0329 I |
| U2 | WRAM | D442012AGY-BC85X-MJH | NEC | Week 30/2003 | NEC JAPAN D442012AGY-BC85X-MJH 0330K7043 |
| U4 | ? | GBS-DOL | NEC | Week 22/2003 | Nintendo GBS-DOL 011 0322E3388 |
| U5 | Regulator | MM1592F | Mitsumi | Week 35/2003 | 335 592F |
| U6 | Regulator | MM1592F | Mitsumi | Week 35/2003 | 335 592F |
| Y1 | Crystal | 33.554432 MHz | Kinseki | September/2003 | 33WKSS3JT |
