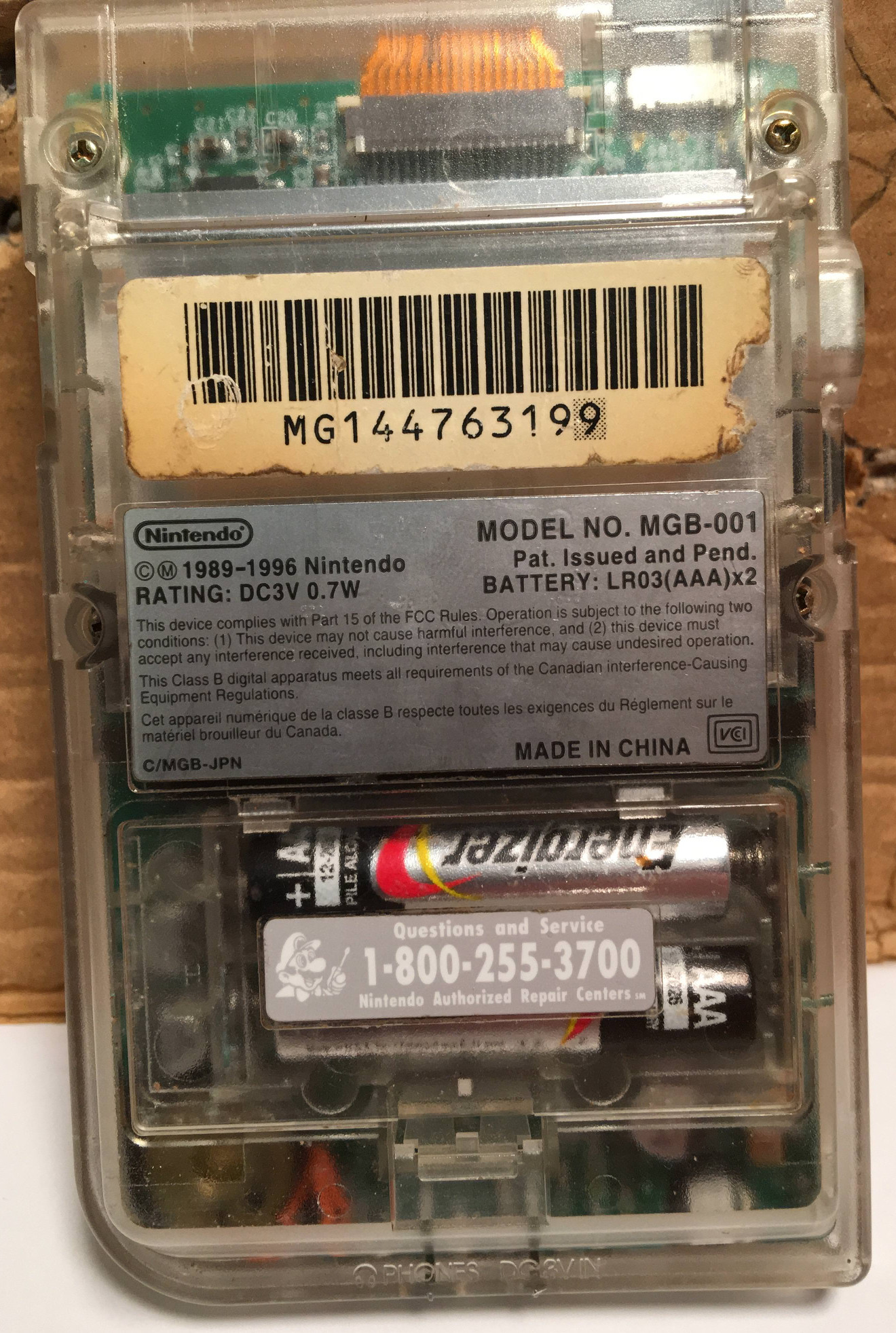

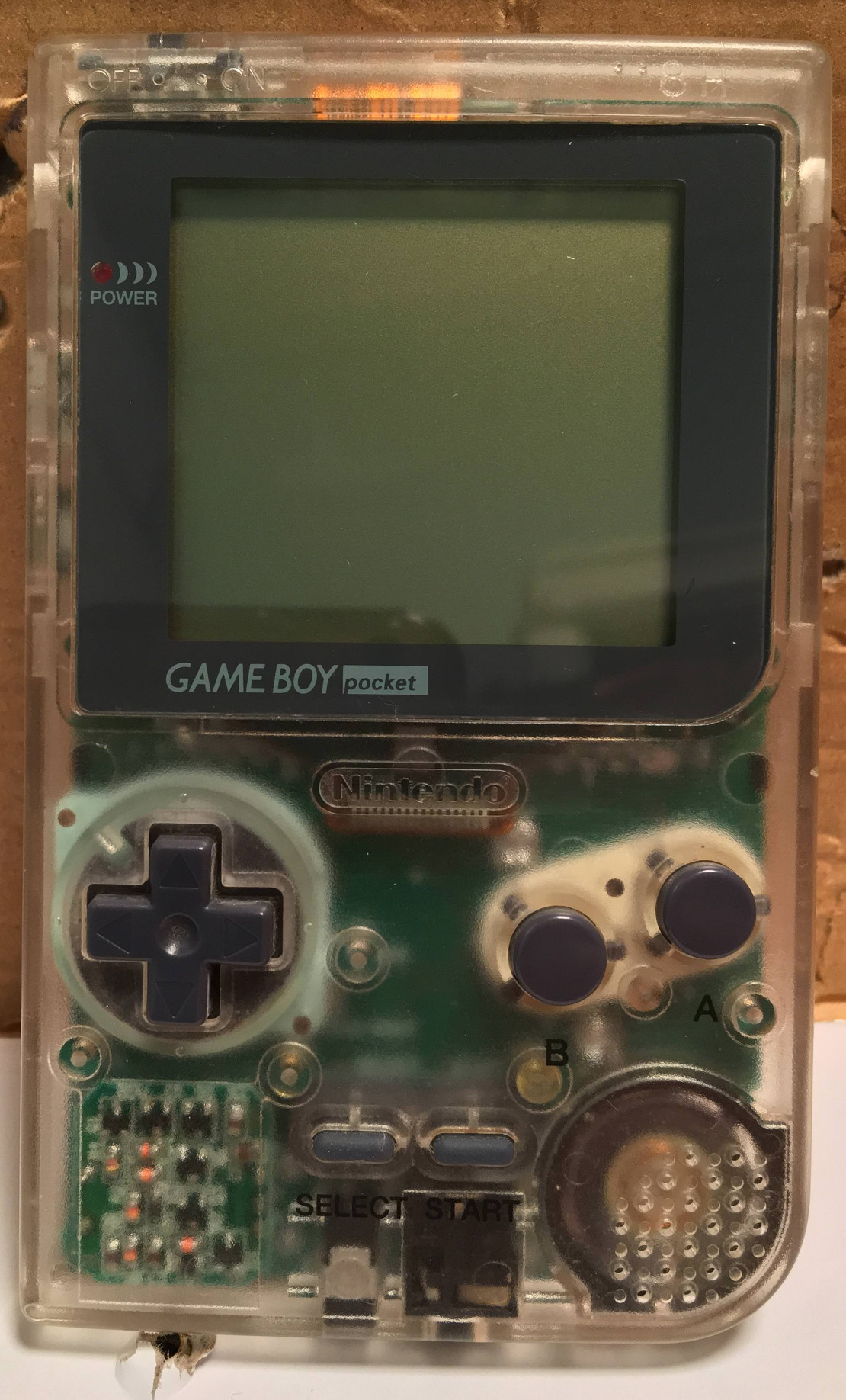

MGB: MG14476319-9 [l0k1]
- Color
- Clear
- Release code
- C/MGB-JPN
- Assembly date
- August/1998

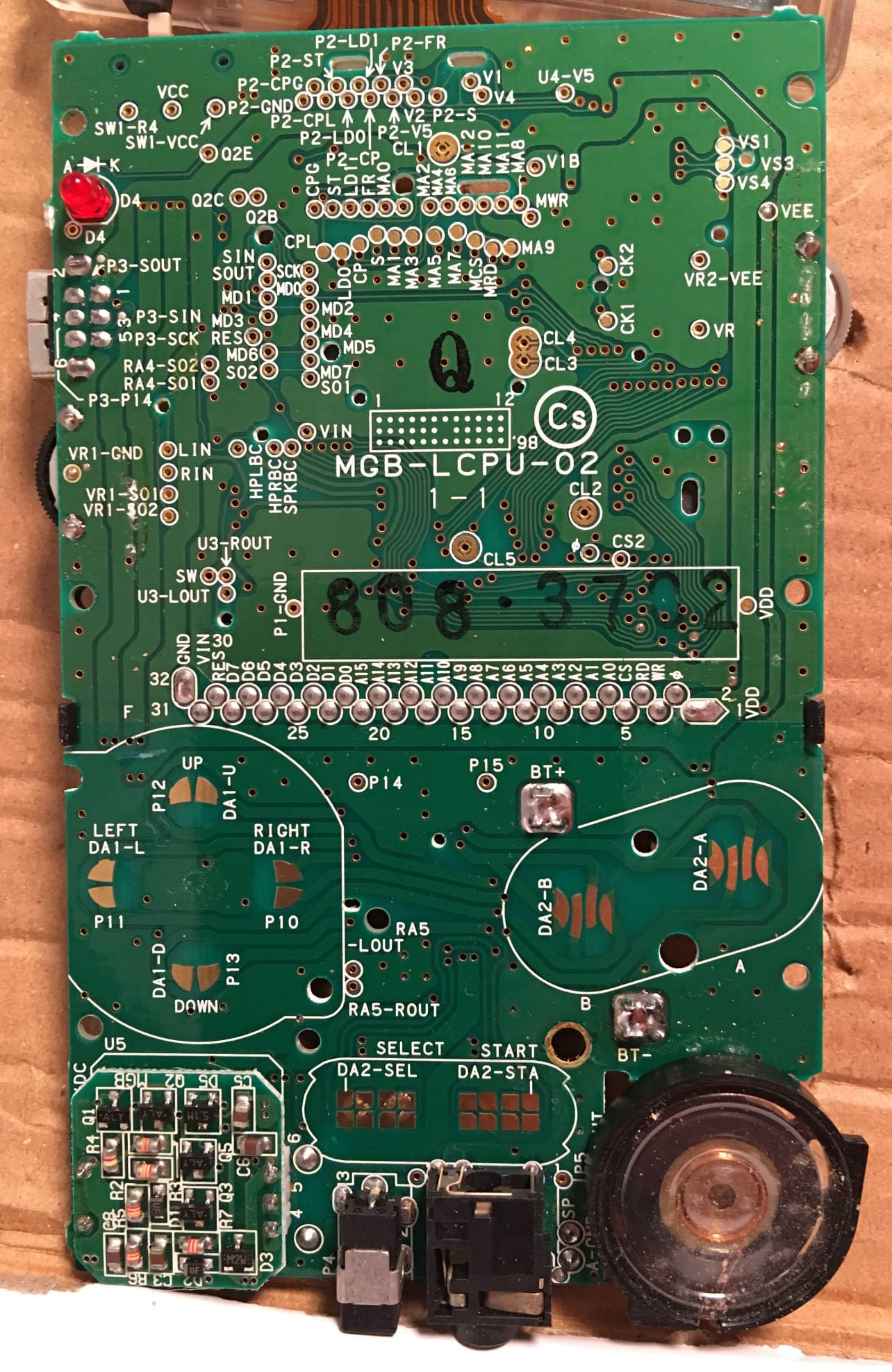

Mainboard
- Board type
- MGB-LCPU-02
- Manufacture date
- Jul 11-20/1998
- Number pair on board
- 1-1
- Stamp on board
- 808-3702
- Circled letter(s) on board
- Cs

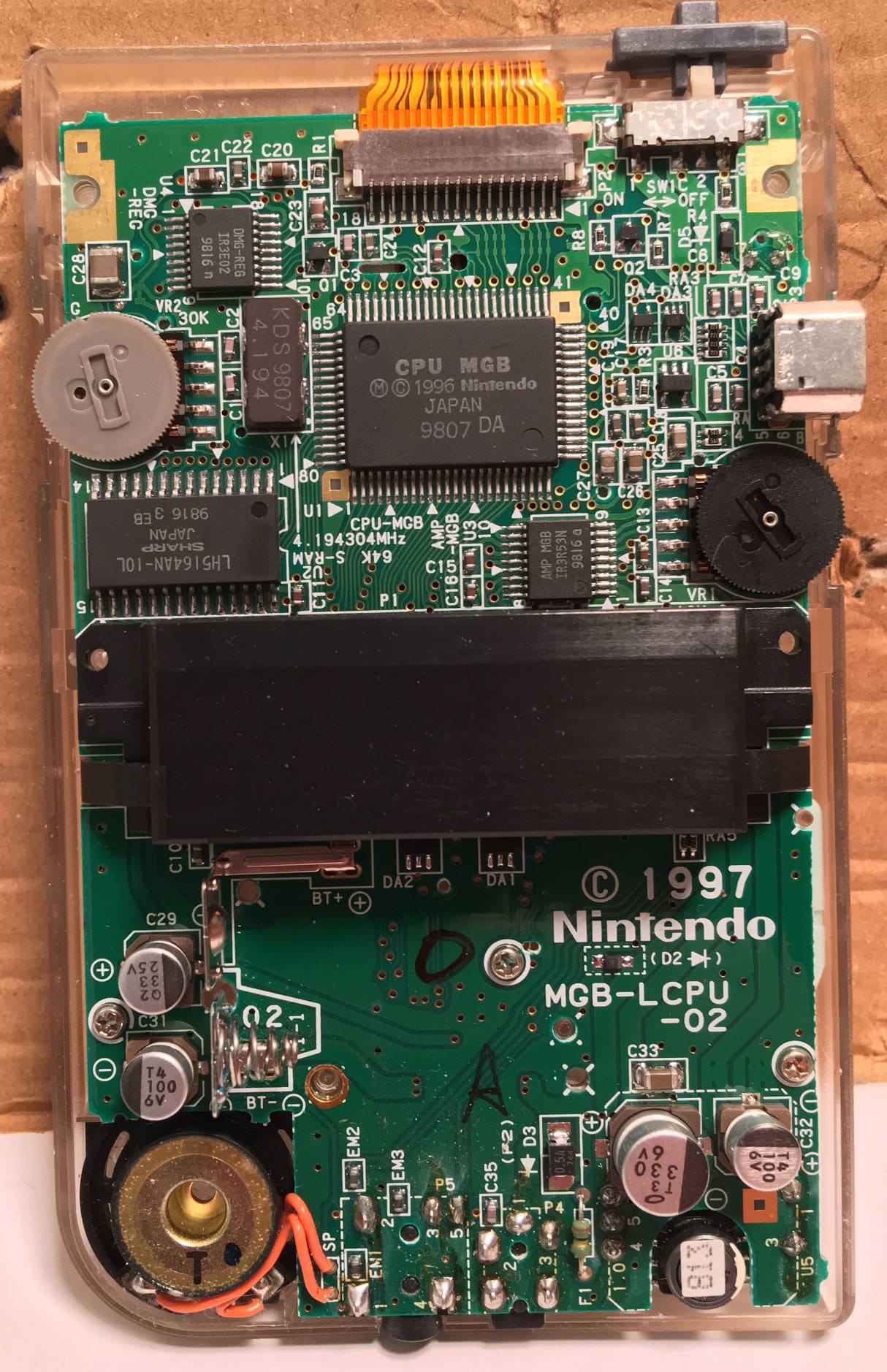

Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 7/1998 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9807 DA |
| U2 | WRAM | LH5164AN-10L | Sharp | Week 16/1998 | LH5164AN-10L SHARP JAPAN 9816 3 EB |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 16/1998 | AMP MGB IR3R53N 9816 a |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 16/1998 | DMG-REG IR3E02 9816 n |
| X1 | Crystal | 4.194304 MHz | Daishinku | Week 7/1998 | KDS 9807 4.194 |
| - | LCD column driver | ||||
| - | LCD row driver | LH5076 E | Sharp | Week 8/1998 | LH5076 E 8080 |
