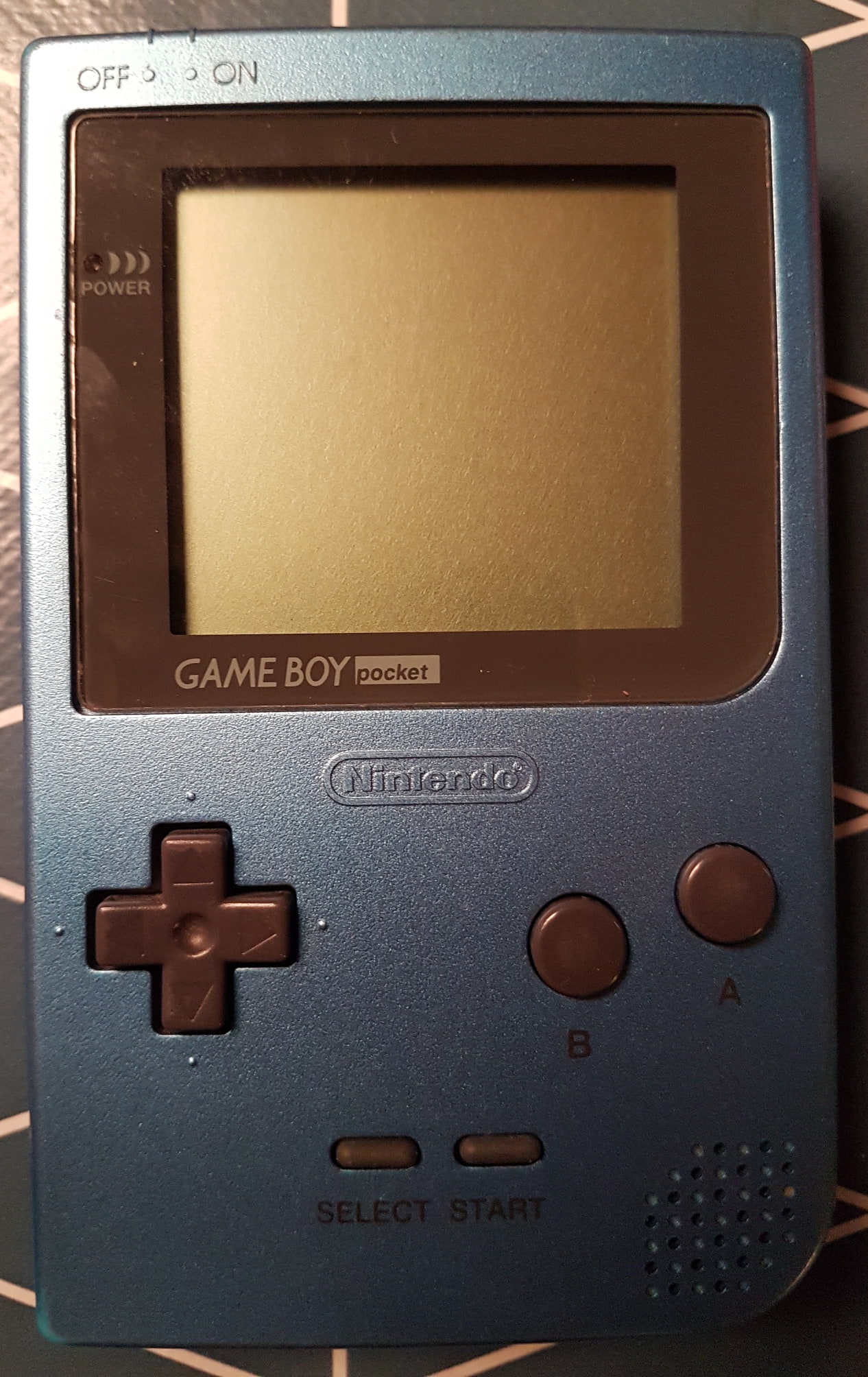

MGB: MG14775448-4 [tobiasvl]

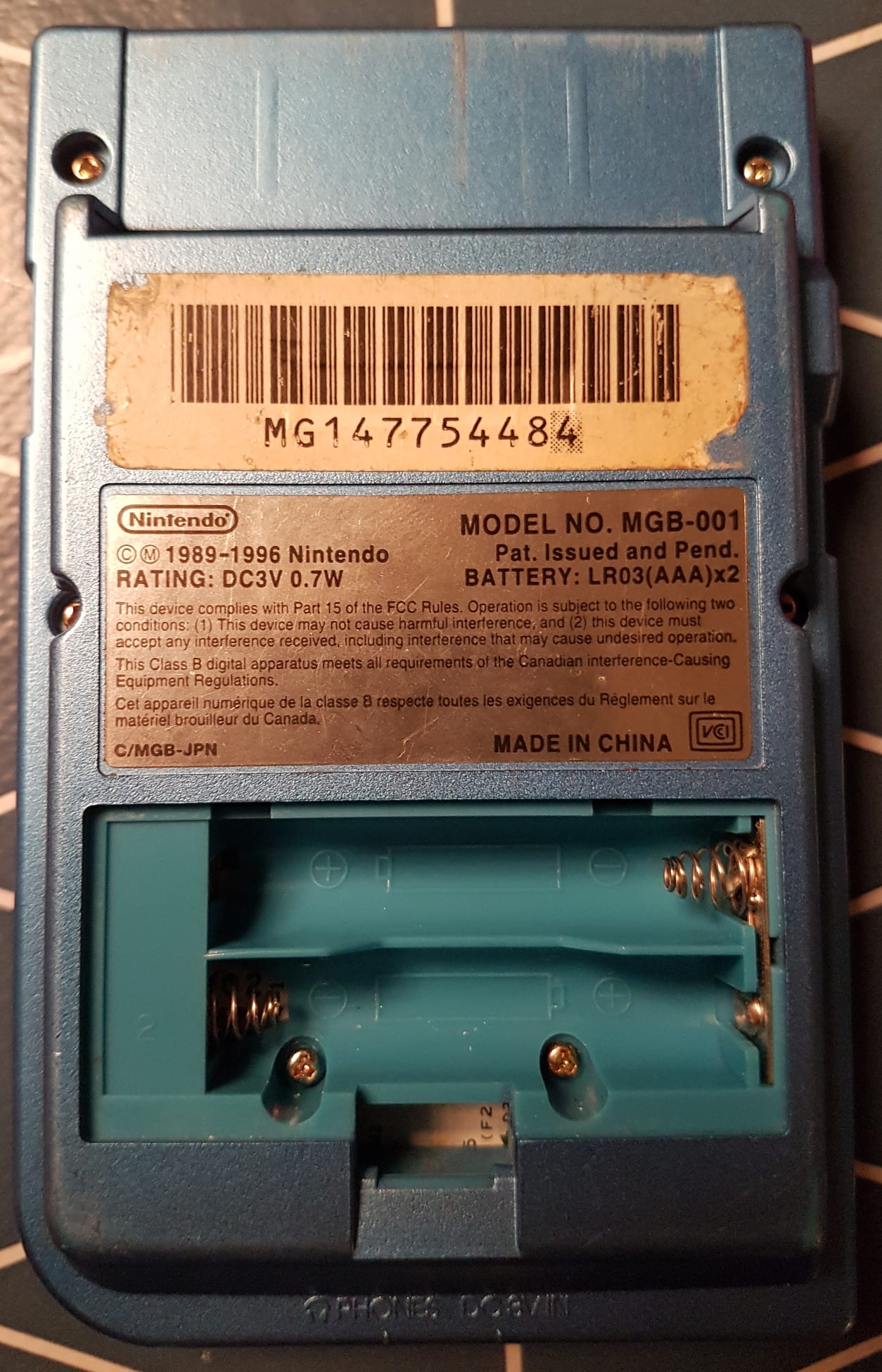

- Release code
- C/MGB-JPN
- Assembly date
- September/1998

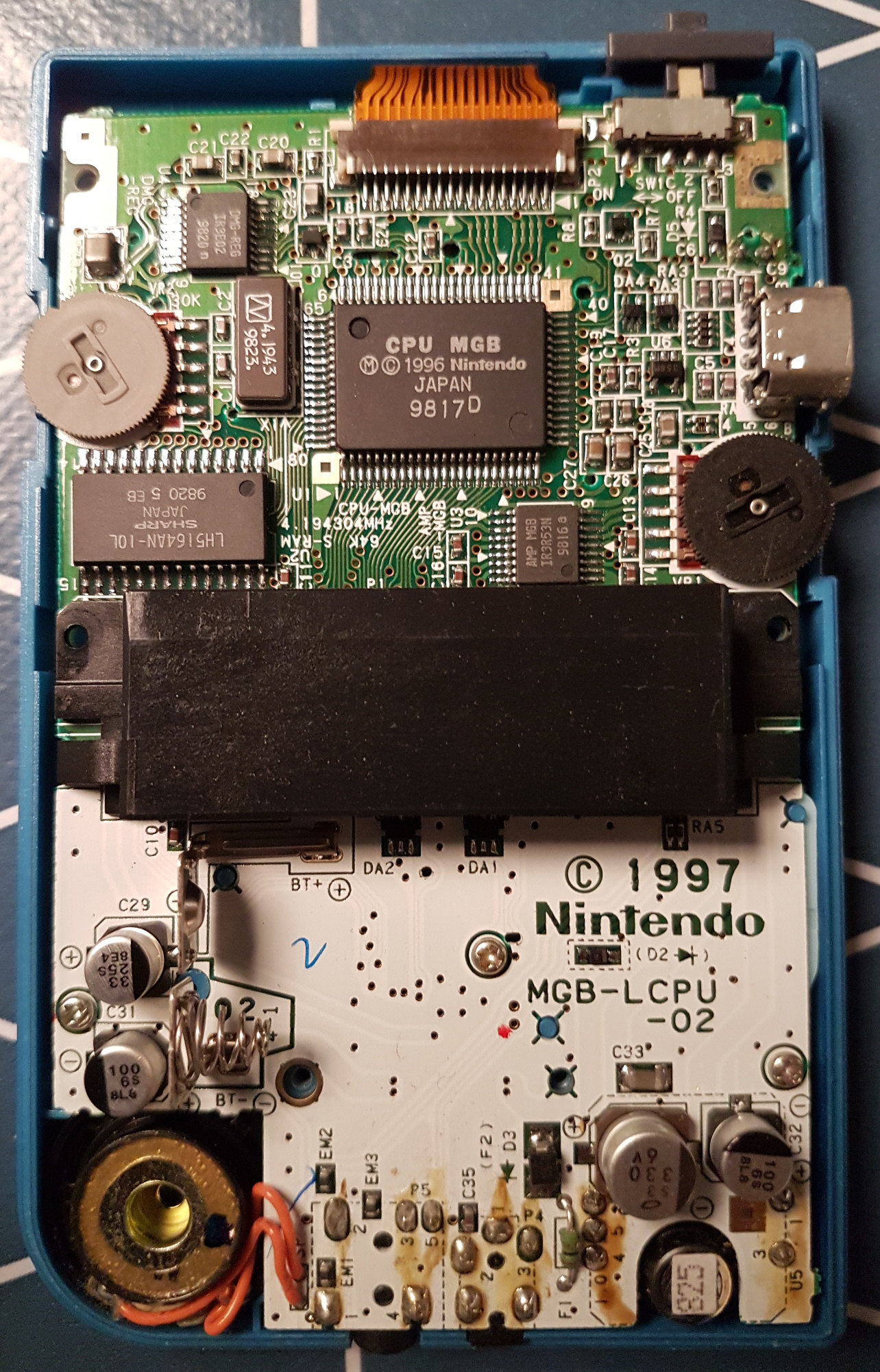

Mainboard
- Board type
- MGB-LCPU-02
- Manufacture date
- Aug 11-20/1998

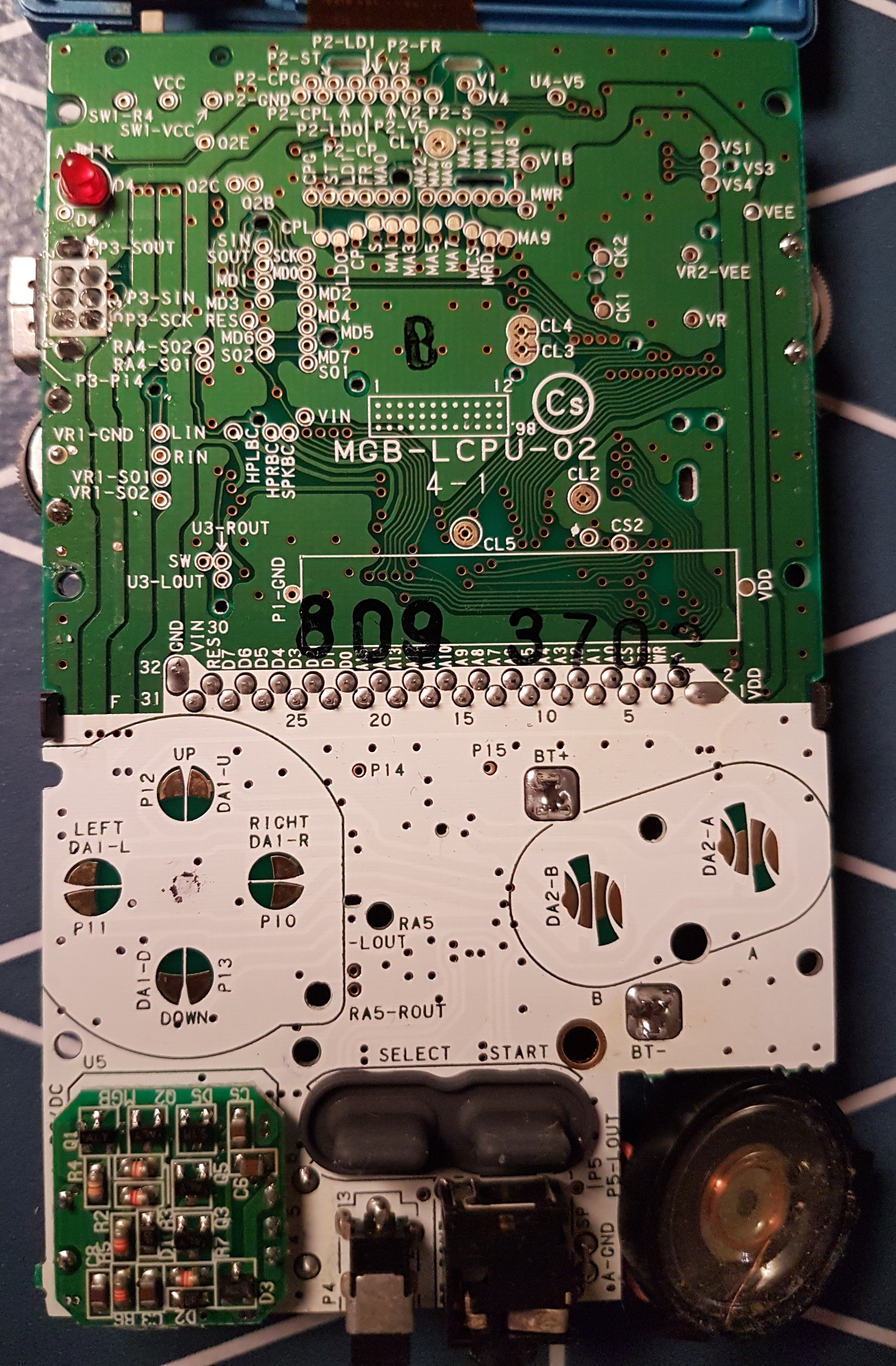

- Number pair on board
- 4-1
- Stamp on board
- 809 3702
- Circled letter(s) on board
- Cs
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 17/1998 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9817 D |
| U2 | WRAM | LH5164AN-10L | Sharp | Week 20/1998 | LH5164AN-10L SHARP JAPAN 9820 5 EB |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 16/1998 | AMP MGB IR3R53N 9816 a |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 20/1998 | DMG-REG IR3E02 9820 n |
| X1 | Crystal | 4.194304 MHz | Week 23/1998 | 4.1943 9823 | |
| - | LCD column driver | ||||
| - | LCD row driver | LH5076 E | Sharp | Week 48/1997 | LH5076 E 7480 |
