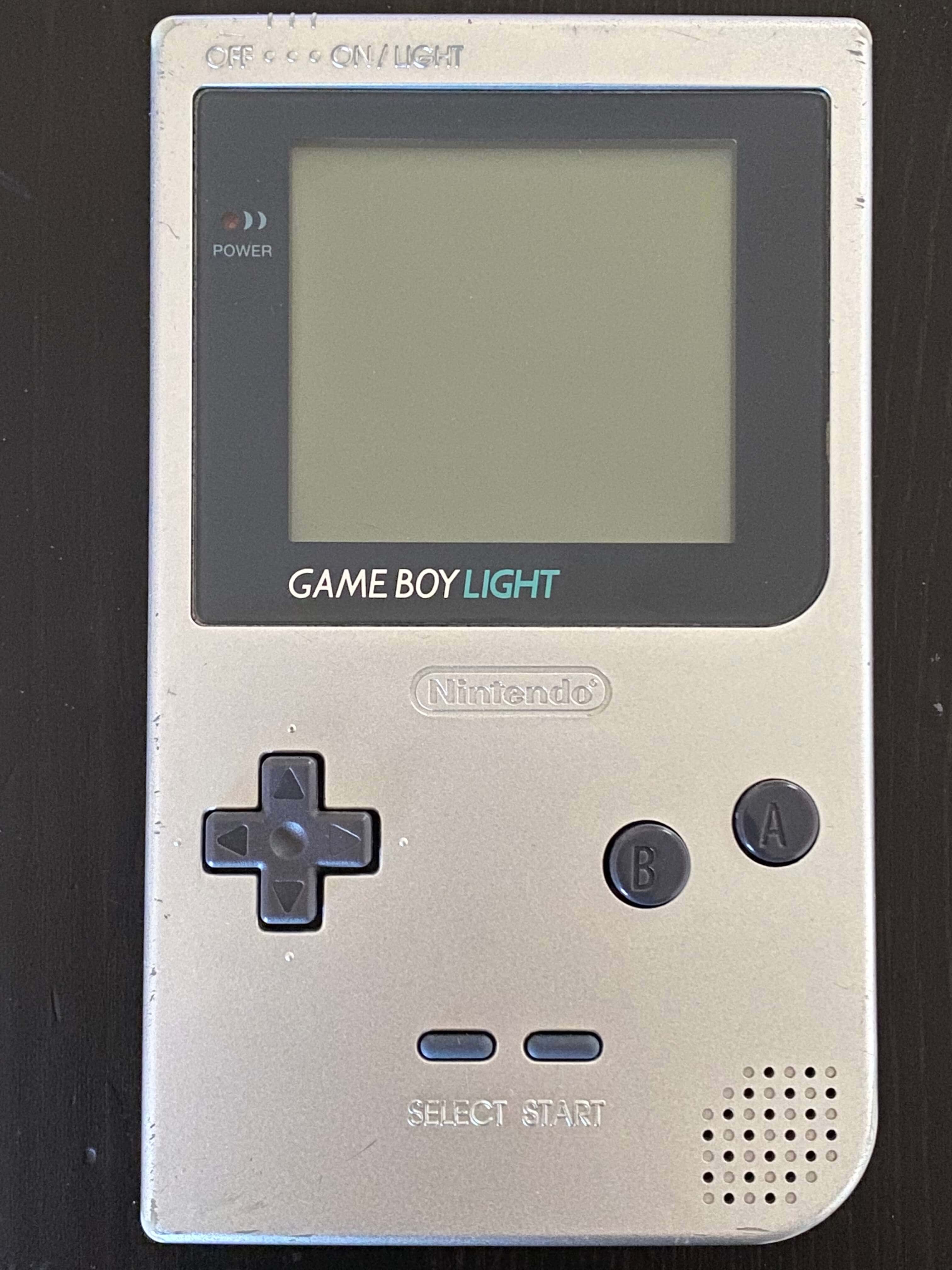

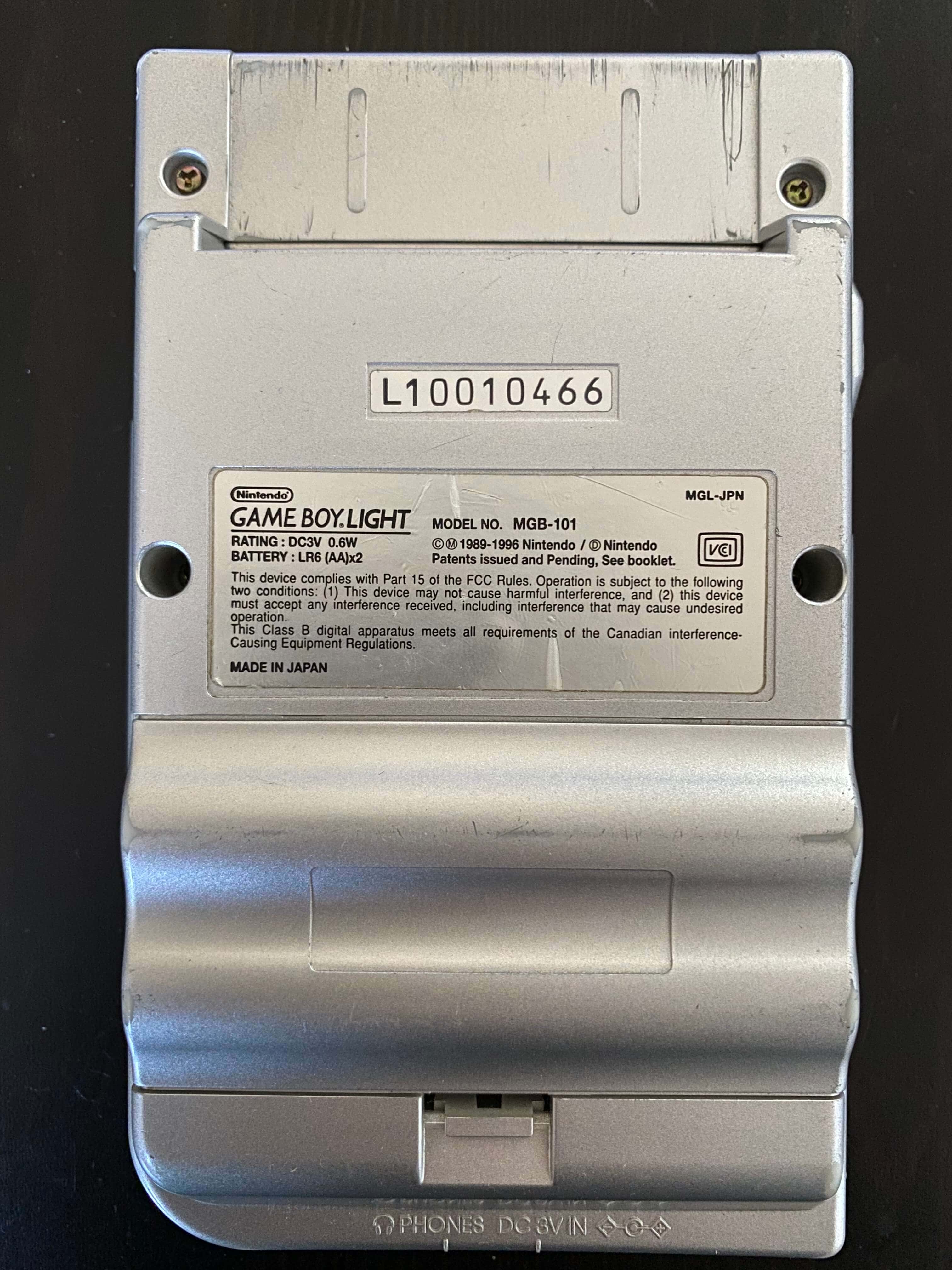

MGL: L10010466 [ide]
- Color
- Silver
- Release code
- MGL-JPN
- Assembly date
- Week 12/1998

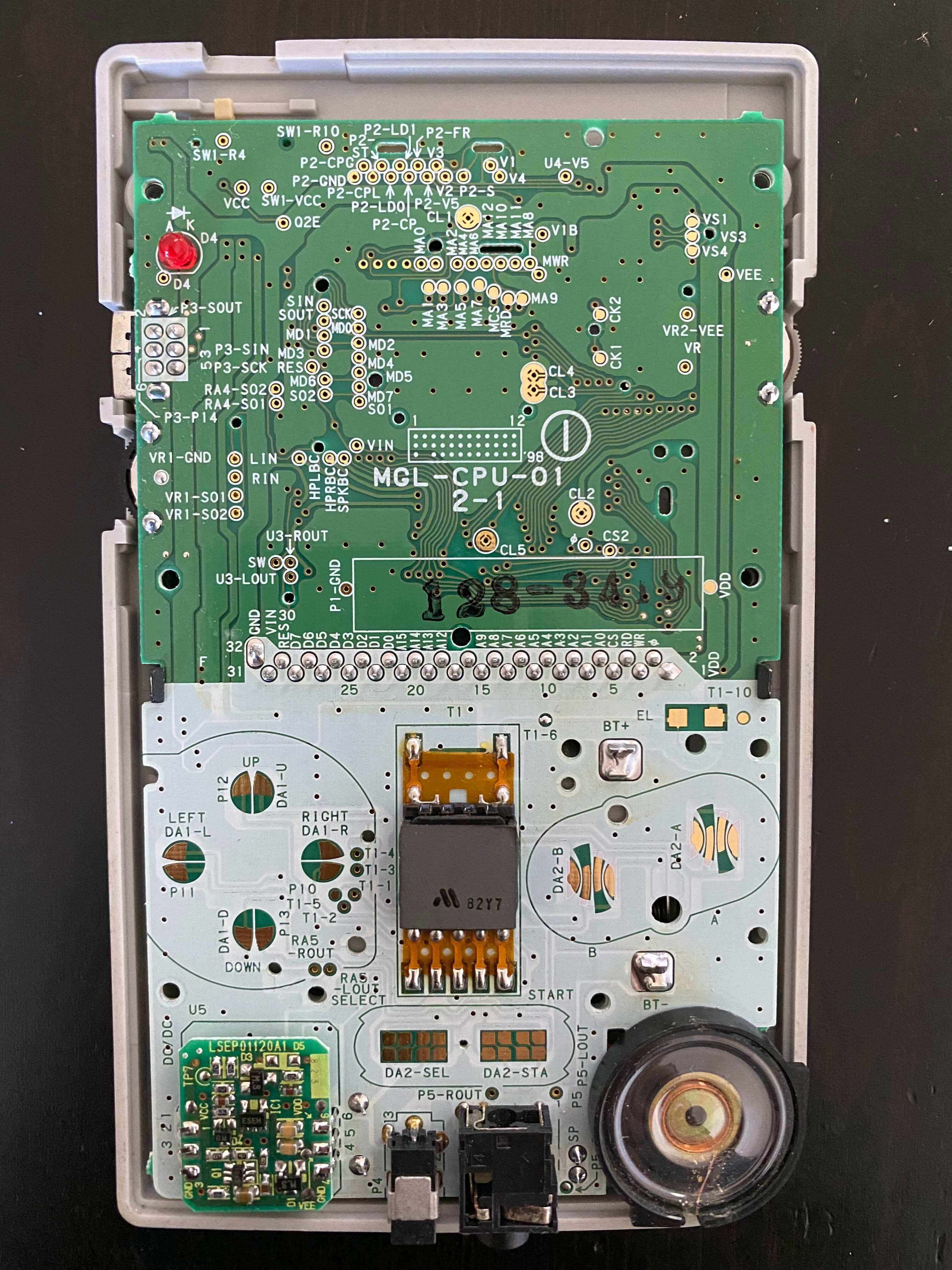

Mainboard
- Board type
- MGL-CPU-01
- Manufacture date
- Feb 21-28/1998
- Number pair on board
- 2-1
- Stamp on board
- 128-3419
- Circled letter(s) on board
- I

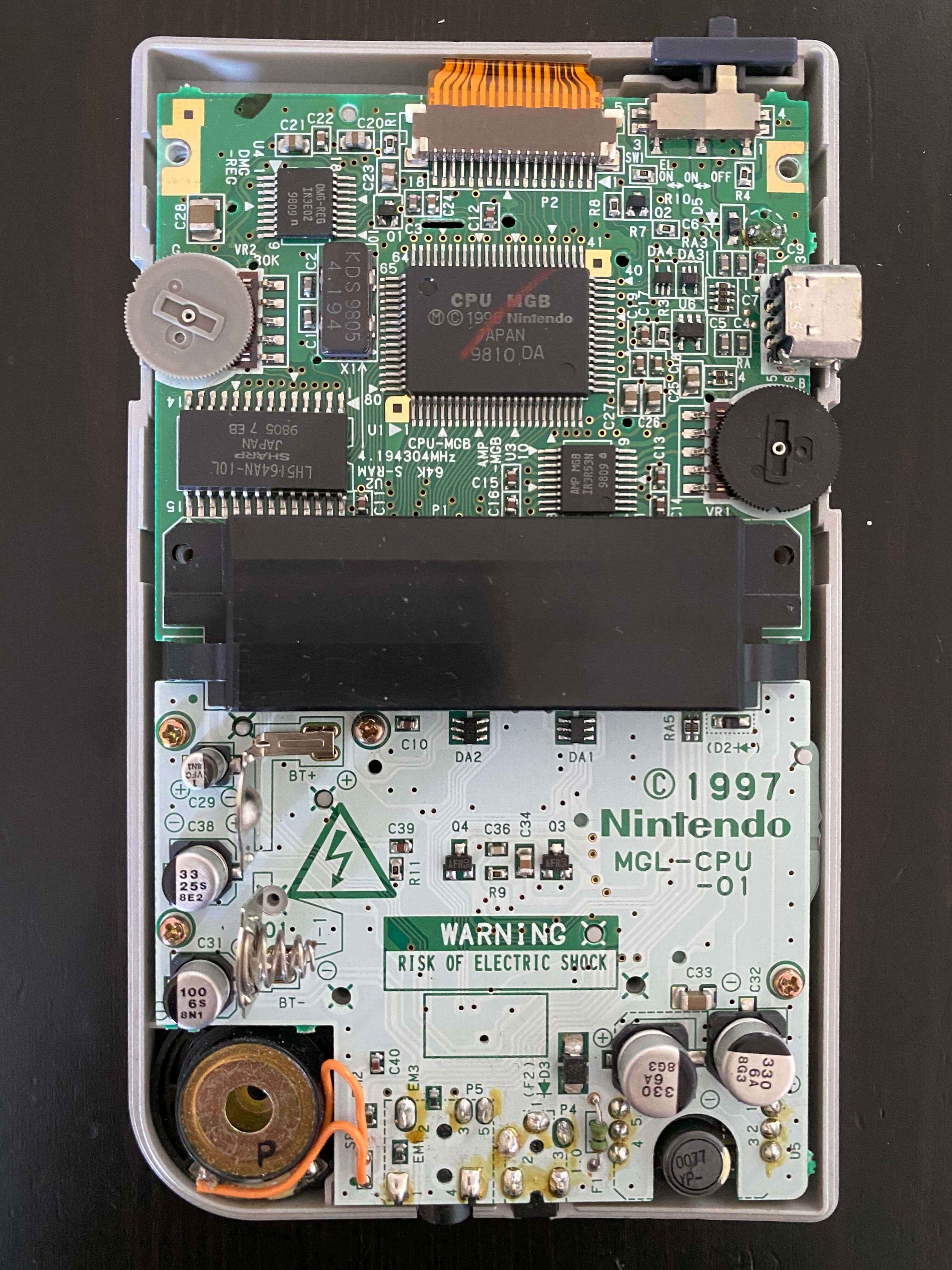

Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU MGB | Sharp | Week 10/1998 | CPU MGB Ⓜ © 1996 Nintendo JAPAN 9810 DA |
| U2 | WRAM | LH5164AN-10L | Sharp | Week 5/1998 | LH5164AN-10L SHARP JAPAN 9805 7 EB |
| U3 | Audio amplifier | IR3R53N | Sharp | Week 9/1998 | AMP MGB IR3R53N 9809 a |
| U4 | LCD bias generator | IR3E02 | Sharp | Week 9/1998 | DMG-REG IR3E02 9809 n |
| X1 | Crystal | 4.194304 MHz | Daishinku | Week 5/1998 | KDS 9805 4.194 |
| T1 | Transformer | 82Y7 | Mitsumi | 82Y7 | |
| - | LCD column driver | ||||
| - | LCD row driver | LH5076E | Sharp | Week 7/1998 | LH5076E 8070 |
