SGB2: Unit #1 [ImATrackMan]

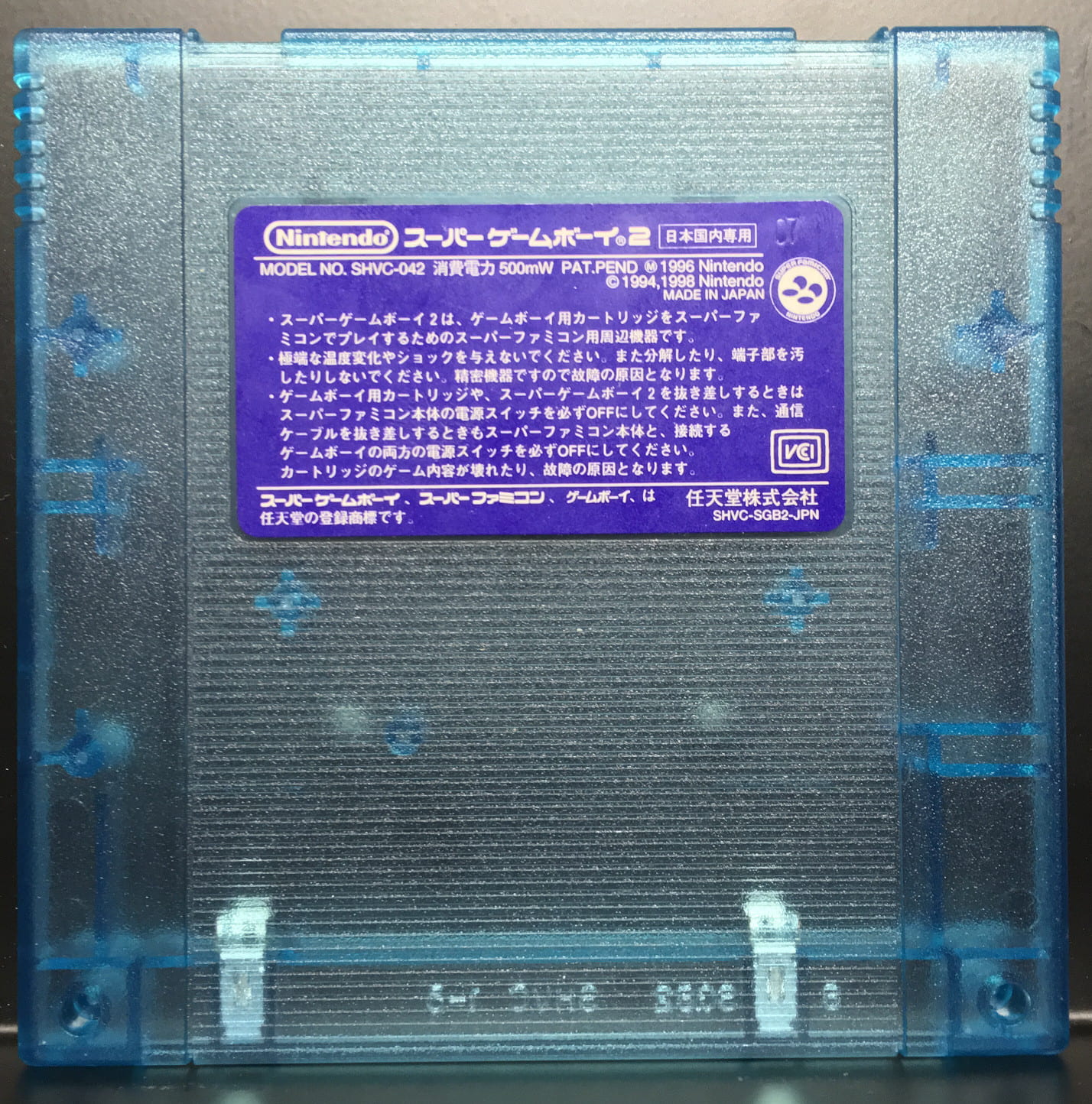

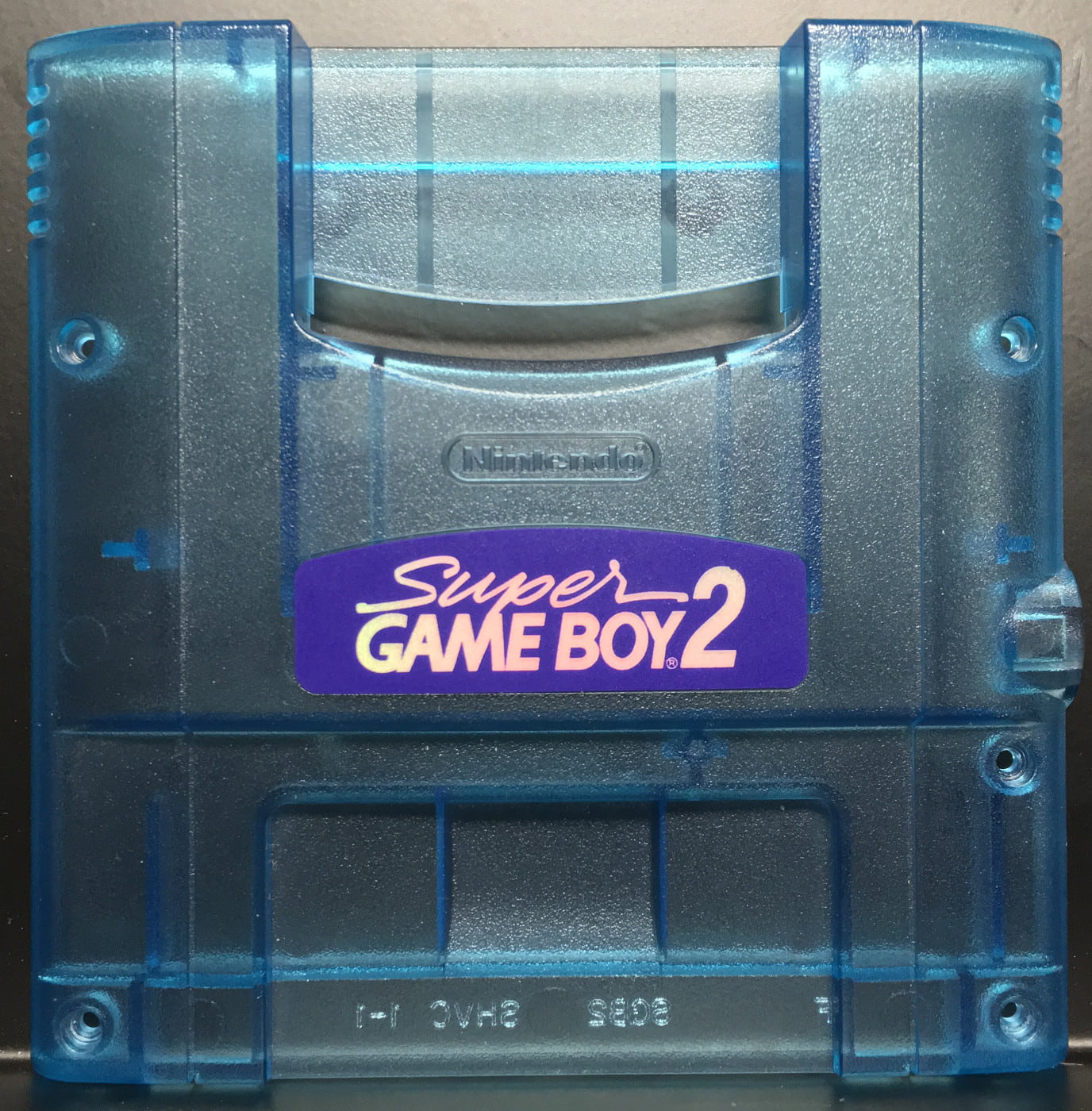

- Stamp on case
- 07

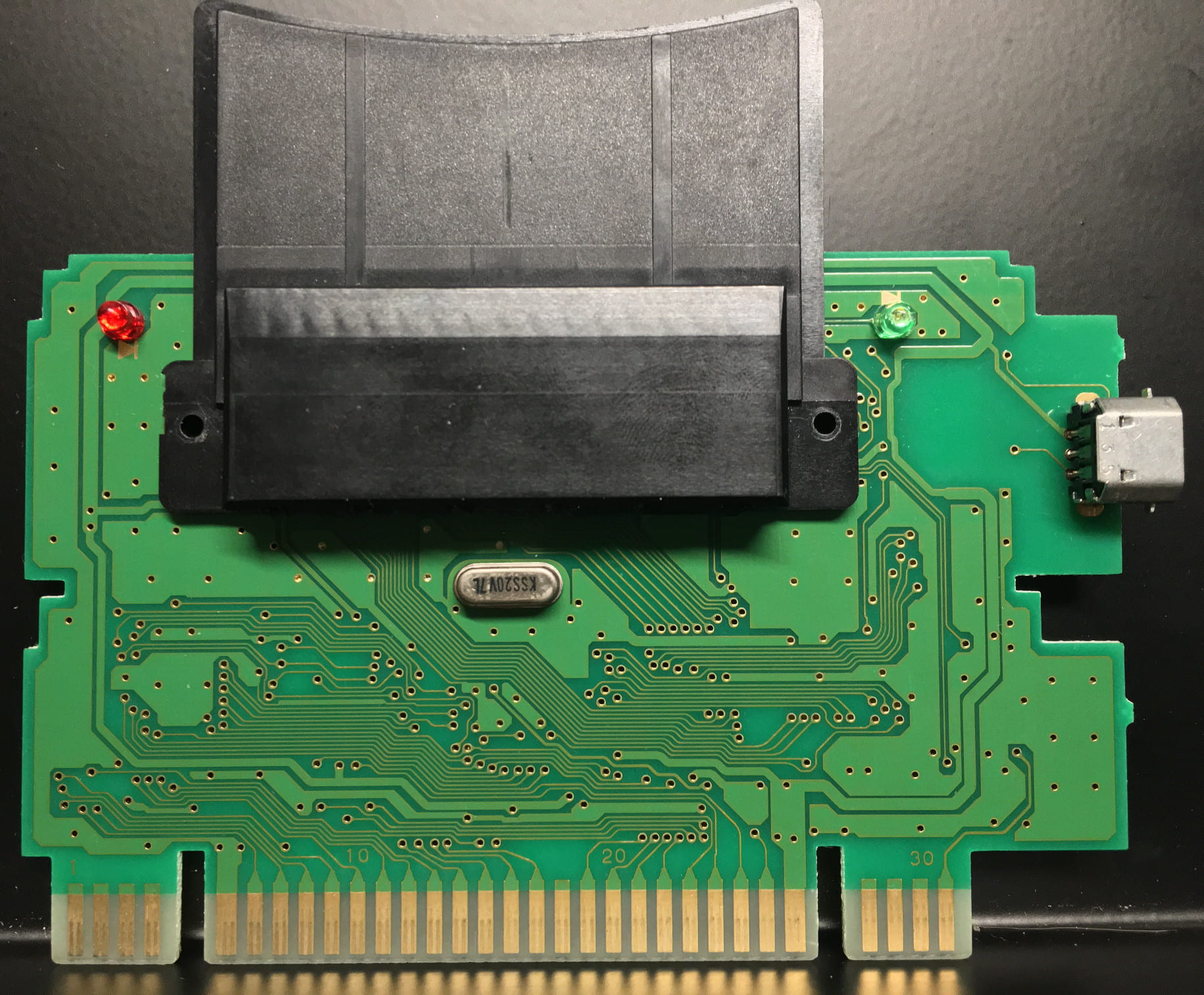

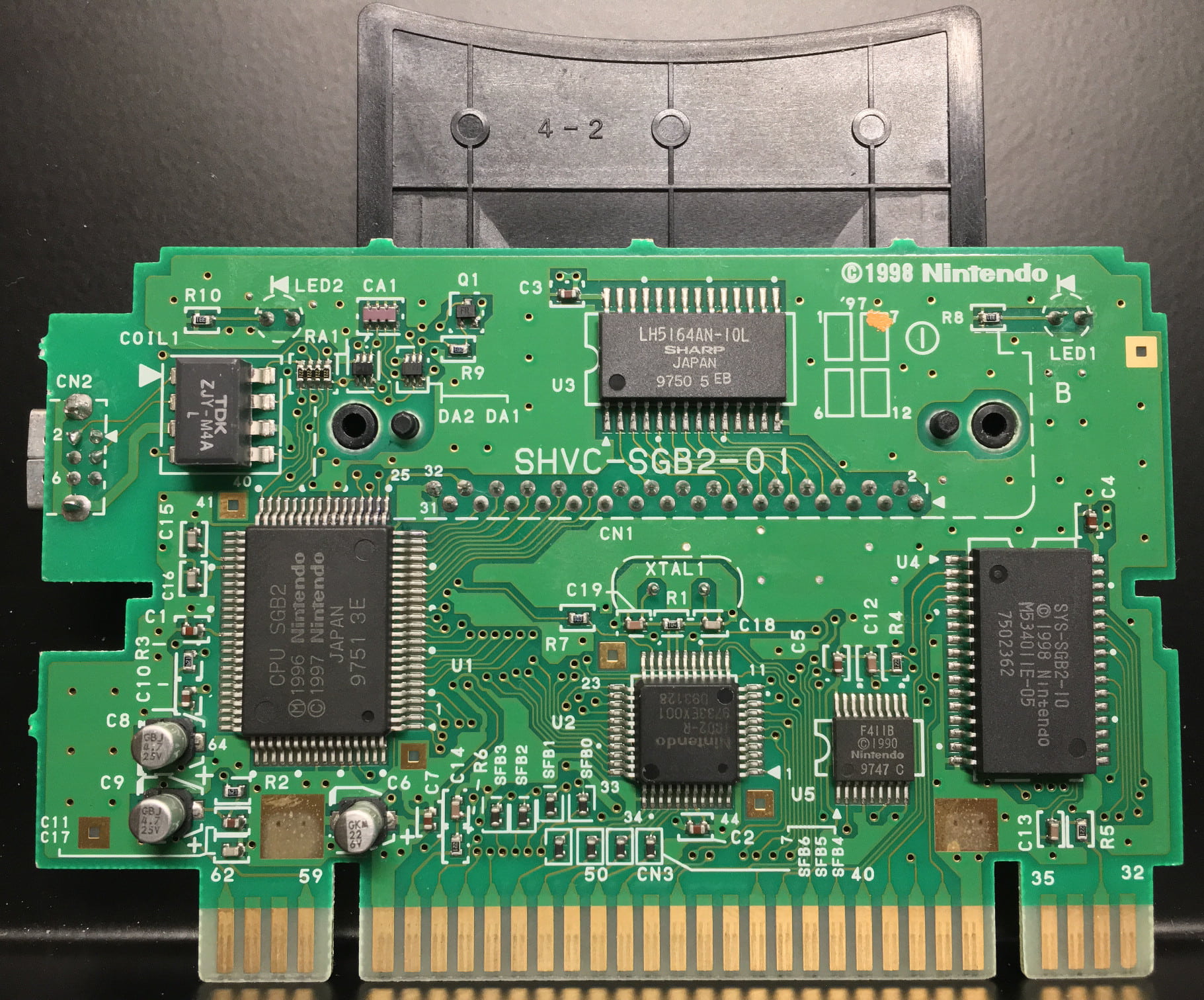

Mainboard
- Board type
- SHVC-SGB2-01
- Manufacture date
- December/1997
- Circled letter(s) on board
- I
- Letter at top right
- B
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU SGB2 | Sharp | Week 51/1997 | CPU SGB2 Ⓜ 1996 Nintendo © 1997 Nintendo JAPAN 9751 3E |
| U2 | ICD2 | ICD2-R | NEC | Week 33/1997 | Nintendo ICD2-R 9733EX001 D93128 |
| U3 | WRAM | LH5164AN-10L | Sharp | Week 50/1997 | LH5164AN-10L SHARP JAPAN 9750 5 EB |
| U4 | ROM | MSM534011E | OKI | Week 50/1997 | SYS-SGB2-10 © 1998 Nintendo M534011E-05 7502362 |
| U5 | CIC | F411B | Sharp | Week 47/1997 | F411B © 1990 Nintendo 9747 C |
| XTAL1 | Crystal | 20.971520 MHz | Kinseki | November/1997 | KSS20V 7L |
| COIL1 | Coil | ZJY-M4A | TDK | TDK ZJY-M4A L |
