SGB2: Unit #1 [jrra]

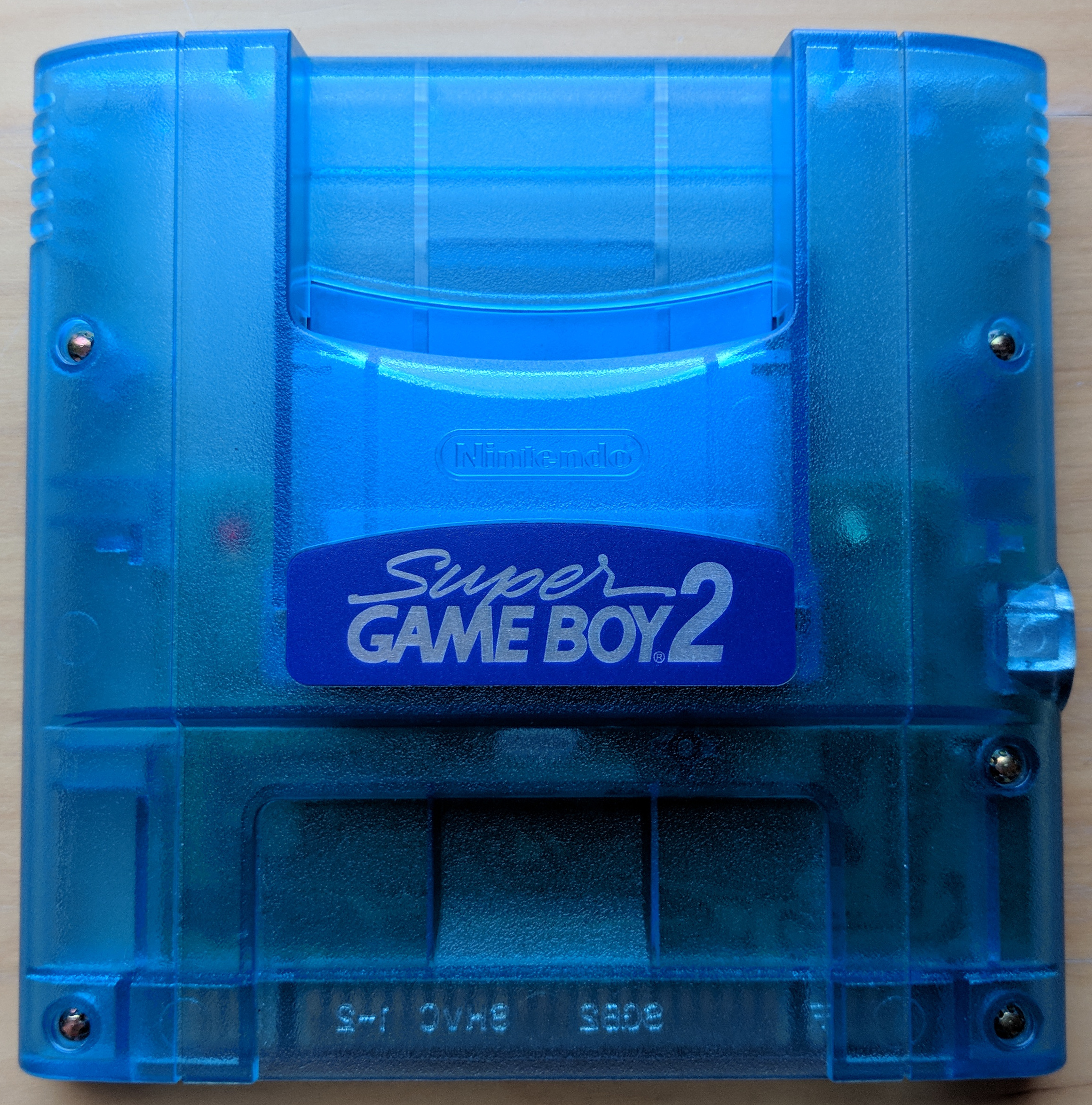

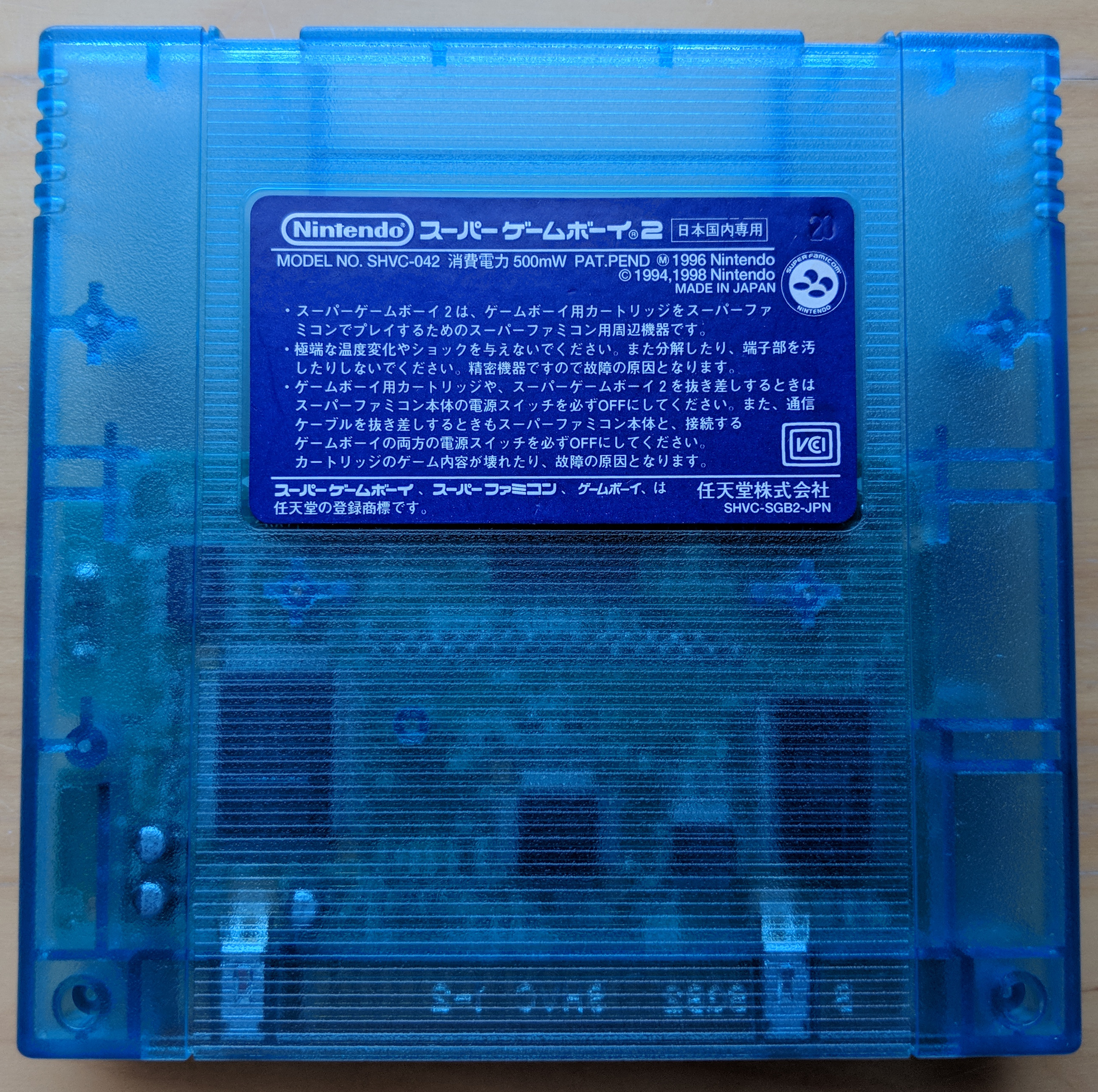

- Stamp on case
- 20

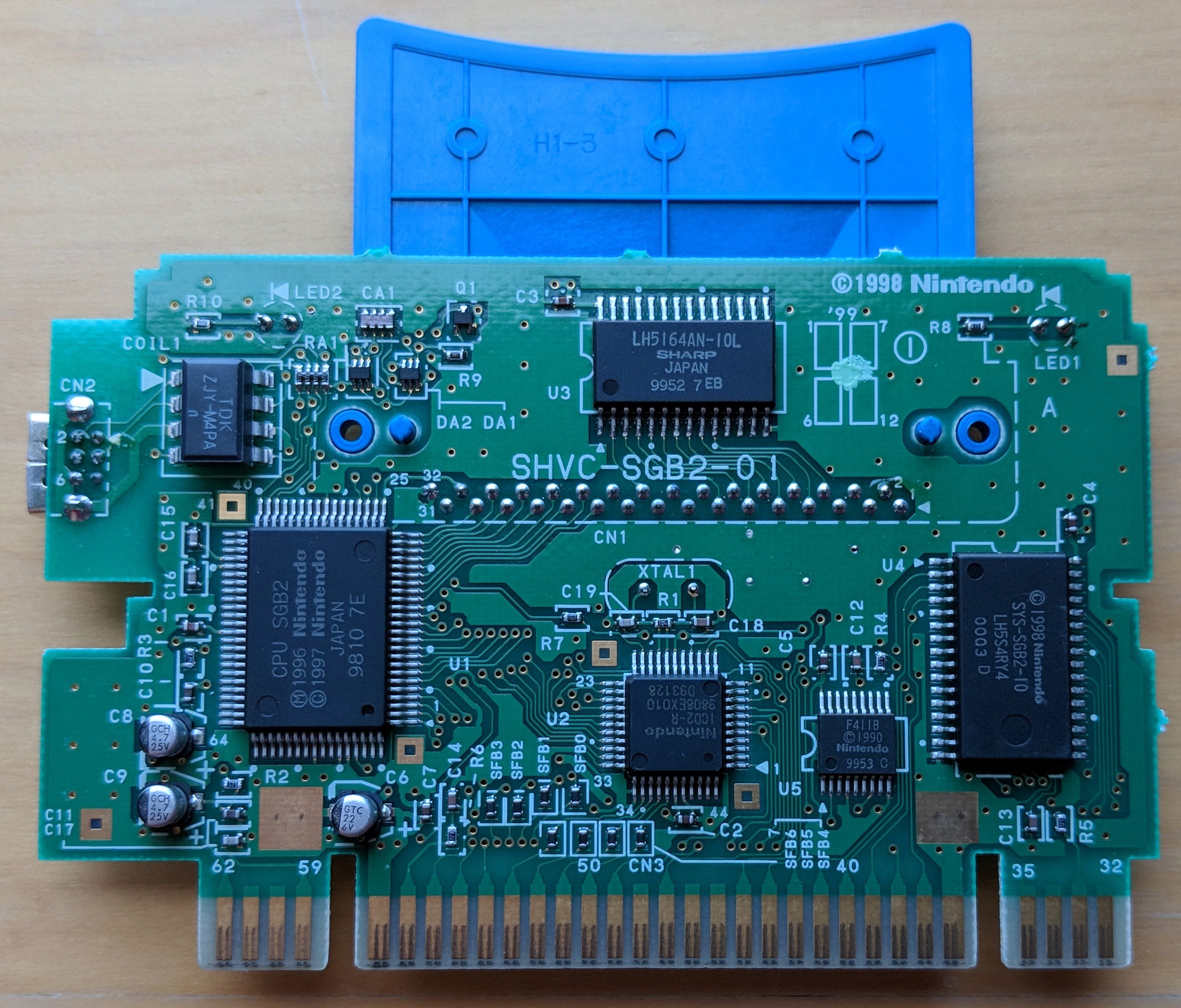

Mainboard
- Board type
- SHVC-SGB2-01
- Manufacture date
- December/1999
- Circled letter(s) on board
- I
- Letter at top right
- A
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU SGB2 | Sharp | Week 10/1998 | CPU SGB2 Ⓜ 1996 Nintendo © 1997 Nintendo JAPAN 9810 7E |
| U2 | ICD2 | ICD2-R | NEC | Week 8/1998 | Nintendo ICD2-R 9808EX010 D93128 |
| U3 | WRAM | LH5164AN-10L | Sharp | Week 52/1999 | LH5164AN-10L SHARP JAPAN 9952 7 EB |
| U4 | ROM | LH534R00B | Sharp | Week 3/2000 | © 1998 Nintendo SYS-SGB2-10 LH5S4RY4 0003 D |
| U5 | CIC | F411B | Sharp | Week 53/1999 | F411B © 1990 Nintendo 9953 C |

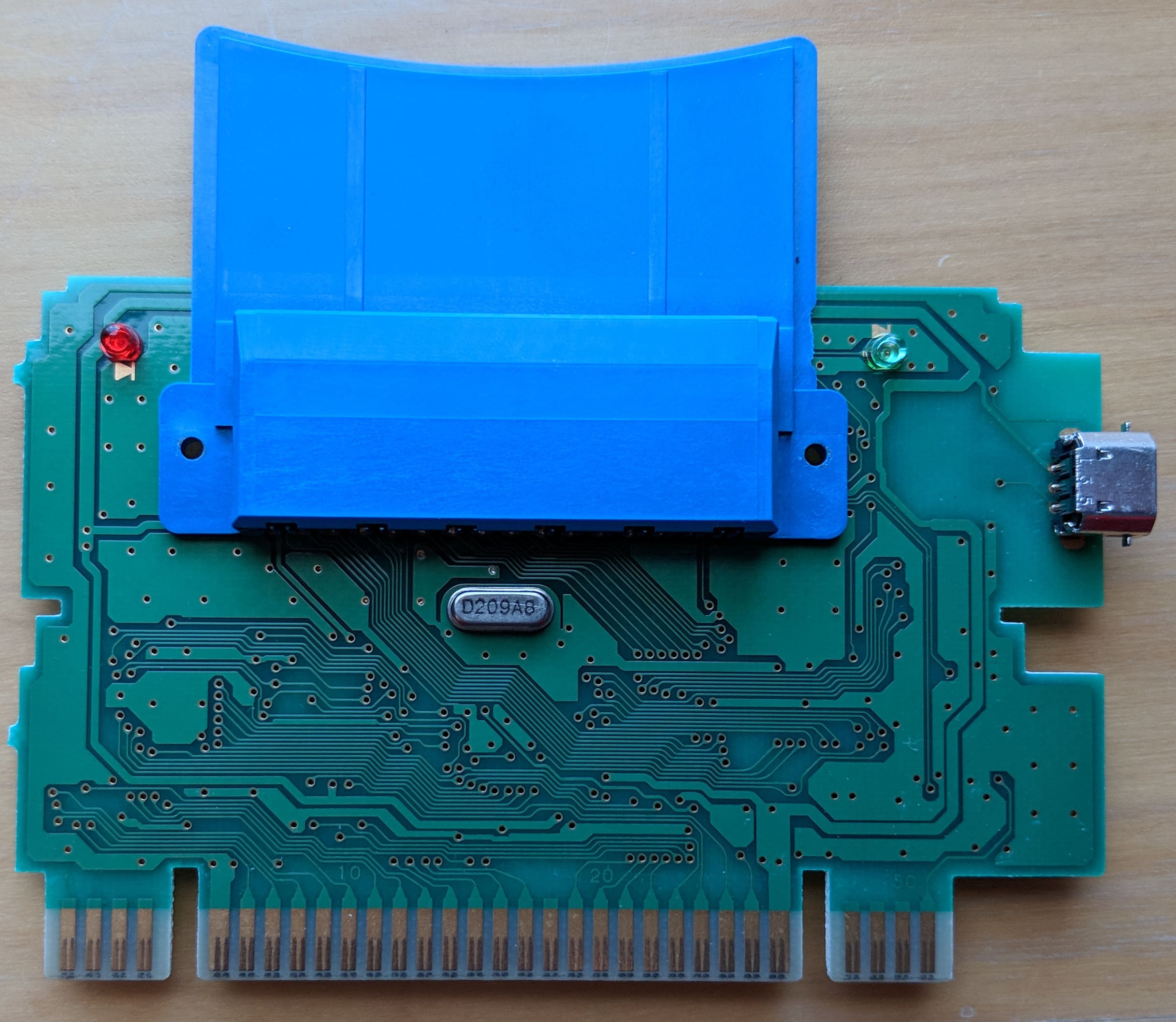

| XTAL1 | Crystal | 20.971520 MHz | Daishinku | January/1998 | D209A8 |
| COIL1 | Coil | ZJY-M4PA | TDK | TDK ZJY-M4PA n |
