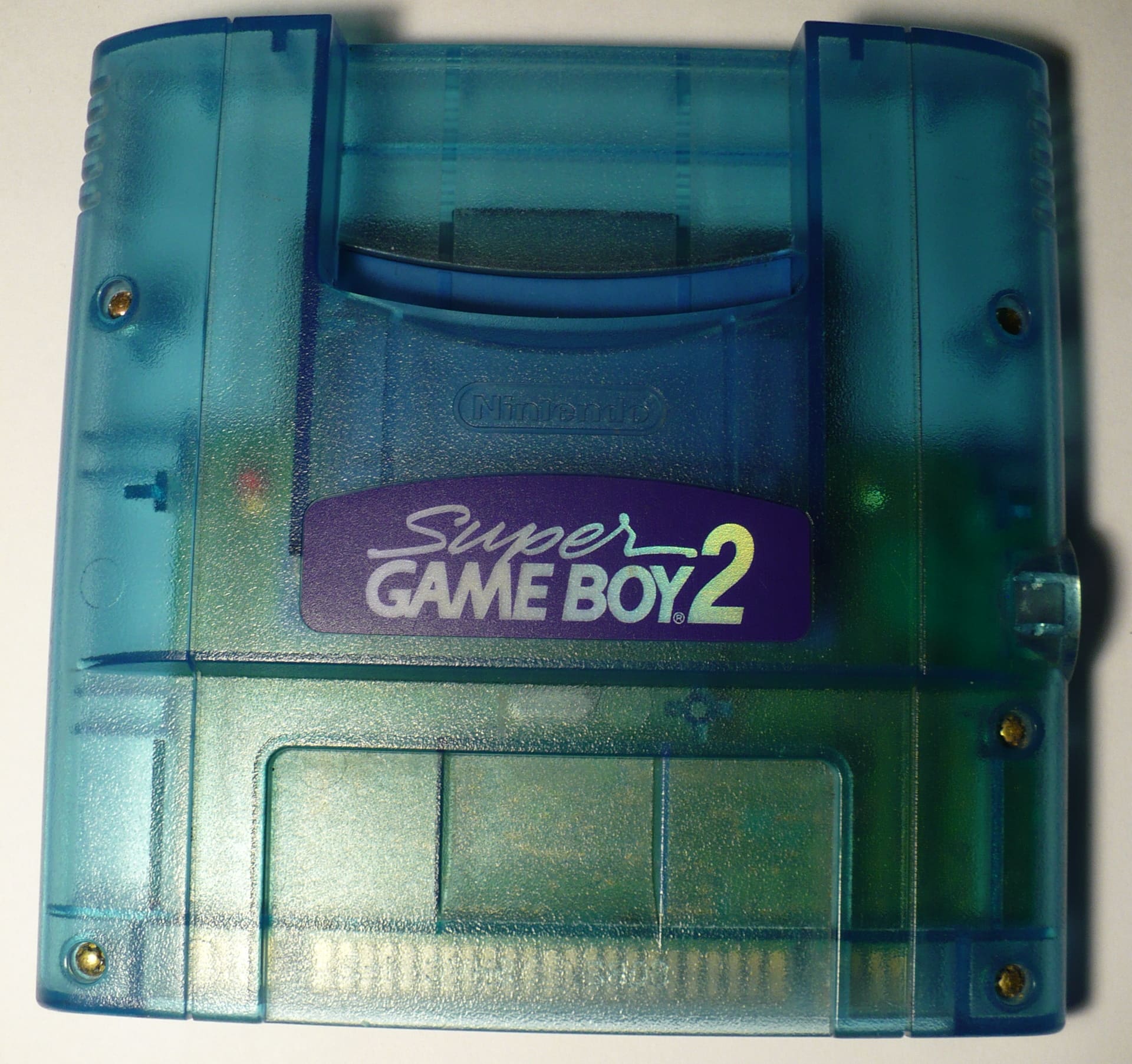

SGB2: Unit #1 [zear]

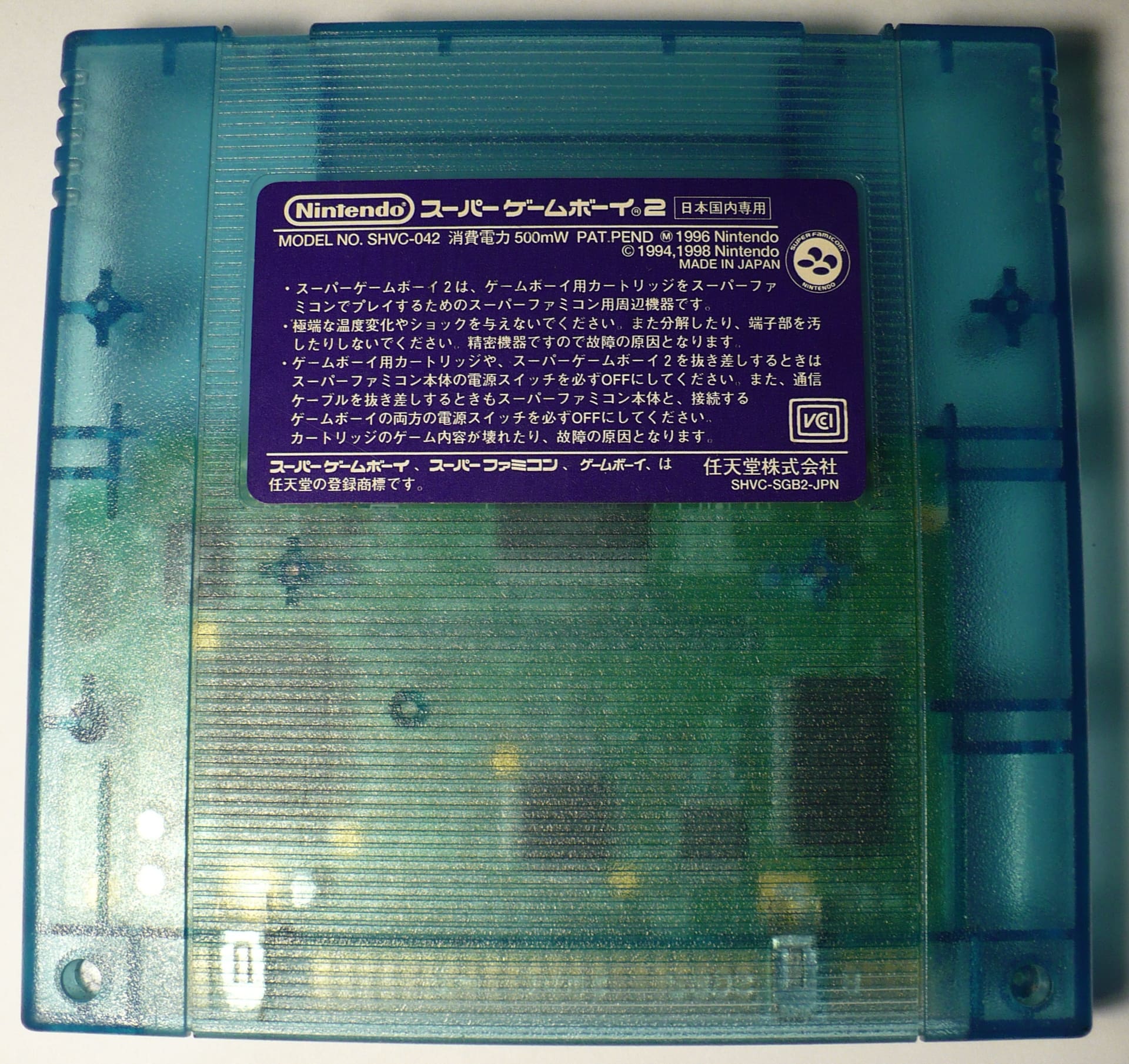

- Stamp on case
- 07

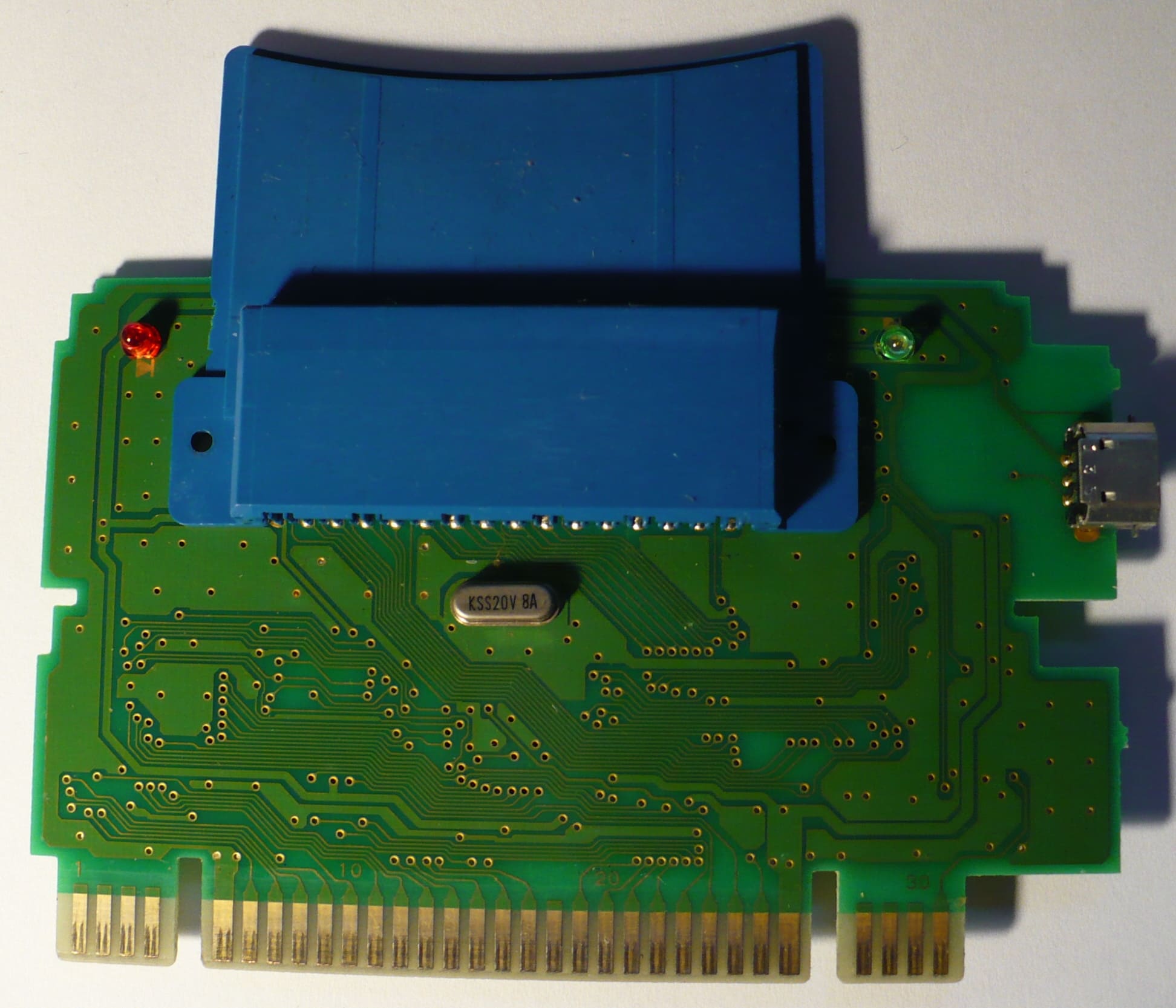

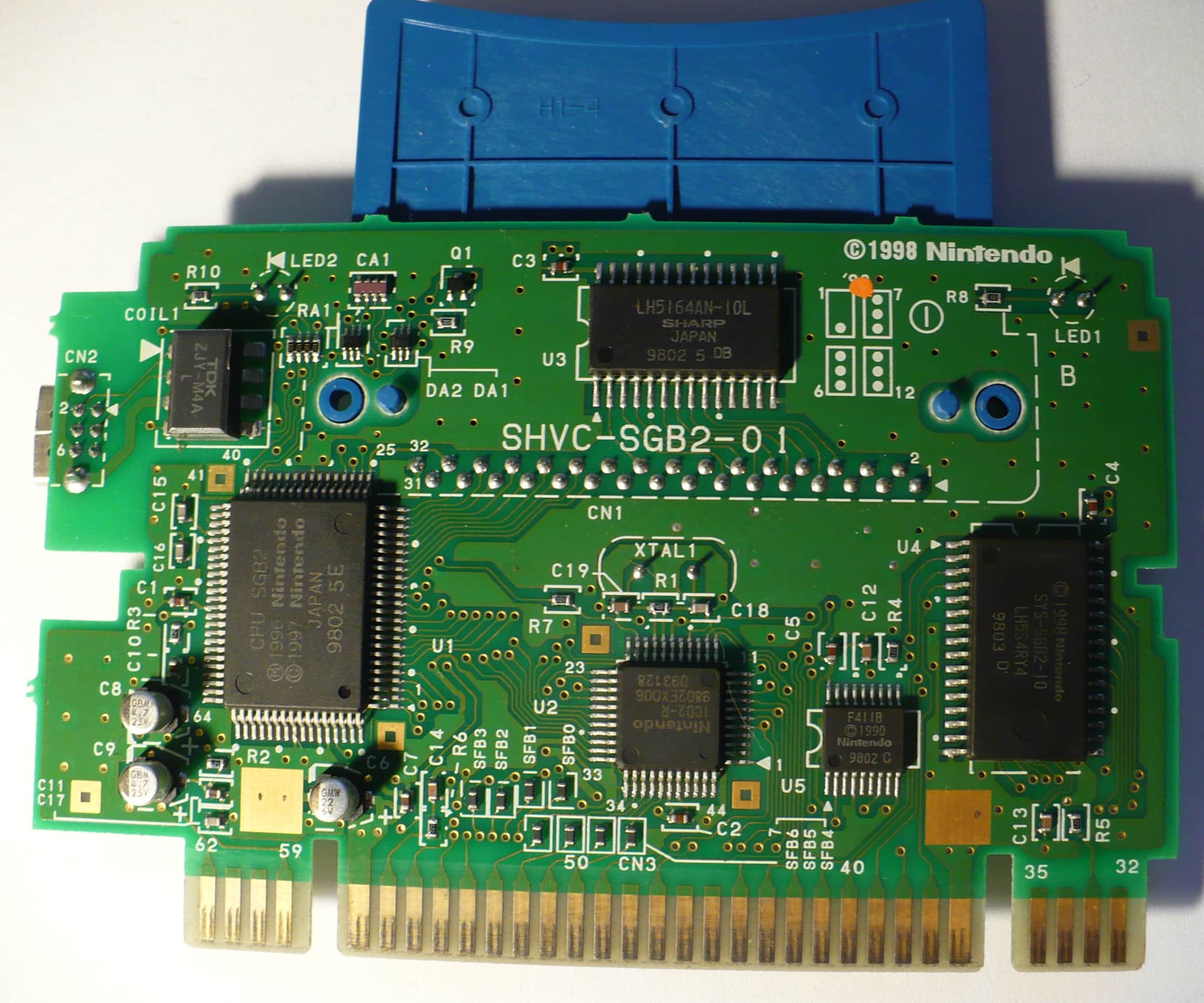

Mainboard
- Board type
- SHVC-SGB2-01
- Manufacture date
- February/1998
- Circled letter(s) on board
- I
- Letter at top right
- B
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU SGB2 | Sharp | Week 2/1998 | CPU SGB2 Ⓜ 1996 Nintendo © 1997 Nintendo JAPAN 9802 5 E |
| U2 | ICD2 | ICD2-R | NEC | Week 2/1998 | Nintendo ICD2-R 9802EX006 D93128 |
| U3 | WRAM | LH5164AN-10L | Sharp | Week 2/1998 | LH5164AN-10L SHARP JAPAN 9802 5 DB |
| U4 | ROM | LH534R00B | Sharp | Week 3/1998 | © 1998 Nintendo SYS-SGB2-10 LH5S4RY4 9803 D |
| U5 | CIC | F411B | Sharp | Week 2/1998 | F411B © 1990 Nintendo 9802 C |
| XTAL1 | Crystal | 20.971520 MHz | Kinseki | January/1998 | KSS20V 8A |
| COIL1 | Coil | ZJY-M4A | TDK | TDK ZJY-M4A L |
