AGB: AC17078684 [gekkio]
- Color
- Platinum
- Release code
- C/AGB-EUR
- Assembly date
- Week 45/2002

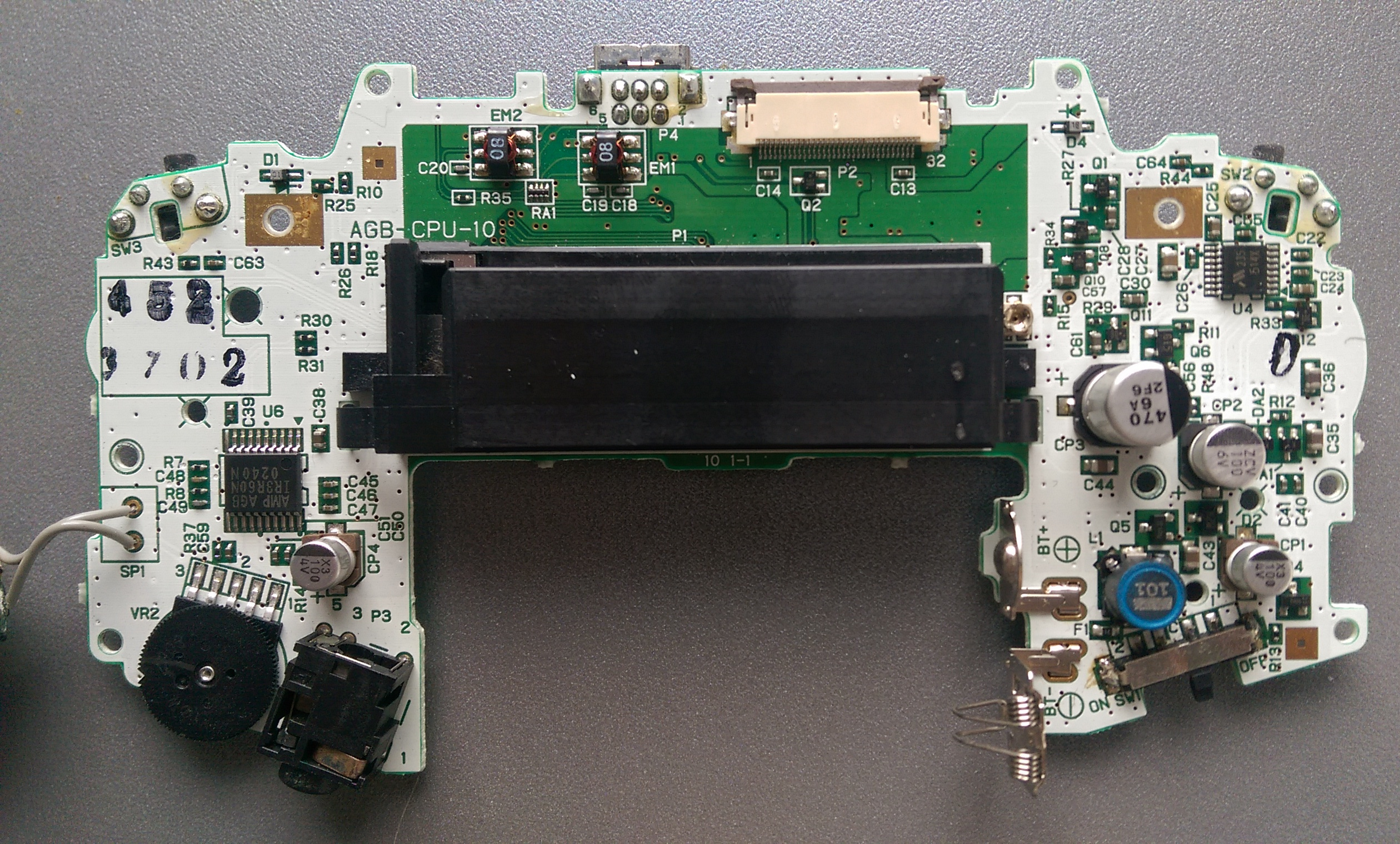

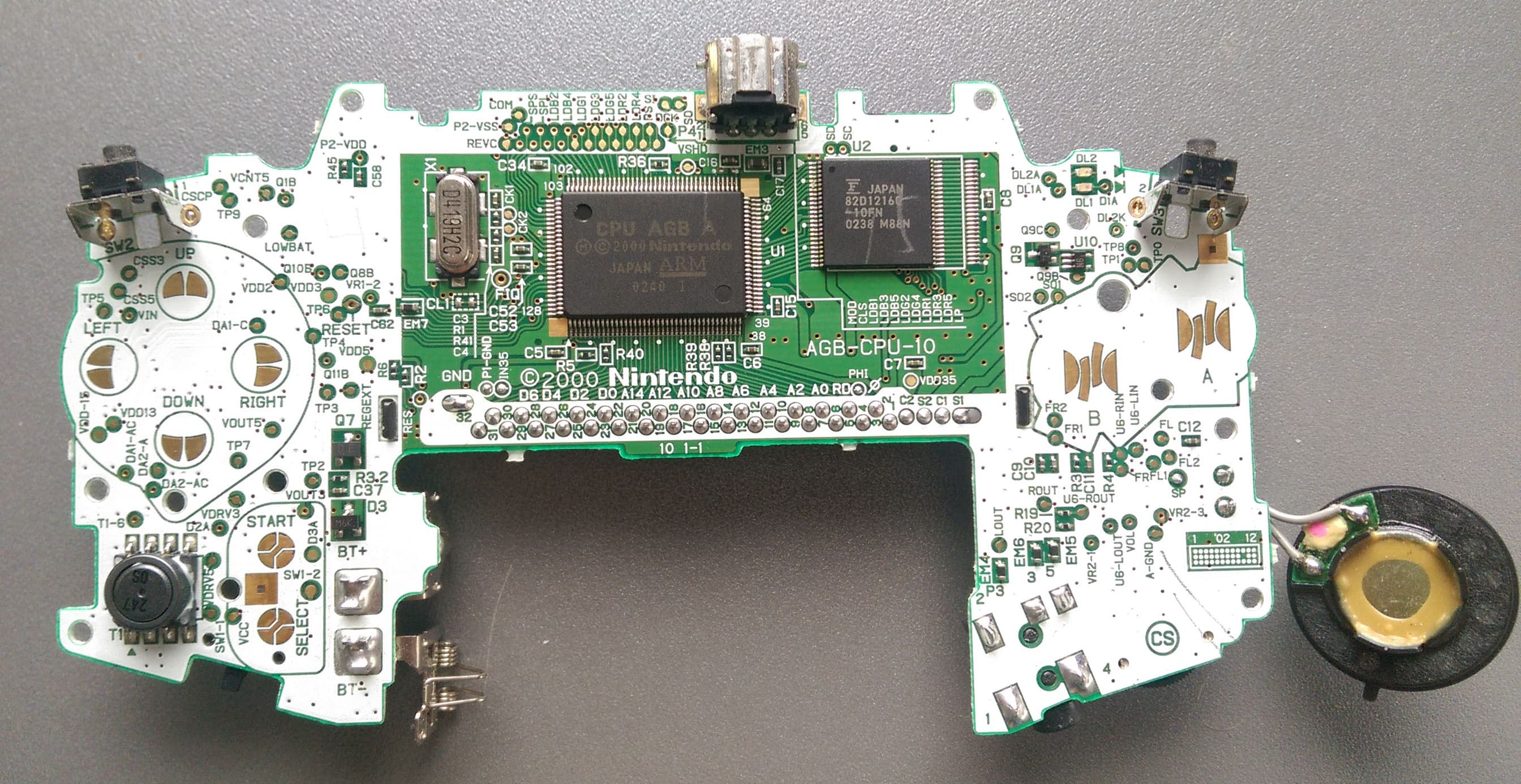

Mainboard
- Board type
- AGB-CPU-10
- Manufacture date
- October/2002
- Number pair on board
- 1-1
- Stamp on board
- 452 3702
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Sharp | Week 40/2002 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0240 I |
| U2 | WRAM | MB82D12160-10FN | Fujitsu | Week 38/2002 | JAPAN 82D12160-10FN 0238 M88N |
| U3 | LCD bias generator | ||||
| U4 | ? | MM1514X | Mitsumi | 2002 | 235 514X |
| U6 | Audio amplifier | IR3R60N | Sharp | Week 40/2002 | AMP AGB IR3R60N 0240 N |
| X1 | Crystal | 4.194304 MHz | Daishinku | August/2002 | D419H2C |
