AGB: AH12465671 [gekkio]
- Color
- Gold
- Release code
- C/AGB-JPN-1
- Assembly date
- Week 15/2003

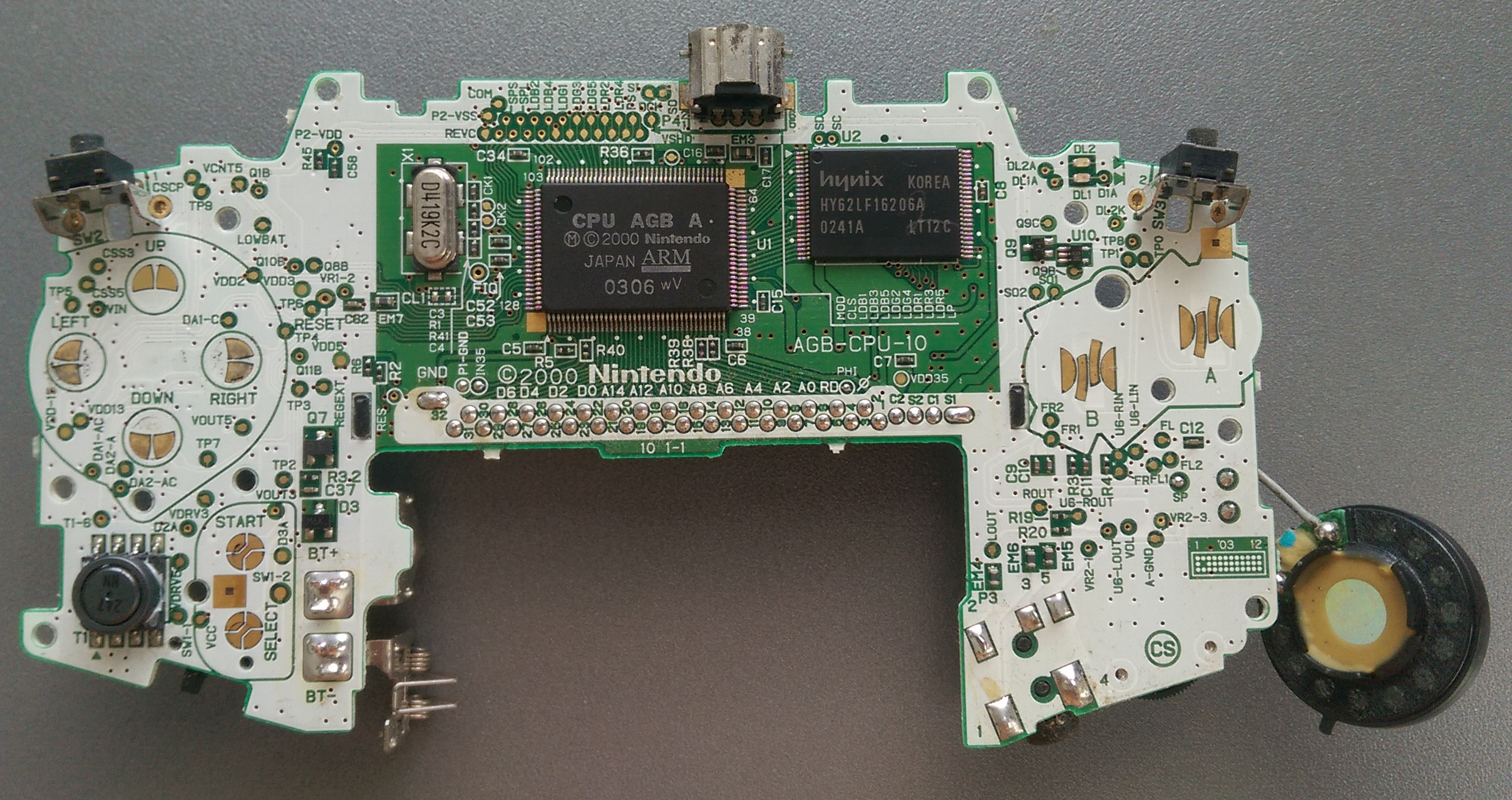

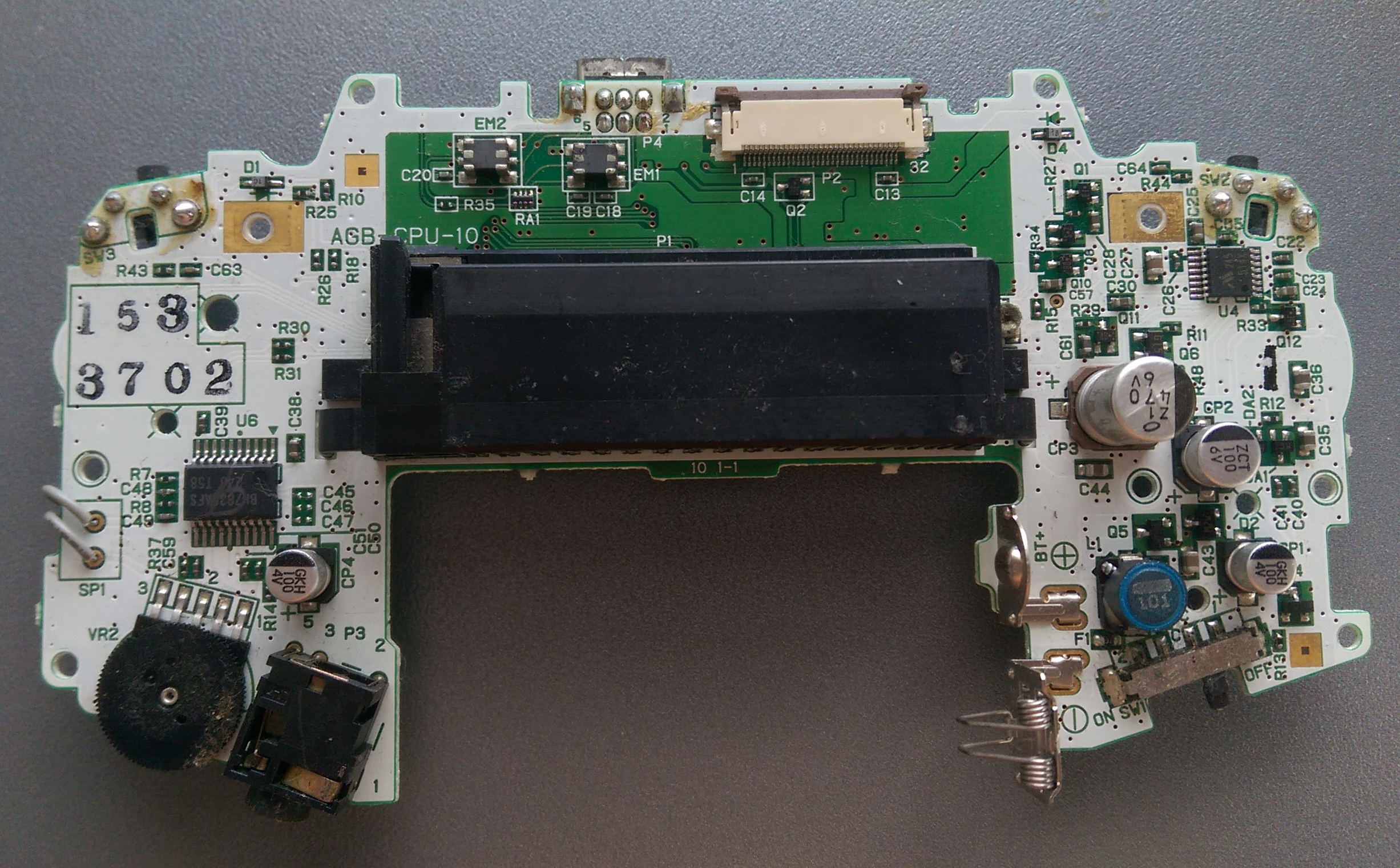

Mainboard
- Board type
- AGB-CPU-10
- Manufacture date
- February/2003
- Number pair on board
- 1-1
- Stamp on board
- 153 2702
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Week 6/2003 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0306 wV | |
| U2 | WRAM | HY62LF16206A-LT12C | Hynix | Week 41/2002 | Hynix KOREA HY62LF16206A 0241A LT12C |
| U3 | LCD bias generator | ||||
| U4 | ? | MM1514X | Mitsumi | Week 45/2002 | 245 514X |
| U6 | Audio amplifier | BH7835AFS | ROHM | Week 46/2002 | BH7835AFS 246 T58 |
| X1 | Crystal | 4.194304 MHz | Daishinku | October/2002 | D419K2C |
