Game Boy hardware database

AGB: AJ10005957 [gekkio]

Color
Indigo
Release code
AGB-JPN
Assembly date
Week 6/2001

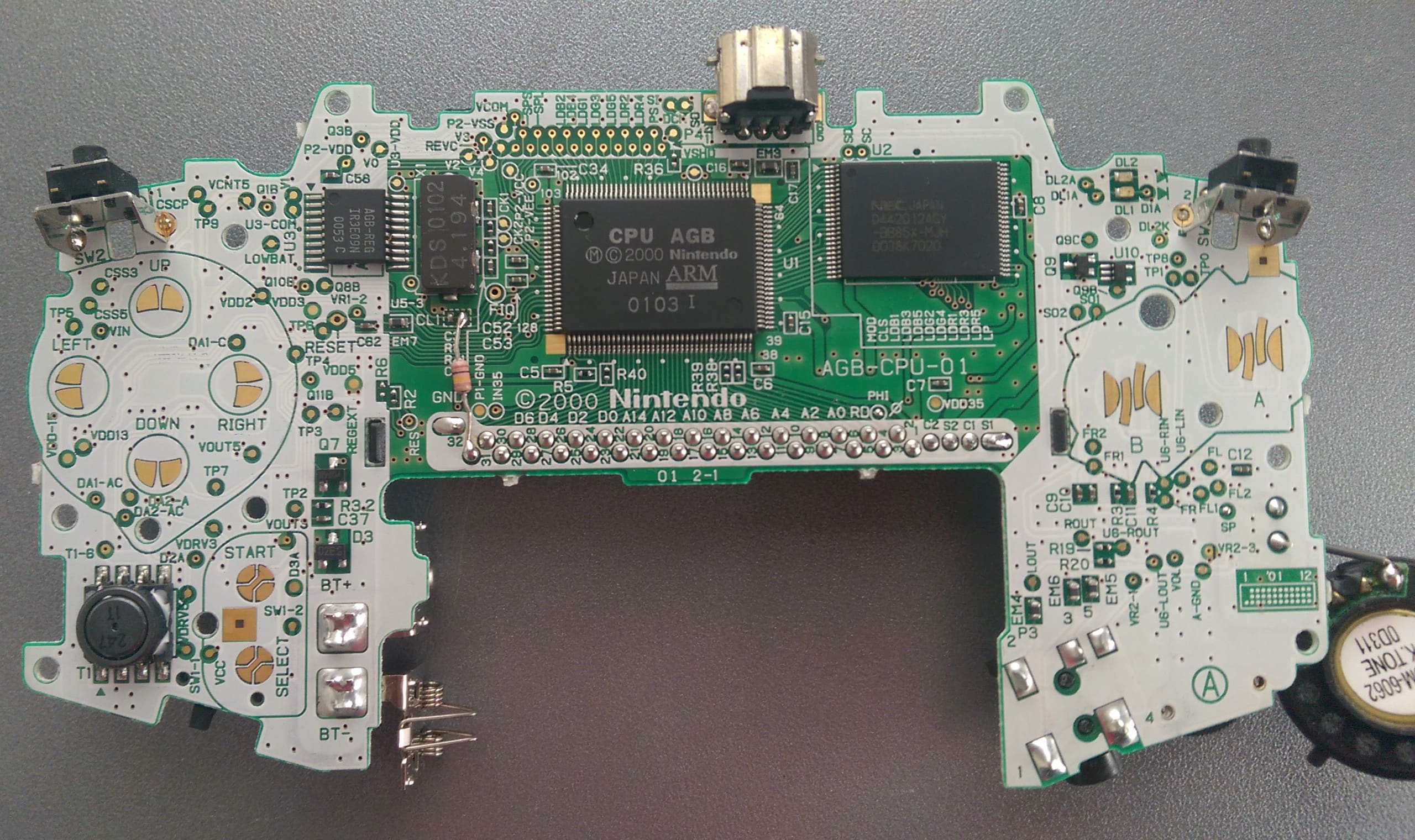

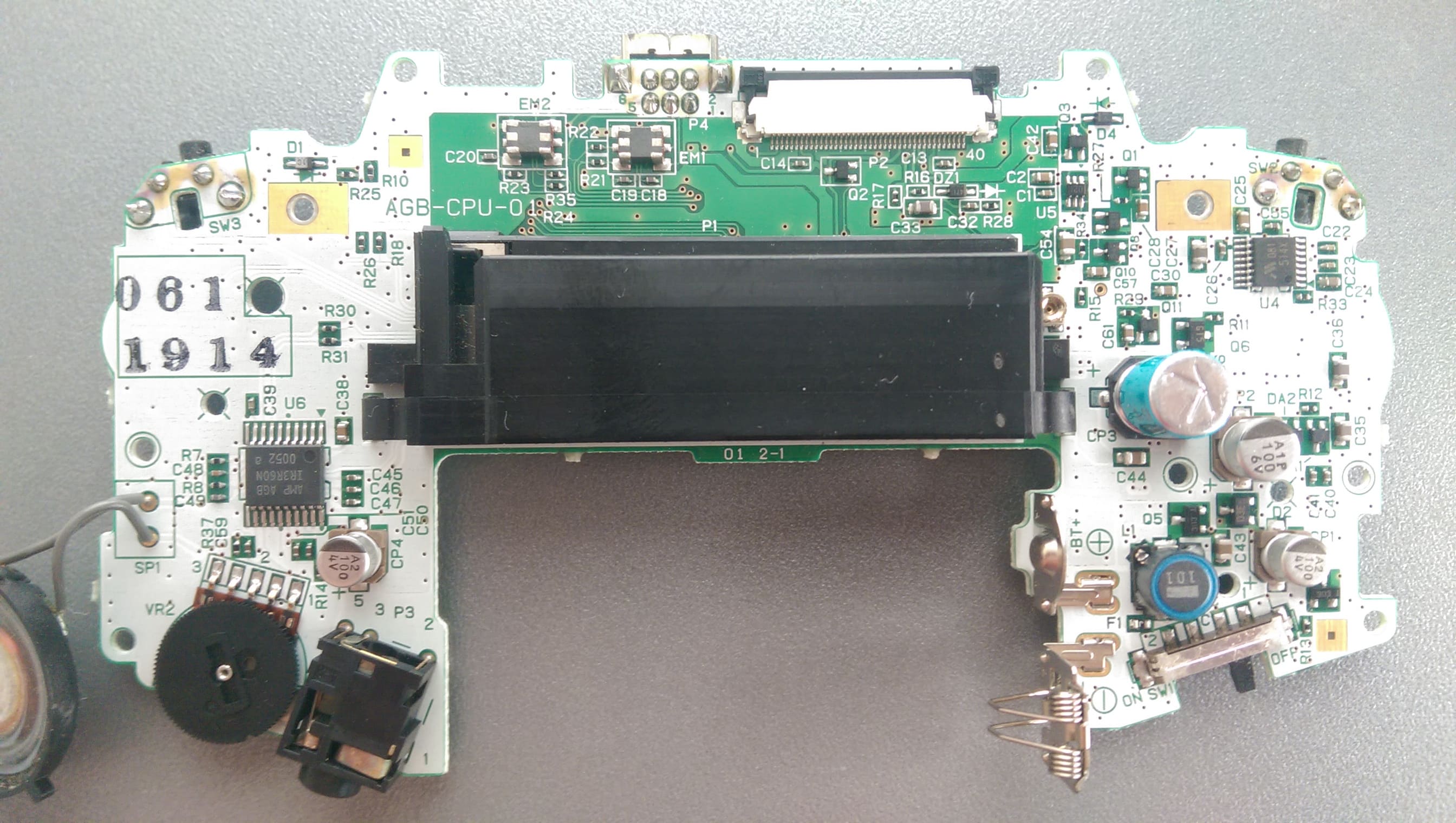

Mainboard

Board type
AGB-CPU-01
Manufacture date
January/2001
Number pair on board
2-1
Stamp on board
061 1914
Circled letter(s) on board
A

Parts

PartTypeManufacturerDateLabel
U1CPUCPU AGBWeek 3/2001CPU AGB Ⓜ © 2000 Nintendo JAPAN ARM 0103 I
U2WRAMμPD442012AGY-BB85X-MJHNECWeek 38/2000NEC JAPAN D442012AGY-BB85X-MJH 0038K7020
U3LCD bias generatorIR3E09NSharpWeek 53/2000AGB-REG IR3E09N 0053 C
U4?MM1514XMitsumi2000081 514X
U6Audio amplifierIR3R60NSharpWeek 52/2000AMP AGB IR3R60N 0052 a
X1Crystal4.194304 MHzDaishinkuWeek 2/2001KDS 0102 4.194
