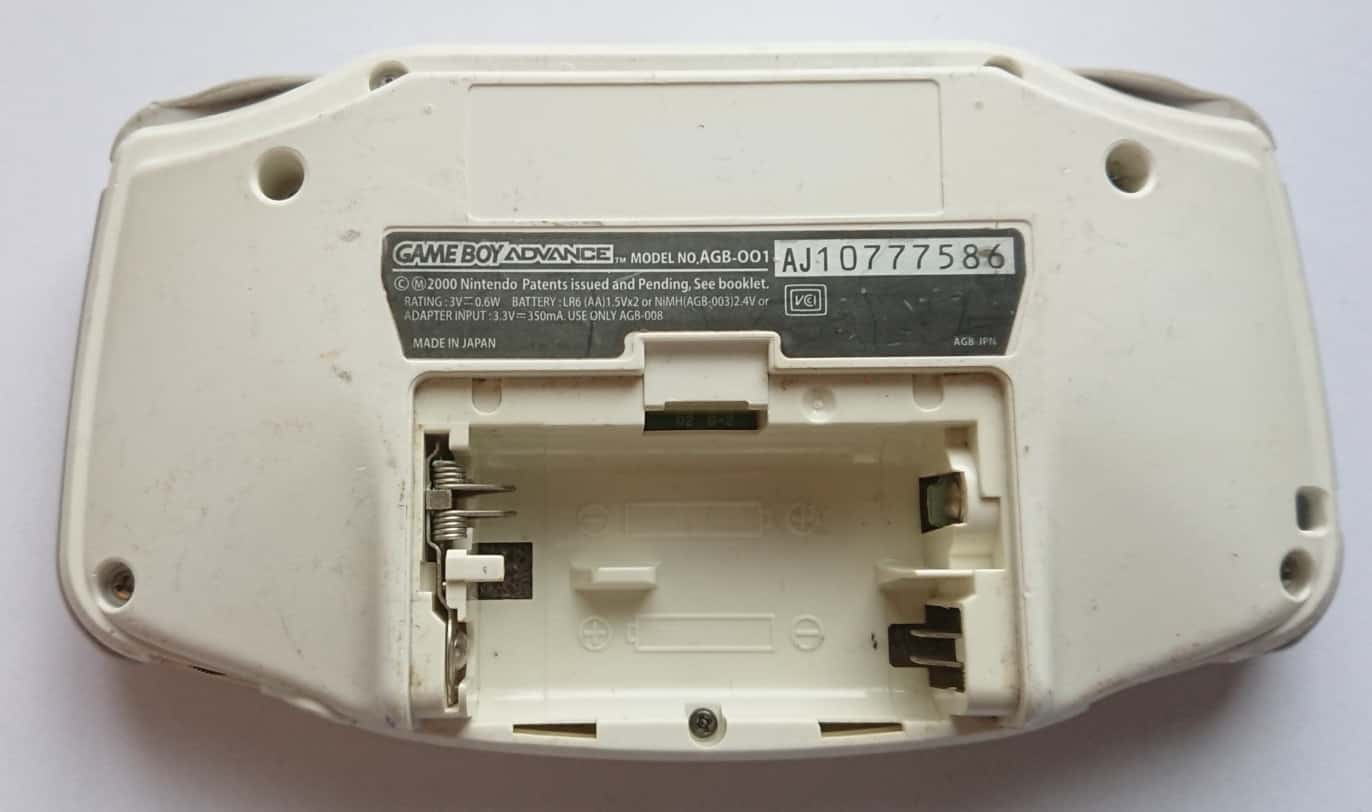

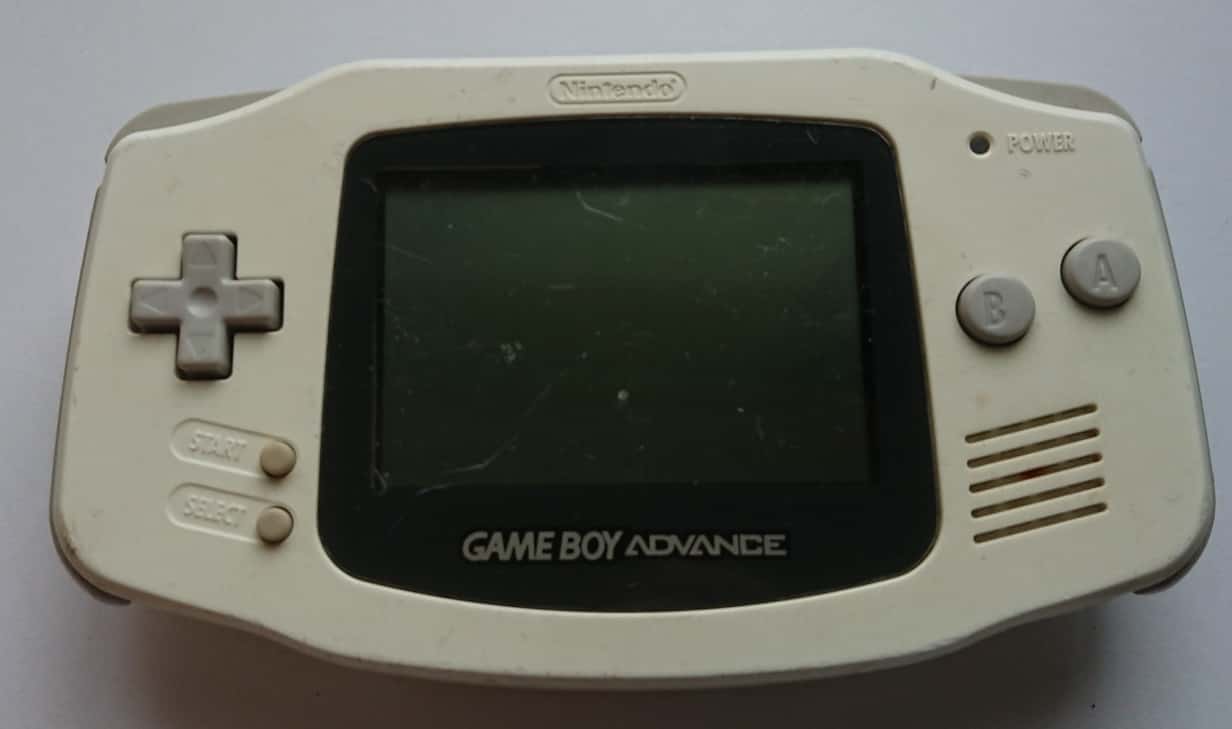

AGB: AJ10777586 [gekkio]
- Color
- Arctic
- Release code
- AGB-JPN
- Assembly date
- Week 11/2001

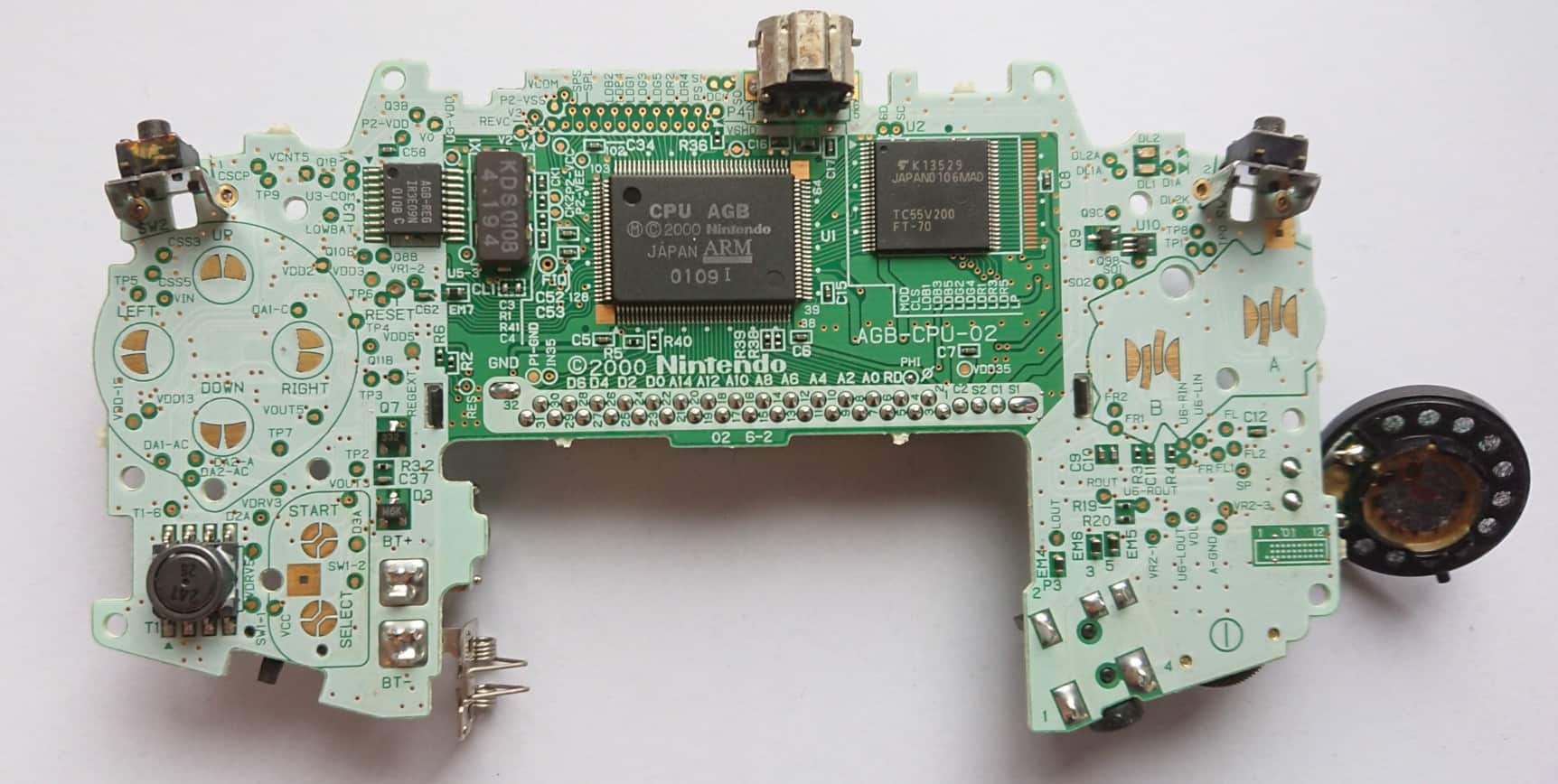

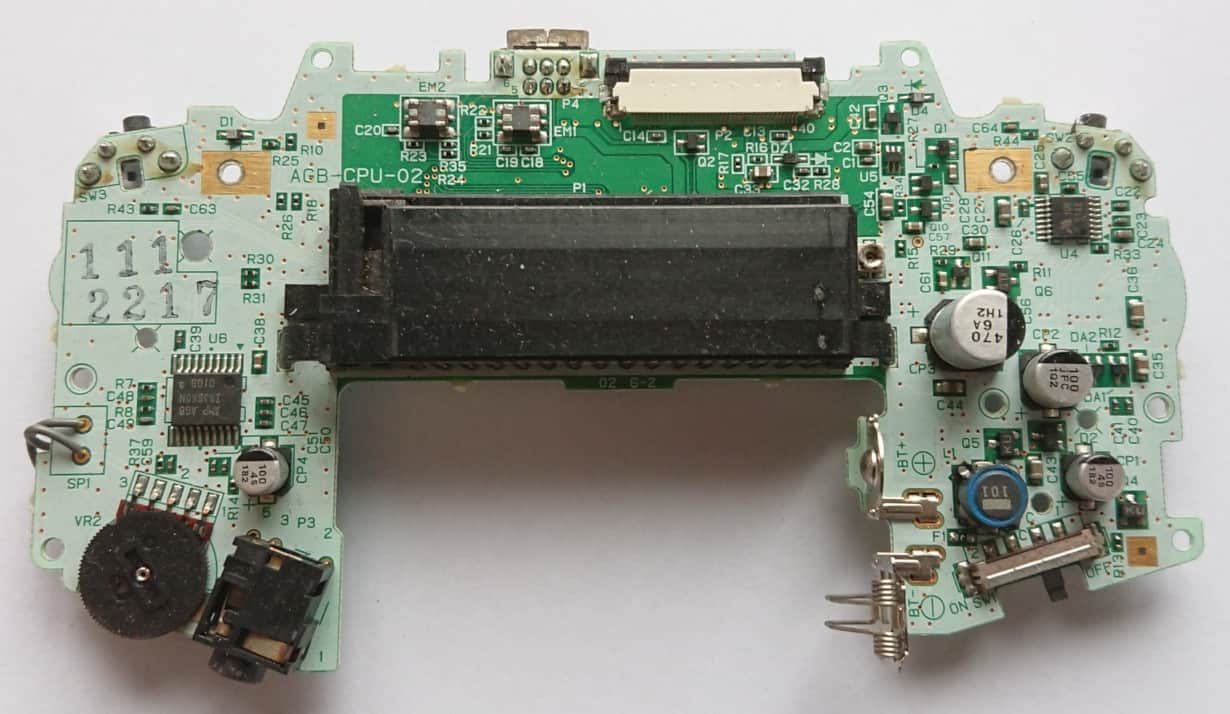

Mainboard
- Board type
- AGB-CPU-02
- Manufacture date
- February/2001
- Number pair on board
- 6-2
- Stamp on board
- 111 2217
- Circled letter(s) on board
- I
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB | Week 9/2001 | CPU AGB Ⓜ © 2000 Nintendo JAPAN ARM 0109 I | |
| U2 | WRAM | TC55V200FT-70 | Toshiba | Week 6/2001 | K13529 JAPAN 0106 MAD TC55V200 FT-70 |
| U3 | LCD bias generator | IR3E09N | Sharp | Week 8/2001 | AGB-REG IR3E09N 0108 C |
| U4 | ? | MM1514X | Mitsumi | Week 8/2001 | 108 514X |
| U6 | Audio amplifier | IR3R60N | Sharp | Week 8/2001 | AMP AGB IR3R60N 0108 a |
| X1 | Crystal | 4.194304 MHz | Daishinku | Week 8/2001 | KDS 0108 4.194 |
