Game Boy hardware database

AGB: AU11463067-4 [curbsideaudio]

Color
Black
Release code
AGB-USA
Assembly date
Week 41/2002

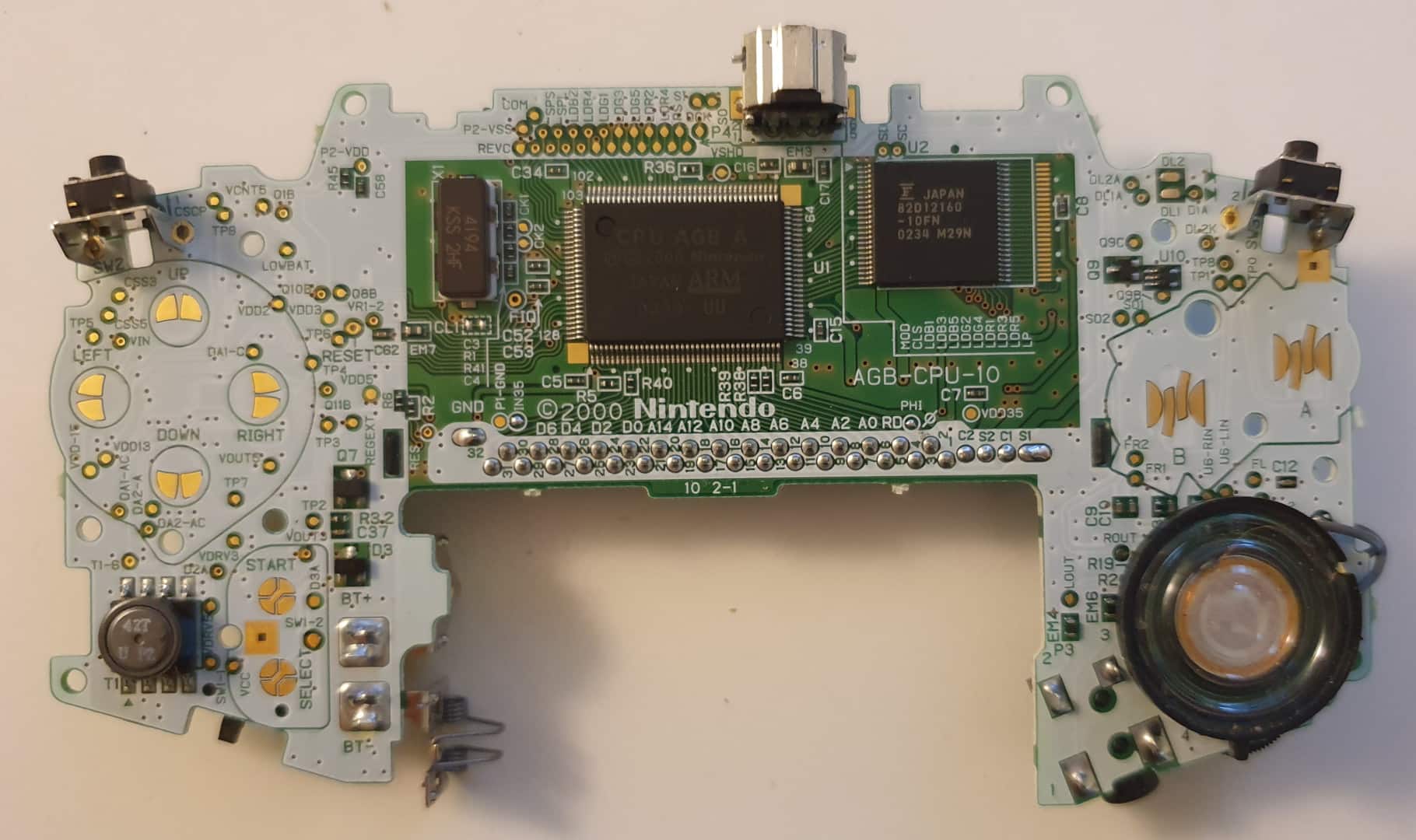

Mainboard

Board type
AGB-CPU-10
Number pair on board
2-1

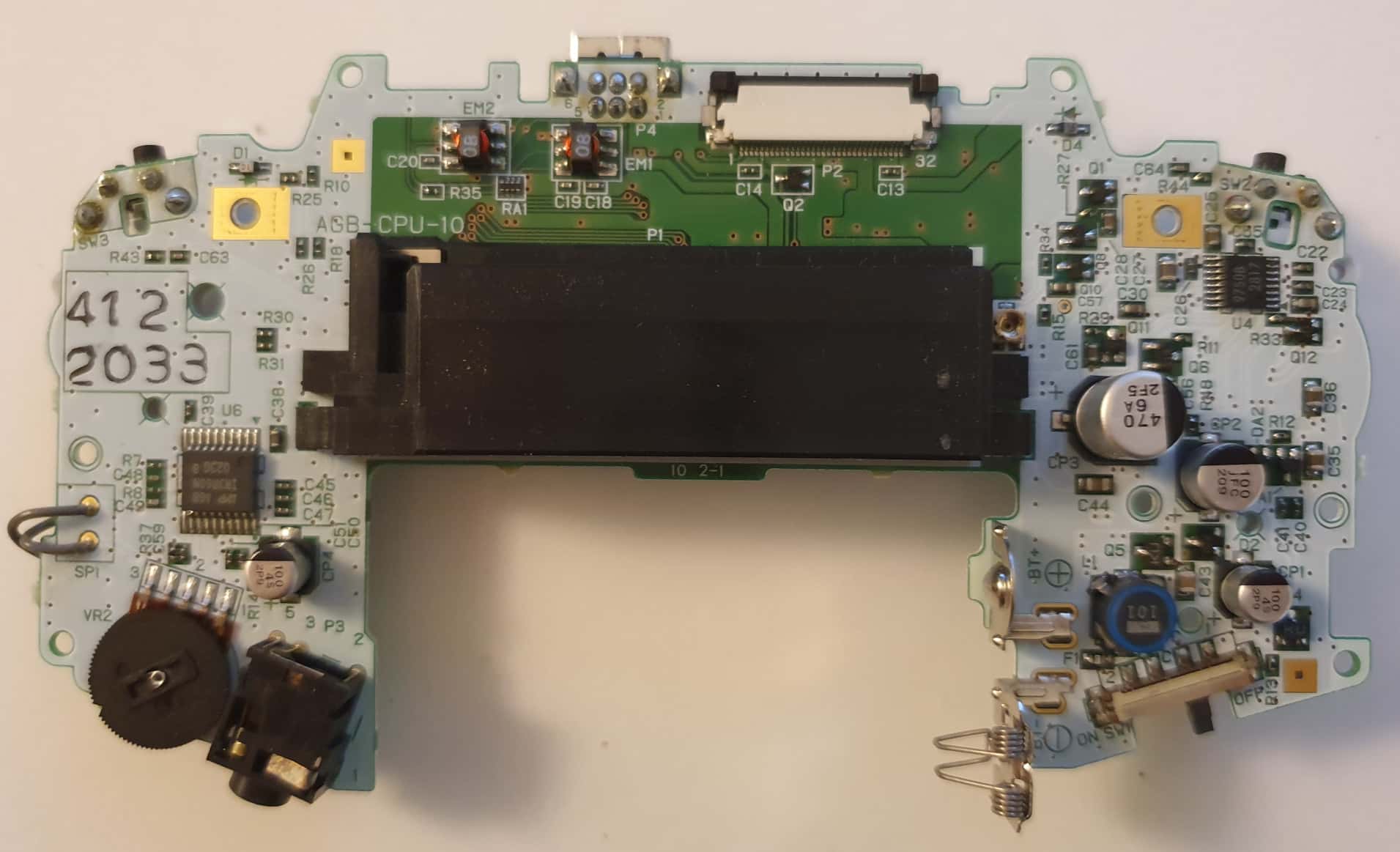

Stamp on board
412 2033

Parts

PartTypeManufacturerDateLabel
U1CPUCPU AGB AWeek 39/2002CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0239 UU
U2WRAMMB82D12160-10FNFujitsuWeek 34/2002JAPAN 82D12160-10FN 0234 M29N
U3LCD bias generator
U4?9750B20029750B 2917
U6Audio amplifierIR3R60NSharpWeek 36/2002AMP AGB IR3R60N 0236 B
X1Crystal4.194304 MHzKinsekiAugust/20024194 KSS 2HF
