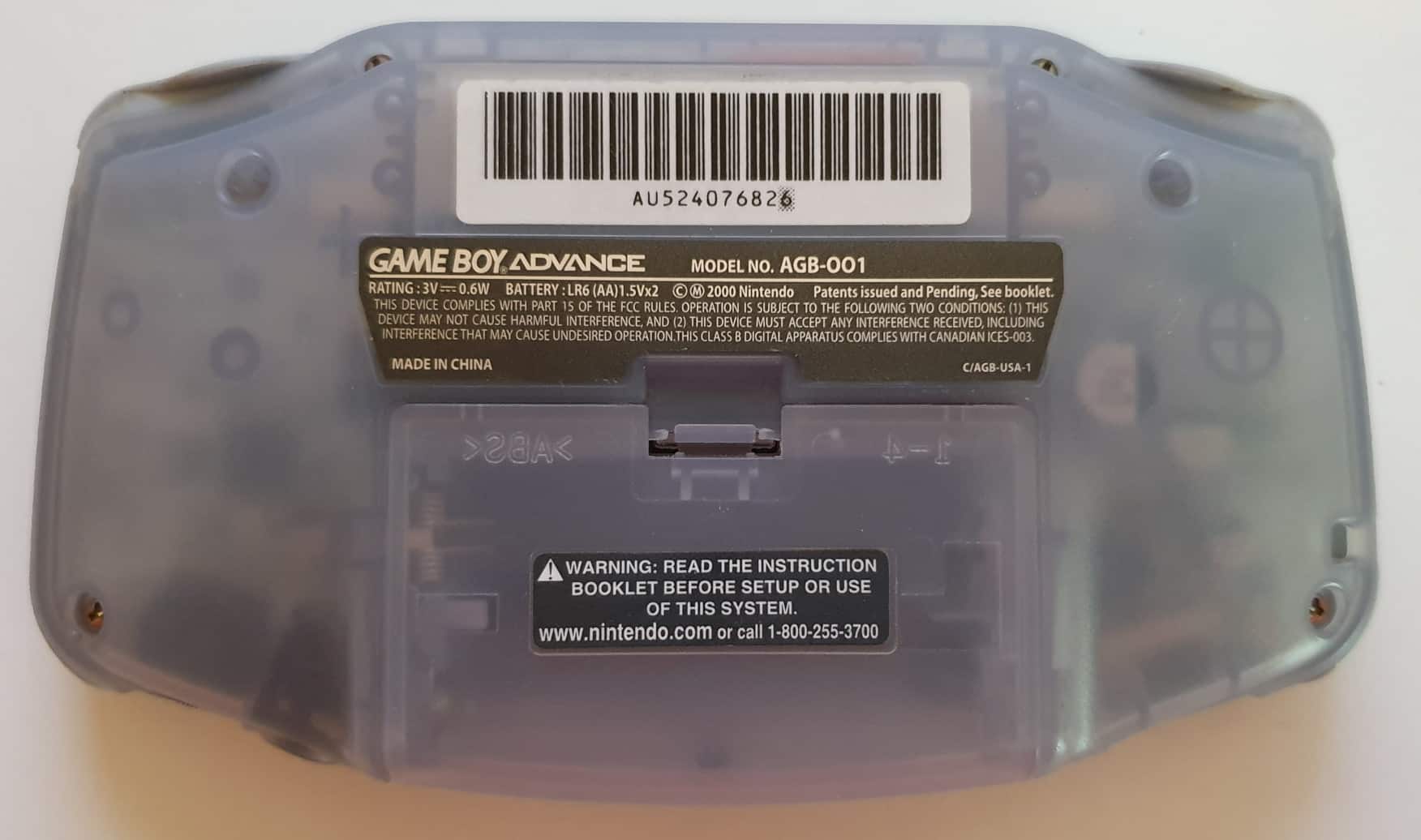

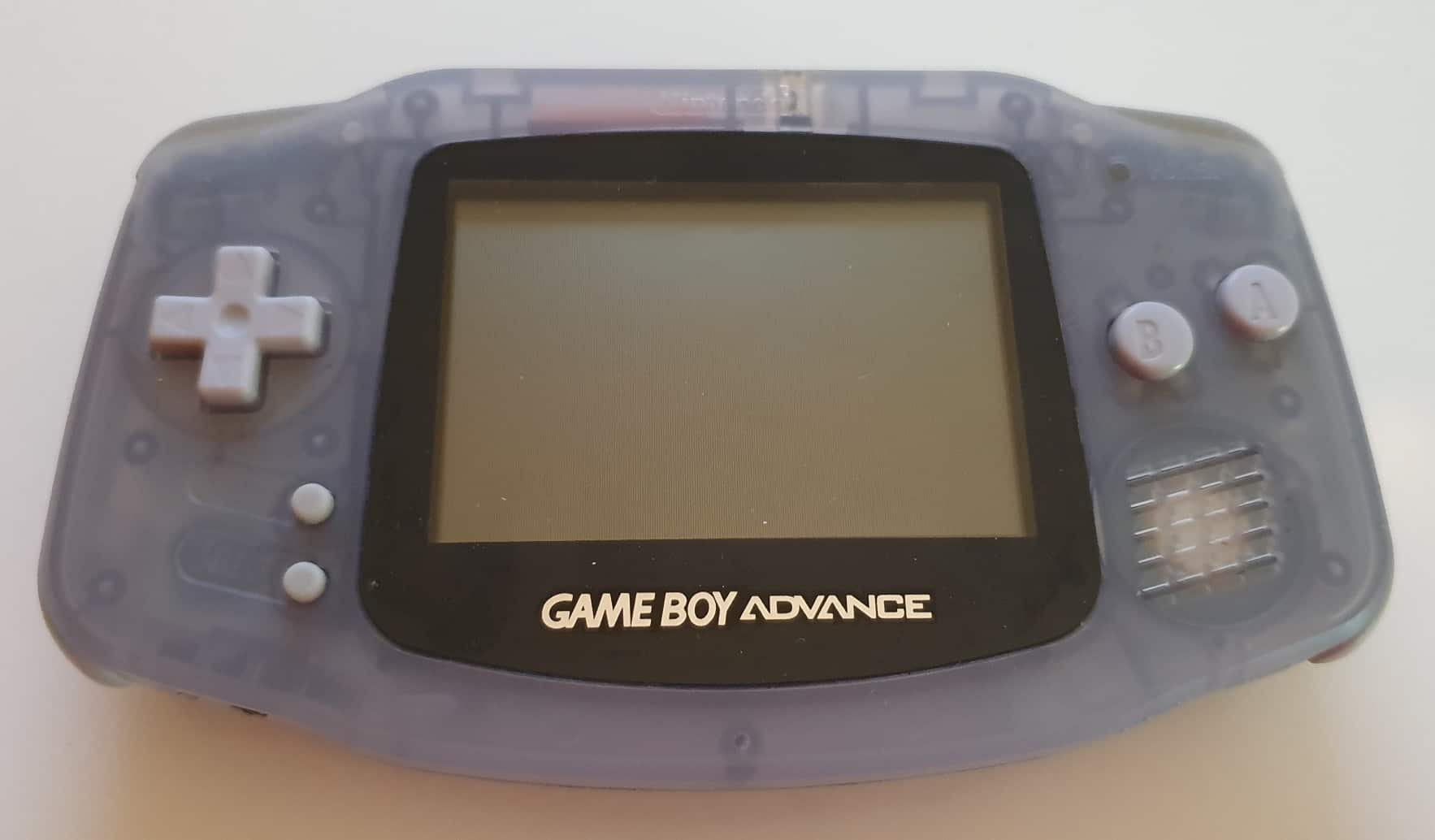

AGB: AU52407682-6 [curbsideaudio]
- Color
- Glacier
- Release code
- C/AGB-USA-1
- Assembly date
- Week 30/2001

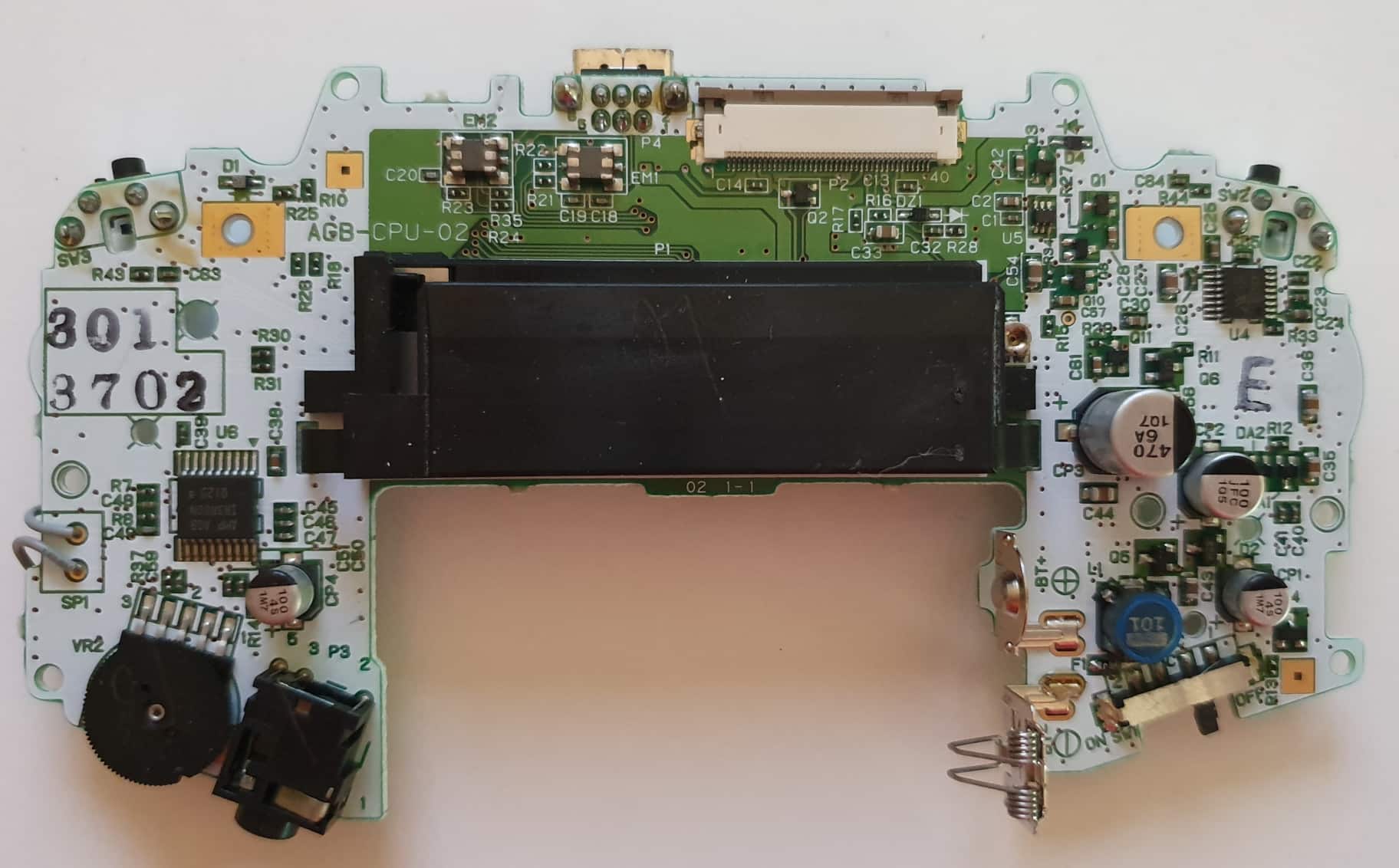

Mainboard
- Board type
- AGB-CPU-02
- Number pair on board
- 1-1
- Stamp on board
- 301 3702

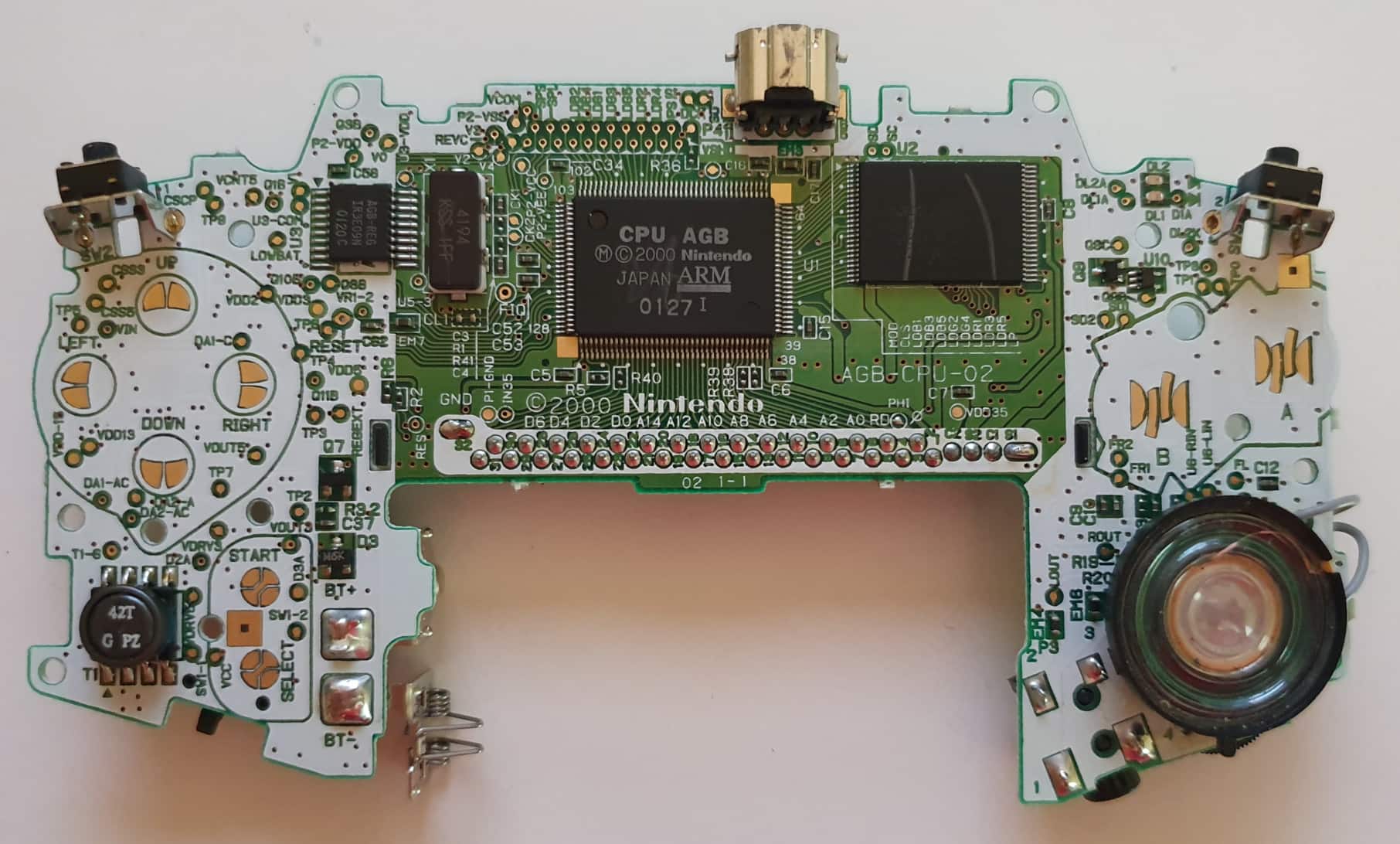

Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB | Sharp | Week 27/2001 | CPU AGB Ⓜ © 2000 Nintendo JAPAN ARM 0127 I |
| U2 | WRAM | ||||
| U3 | LCD bias generator | IR3E09N | Sharp | Week 20/2001 | AGB-REG IR3E09N 0120 C |
| U4 | ? | ||||
| U6 | Audio amplifier | IR3R60N | Sharp | Week 25/2001 | AMP AGB IR3R60N 0125 a |
| X1 | Crystal | 4.194304 MHz | Kinseki | June/2001 | 4194 KSS 1FF |
