AGS: XJH14504809 [gekkio]
- Color
- PearlBlue
- Release code
- C/AGS-JPN

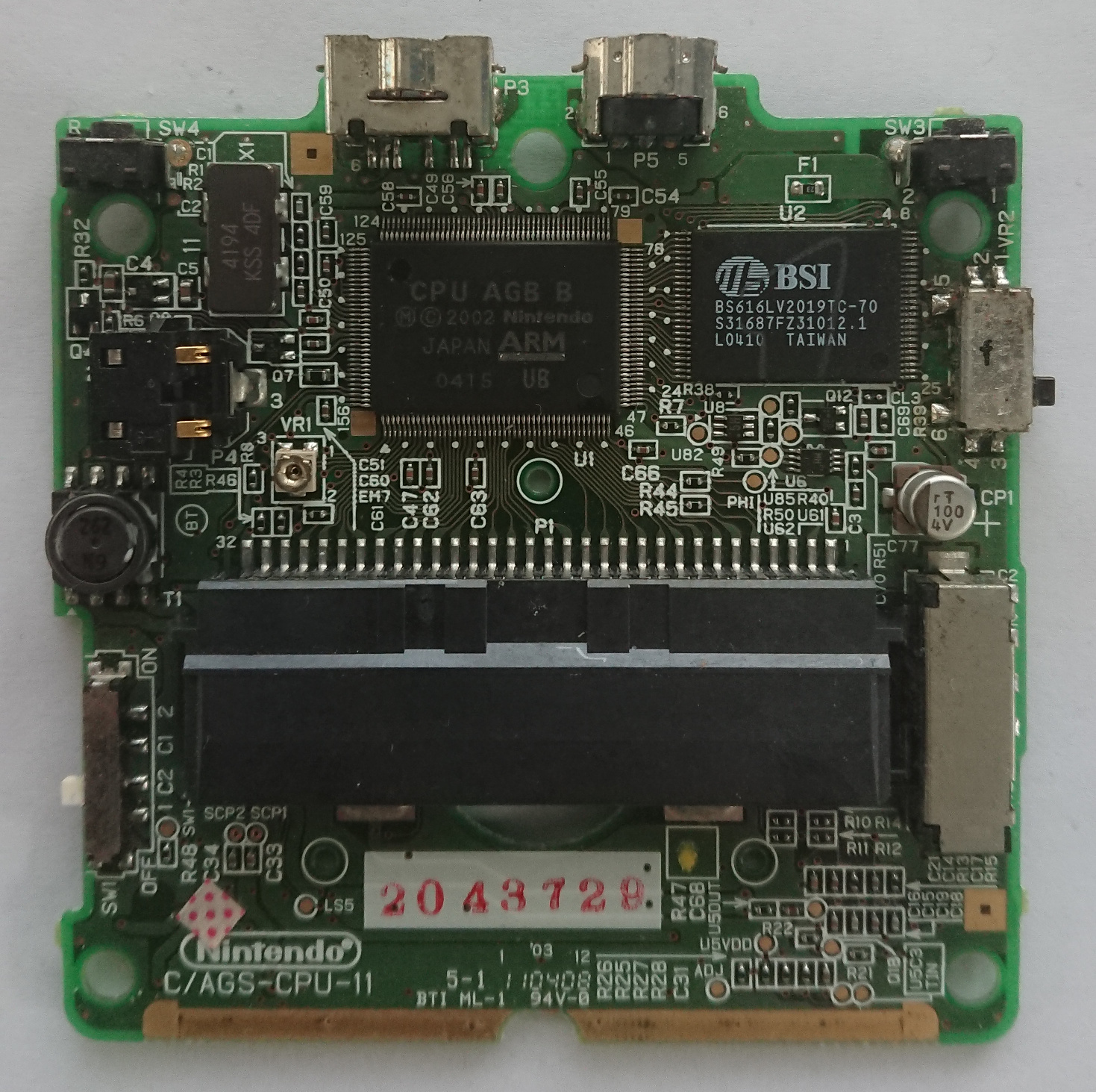

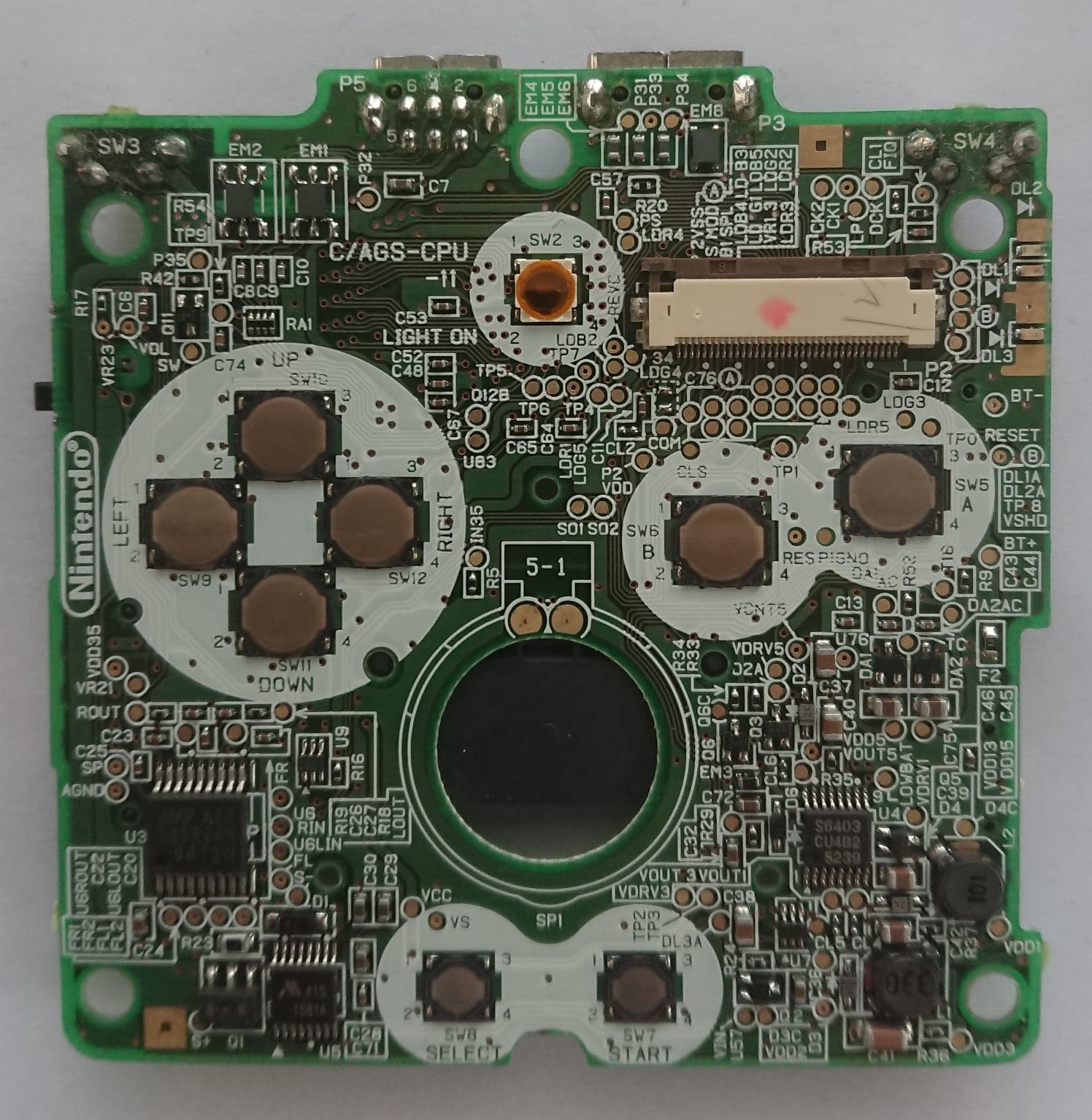

Mainboard
- Board type
- C/AGS-CPU-01
- Manufacture date
- 2003
- Number pair on board
- 5-1
- Stamp on board
- 2043729
- Circled letter(s) on board
- BT
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB B | Sharp | Week 15/2004 | CPU AGB B Ⓜ © 2002 Nintendo JAPAN ARM 0415 UB |
| U2 | WRAM | BS616LV2019TC-70 | BSI | Week 10/2004 | BSI BS616LV2019TC-70 S31687FZ31012.1 L0410 TAIWAN |
| U3 | Amplifier | IR3R60N | Sharp | Week 13/2004 | AMP AGB IR3R60N 0413 N |
| U4 | ? | S-6403C | Seiko Instruments Inc. | 2004 | S6403 CU4B2 5239 |
| U5 | Battery controller | MM1581A | Mitsumi | Week 15/2004 | 415 1581A |
| X1 | Crystal | 4.194304 MHz | Kinseki | April/2004 | 4194 KSS 4DF |
