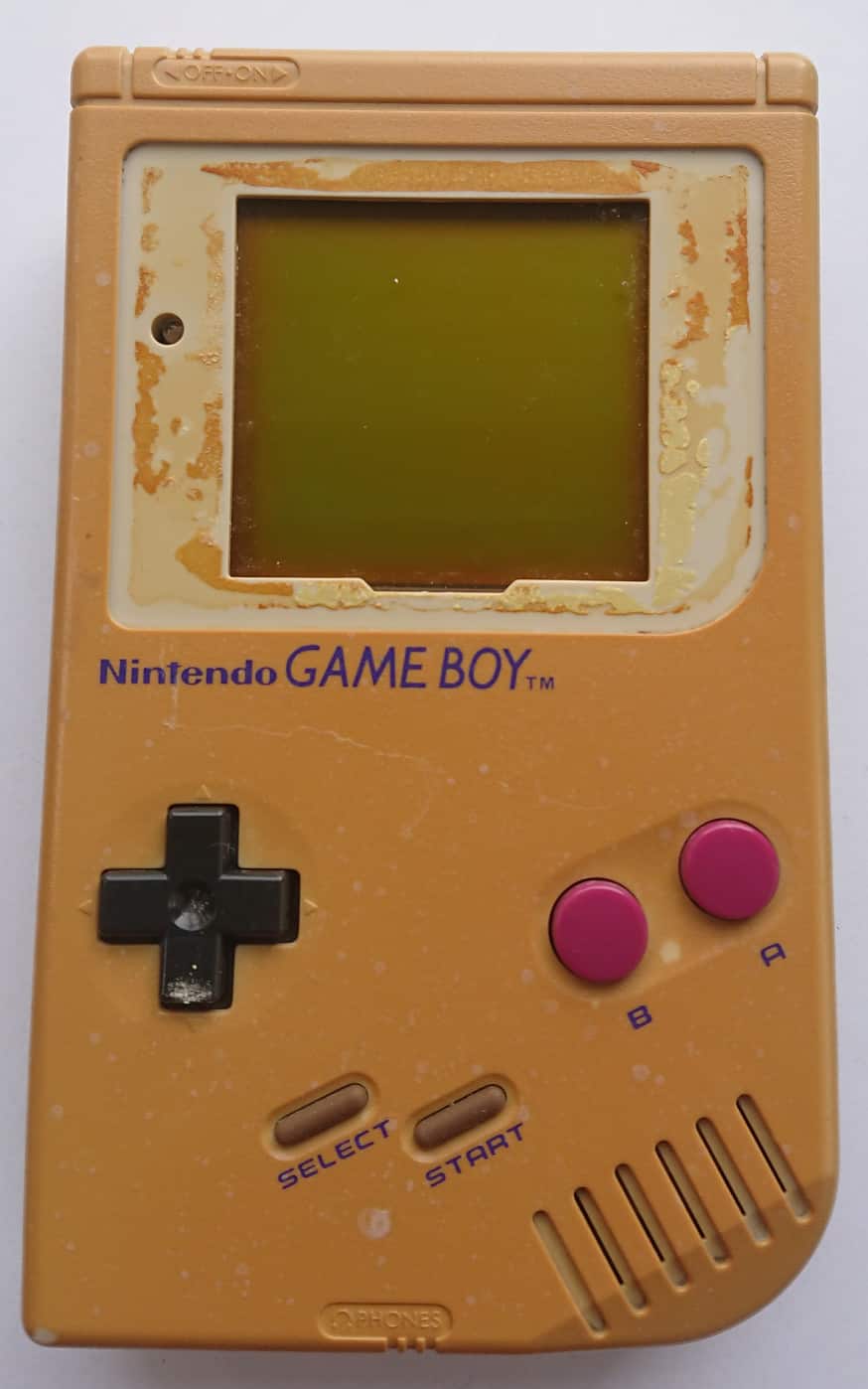

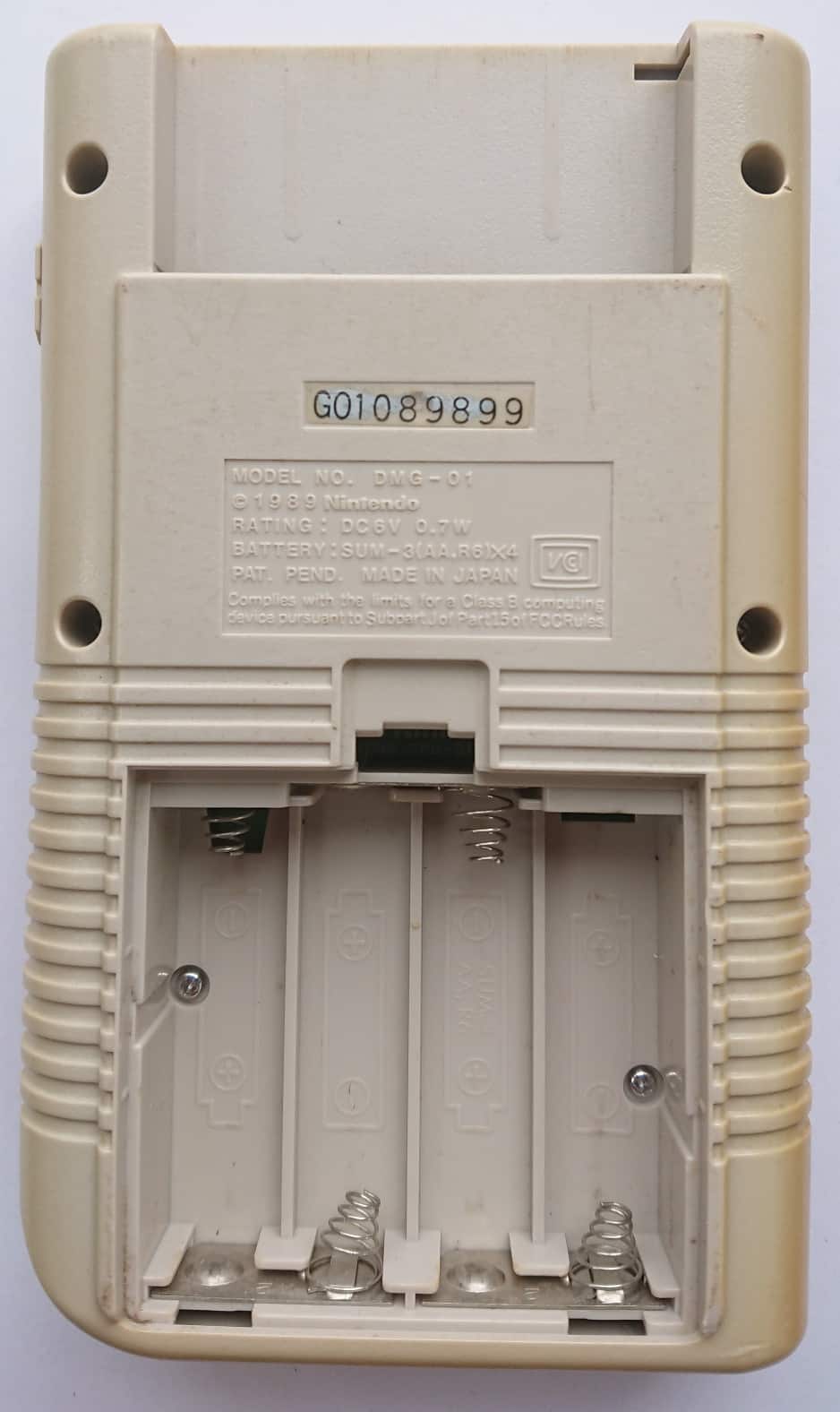

DMG: G01089899 [gekkio]

Color
OffWhite
Assembly date
March/1989
LCD panel label
S890220
LCD panel date
February/1989

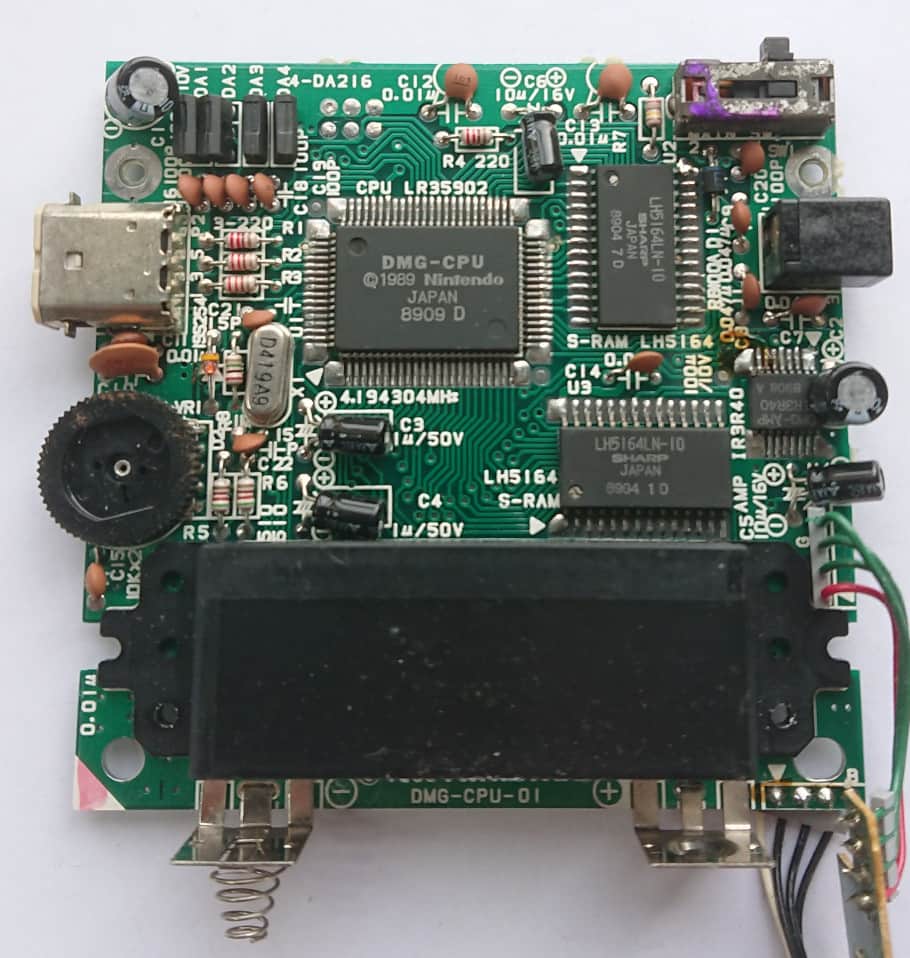

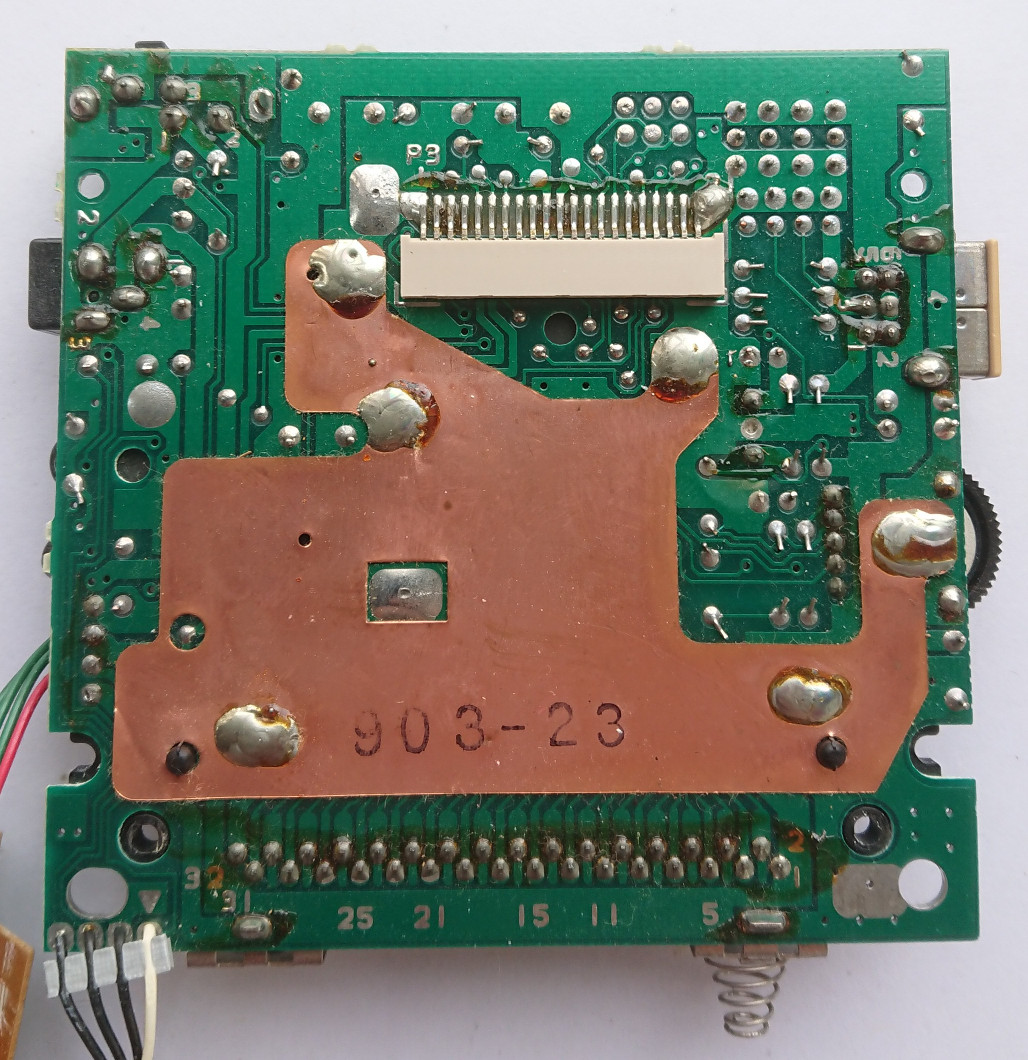

Mainboard

Board type
DMG-CPU-01
Stamp on board
903-23
Extra label
1

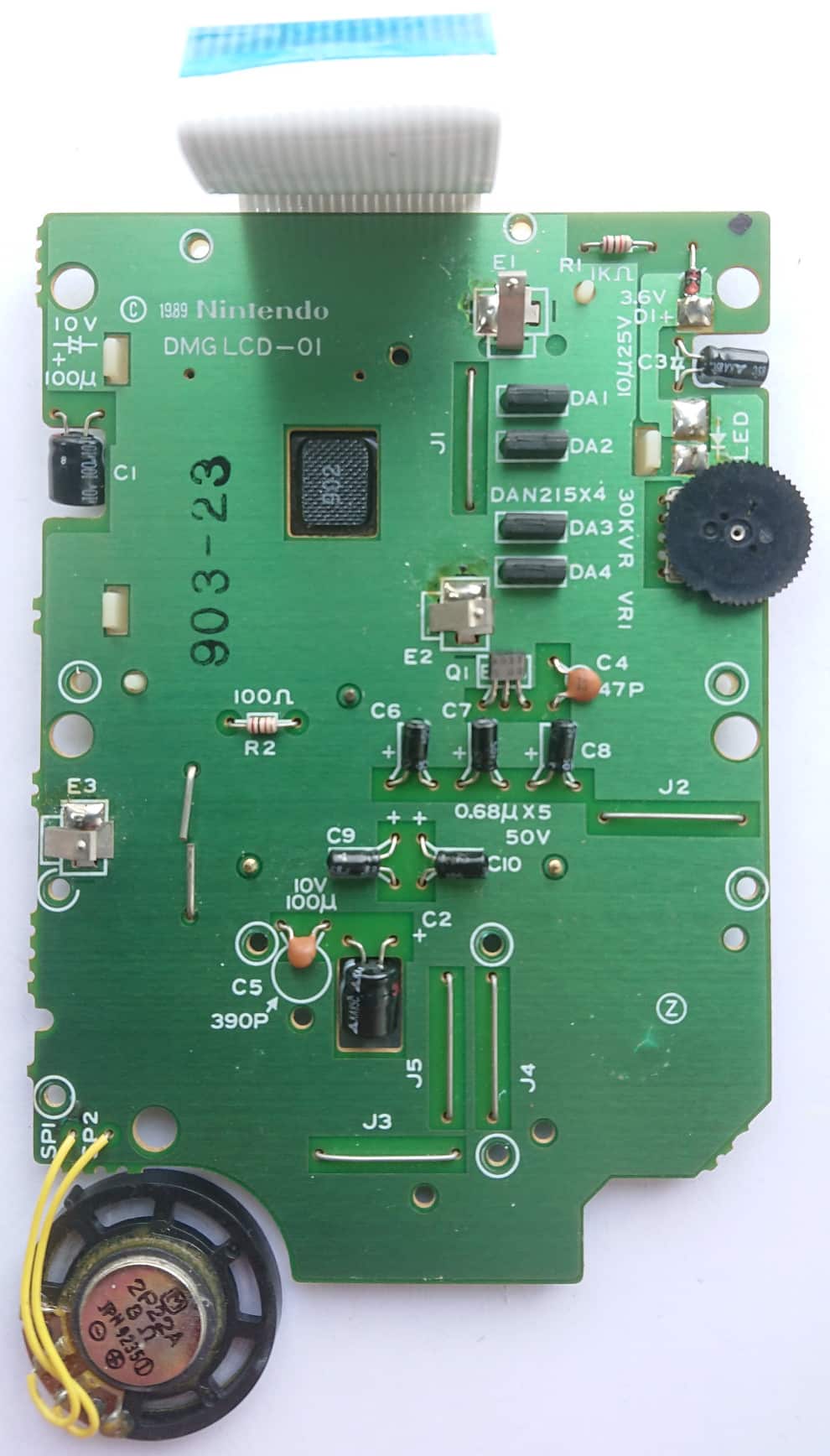

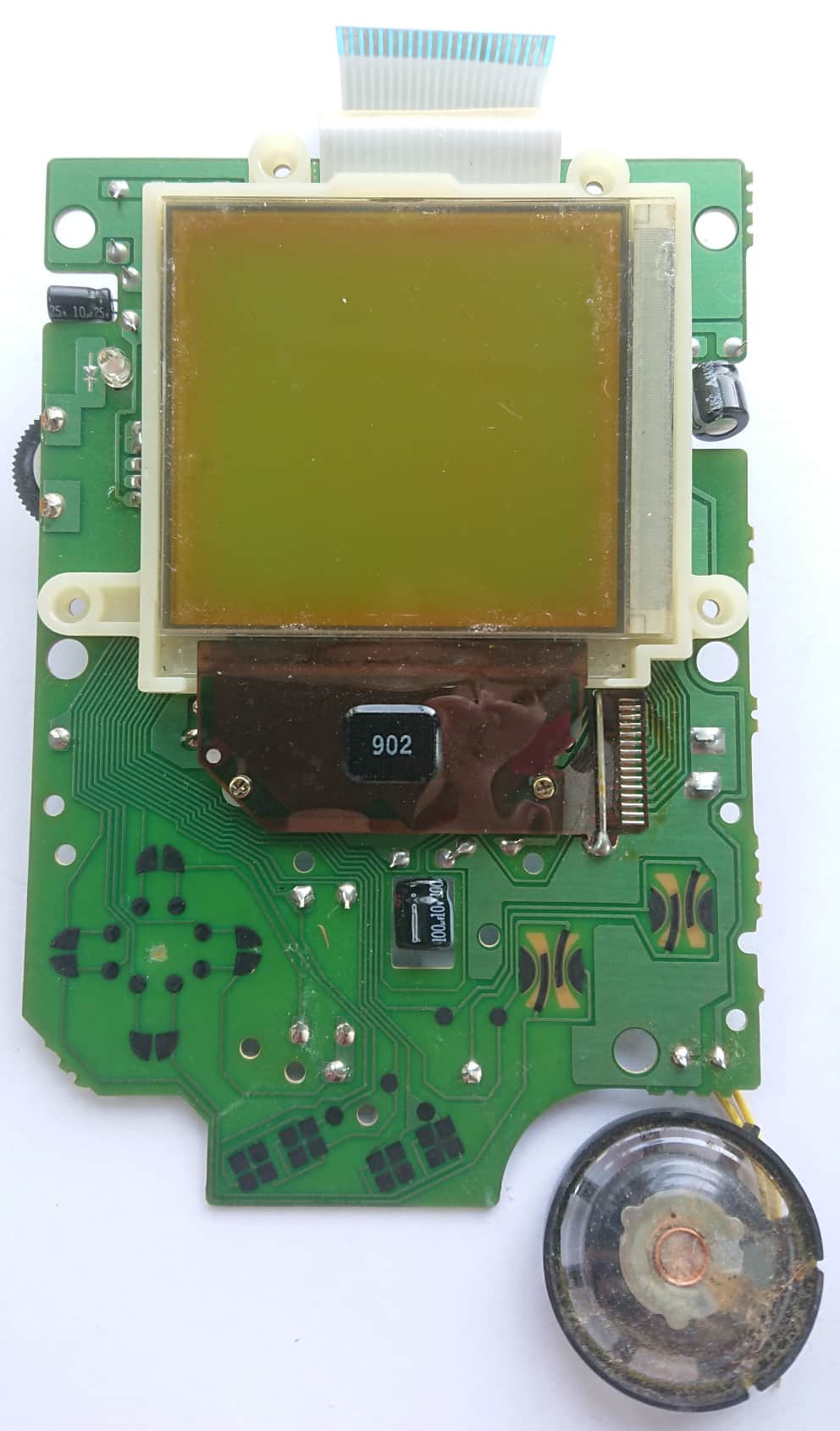

LCD board

Board type
DMG-LCD-01
Stamp
903-23
Circled letter(s) on board
Z

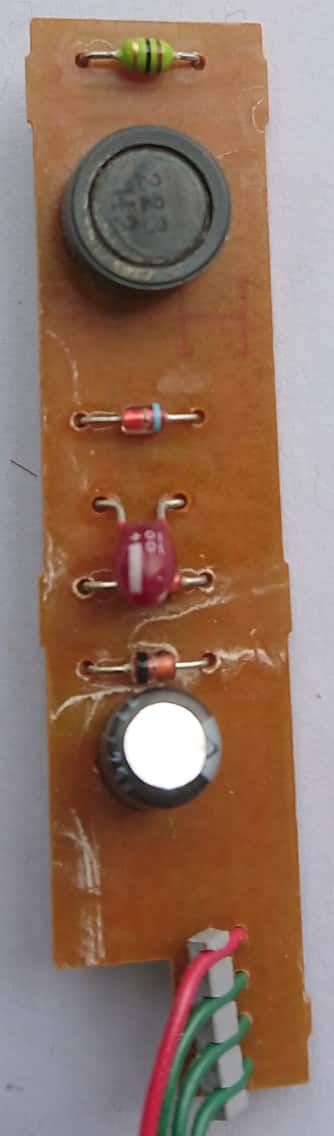

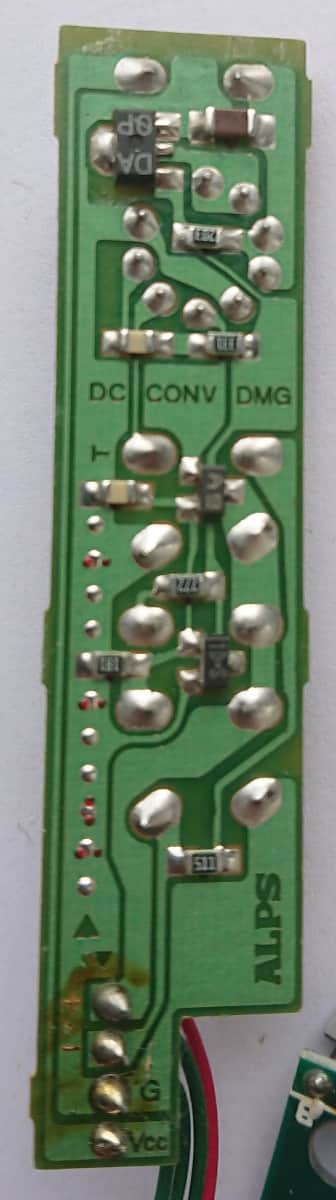

Power board

Board type
A1
Manufacture date
1989
Label
DC CONV DMG

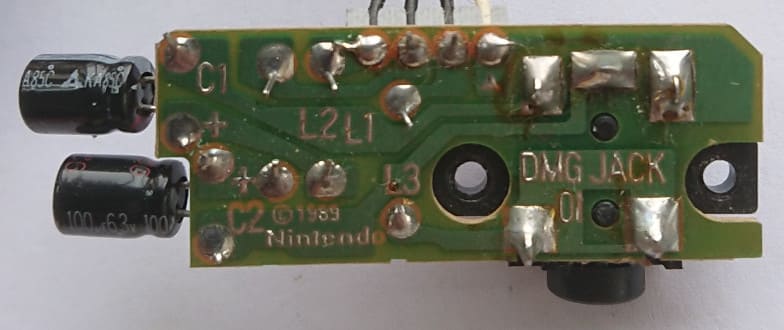

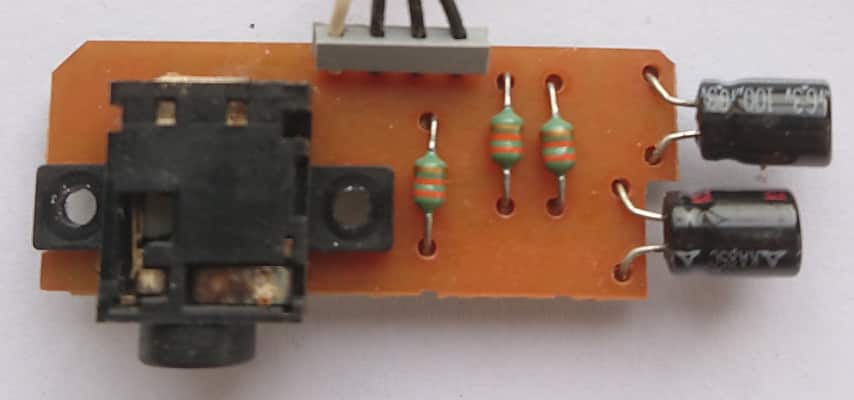

Jack board

Board type
DMG JACK 01

Parts

PartTypeManufacturerDateLabel
U1CPUDMG-CPUSharpWeek 9/1989DMG-CPU © 1989 Nintendo JAPAN 8909 D
U2VRAMLH5164LN-10SharpWeek 4/1989LH5164LN-10 SHARP JAPAN 8904 1 D
U3WRAMLH5164LN-10SharpWeek 4/1989LH5164LN-10 SHARP JAPAN 8904 7 D
U4Audio amplifierIR3R40SharpWeek 8/1989DMG-AMP IR3R40 8908 A
X1Crystal4.194304 MHzDaishinkuJanuary/1989D419A9
-LCD column driverLH5077 FSharpFebruary/1989LH5077 F 902
-LCD row driverLH5076 FSharpFebruary/1989LH5076 F 902
-LCD bias generatorIR3E02SharpWeek 6/1989DMG-REG IR3E02 8906 A
