Game Boy hardware database

DMG: G01100292 [gekkio]

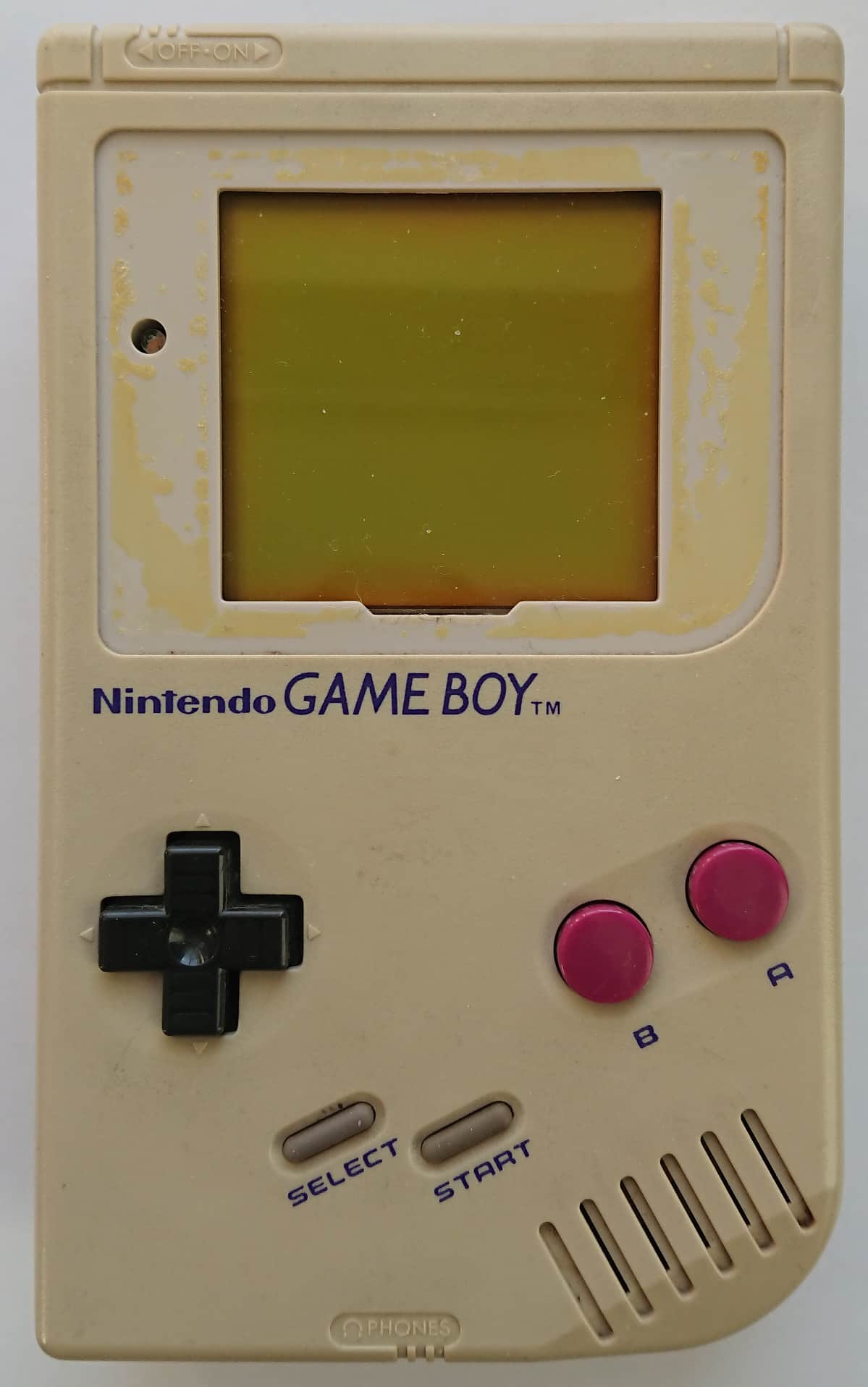

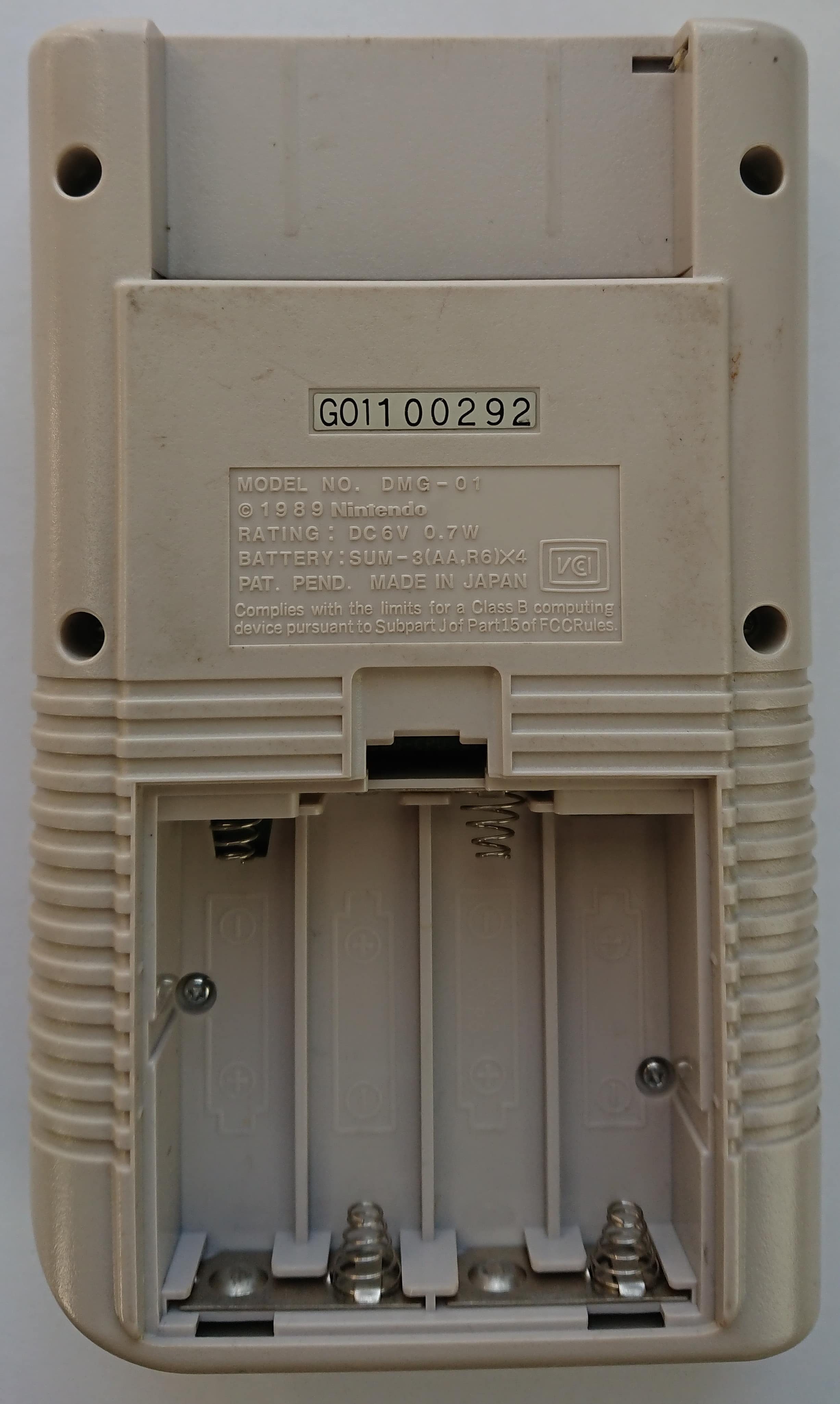

Color
OffWhite
Assembly date
April/1989

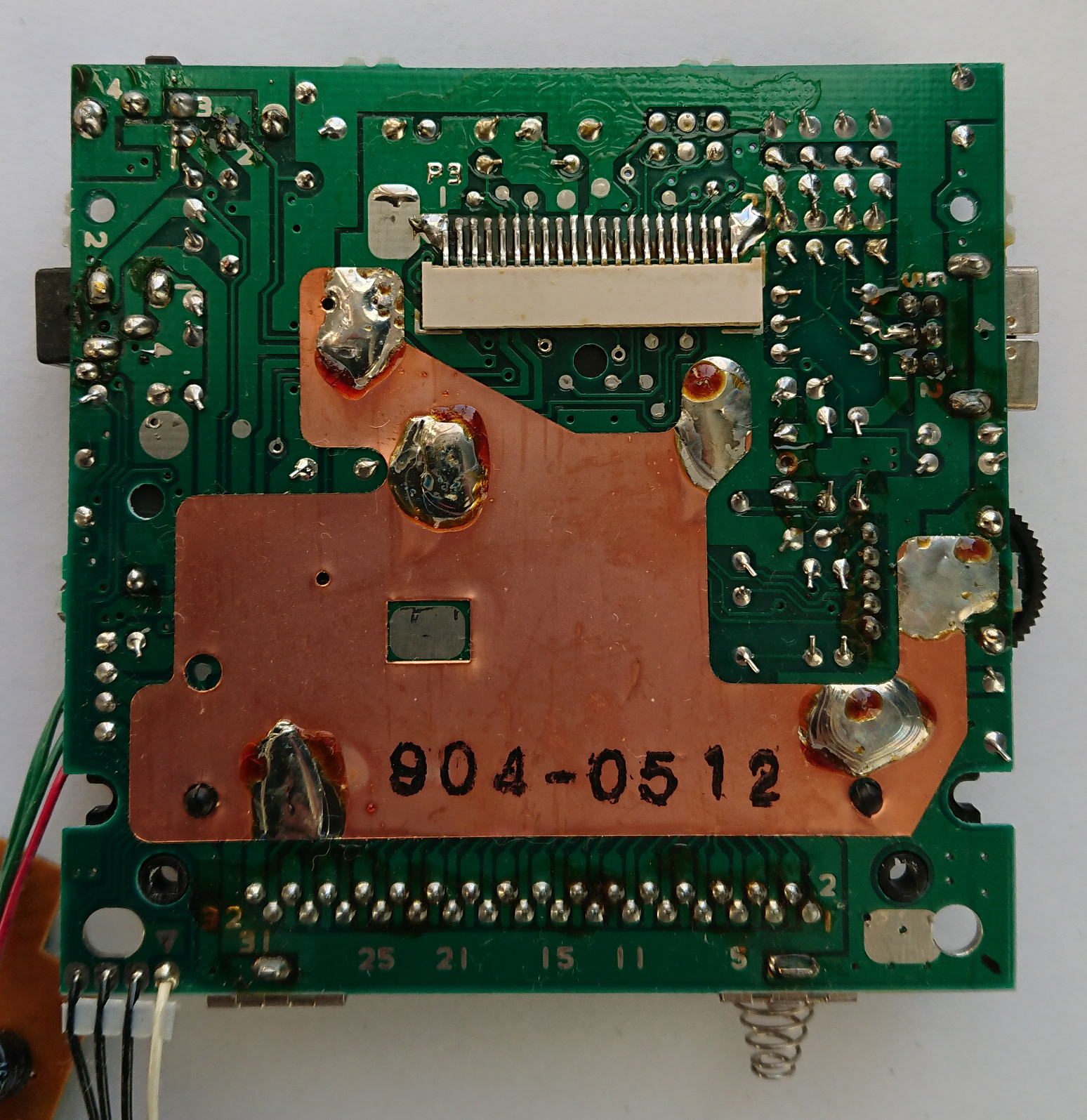

Mainboard

Board type

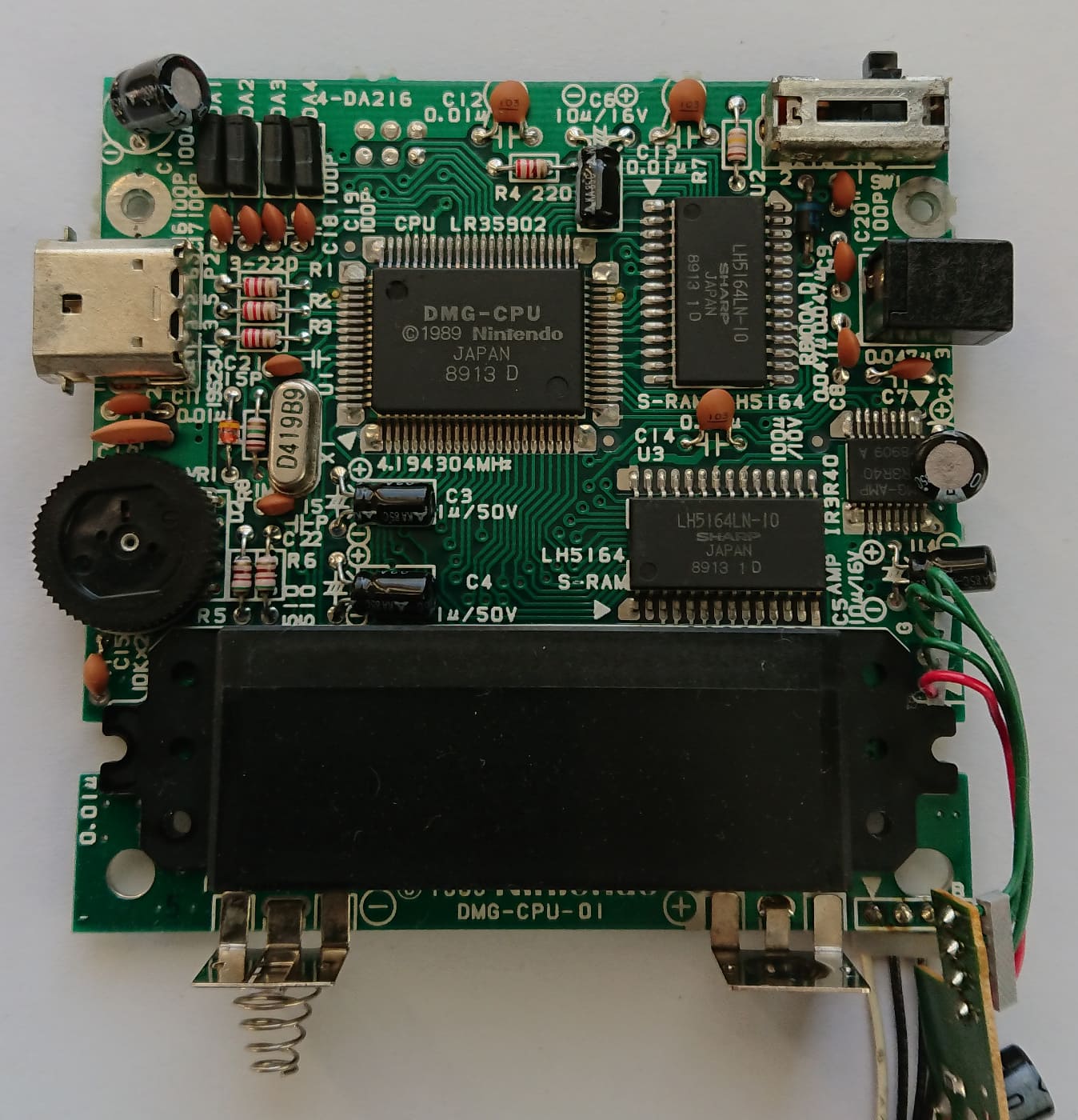

DMG-CPU-01
Stamp on board
904-0512
Extra label
5

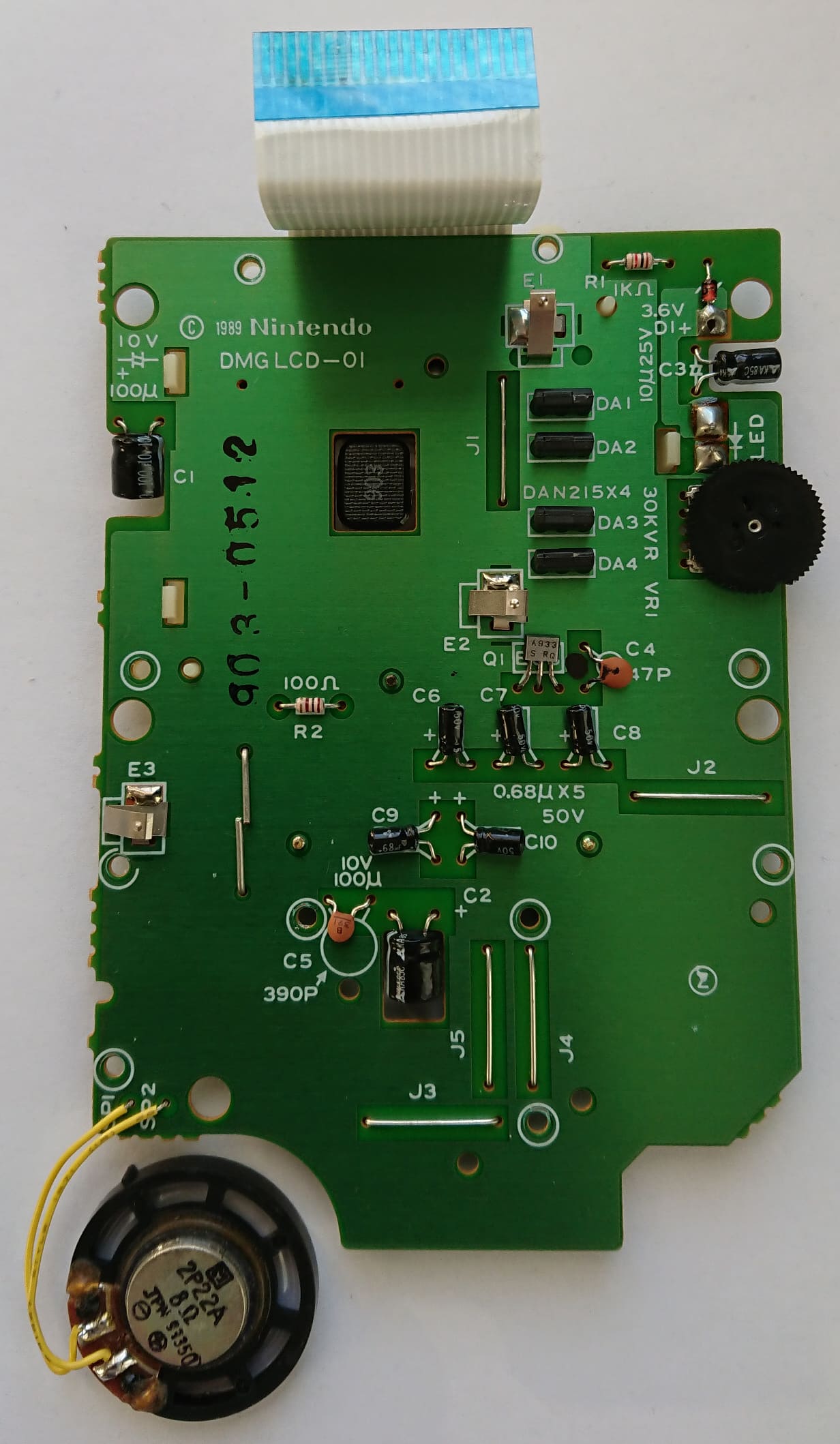

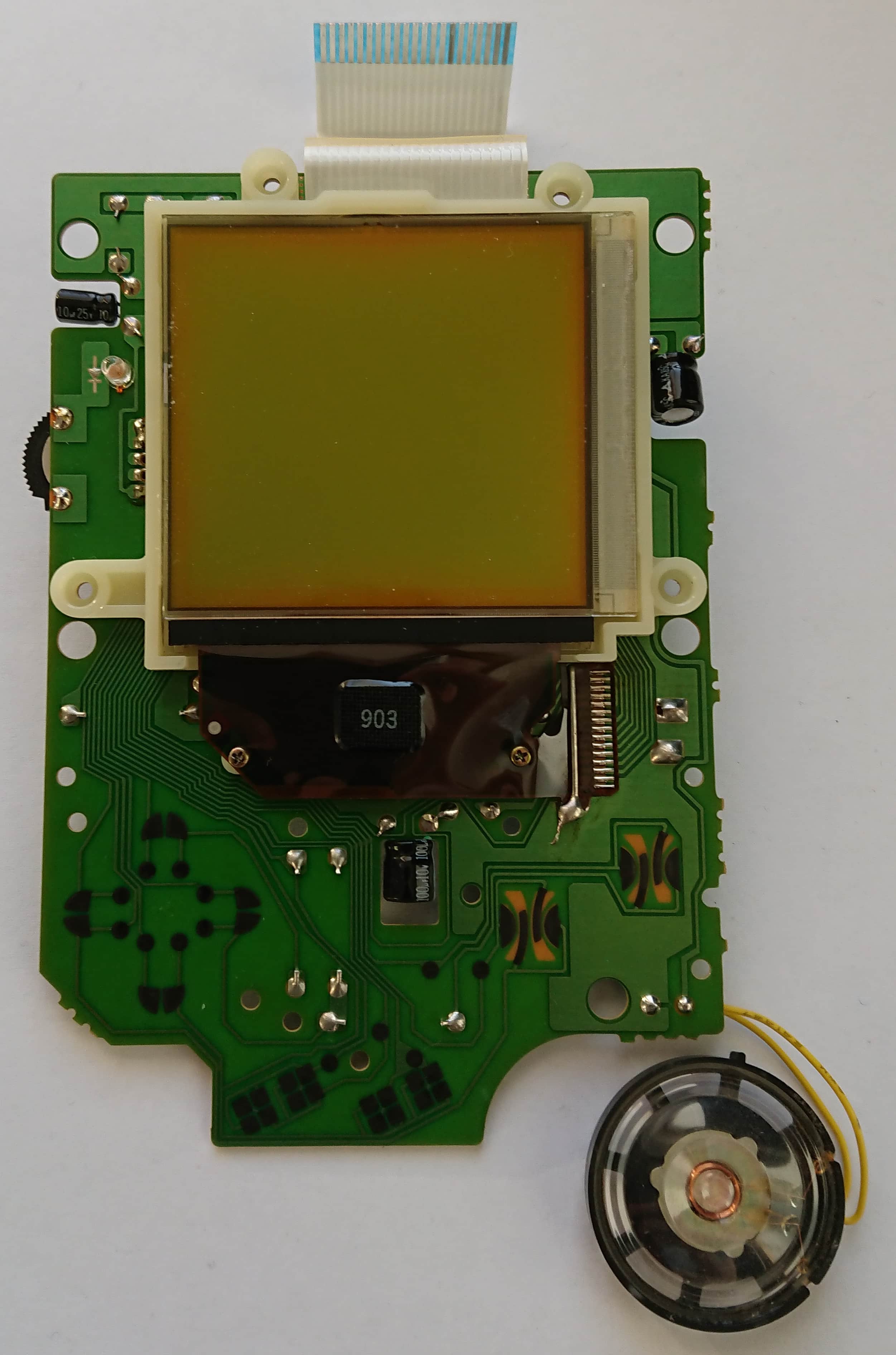

LCD Board

Board type
DMG-LCD-01
Stamp
903-0512
Circled letter(s) on board
Z

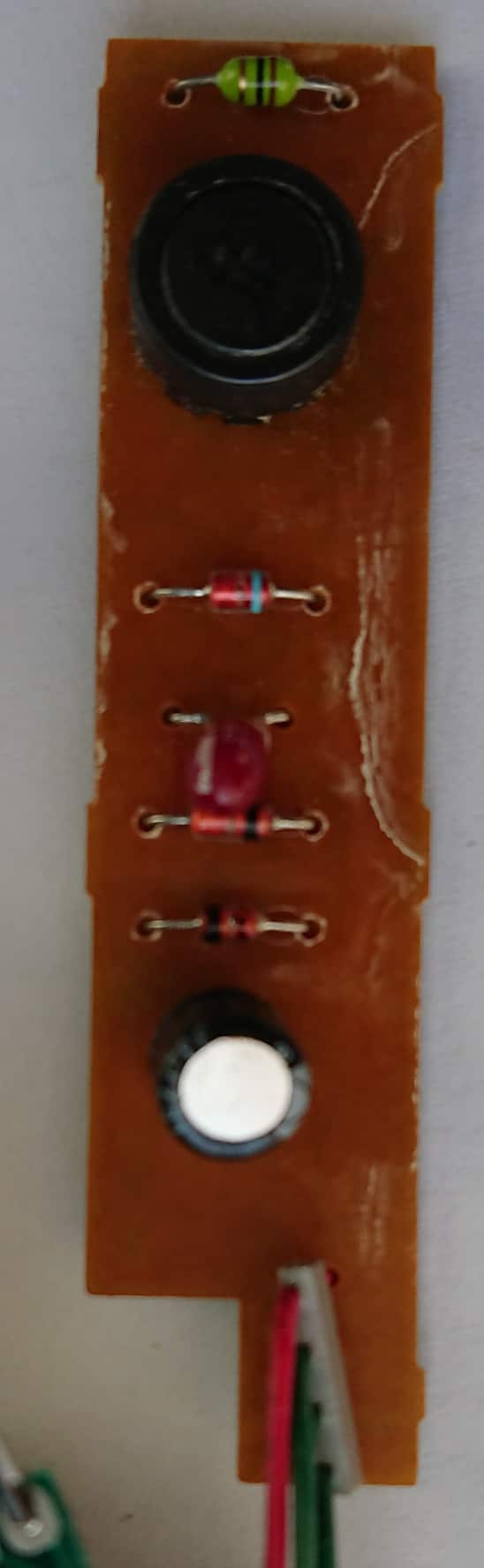

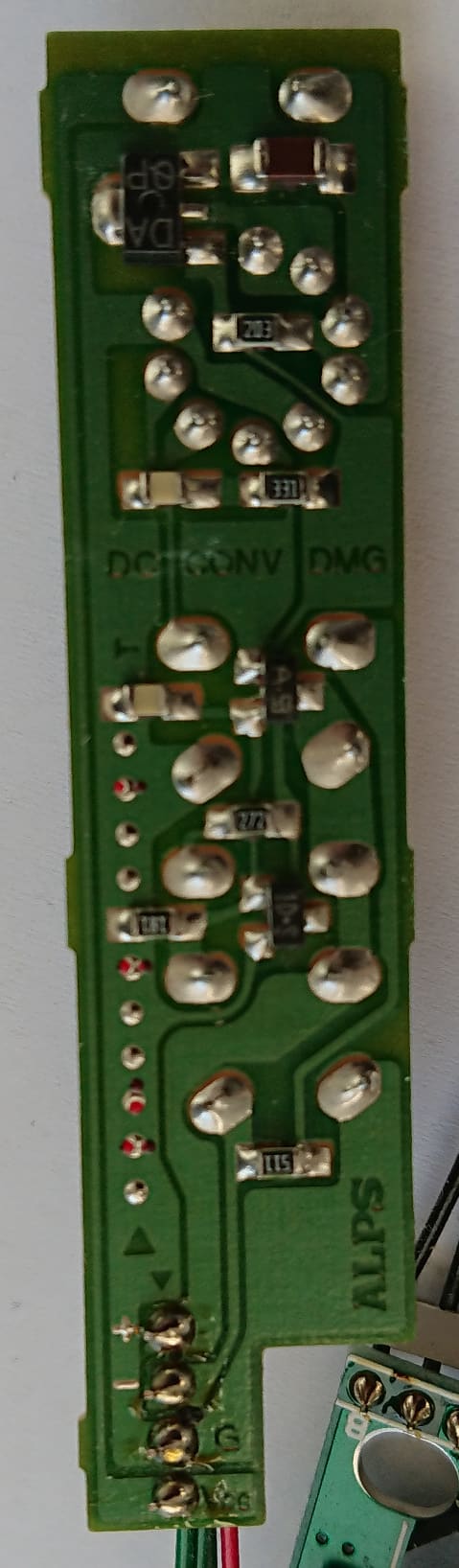

Power Board

Board type
Type A1
Manufacture date
1989
Label
DC CONV DMG

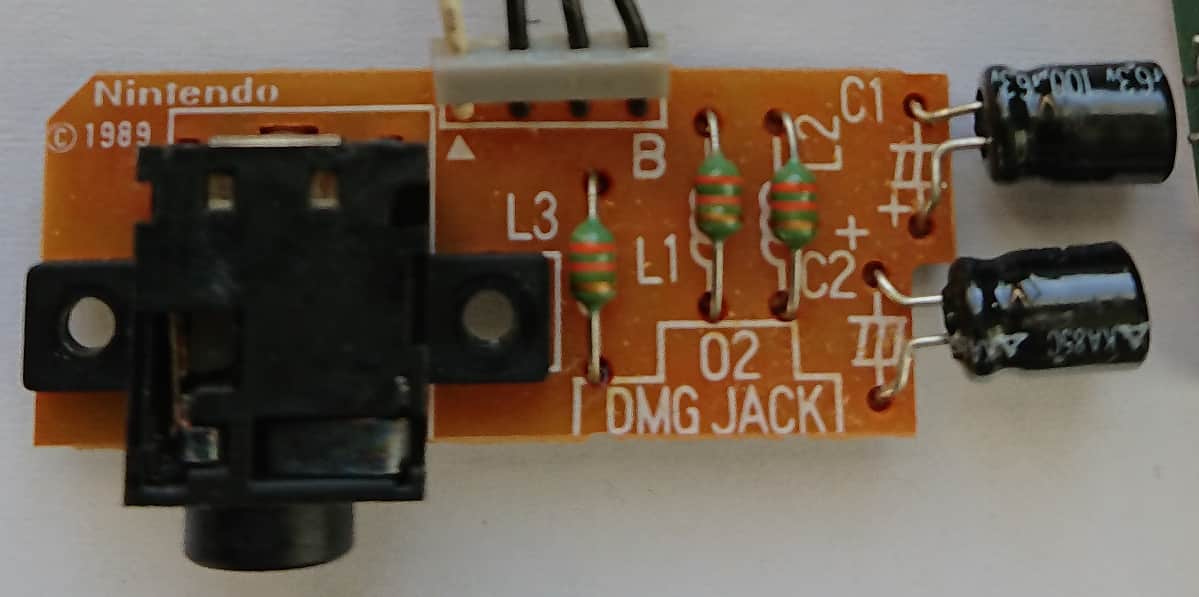

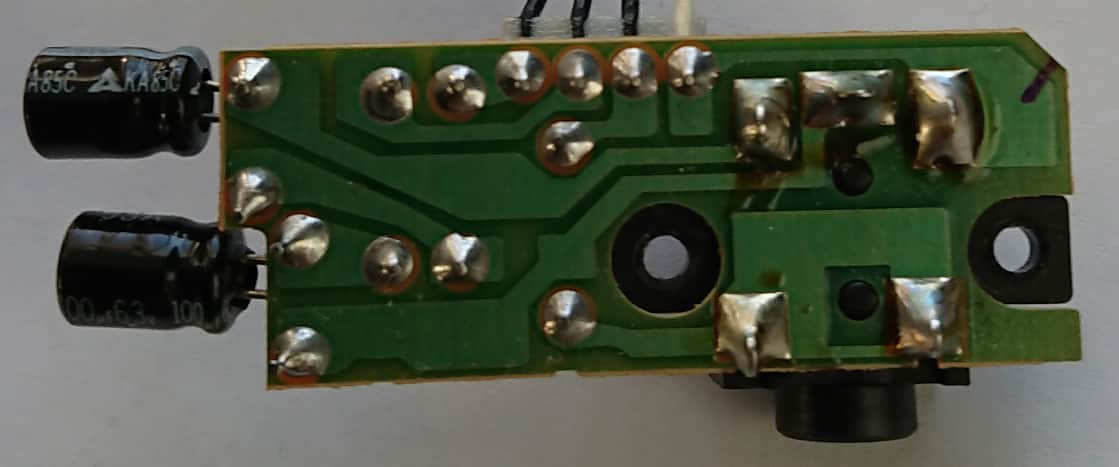

Jack Board

Board type
DMG JACK 02

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPUSharpWeek 13/1989DMG-CPU © 1989 Nintendo JAPAN 8913 D
U2Video RAMLH5164LN-10SharpWeek 13/1989LH5164LN-10 SHARP JAPAN 8913 1 D
U3Work RAMLH5164LN-10SharpWeek 13/1989LH5164LN-10 SHARP JAPAN 8913 1 D
U4AmplifierIR3R40SharpWeek 9/1989DMG-AMP IR3R40 8909 A
X1Crystal4.194304 MHzDaishinkuFebruary/1989D419B9
-LCD Column DriverLH5077 FSharpMarch/1989LH5077 F 903
-LCD Row DriverLH5076 FSharpMarch/1989LH5076 F 903
-LCD RegulatorIR3E02SharpWeek 9/1989DMG-REG IR3E02 8909 A
