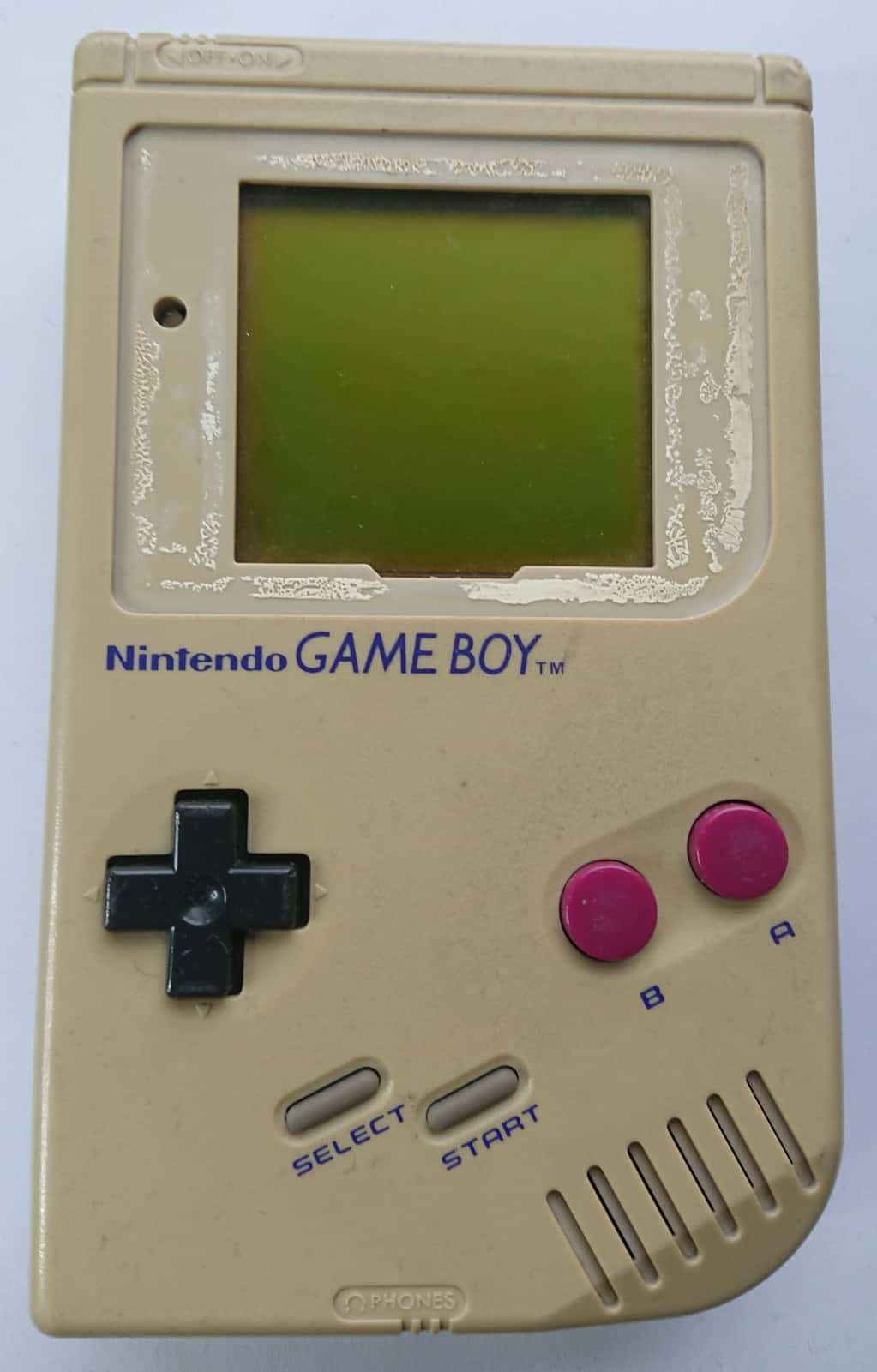

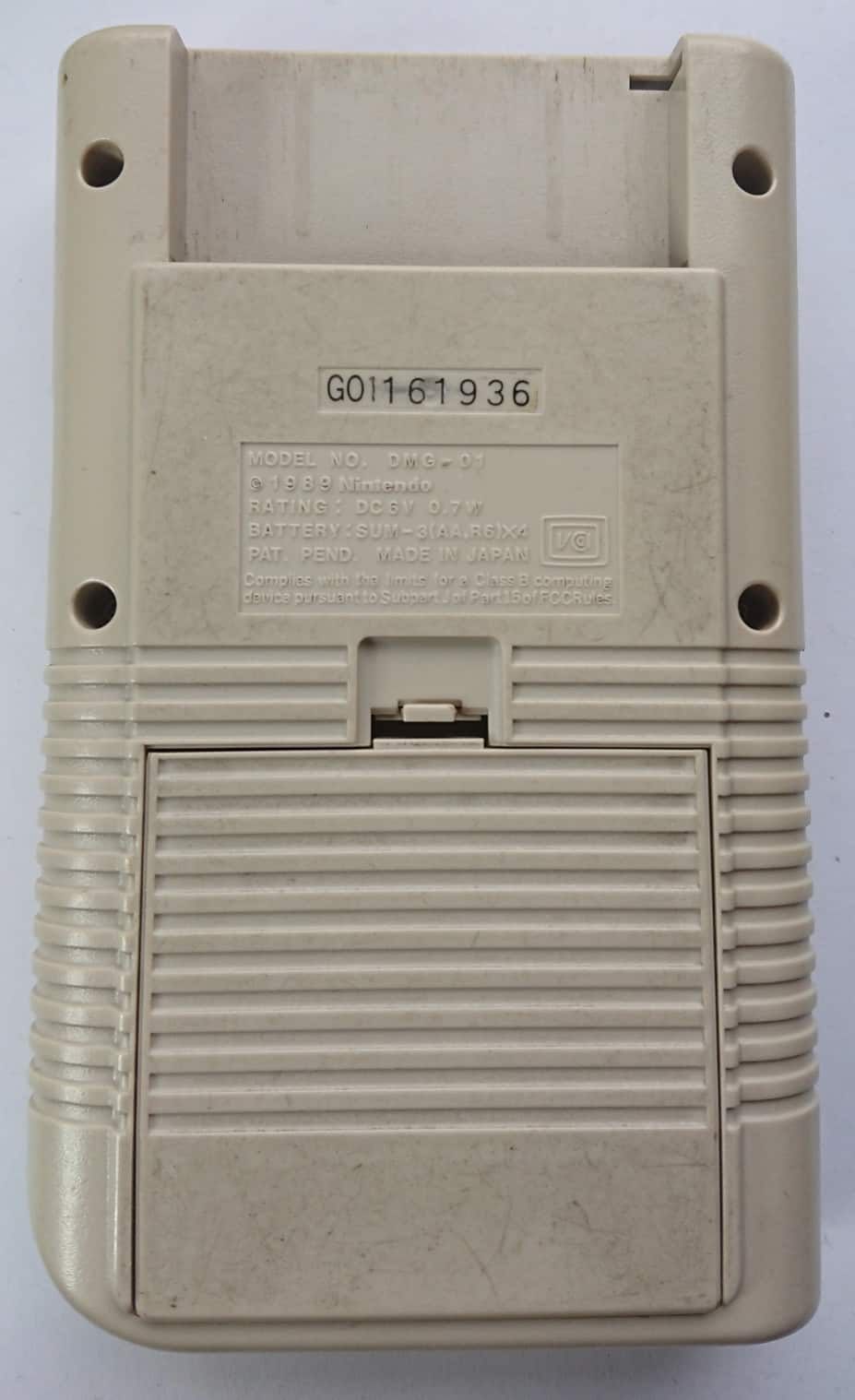

DMG: G01161936 [gekkio]

Color
OffWhite
Assembly date
August/1990

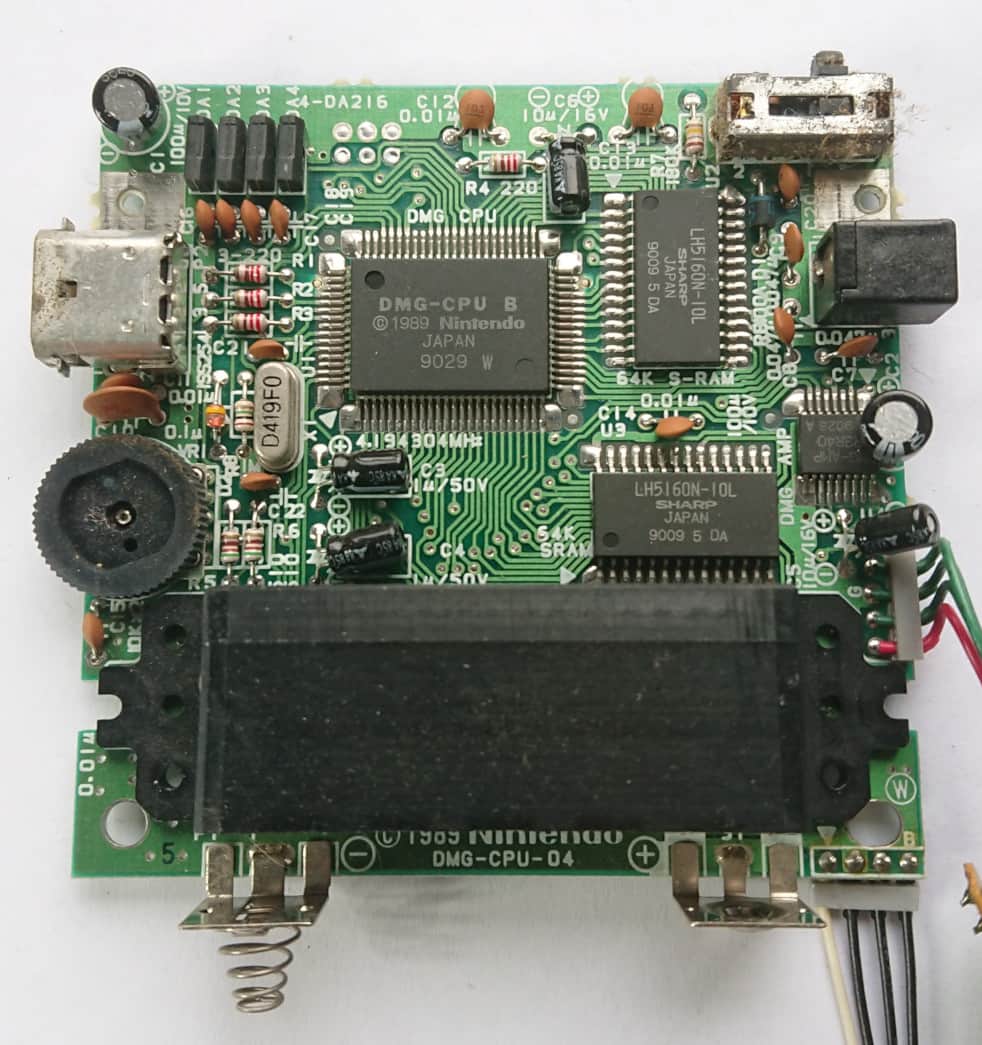

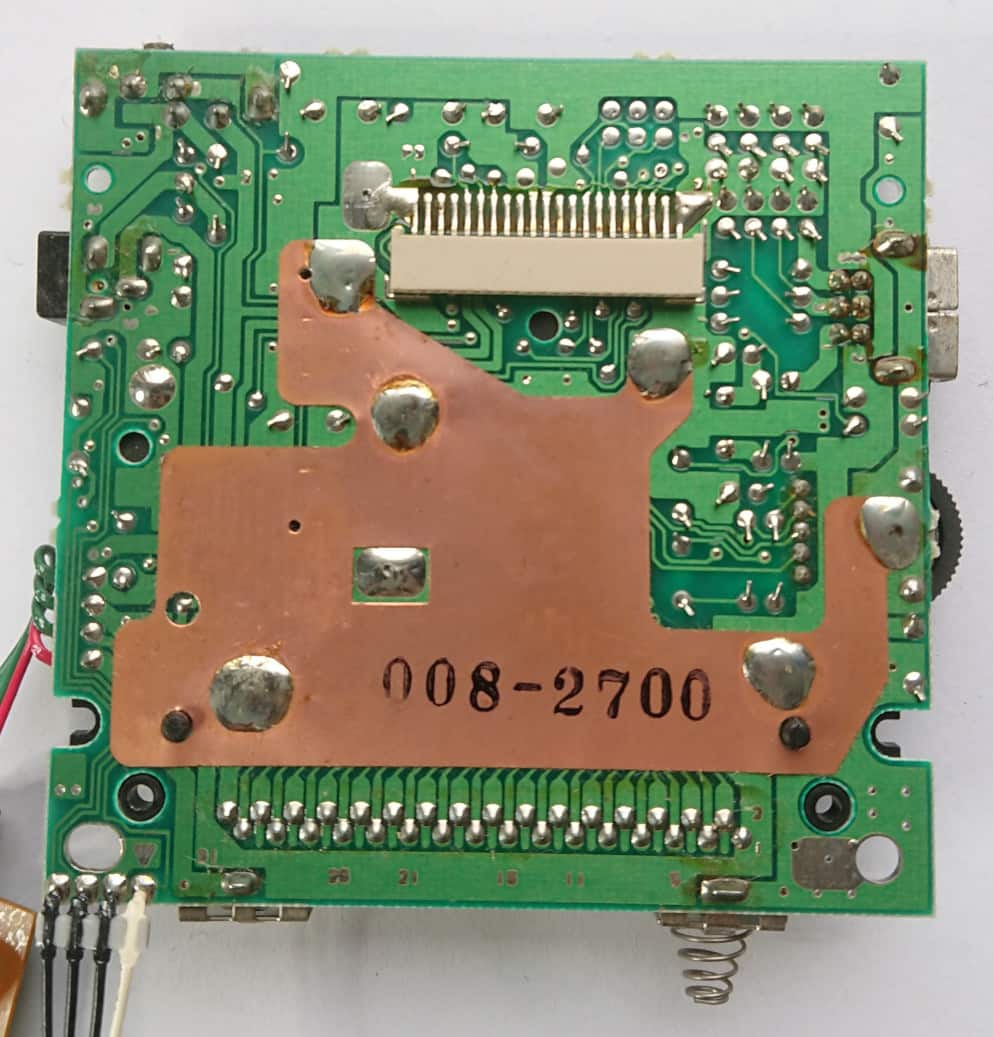

Mainboard

Board type
DMG-CPU-04
Stamp on board
008-2700
Circled letter(s) on board
W
Extra label
5

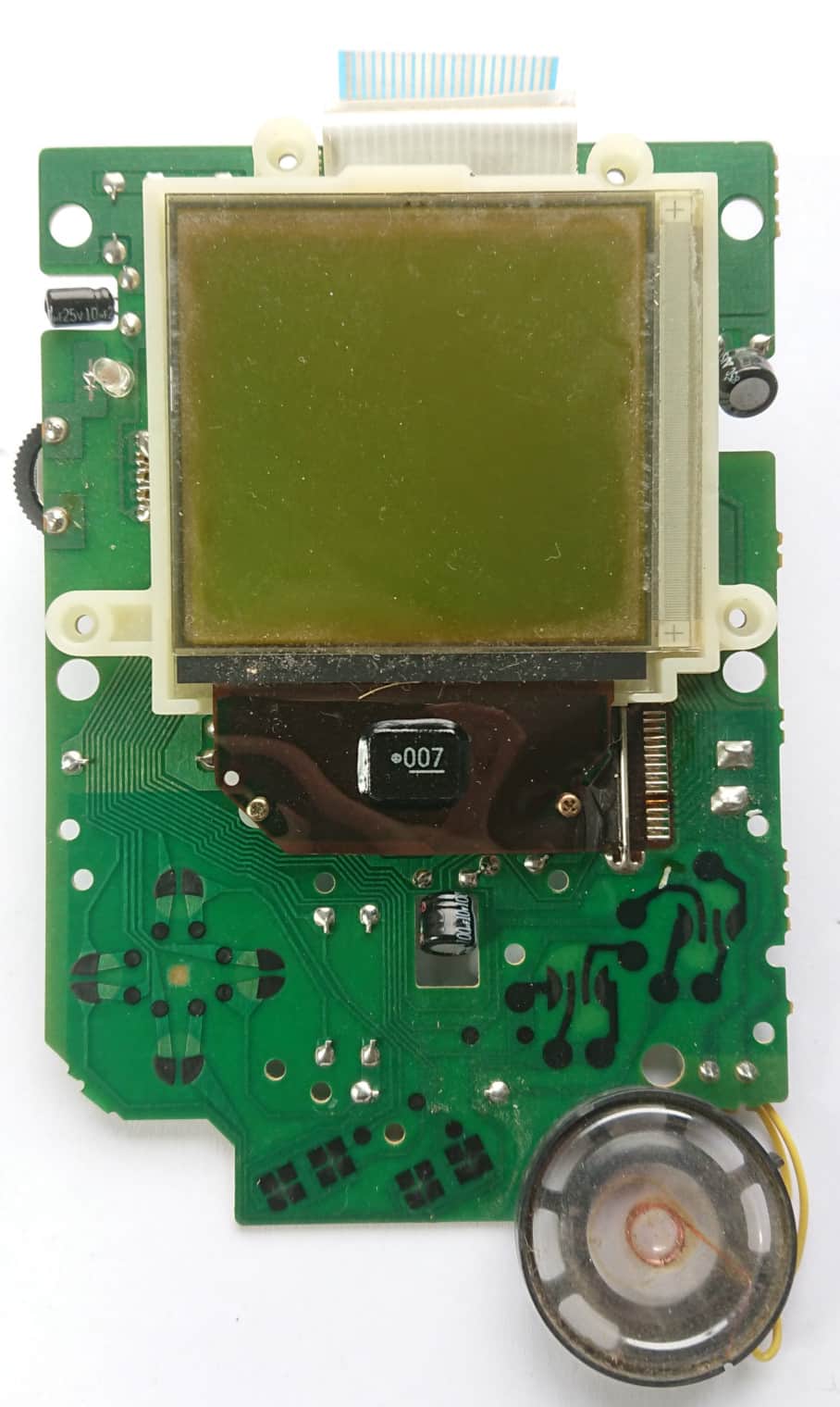

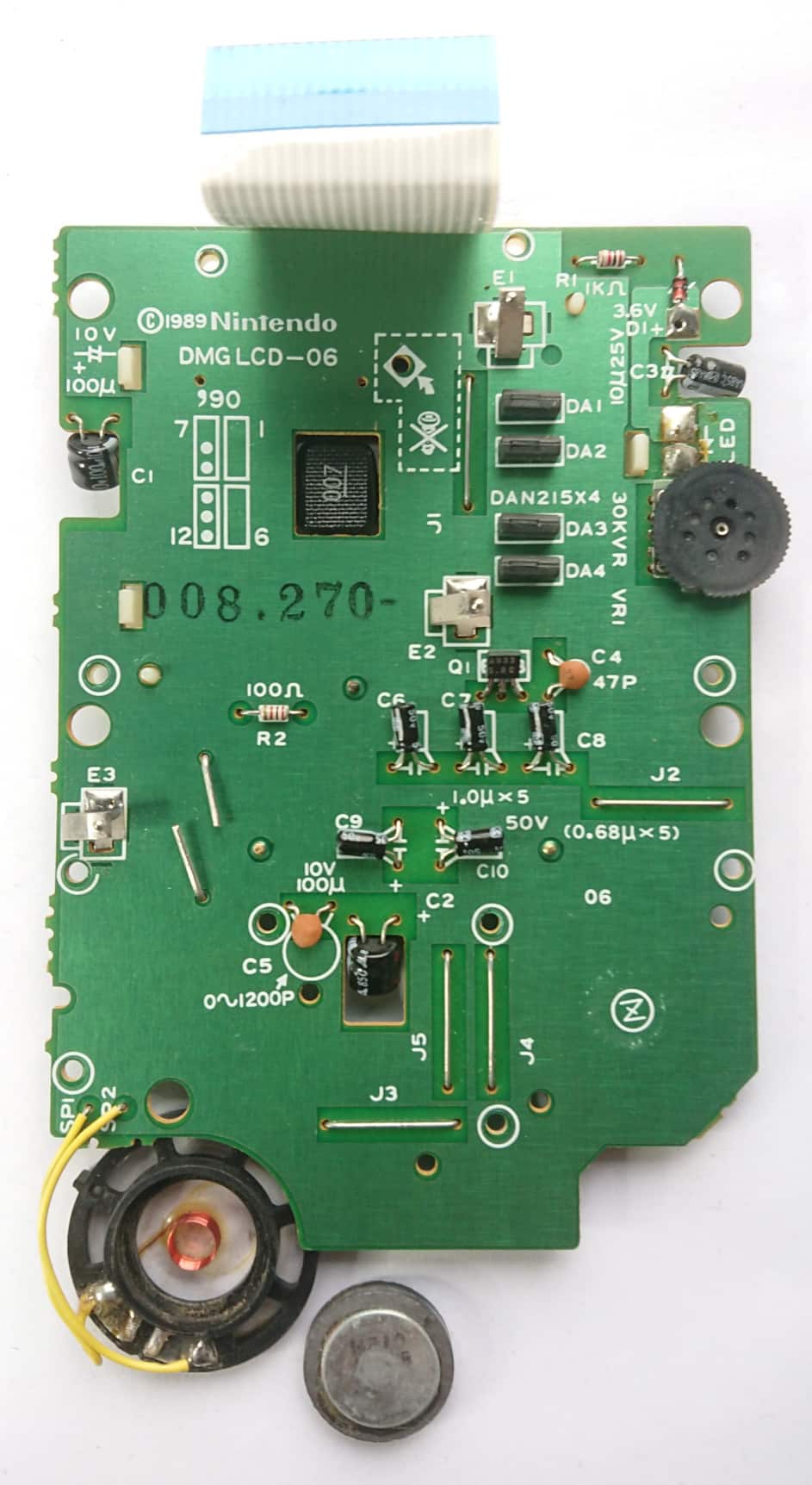

LCD Board

Board type
DMG-LCD-06
Manufacture date
July/1990
Stamp
008.270-
Circled letter(s) on board
Z
LCD panel label
N AE900724
LCD panel date
July/1990

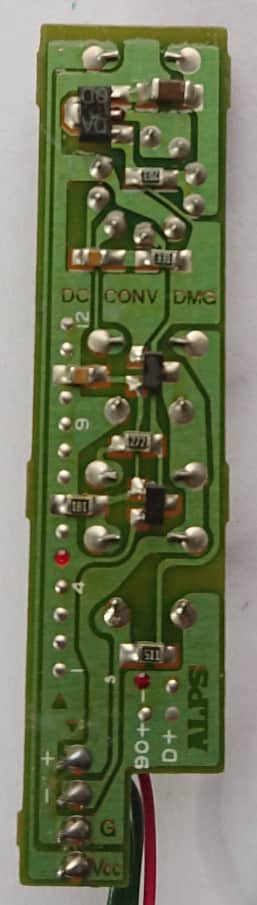

Power Board

Board type
Type A2
Manufacture date
May/1990
Label
DC CONV DMG

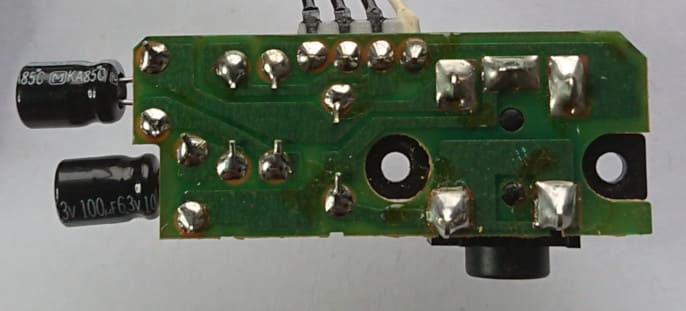

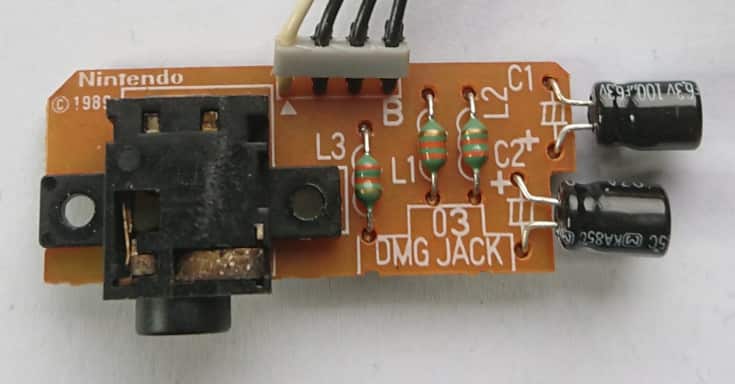

Jack Board

Board type
DMG JACK 03

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 29/1990DMG-CPU B © 1989 Nintendo JAPAN 9029 W
U2Video RAMLH5160N-10LSharpWeek 9/1990LH5160N-10L SHARP JAPAN 9009 5 DA
U3Work RAMLH5160N-10LSharpWeek 9/1990LH5160N-10L SHARP JAPAN 9009 5 DA
U4AmplifierIR3R40SharpWeek 28/1990DMG-AMP IR3R40 9028 A
X1Crystal4.194304 MHzDaishinkuJune/1990D419F0
-LCD Column DriverLH5077 FSharpJuly/1990LH5077 F 007
-LCD Row DriverLH5076 FSharpJuly/1990LH5076 F 007
-LCD RegulatorIR3E02SharpWeek 29/1990DMG-REG IR3E02 9029 J
