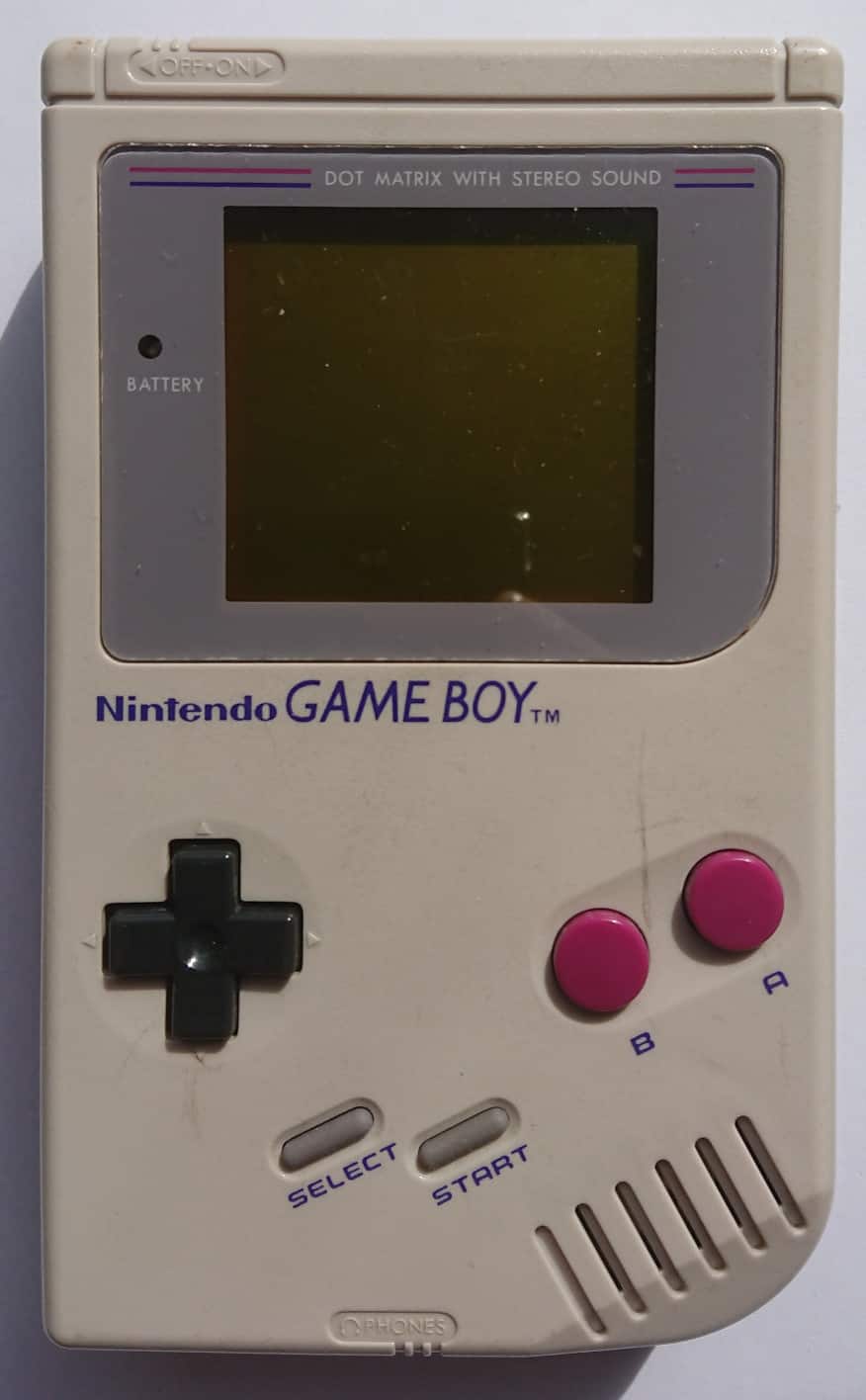

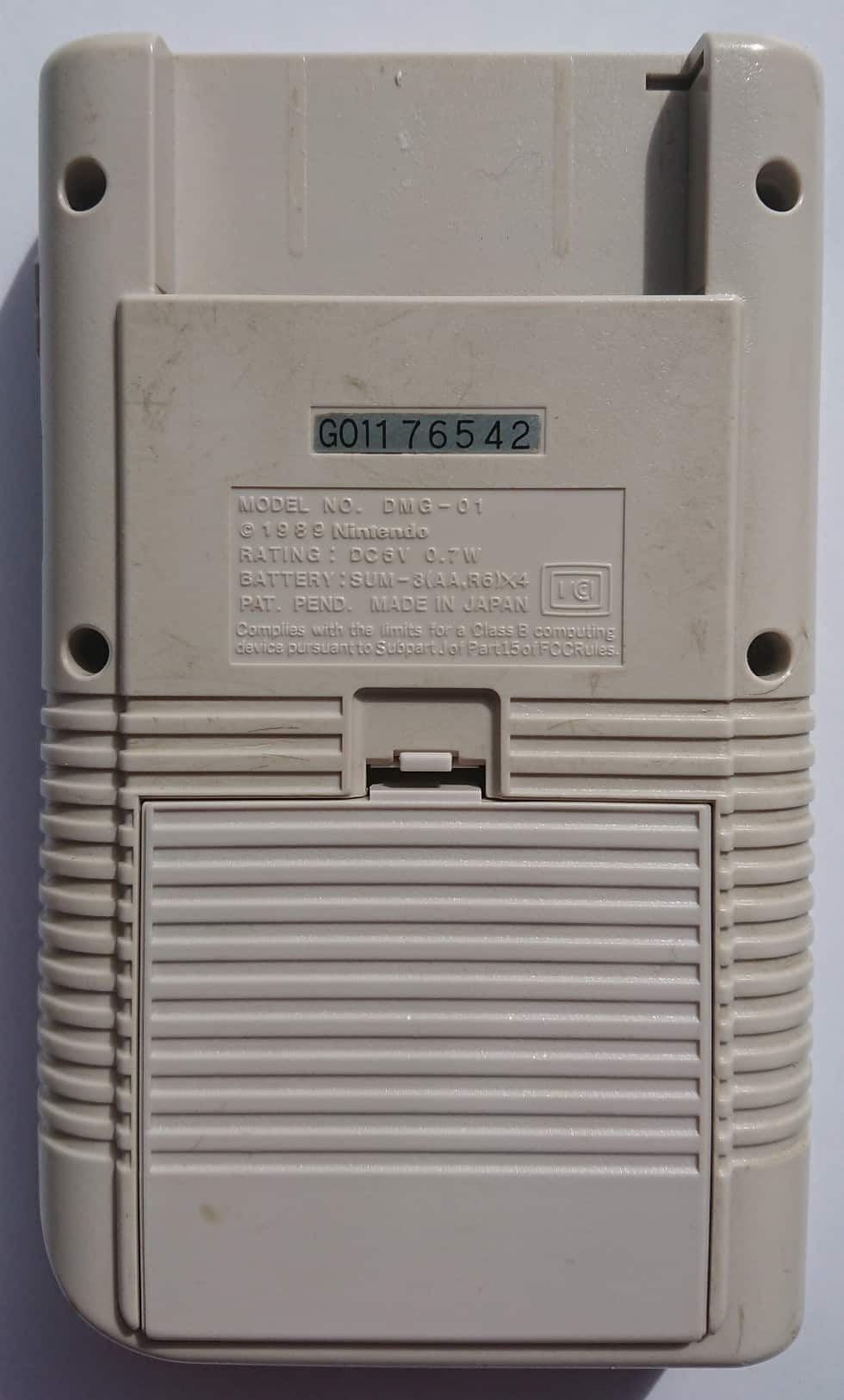

DMG: G01176542 [gekkio]

Color
off-white
Screws
philips
Assembly date
April/1989

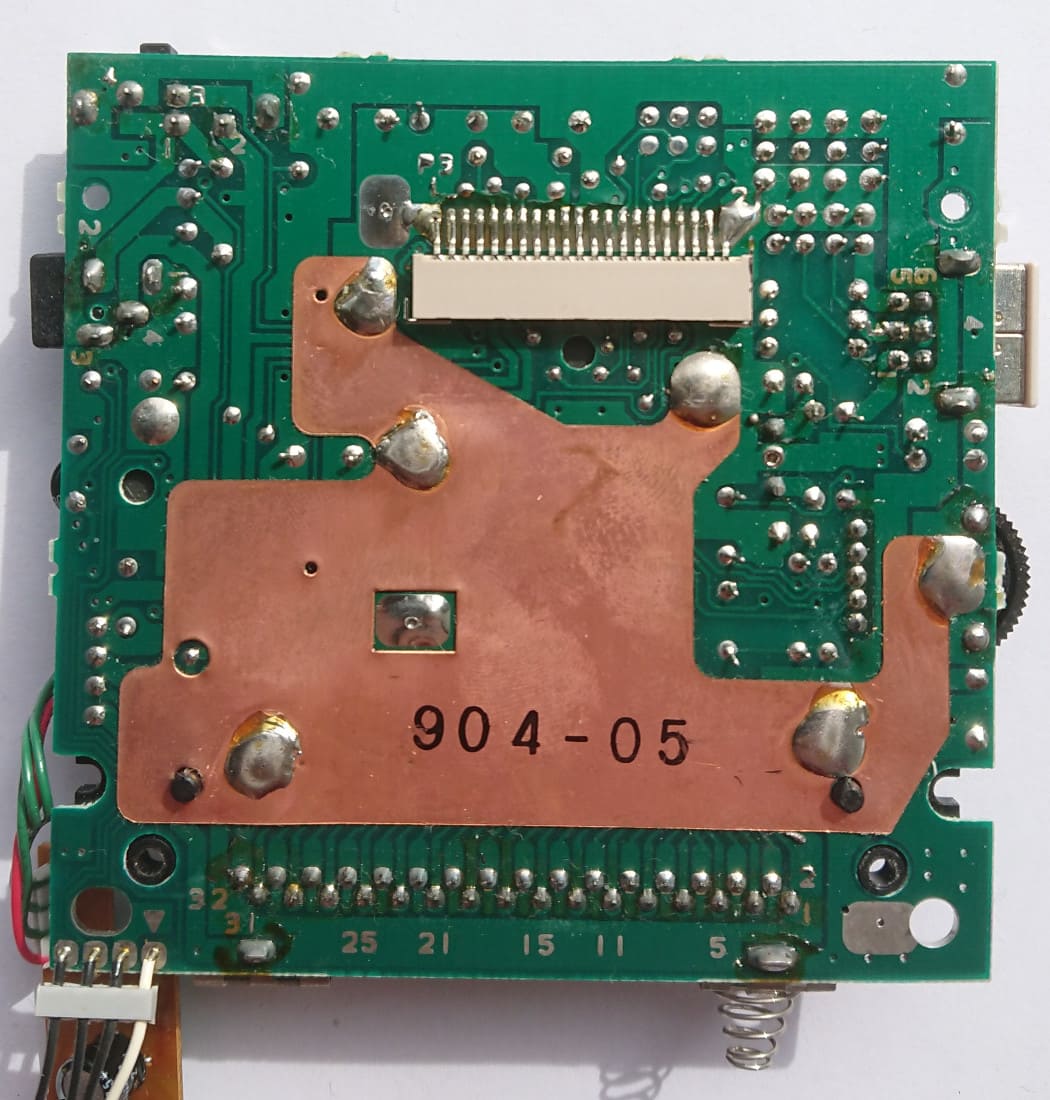

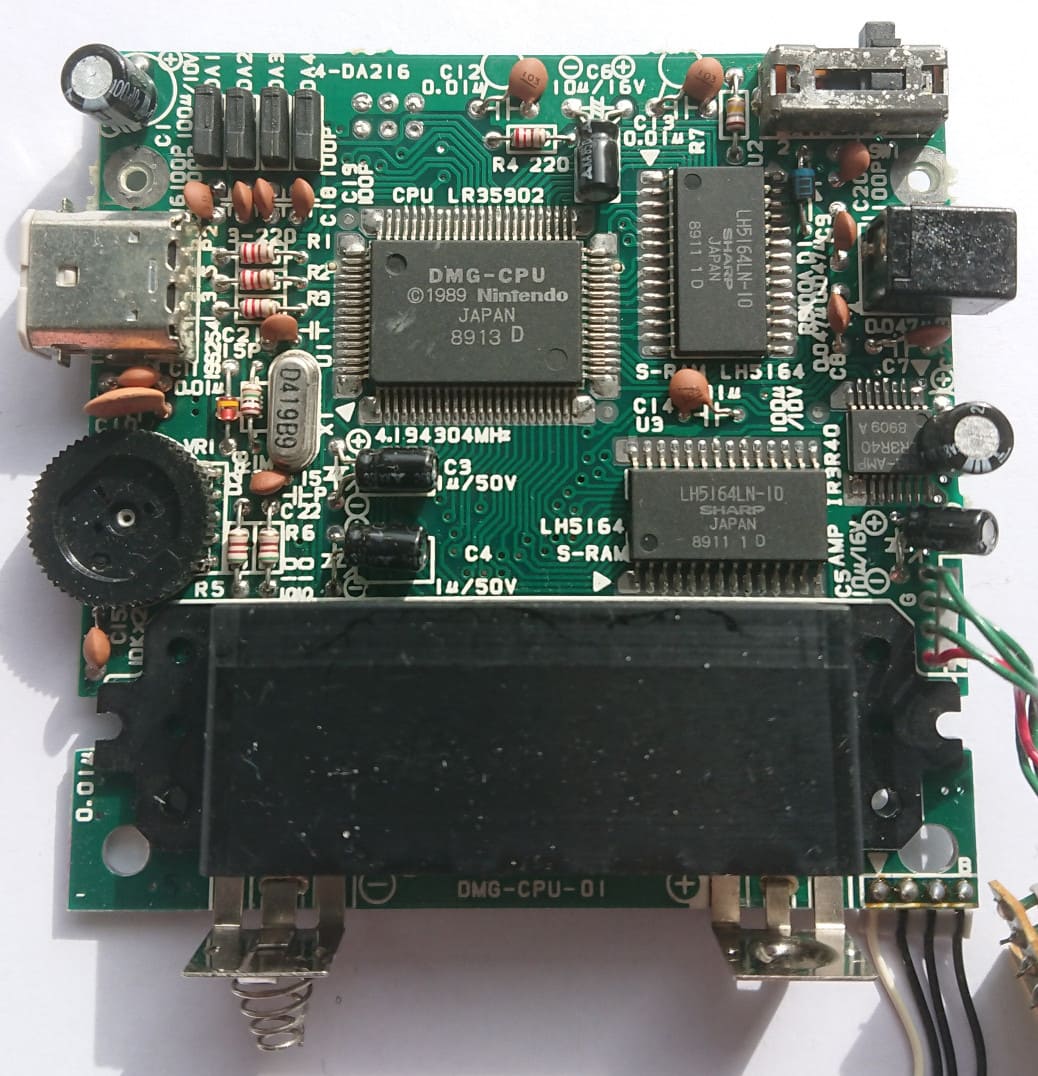

Mainboard

Board type
DMG-CPU-01
Stamp
904 05
Circled letter(s) on board
-
Extra label
5

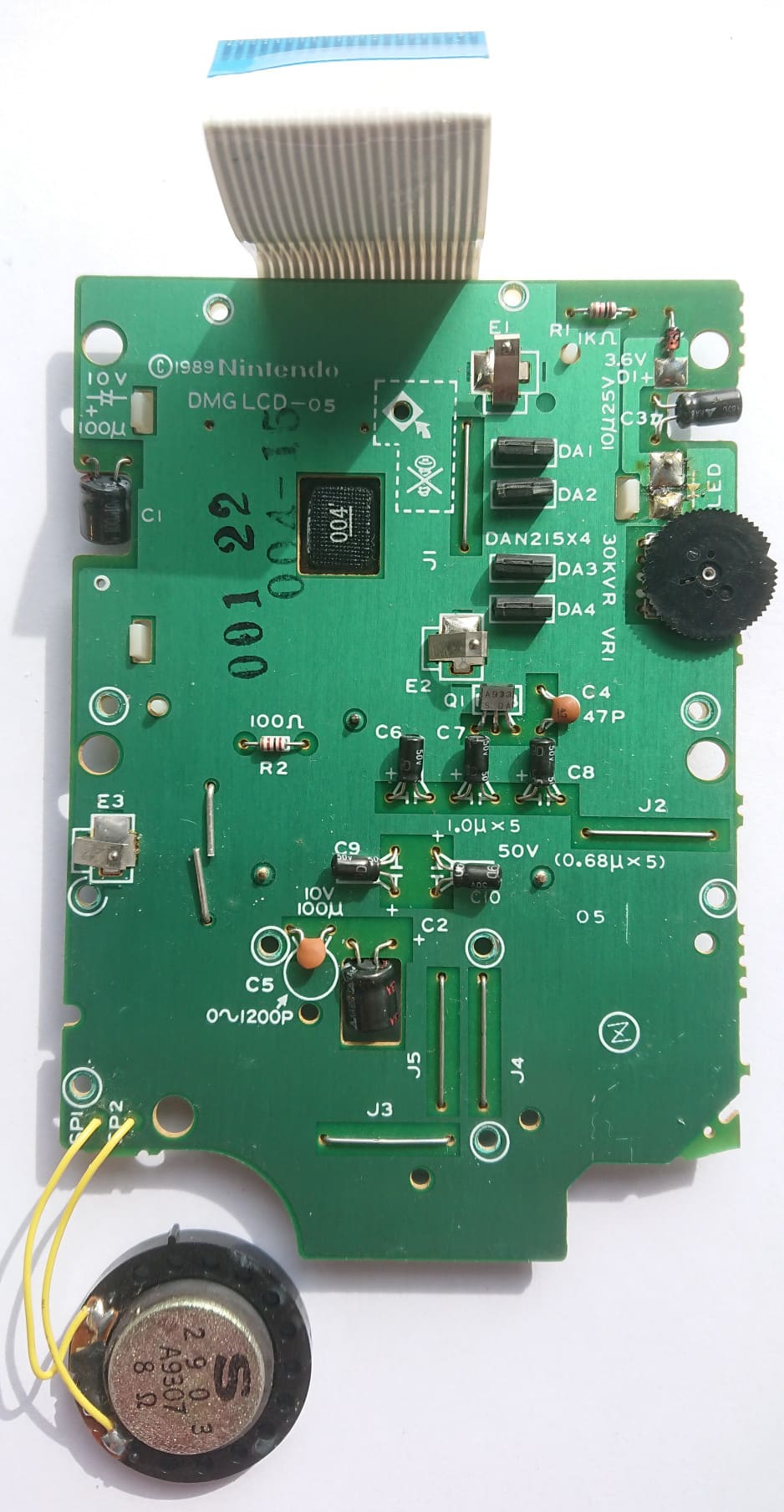

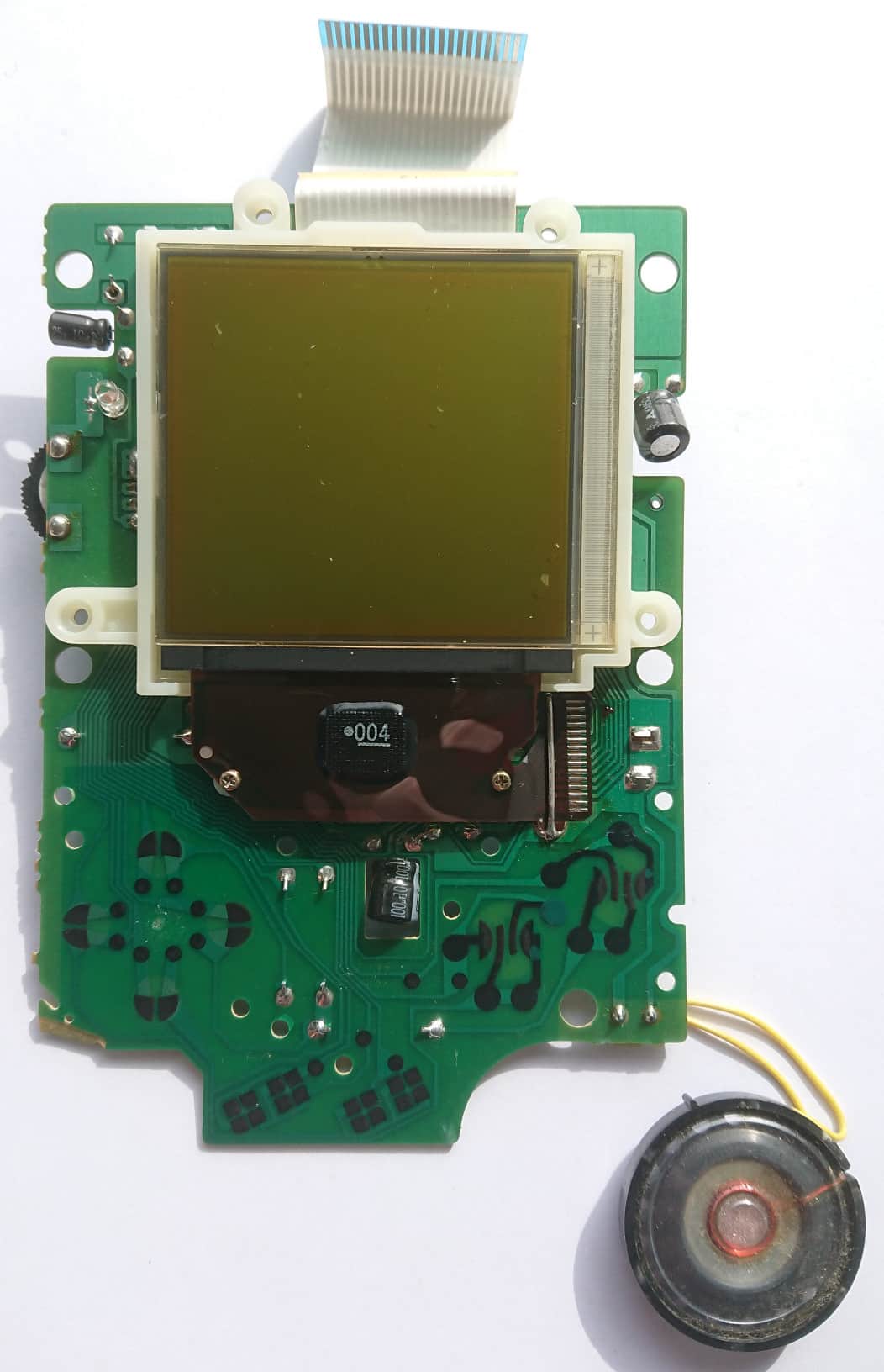

LCD Board

Board type
DMG-LCD-05
Manufacture date
????
Stamp
????
Circled letter(s) on board
Z
LCD panel label
AE900404
LCD panel date
April/1990

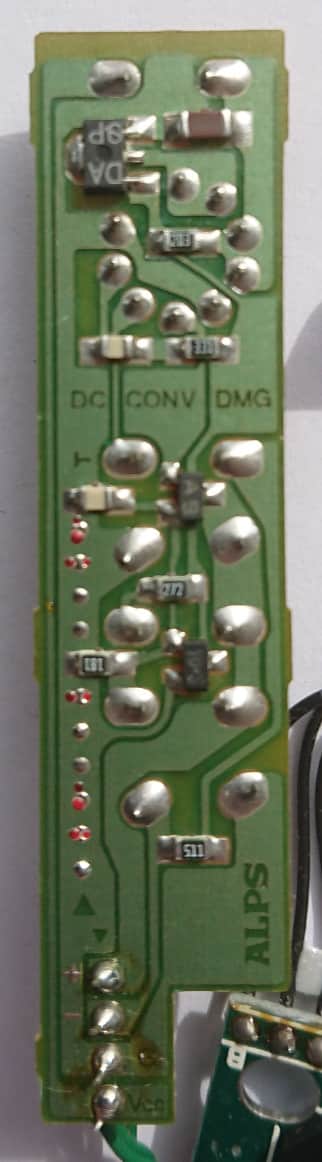

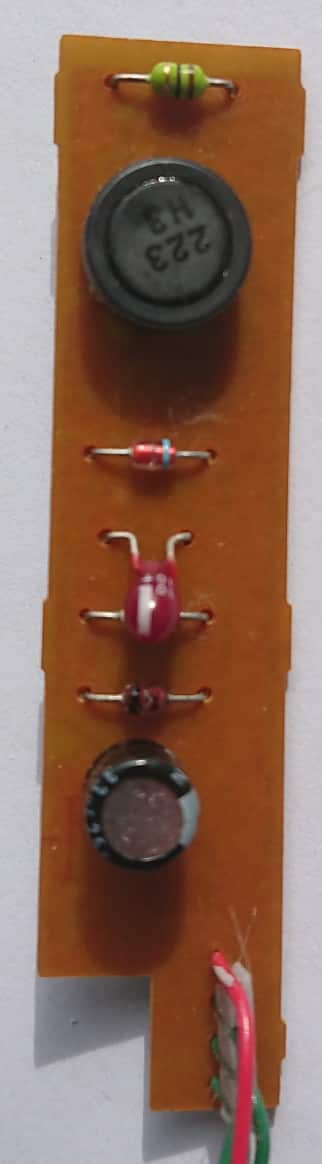

Power Board

Board type
Type A1
Manufacture date
1989
Label
DC CONV DMG

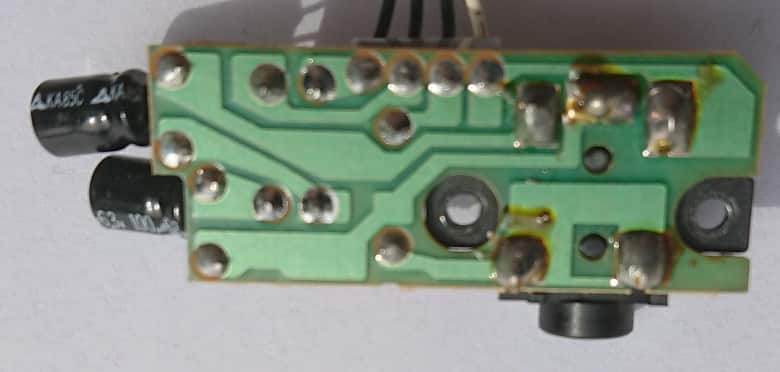

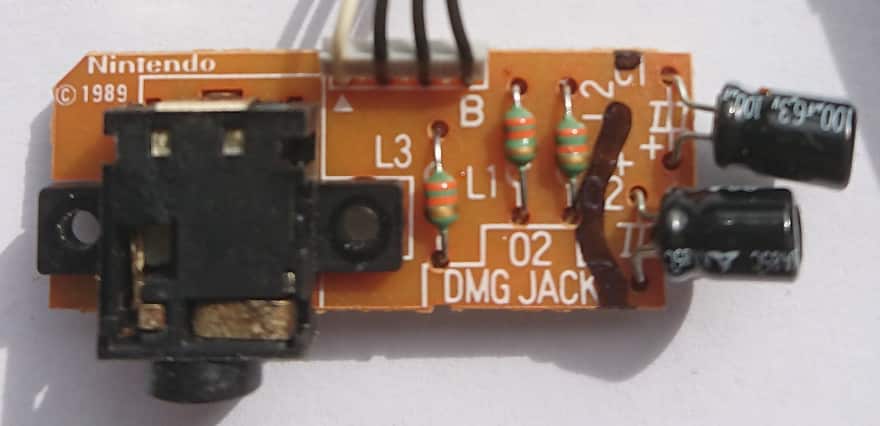

Jack Board

Board type
DMG JACK 02
Extra label
-

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPUSharpWeek 13/1989DMG-CPU © 1989 Nintendo JAPAN 8913 D
U2Video RAMLH5164LN-10SharpWeek 11/1989LH5164LN-10 SHARP JAPAN 8911 1 D
U3Work RAMLH5164LN-10SharpWeek 11/1989LH5164LN-10 SHARP JAPAN 8911 1 D
U4AmplifierIR3R40SharpWeek 9/1989DMG-AMP IR3R40 8909 A
X1CrystalD419????February/1989D419B9
-LCD Column DriverLH5077 FSharpApril/1990LH5077 F, 004
-LCD Row DriverLH5076 FSharpApril/1990LH5076 F, 004
-LCD RegulatorIR3E02SharpWeek 52/1989DMG-REG IR3E02 8952 A
