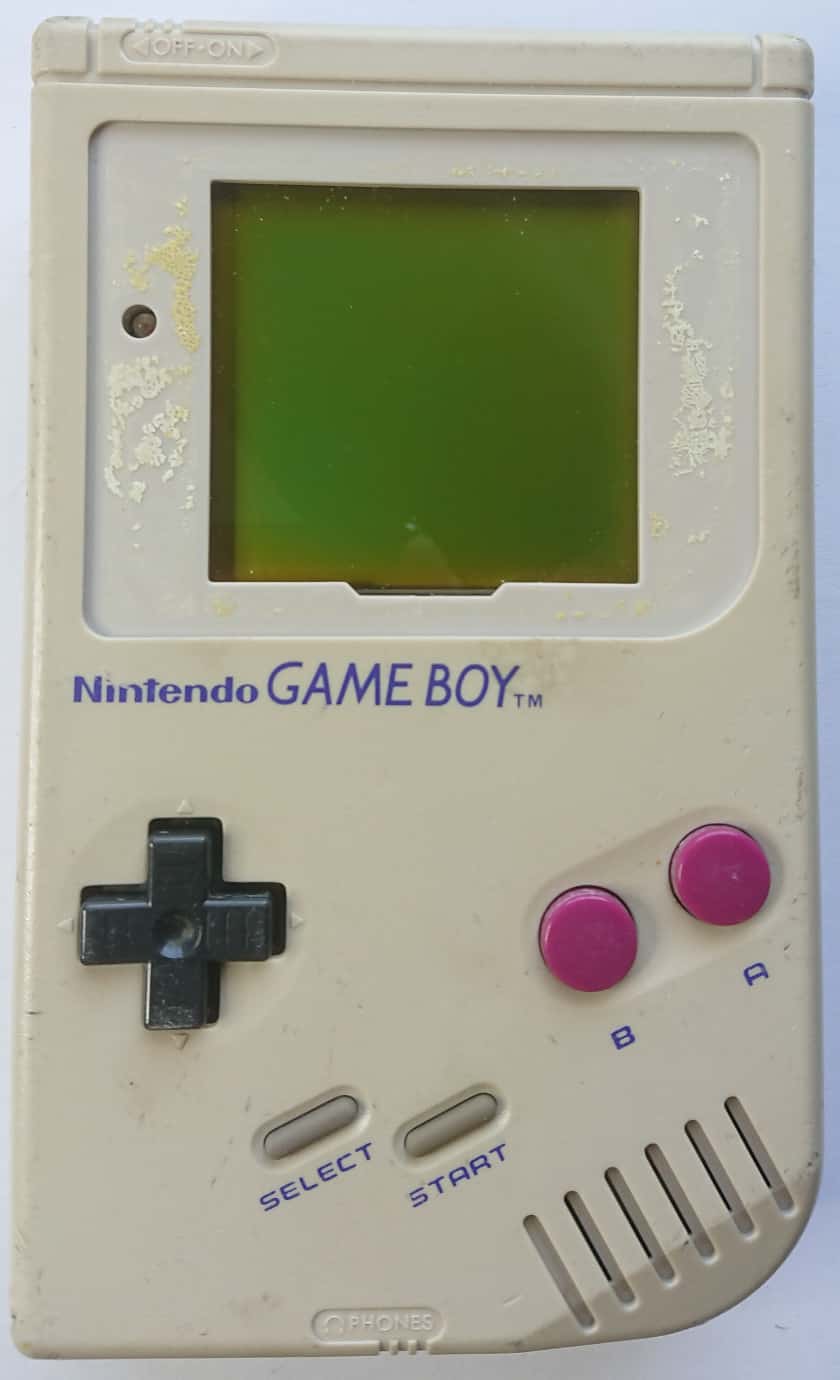

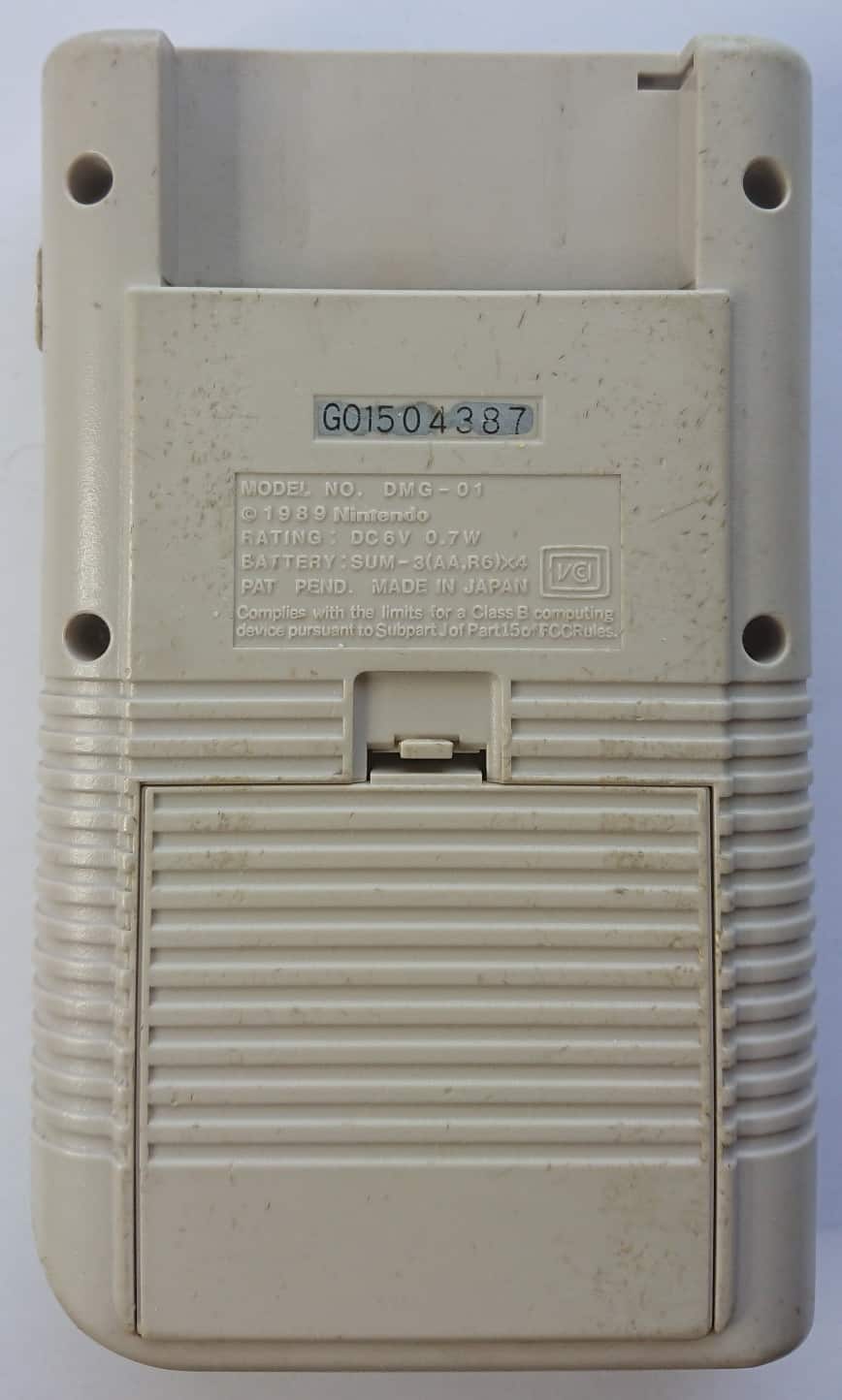

DMG: G01504387 [gekkio]

Color
OffWhite
Assembly date
June/1989

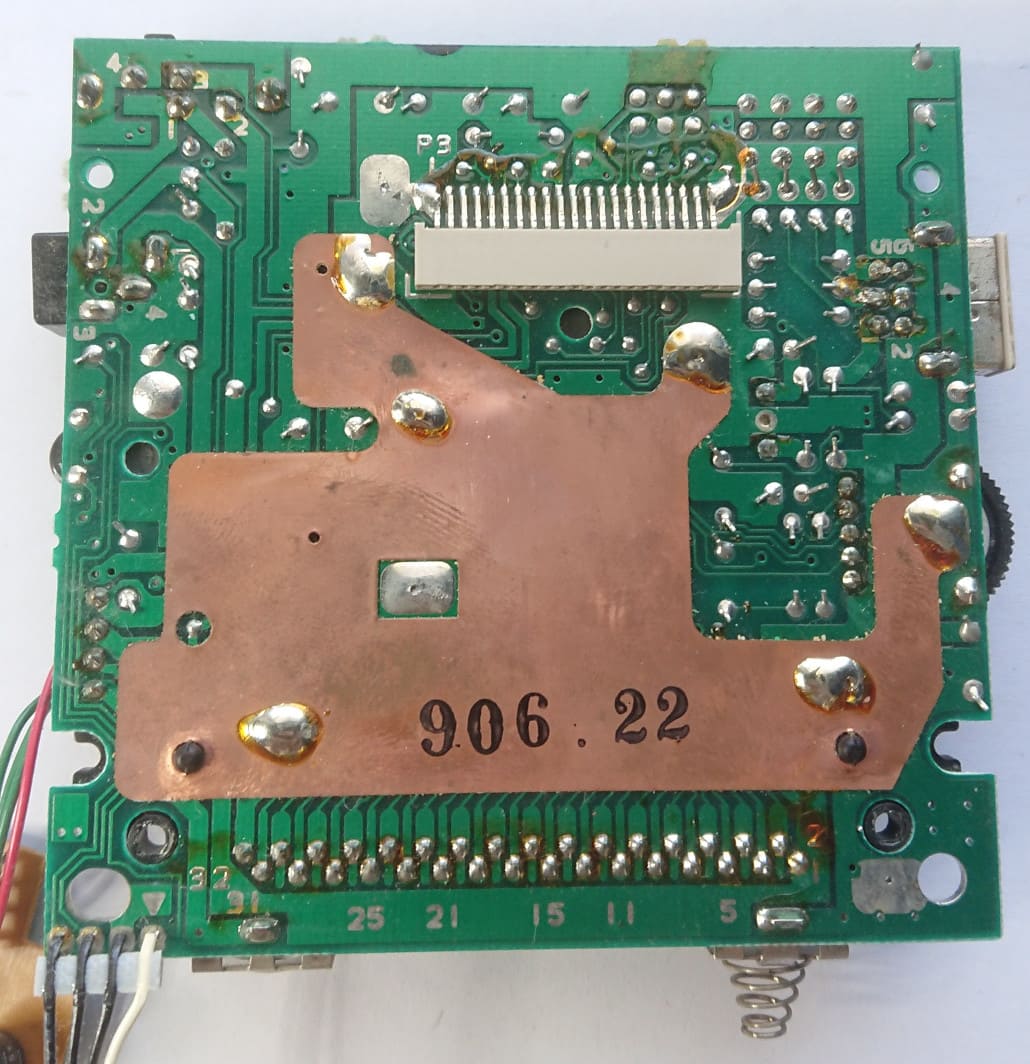

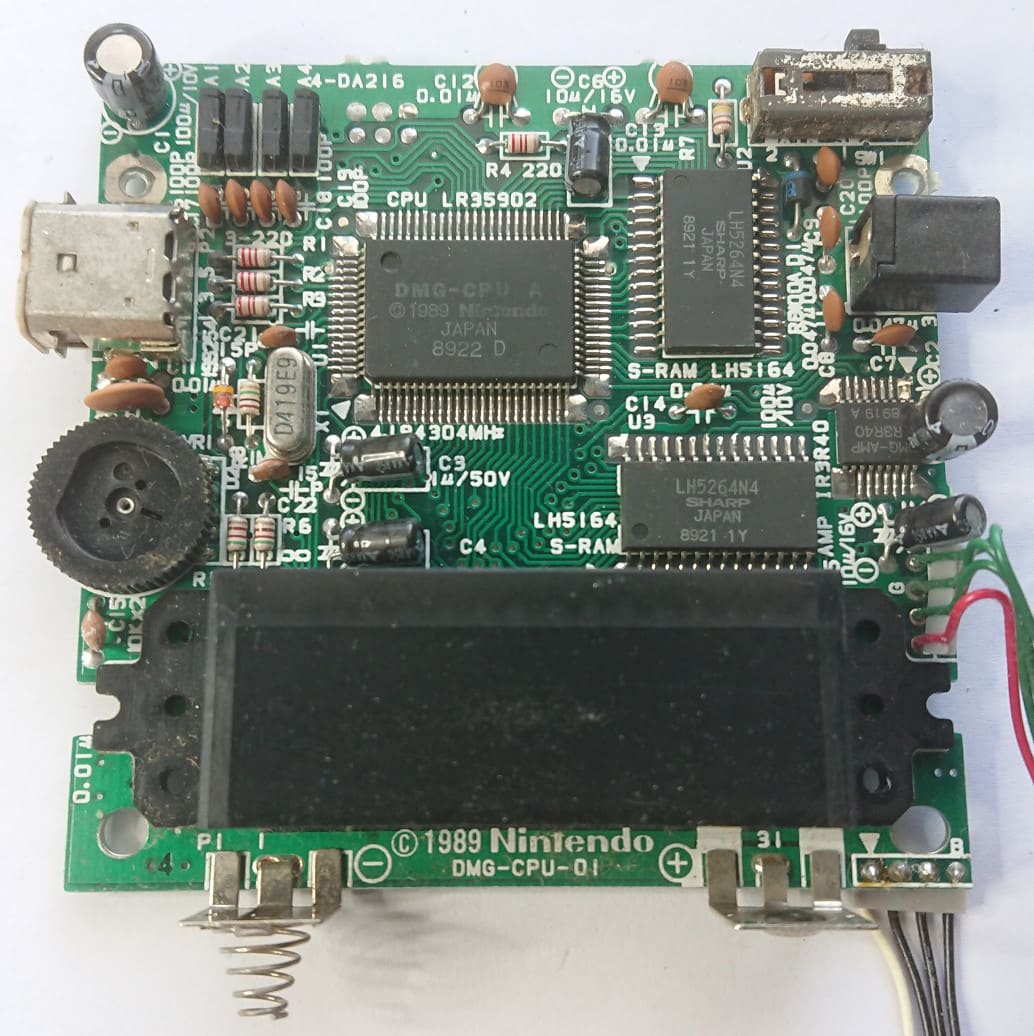

Mainboard

Board type
DMG-CPU-01
Stamp on board
906 22
Extra label
4

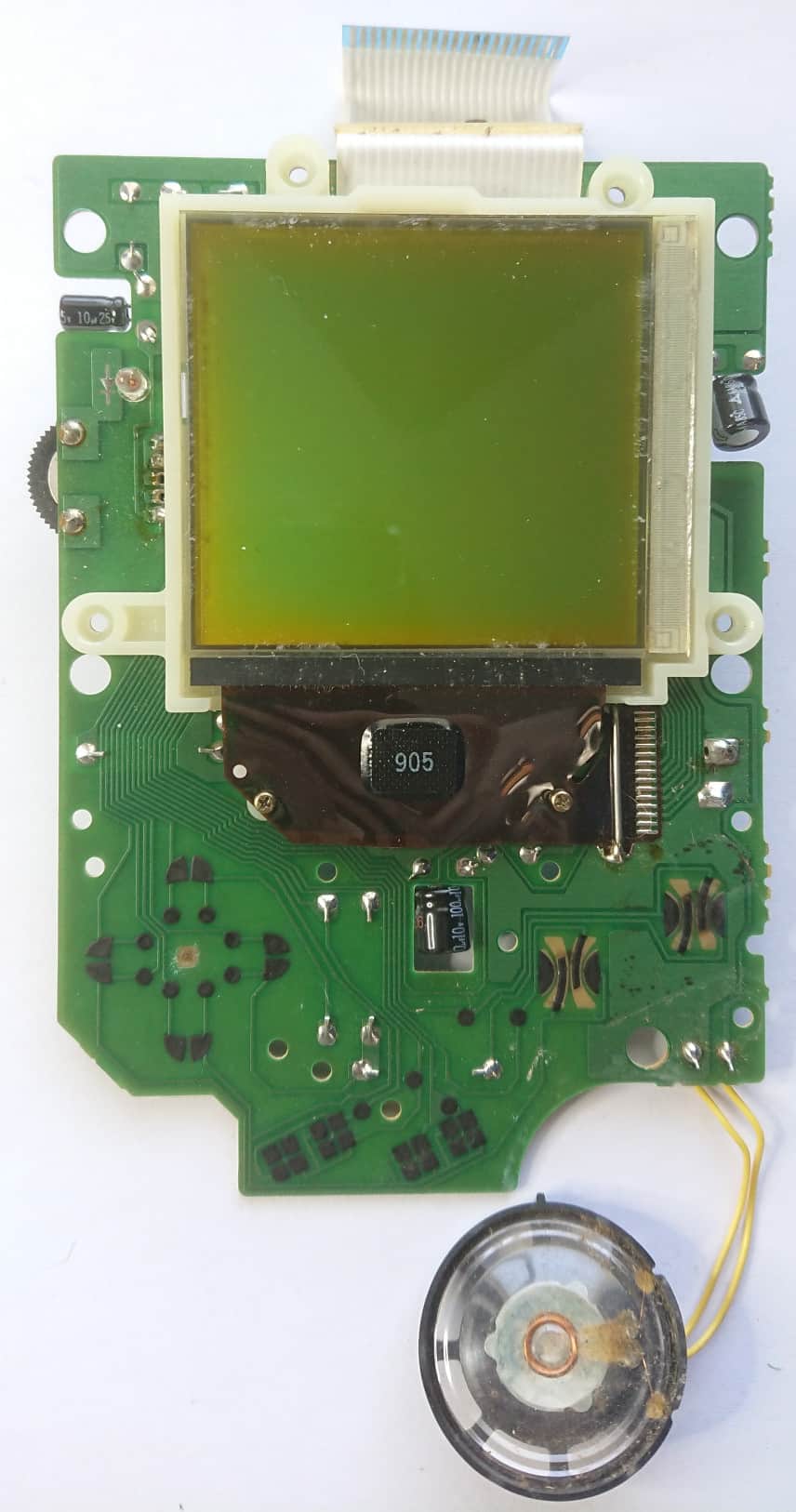

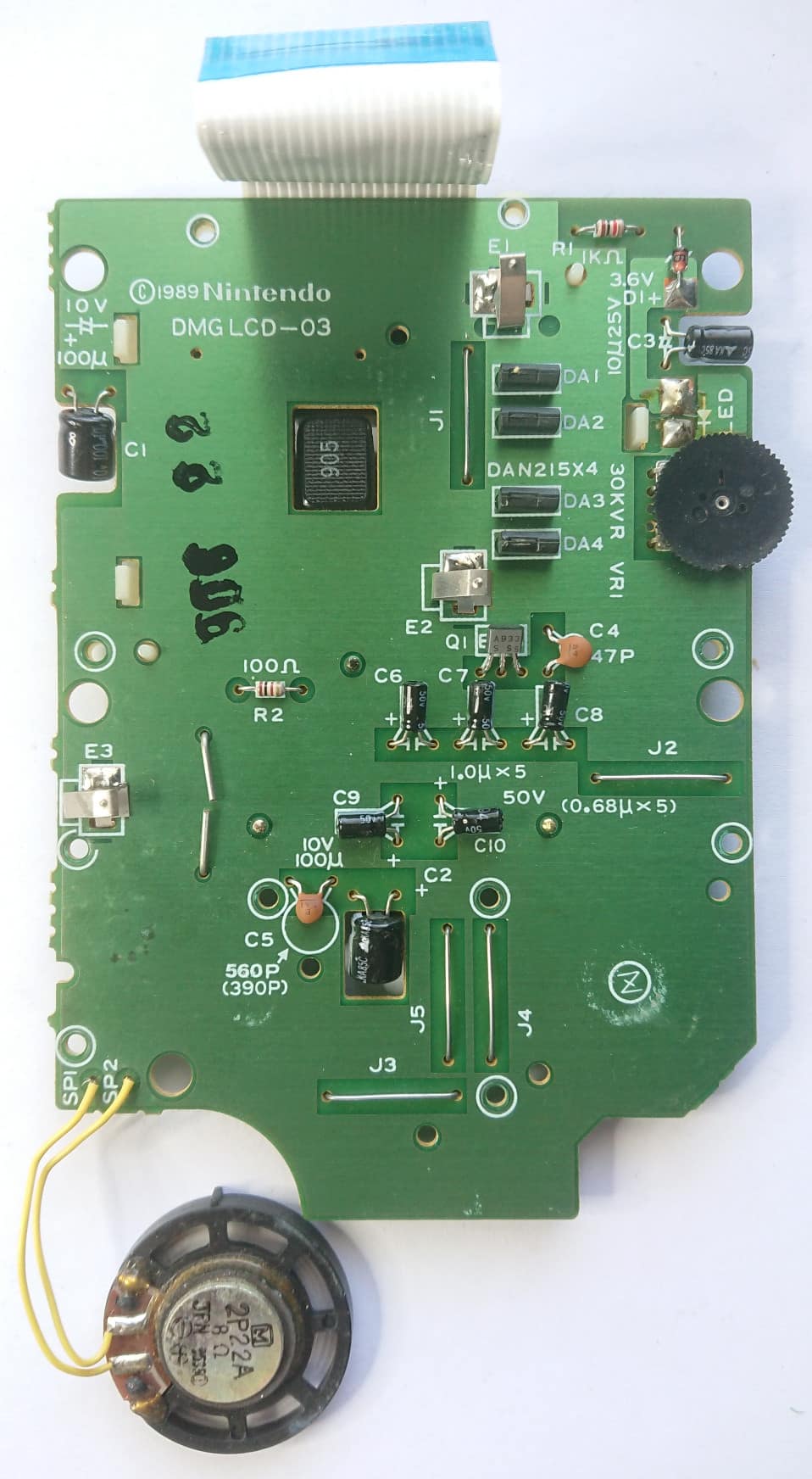

LCD Board

Board type
DMG-LCD-03
Stamp
906 22
Circled letter(s) on board
Z
LCD panel label
S890511
LCD panel date
May/1989

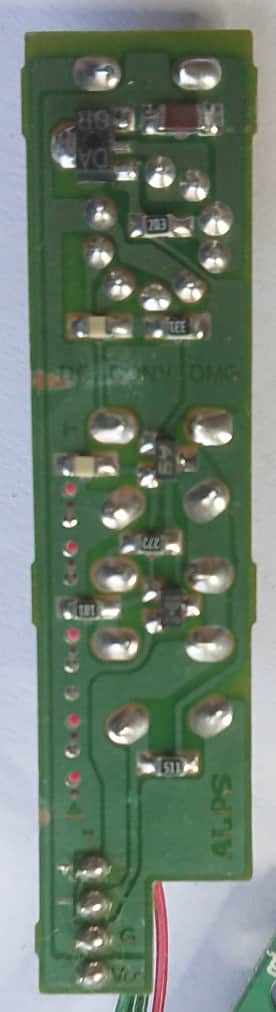

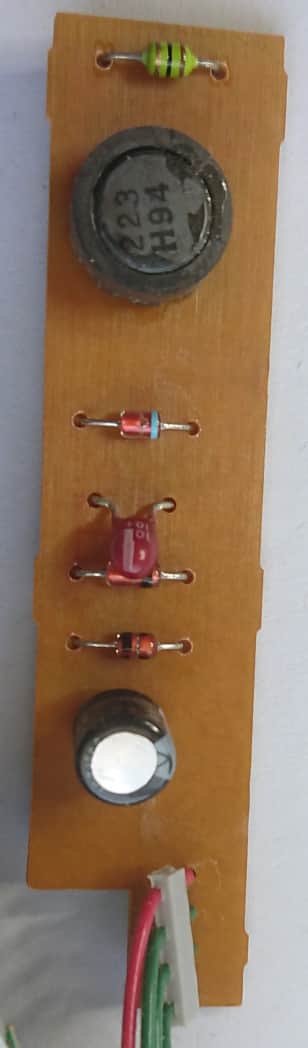

Power Board

Board type
Type A1
Manufacture date
1989
Label
DC CONV DMG

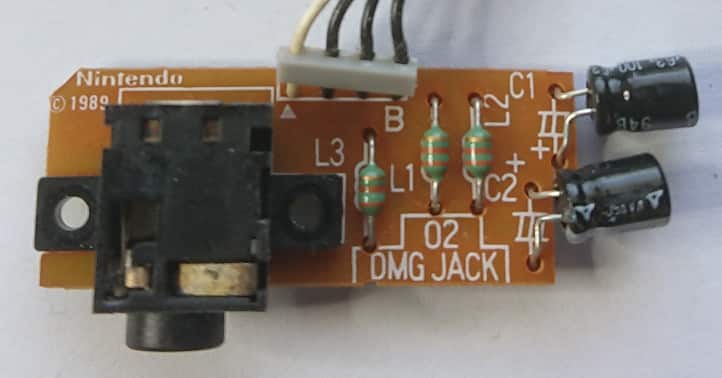

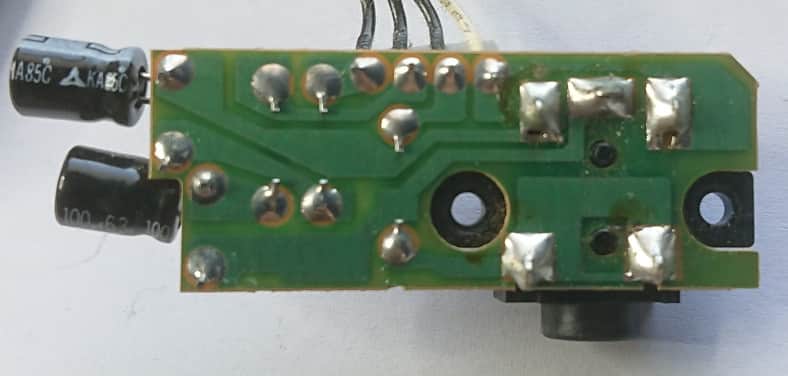

Jack Board

Board type
DMG JACK 02

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU ASharpWeek 22/1989DMG-CPU A © 1989 Nintendo JAPAN 8922 D
U2Video RAMLH5264N4SharpWeek 21/1989LH5264N4 SHARP JAPAN 8921 1 Y
U3Work RAMLH5264N4SharpWeek 21/1989LH5264N4 SHARP JAPAN 8921 1 Y
U4AmplifierIR3R40SharpWeek 19/1989DMG-AMP IR3R40 8919 A
X1Crystal4.194304 MHzDaishinkuMay/1989D419E9
-LCD Column DriverLH5077 FSharpMay/1989LH5077 F 905
-LCD Row DriverLH5076 FSharpMay/1989LH5076 F 905
-LCD RegulatorIR3E02SharpWeek 18/1989DMG-REG IR3E02 8918 A
