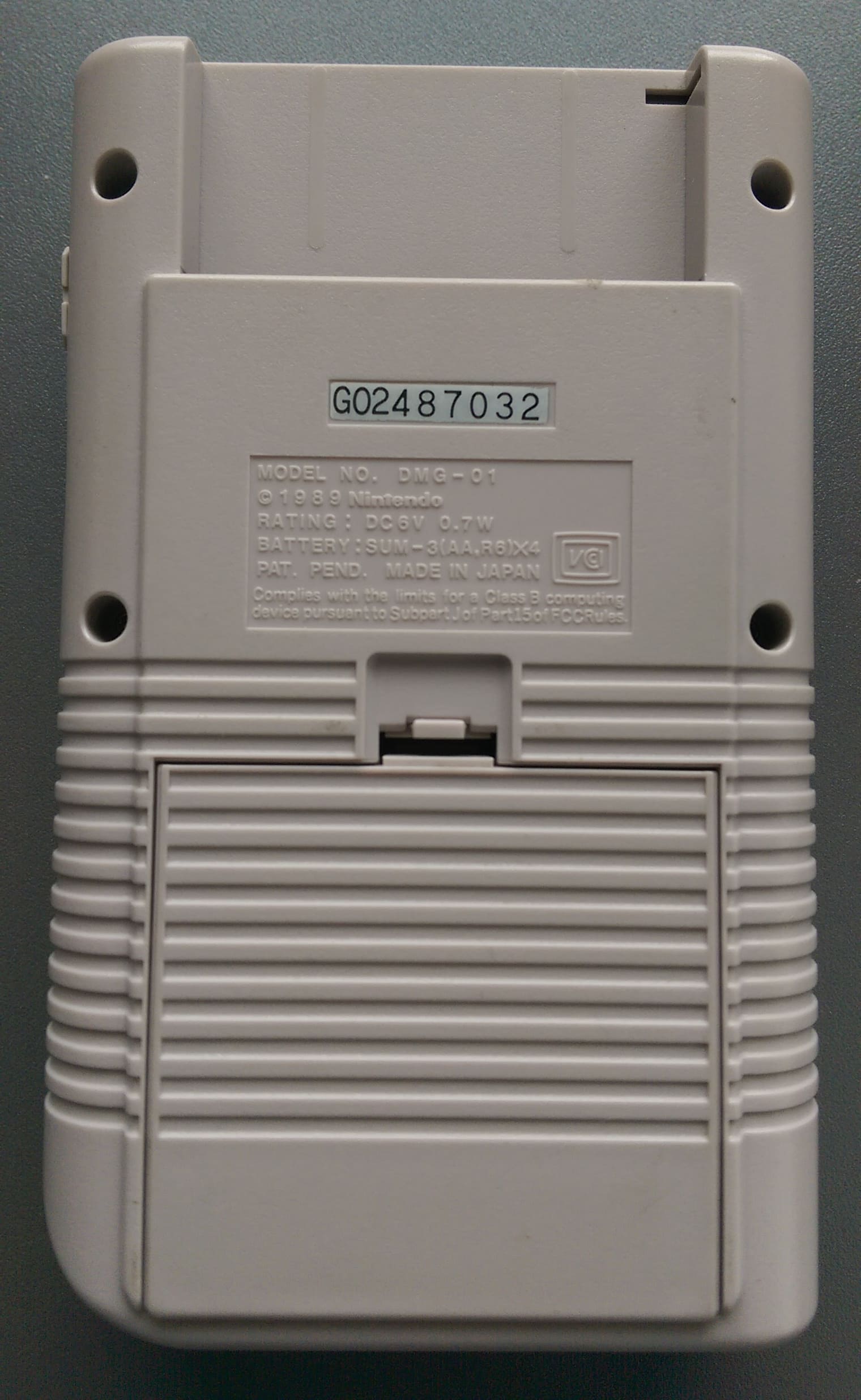

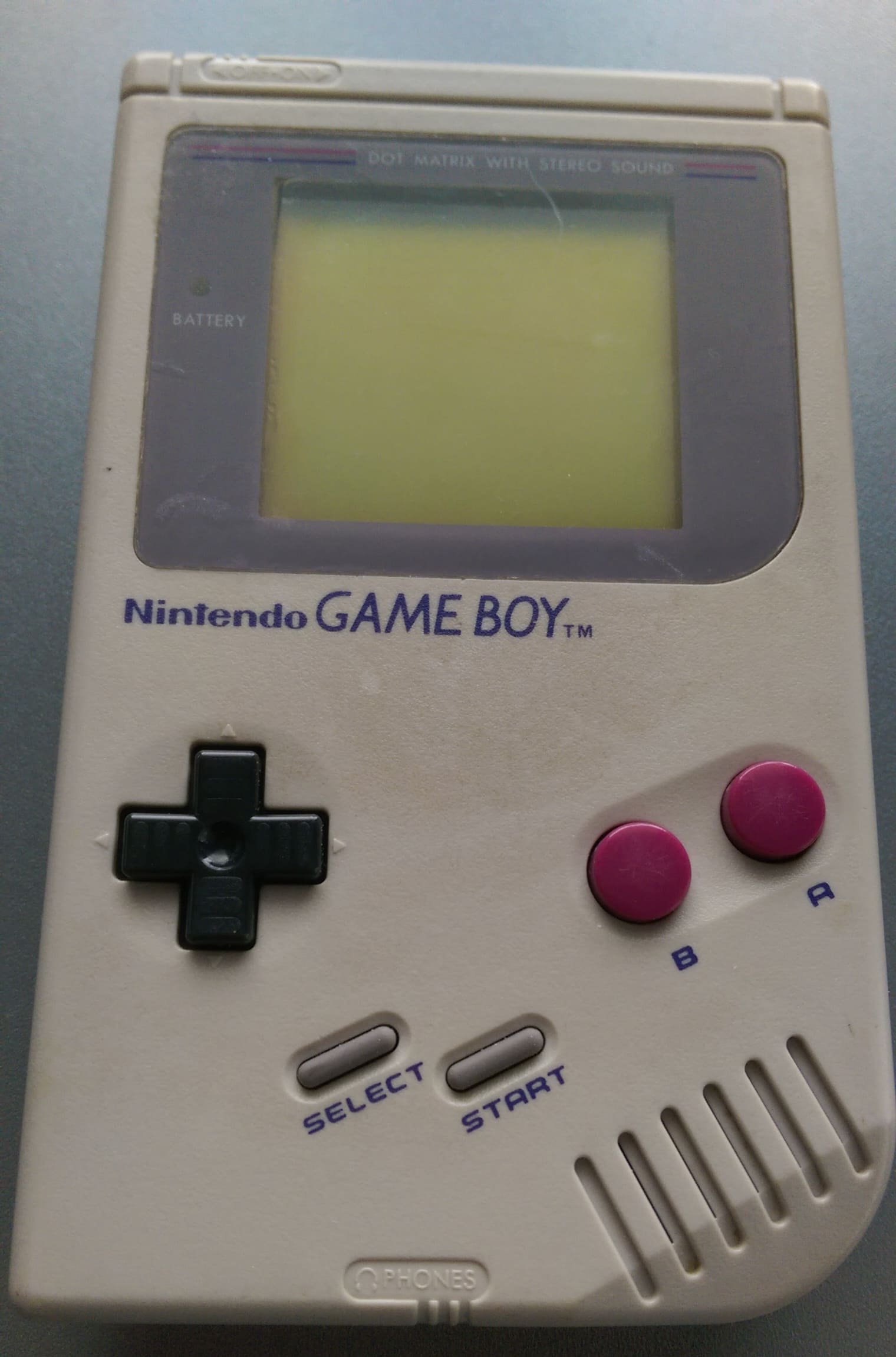

DMG: G02487032 [gekkio]
- Color
- OffWhite
- Assembly date
- September/1989
- LCD panel label
- 890808
- LCD panel date
- August/1989

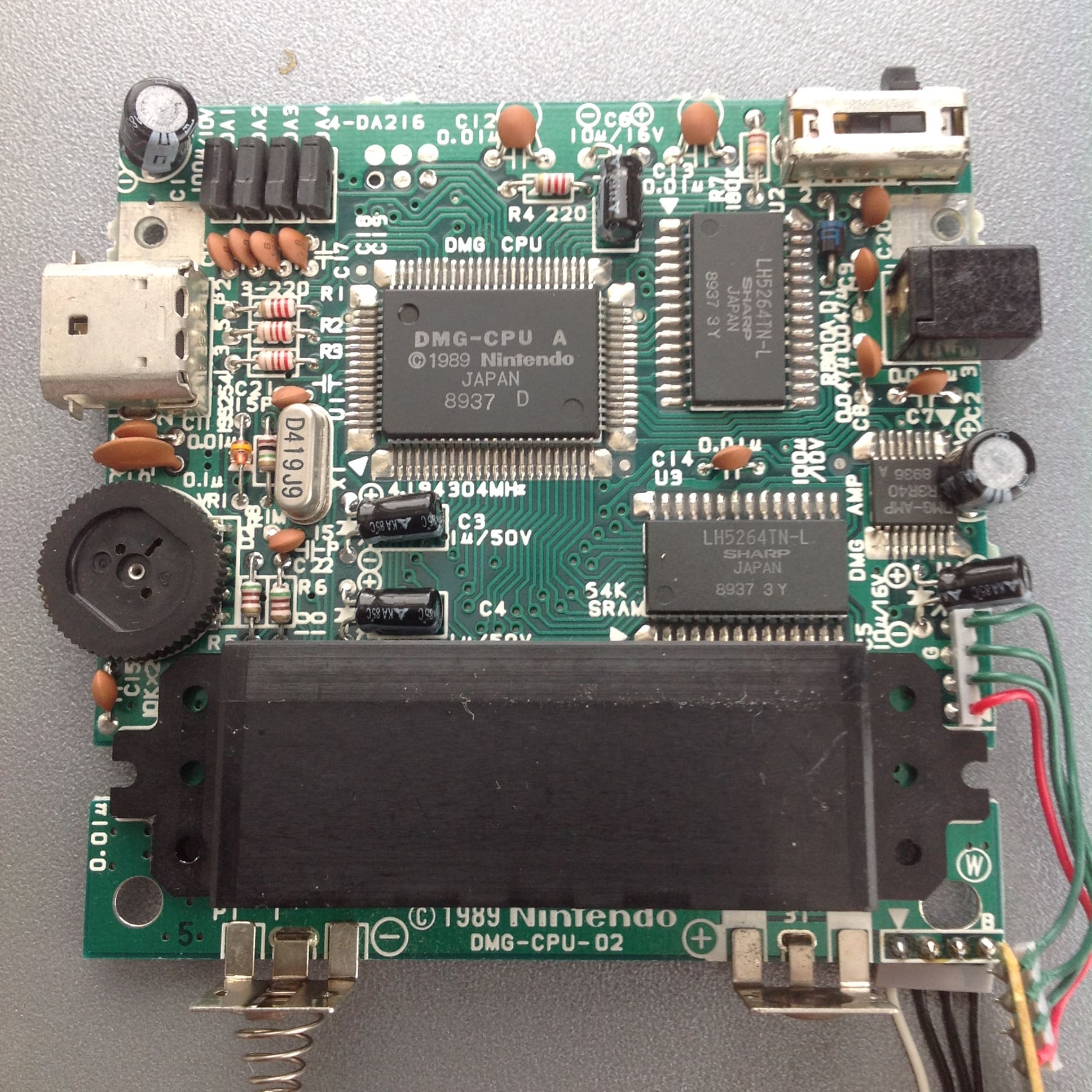

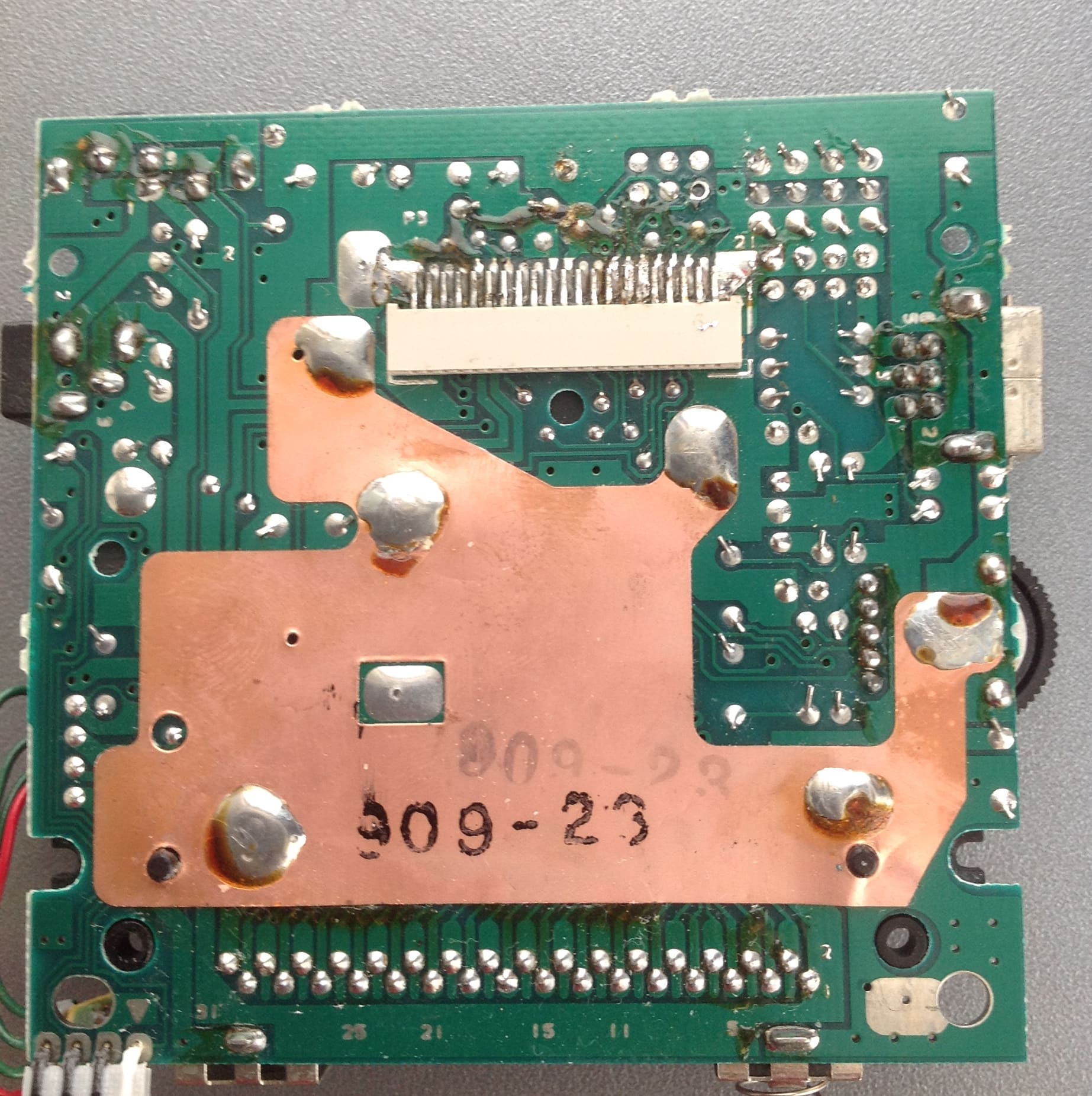

Mainboard
- Board type
- DMG-CPU-02
- Stamp on board
- 909-23
- Circled letter(s) on board
- W
- Extra label
- 5

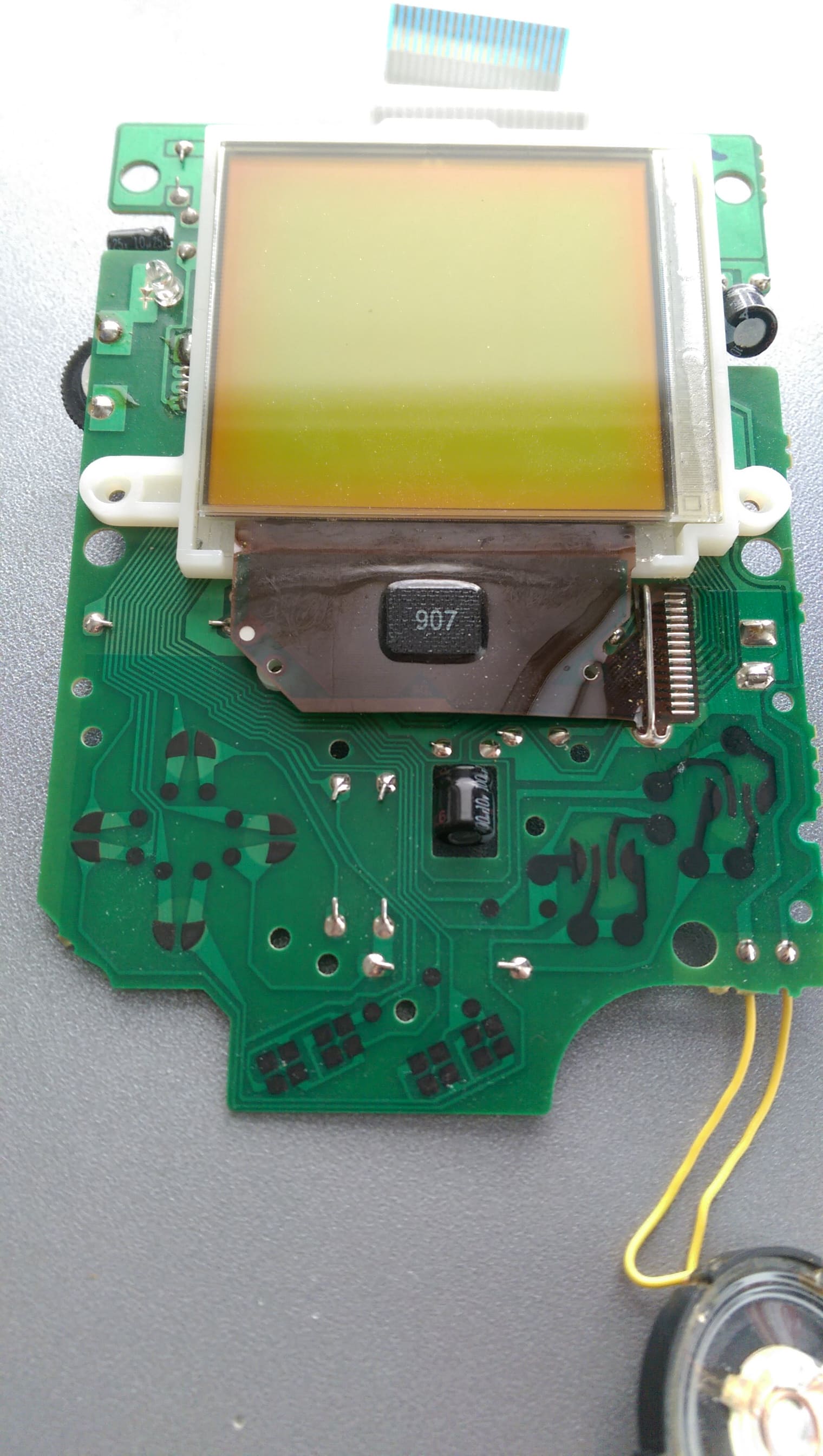

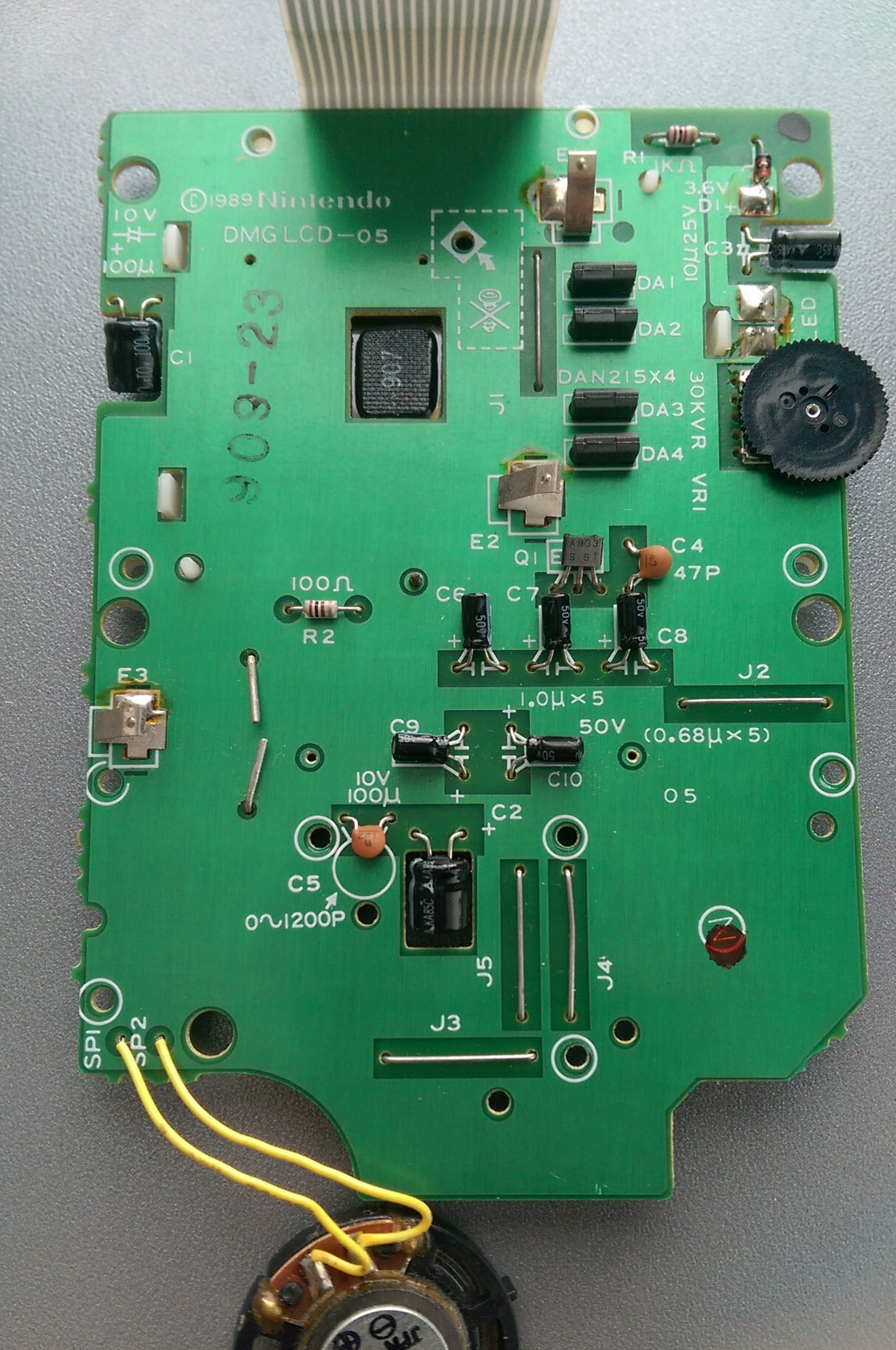

LCD board
- Board type
- DMG-LCD-05
- Stamp
- 909-23
- Circled letter(s) on board
- Z

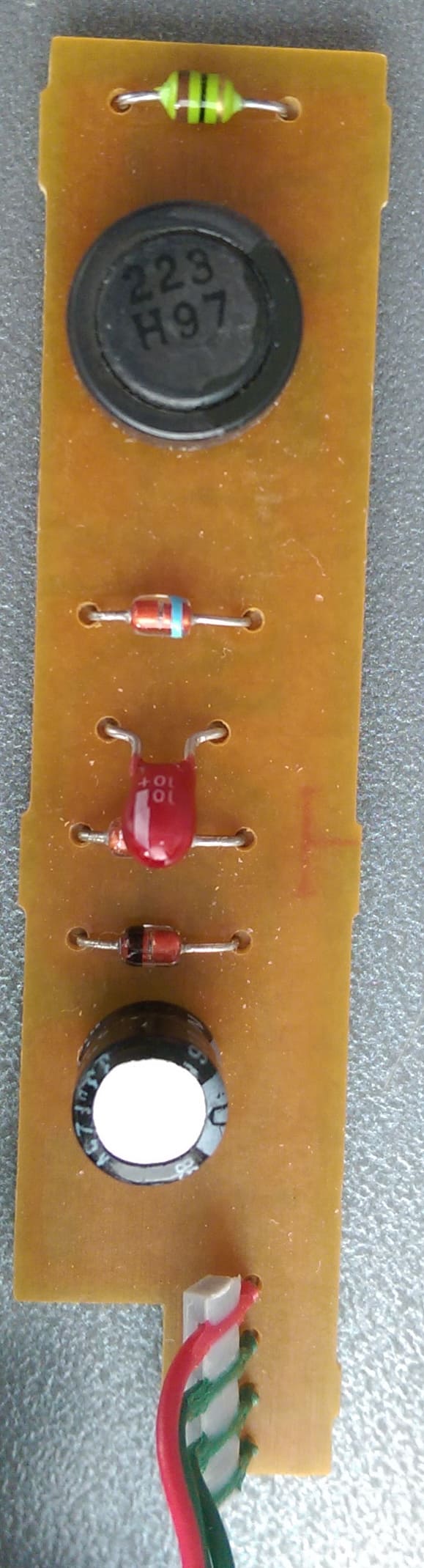

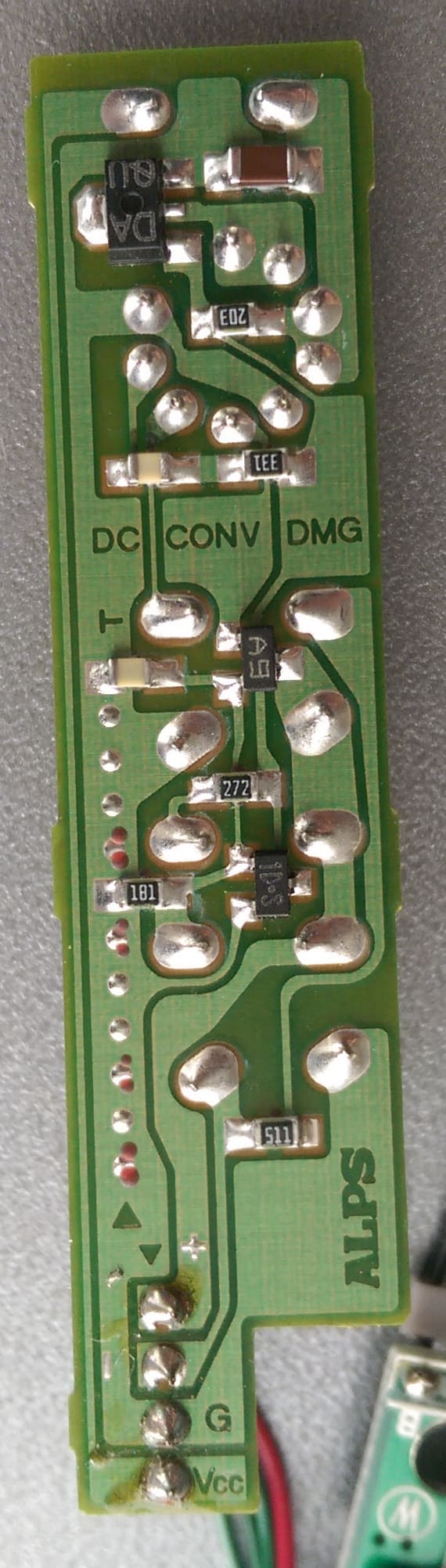

Power board
- Board type
- A2
- Manufacture date
- 1989
- Label
- DC CONV DMG

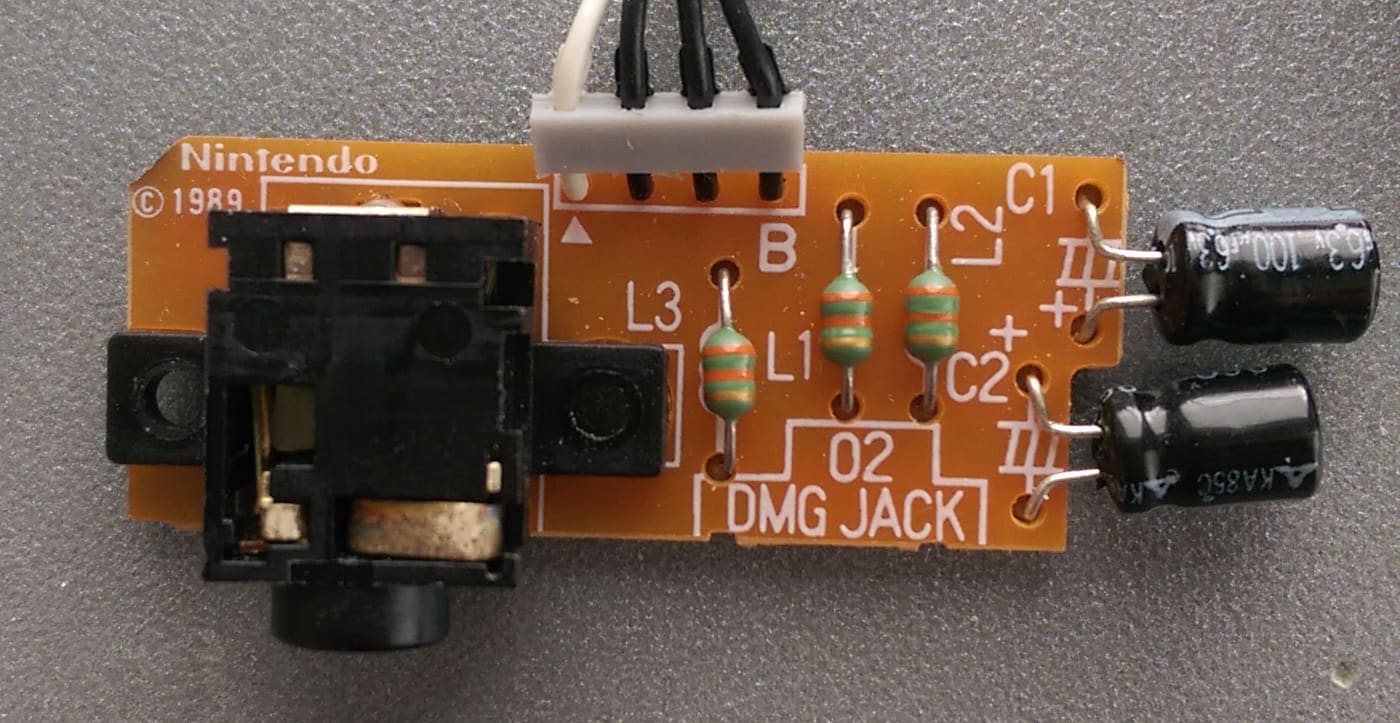

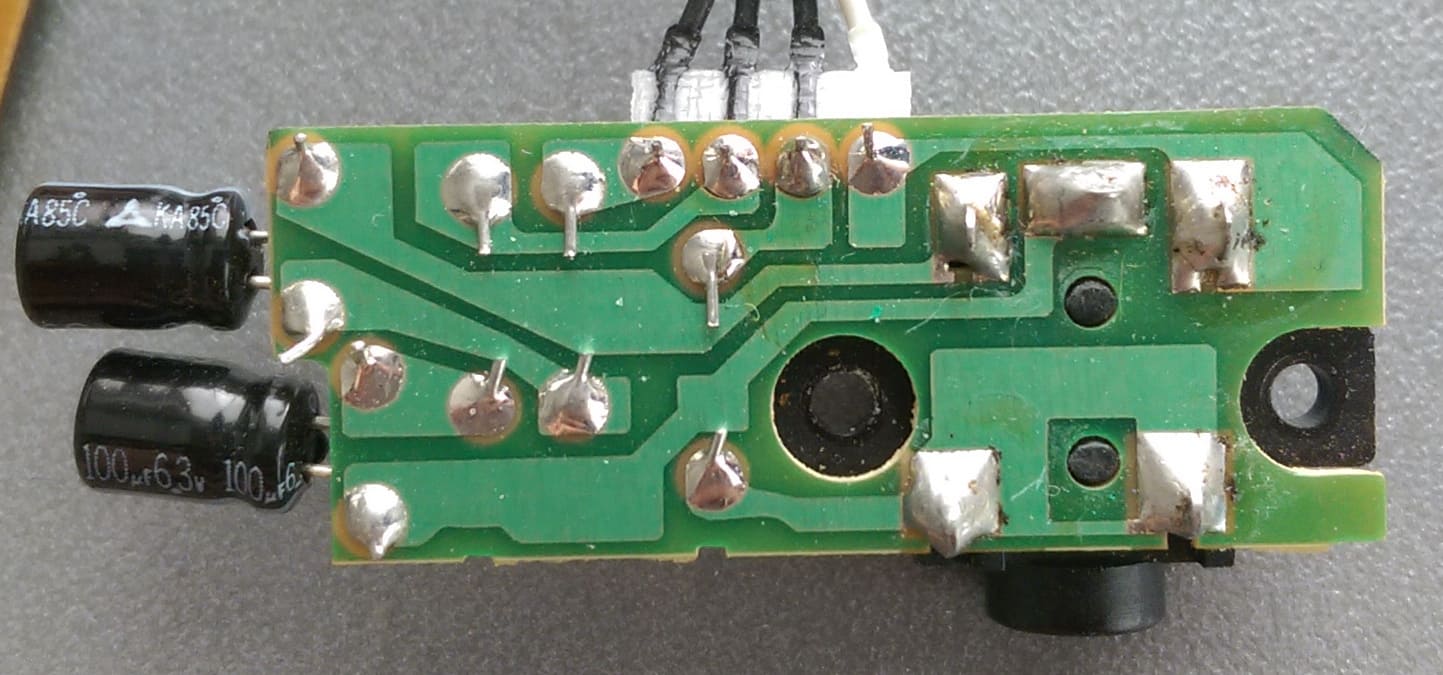

Jack board
- Board type
- DMG JACK 02
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU A | Sharp | Week 37/1989 | DMG-CPU A © 1989 Nintendo JAPAN 8937 D |
| U2 | VRAM | LH5264TN-L | Sharp | Week 37/1989 | LH5264TN-L SHARP JAPAN 8937 3 Y |
| U3 | WRAM | LH5264TN-L | Sharp | Week 37/1989 | LH5264TN-L SHARP JAPAN 8937 3 Y |
| U4 | Audio amplifier | IR3R40 | Sharp | Week 36/1989 | DMG-AMP IR3R40 8936 A |
| X1 | Crystal | 4.194304 MHz | Daishinku | September/1989 | D419J9 |
| - | LCD column driver | LH5077 F | Sharp | July/1989 | LH5077 F 907 |
| - | LCD row driver | LH5076 F | Sharp | July/1989 | LH5076 F 907 |
| - | LCD bias generator | IR3E02 | Sharp | Week 32/1989 | DMG-REG IR3E02 8932 A |
