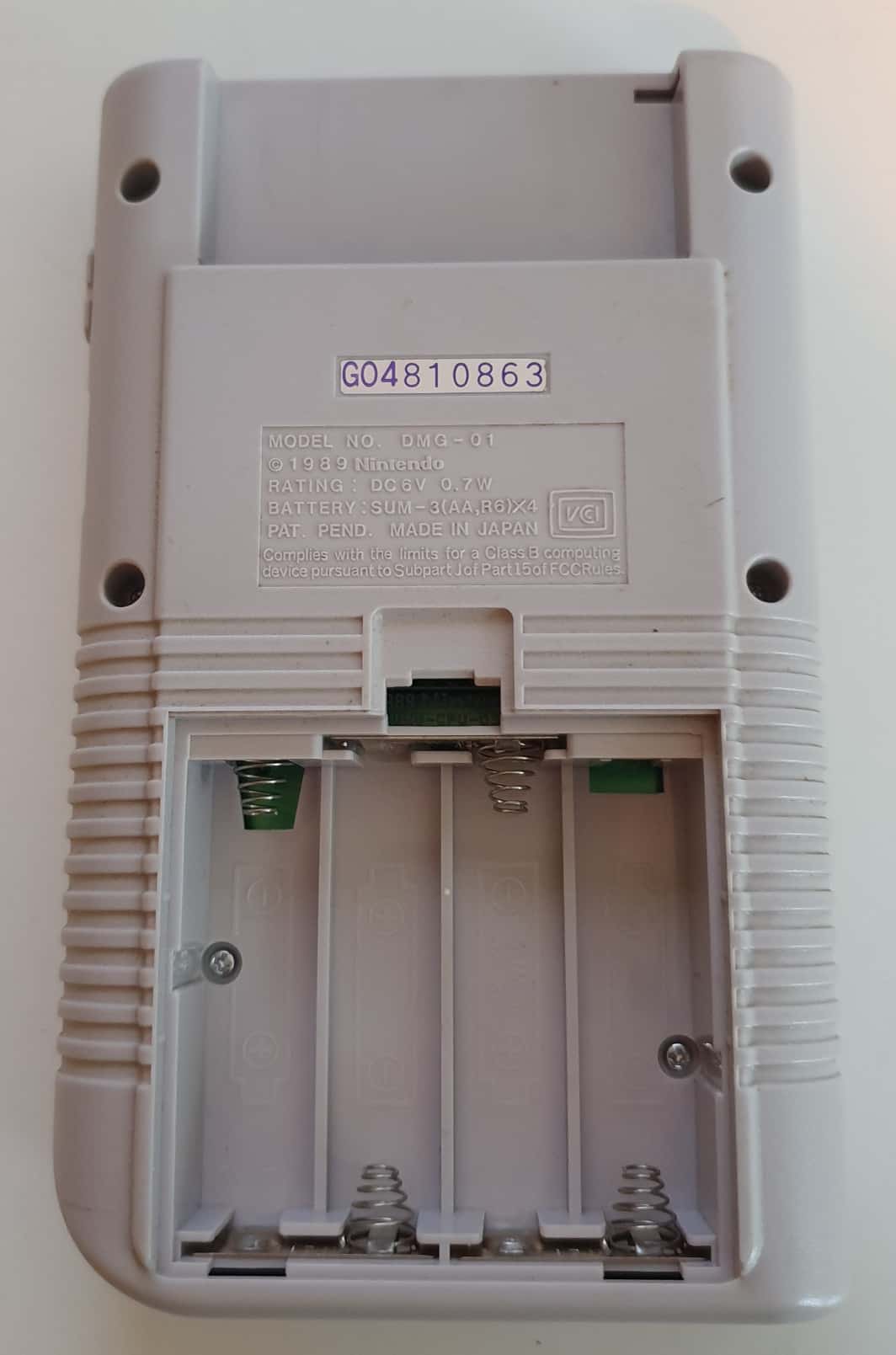

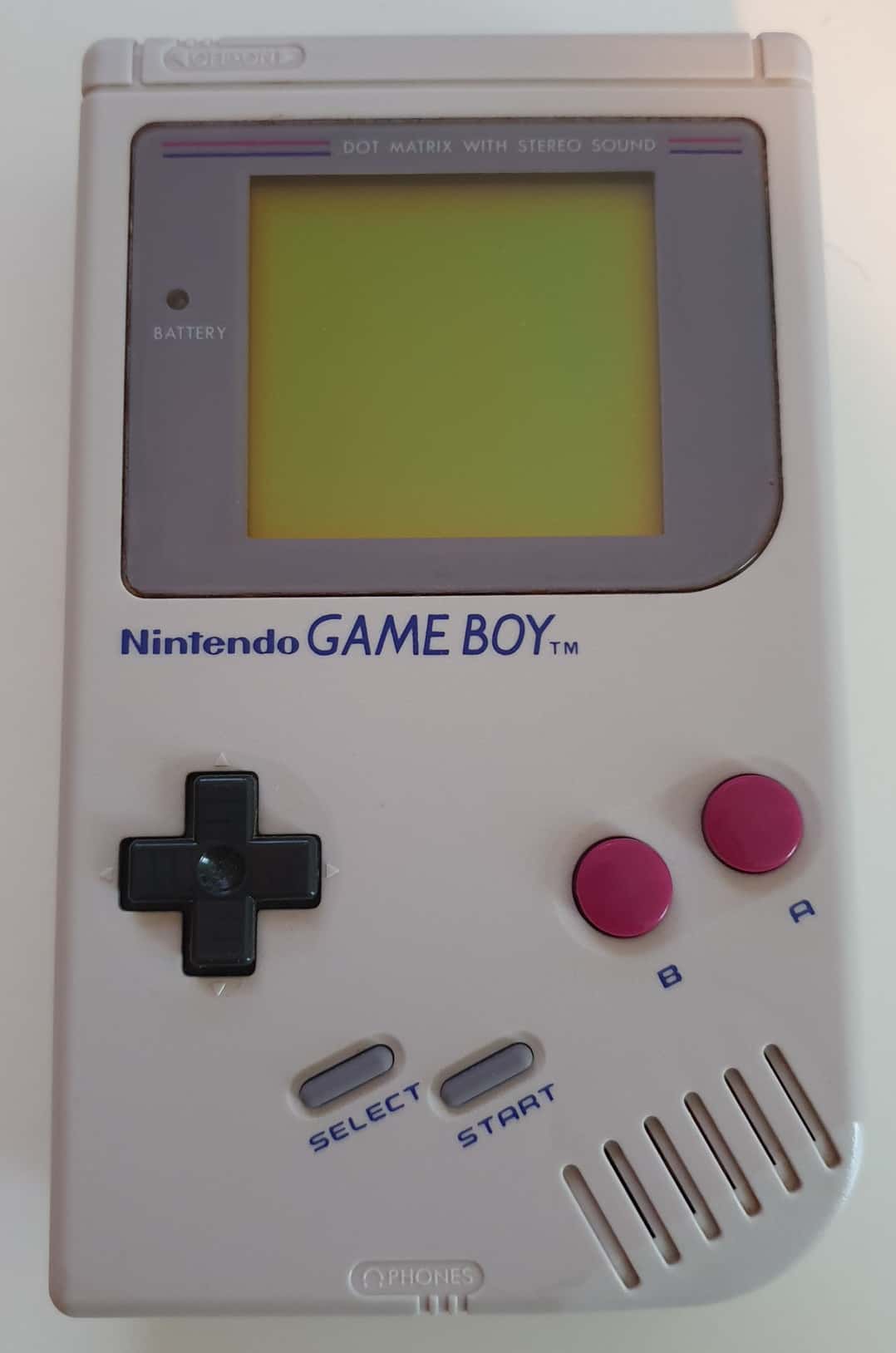

DMG: G04810863 [curbsideaudio]
- Color
- OffWhite
- Assembly date
- March/1990

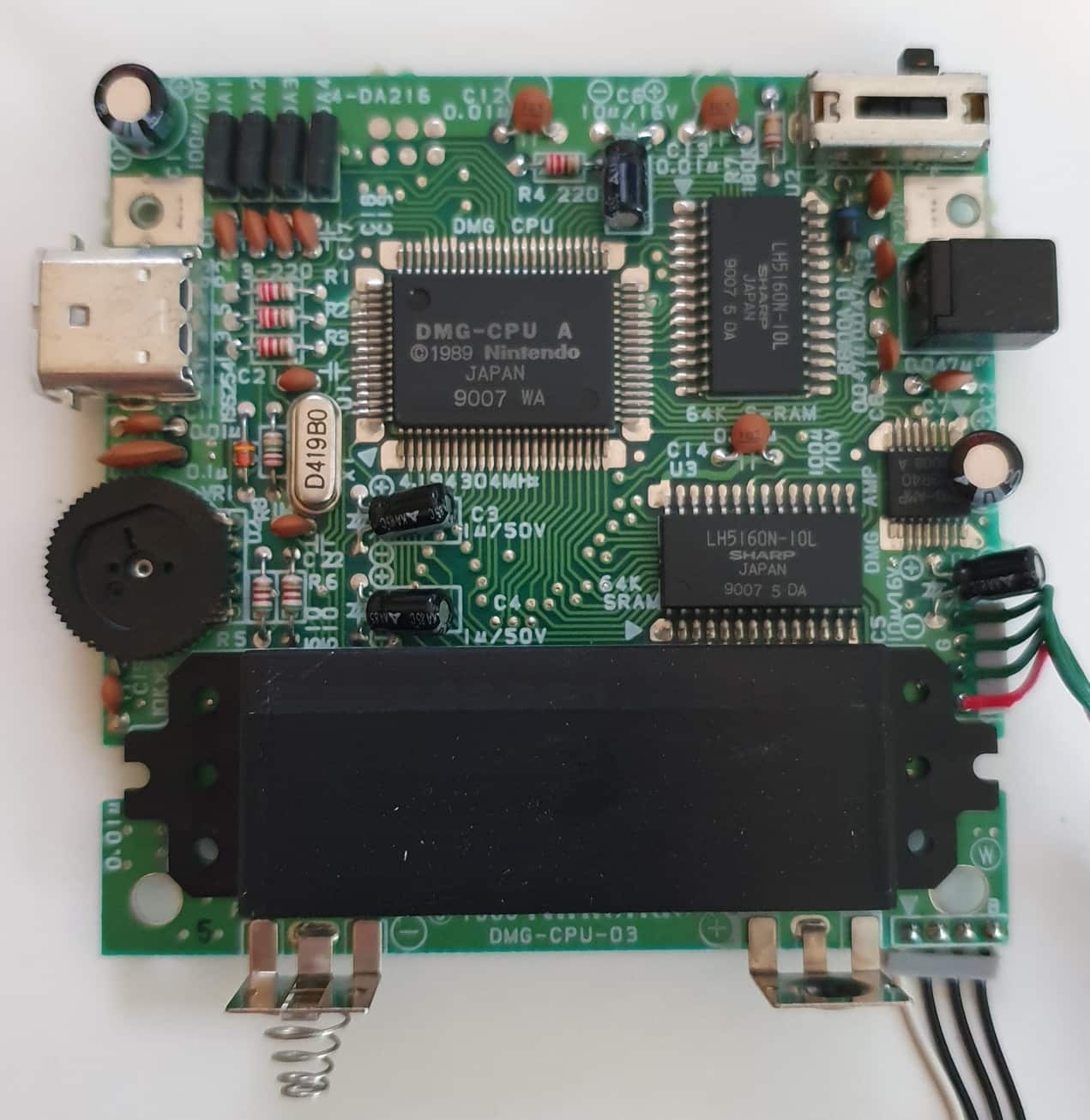

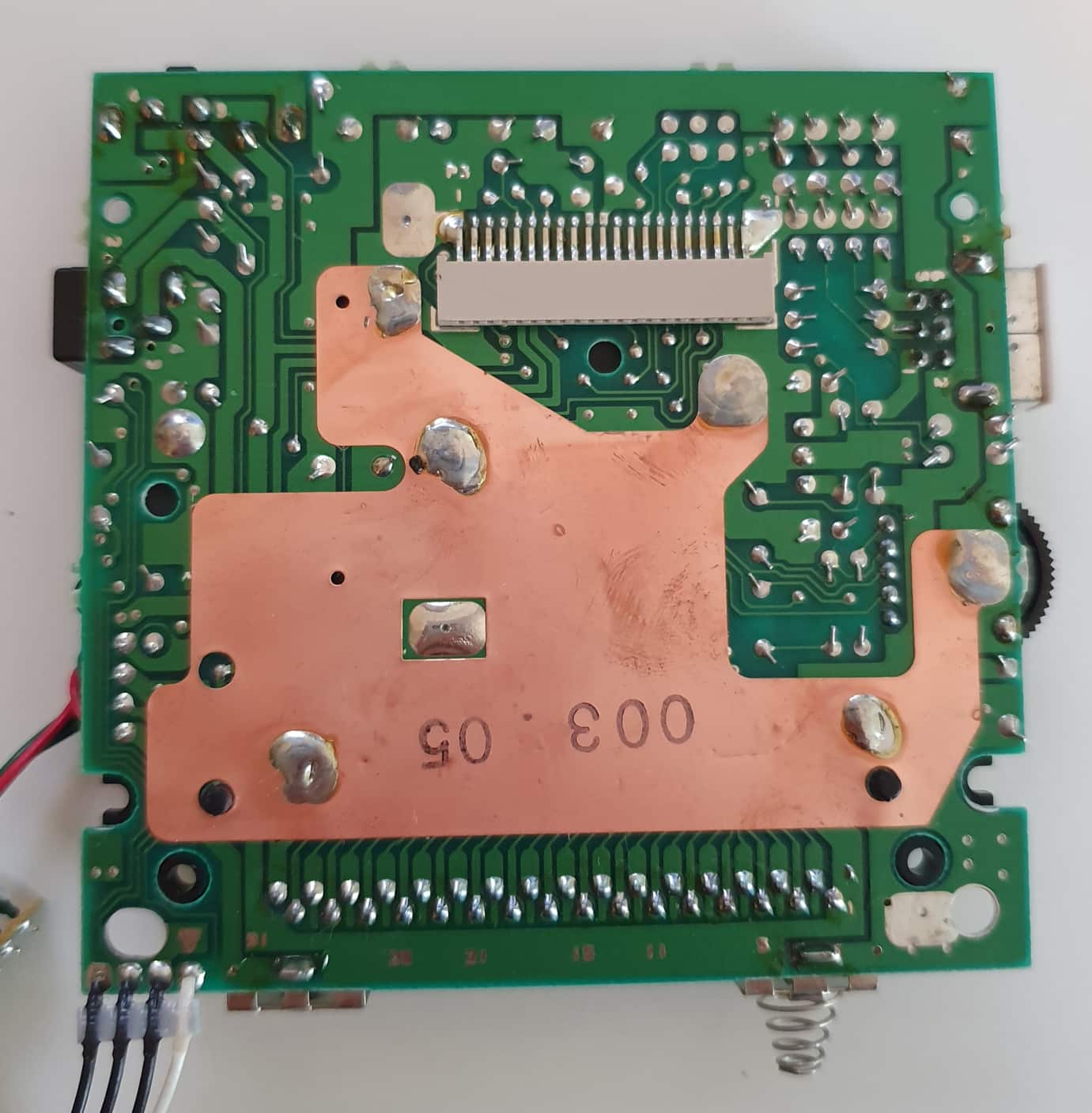

Mainboard
- Board type
- DMG-CPU-03
- Stamp on board
- 003 05
- Circled letter(s) on board
- W
- Extra label
- 5

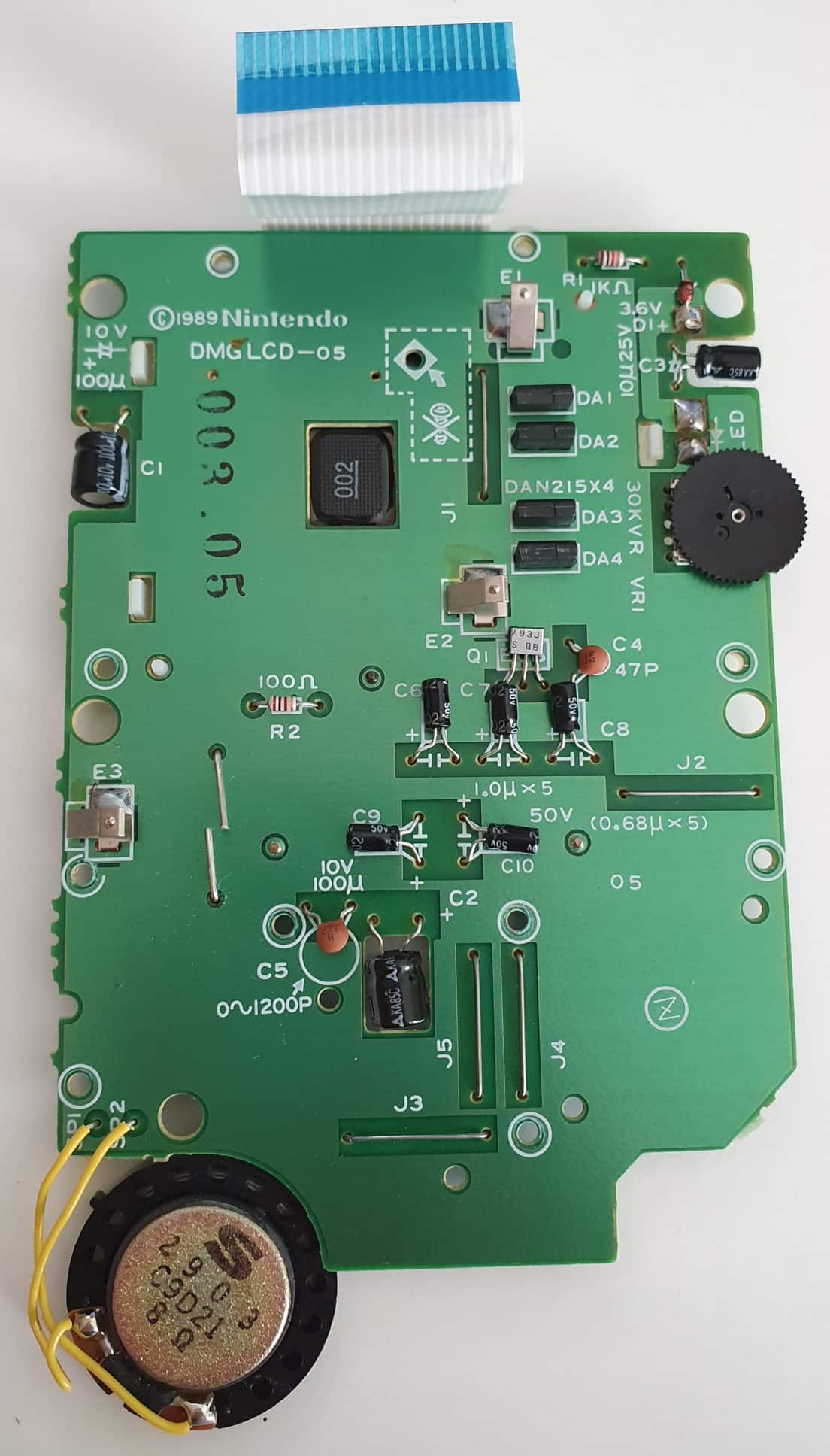

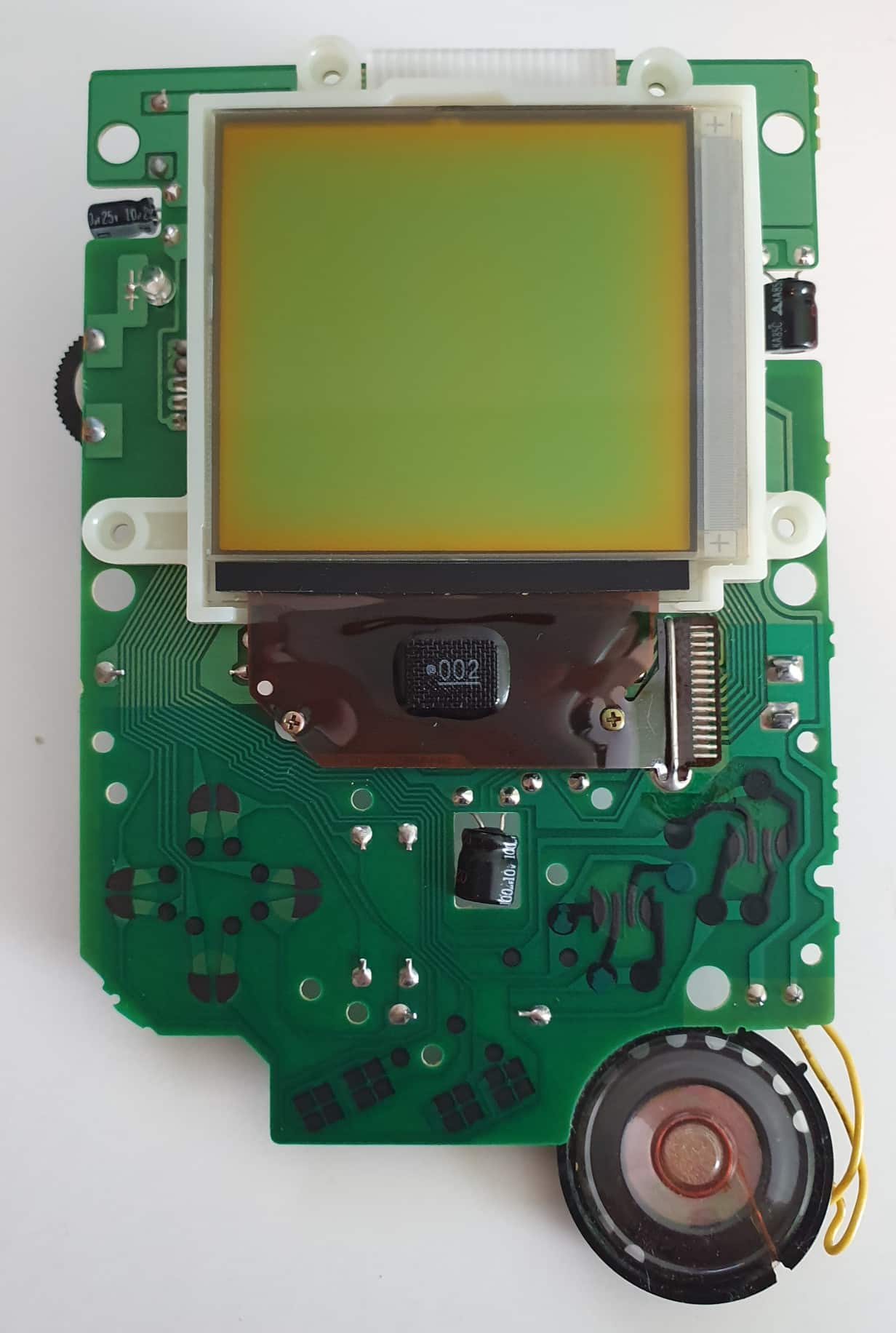

LCD board
- Board type
- DMG-LCD-05
- Stamp
- 003.05
- Circled letter(s) on board
- Z

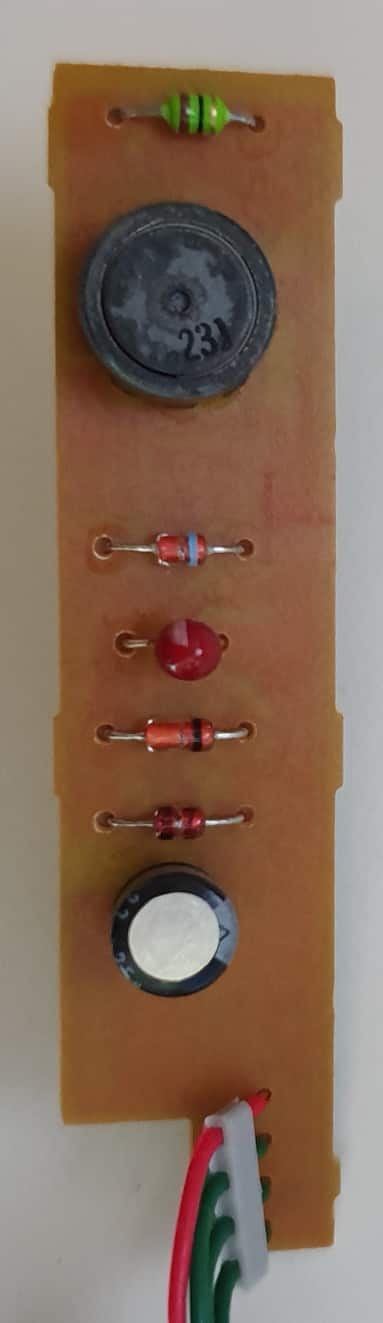

Power board
- Board type
- A2
- Manufacture date
- February/1990
- Label
- DC CONV DMG

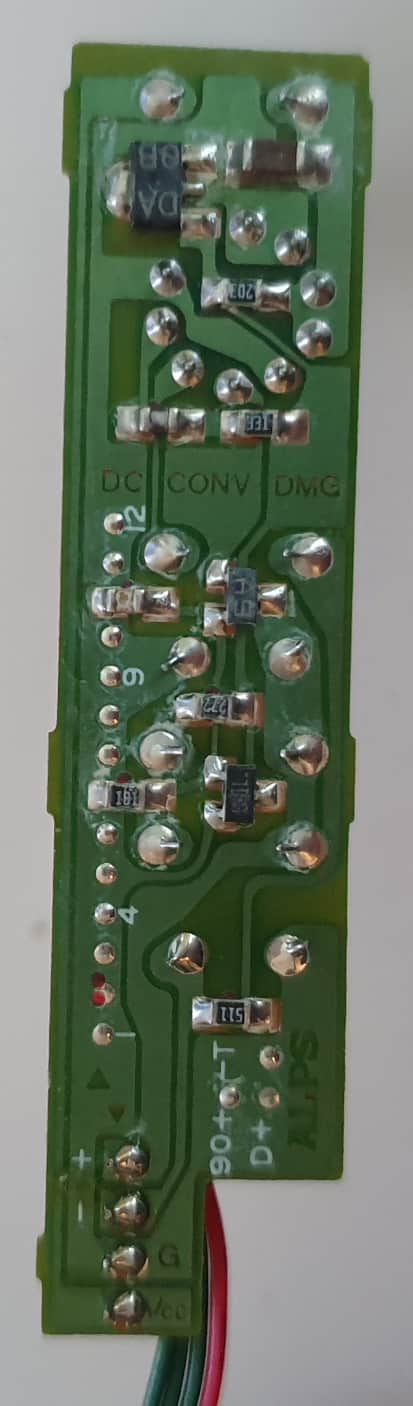

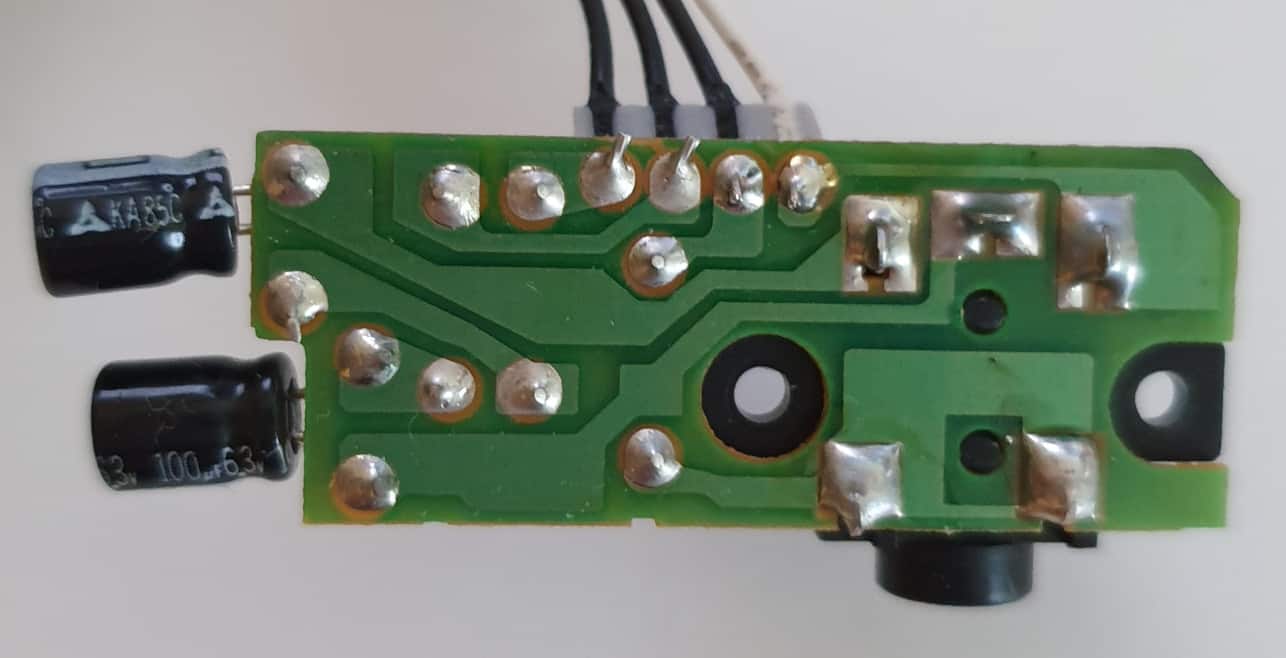

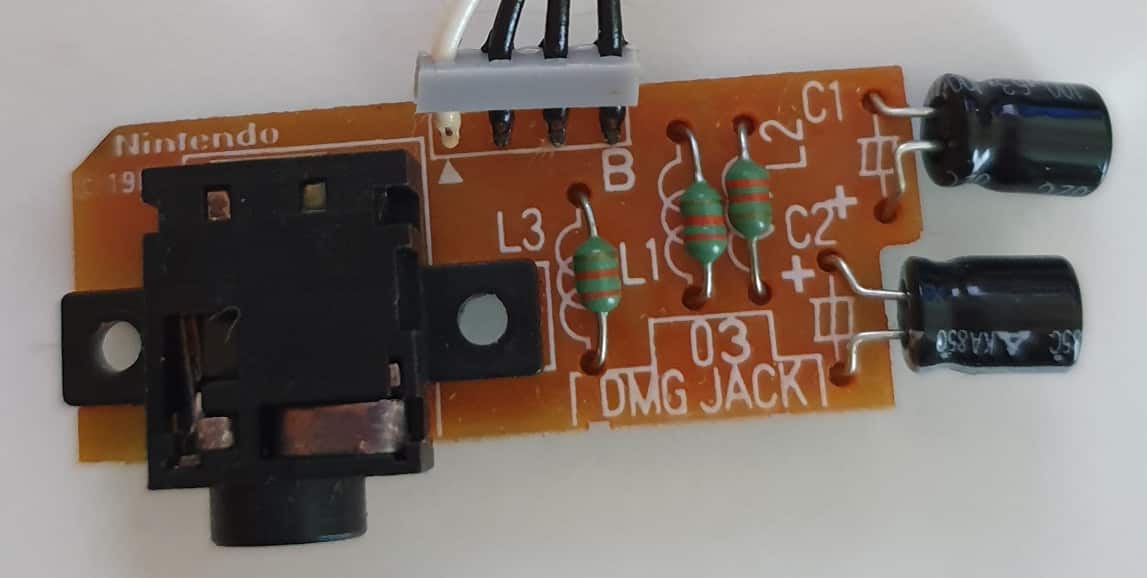

Jack board
- Board type
- DMG JACK 03
Parts
Part | Type | Manufacturer | Date | Label | |
---|---|---|---|---|---|
U1 | CPU | DMG-CPU A | Sharp | Week 7/1990 | DMG-CPU A © 1989 Nintendo JAPAN 9007 WA |
U2 | VRAM | LH5160N-10L | Sharp | Week 7/1990 | LH5160N-10L SHARP JAPAN 9007 5 DA |
U3 | WRAM | LH5160N-10L | Sharp | Week 7/1990 | LH5160N-10L SHARP JAPAN 9007 5 DA |
U4 | Audio amplifier | IR3R40 | Sharp | Week 8/1990 | DMG-AMP IR3R40 9008 A |
X1 | Crystal | 4.194304 MHz | Daishinku | February/1990 | D419B0 |
- | LCD column driver | Sharp | February/1990 | 002 | |
- | LCD row driver | Sharp | February/1990 | 002 | |
- | LCD bias generator |
