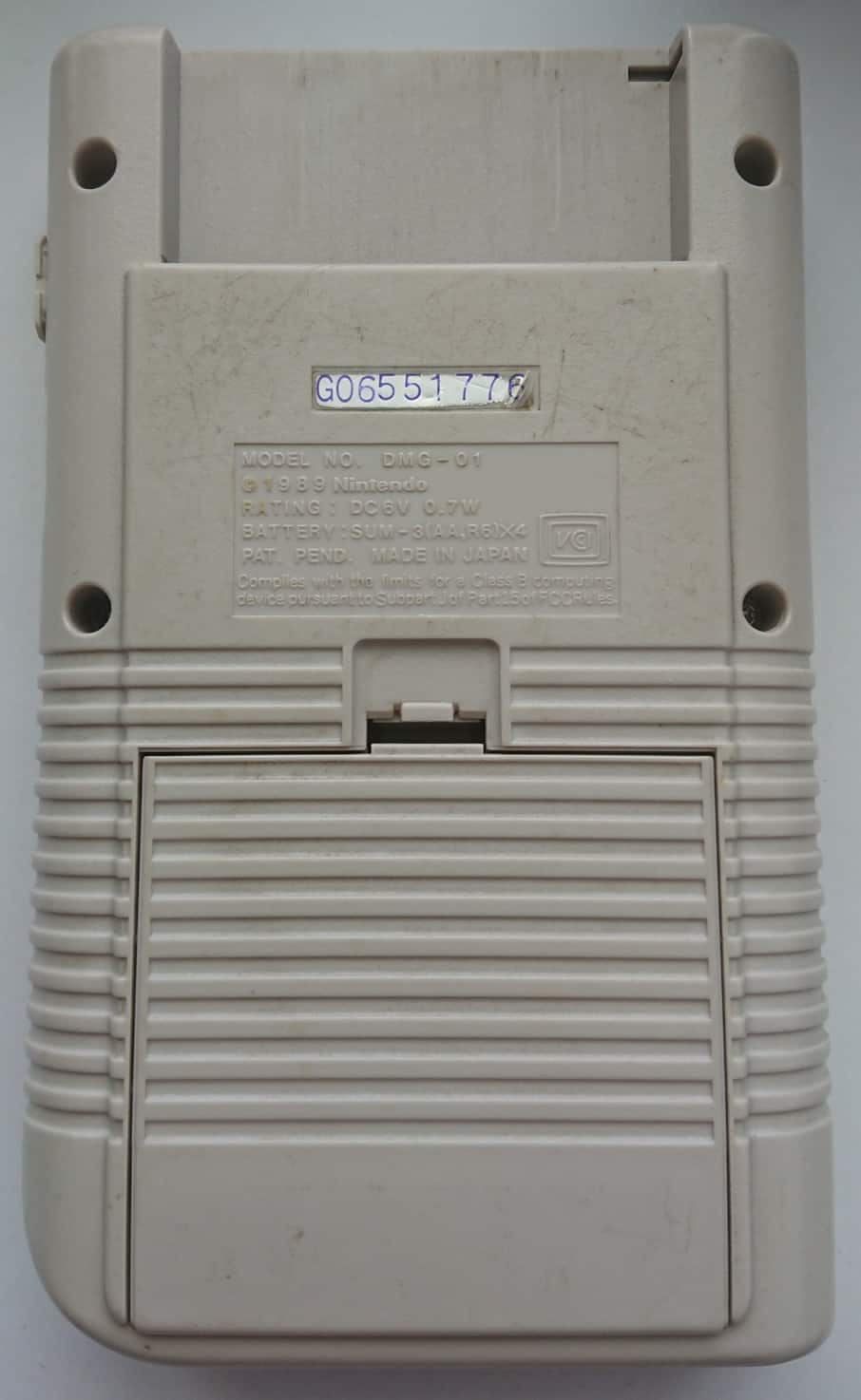

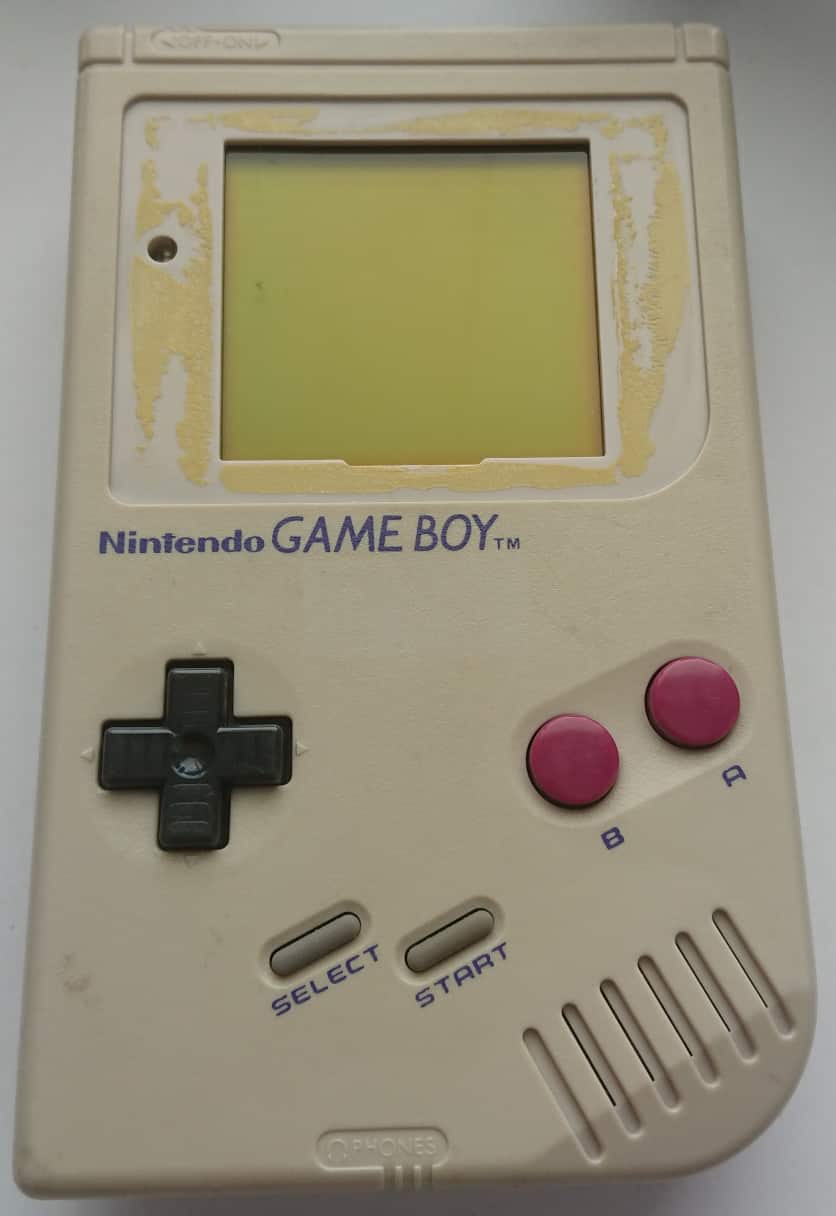

DMG: G06551776 [gekkio]

Color
OffWhite
Assembly date
May/1990

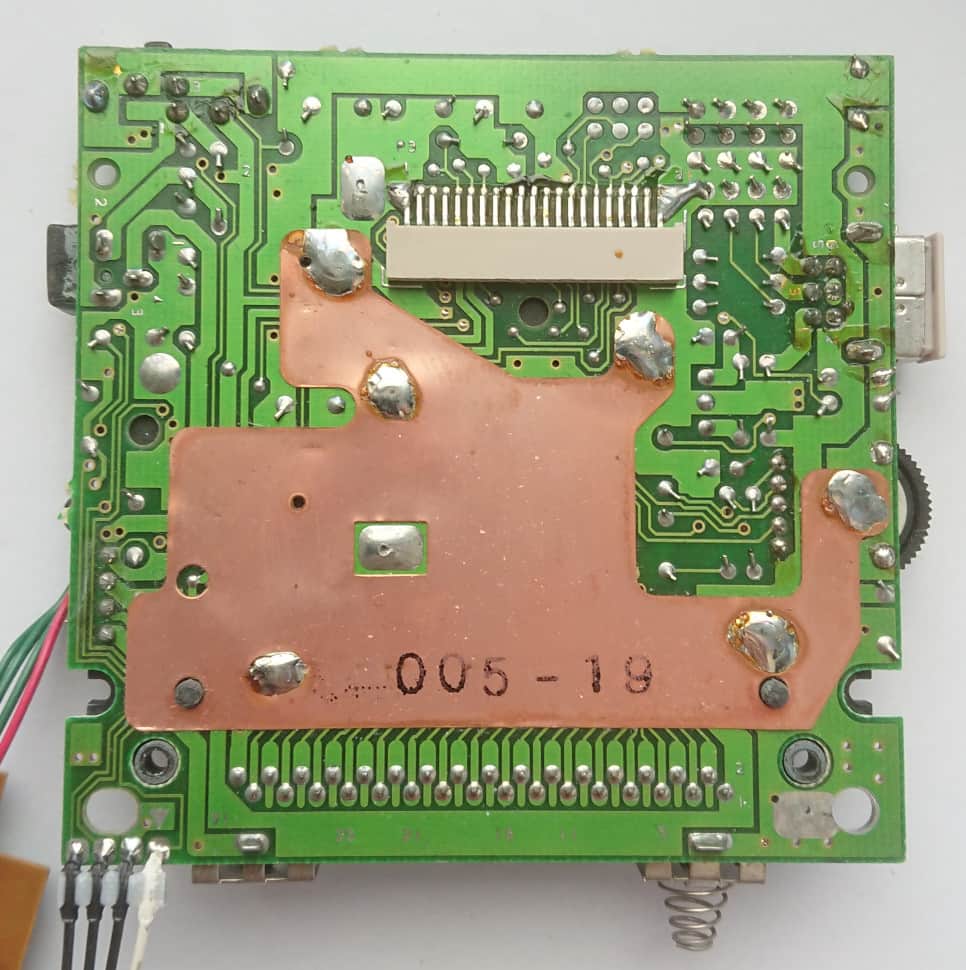

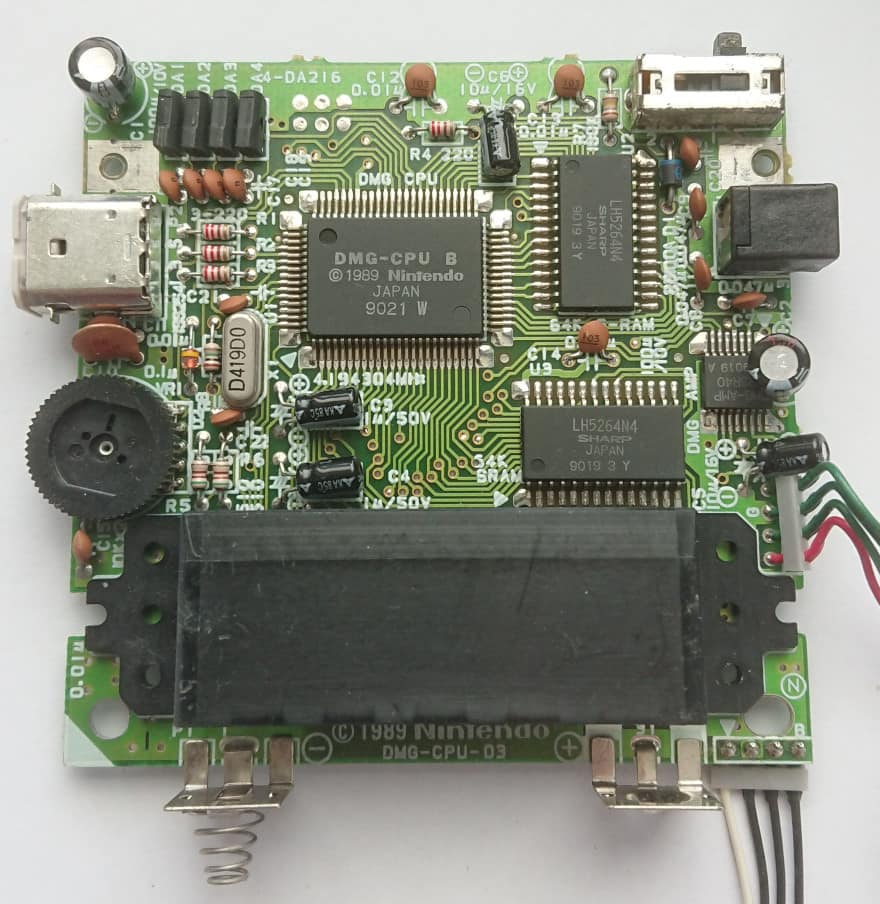

Mainboard

Board type
DMG-CPU-03
Stamp on board
005-19
Circled letter(s) on board
N
Extra label
1

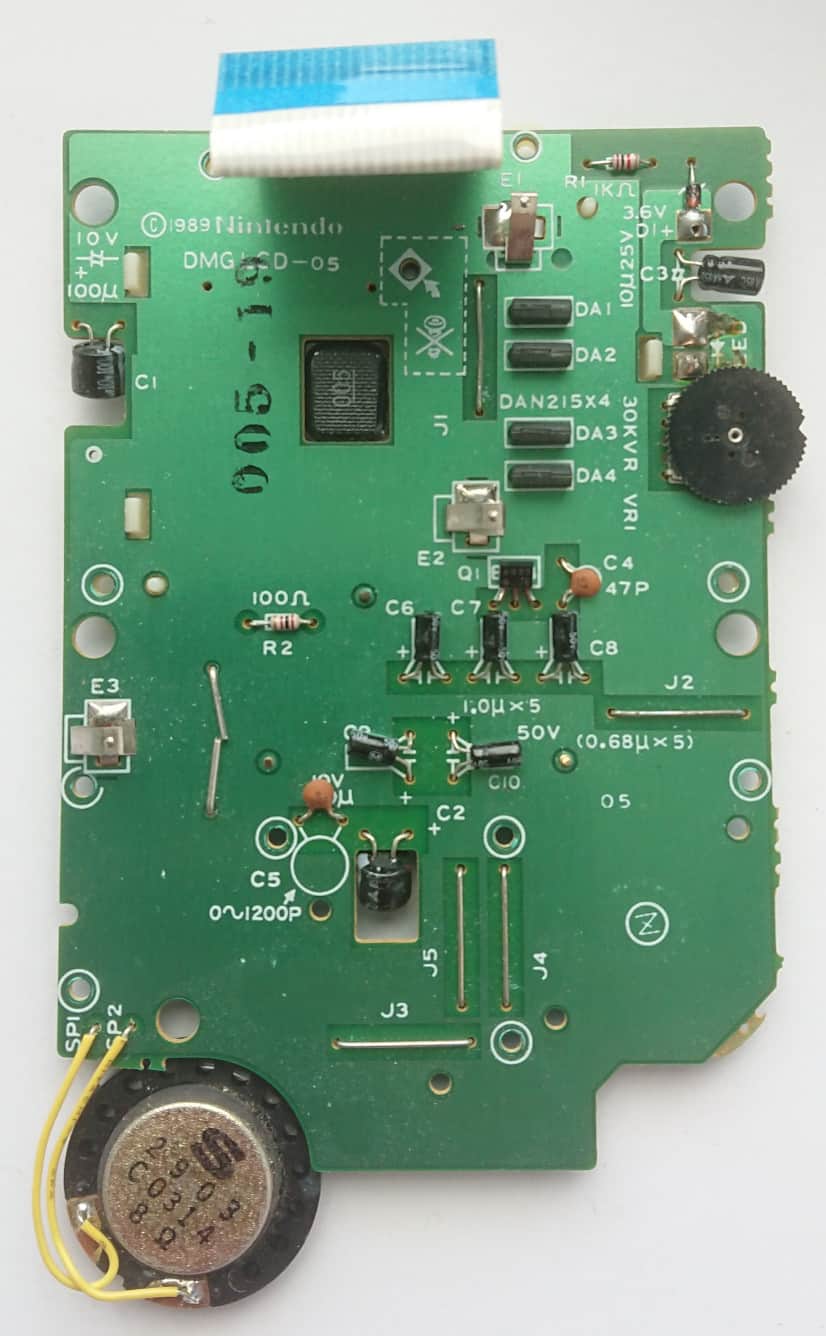

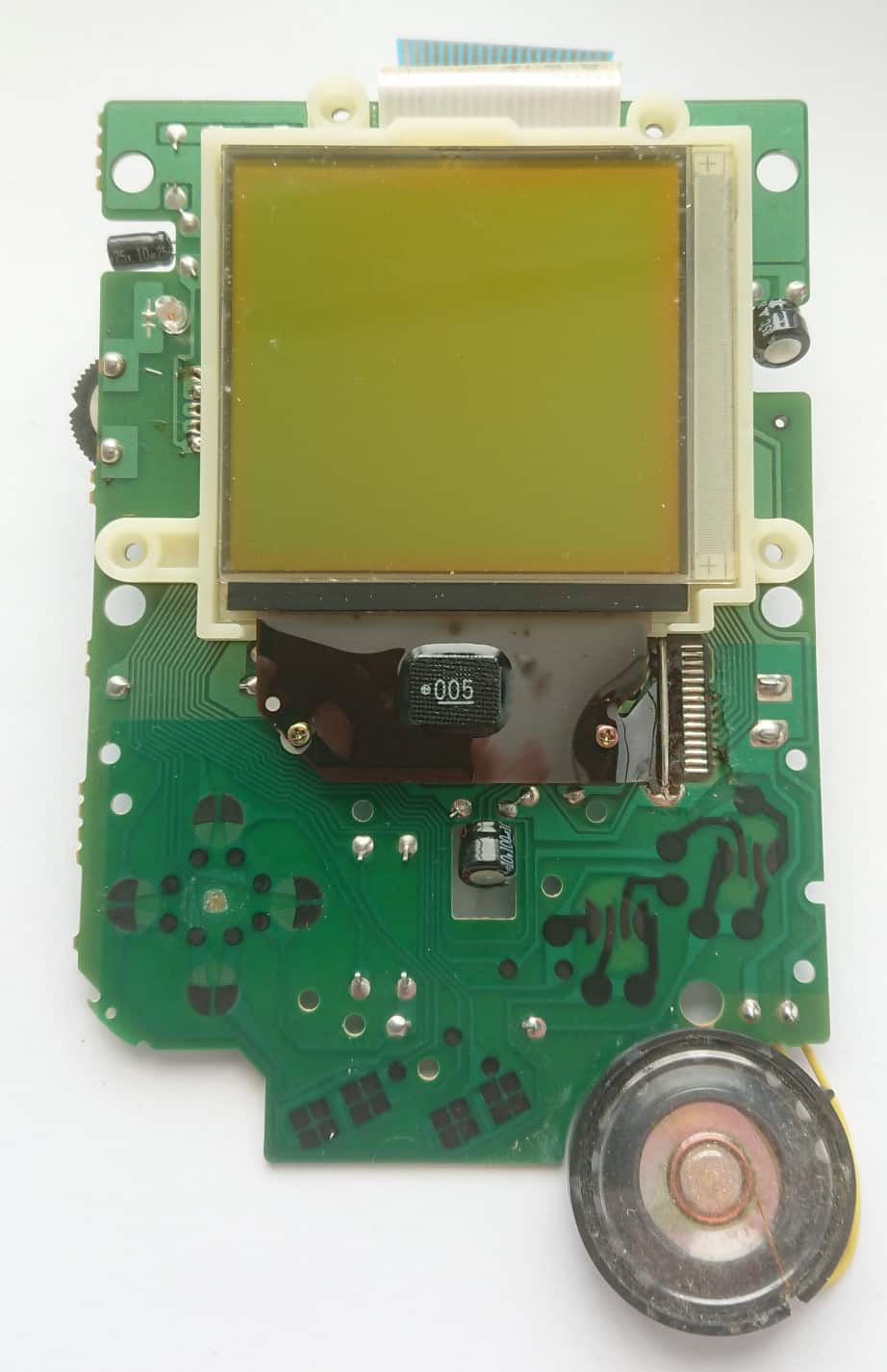

LCD Board

Board type
DMG-LCD-05
Stamp
005-19
Circled letter(s) on board
Z
LCD panel label
N AH900521
LCD panel date
May/1990

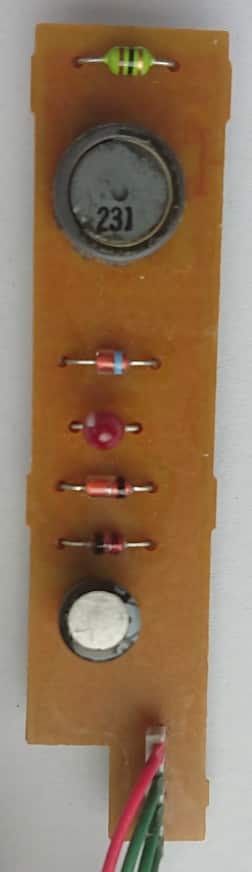

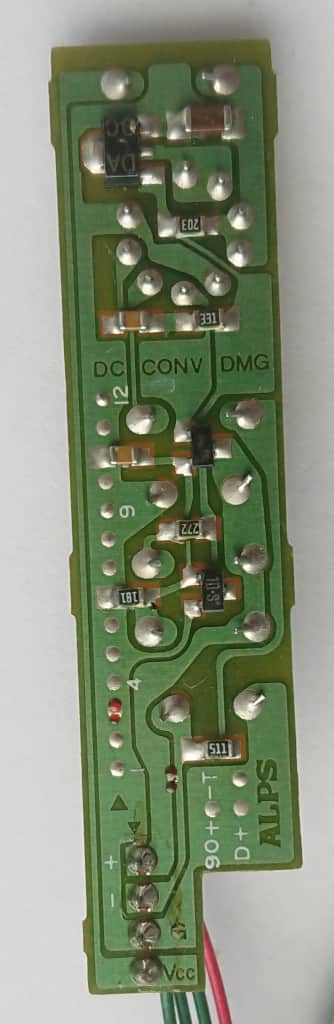

Power Board

Board type
Type A2
Manufacture date
March/1990
Label
DC CONV DMG

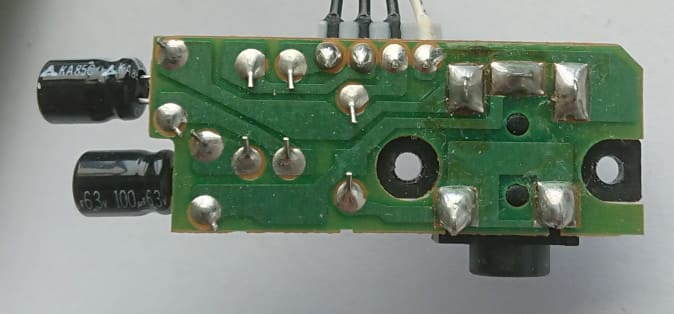

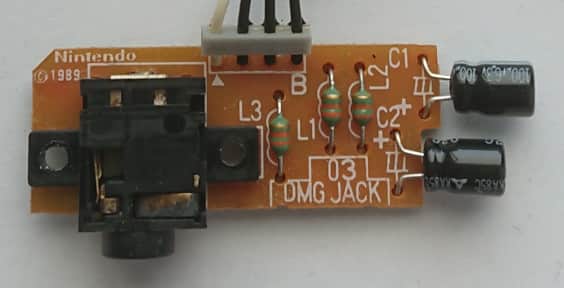

Jack Board

Board type
DMG JACK 03

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 21/1990DMG-CPU B © 1989 Nintendo JAPAN 9021 W
U2Video RAMLH5264N4SharpWeek 19/1990LH5264N4 SHARP JAPAN 9019 3 Y
U3Work RAMLH5264N4SharpWeek 19/1990LH5264N4 SHARP JAPAN 9019 3 Y
U4AmplifierIR3R40SharpWeek 19/1990DMG-AMP IR3R40 9019 A
X1Crystal4.194304 MHzDaishinkuApril/1990D419D0
-LCD Column DriverLH5077 FSharpMay/1990LH5077 F 005
-LCD Row DriverLH5076 FSharpMay/1990LH5076 F 005
-LCD RegulatorIR3E02SharpWeek 23/1990DMG-REG IR3E02 9023 J
