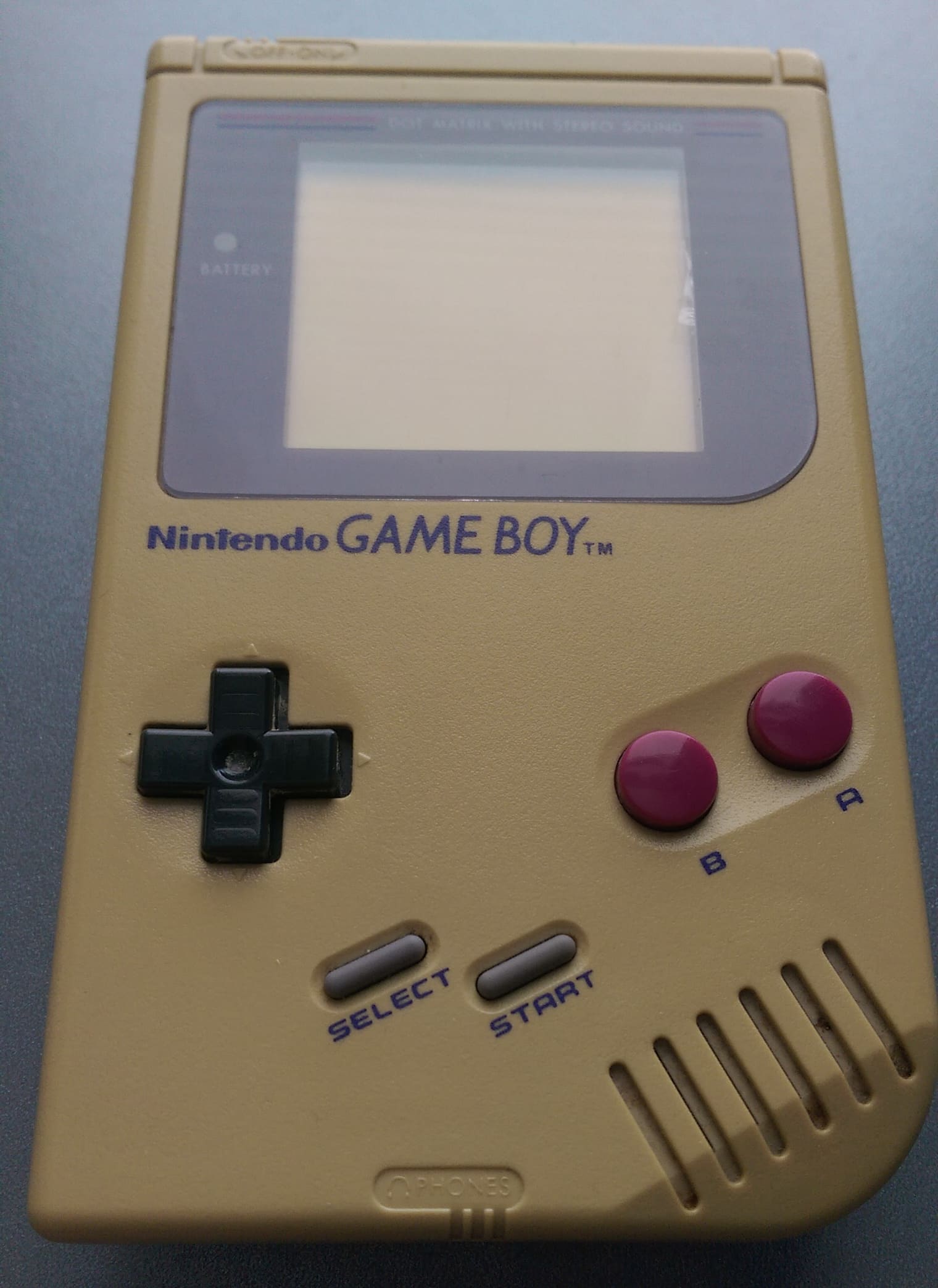

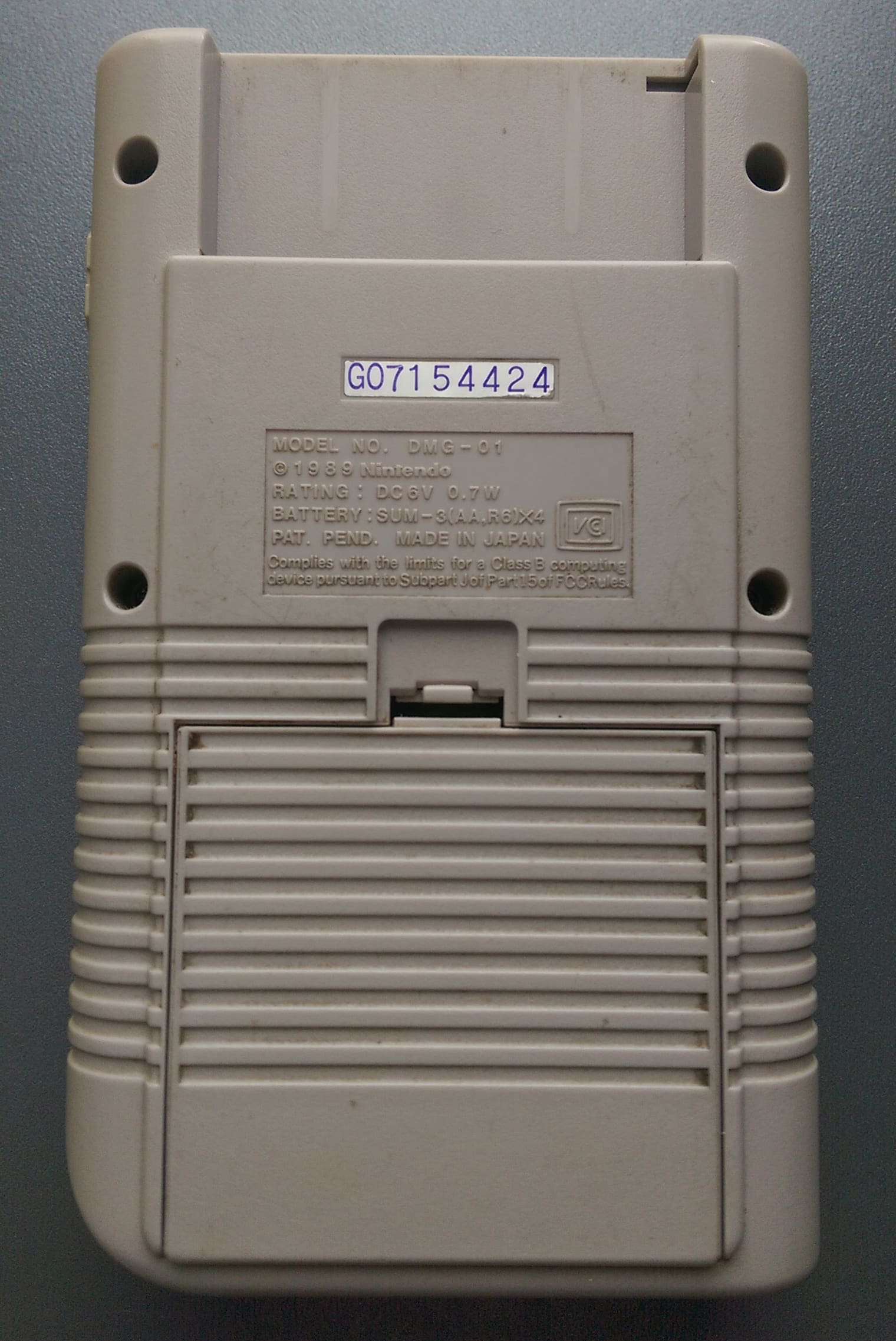

DMG: G07154424 [gekkio]

Color
off-white
Screws
????
Assembly date
June/1990

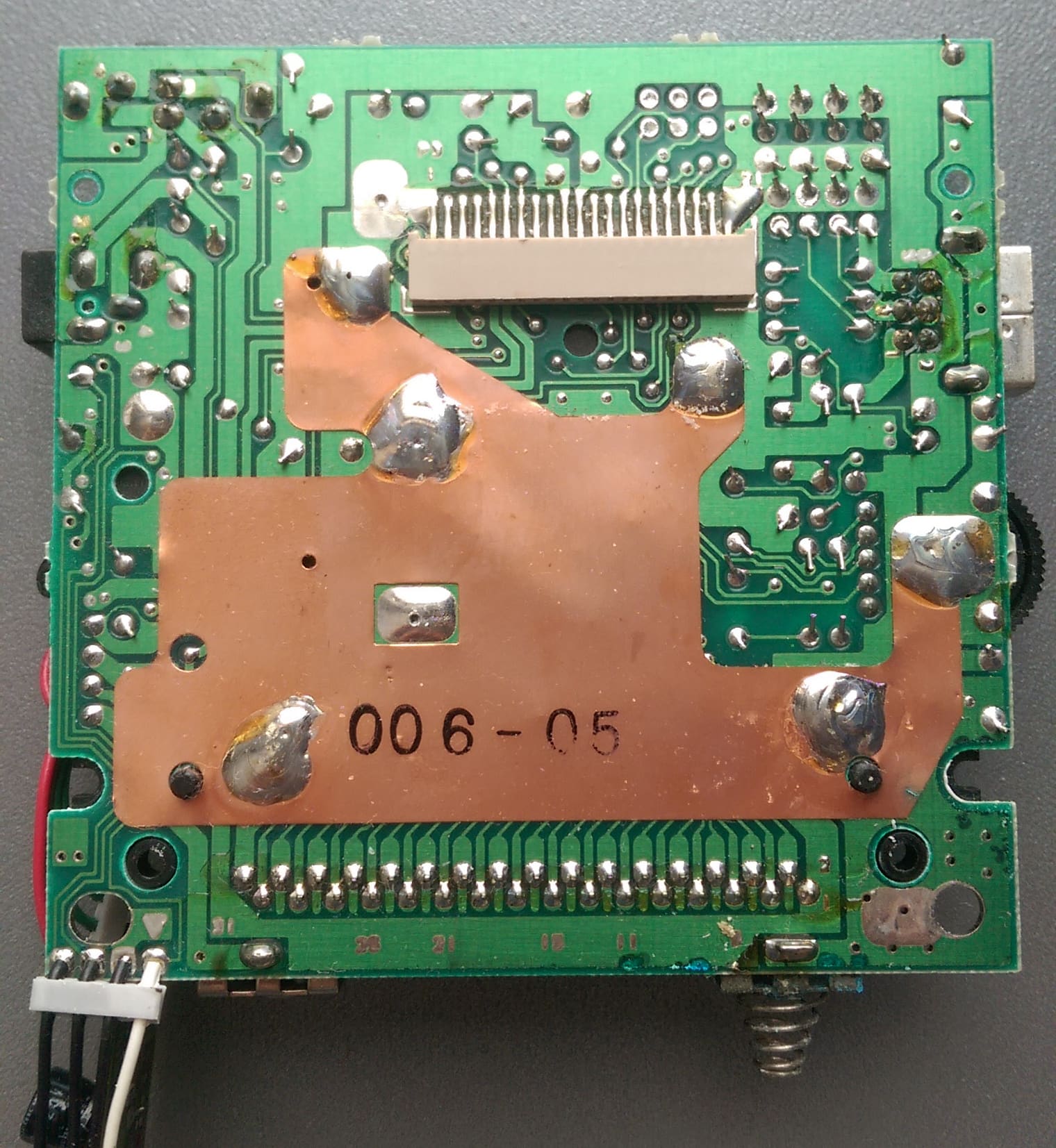

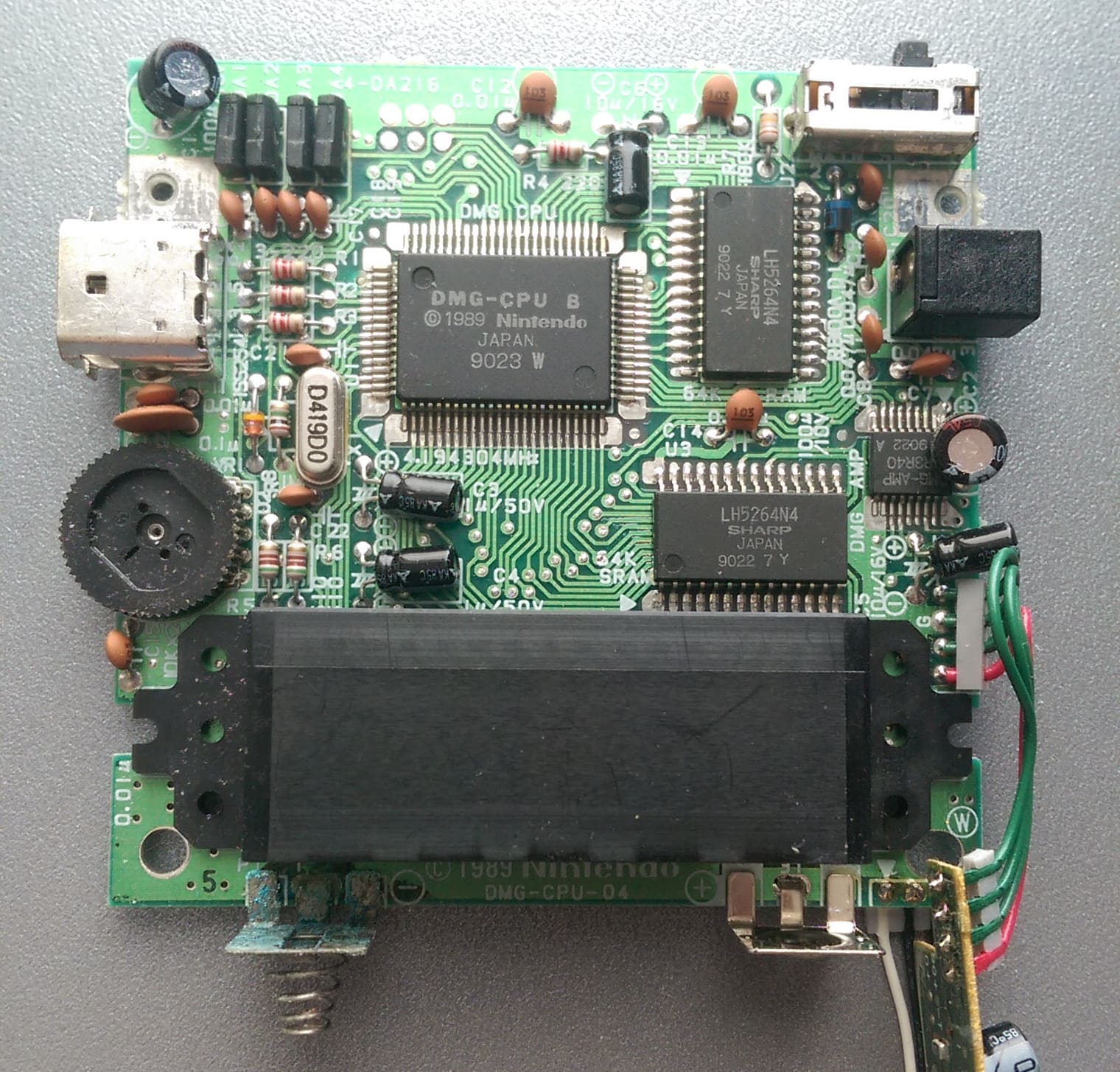

Mainboard

Board type
DMG-CPU-04
Stamp
006 05
Circled letter(s) on board
W
Extra label
5

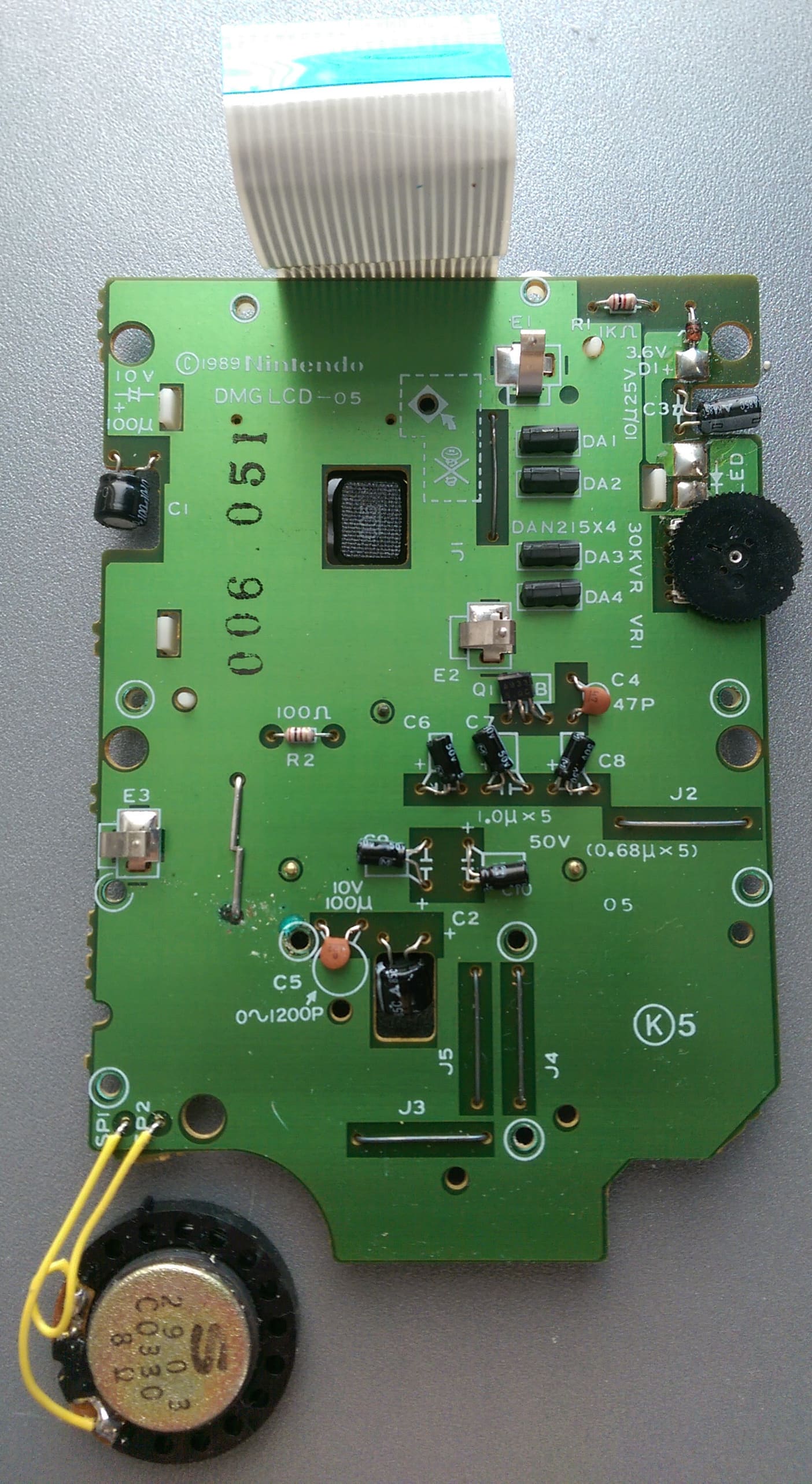

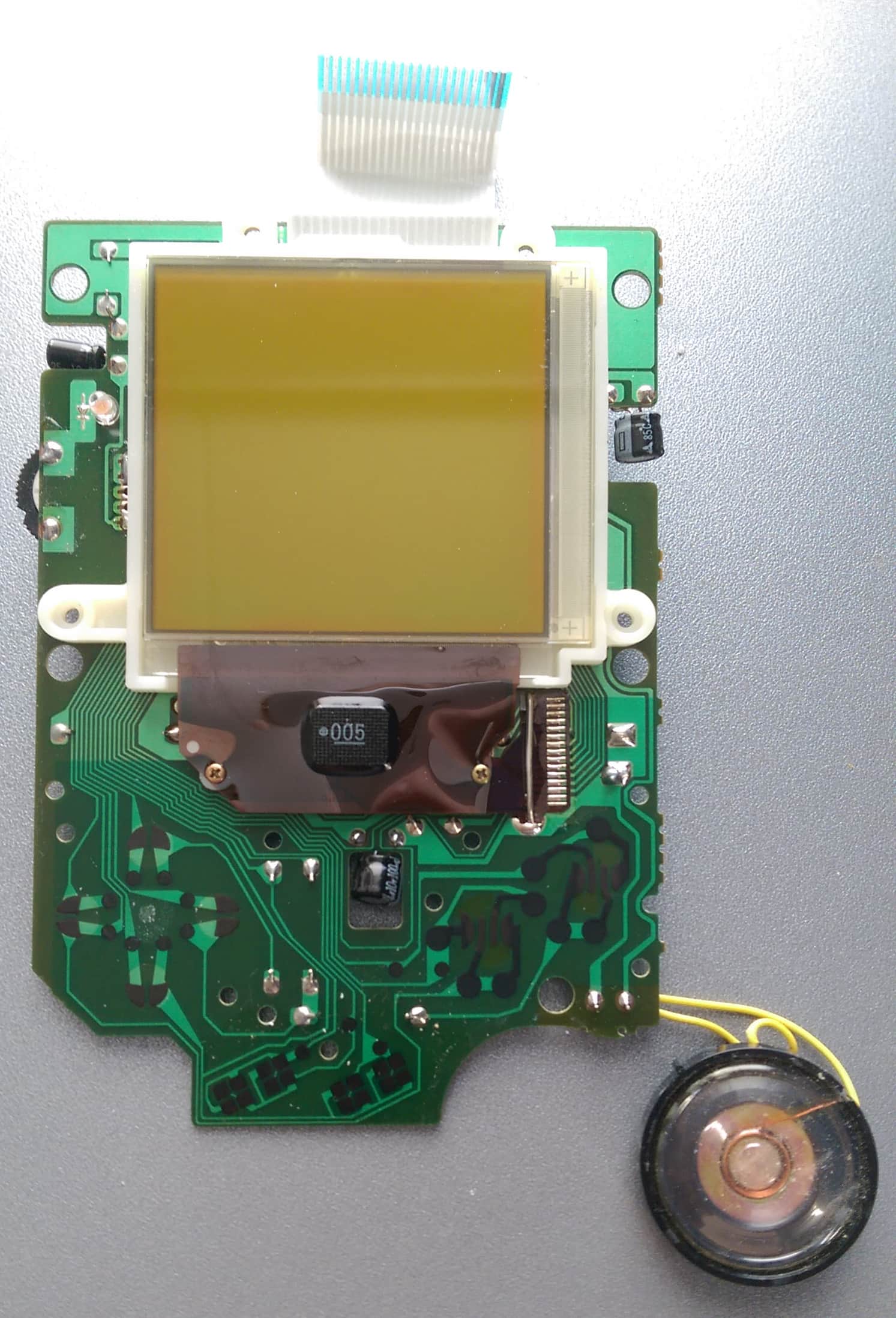

LCD Board

Board type
DMG-LCD-05
Manufacture date
????
Stamp
006 051
Circled letter(s) on board
K5
LCD panel label
????
LCD panel date
????

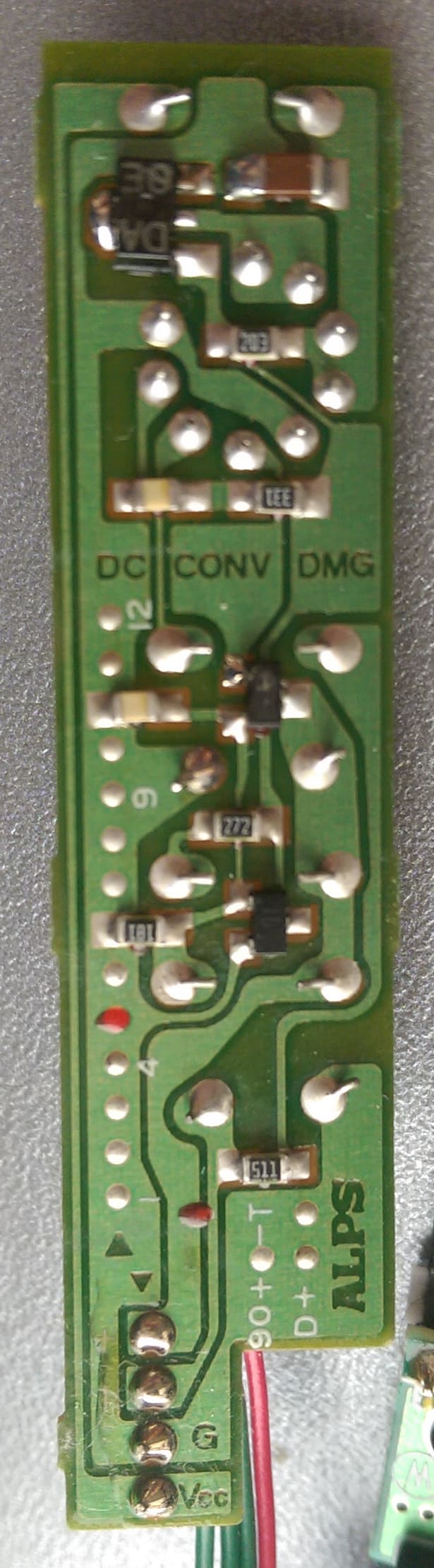

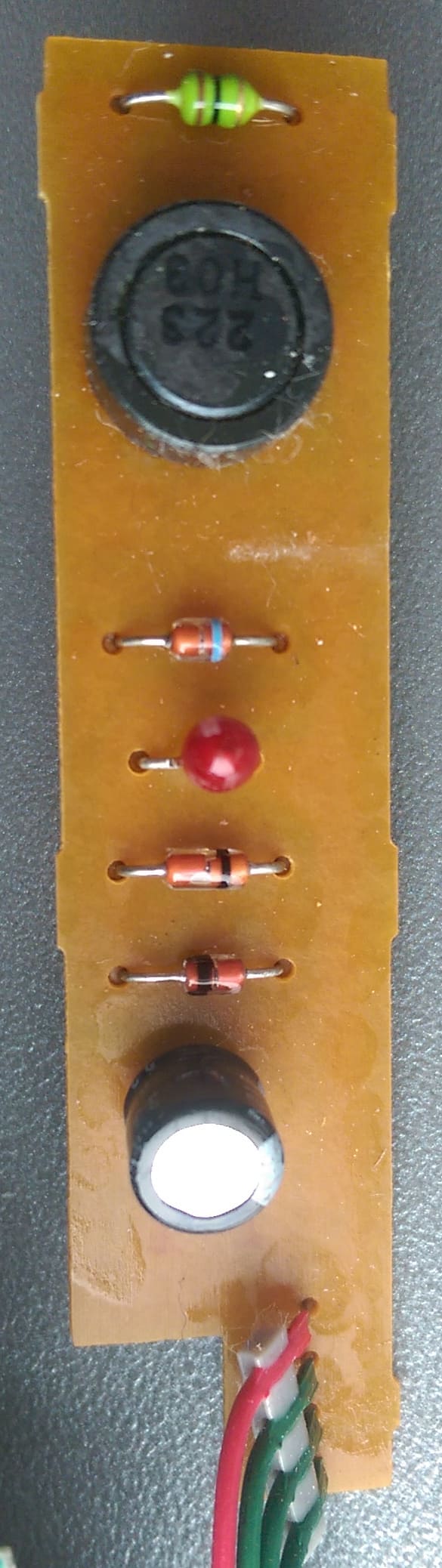

Power Board

Board type
Type A2
Manufacture date
May/1990
Label
DC CONV DMG

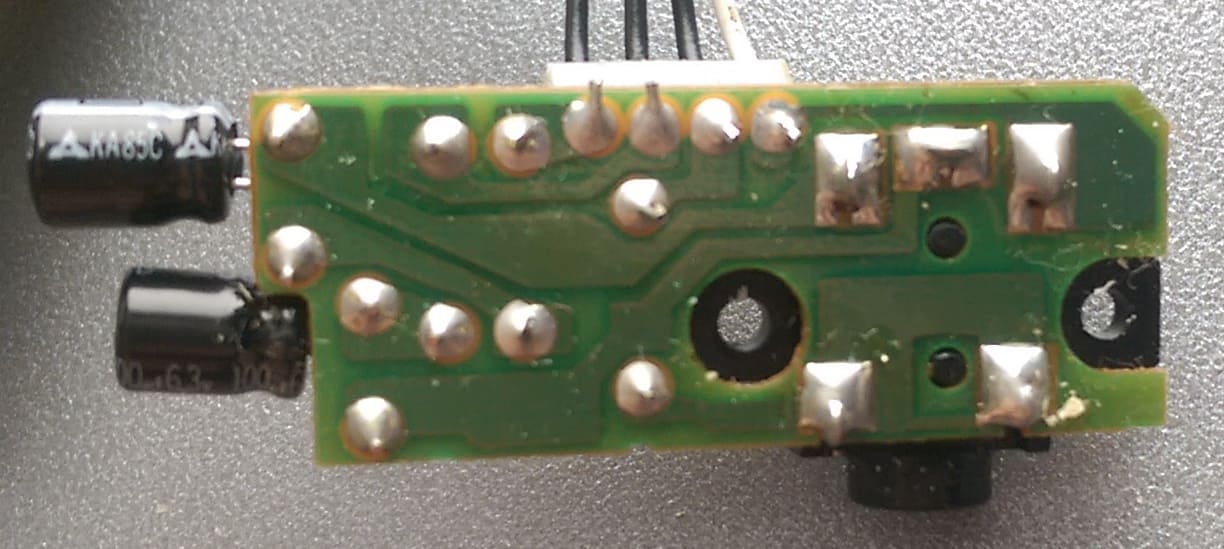

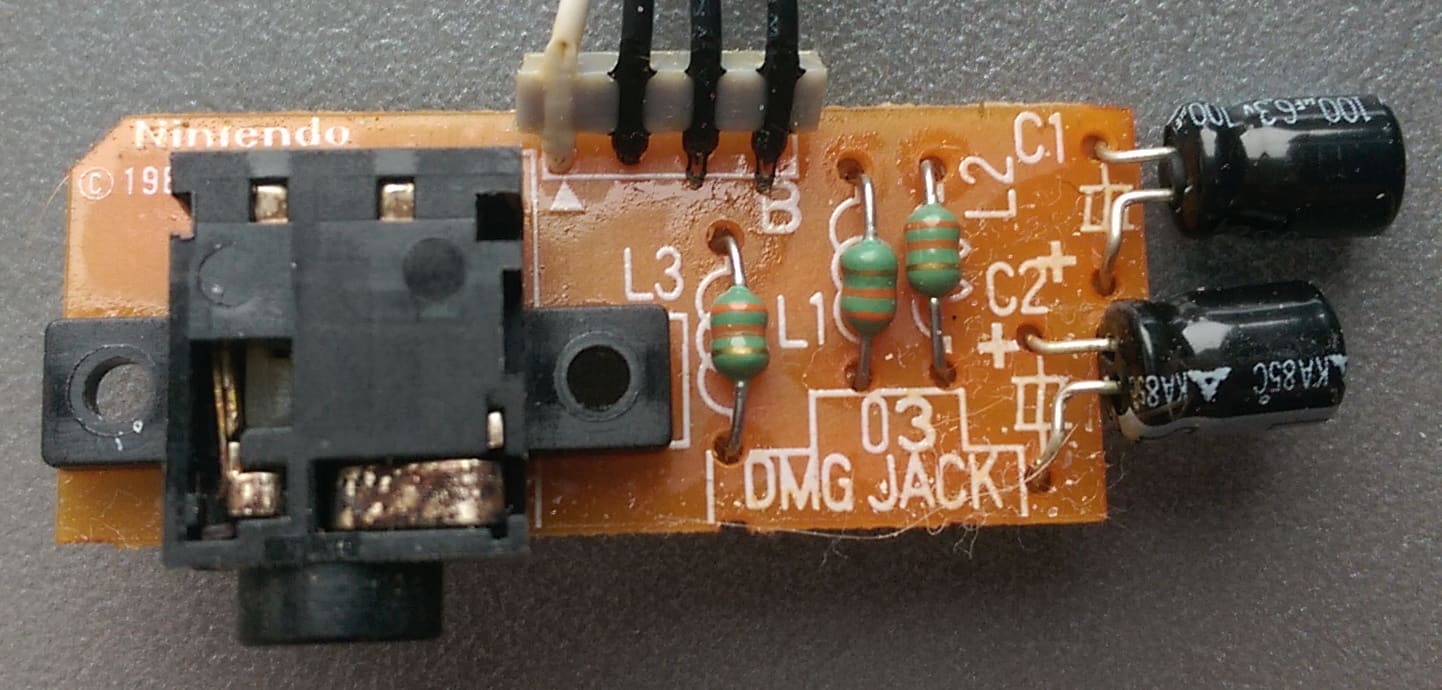

Jack Board

Board type
DMG JACK 03
Extra label
-

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 23/1990DMG-CPU B © 1989 Nintendo JAPAN 9023 W
U2Video RAMLH5264NSharpWeek 22/1990LH5264N SHARP JAPAN 9022 7 Y
U3Work RAMLH5264N4SharpWeek 22/1990LH5264N SHARP JAPAN 9022 7 Y
U4AmplifierIR3R40SharpWeek 22/1990DMG-AMP IR3R40 9022 A
X1CrystalD419????April/1990D419D0
-LCD Column DriverLH5077 FSharpMay/1990LH5077 F, 005
-LCD Row DriverLH5076 FSharpMay/1990LH5076 F, 005
-LCD RegulatorIR3E02SharpWeek 23/1990DMG-REG IR3E02 9023 J
