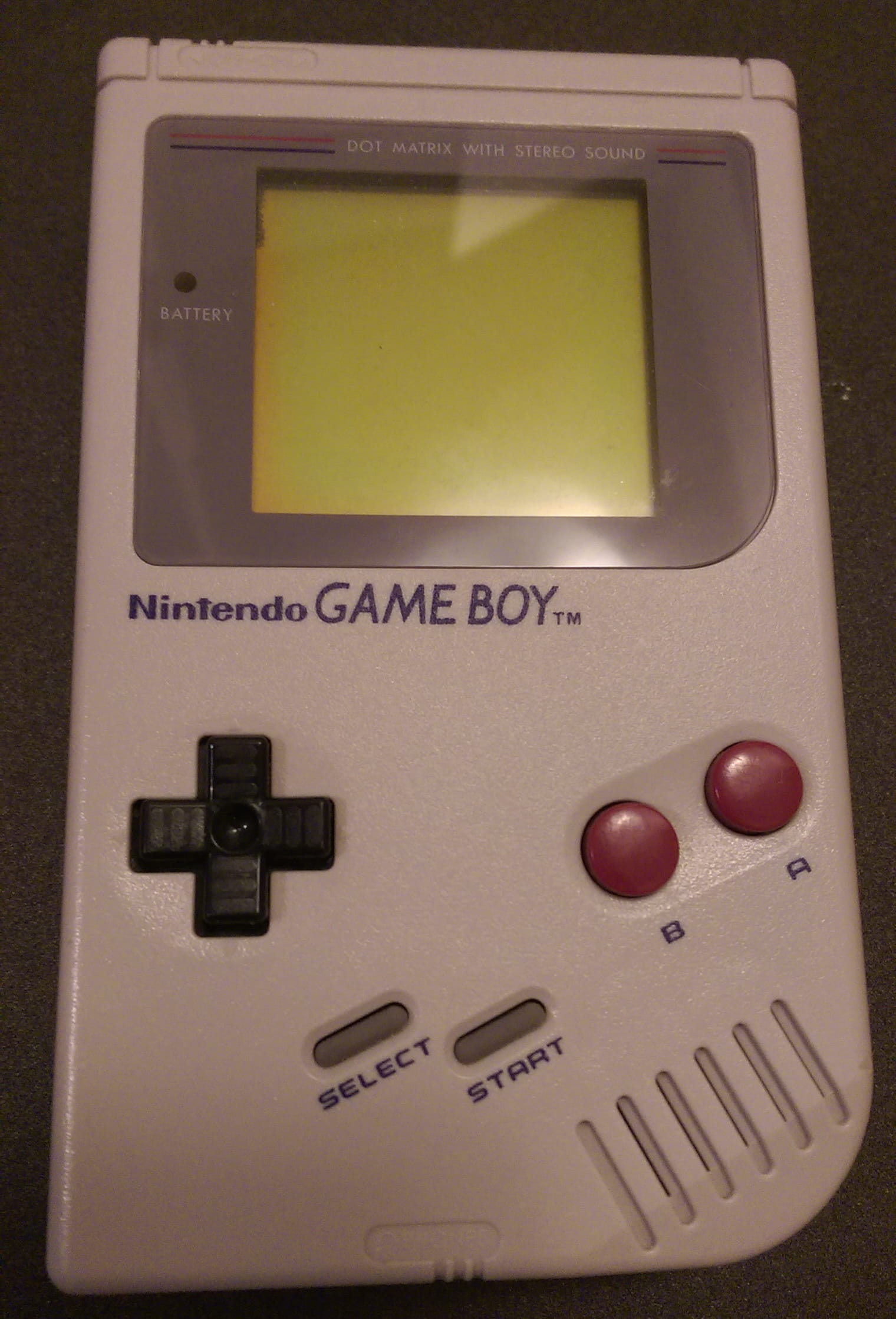

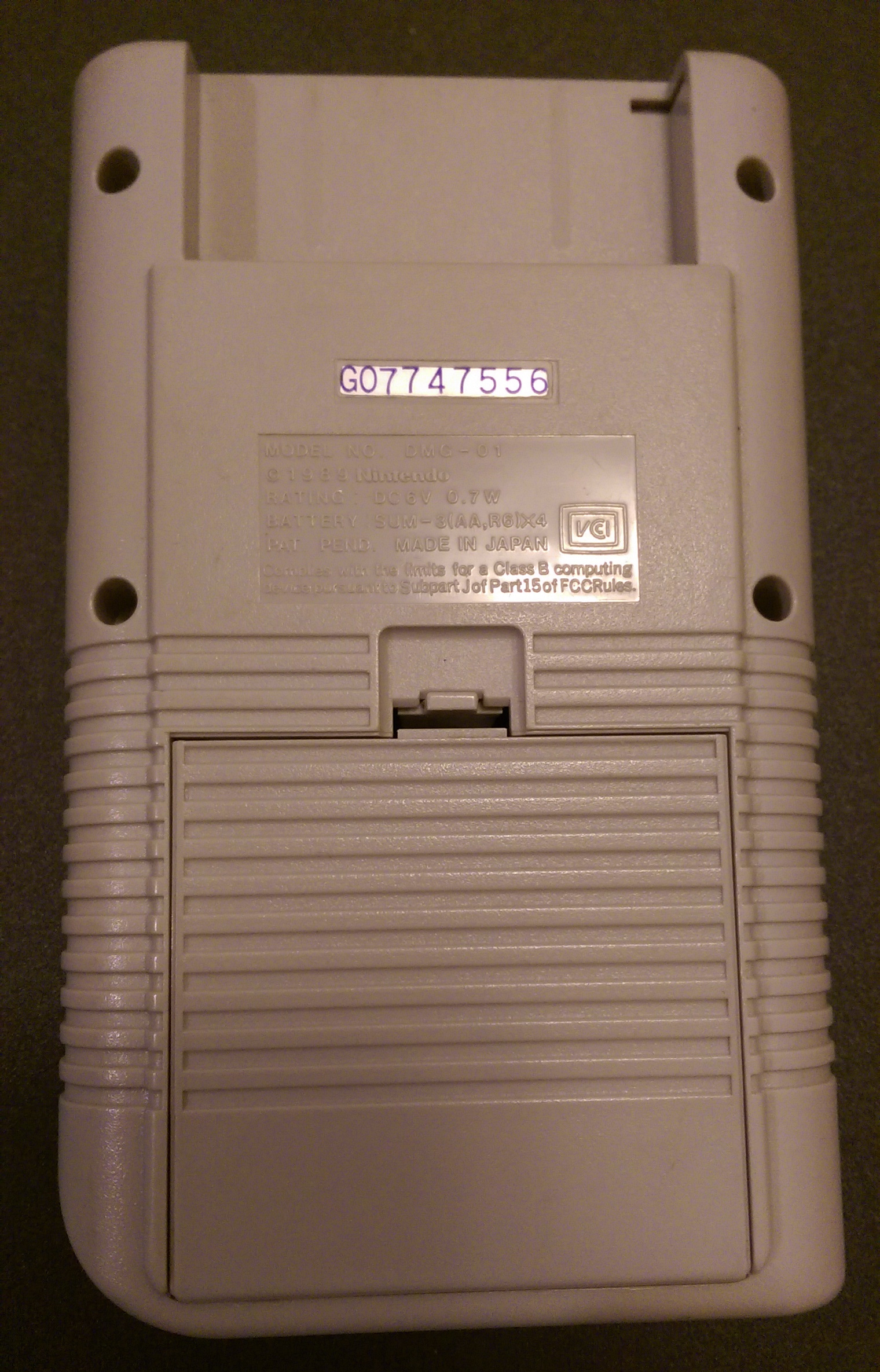

DMG: G07747556 [gekkio]
- Color
- OffWhite
- Assembly date
- July/1990

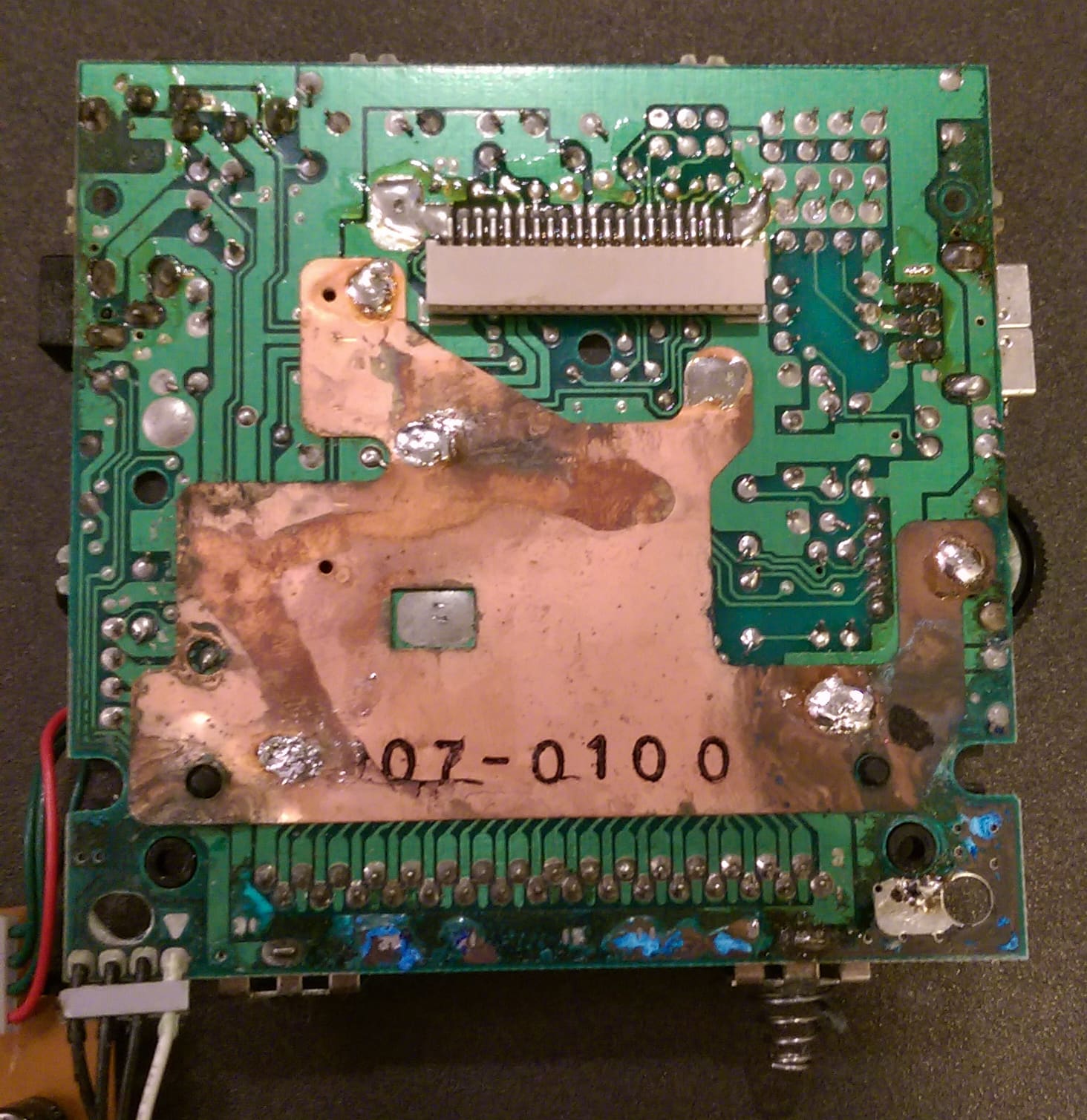

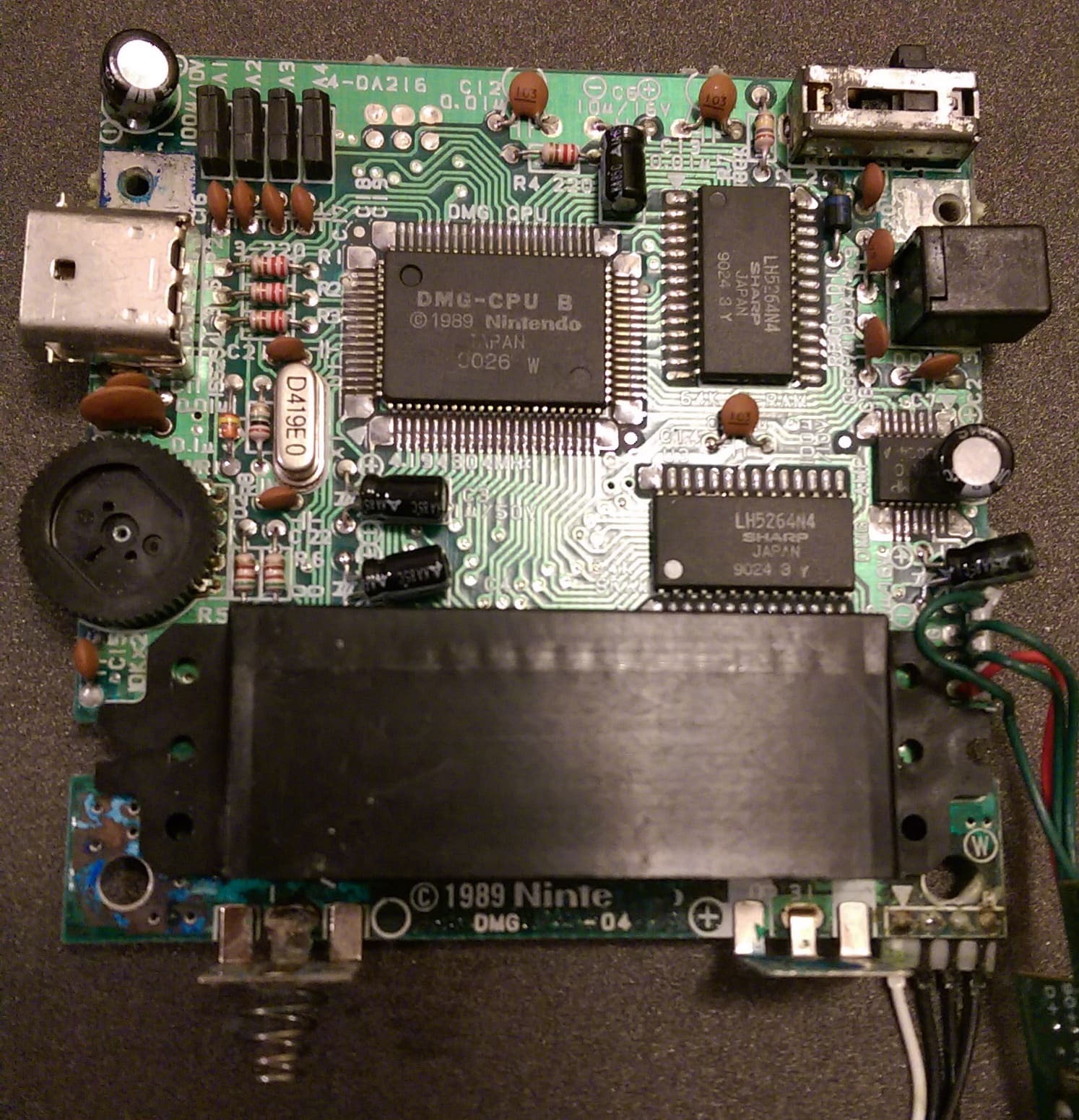

Mainboard
- Board type
- DMG-CPU-04
- Stamp on board
- 007 0100
- Circled letter(s) on board
- W
- Extra label
- 5

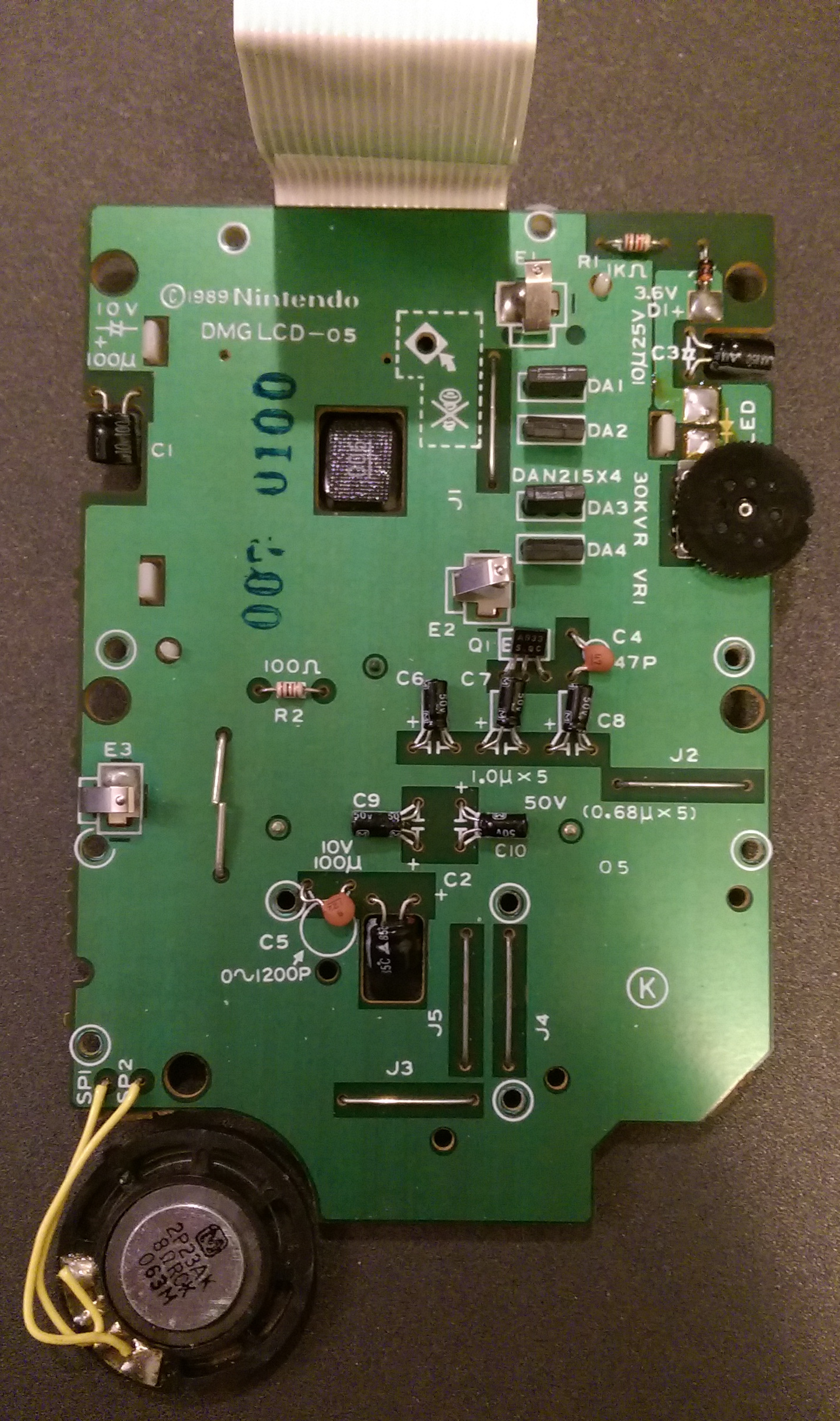

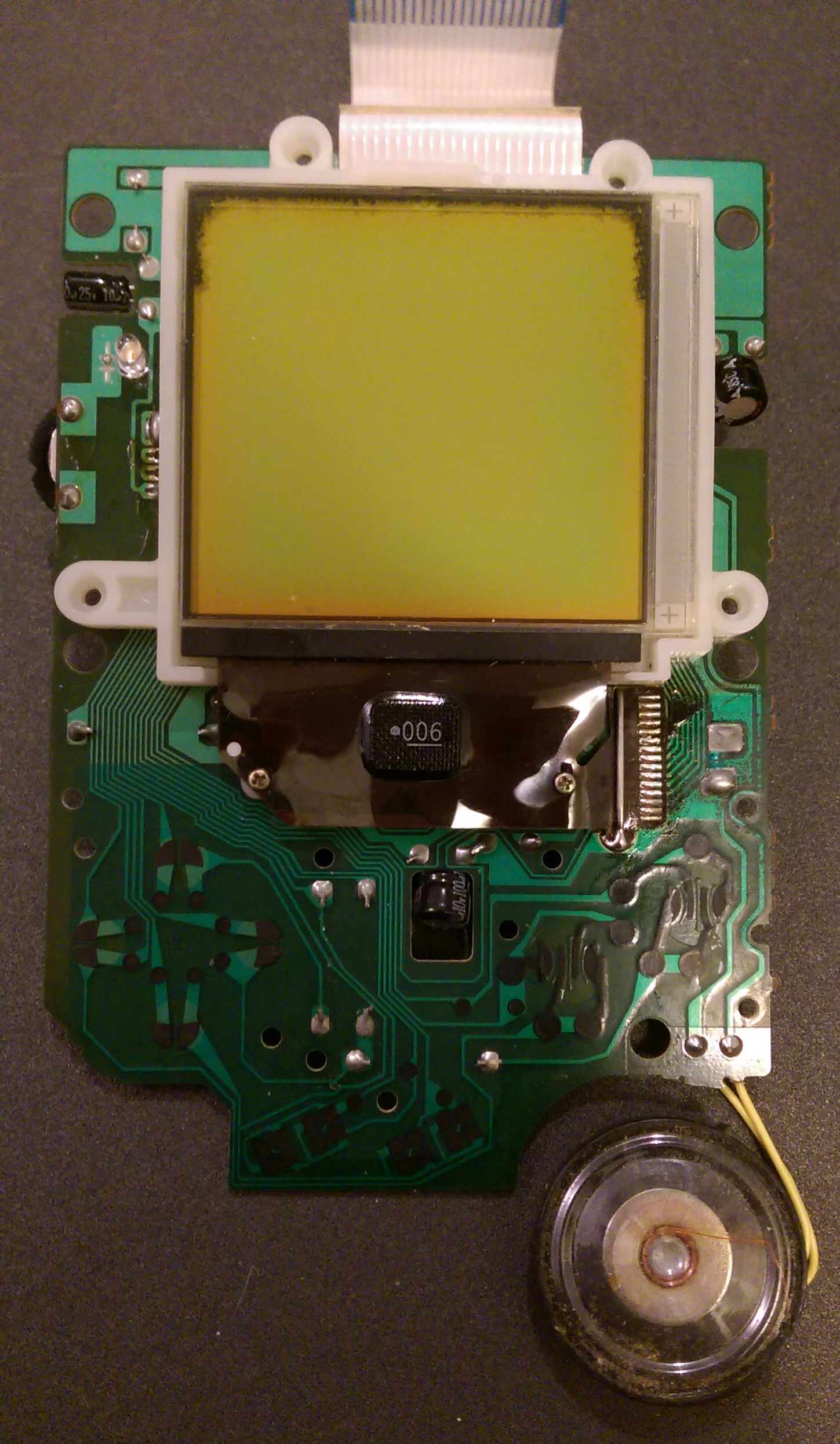

LCD board
- Board type
- DMG-LCD-05
- Stamp
- 007 0100
- Circled letter(s) on board
- K

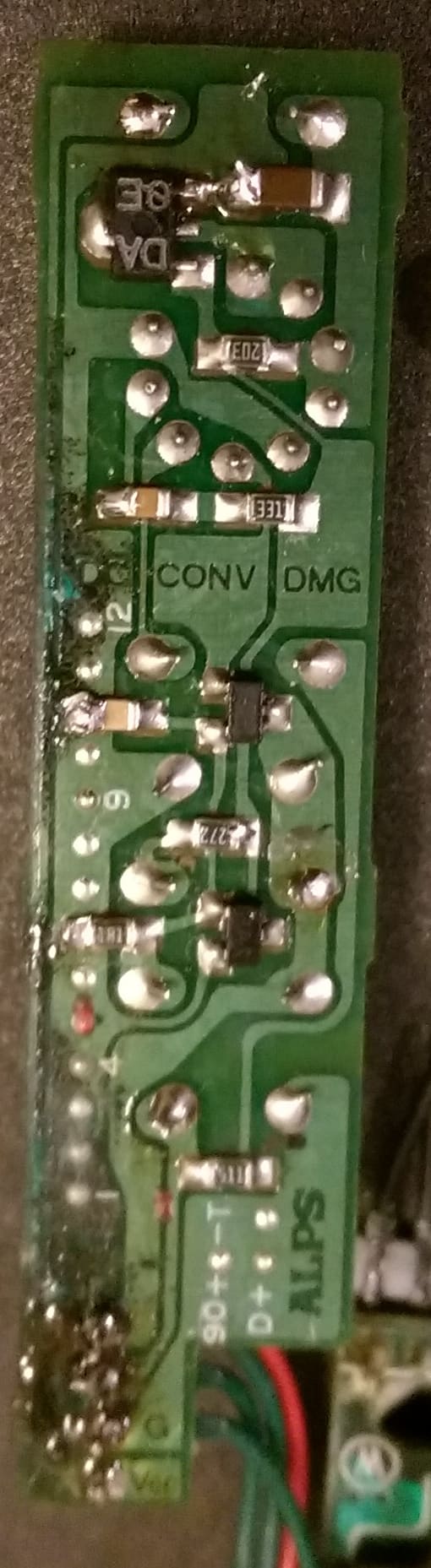

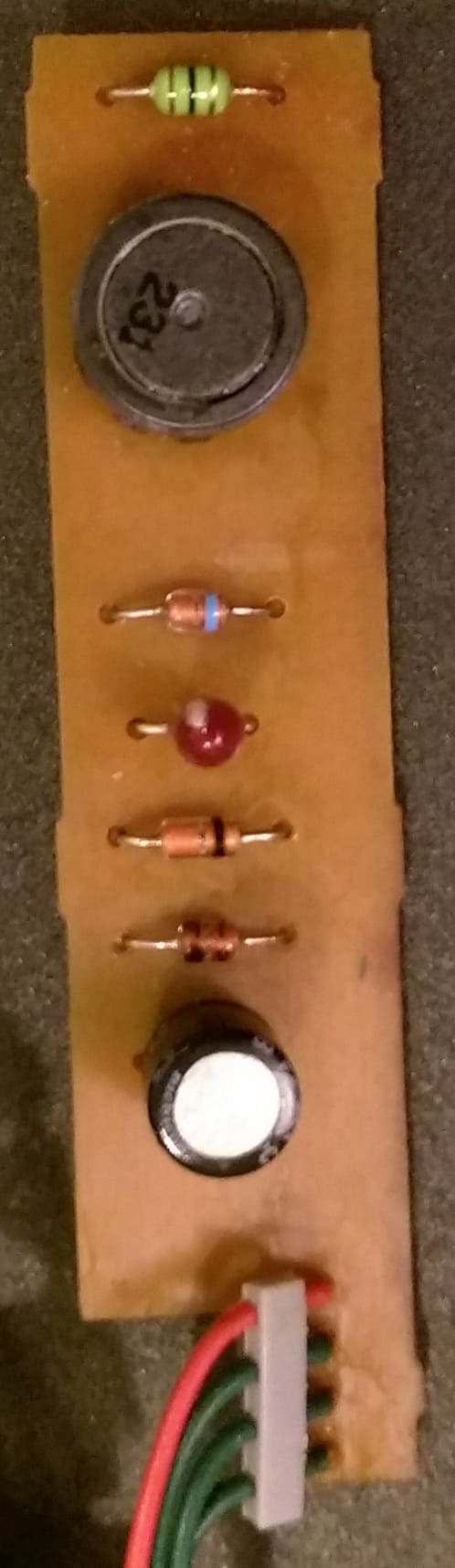

Power board
- Board type
- A2
- Manufacture date
- May/1990
- Label
- DC CONV DMG

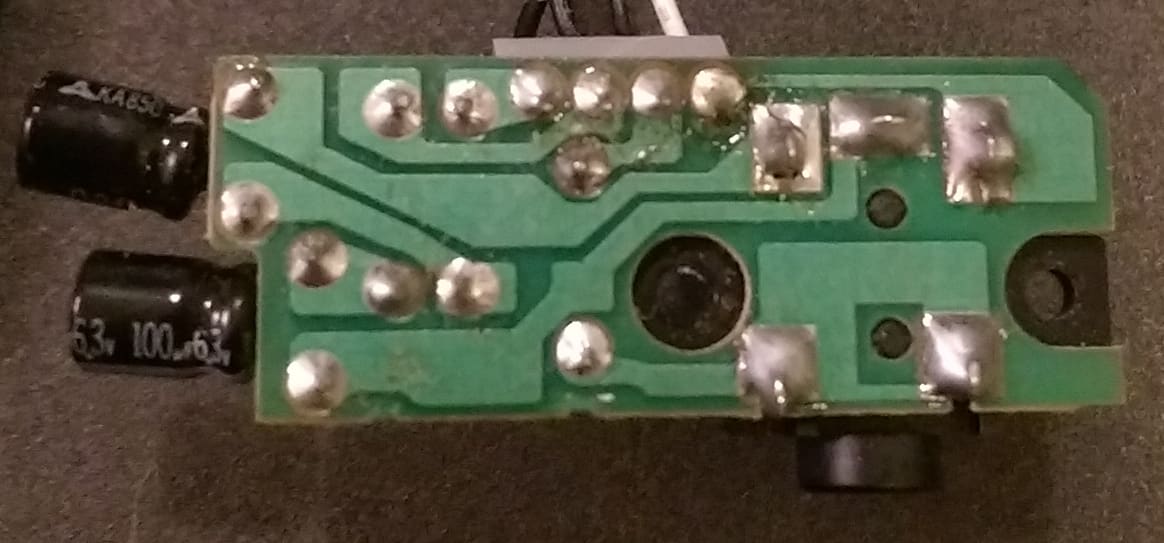

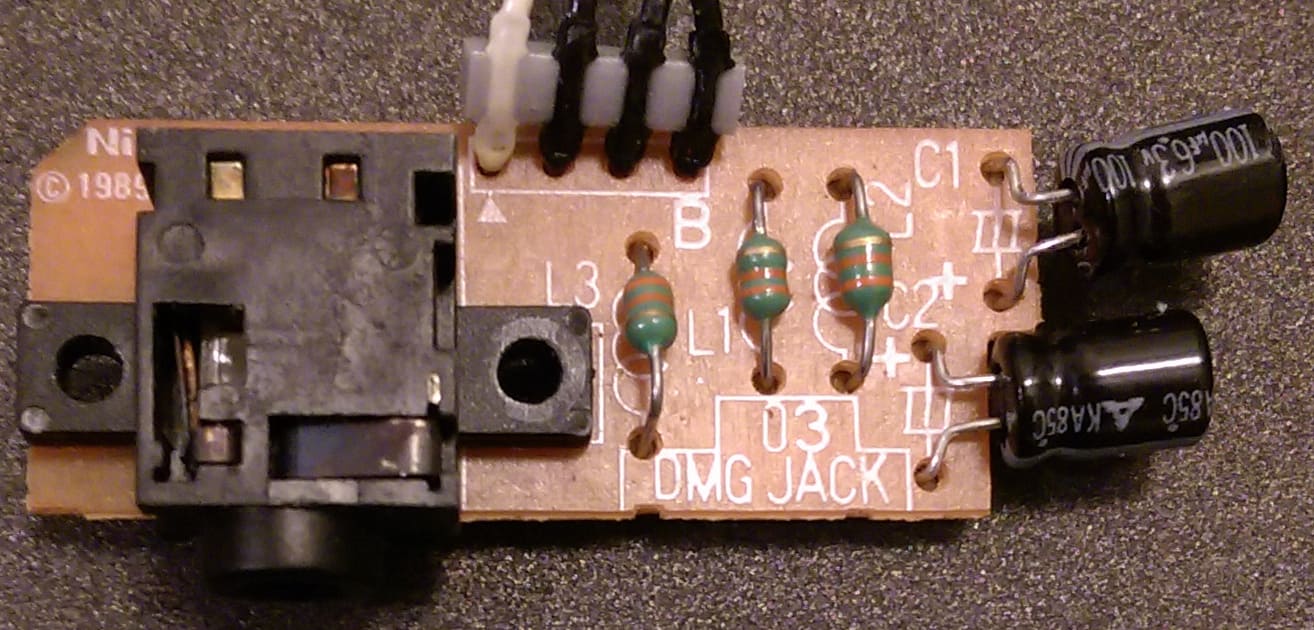

Jack board
- Board type
- DMG JACK 03
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU B | Sharp | Week 26/1990 | DMG-CPU B © 1989 Nintendo JAPAN 9026 W |
| U2 | VRAM | LH5264N | Sharp | Week 24/1990 | LH5264N SHARP JAPAN 9024 3 Y |
| U3 | WRAM | LH5264N | Sharp | Week 24/1990 | LH5264N SHARP JAPAN 9024 3 Y |
| U4 | Audio amplifier | IR3R40 | Sharp | Week 24/1990 | DMG-AMP IR3R40 9024 A |
| X1 | Crystal | 4.194304 MHz | Daishinku | May/1990 | D419E0 |
| - | LCD column driver | LH5077 F | Sharp | June/1990 | LH5077 F 006 |
| - | LCD row driver | LH5076 F | Sharp | June/1990 | LH5076 F 006 |
| - | LCD bias generator | IR3E02 | Sharp | Week 24/1990 | DMG-REG IR3E02 9024 J |
