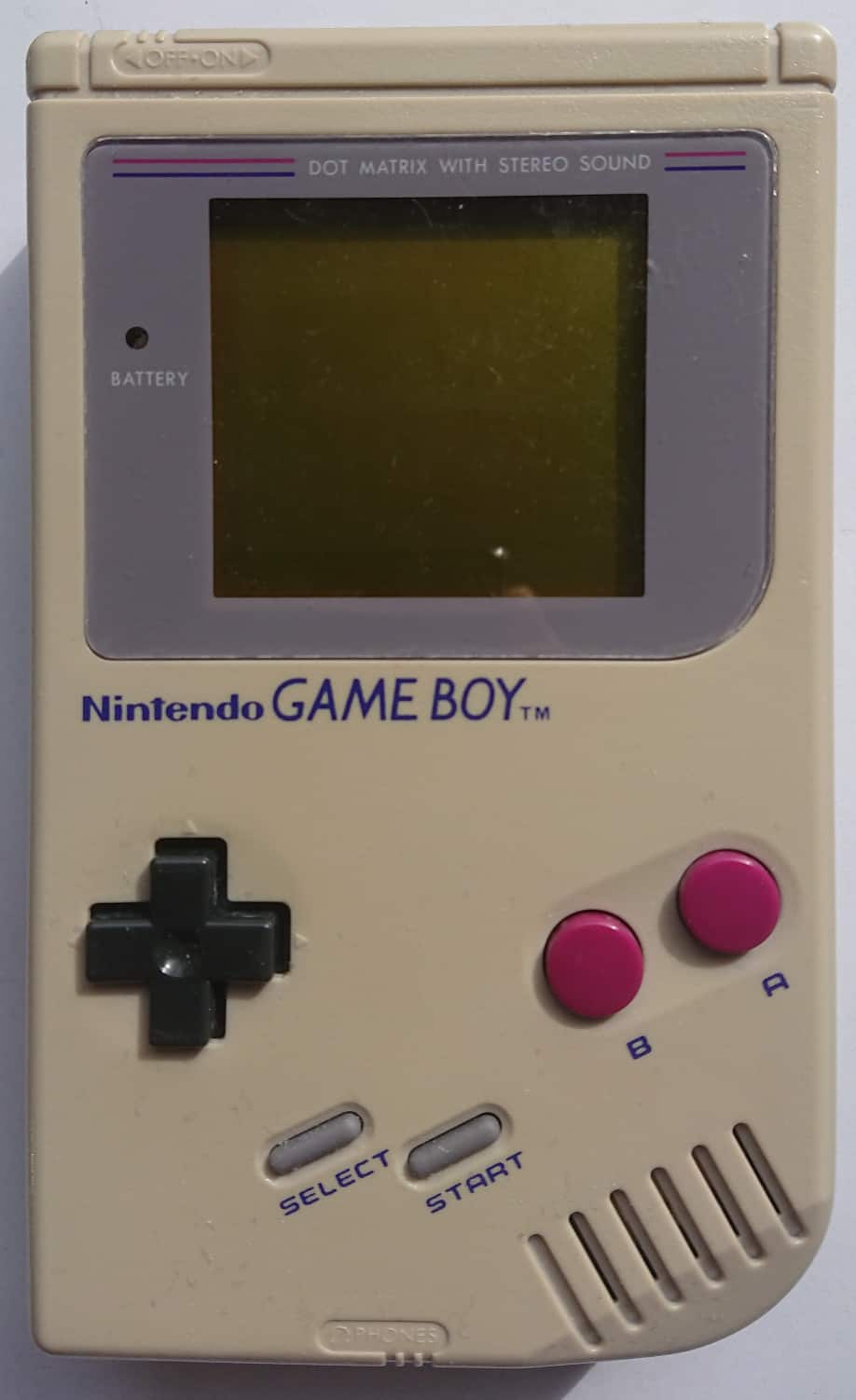

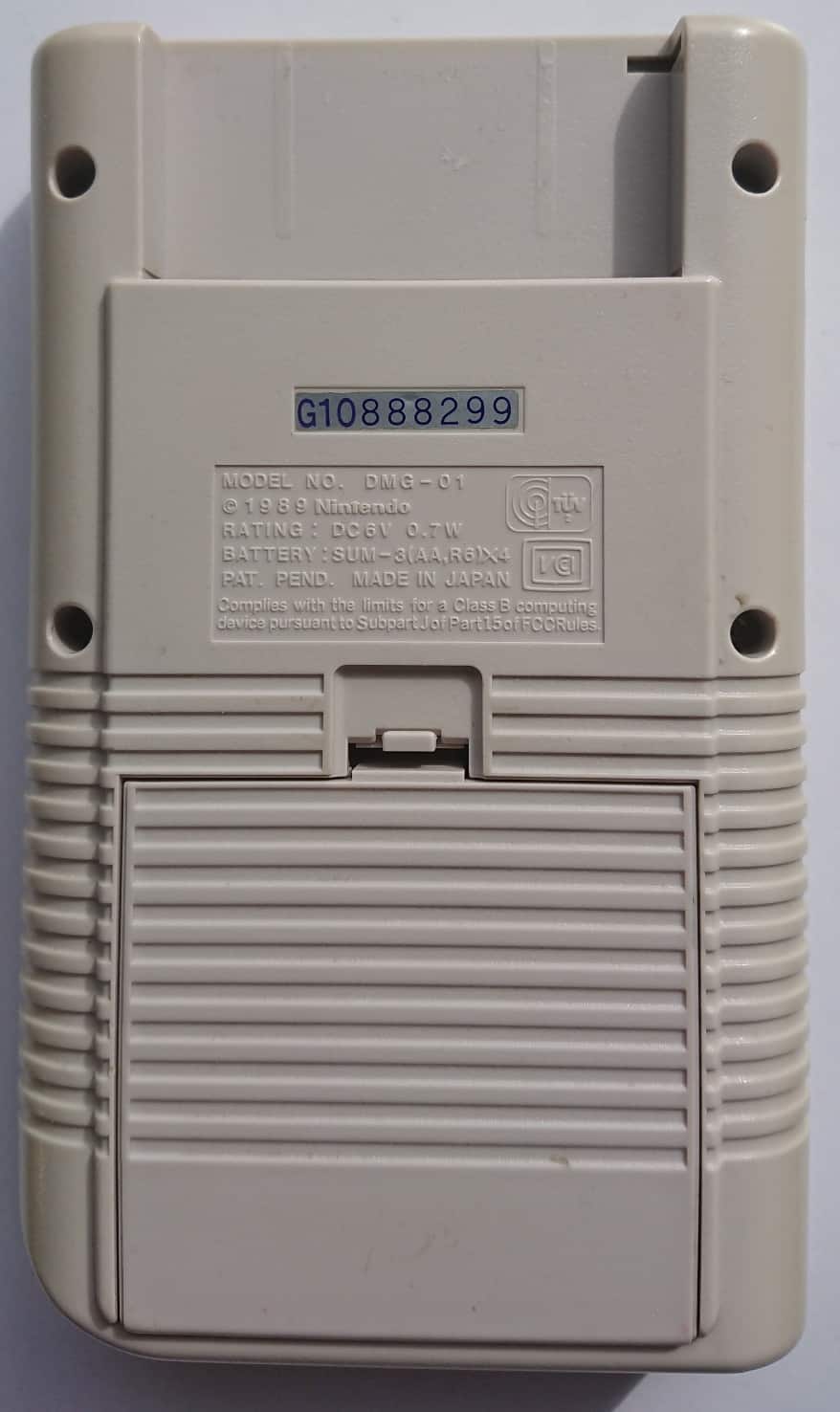

DMG: G10888299 [gekkio]

Color
off-white
Screws
philips
Assembly date
October/1990

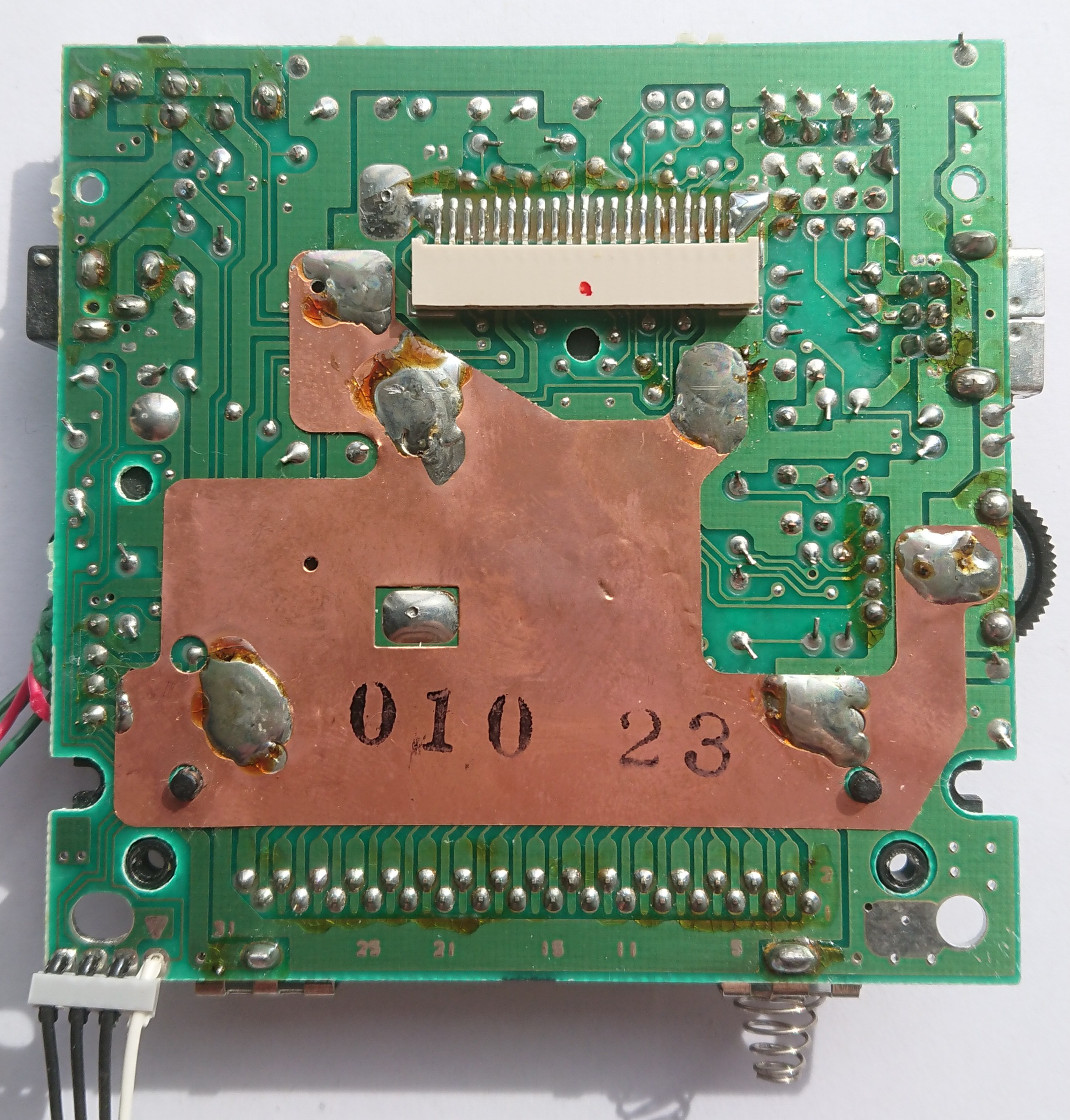

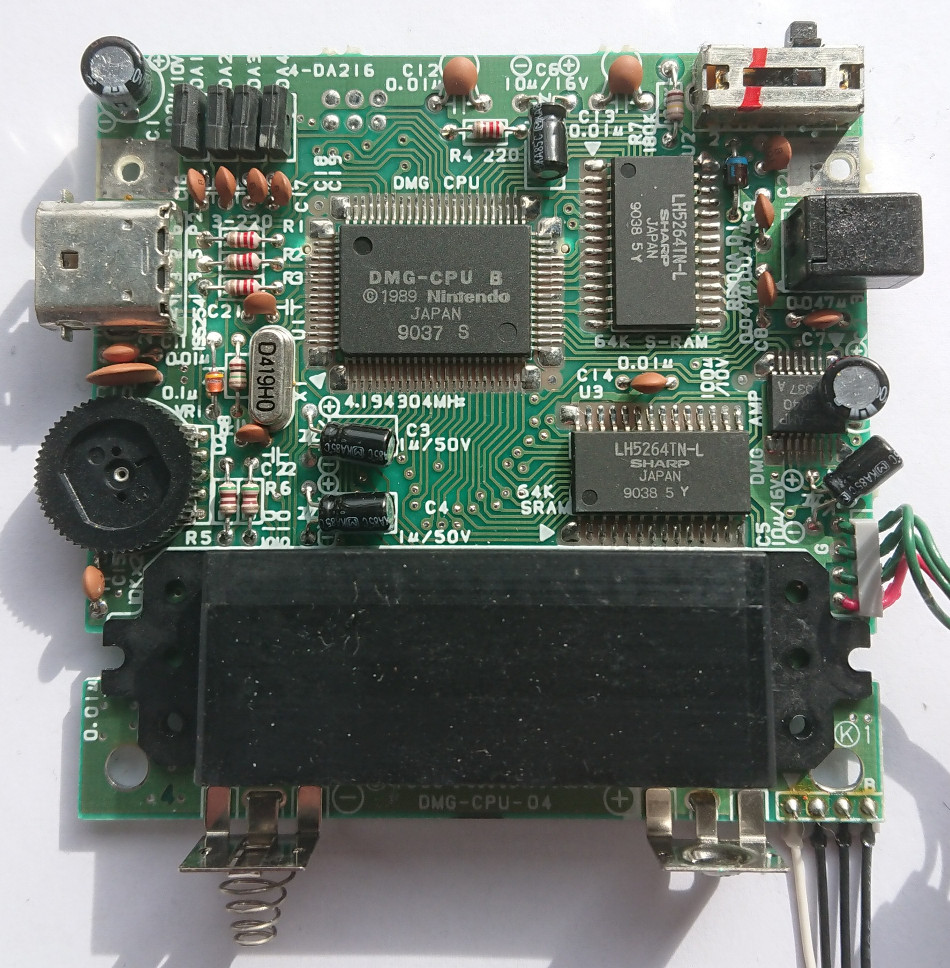

Mainboard

Board type
DMG-CPU-04
Stamp
010 23
Circled letter(s) on board
K1
Extra label
4

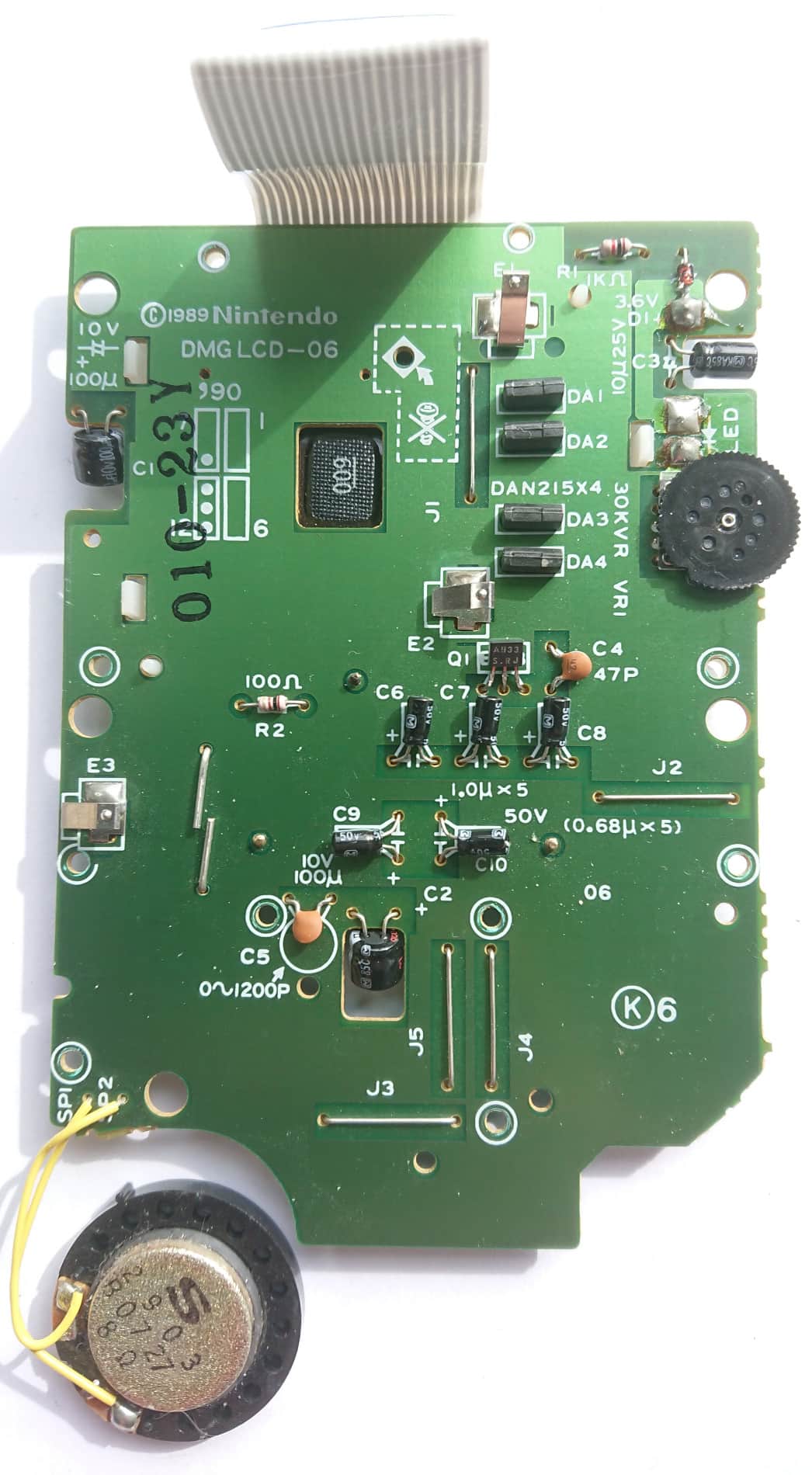

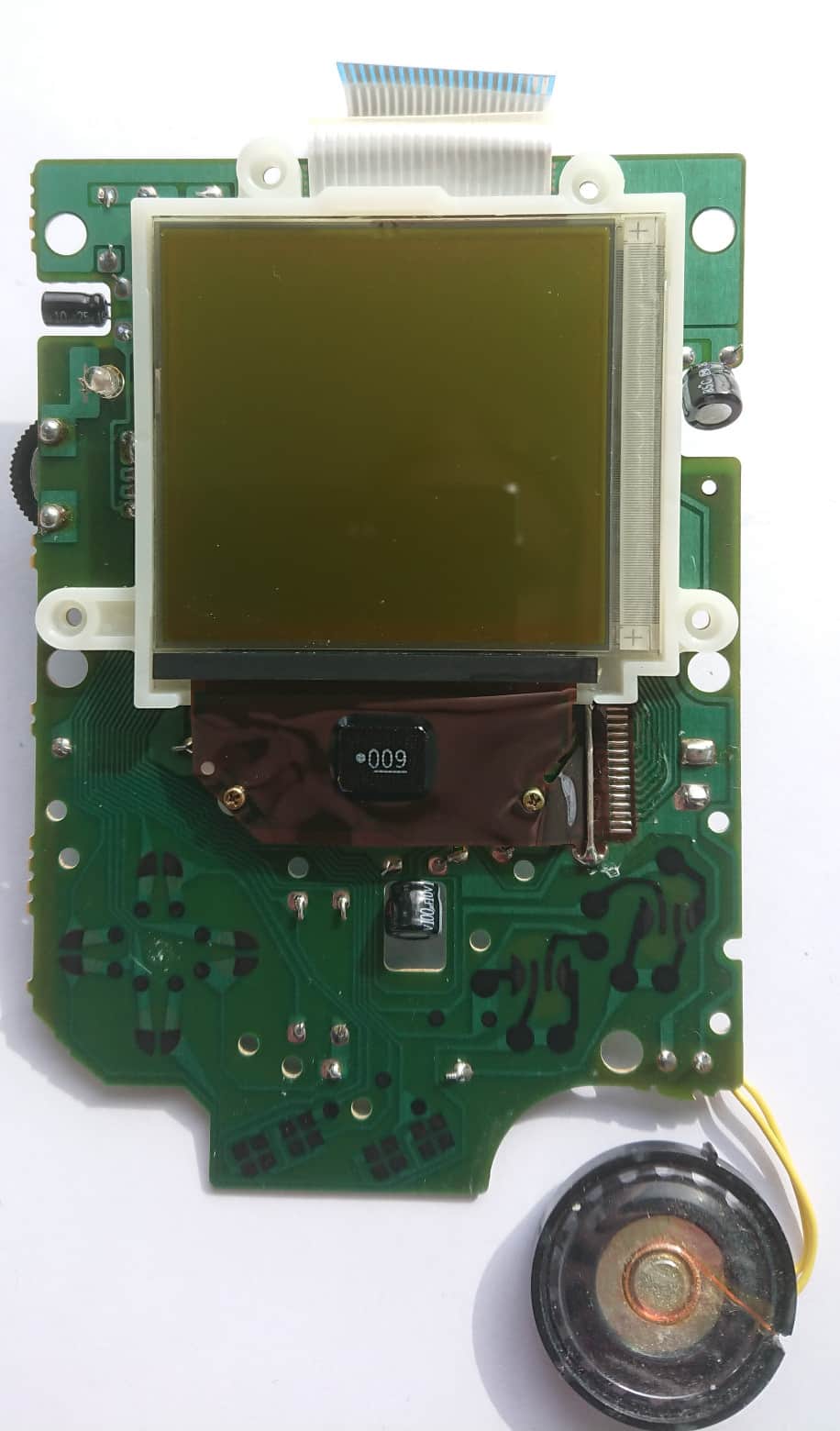

LCD Board

Board type
DMG-LCD-06
Manufacture date
August/1990
Stamp
010-23Y
Circled letter(s) on board
Z
LCD panel label
SY900926
LCD panel date
September/1990

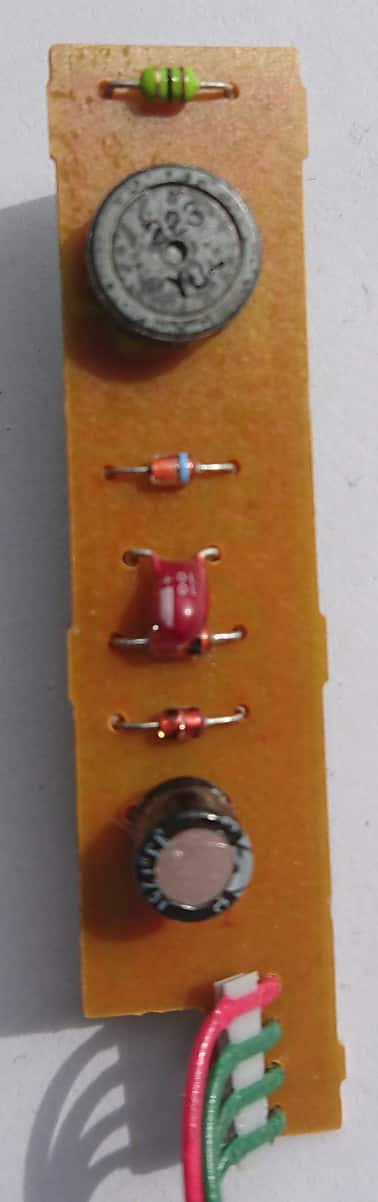

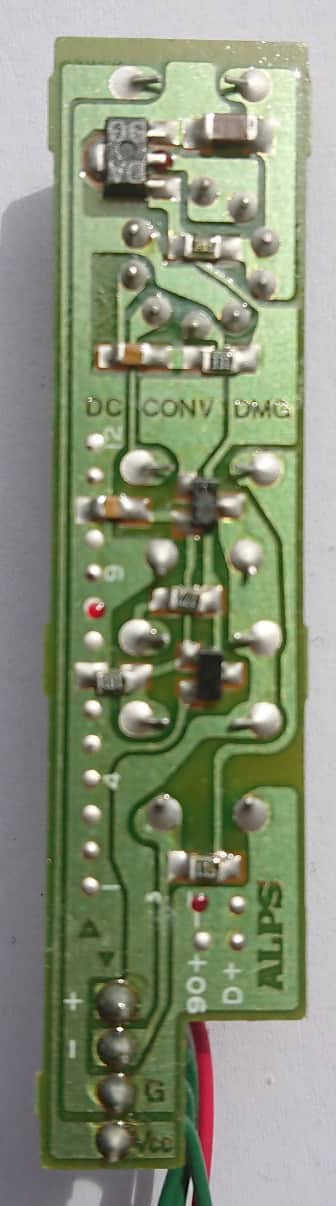

Power Board

Board type
Type A2
Manufacture date
August/1990
Label
DC CONV DMG

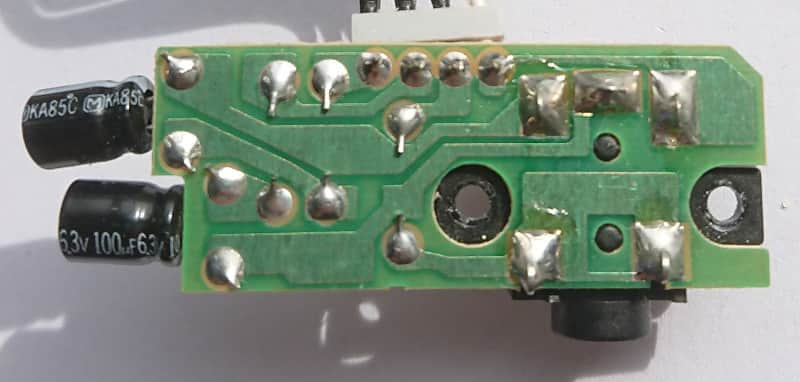

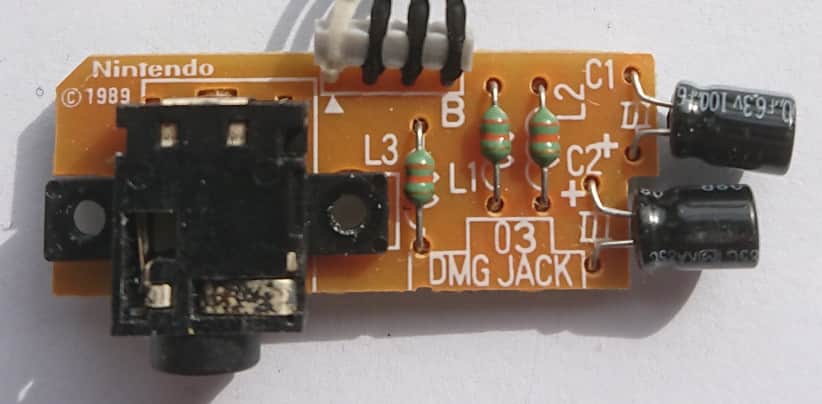

Jack Board

Board type
DMG JACK 03
Extra label
-

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 37/1990DMG-CPU B © 1989 Nintendo JAPAN 9037 S
U2Video RAMLH5264TN-LSharpWeek 38/1990LH5264TN-L SHARP JAPAN 9038 5 Y
U3Work RAMLH5264TN-LSharpWeek 38/1990LH5264TN-L SHARP JAPAN 9038 5 Y
U4AmplifierIR3R40SharpWeek 37/1990DMG-AMP IR3R40 9037 A
X1CrystalD419????August/1990D419H0
-LCD Column DriverLH5077 FSharpSeptember/1990LH5077 F, 009
-LCD Row DriverLH5076 FSharpSeptember/1990LH5076 F, 009
-LCD RegulatorIR3E02SharpWeek 39/1990DMG-REG IR3E02 9039 A
