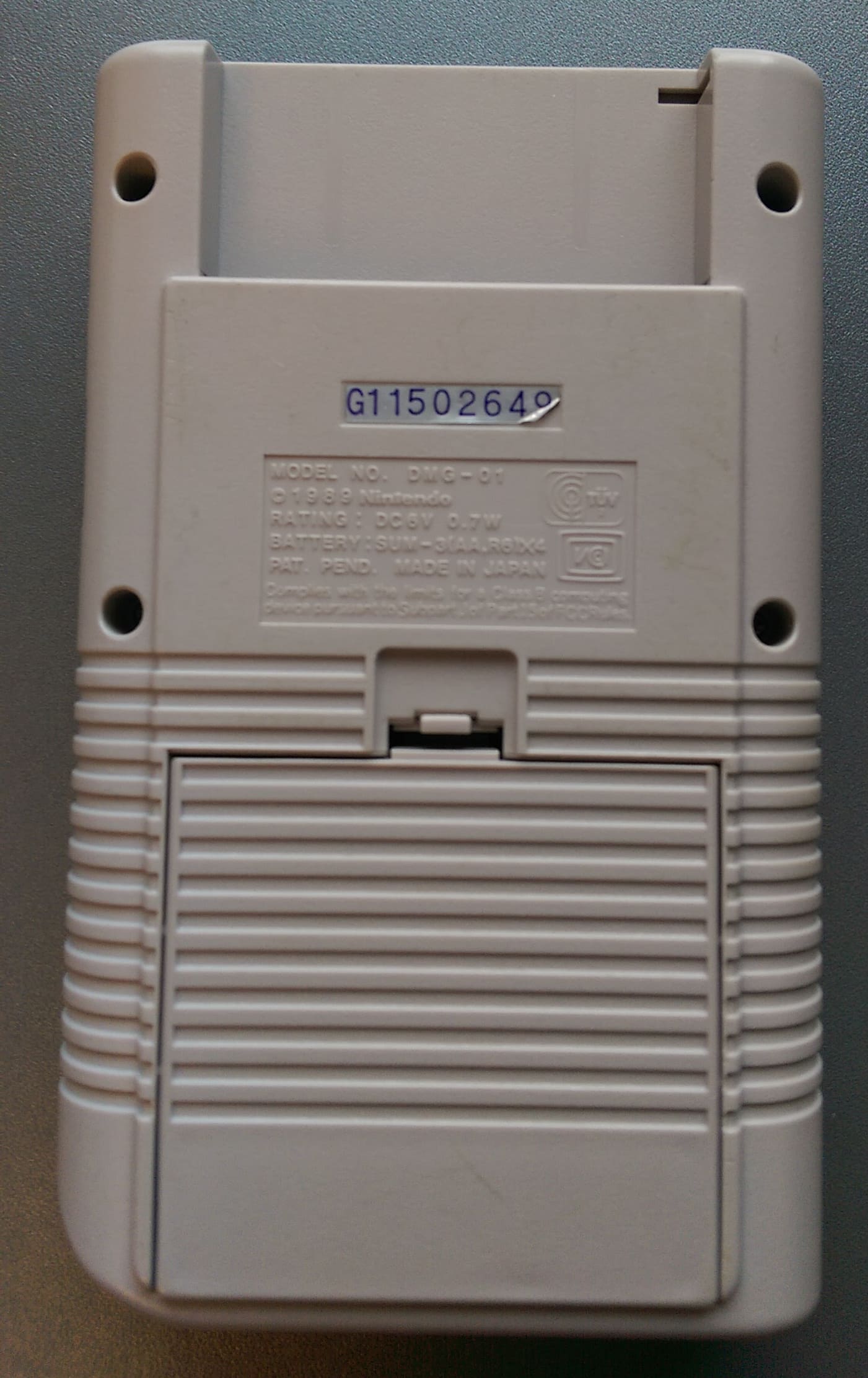

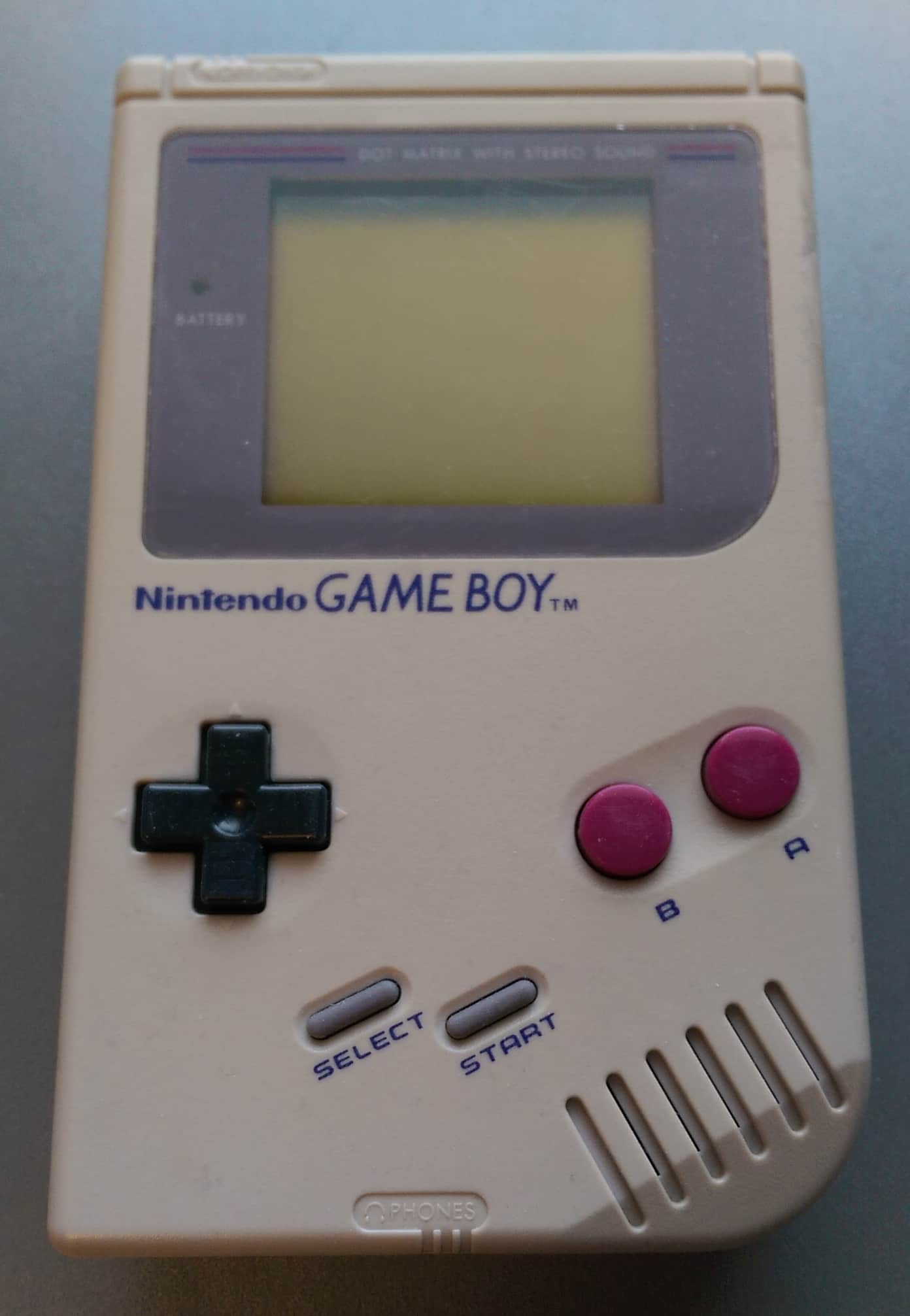

DMG: G11502649 [gekkio]

Color
off-white
Screws
????
Assembly date
November/1990

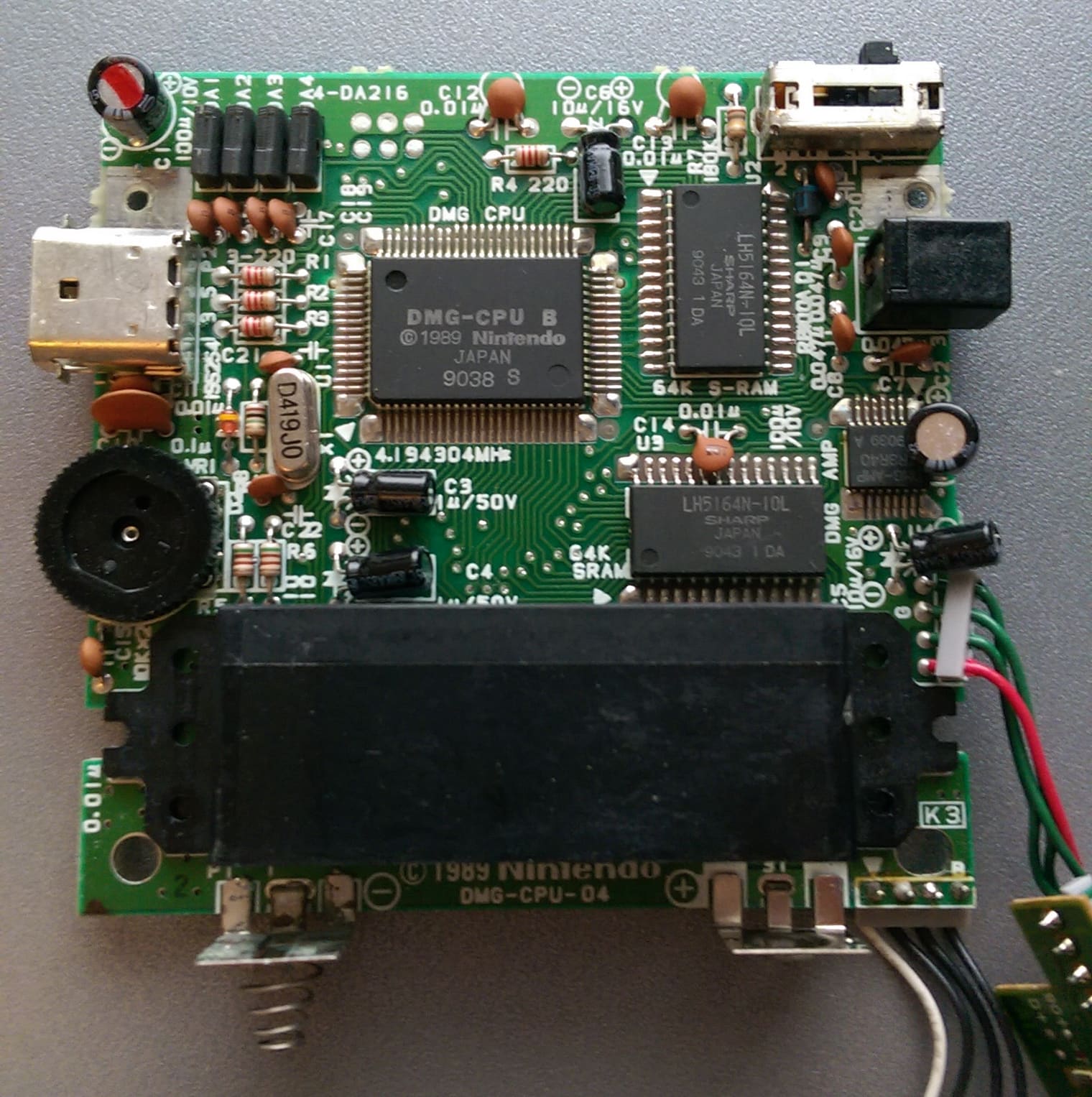

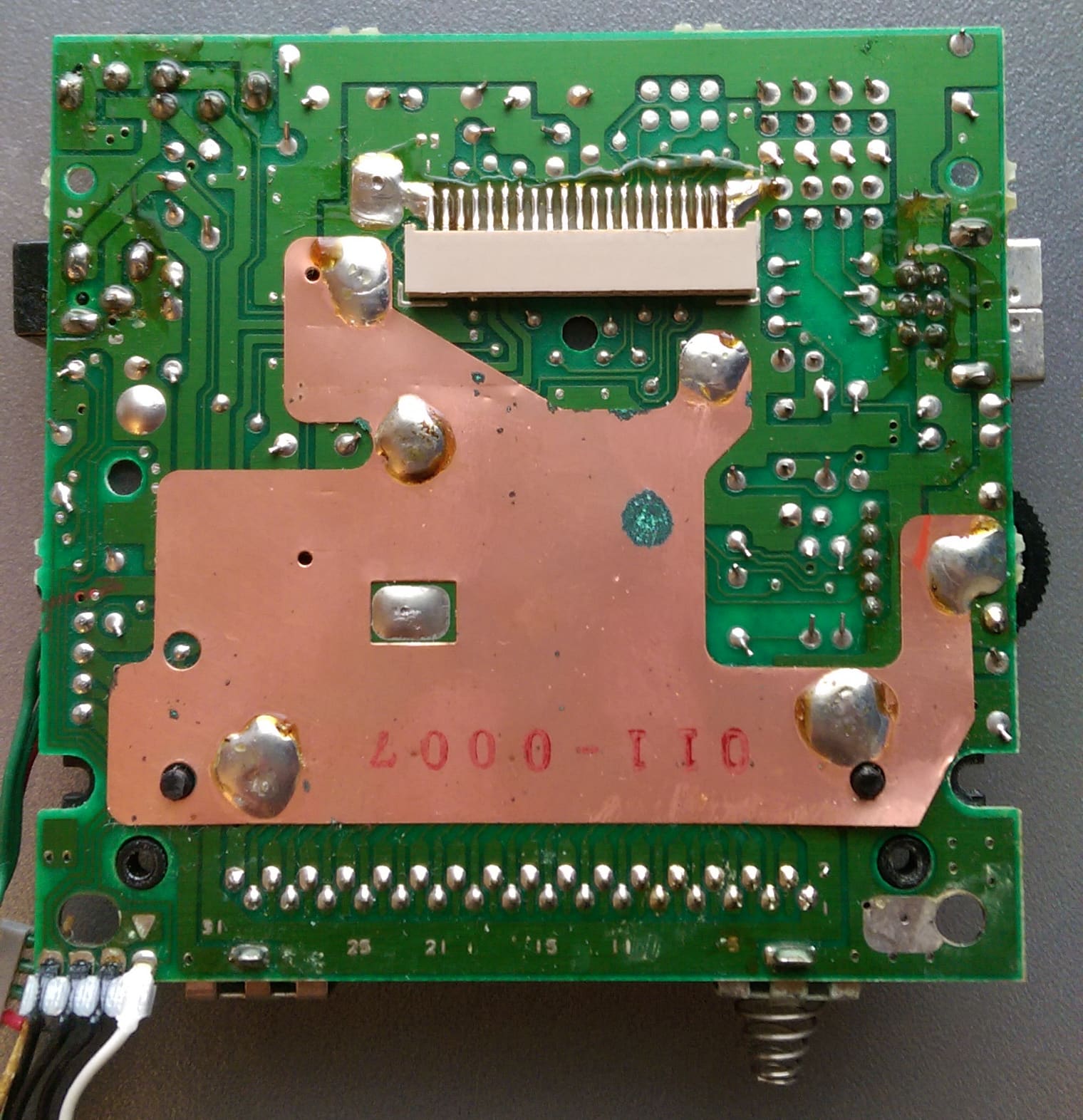

Mainboard

Board type
DMG-CPU-04
Stamp
011 0007
Circled letter(s) on board
K3
Extra label
2

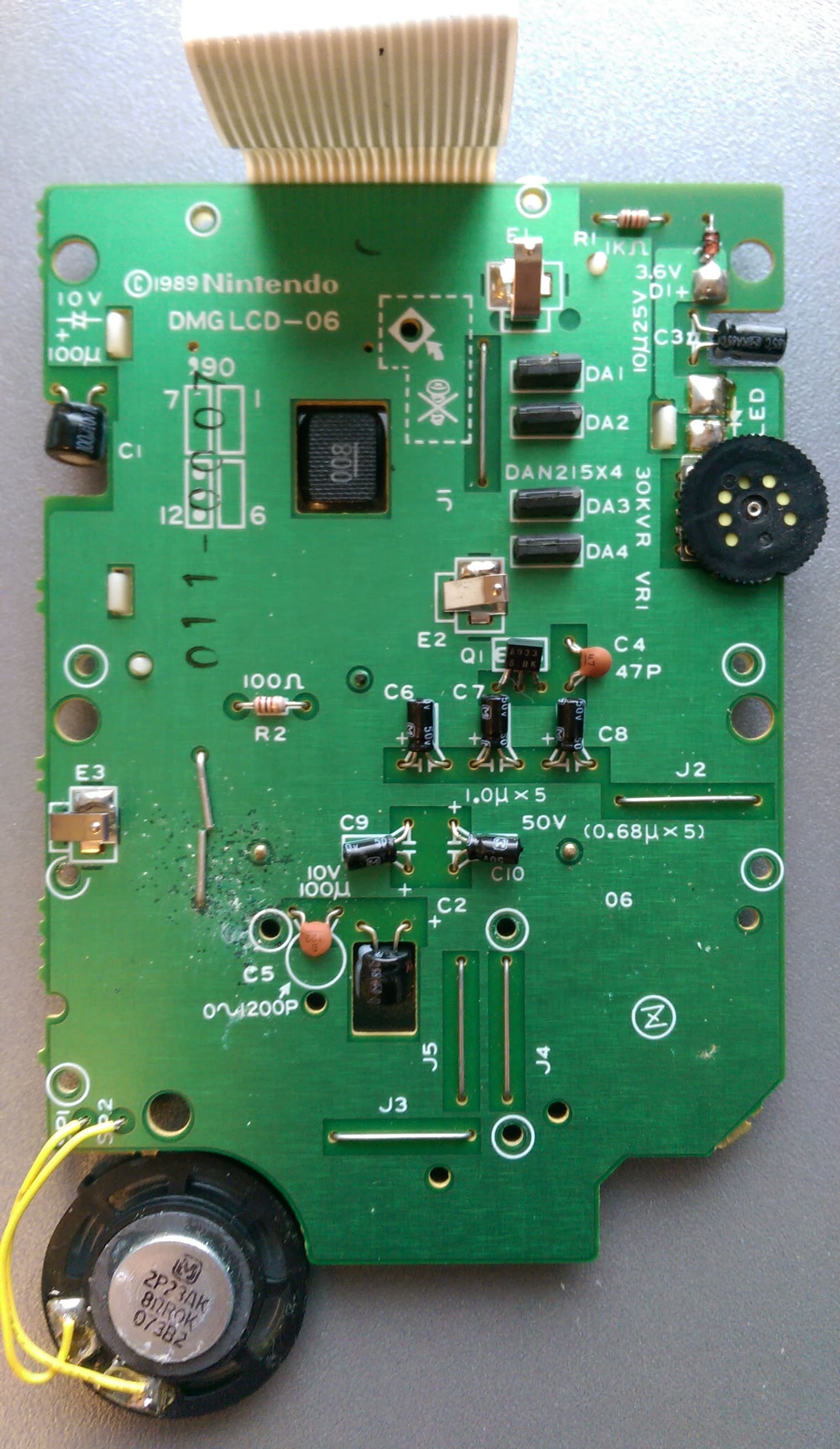

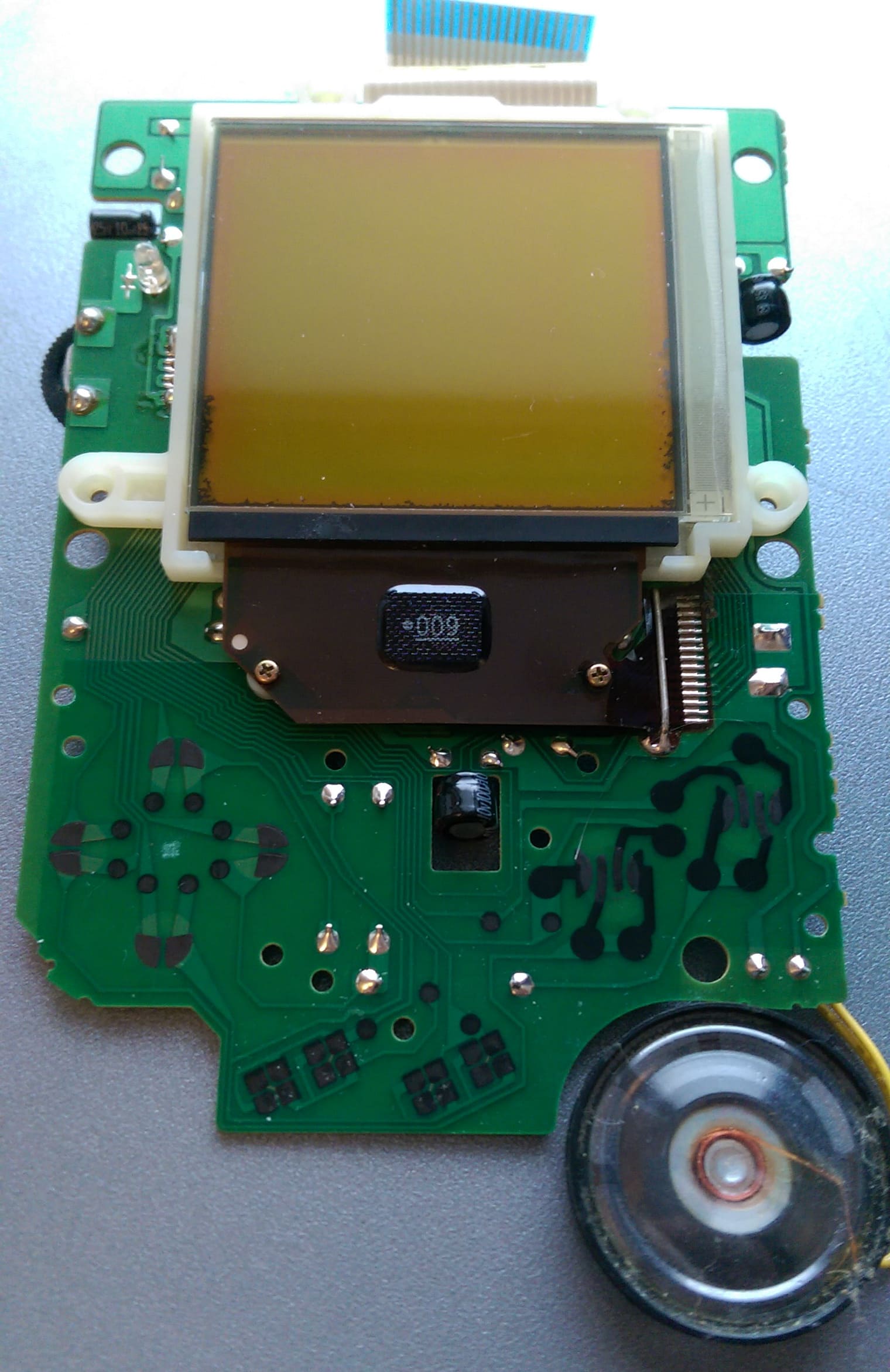

LCD Board

Board type
DMG-LCD-06
Manufacture date
September/1990
Stamp
011-0007
Circled letter(s) on board
Z
LCD panel label
????
LCD panel date
????

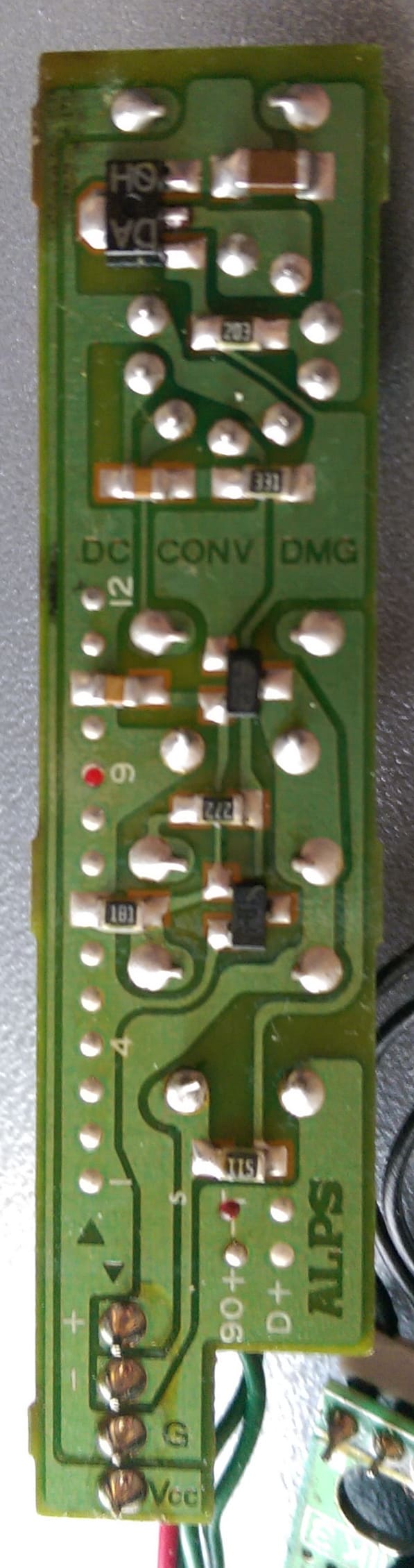

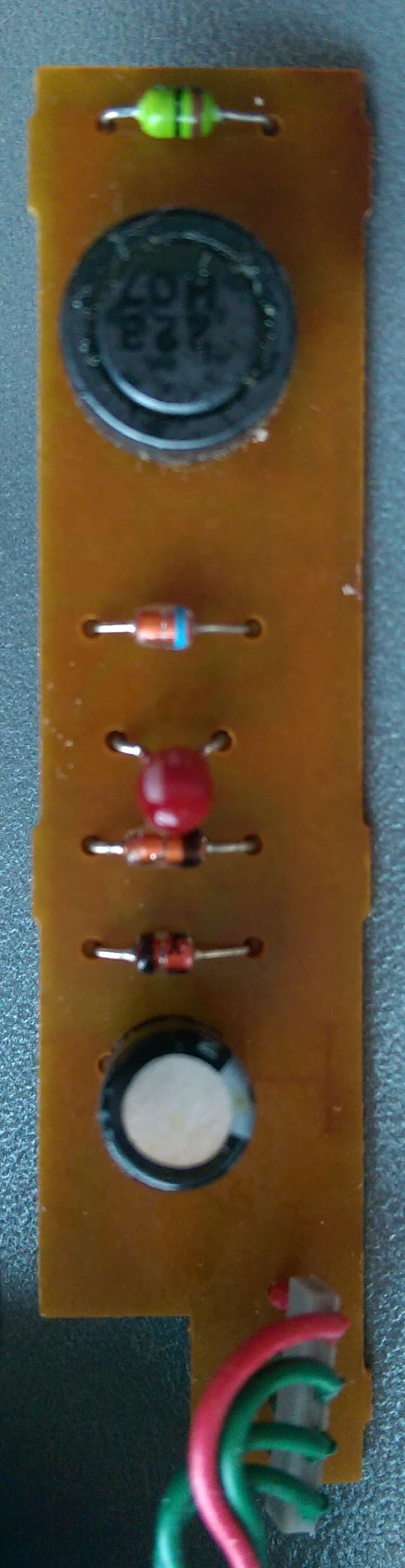

Power Board

Board type
Type A2
Manufacture date
September/1990
Label
DC CONV DMG

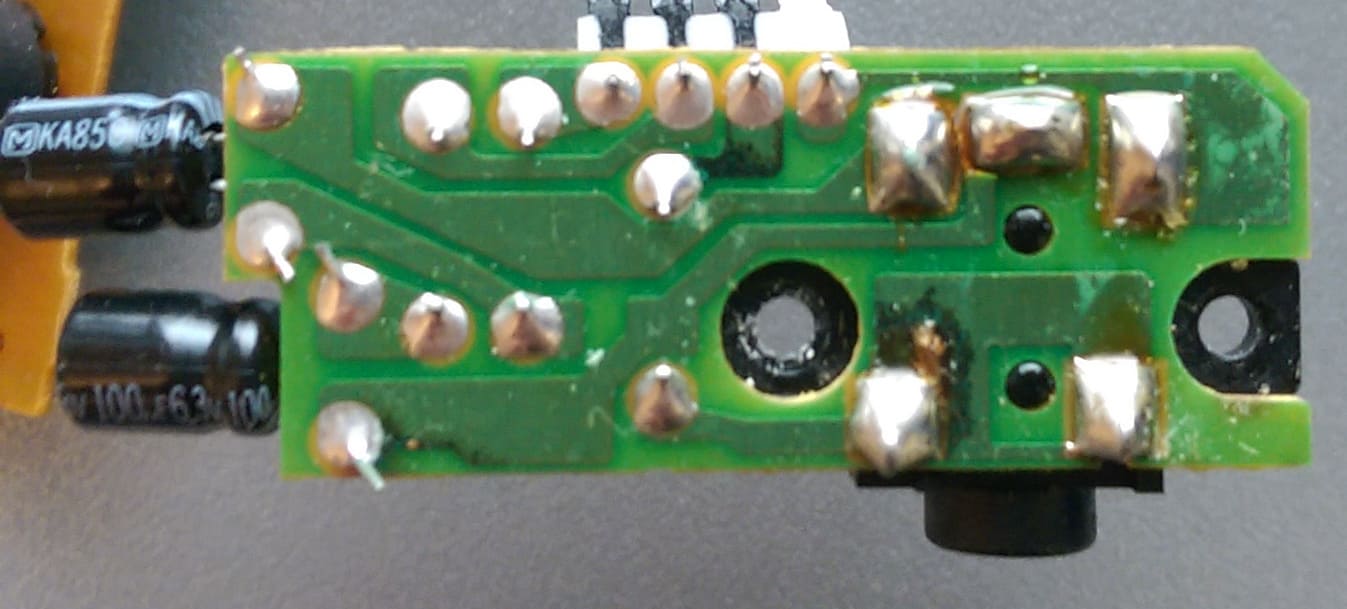

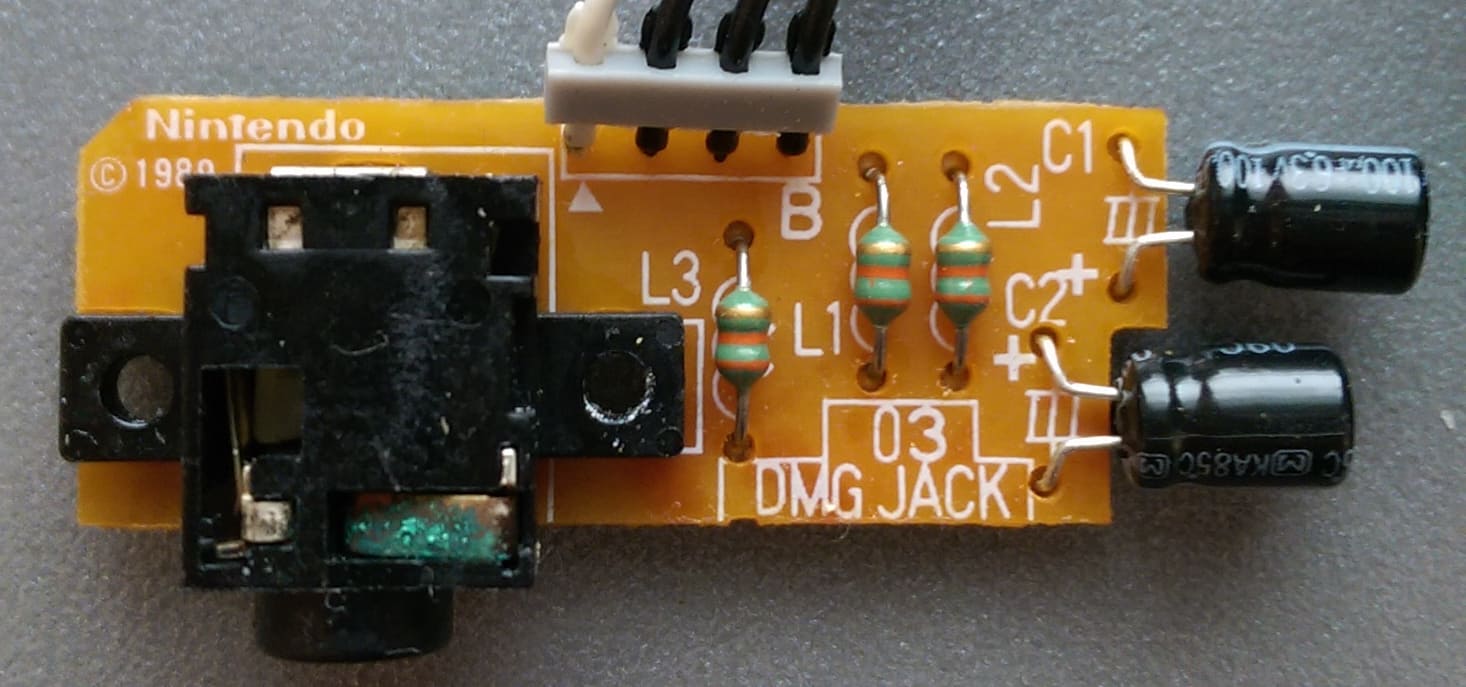

Jack Board

Board type
DMG JACK 03
Extra label
-

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 38/1990DMG-CPU B © 1989 Nintendo JAPAN 9038 S
U2Video RAMLH5164N-10LSharpWeek 43/1990LH5164N-10L SHARP JAPAN 9043 1 DA
U3Work RAMLH5164N-10LSharpWeek 43/1990LH5164N-10L SHARP JAPAN 9043 1 DA
U4AmplifierIR3R40SharpWeek 39/1990DMG-AMP IR3R40 9039 A
X1CrystalD419????October/1990D419J0
-LCD Column DriverLH5077 FSharpSeptember/1990LH5077 F, 009
-LCD Row DriverLH5076 FSharpAugust/1990LH5076 F, 008
-LCD RegulatorIR3E02SharpWeek 39/1990DMG-REG IR3E02 9039 J
