Game Boy hardware database

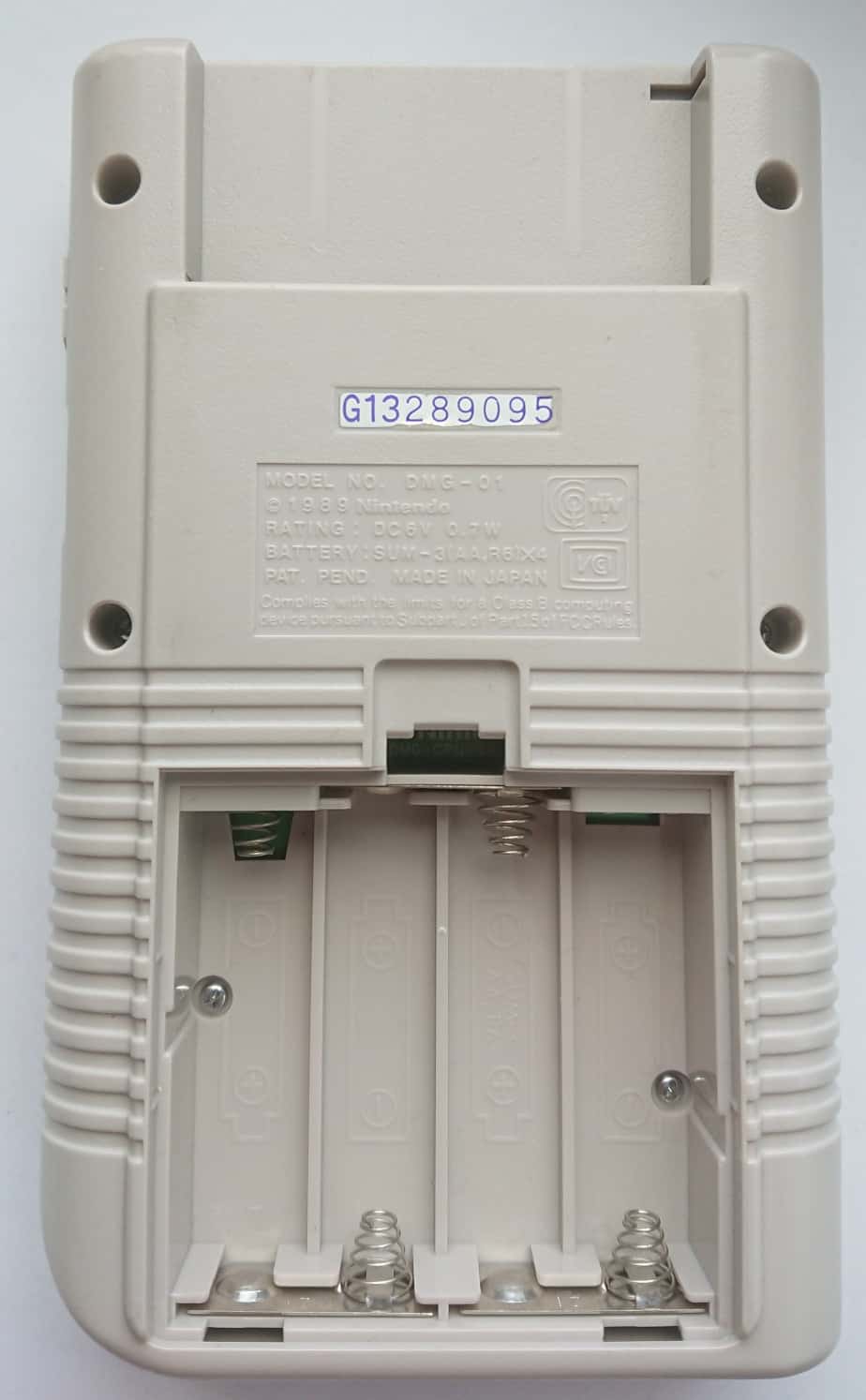

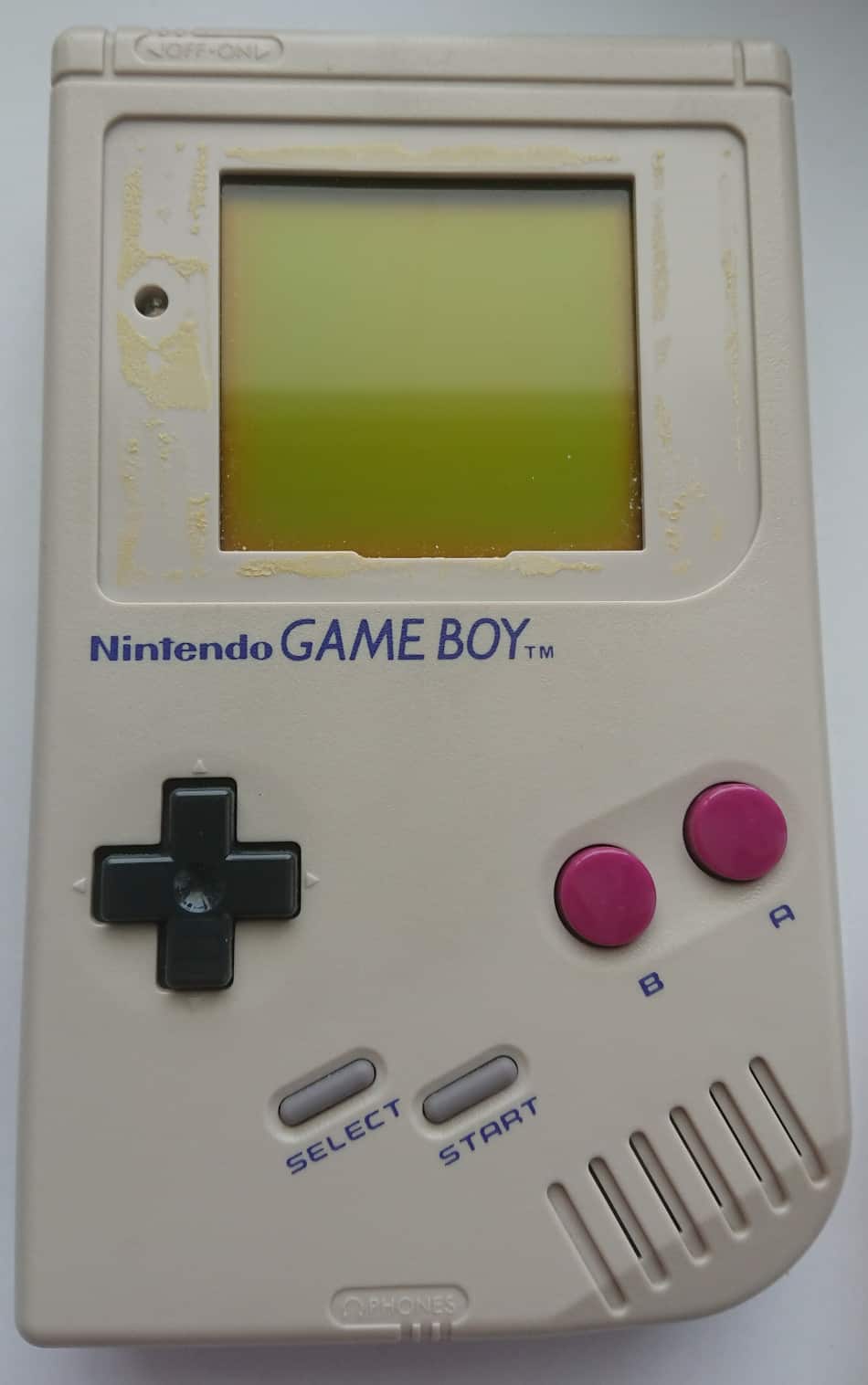

DMG: G13289095 [gekkio]

Color
OffWhite
Assembly date
January/1991
LCD panel label
N AE901222
LCD panel date
December/1990

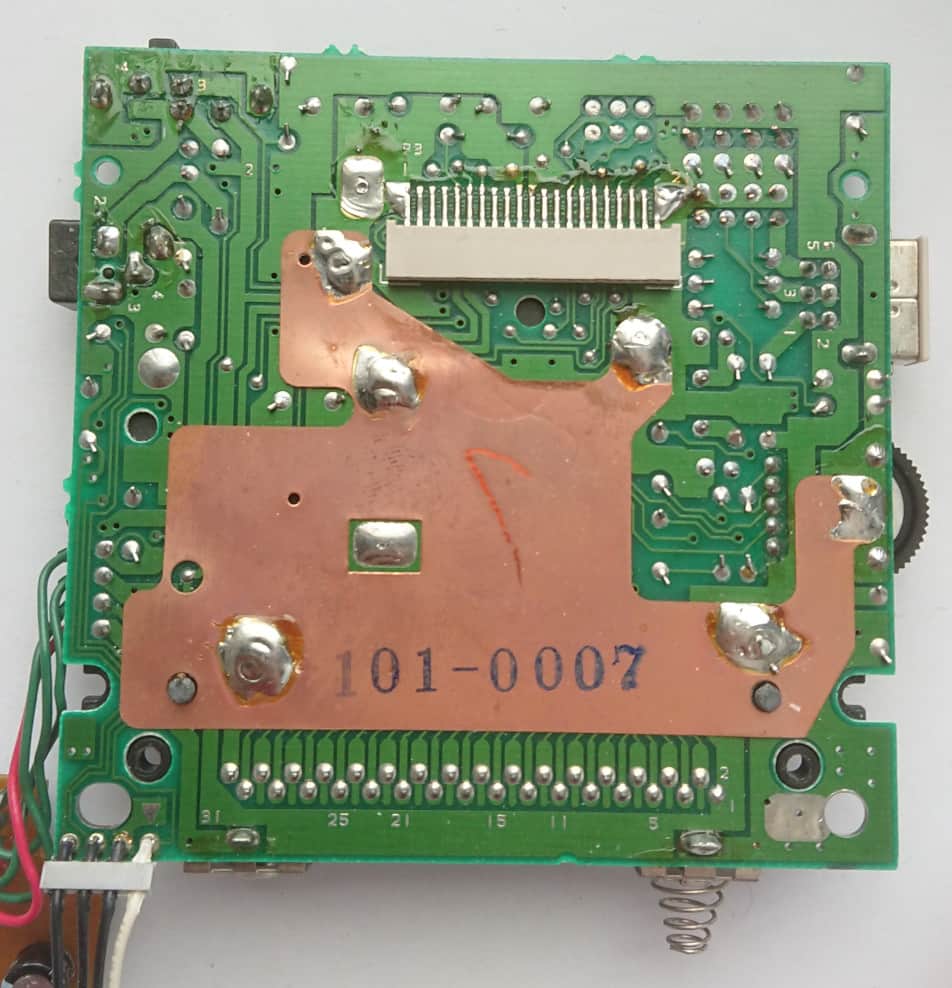

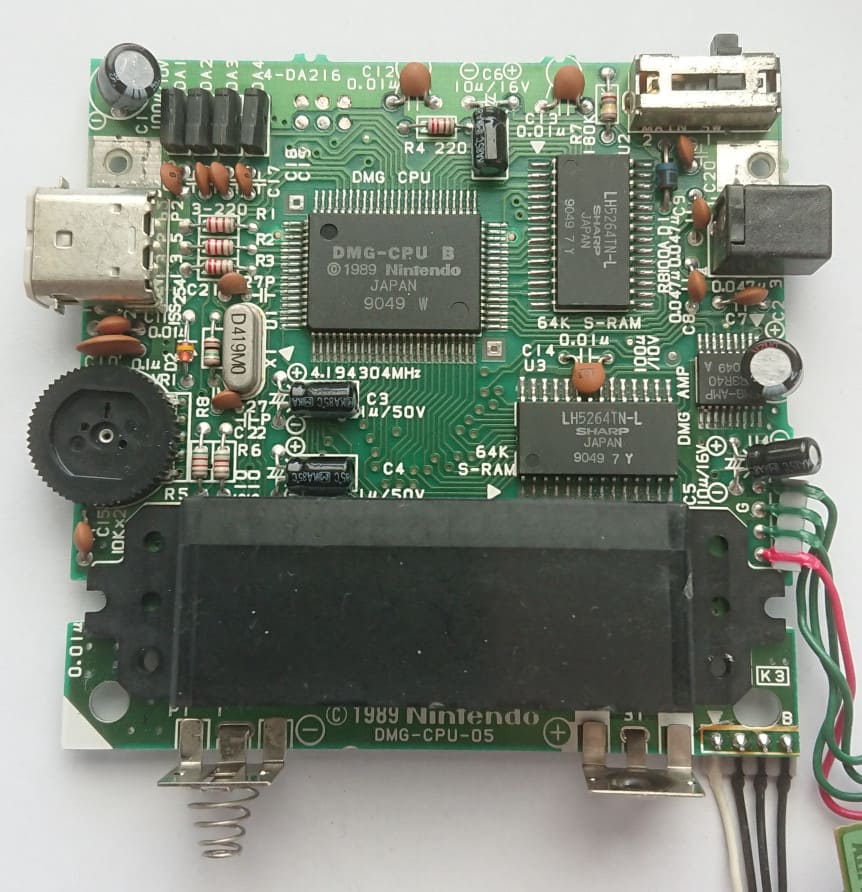

Mainboard

Board type
DMG-CPU-05
Stamp on board
101-0007
Circled letter(s) on board
K3
Extra label
1

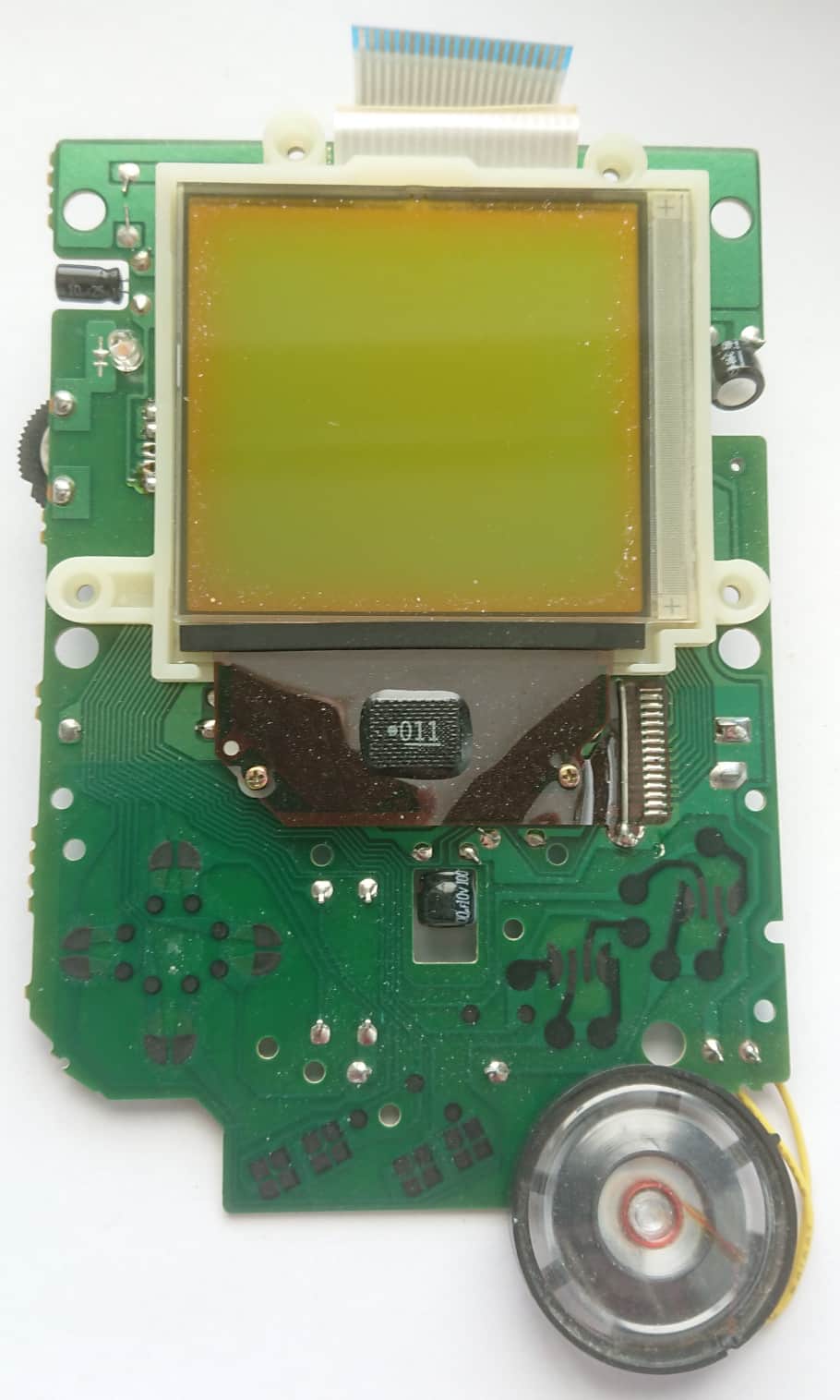

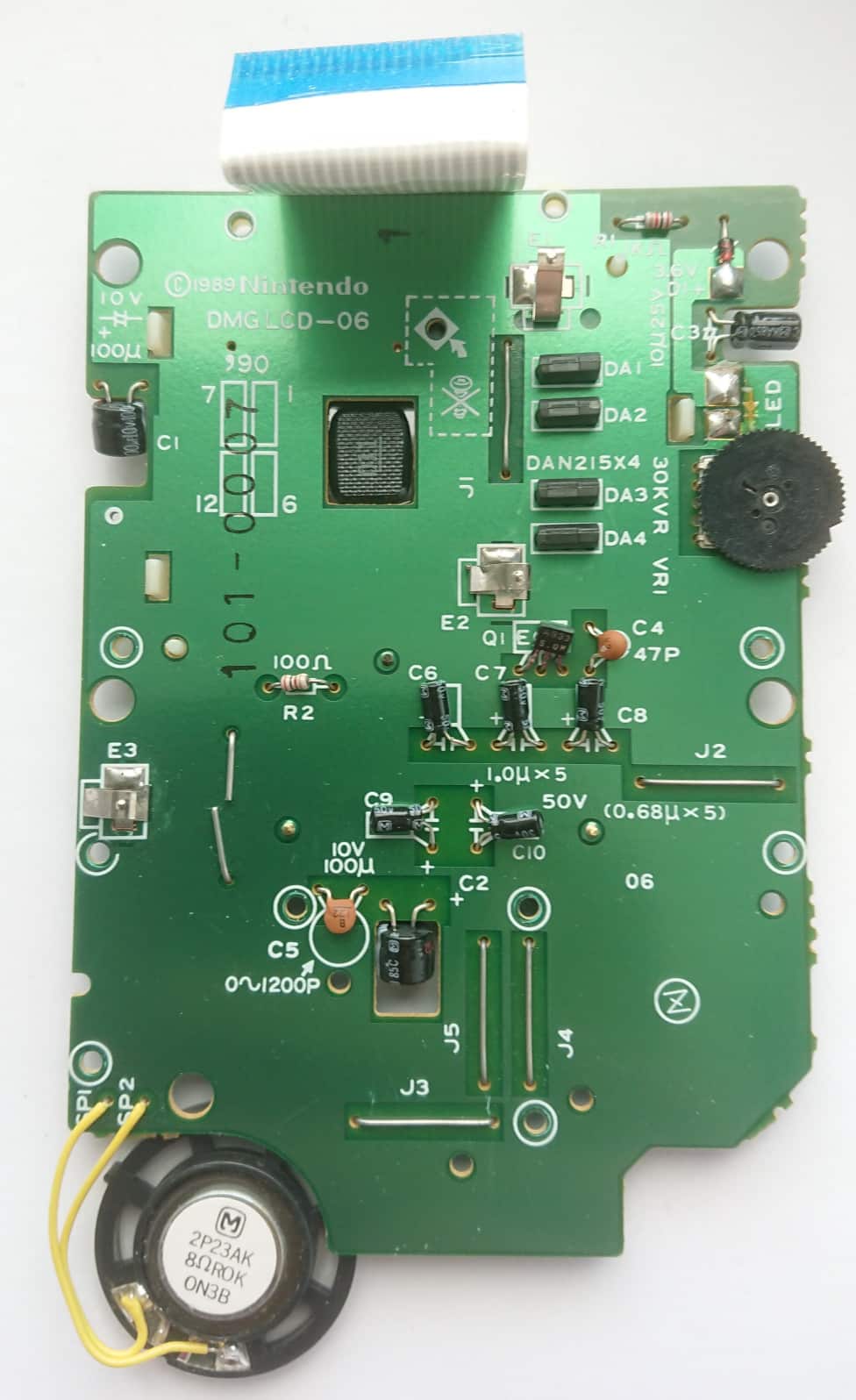

LCD board

Board type
DMG-LCD-05
Manufacture date
December/1990
Stamp
101-0007
Circled letter(s) on board
Z

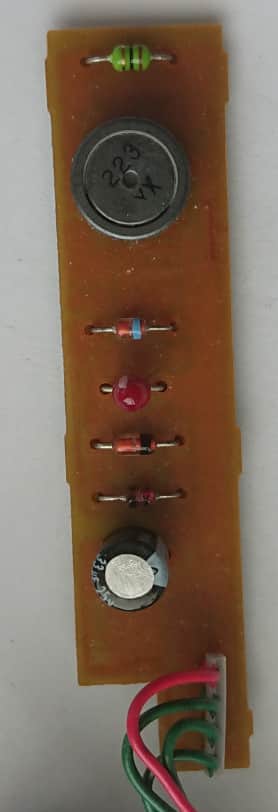

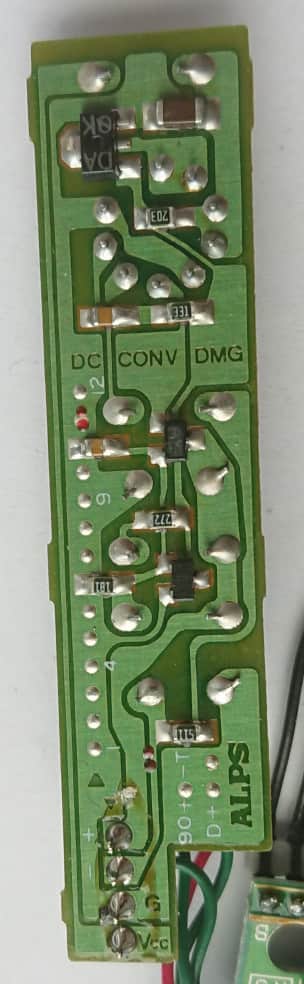

Power board

Board type
A2
Manufacture date
November/1990
Label
DC CONV DMG

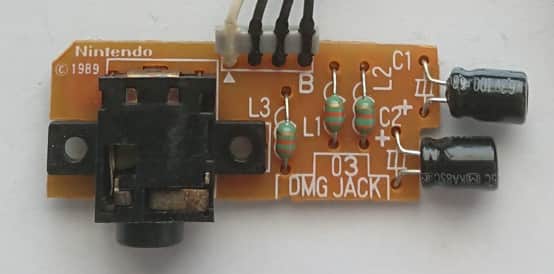

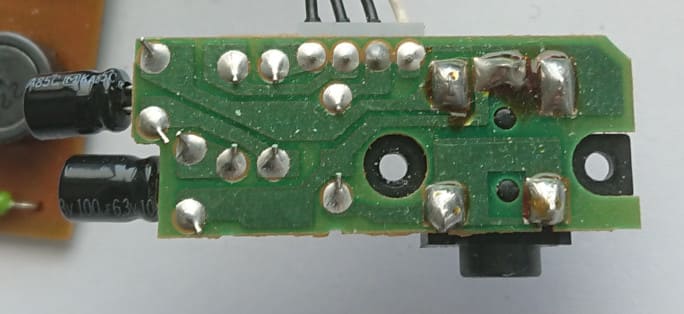

Jack board

Board type
DMG JACK 03

Parts

PartTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 49/1990DMG-CPU B © 1989 Nintendo JAPAN 9049 W
U2VRAMLH5264TN-LSharpWeek 49/1990LH5264TN-L SHARP JAPAN 9049 7 Y
U3WRAMLH5264TN-LSharpWeek 49/1990LH5264TN-L SHARP JAPAN 9049 7 Y
U4Audio amplifierIR3R40SharpWeek 49/1990DMG-AMP IR3R40 9049 A
X1Crystal4.194304 MHzDaishinkuDecember/1990D419M0
-LCD column driverLH5077 FSharpNovember/1990LH5077 F 011
-LCD row driverLH5076 FSharpNovember/1990LH5076 F 011
-LCD bias generatorIR3E02SharpWeek 49/1990DMG-REG IR3E02 9049 J
