Game Boy hardware database

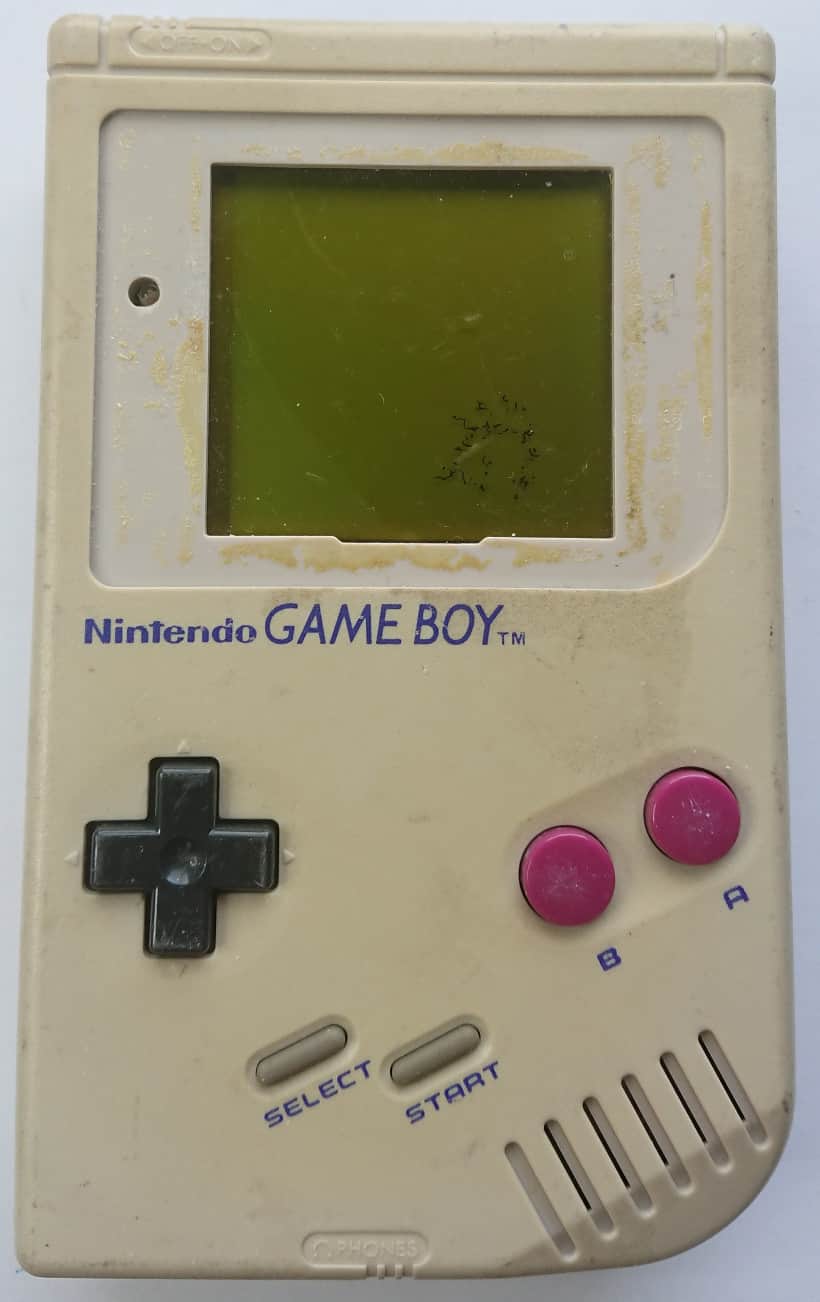

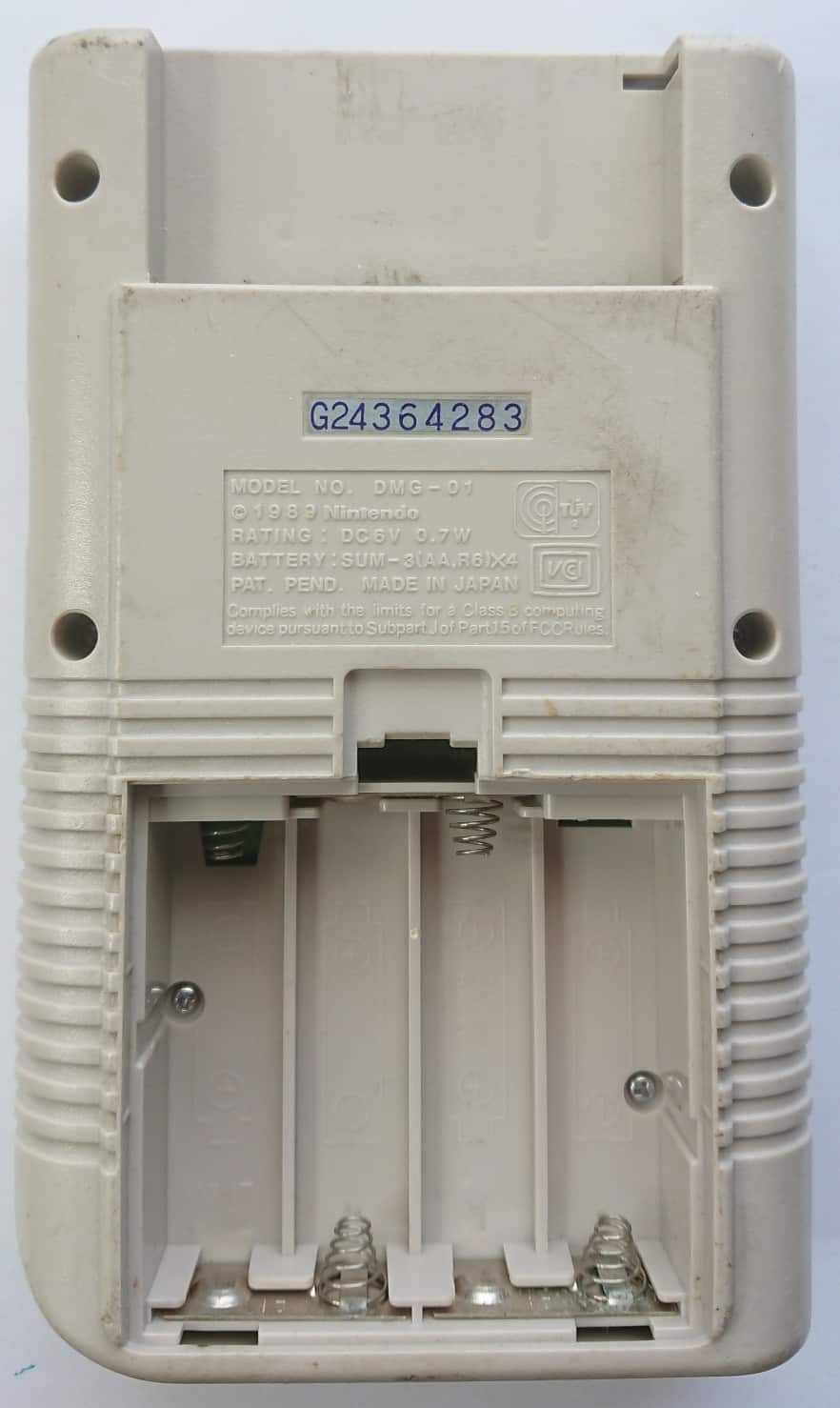

DMG: G24364283 [gekkio]

Color
OffWhite
Assembly date
March/1992
LCD panel label
N23S920304
LCD panel date
March/1992

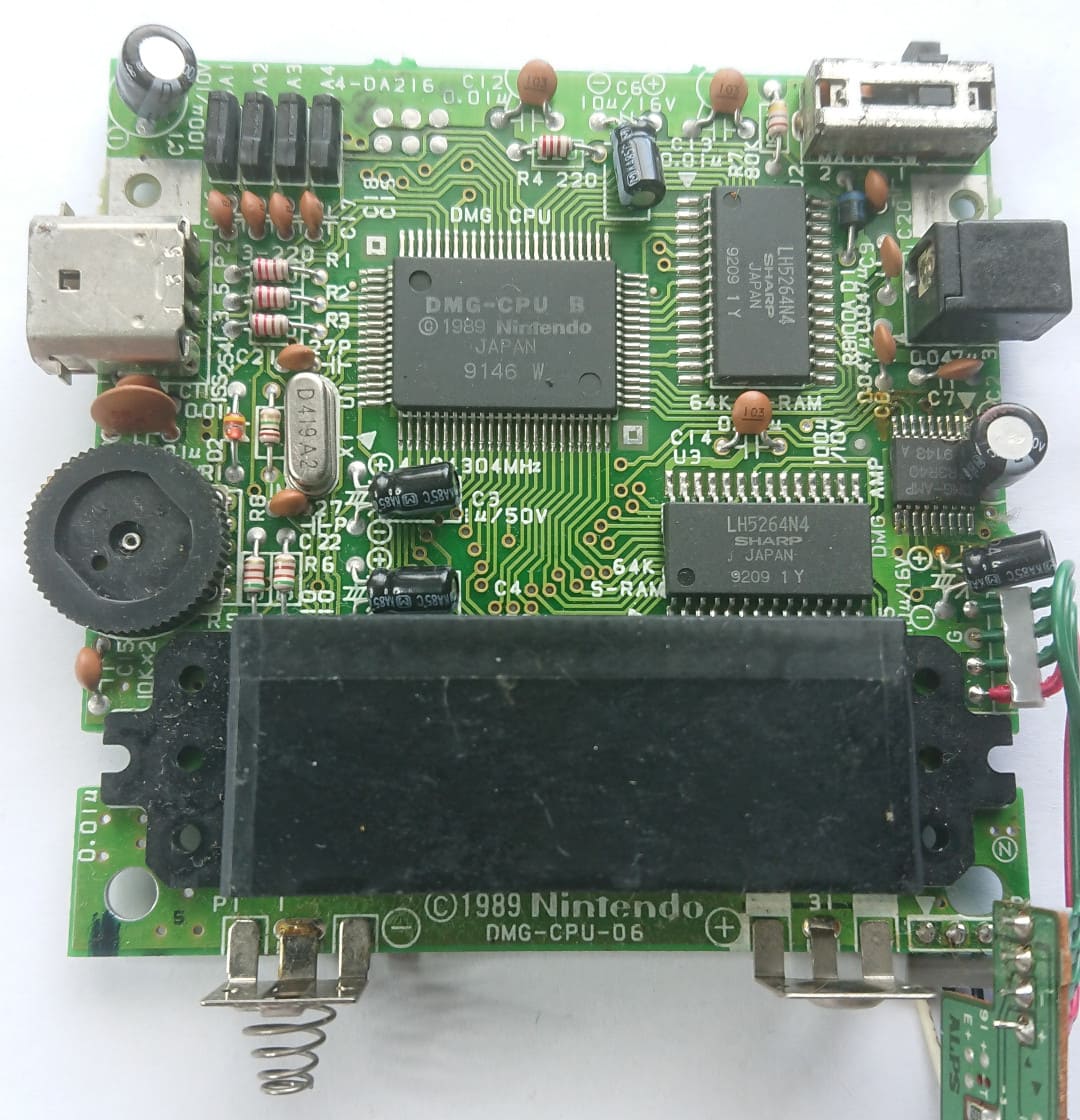

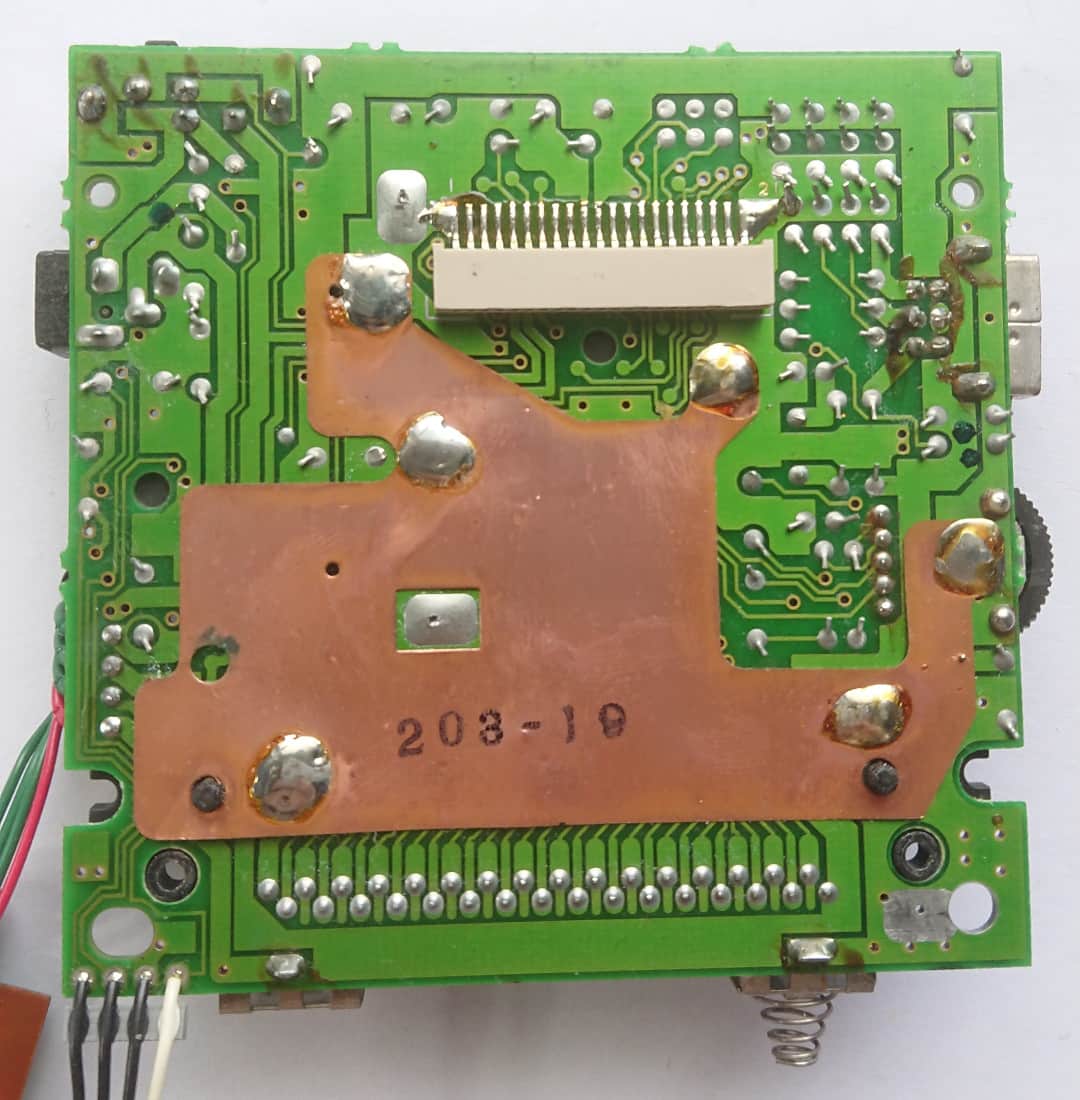

Mainboard

Board type
DMG-CPU-06
Stamp on board
203-19
Circled letter(s) on board
N
Extra label
5

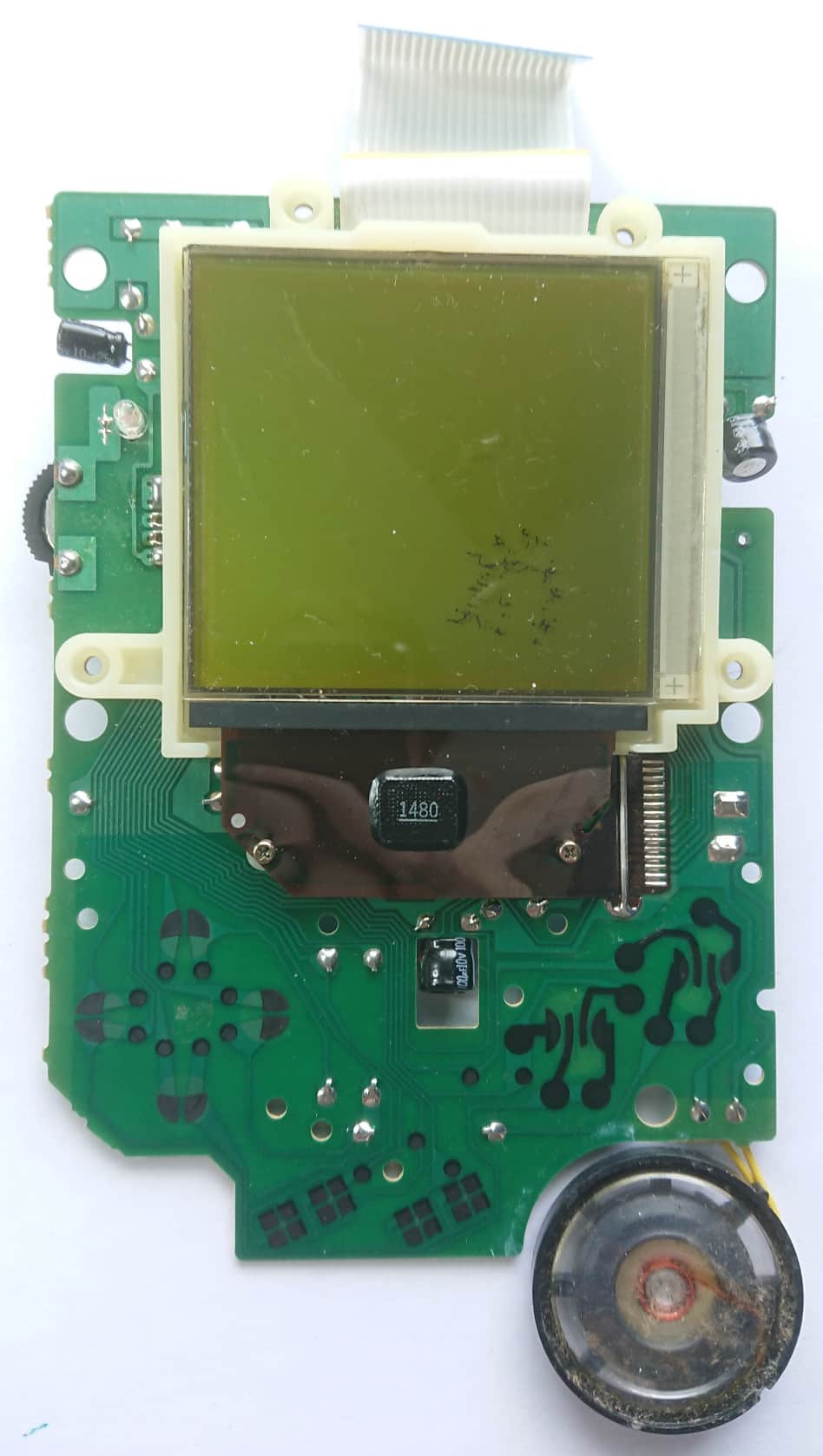

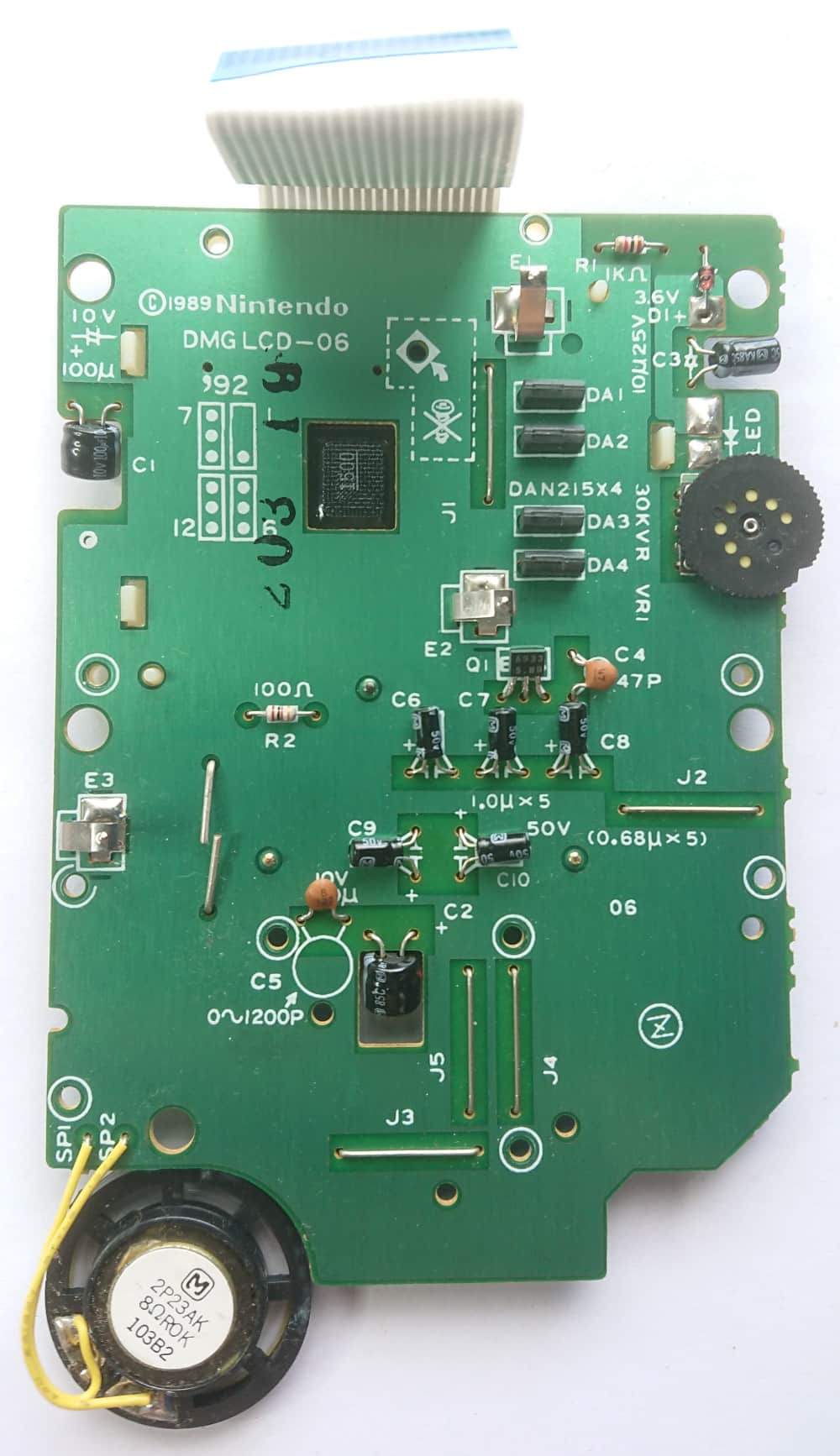

LCD board

Board type
DMG-LCD-06
Manufacture date
February/1992
Stamp
203-19
Circled letter(s) on board
Z

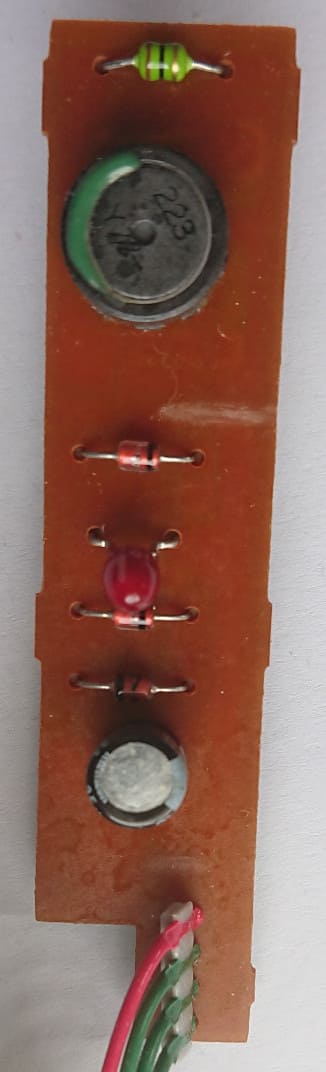

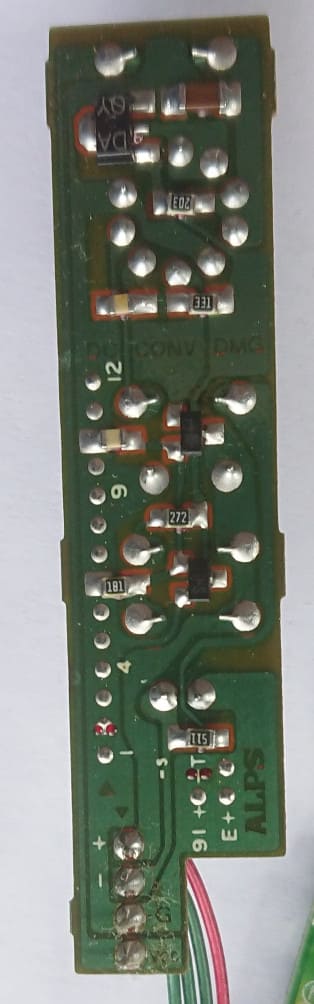

Power board

Board type
A3
Manufacture date
February/1991
Label
DC CONV DMG

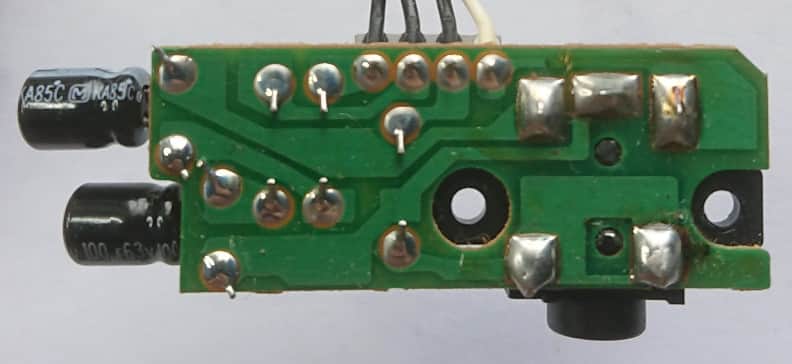

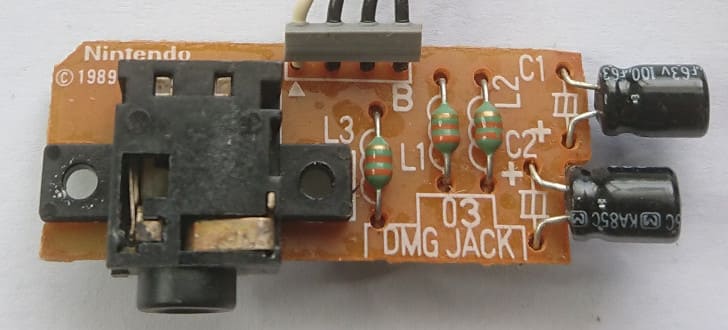

Jack board

Board type
DMG JACK 03

Parts

PartTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 46/1991DMG-CPU B © 1989 Nintendo JAPAN 9146 W
U2VRAMLH5264N4SharpWeek 9/1992LH5264N4 SHARP JAPAN 9209 1 Y
U3WRAMLH5264N4SharpWeek 9/1992LH5264N4 SHARP JAPAN 9209 1 Y
U4Audio amplifierIR3R40SharpWeek 43/1991DMG-AMP IR3R40 9143 A
X1Crystal4.194304 MHzDaishinkuJanuary/1992D419A2
-LCD column driverLH5077 AFSharpWeek 48/1991LH5077 AF 1480
-LCD row driverLH5076 AFSharpWeek 50/1991LH5076 AF 1500
-LCD bias generatorIR3E02SharpWeek 49/1991DMG-REG IR3E02 9149 A
