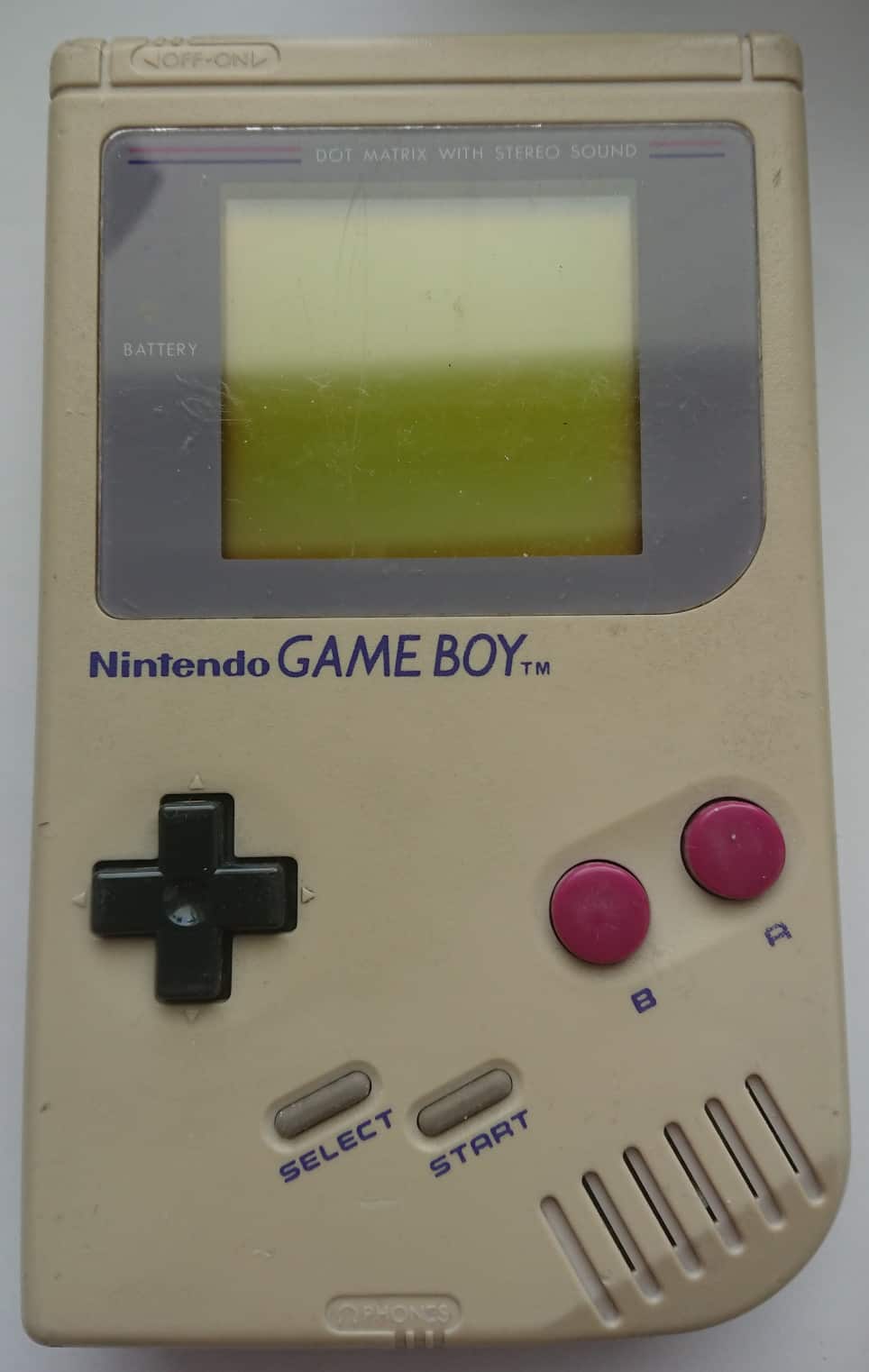

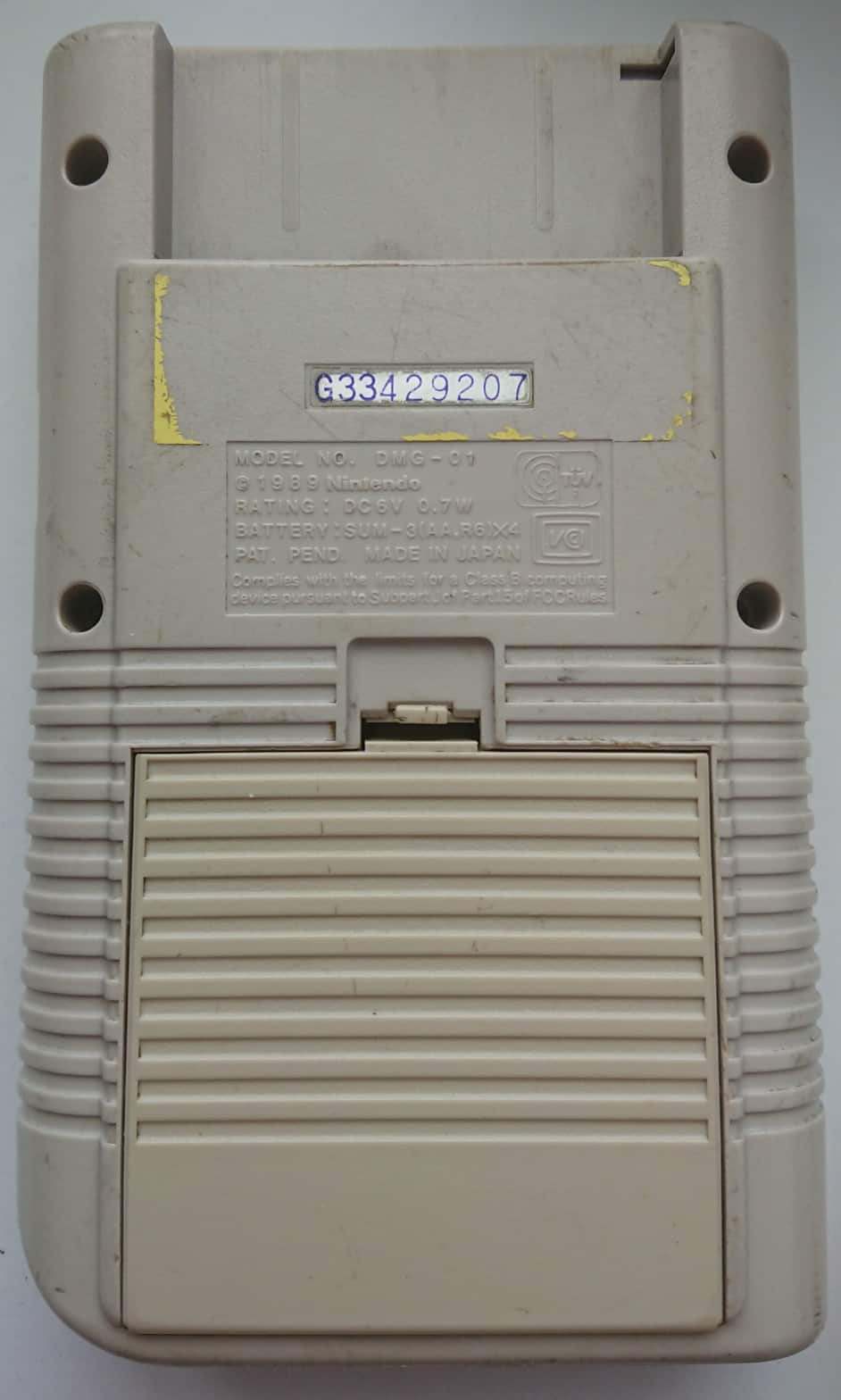

DMG: G33429207 [gekkio]

Color
OffWhite
Assembly date
July/1993

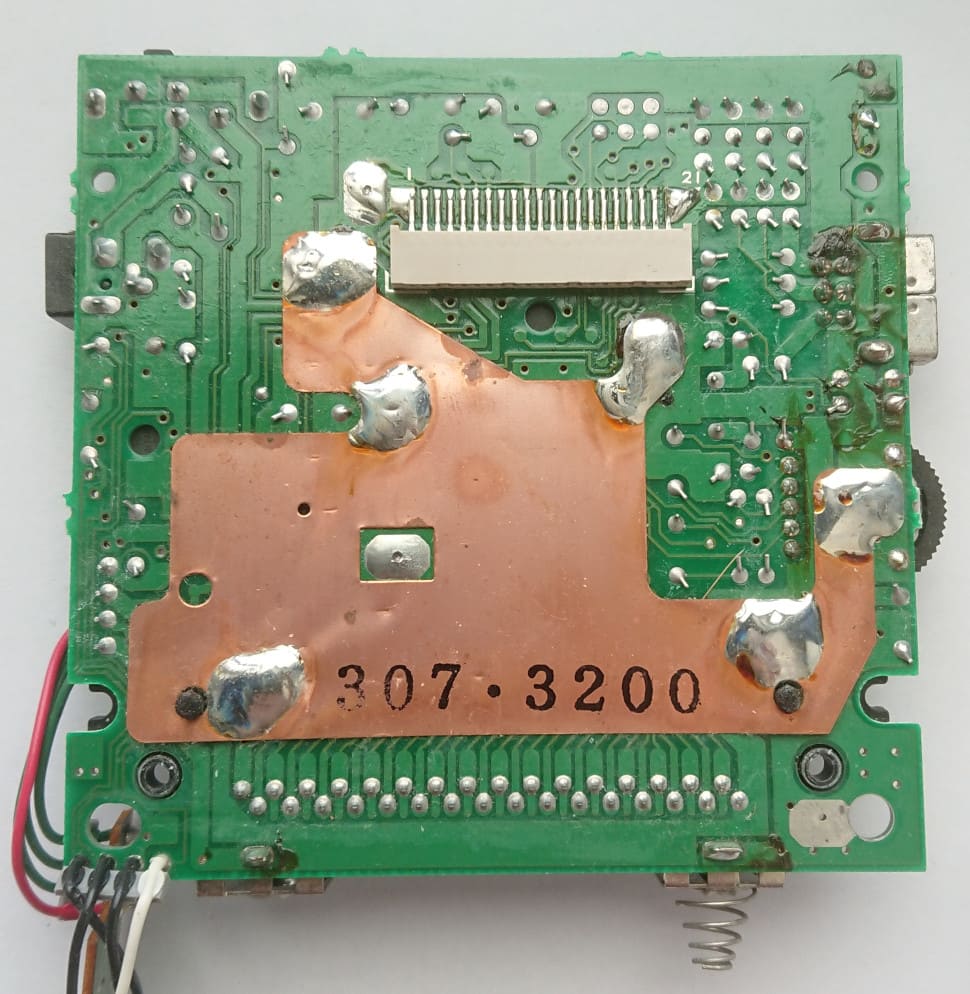

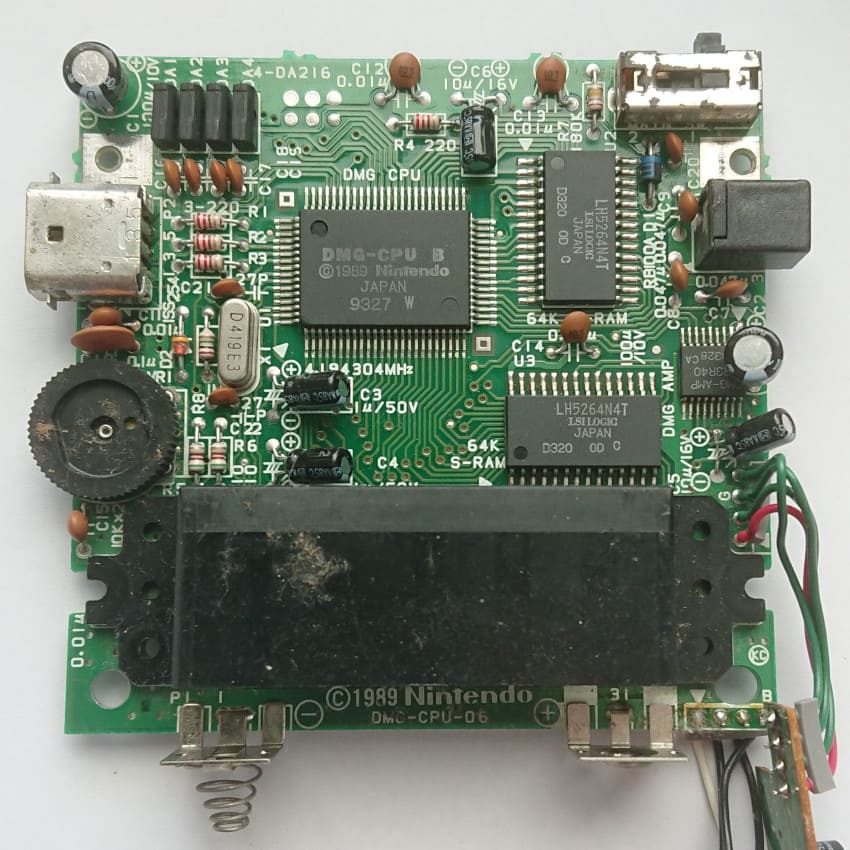

Mainboard

Board type
DMG-CPU-06
Stamp on board
307-3200
Circled letter(s) on board
KC
Extra label
2

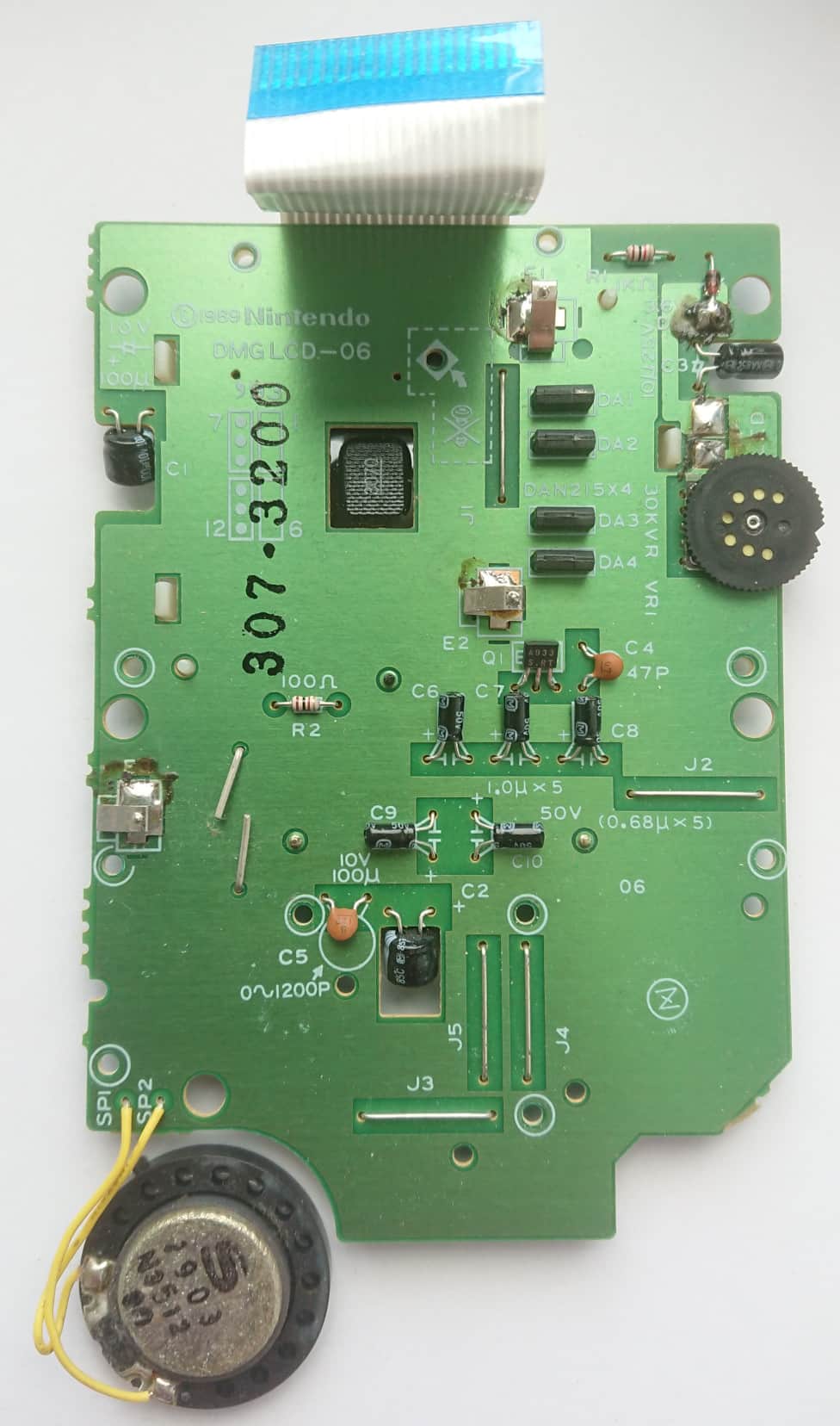

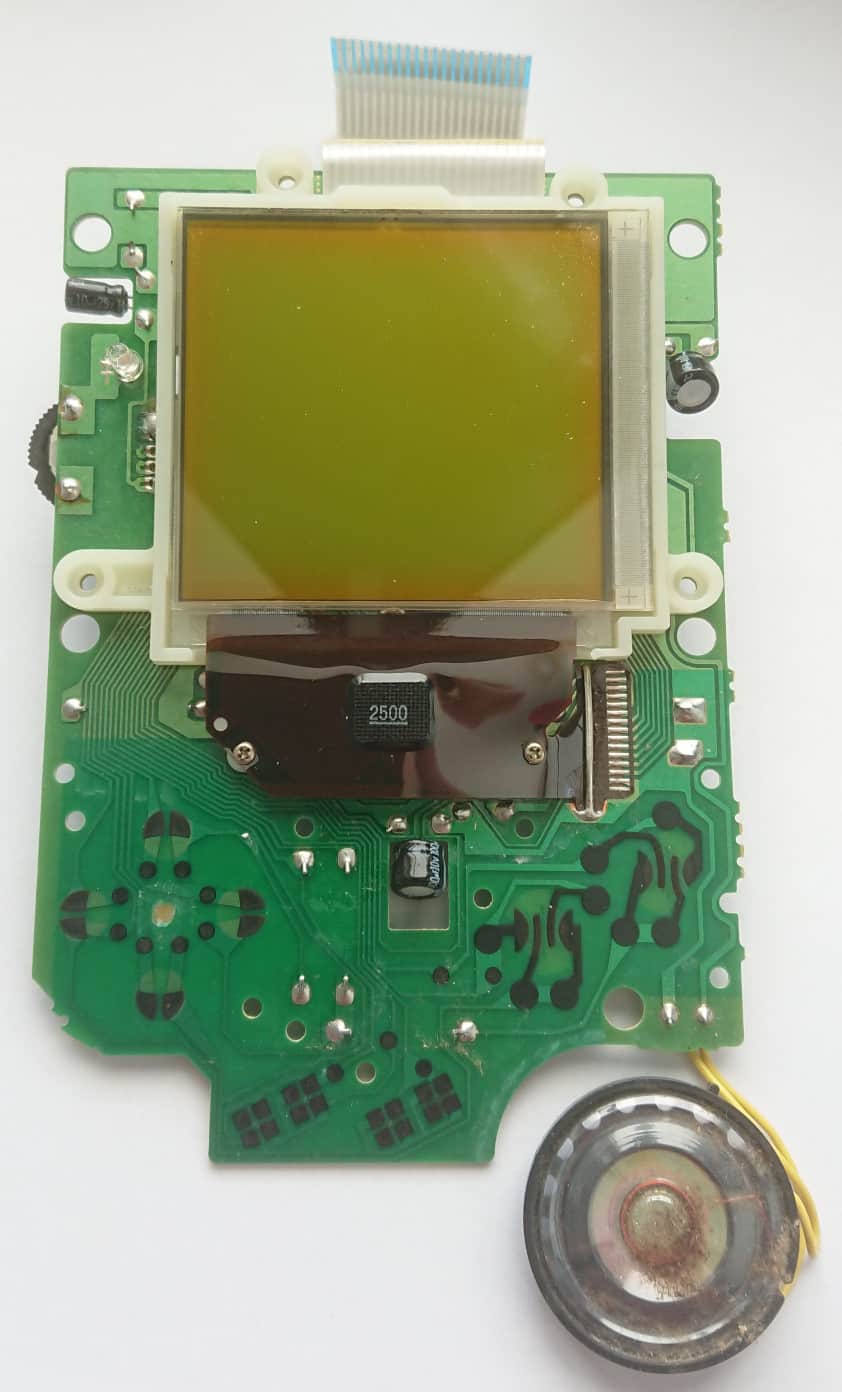

LCD Board

Board type
DMG-LCD-06
Manufacture date
June/1993
Stamp
307-3200
Circled letter(s) on board
Z
LCD panel label
ST 930703
LCD panel date
July/1993

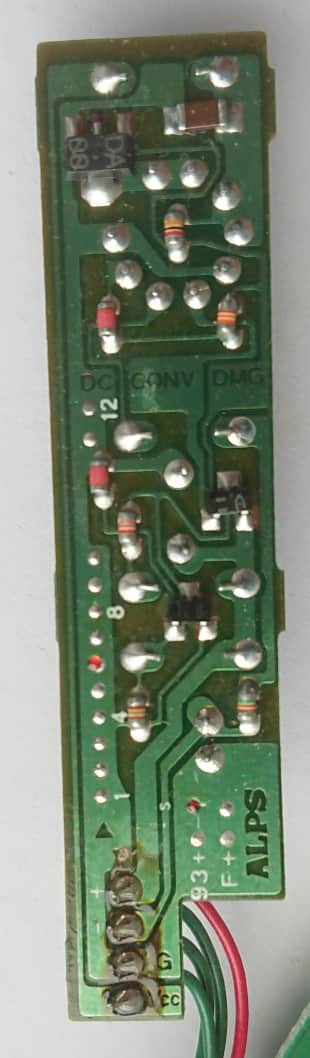

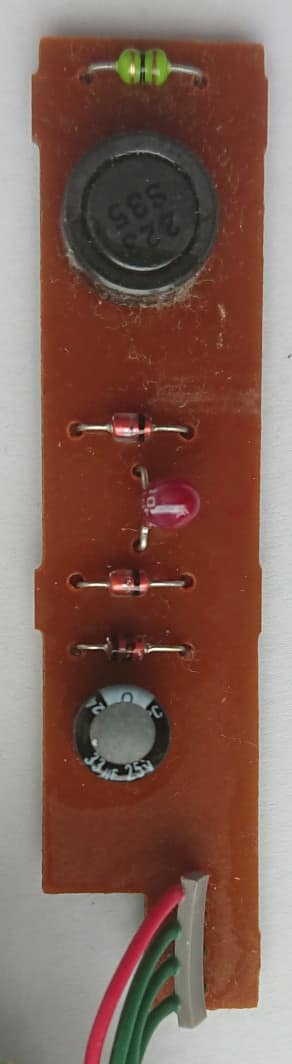

Power Board

Board type
Type B
Manufacture date
June/1993
Label
DC CONV DMG

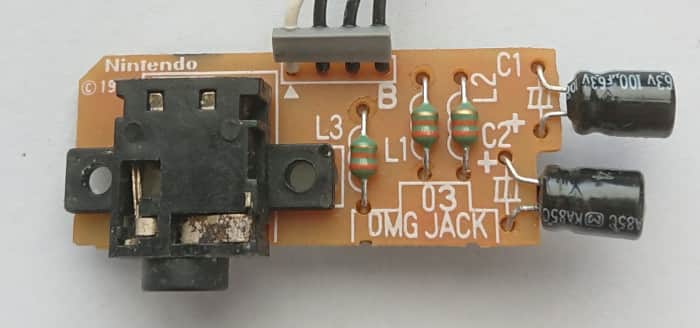

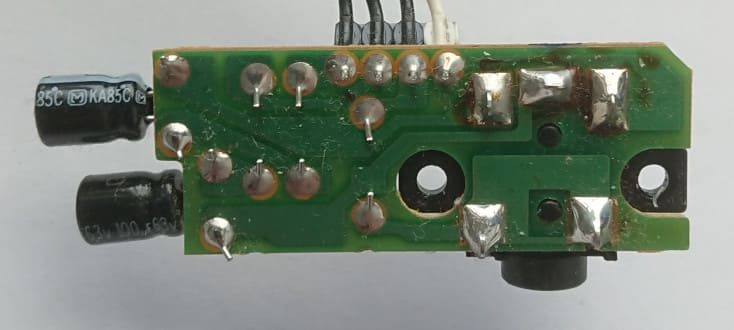

Jack Board

Board type
DMG JACK 03

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 27/1993DMG-CPU B © 1989 Nintendo JAPAN 9327 W
U2Video RAMLH5264N4TLSI LogicWeek 20/1993LH5264N4T LSI LOGIC JAPAN D320 0D C
U3Work RAMLH5264N4TLSI LogicWeek 20/1993LH5264N4T LSI LOGIC JAPAN D320 0D C
U4AmplifierIR3R40SharpWeek 28/1993DMG-AMP IR3R40 9328 CA
X1Crystal4.194304 MHzDaishinkuMay/1993D419E3
-LCD Column DriverLH5077 AFSharpWeek 50/1992LH5077 AF 2500
-LCD Row DriverLH5076 AFSharpWeek 7/1993LH5076 AF 3070
-LCD RegulatorIR3E02SharpWeek 28/1993DMG-REG IR3E02 9328 CB
