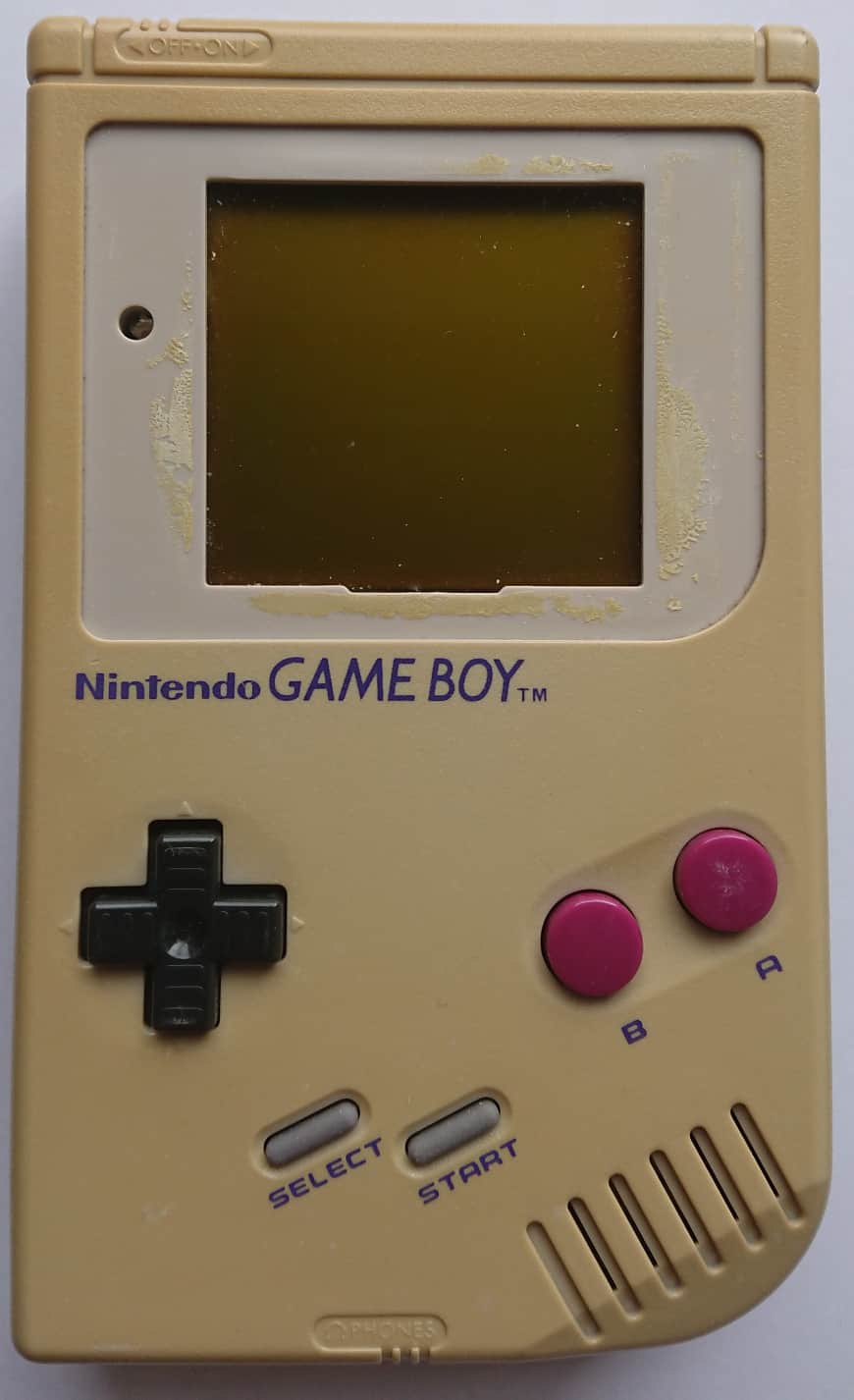

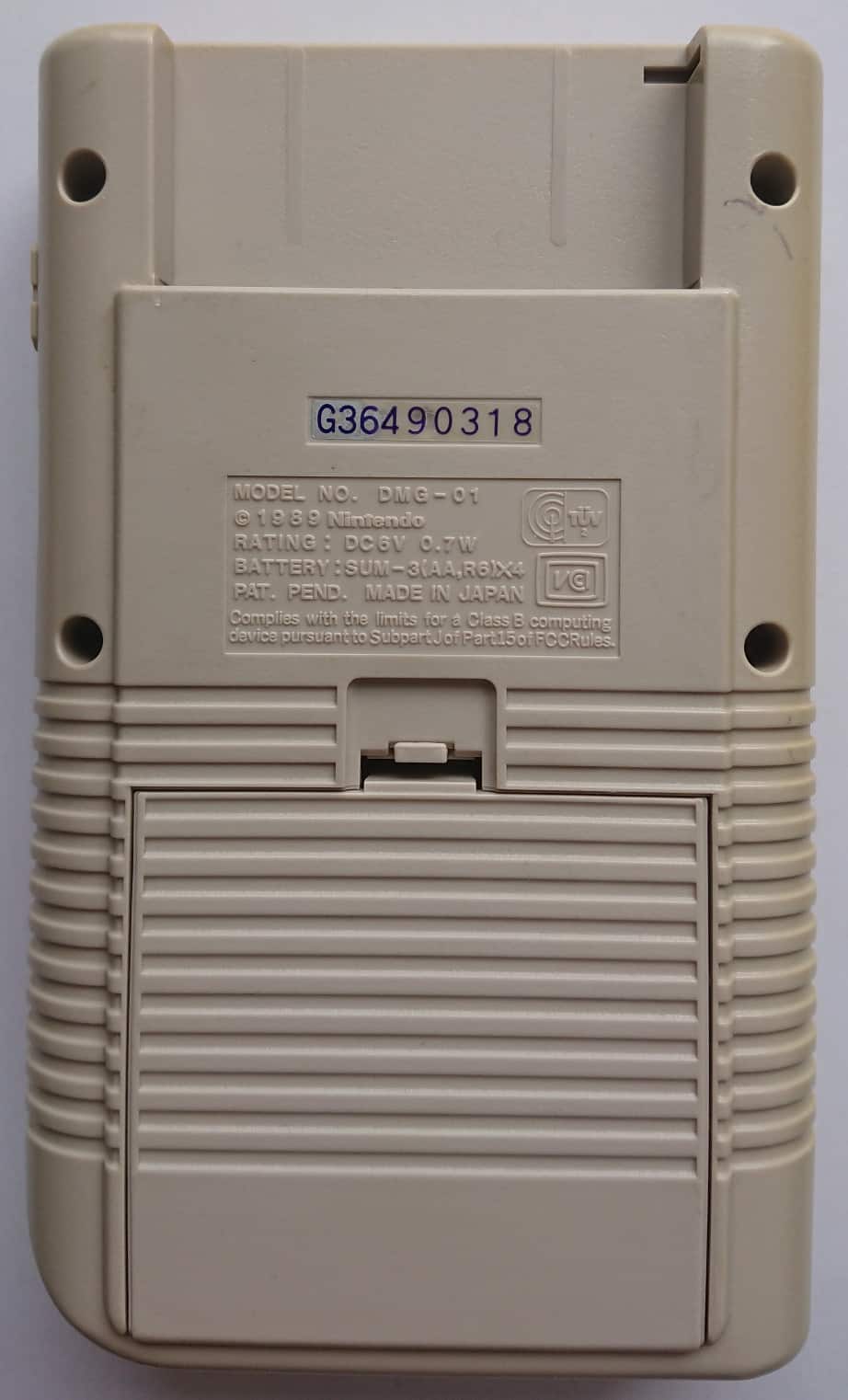

DMG: G36490318 [gekkio]
- Color
- OffWhite
- Assembly date
- February/1994
- LCD panel label
- N2AH 940120
- LCD panel date
- January/1994

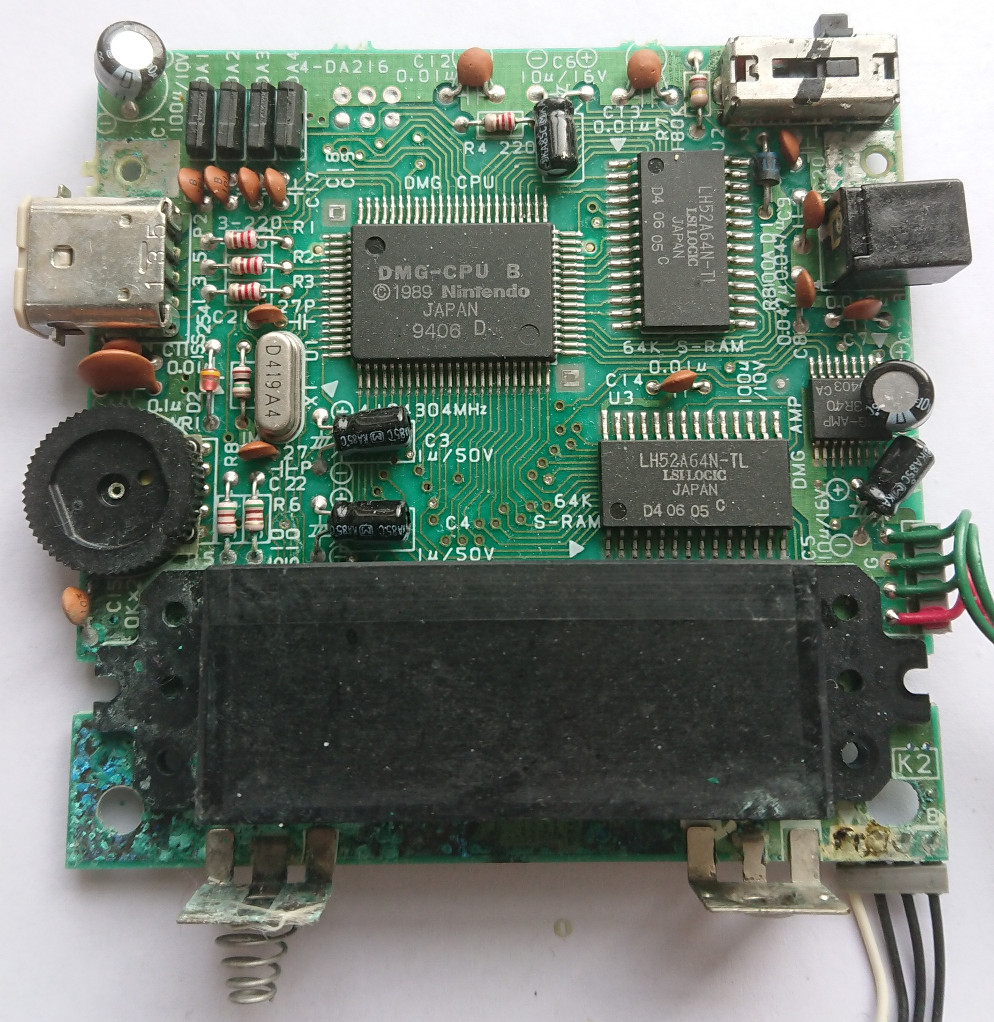

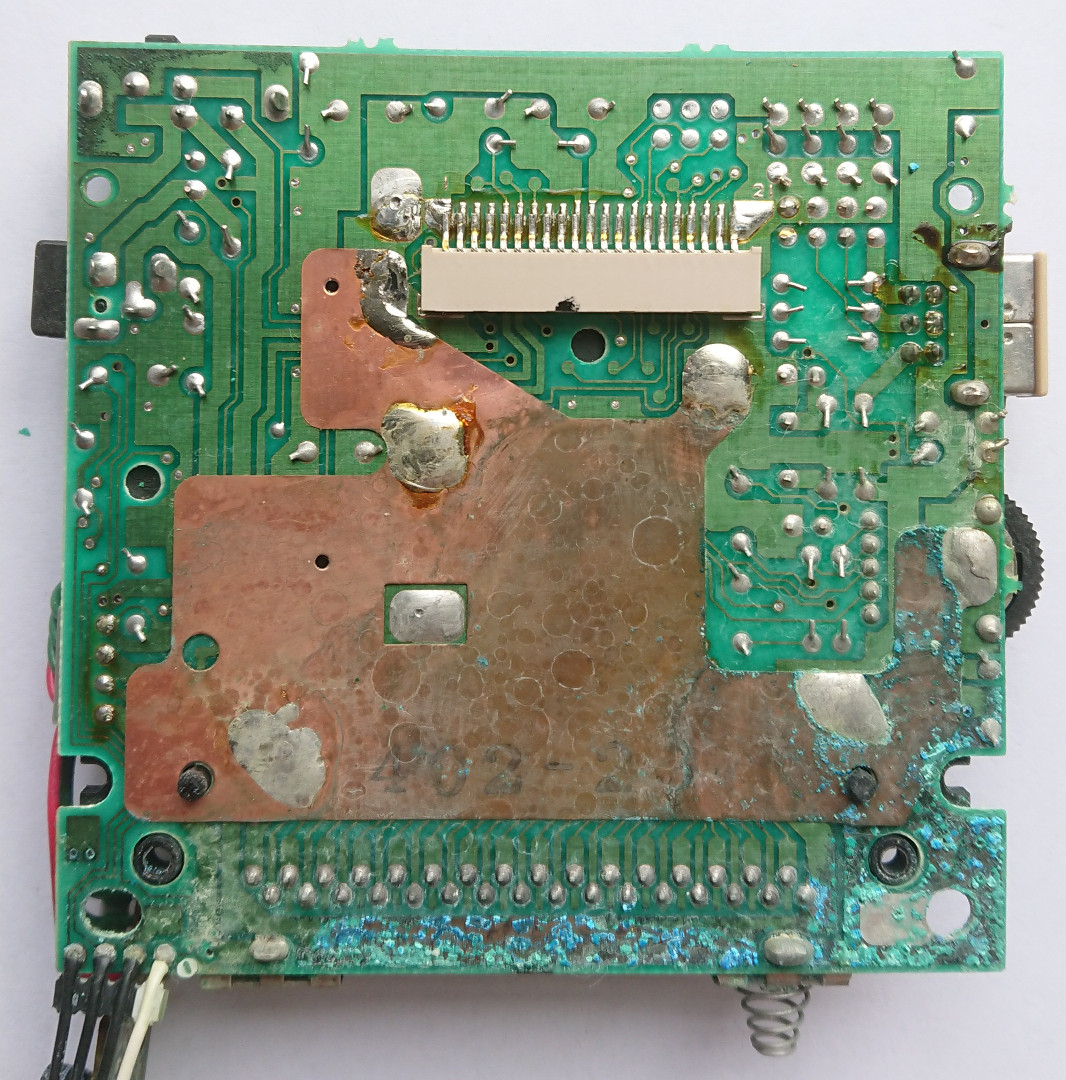

Mainboard
- Board type
- DMG-CPU-06
- Stamp on board
- 402-23
- Circled letter(s) on board
- K2
- Extra label
- 3

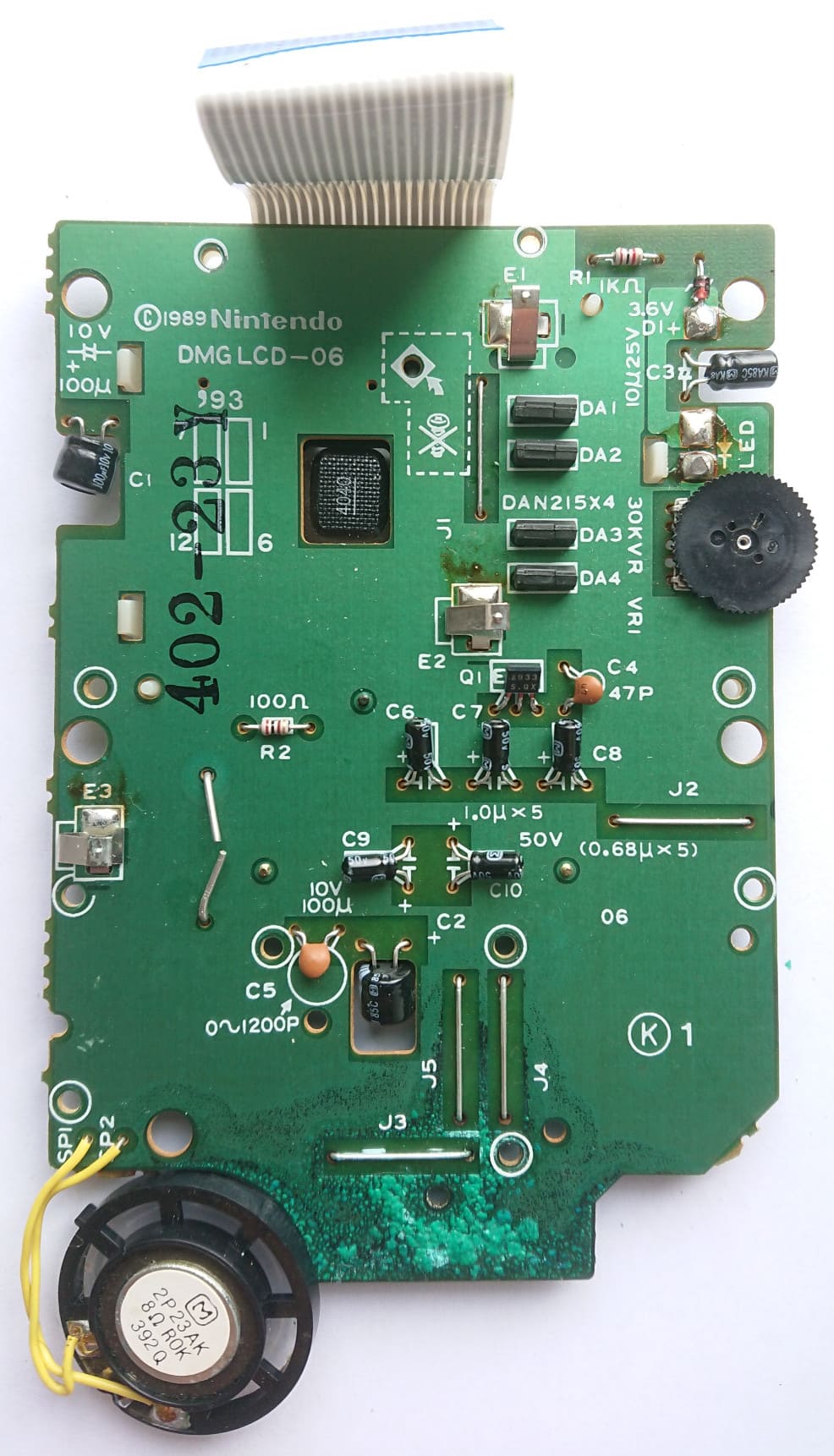

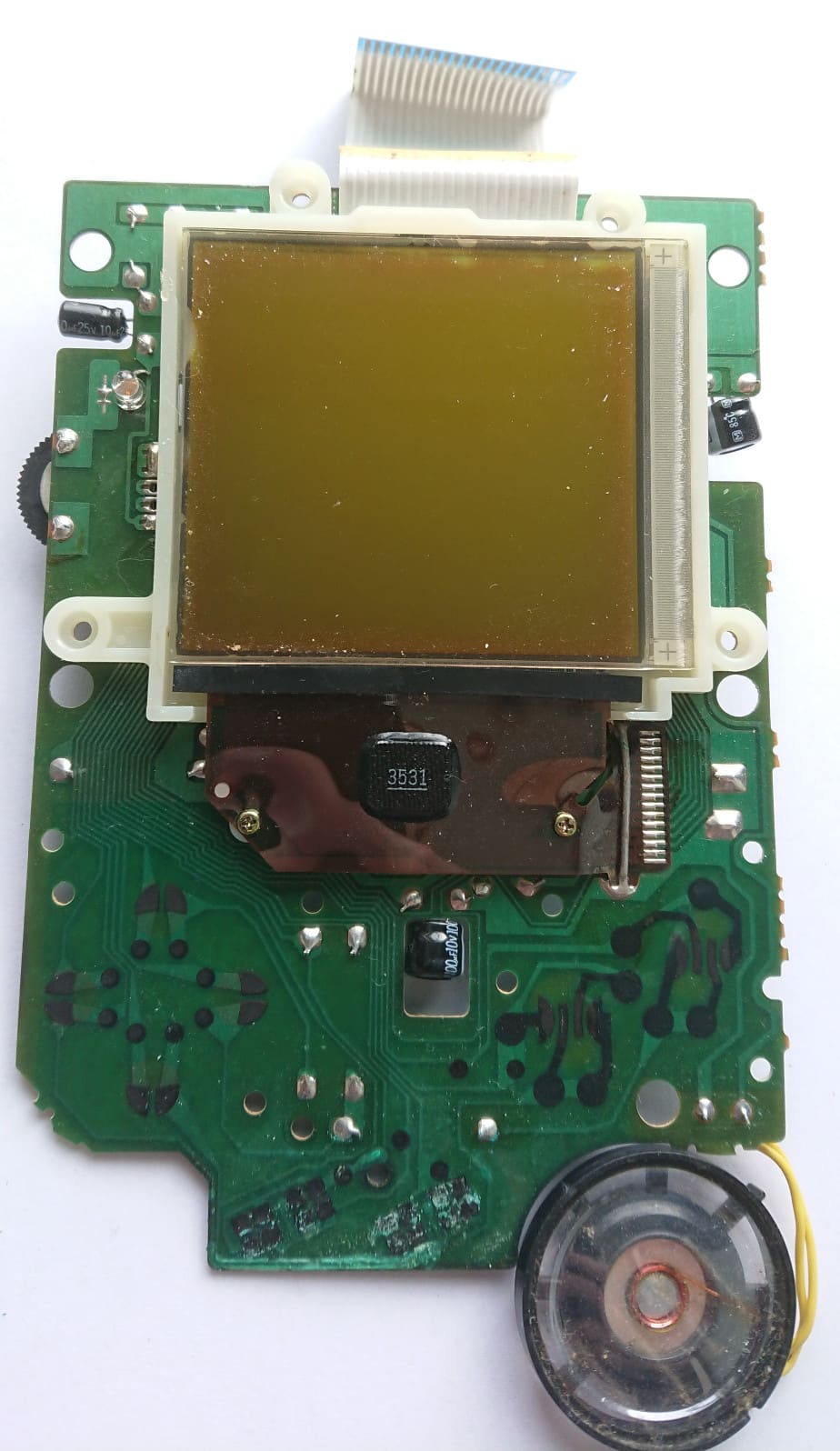

LCD board
- Board type
- DMG-LCD-06
- Manufacture date
- December/1993
- Stamp
- 402-23Y
- Circled letter(s) on board
- K1

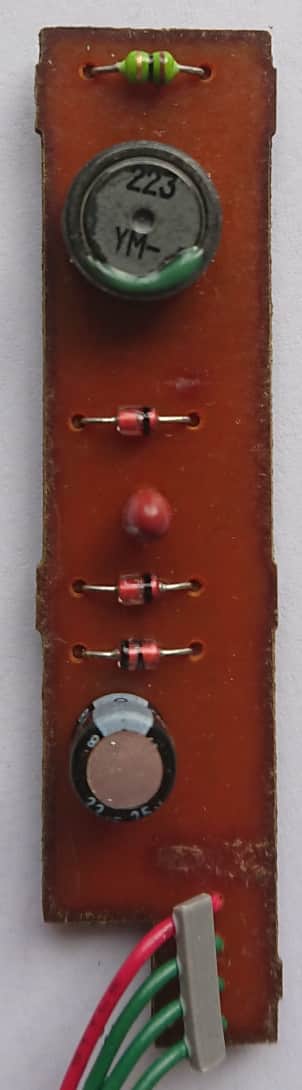

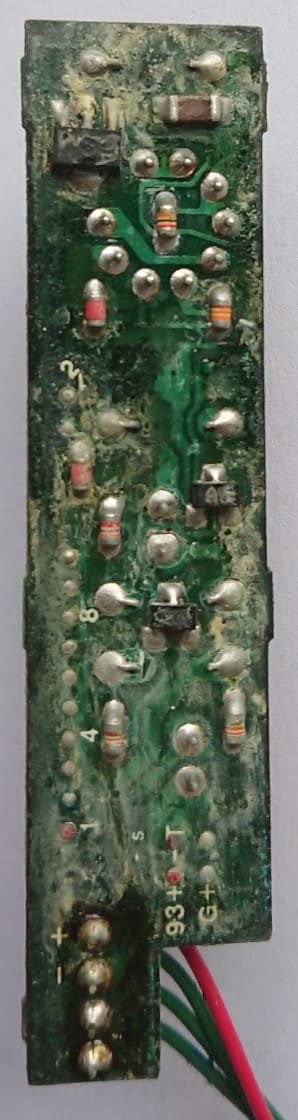

Power board
- Board type
- B
- Manufacture date
- January/1993
- Label
- DC CONV DMG
Jack board
- Board type
- DMG JACK 03
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU B | Sharp | Week 6/1994 | DMG-CPU B © 1989 Nintendo JAPAN 9406 D |
| U2 | VRAM | LH52A64N-TL | LSI Logic | Week 6/1994 | LH52A64N-TL LSI LOGIC JAPAN D4 06 05 C |
| U3 | WRAM | LH52A64N-TL | LSI Logic | Week 6/1994 | LH52A64N-TL LSI LOGIC JAPAN D4 06 05 C |
| U4 | Audio amplifier | IR3R40 | Sharp | Week 3/1994 | DMG-AMP IR3R40 9403 CA |
| X1 | Crystal | 4.194304 MHz | Daishinku | January/1994 | D419A4 |
| - | LCD column driver | LH5077 AF | Sharp | Week 53/1993 | LH5077 AF 3531 |
| - | LCD row driver | LH5076 AF | Sharp | Week 4/1994 | LH5076 AF 4040 |
| - | LCD bias generator | IR3E02 | Sharp | Week 4/1994 | DMG-REG IR3E02 9404 CB |
