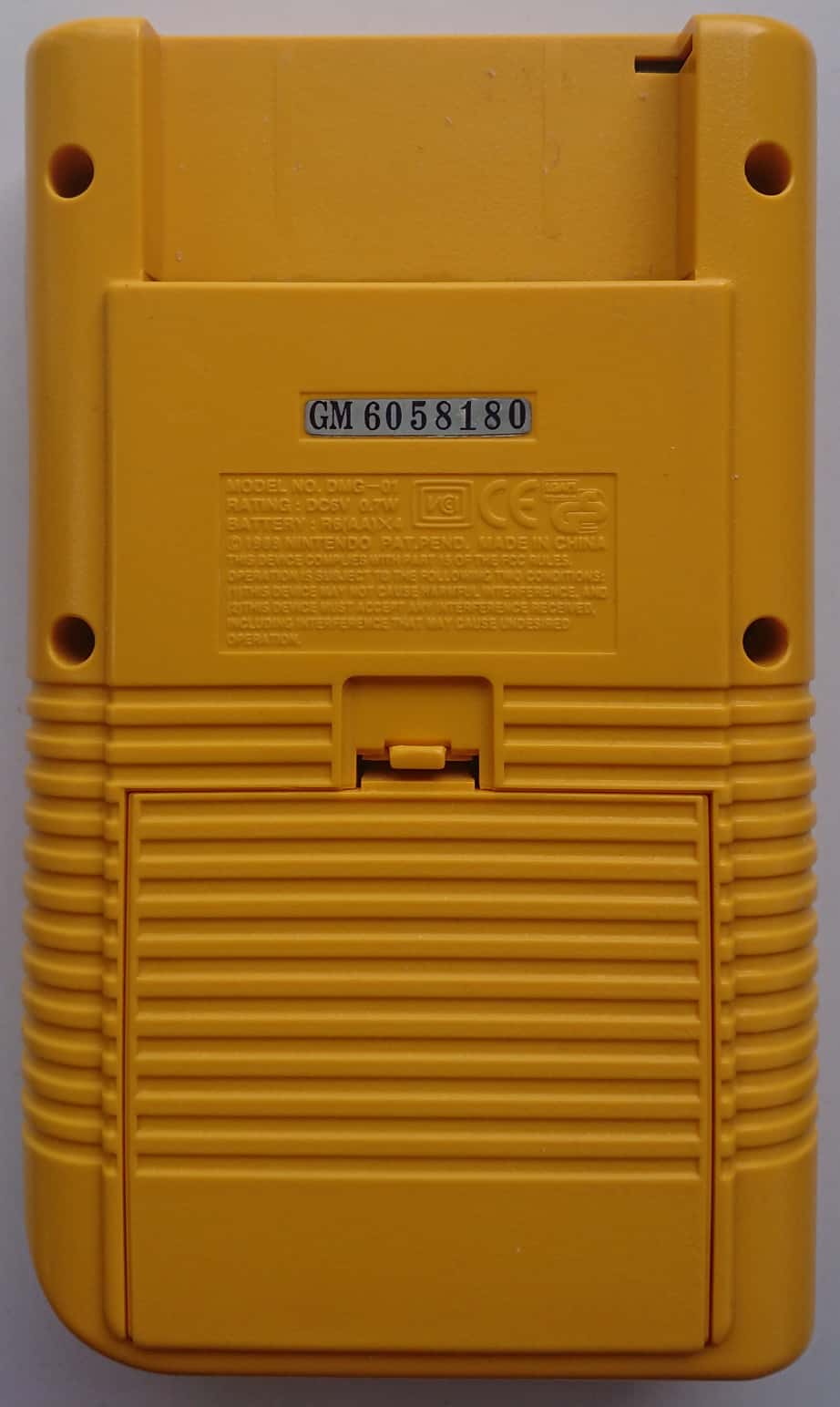

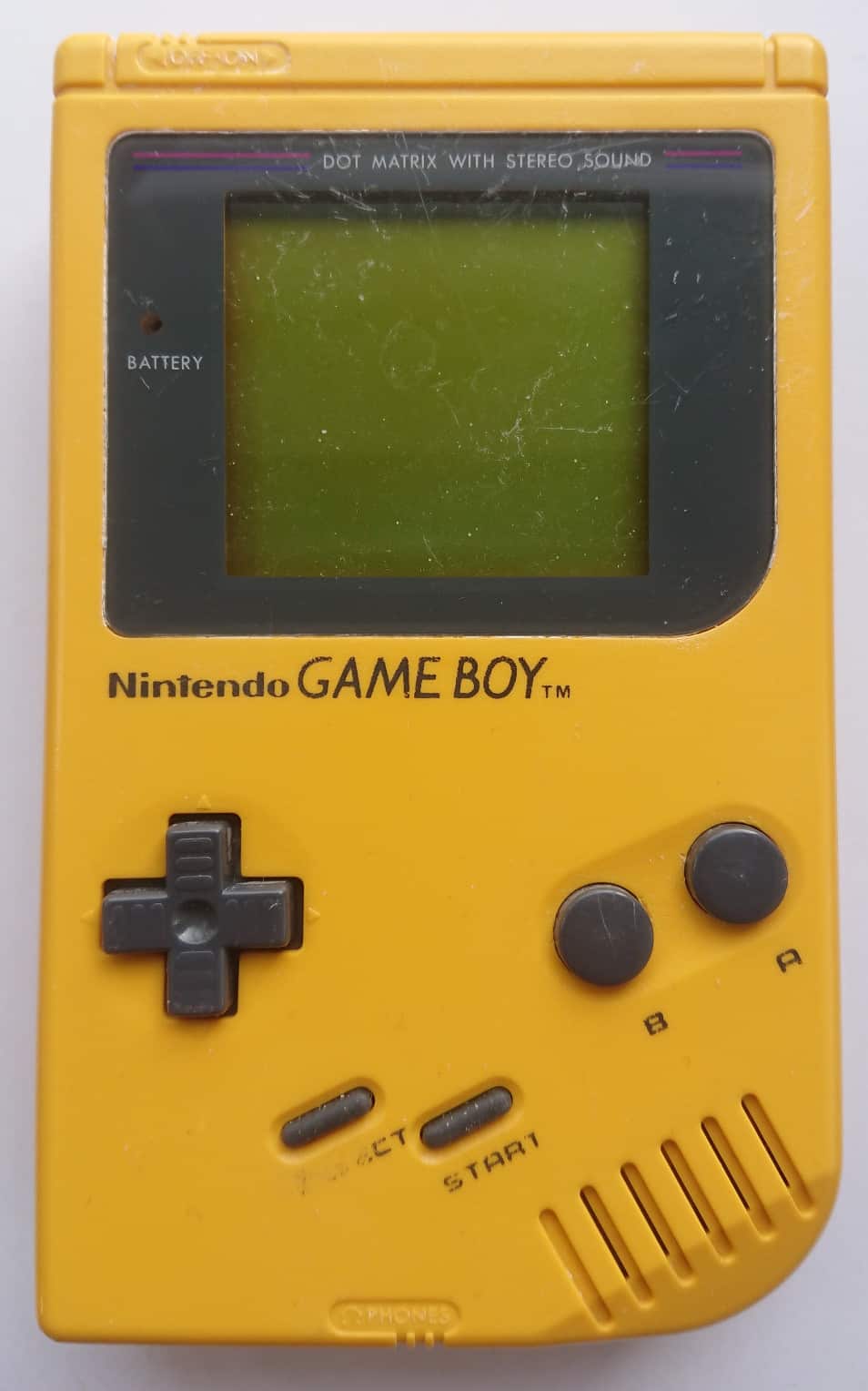

DMG: GM6058180 [gekkio]

Color
vibrant-yellow
Screws
tri-wing
Assembly date
May/1999

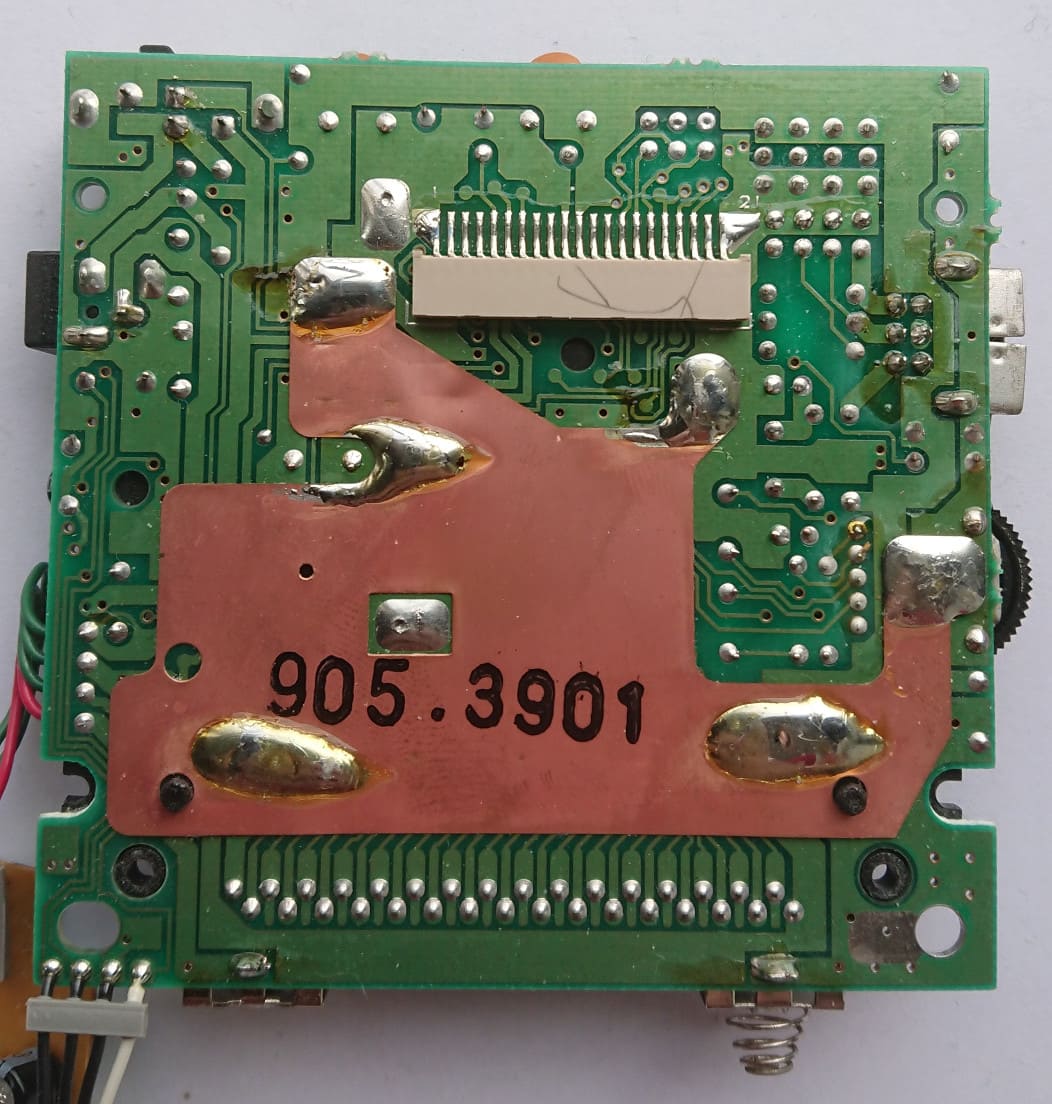

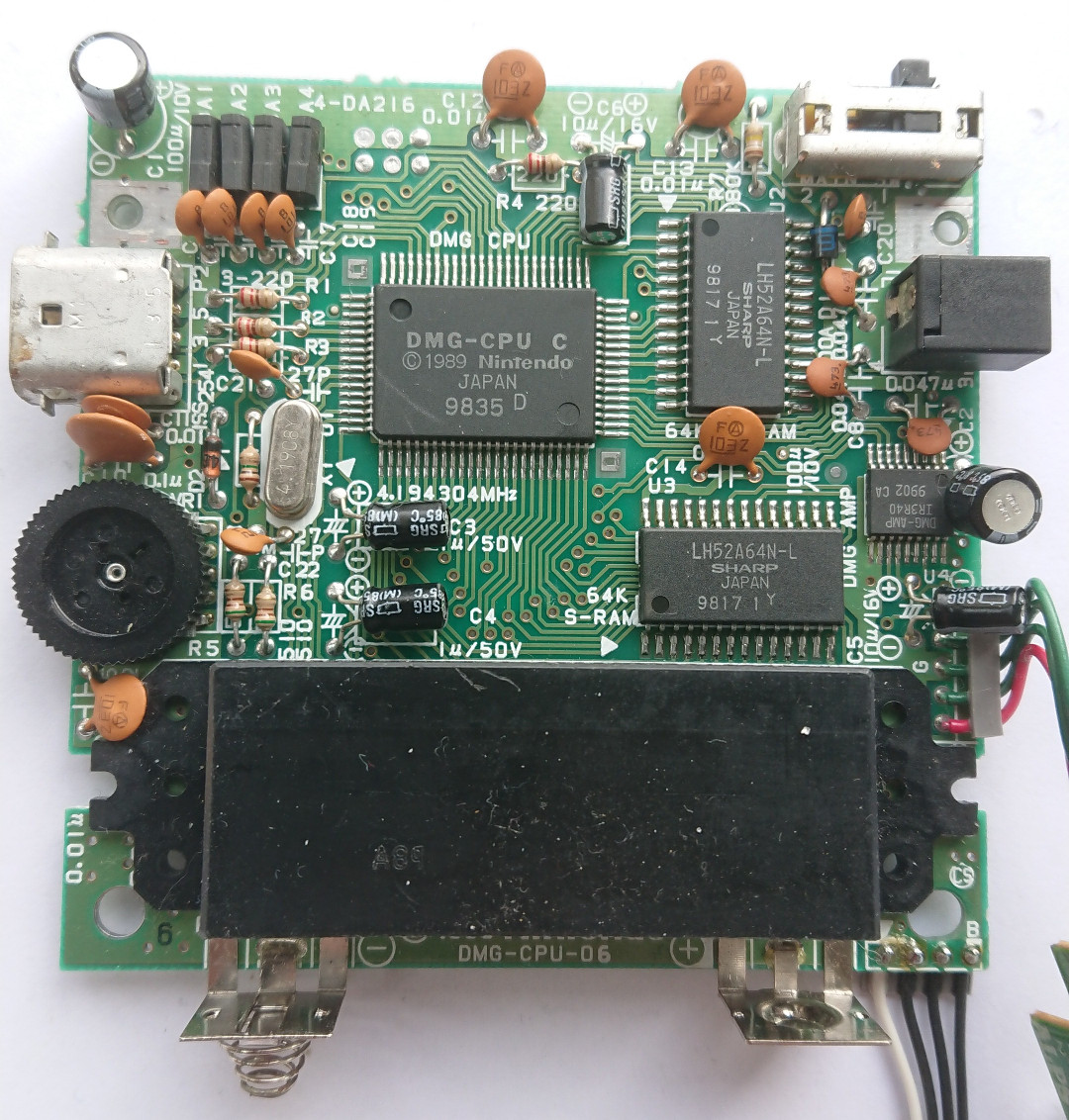

Mainboard

Board type
DMG-CPU-06
Stamp
905 3901
Circled letter(s) on board
CS
Extra label
6

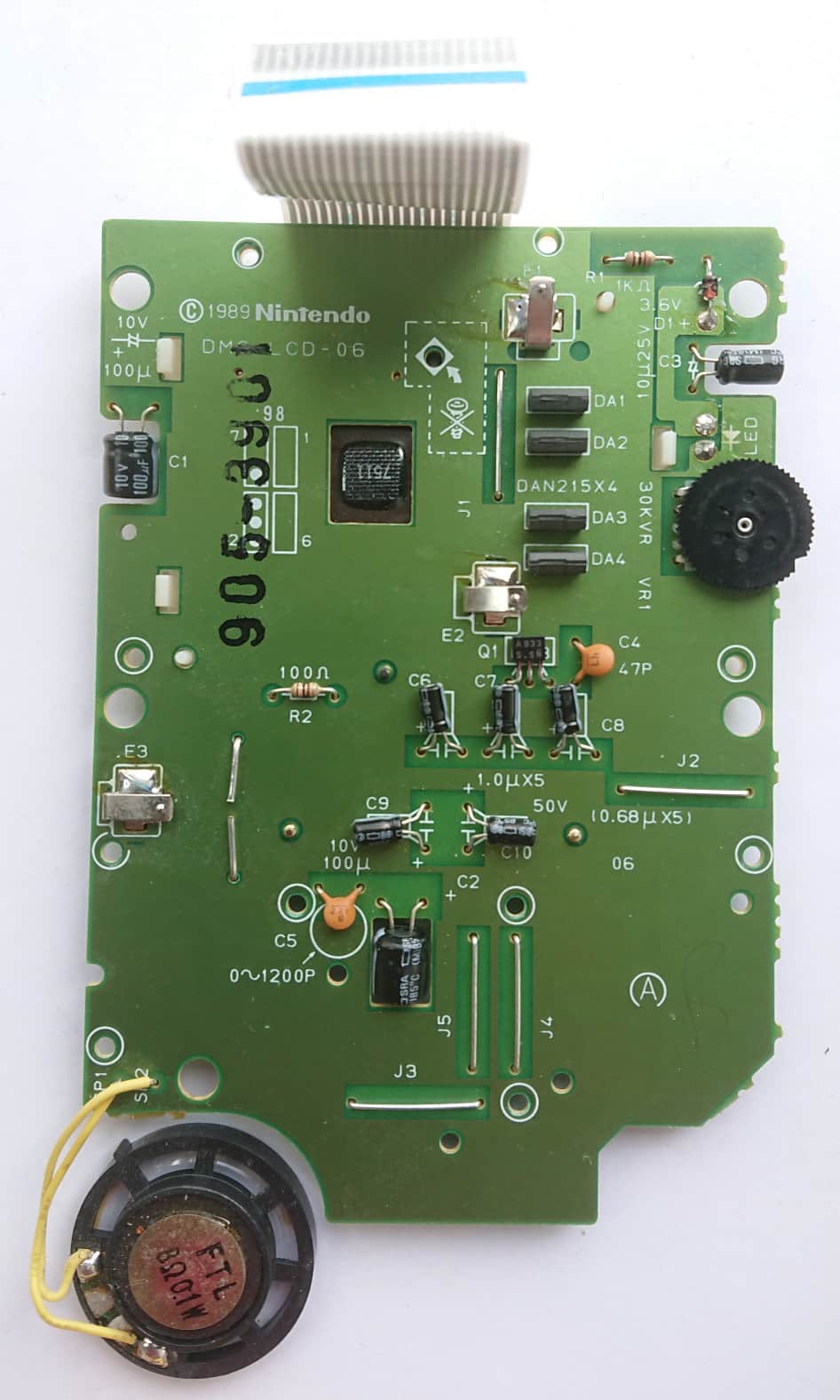

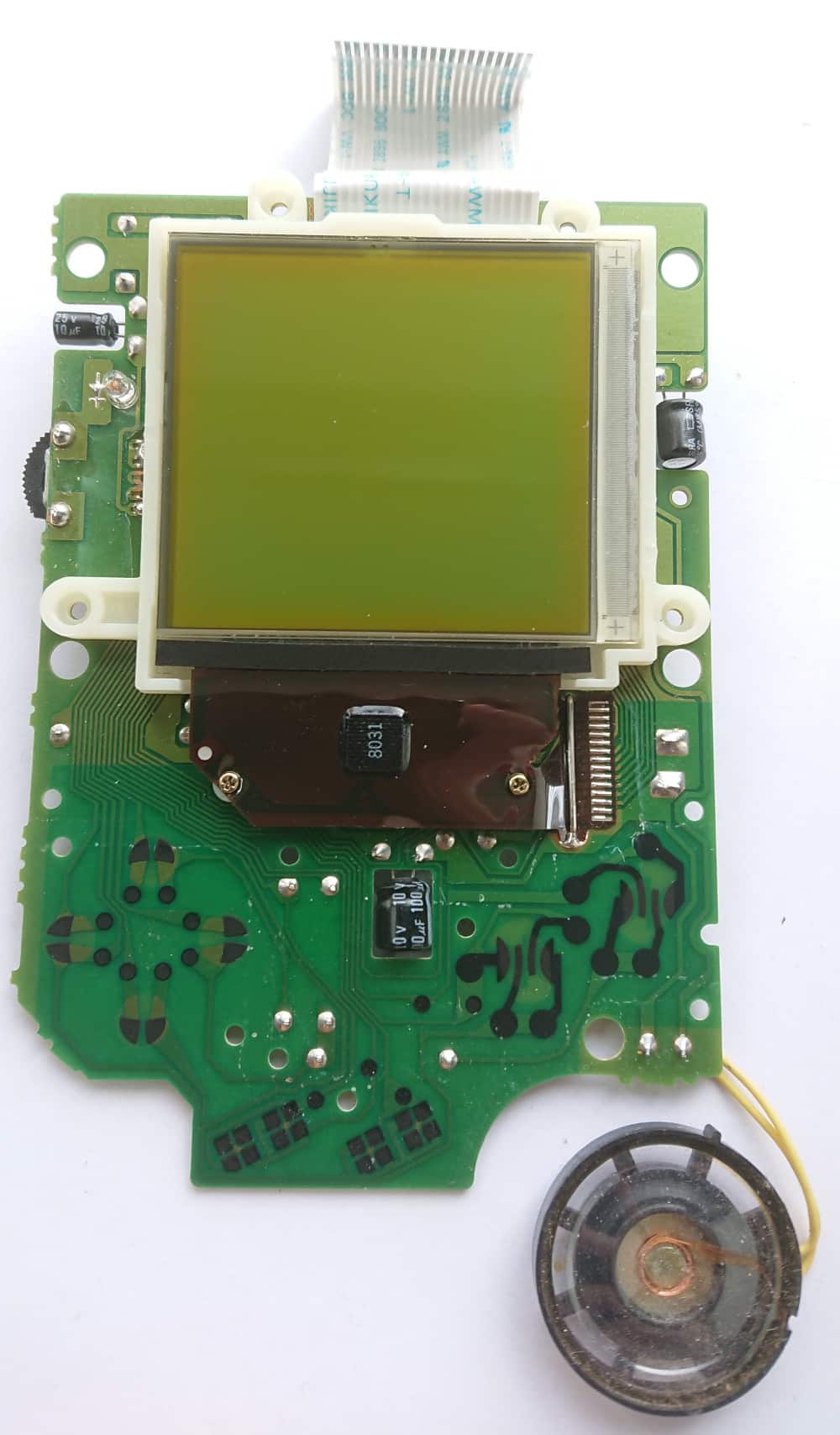

LCD Board

Board type
DMG-LCD-06
Manufacture date
August/1998
Stamp
905 3901
Circled letter(s) on board
A
LCD panel label
ST 990302
LCD panel date
March/1999

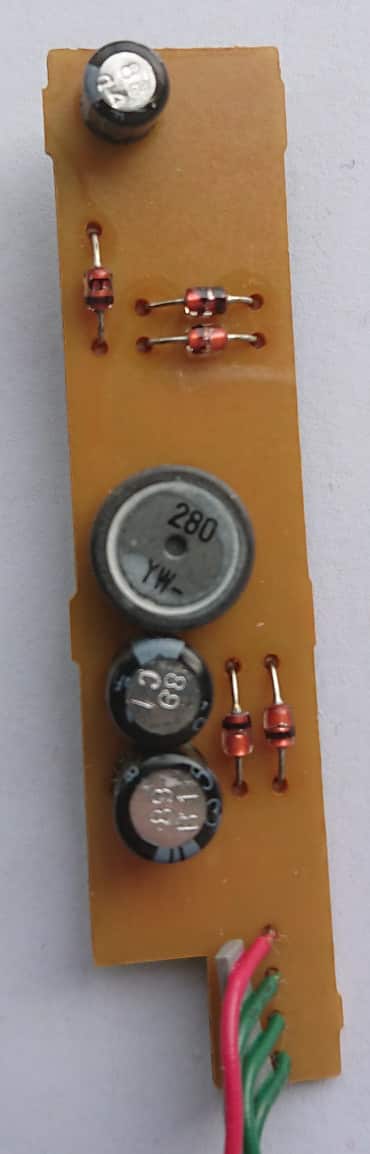

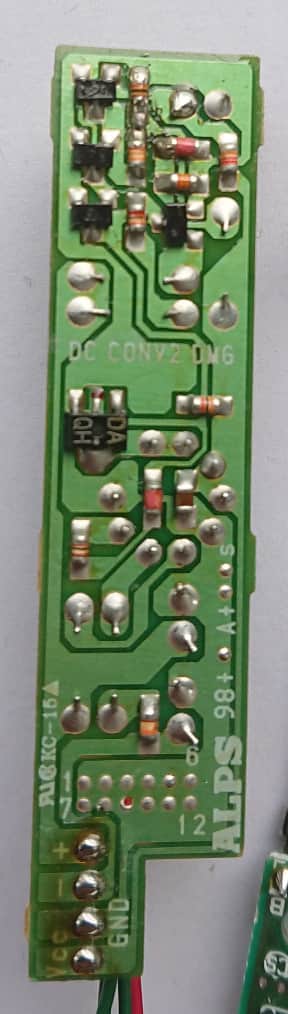

Power Board

Board type
Type D
Manufacture date
September/1998
Label
DC CONV2 DMG

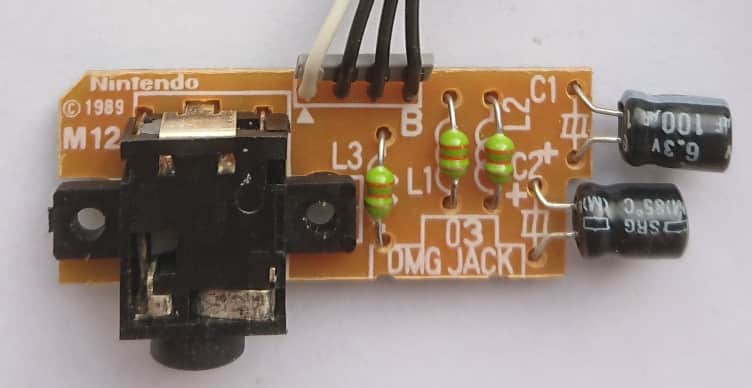

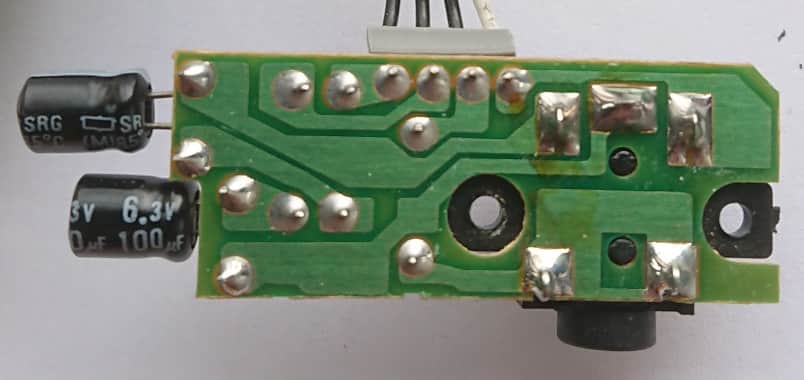

Jack Board

Board type
DMG JACK 03
Extra label
M12

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU CSharpWeek 35/1998DMG-CPU C © 1989 Nintendo JAPAN 9835 D
U2Video RAMLH52A64N-LSharpWeek 17/1998LH52A64N-L SHARP JAPAN 9817 1 Y
U3Work RAMLH52A64N-LSharpWeek 17/1998LH52A64N-L SHARP JAPAN 9817 1 Y
U4AmplifierIR3R40SharpWeek 2/1999DMG-AMP IR3R40 9902 CA
X1Crystal4.19C????19984.19C8Y
-LCD Column DriverLH5077 BFSharpWeek 2/1998LH5077 BF, 8021
-LCD Row DriverLH5076 BFSharpWeek 51/1997LH5076 BF, 7511
-LCD RegulatorIR3E02SharpWeek 6/1999DMG-REG IR3E02 9906 n
