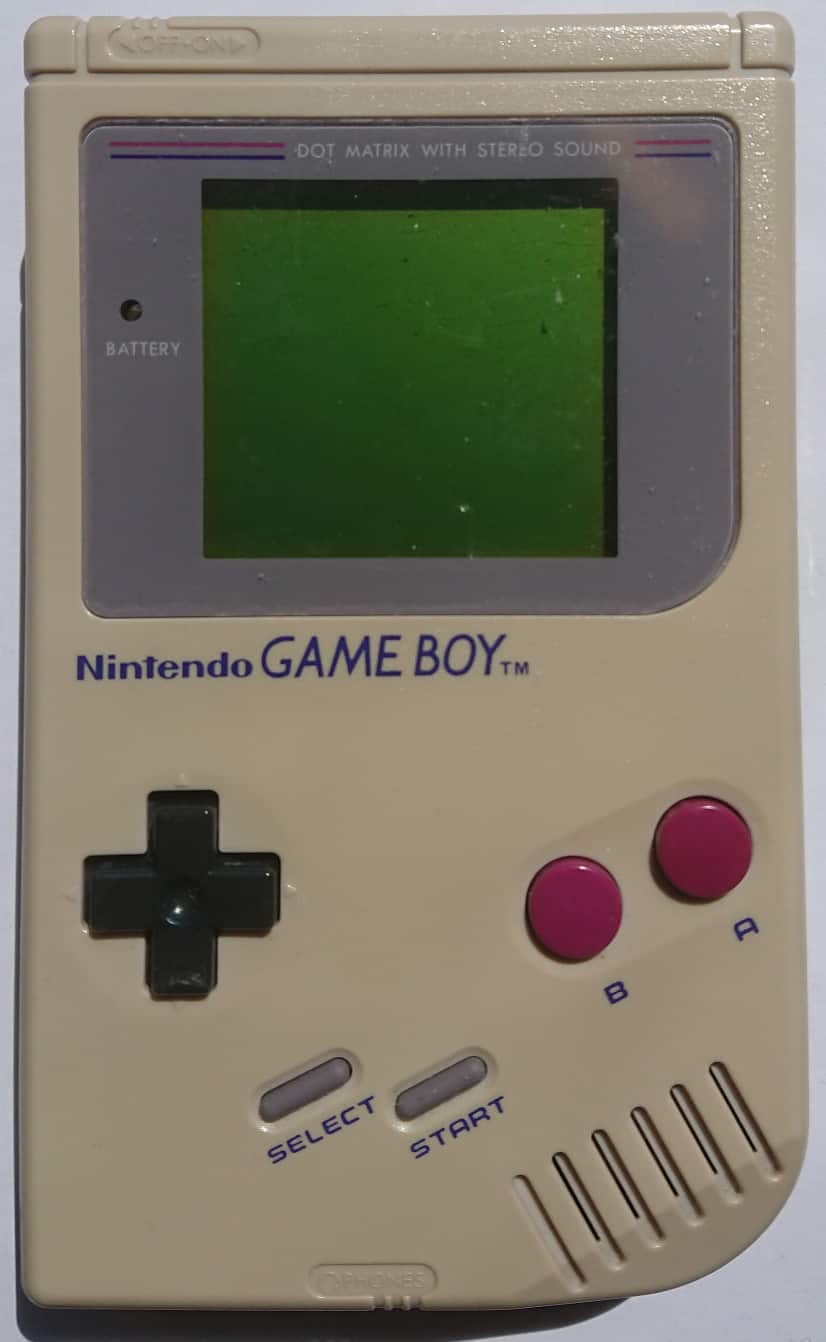

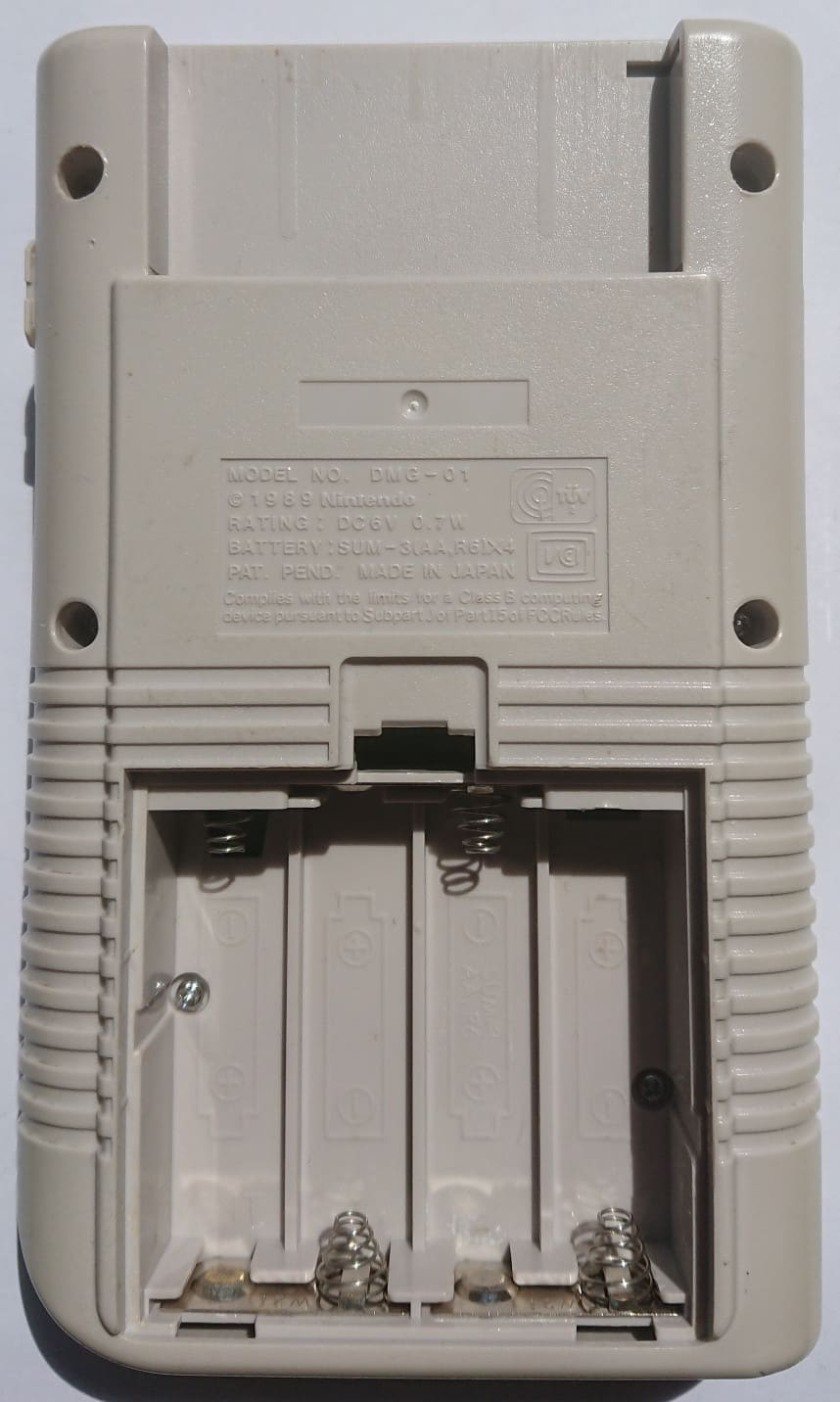

DMG: Unit #1 [gekkio]

Color
off-white
Screws
philips
Assembly date
October/1990

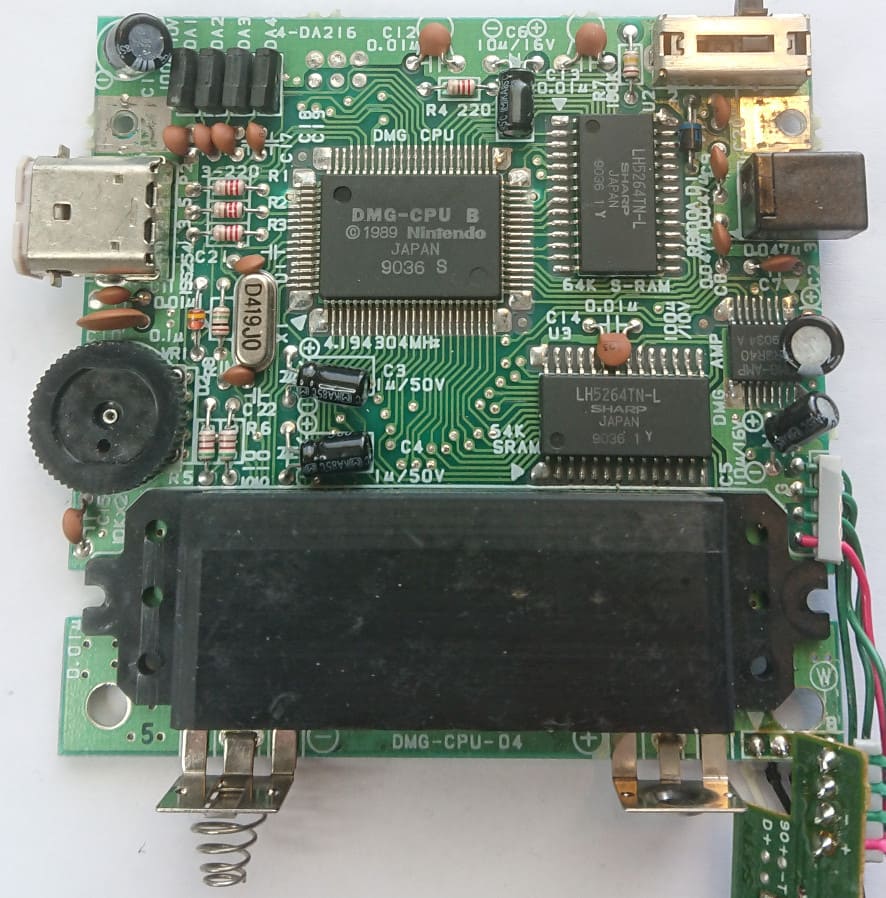

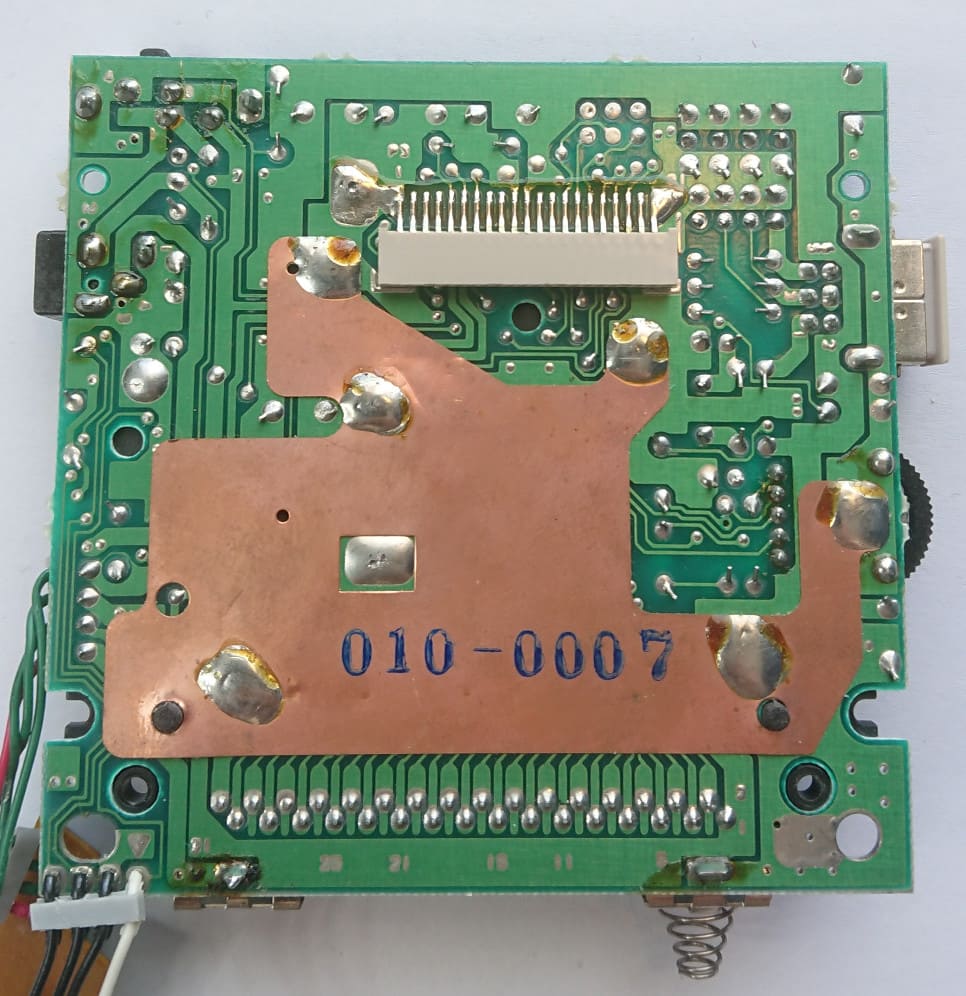

Mainboard

Board type
DMG-CPU-04
Stamp
010-0007
Circled letter(s) on board
W
Extra label
5

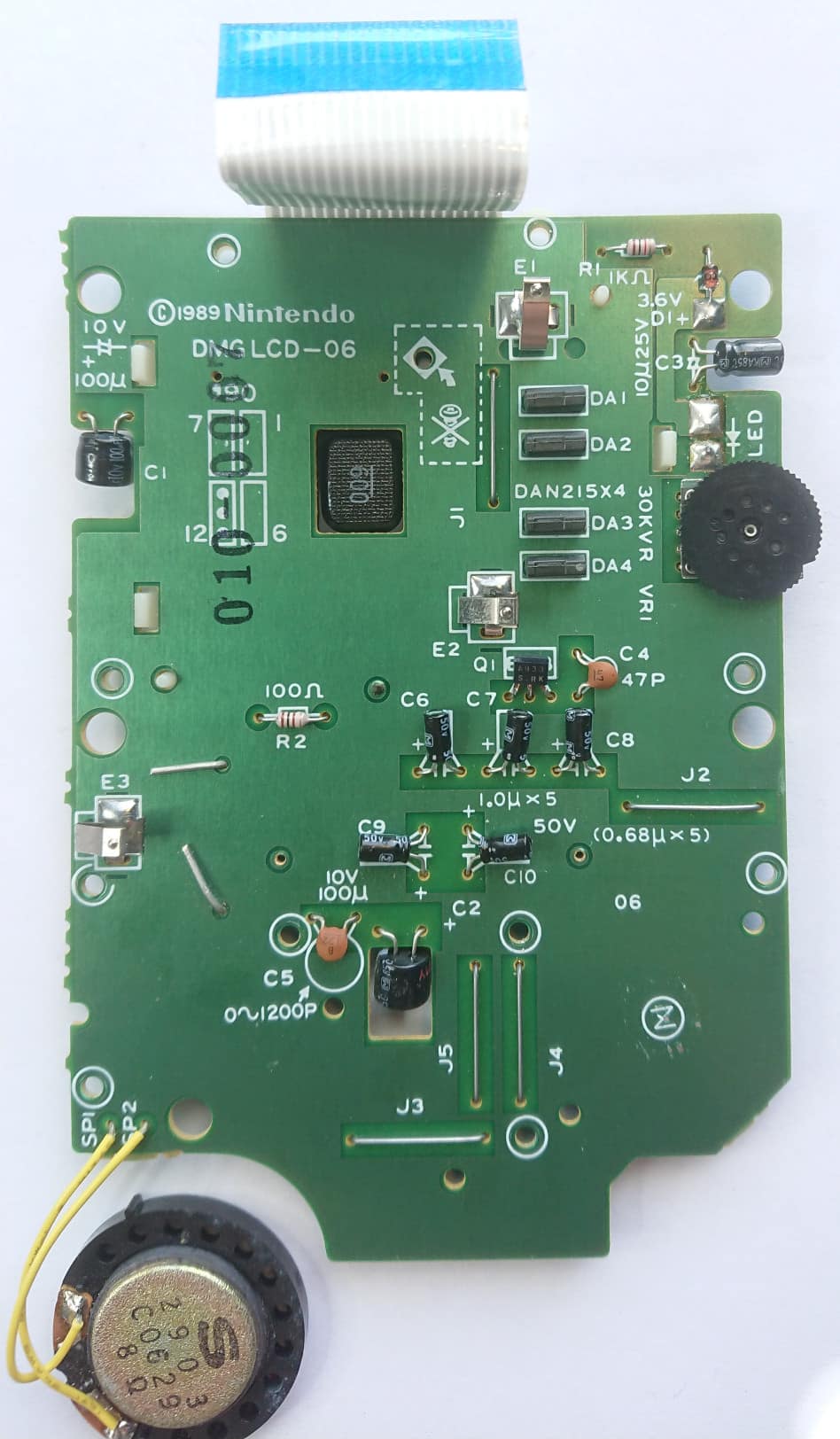

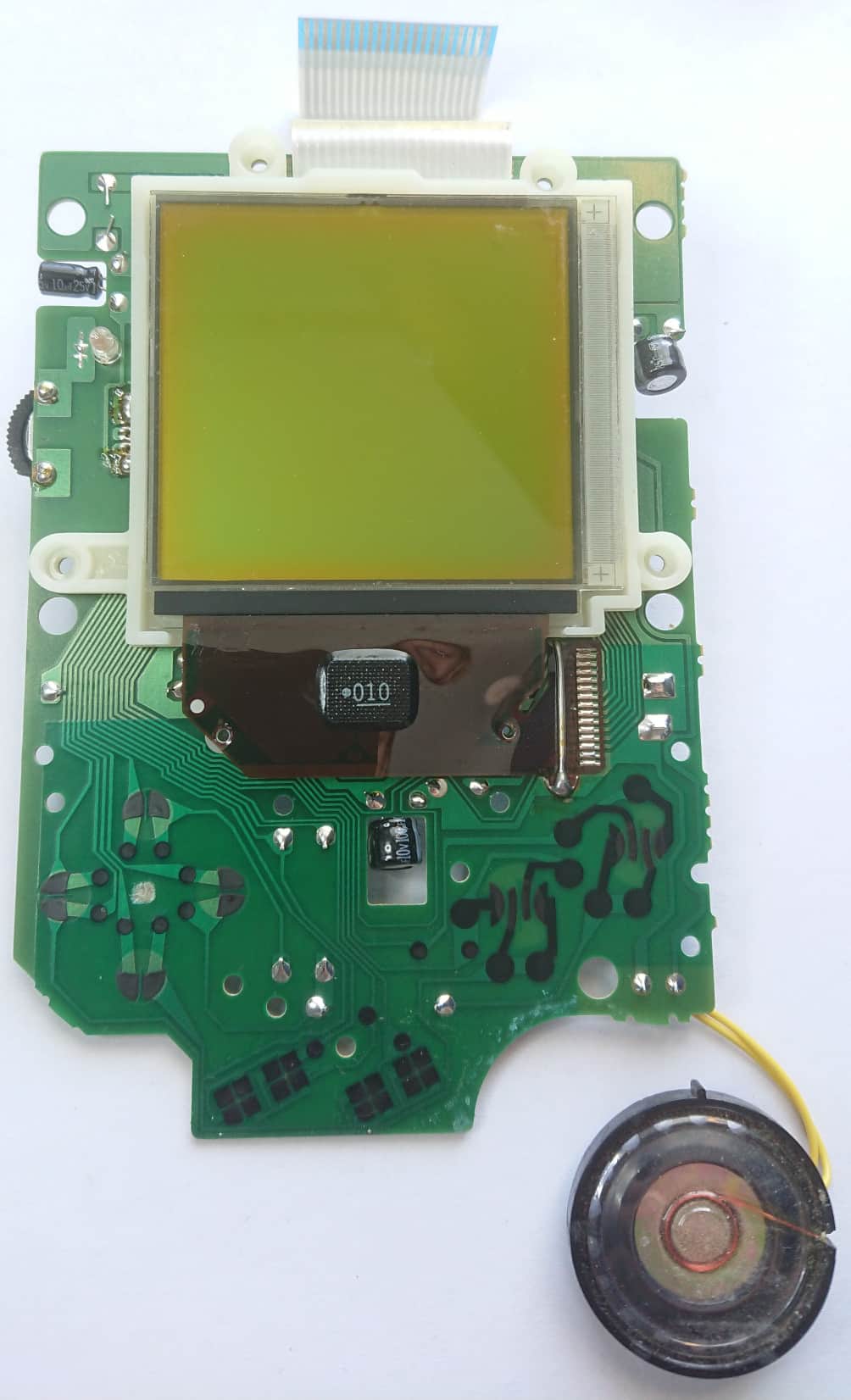

LCD Board

Board type
DMG-LCD-06
Manufacture date
September/1990
Stamp
010-0007
Circled letter(s) on board
Z
LCD panel label
N AE901015
LCD panel date
October/1990

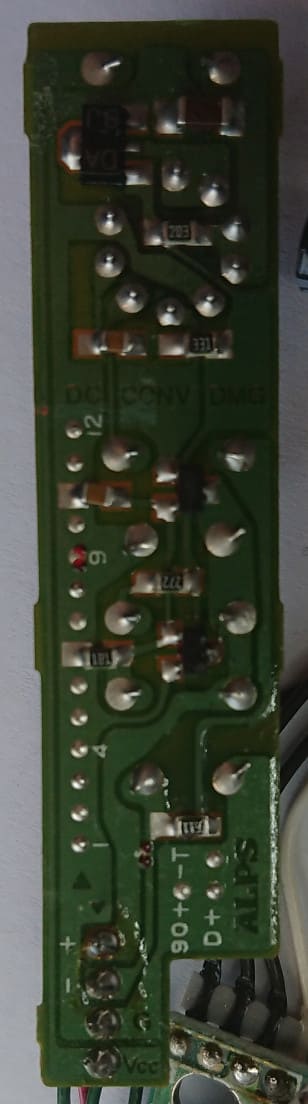

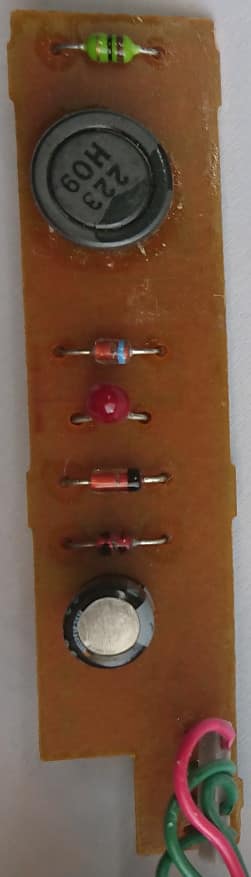

Power Board

Board type
Type A2
Manufacture date
September/1990
Label
DC CONV DMG

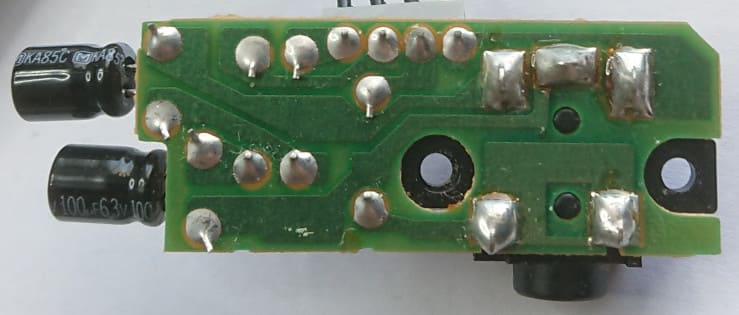

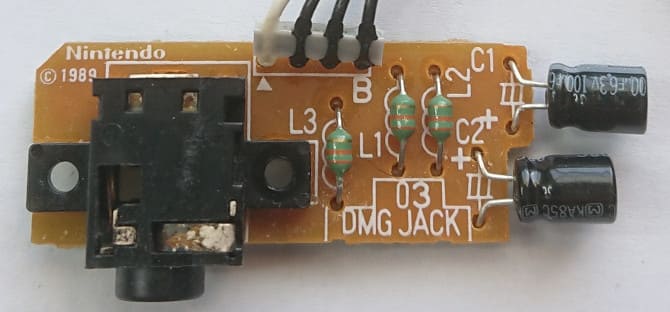

Jack Board

Board type
DMG JACK 03
Extra label
-

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 36/1990DMG-CPU B © 1989 Nintendo JAPAN 9036 S
U2Video RAMLH5264TN-LSharpWeek 36/1990LH5264TN-L SHARP JAPAN 9036 1 Y
U3Work RAMLH5264TN-LSharpWeek 36/1990LH5264TN-L SHARP JAPAN 9036 1 Y
U4AmplifierIR3R40SharpWeek 34/1990DMG-AMP IR3R40 9034 A
X1CrystalD419????October/1990D419J0
-LCD Column DriverLH5077 FSharpOctober/1990LH5077 F, 010
-LCD Row DriverLH5076 FSharpSeptember/1990LH5076 F, 009
-LCD RegulatorIR3E02SharpWeek 39/1990DMG-REG IR3E02 9039 J
