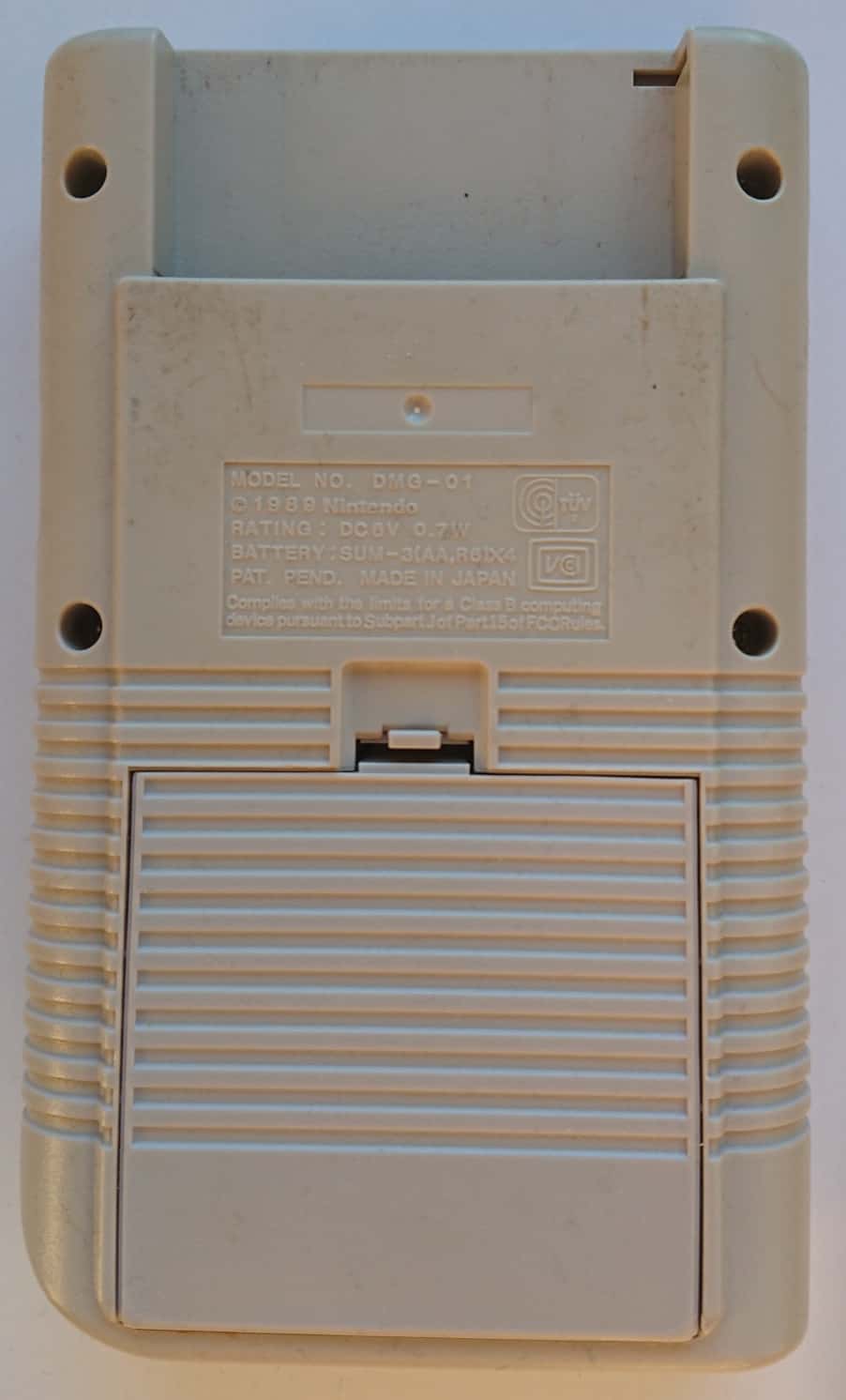

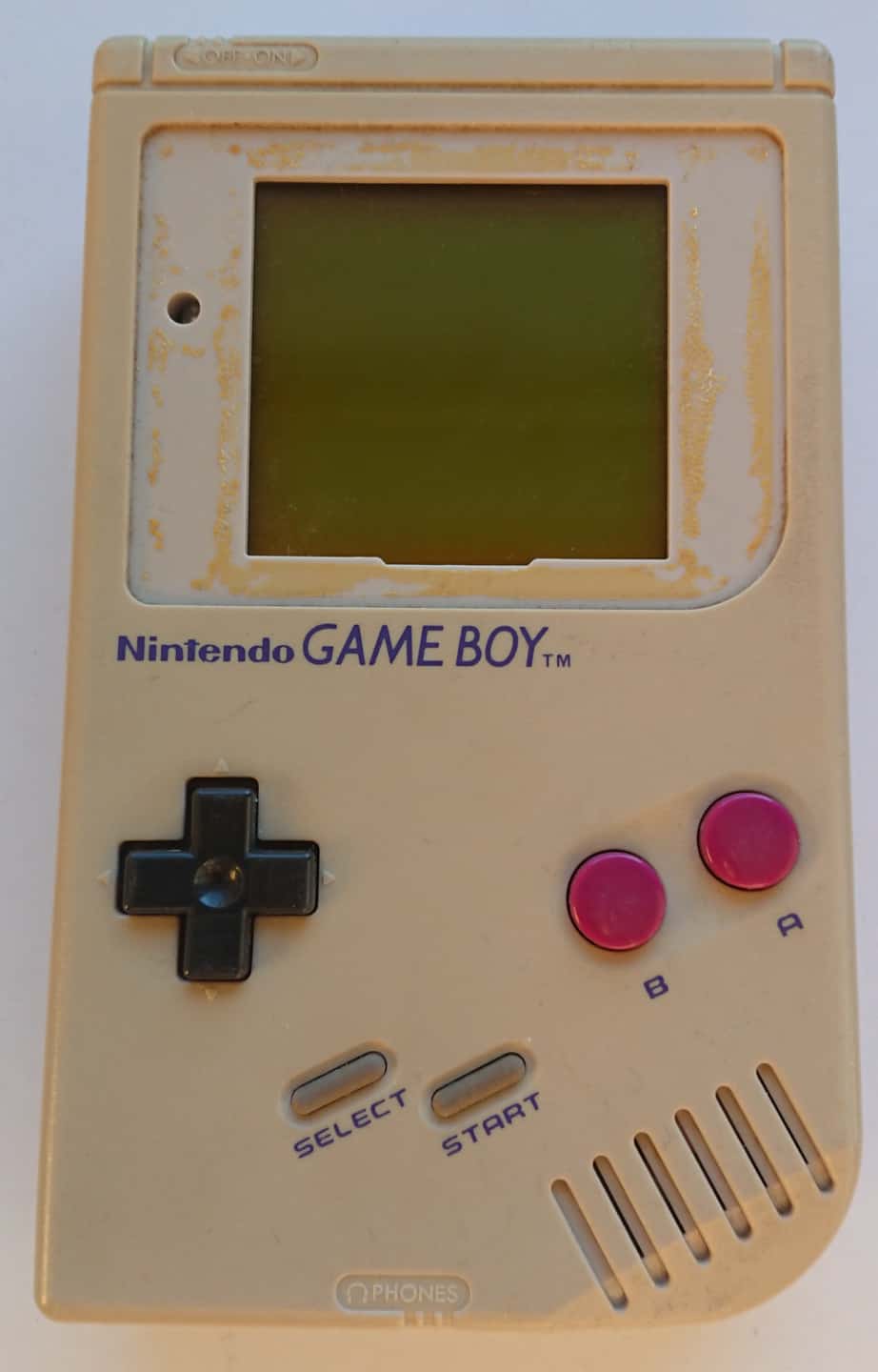

DMG: Unit #2 [gekkio]

Color
OffWhite
Assembly date
June/1992

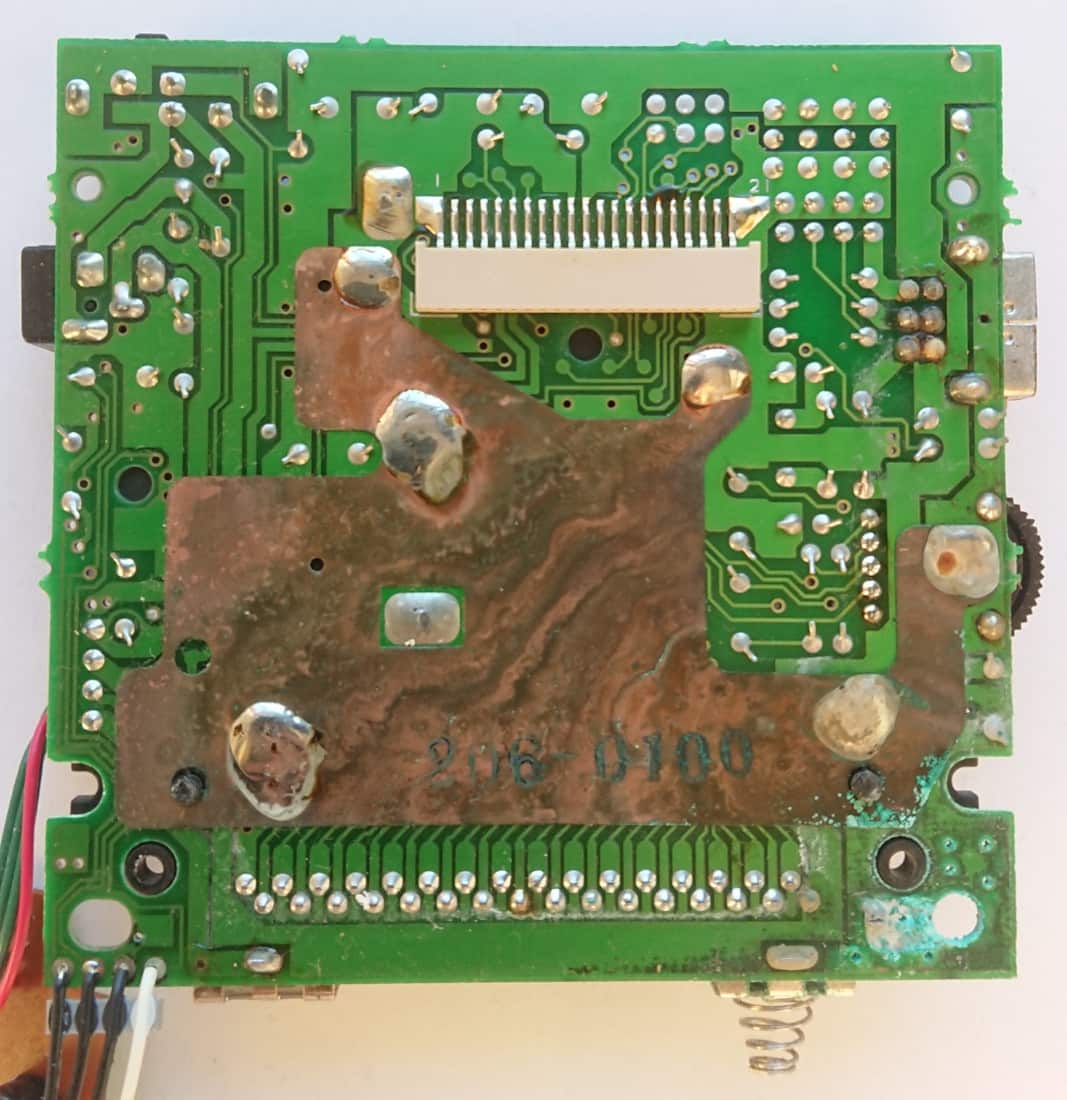

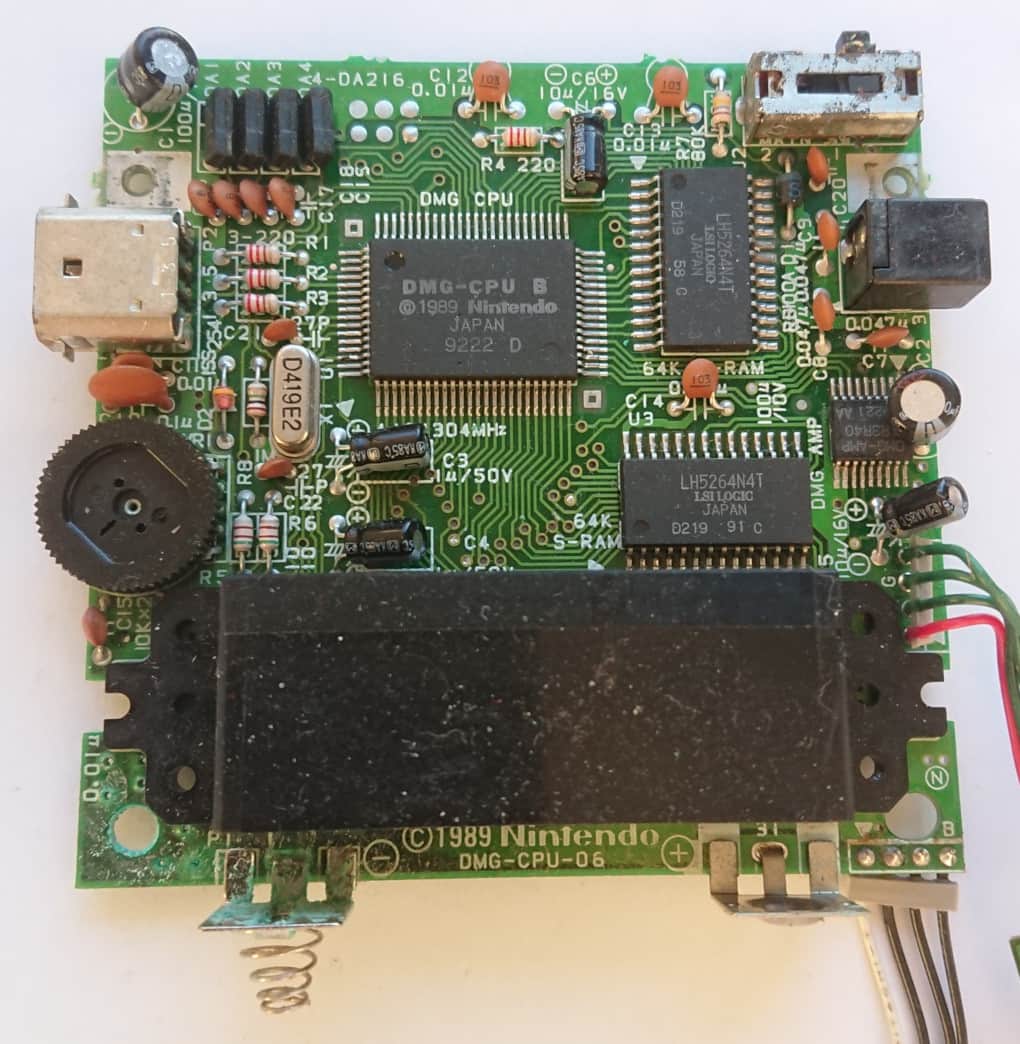

Mainboard

Board type
DMG-CPU-06
Stamp on board
206-0100
Circled letter(s) on board
N

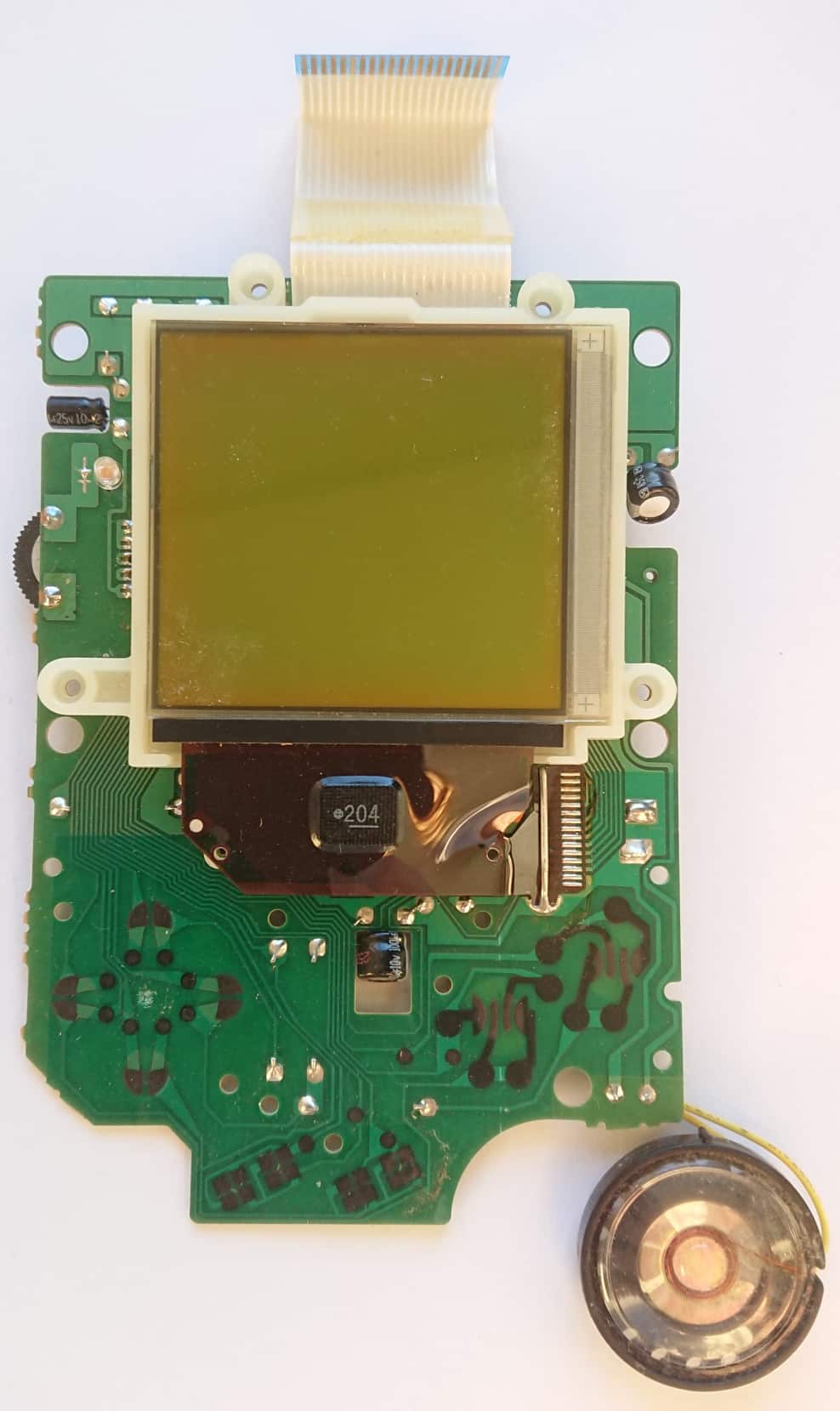

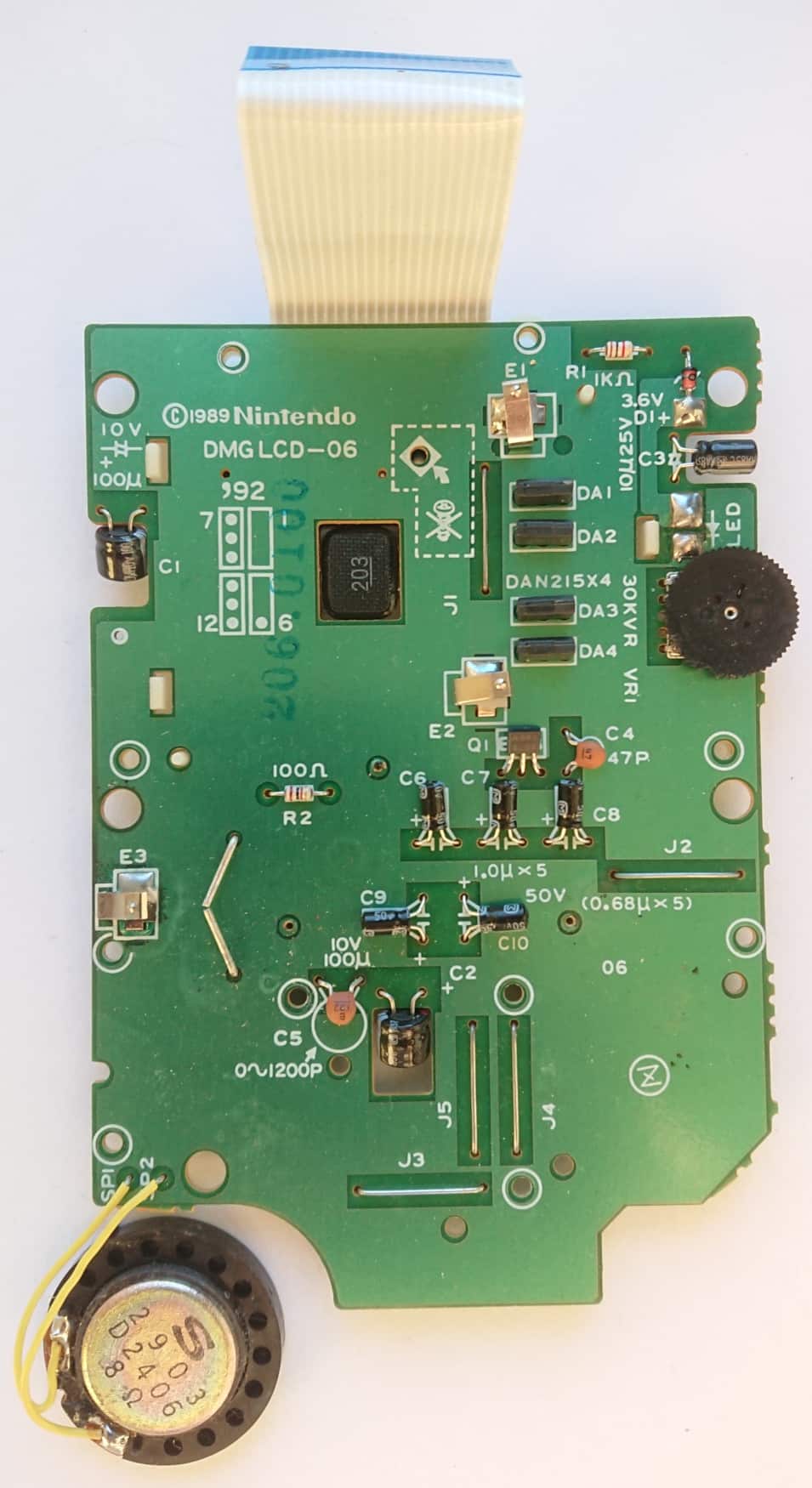

LCD Board

Board type
DMG-LCD-06
Manufacture date
May/1992
Stamp
206-0100
Circled letter(s) on board
Z
LCD panel label
N1 AH 020515
LCD panel date
May/1992

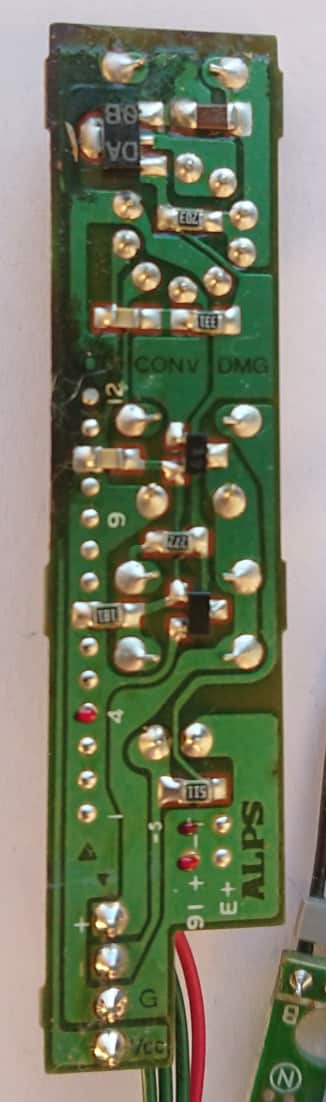

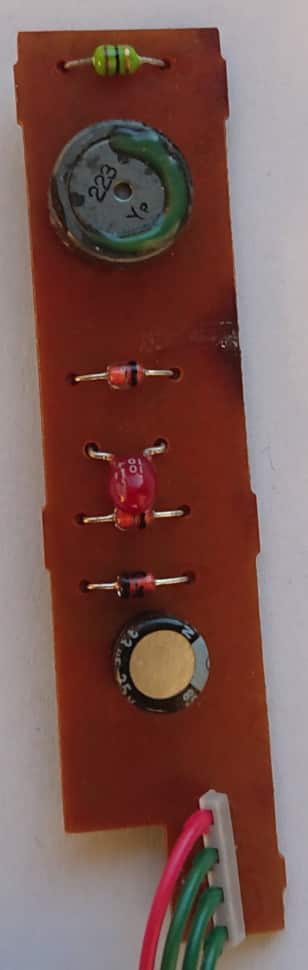

Power Board

Board type
Type A3
Manufacture date
April/1991
Label
DC CONV DMG

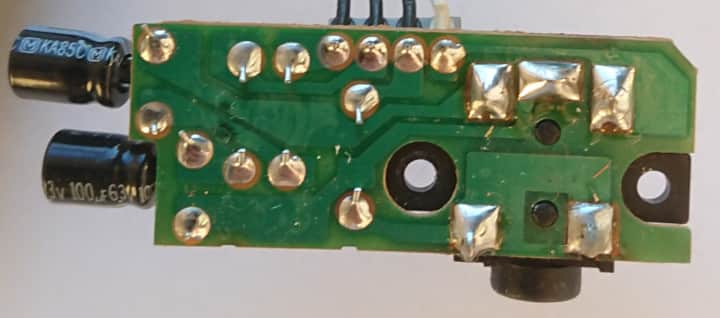

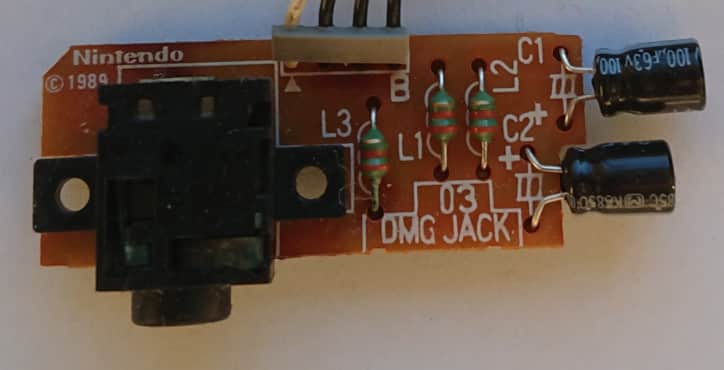

Jack Board

Board type
DMG JACK 03

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 22/1992DMG-CPU B © 1989 Nintendo JAPAN 9222 D
U2Video RAMLH5264N4TLSI LogicWeek 19/1992LH5264N4T LSI LOGIC JAPAN D219 91 C
U3Work RAMLH5264N4TLSI LogicWeek 19/1992LH5264N4T LSI LOGIC JAPAN D219 58 C
U4AmplifierIR3R40SharpWeek 21/1992DMG-AMP IR3R40 9221 AA
X1Crystal4.194304 MHzDaishinkuMay/1992D419E2
-LCD Column DriverLH5077 FSharpApril/1992LH5077 F 204
-LCD Row DriverLH5076 FSharpMarch/1992LH5076 F 203
-LCD RegulatorIR3E02SharpWeek 19/1992DMG-REG IR3E02 9219 AB
