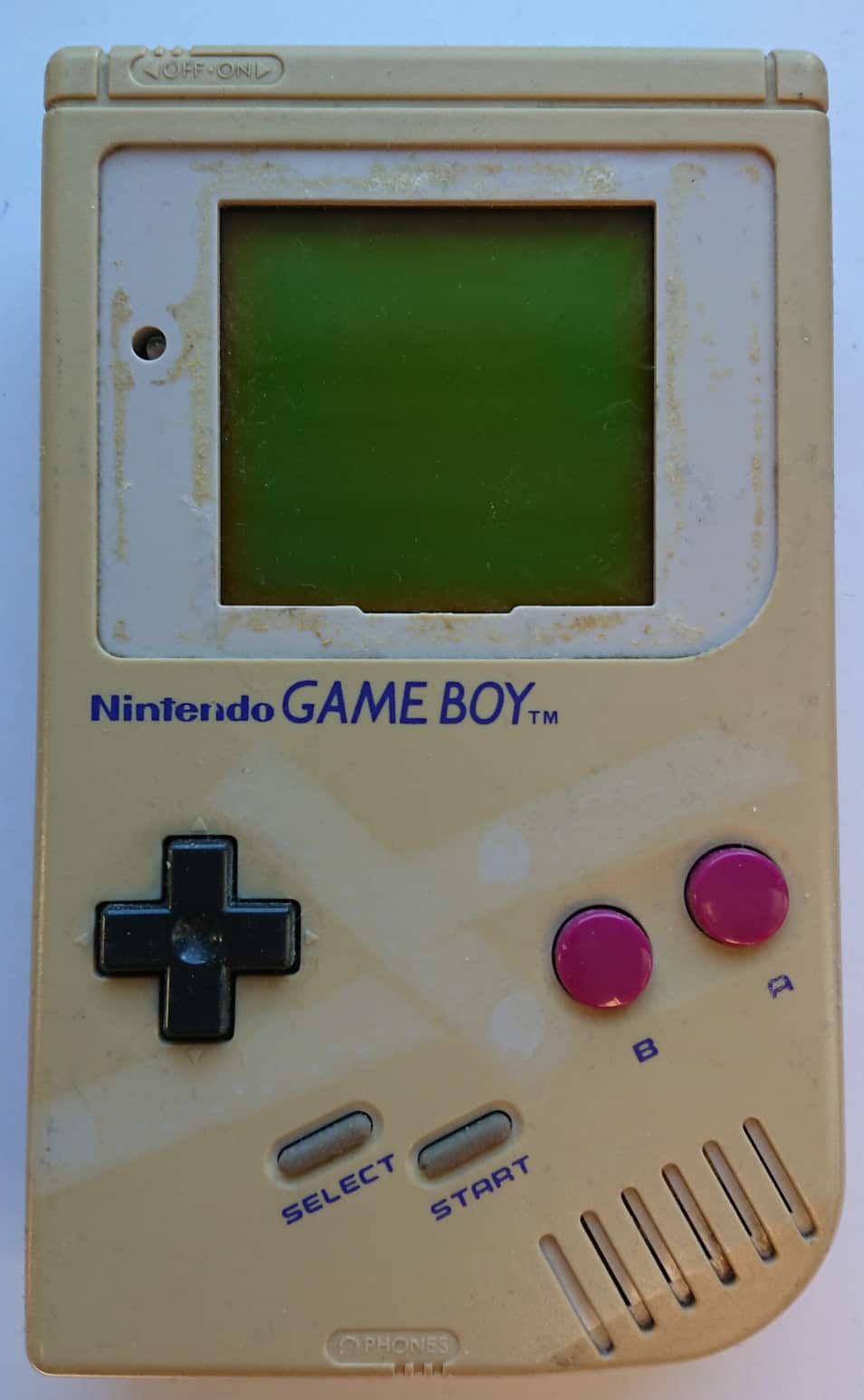

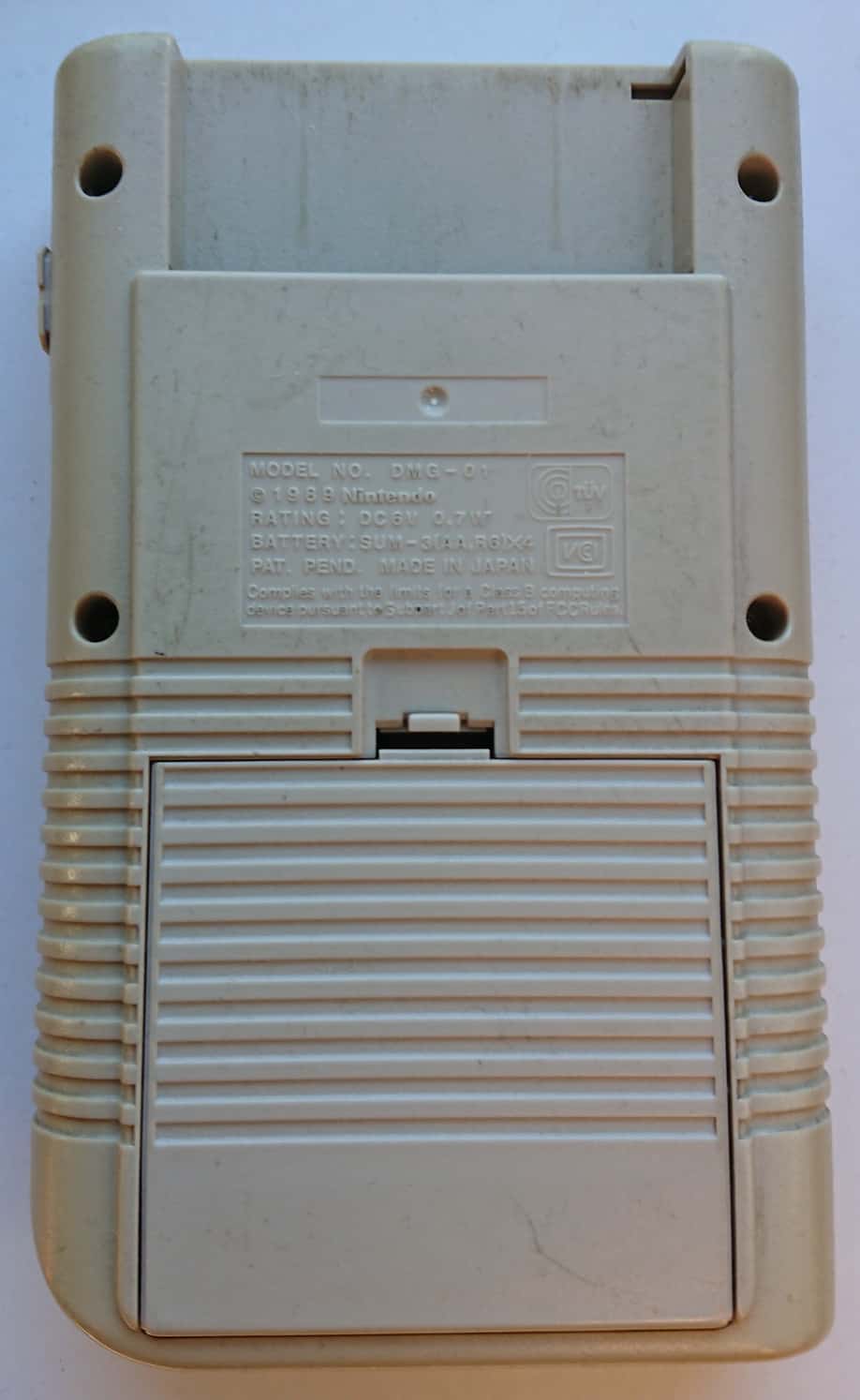

DMG: Unit #3 [gekkio]

Color
OffWhite
Assembly date
November/1990

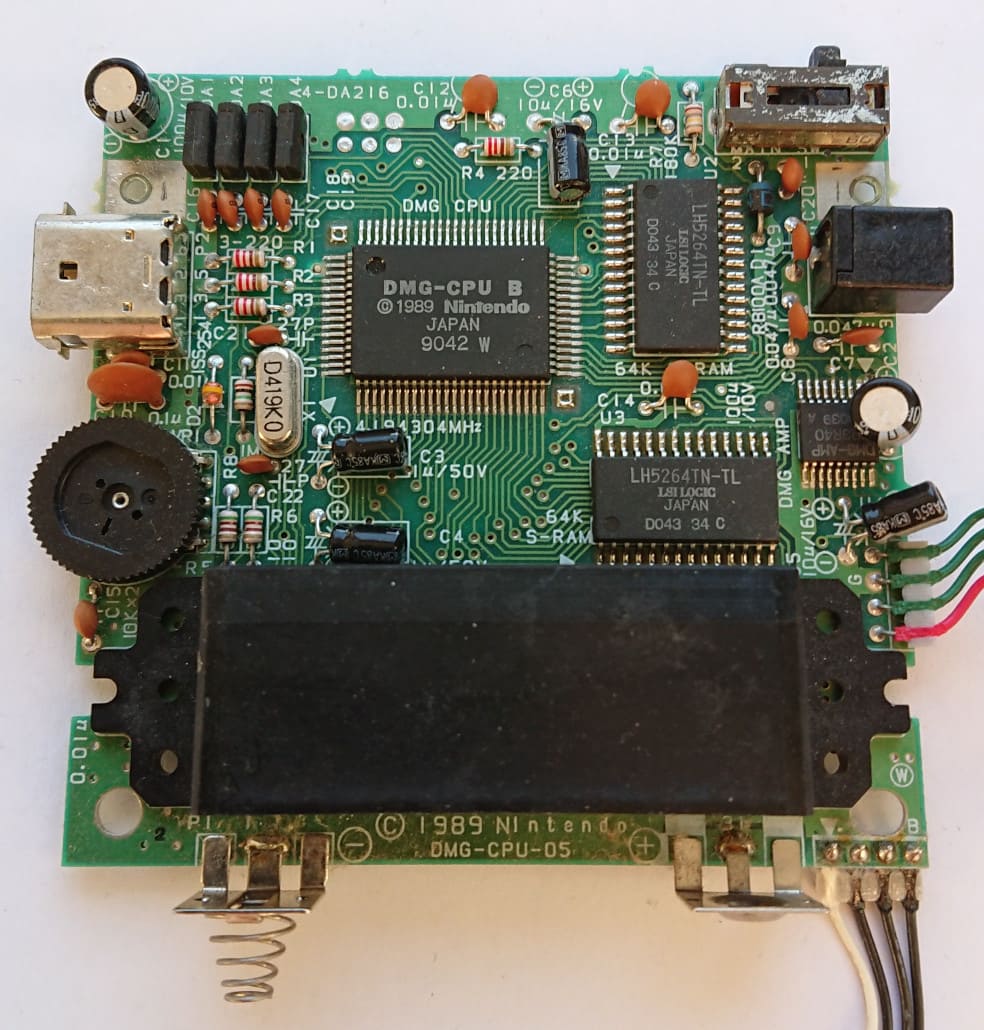

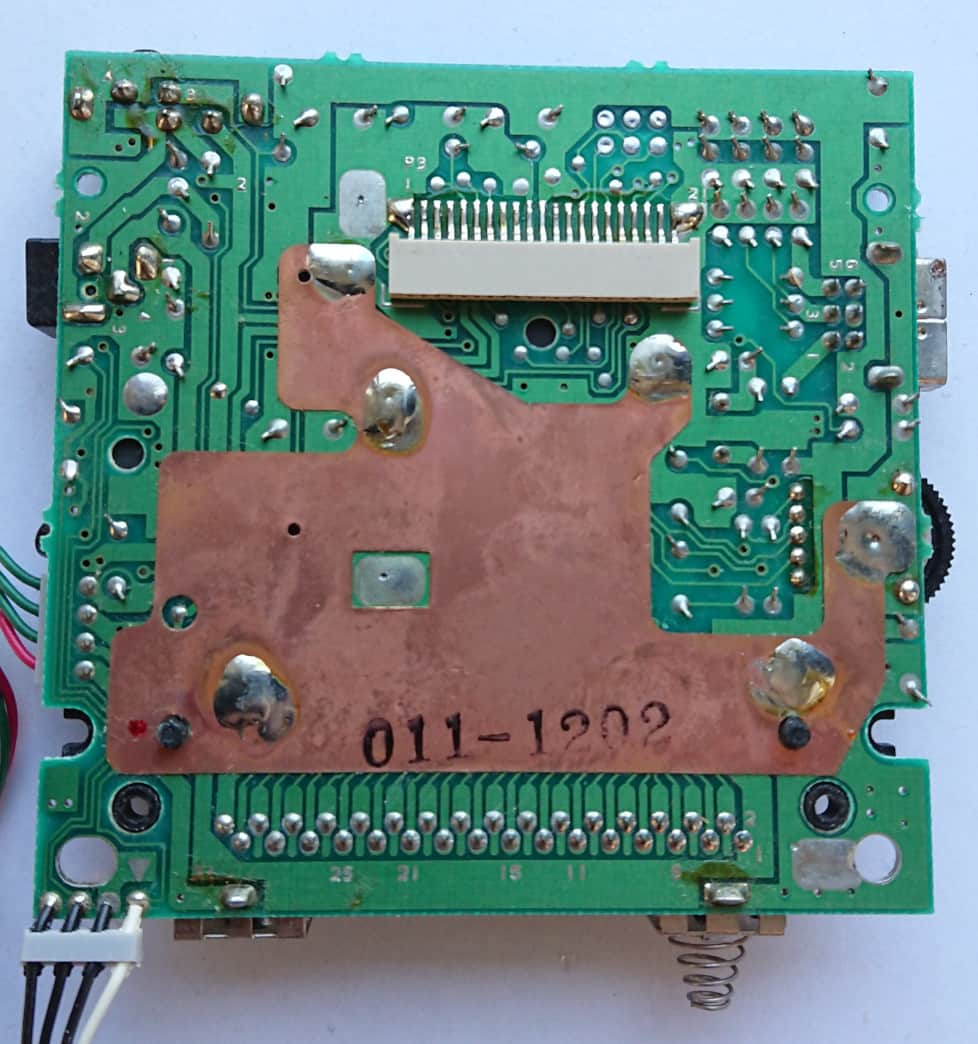

Mainboard

Board type
DMG-CPU-05
Stamp on board
011-1202
Circled letter(s) on board
W
Extra label
2

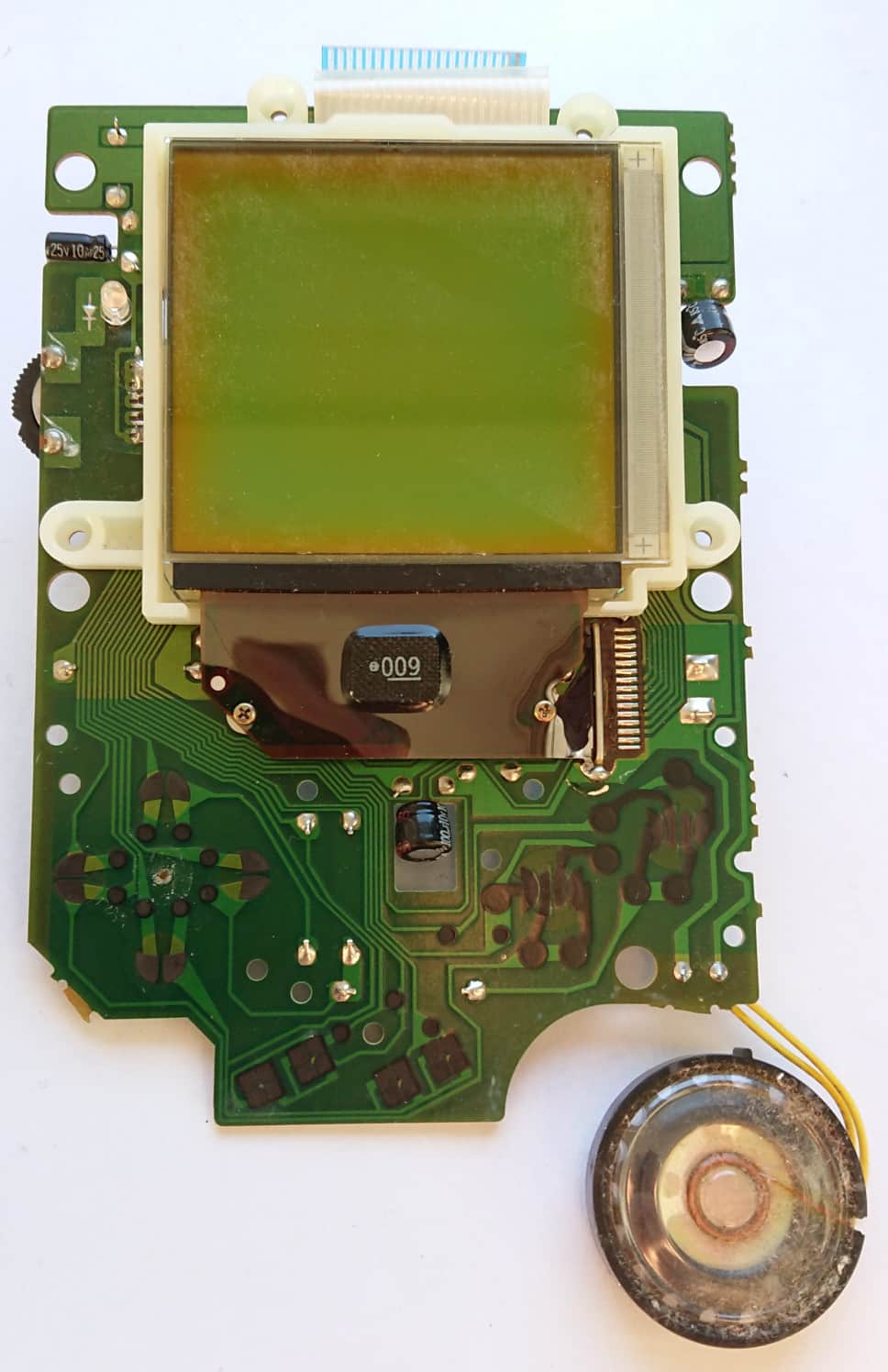

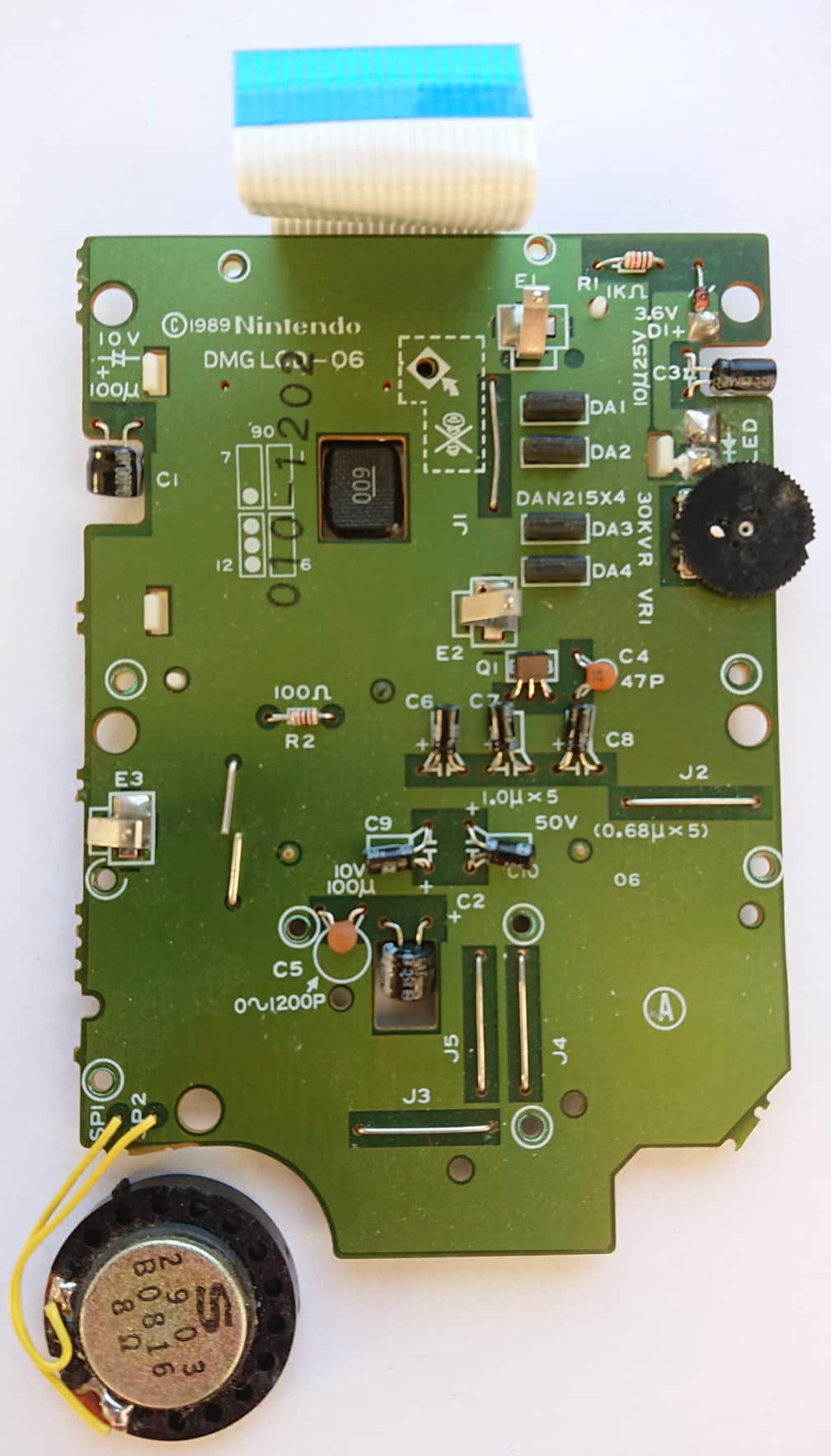

LCD Board

Board type
DMG-LCD-06
Manufacture date
August/1990
Stamp
010-1202
Circled letter(s) on board
A
LCD panel label
SY901011
LCD panel date
October/1990

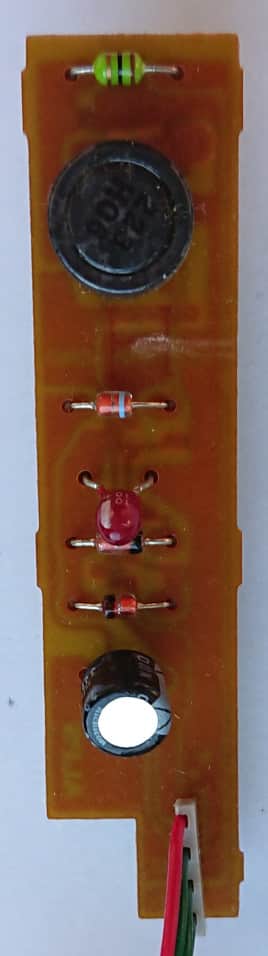

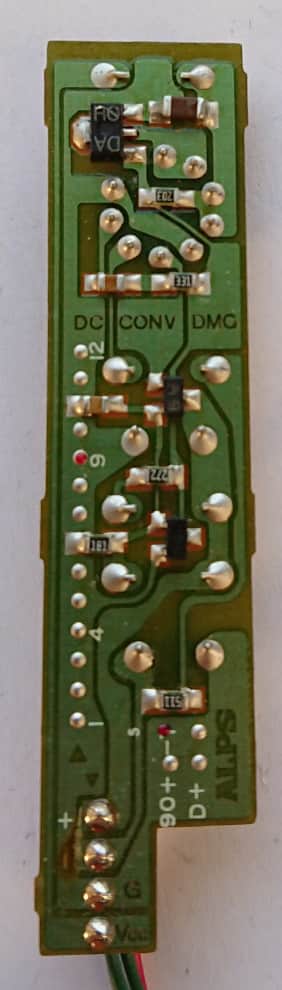

Power Board

Board type
Type A2
Manufacture date
September/1990
Label
DC CONV DMG

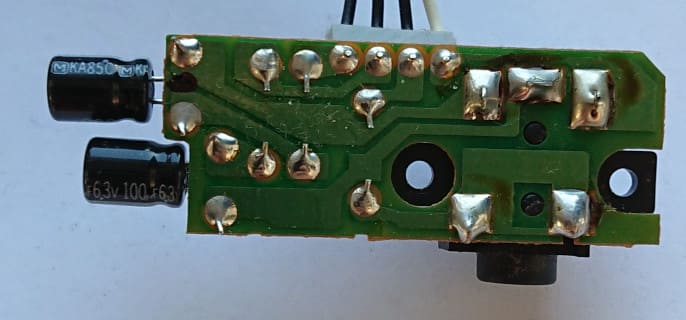

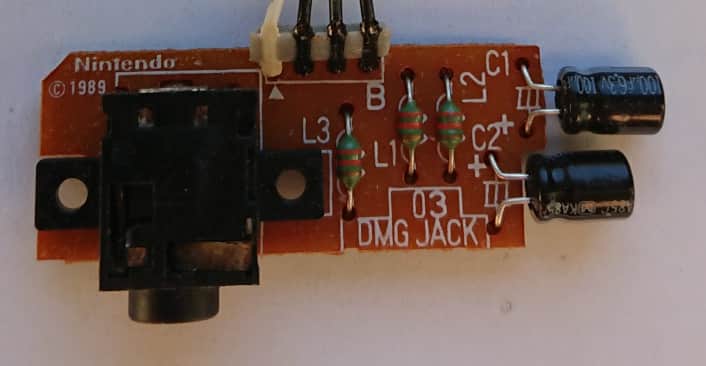

Jack Board

Board type
DMG JACK 03

Chips

ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 42/1990DMG-CPU B © 1989 Nintendo JAPAN 9042 W
U2Video RAMLH5264TN-LSharpWeek 49/1990LH5264TN-L SHARP JAPAN 9049 7 Y
U3Work RAMLH5264TN-LSharpWeek 49/1990LH5264TN-L SHARP JAPAN 9049 7 Y
U4AmplifierIR3R40SharpWeek 49/1990DMG-AMP IR3R40 9049 A
X1Crystal4.194304 MHzDaishinkuOctober/1990D419K0
-LCD Column DriverLH5077 FSharpSeptember/1990LH5077 F 009
-LCD Row DriverLH5076 FSharpSeptember/1990LH5076 F 009
-LCD RegulatorIR3E02SharpWeek 49/1990DMG-REG IR3E02 9049 J
