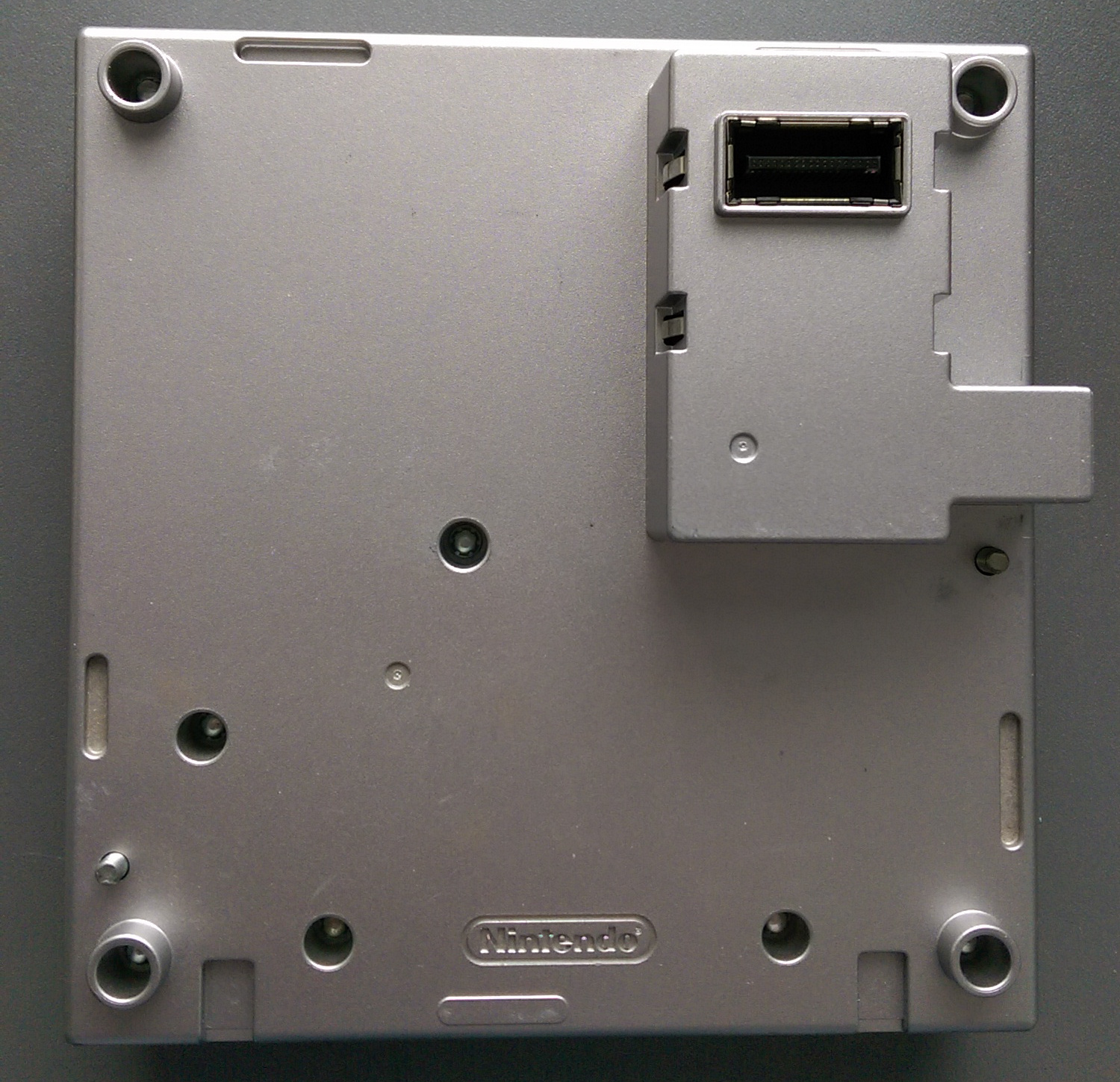

GBS: Unit #1 [gekkio]
- Color
- Platinum

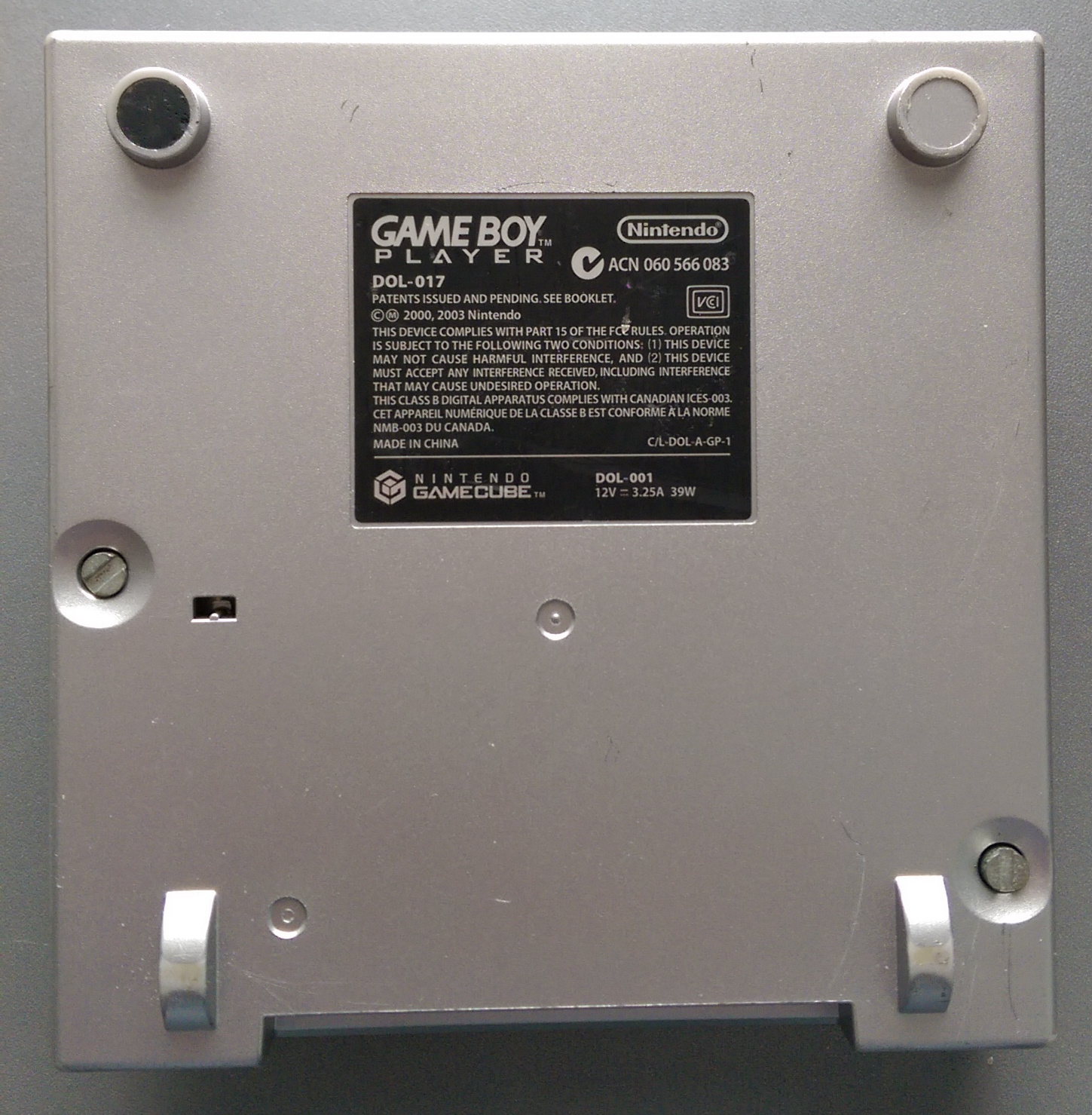

- Release code
- C/L-DOL-A-GP-1
- Assembly date
- Week 27/2003

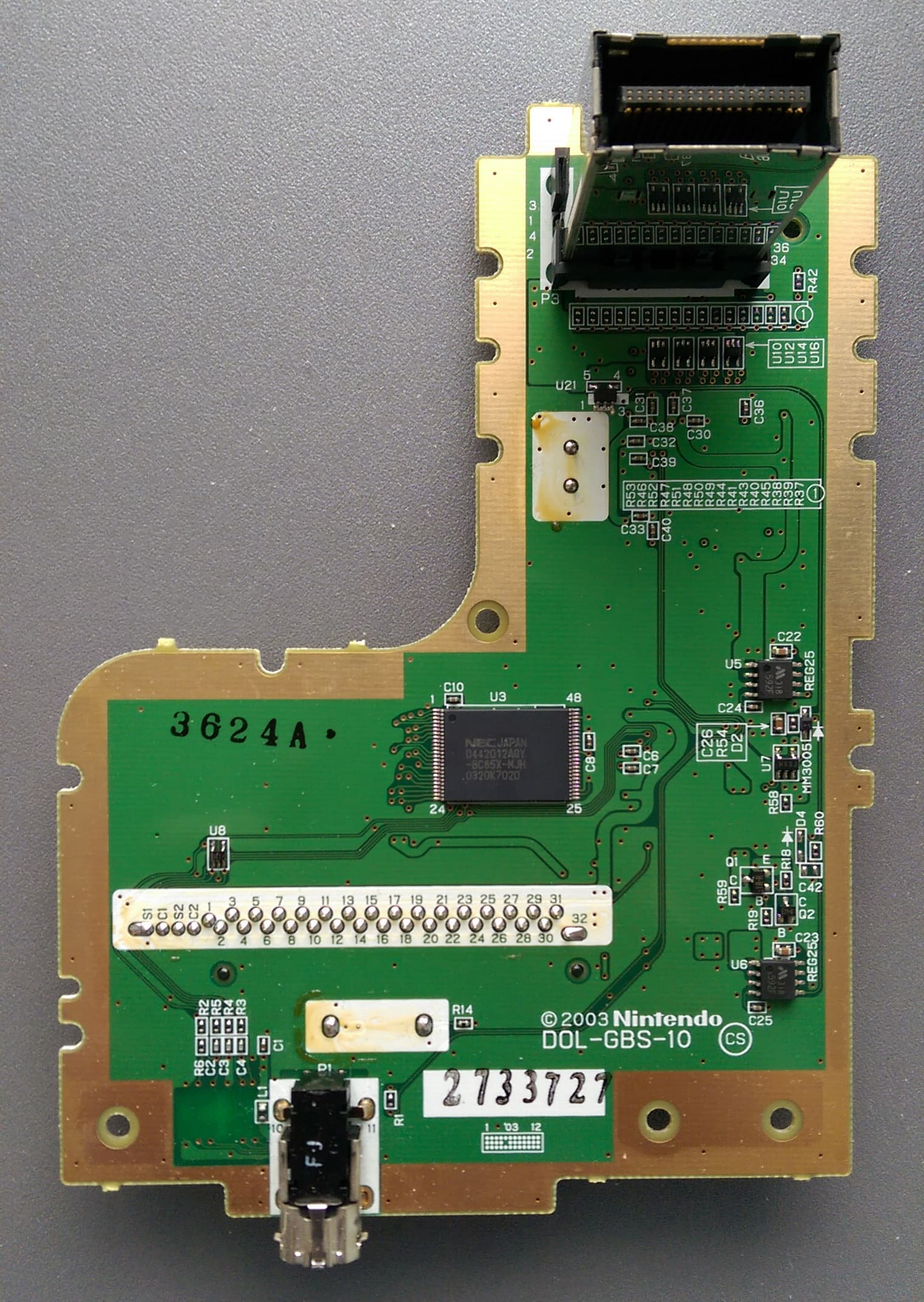

Mainboard
- Board type
- DOL-GBS-10
- Manufacture date
- May/2003
- Number pair on board
- 10-2
- Stamp on board
- 2733727
- Secondary stamp on board (front)
- 3624A

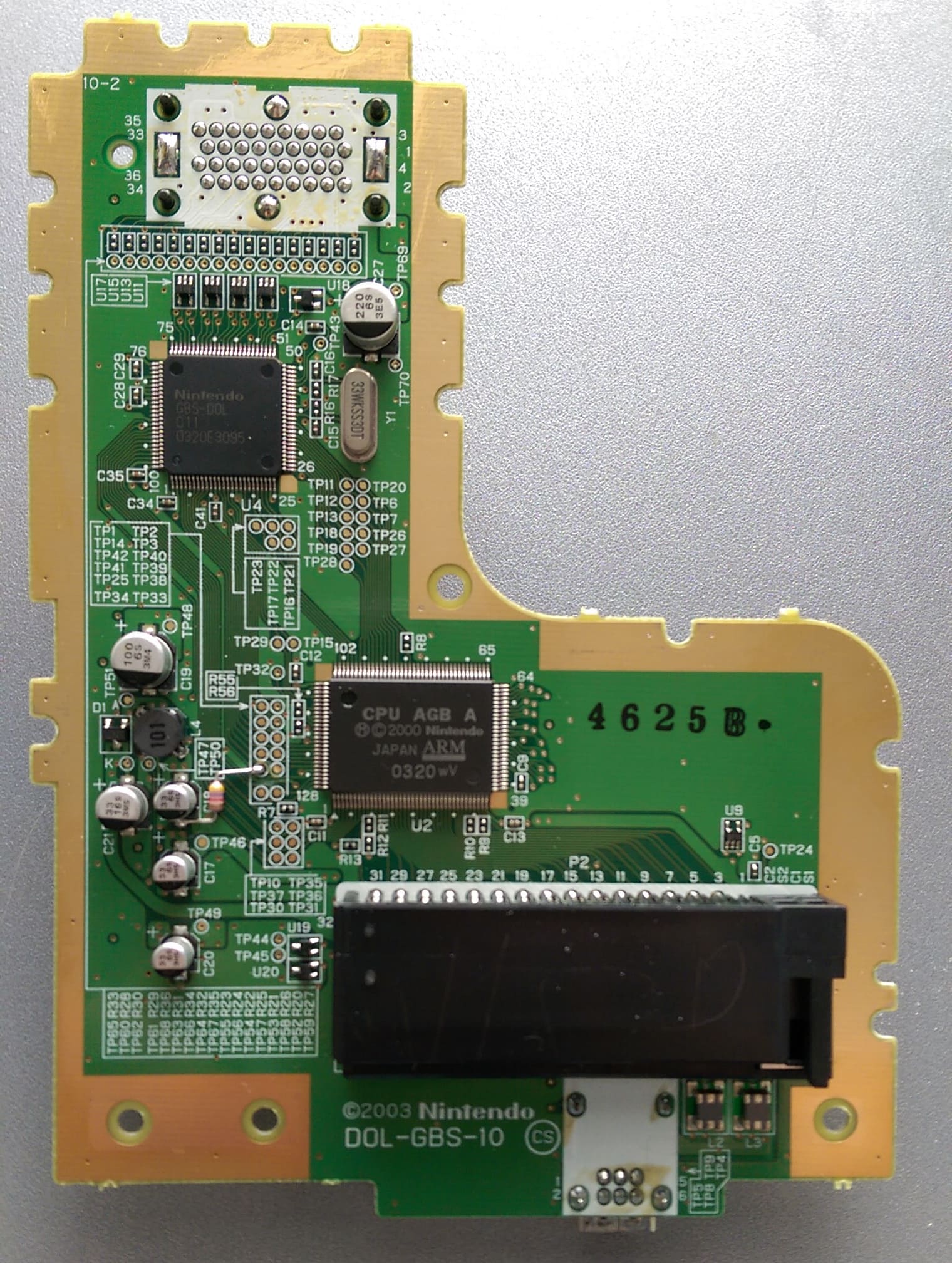

- Secondary stamp on board (back)
- 4625B
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Sharp | Week 20/2003 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0320 wV |
| U2 | WRAM | D442012AGY-BC85X-MJH | NEC | Week 20/2003 | NEC JAPAN D442012AGY-BC85X-MJH 0320K7020 |
| U4 | ? | GBS-DOL | NEC | Week 20/2003 | Nintendo GBS-DOL 011 0320E3095 |
| U5 | Regulator | MM1592F | Mitsumi | Week 18/2003 | 318 592F |
| U6 | Regulator | MM1592F | Mitsumi | Week 18/2003 | 318 592F |
| Y1 | Crystal | 33.554432 MHz | Kinseki | April/2003 | 33WKSS3DT |
