GBS: Unit #2 [gekkio]
- Color
- Spice
- Release code

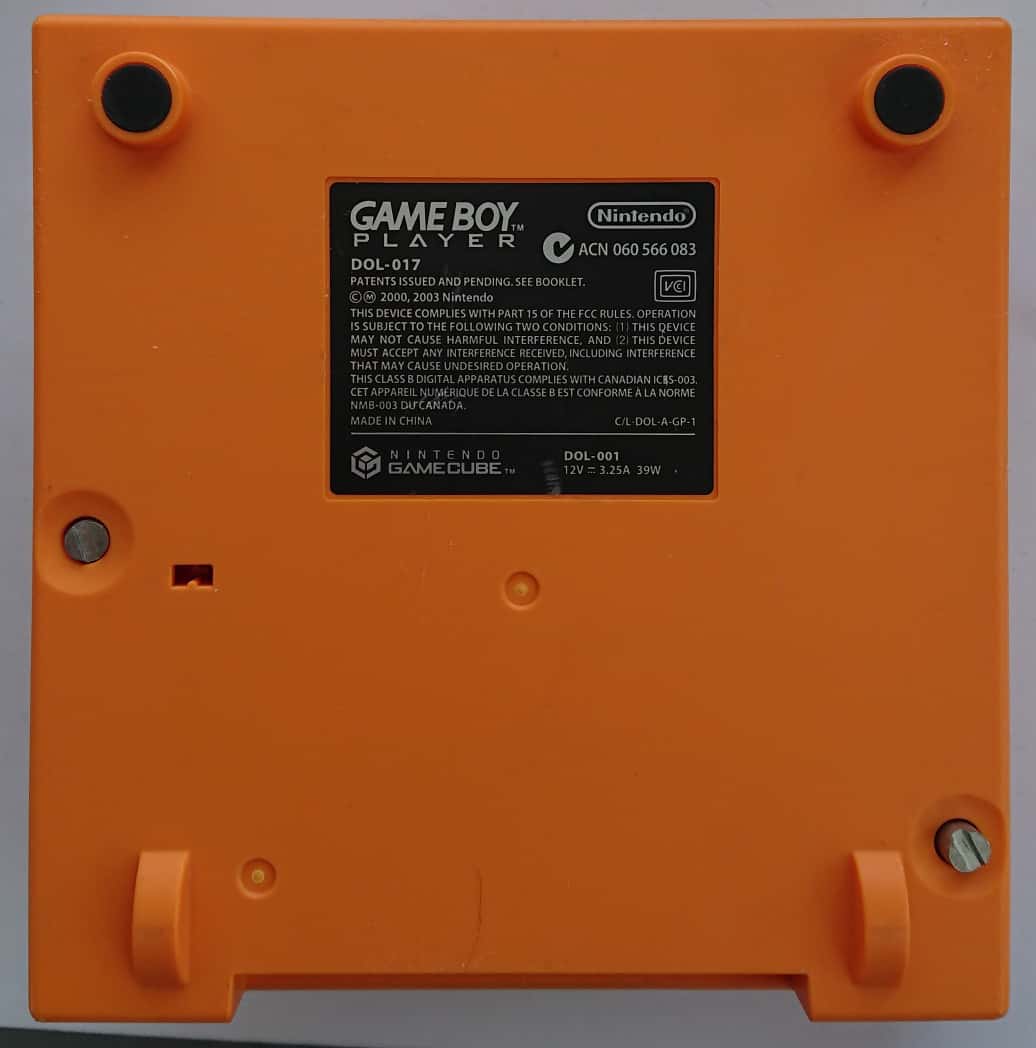

- C/L-DOL-A-GP-1
- Assembly date
- Week 23/2003

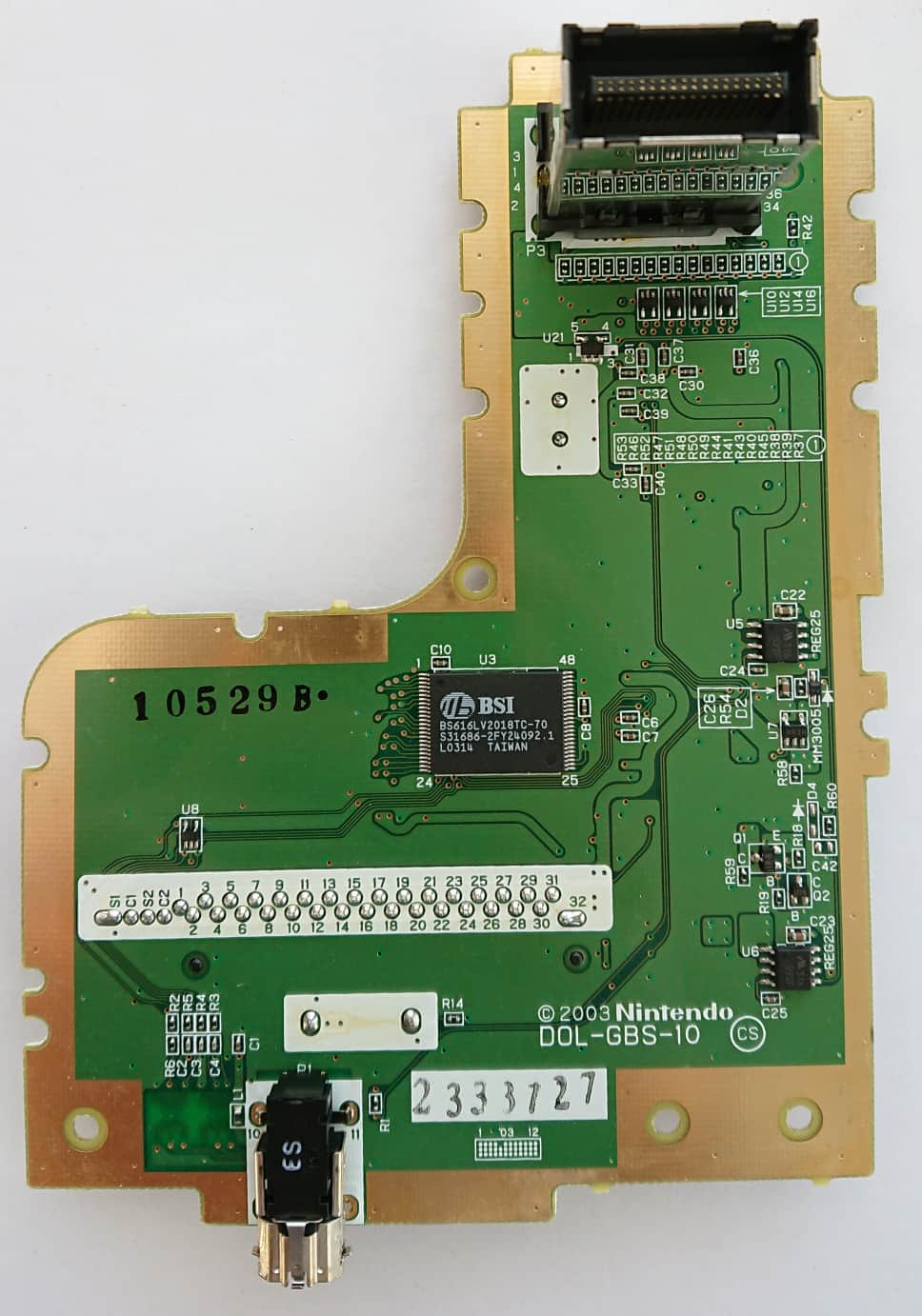

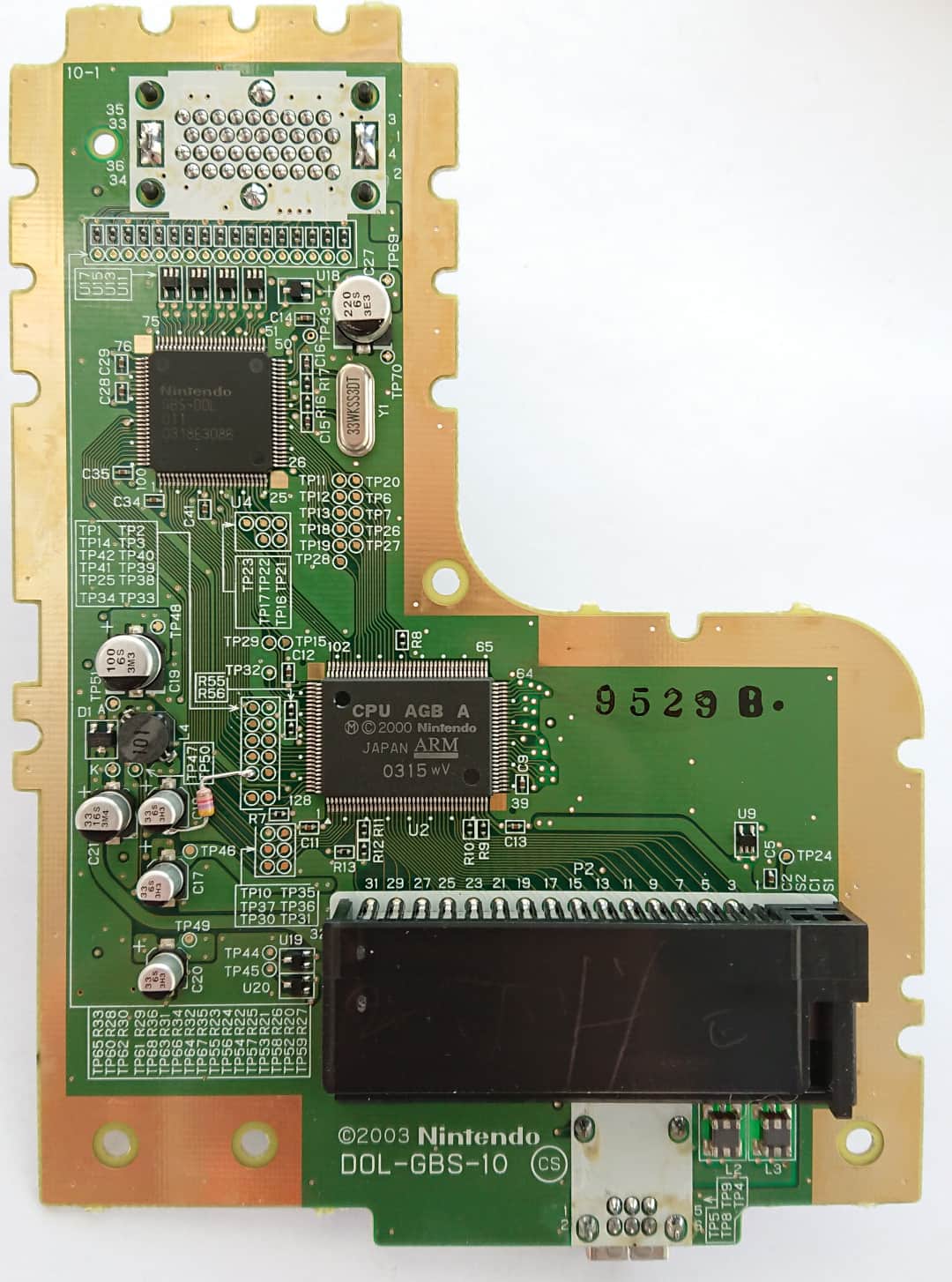

Mainboard
- Board type
- DOL-GBS-10
- Manufacture date
- May/2003
- Number pair on board
- 10-1
- Stamp on board
- 2333727
- Secondary stamp on board (front)
- 10529B
- Secondary stamp on board (back)
- 9529B
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Sharp | Week 15/2003 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0315 wV |
| U2 | WRAM | BS616LV2018TC-70 | BSI | Week 14/2003 | BSI BS616LV2018TC-70 S31686-2FY24092.1 L0314 TAIWAN |
| U4 | ? | GBS-DOL | NEC | Week 18/2003 | Nintendo GBS-DOL 011 0318E3086 |
| U5 | Regulator | MM1592F | Mitsumi | Week 16/2003 | 316 592F |
| U6 | Regulator | MM1592F | Mitsumi | Week 16/2003 | 316 592F |
| Y1 | Crystal | 33.554432 MHz | Kinseki | April/2003 | 33WKSS3DT |
