GBS: Unit #3 [gekkio]
- Color
- Black

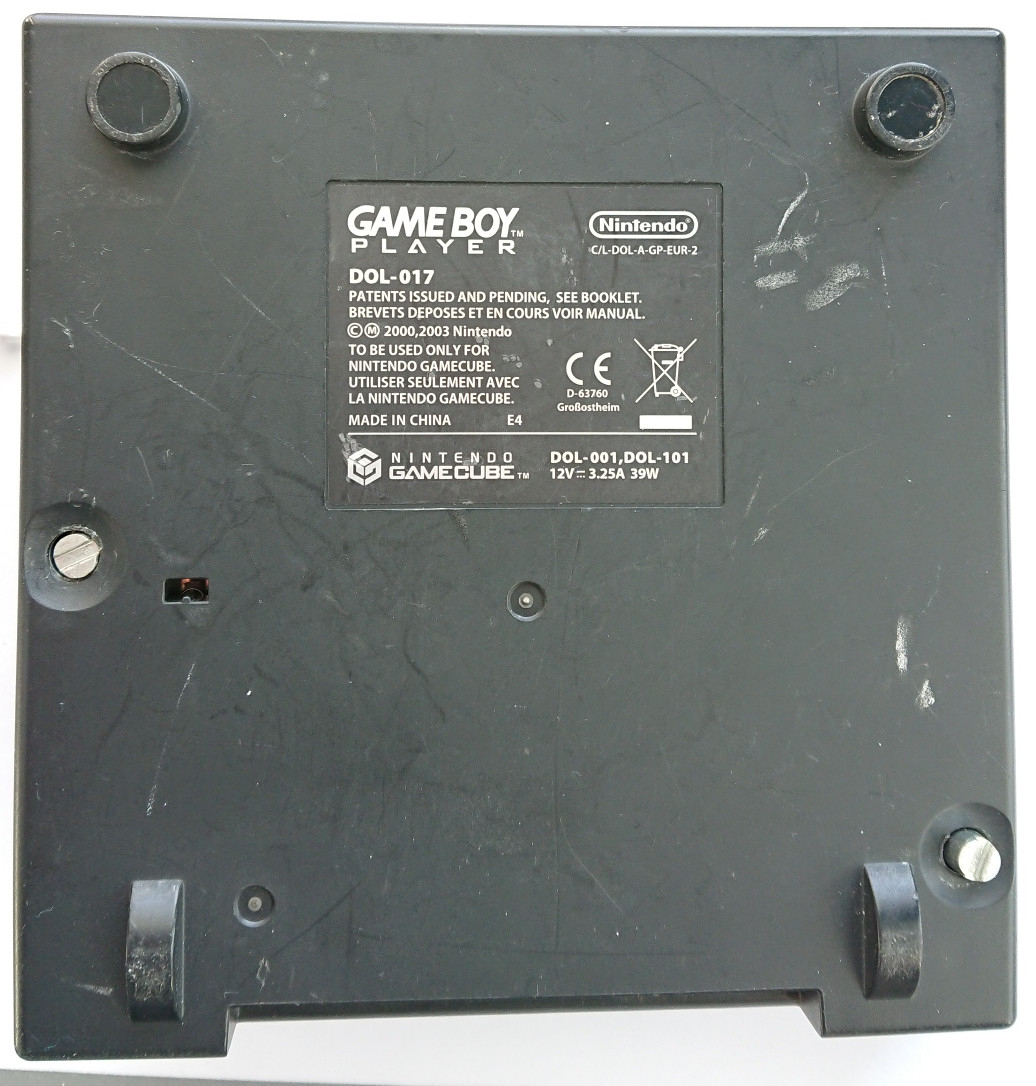

- Release code
- C/L-DOL-A-GP-EUR-2
- Assembly date
- Week 29/2006
Mainboard
- Board type
- DOL-GBS-20
- Manufacture date
- June/2006
- Number pair on board
- 20-1
- Stamp on board
- 2963733

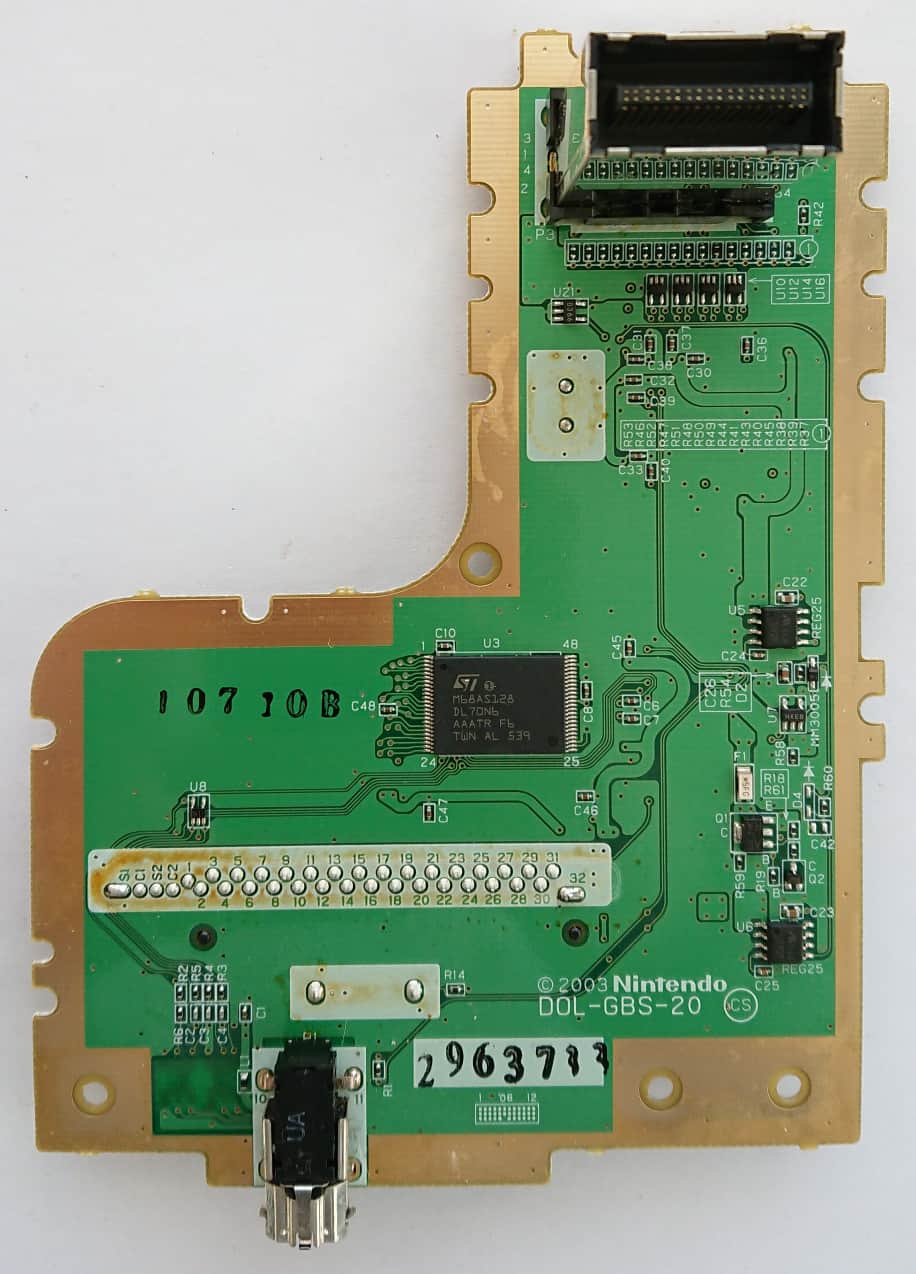

- Secondary stamp on board (front)
- 10710B

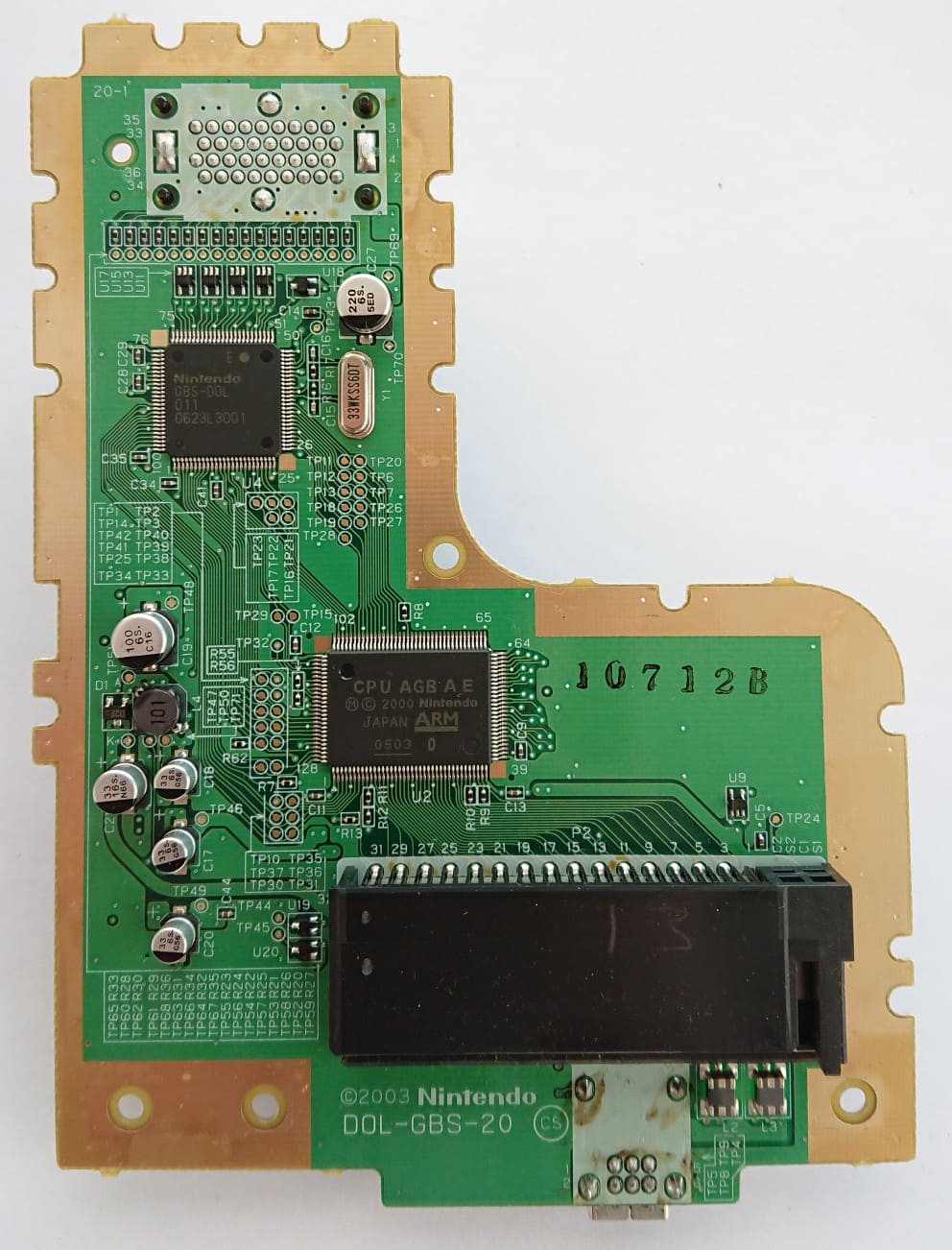

- Secondary stamp on board (back)
- 10712B
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A E | Sharp | Week 3/2005 | CPU AGB A E Ⓜ © 2000 Nintendo JAPAN ARM 0503 O |
| U2 | WRAM | M68AS128DL70N6 | STMicroelectronics | Week 39/2005 | M68AS128 DL70N6 AAATR F6 TWN AL 539 |
| U4 | ? | GBS-DOL | NEC | Week 23/2006 | Nintendo GBS-DOL 011 0623L3001 |
| U5 | Regulator | MM1592F | Mitsumi | Week 48/2005 | 548 592F |
| U6 | Regulator | MM1592F | Mitsumi | Week 48/2005 | 548 592F |
| Y1 | Crystal | 33.554432 MHz | Kinseki | April/2006 | 33WKSS6DT |
