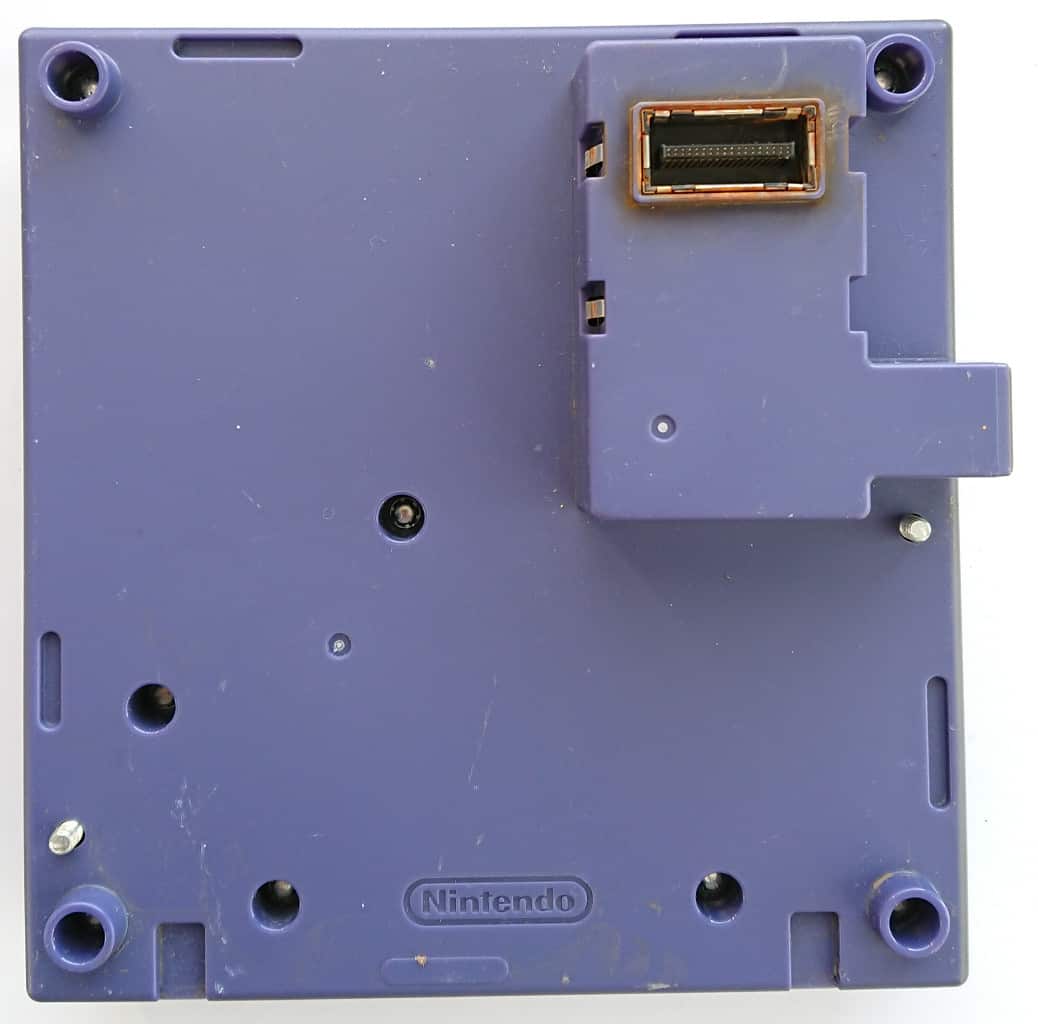

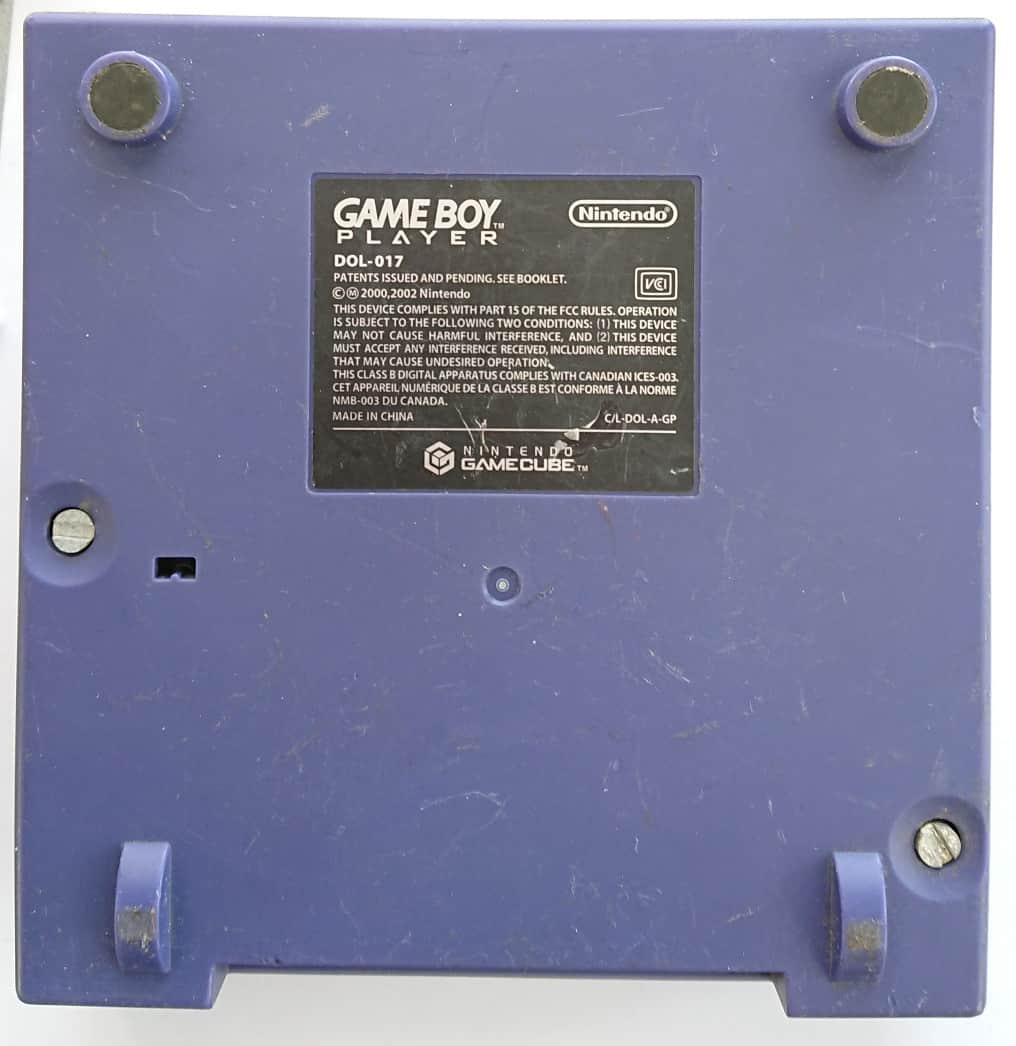

GBS: Unit #4 [gekkio]
- Color
- Indigo
- Release code
- C/L-DOL-A-GP
- Assembly date
- Week 12/2003

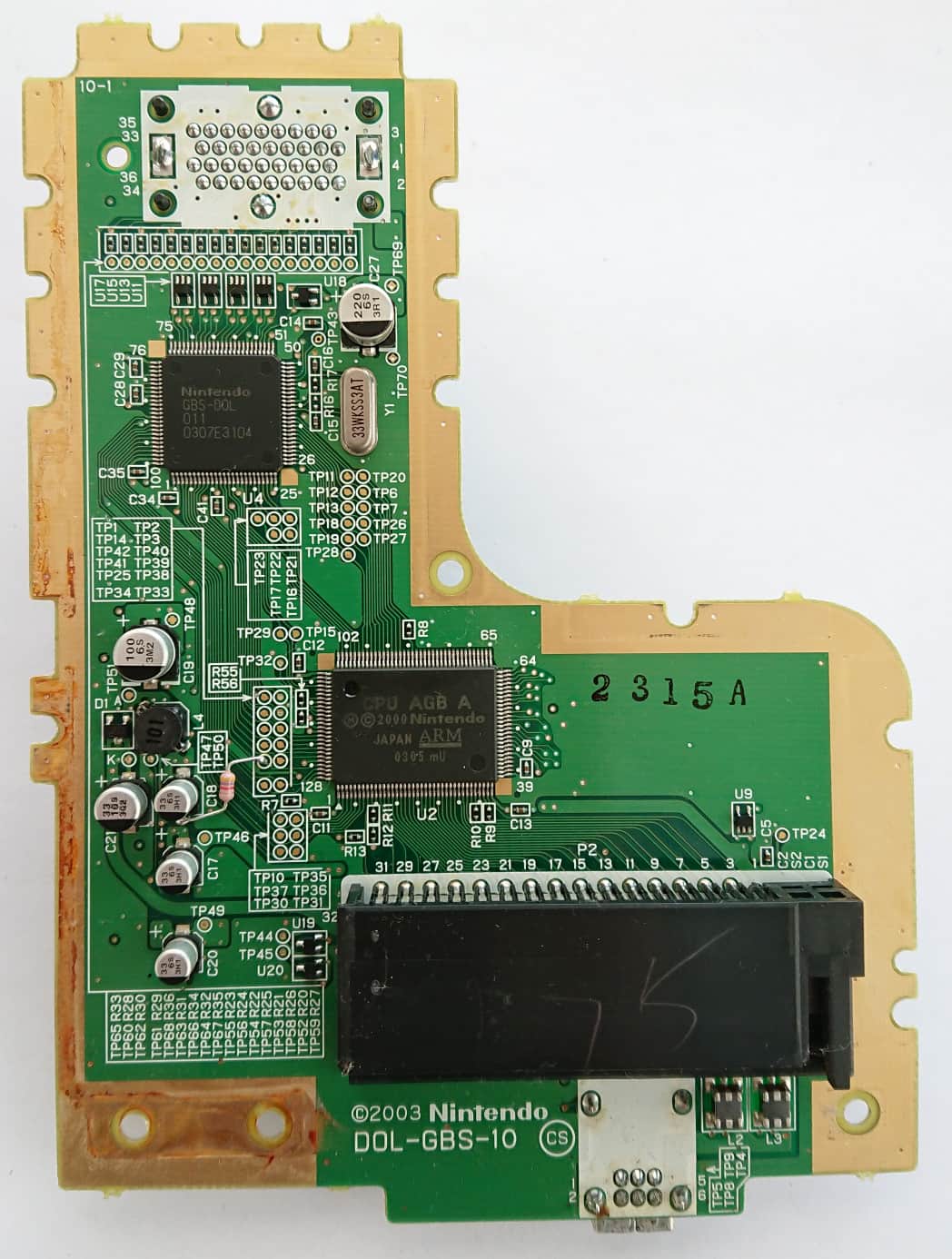

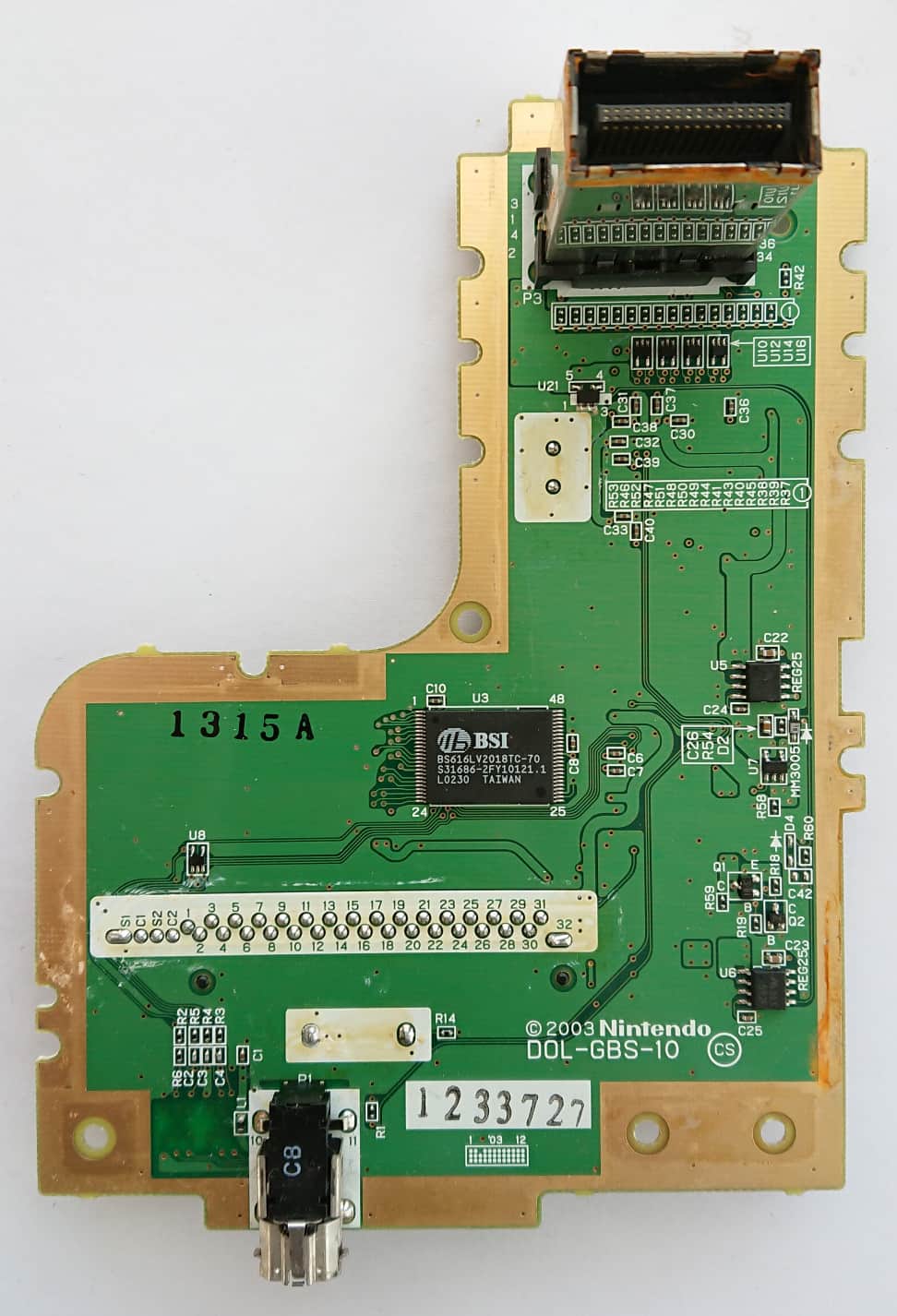

Mainboard
- Board type
- DOL-GBS-10
- Manufacture date
- March/2003
- Number pair on board
- 10-1
- Stamp on board
- 1233727
- Secondary stamp on board (front)
- 1315A
- Secondary stamp on board (back)
- 2315A
- Circled letter(s) on board
- CS
Parts
| Part | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | CPU AGB A | Sharp | Week 5/2003 | CPU AGB A Ⓜ © 2000 Nintendo JAPAN ARM 0305 mU |
| U2 | WRAM | BS616LV2018TC-70 | BSI | Week 30/2002 | BSI BS616LV2018TC-70 S31686-2FY10121.1 L0230 TAIWAN |
| U4 | ? | GBS-DOL | NEC | Week 7/2003 | Nintendo GBS-DOL 011 0307E3104 |
| U5 | Regulator | MM1592F | Mitsumi | Week 3/2003 | 303 592F |
| U6 | Regulator | MM1592F | Mitsumi | Week 3/2003 | 303 592F |
| Y1 | Crystal | 33.554432 MHz | Kinseki | January/2003 | 33WKSS3AT |
